ZETHUS-218S208X4 | ZETHUS Series Line Array System with One Dual 18-inch Subwoofer, Four Compact Dual 8-inch PA Speakers, One Stack Adapter, Black

Sound Town
Sound Town ZETHUS-218S208X4 ZETHUS Series Line Array Speaker System with One Dual 18-inch Subwoofer, Four Compact Dual 8-inch PA Speakers, Full Range/Bi-amp Switchable, One Stack Adapter, Black - Right Panel
Sound Town ZETHUS-218S208X4 ZETHUS Series Line Array Speaker System with One Dual 18-inch Subwoofer, Four Compact Dual 8-inch PA Speakers, Full Range/Bi-amp Switchable, One Stack Adapter, Black - Front Panel
Sound Town ZETHUS-218S208X4 ZETHUS Series Line Array Speaker System with One Dual 18-inch Subwoofer, Four Compact Dual 8-inch PA Speakers, Full Range/Bi-amp Switchable, One Stack Adapter, Black - Left Panel
Sound Town ZETHUS-218S208X4 ZETHUS Series Line Array Speaker System with One Dual 18-inch Subwoofer, Four Compact Dual 8-inch PA Speakers, Full Range/Bi-amp Switchable, One Stack Adapter, Black - Side Panel
Sound Town ZETHUS-218S208X4 ZETHUS Series Line Array Speaker System with One Dual 18-inch Subwoofer, Four Compact Dual 8-inch PA Speakers, Full Range/Bi-amp Switchable, One Stack Adapter, Black - Back Panel
SOUND TOWN ZETHUS-218S208X4 ZETHUS Series Dual 18" 3200W High Power Line Array Passive Subwoofer, Black, for Stages, Bars, Clubs - right panel

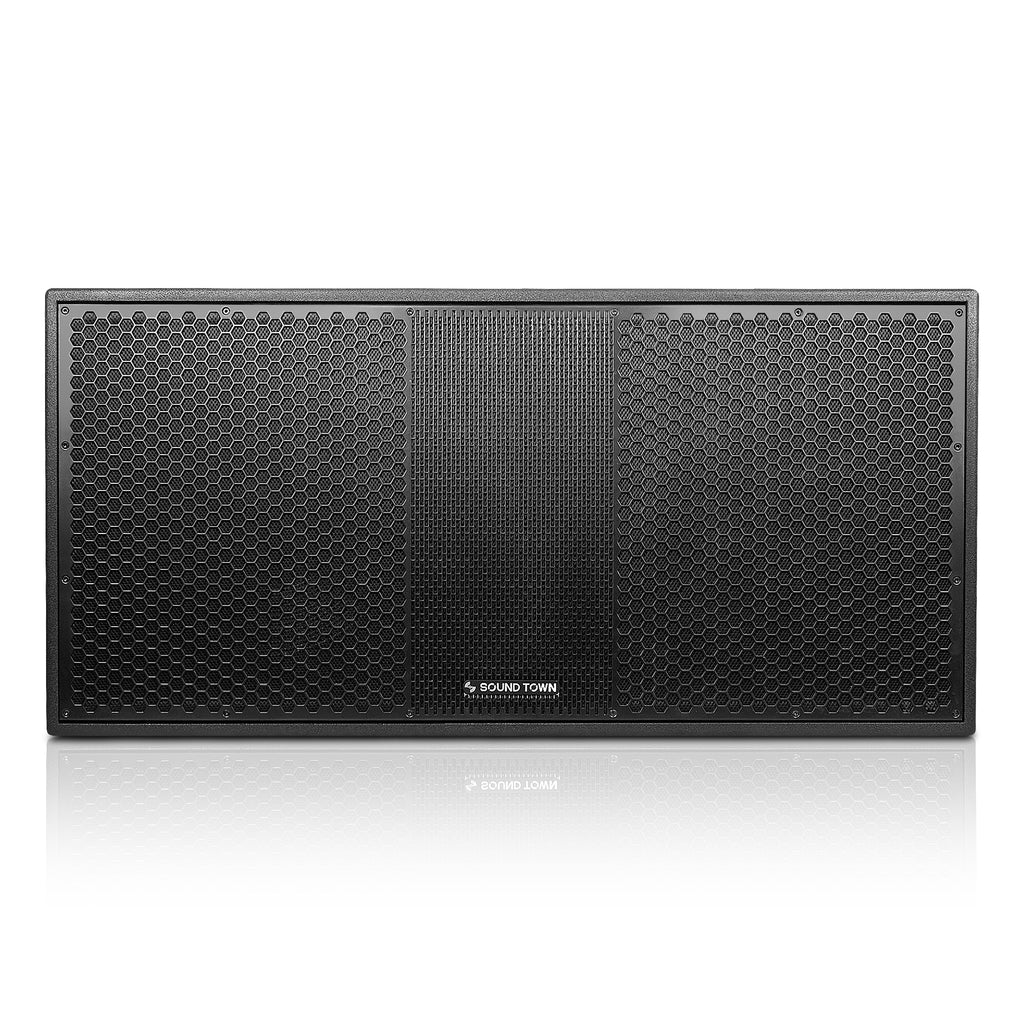

SOUND TOWN ZETHUS-218S208X4 ZETHUS Series Dual 18" 3200W High Power Line Array Passive Subwoofer, Black, for Stages, Bars, Clubs - front panel

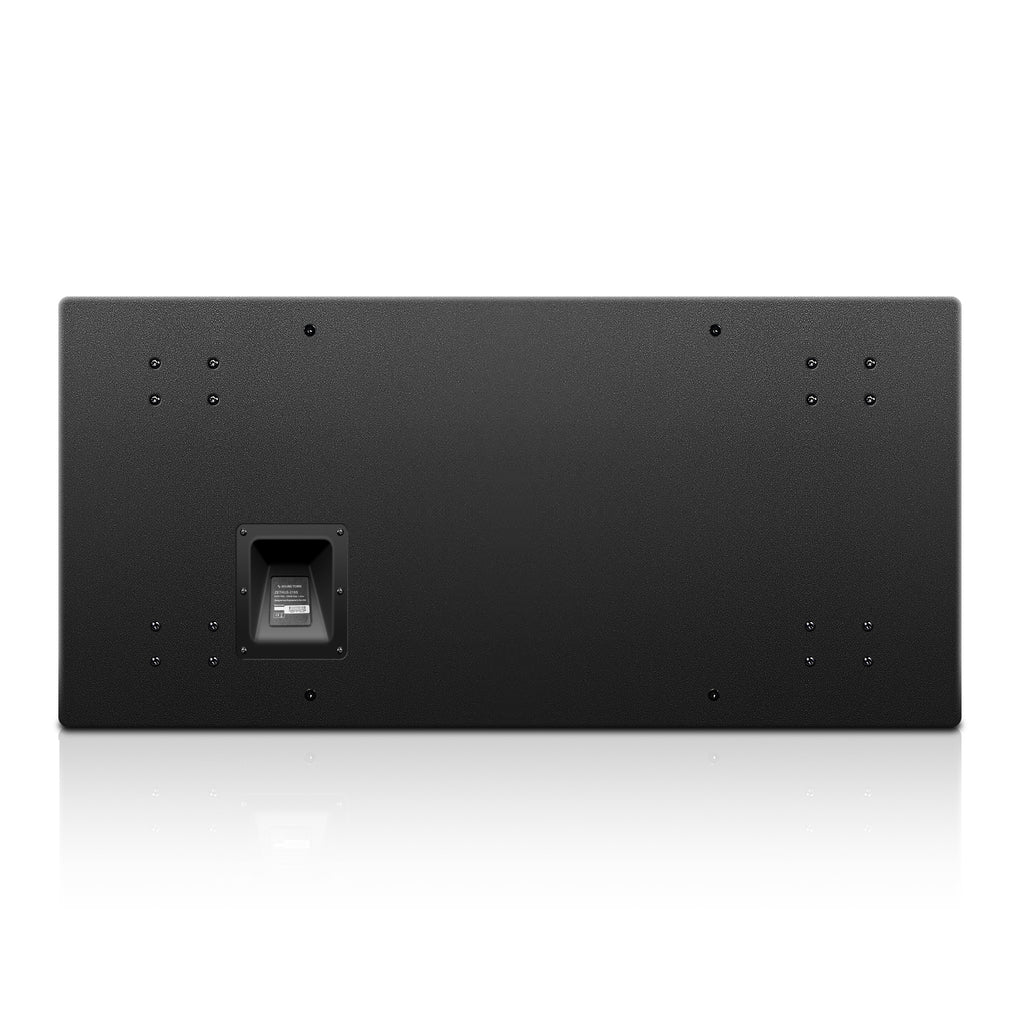

SOUND TOWN ZETHUS-218S208X4 ZETHUS Series Dual 18" 3200W High Power Line Array Passive Subwoofer, Black, for Stages, Bars, Clubs - back panel

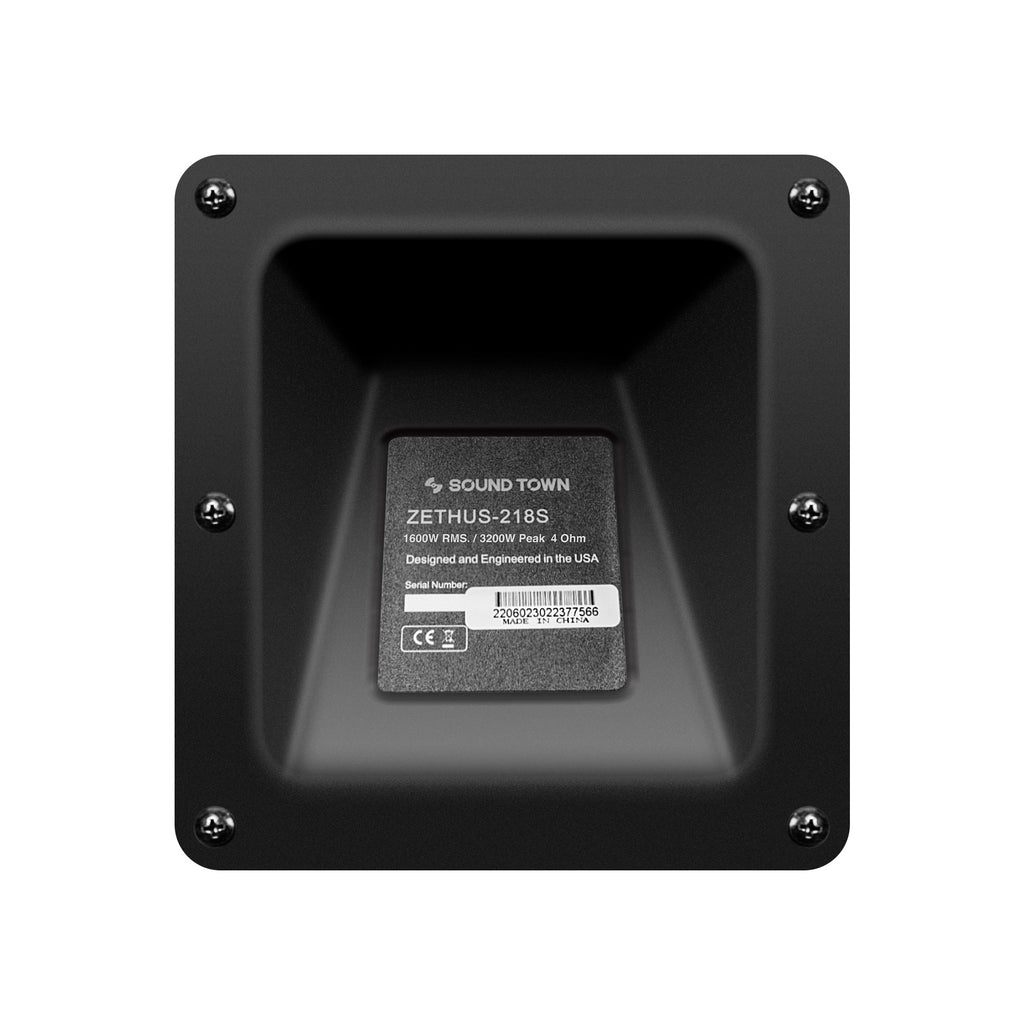

SOUND TOWN ZETHUS-218S208X4 ZETHUS Series Dual 18" 3200W High Power Line Array Passive Subwoofer, Black, for Stages, Bars, Clubs - 4 ohms, 1600w RMS.

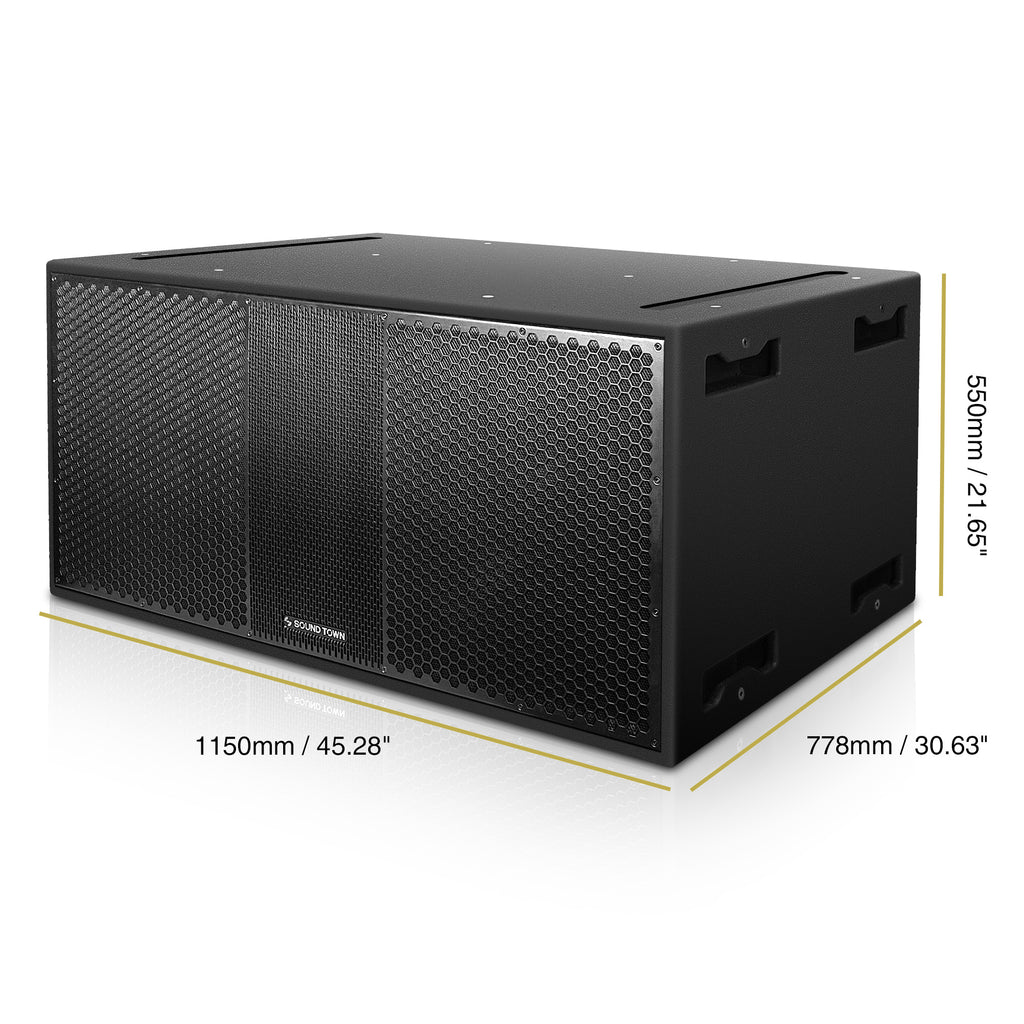

SOUND TOWN ZETHUS-218S208X4 ZETHUS Series Dual 18" 3200W High Power Line Array Passive Subwoofer, Black, for Stages, Bars, Clubs - Size & Dimensions
Sound Town ZETHUS-218S208X4 2 X 8” Line Array Loudspeaker System with Titanium Compression Driver, Black - Right Panel
Sound Town ZETHUS-218S208X4 2 X 8” Line Array Loudspeaker System with Titanium Compression Driver, Black - Front Panel
Sound Town ZETHUS-218S208X4 2 X 8” Line Array Loudspeaker System with Titanium Compression Driver, Black - Left Panel
Sound Town ZETHUS-218S208X4 2 X 8” Line Array Loudspeaker System with Titanium Compression Driver, Black - Back Panel
Sound Town ZETHUS-218S208X4 2 X 8” Line Array Loudspeaker System with Titanium Compression Driver, Black - 3D Model
Sound Town ZETHUS-218S208X4 2 X 8” Line Array Loudspeaker System with Titanium Compression Driver, Black - Jack Plate, Bi-Amp Switchable
Sound Town ZETHUS-208BV2 Dual 8” Line Array Loudspeaker System with Titanium Compression Driver, Black - Specifications, Performance Curve, SPL vs Frequency Graph, Impedance vs Frequency Graph, Size & Dimensions
Sound Town ZETHUS-218S208X4 Speaker Stack Adapter for ZETHUS-218S Subwoofer and ZETHUS Line Array PA Speakers - ground stacked
Sound Town ZETHUS-218S208X4 Speaker Stack Adapter for ZETHUS-218S Subwoofer and ZETHUS Line Array PA Speakers - ground stacked bracket
Sound Town ZETHUS-218S208X4 Speaker Stack Adapter for ZETHUS-218S Subwoofer and ZETHUS Line Array PA Speakers - size and dimensions.
Sound Town ZETHUS-218S208X4 Heavy-Duty Plywood Caster Board for ZETHUS-218S/218SPW Subwoofers and Furniture with 4-inch Wheels and Brakes - Sold Separately

$3,514.99 $5,272.99

The Sound Town ZETHUS Series ZETHUS-218S208X4 line array speaker system includes:

The ZETHUS-218S is a 3200W high power passive subwoofer. It comes with two 18” woofers, one 4“ voice coil and delivers deep, rich and tight bass. It operates at 1600W RMS and has a peak power output of 3200W and is wired at 4-Ohm. The frequency range can be driven down to 32 Hz. The ZETHUS-208BV2 is a lightweight and compact line array speaker. It comes with two 8” woofers and one 1.75” titanium compression driver with 350W RMS, 700W peak power handling capability. It offers full range (passive) / bi-amp mode switchable for either quick connection or professional setup.

Four ZETHUS-208BV2 line array speakers can be quickly stacked on top of the ZETHUS-218S subwoofer and secured with the stack adapter ZETHUS-SF1. Altogether they deliver accurate and immersive sound performance at earth-shaking volume. The line array system is ideal for mid and large-size live sound venues such as stages, bars, ballrooms, restaurants, houses of worship, convention centers, live theaters and more.

  • The line array speaker system includes 1 x ZETHUS-218S passive line array subwoofer, 4 x ZETHUS-208BV2 passive line array speakers, and 1 x ZETHUS-SF1 stack adapter.
  • The ZETHUS-218S is a high-power passive line array subwoofer. With two 18” woofers and one 4" voice coil built in, the ZETHUS-218S subwoofer handles 1600W RMS / 3200W peak power output, and delivers deep, rich and punchy bass.
  • The ZETHUS-208V2 is a lightweight and compact line array speaker. It comes with two 8” woofers and one 1.75” titanium compression driver with 350W RMS, 700W peak power handling capability. It offers full range (passive) / bi-amp mode switchable for either quick connection or professional setup.
  • Four ZETHUS-208V2 line array speakers can be quickly stacked on top of the ZETHUS-218S subwoofer and secured with the stack adapter ZETHUS-SF1. Altogether they deliver accurate and immersive sound performance at earth-shaking volume.
  • Perfect for live sound venues such as stages, bars, ballrooms, restaurants, houses of worship, convention centers, theaters and more.

Specifications

Model ZETHUS-218S ZETHUS-208BV2 (black), ZETHUS-208WV2 (white)
Frequency Response 32 Hz - 180 Hz 55 Hz ~ 20 kHz
Sensitivity 104 dB (Passive) 101 dB (Passive)
SPL Max 135 dB 128 dB
Dispersion Omnidirectional 120º x 15º (H x V)
Configuration Dual 18" line array subwoofer Compact dual 8" passive full-range line array loudspeaker
Transducer LF: 2 x 18" woofer, HF: -- LF: 2 x 8", HF: 1 x 1.75" diaphragm
Voice Coil 4"
 2"
Magnet 145 oz 30 oz
Impedance Parallel: 4Ω; Bi-amp: 2 x 8Ω 16Ω Nominal
Power Handling 1600W RMS, 3200W PROGRAM, 6400W PEAK 350W RMS / 700W PEAK
Connectors 2 x 4 Pin Speakon 2 x 4 Pin Speakon
Cabinet Construction High-grade 100% birch plywood High-grade 100% birch plywood
Flying/Mounting Bracket Model# ZETHUS-SF1, integrated line array hardware ZETHUS-208FF or ZETHUS-115SFF, compact line array hardware
Finish Texture coating Texture coating
Grill & Rigging Component Steel with anti-corrosion coat Steel with anti-corrosion coat
Amplifier --
 --
Input --
 --
Output --
 --
Signal Processing --
 --
Control --
 --
Indicator --
 --
Voltage --
 --
Crossover Parts# -- XO-Z208
High Frequency Driver Parts# -- STHF-4403T
Low Frequency Woofer Parts# STLF-18AS STLF-08Z
Caster Board Model# ZSCB-218S --


Dimension & Weight

Model
 ZETHUS-218S ZETHUS-208BV2 (each) ZETHUS-SF1
Product Width (in.) 45.3" 26.4" 32.2"
Product Height (in.) 21.7" 9.7" 2.0"
Product Depth (in.) 30.6" 13.5" 18.1"
Product Weight (lb.) 236.0 lbs 42.0 lbs 21.0 lbs
Package Width (in.) 50.8" 29.3" 32.9"
Package Height (in.) 28.1" 13.1" 3.0"
Package Depth (in.) 36.2" 16.5" 18.9"
Package Weight (lb.) 247.5 lbs 45.8 lbs
 23.2 lbs


Warranty/Certifications

Manufacturer Warranty 1 Year


▶ ZETHUS Series Brochure
