ZETHUS Series Line Array Speaker System with One 15-inch Powered Line Array Subwoofer, Two Compact 2 X 8-inch Line Array Speakers, White
ZETHUS-115SWPW208WV2X2
ZETHUS Series Line Array Speaker System with One 15-inch Powered Line Array Subwoofer, Two Compact 2 X 8-inch Line Array Speakers, White







- DESCRIPTION
- FEATURES
- SPECIFICATIONS
- REVIEWS
The Sound Town ZETHUS Series ZETHUS-115SWPW208WV2X2 line array speaker system includes:
- (1) ZETHUS-115SWPW powered line array subwoofer
- (2) ZETHUS-208WV2 passive line array speakers

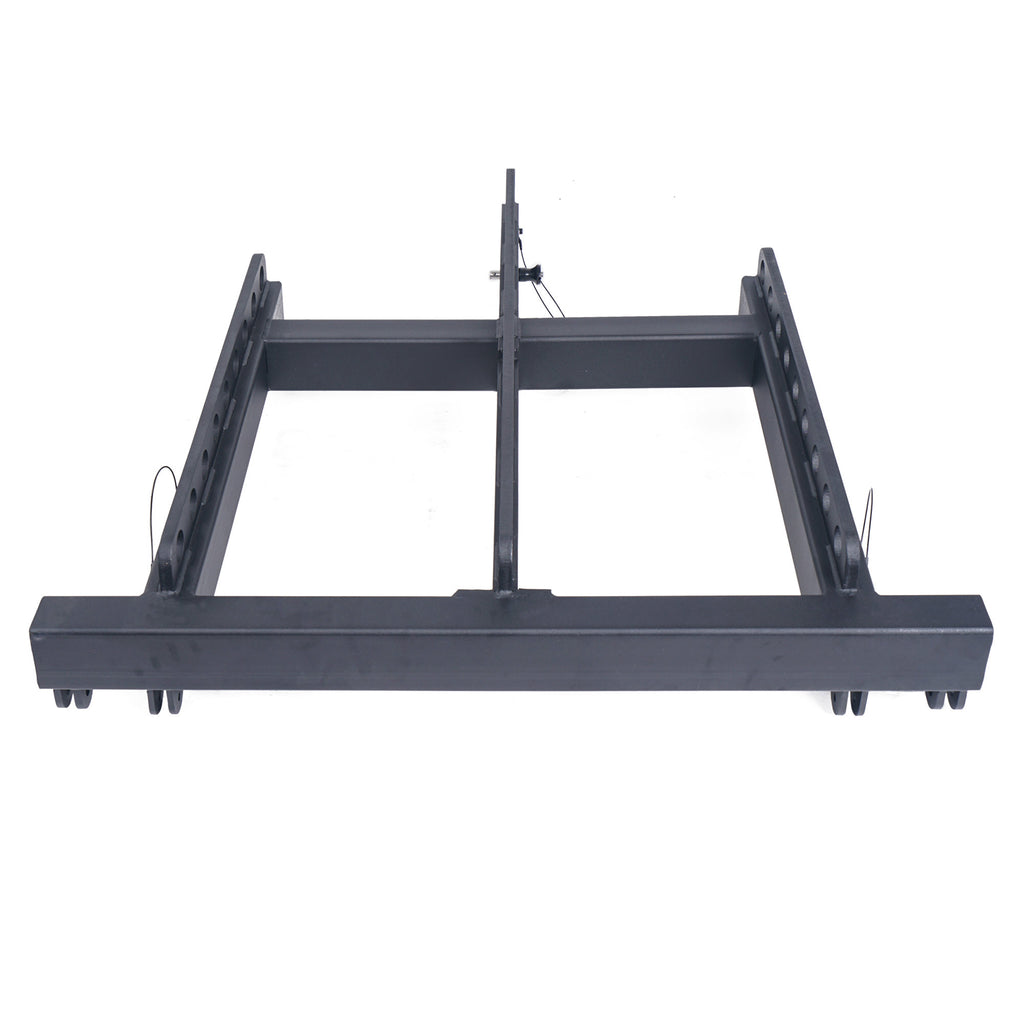

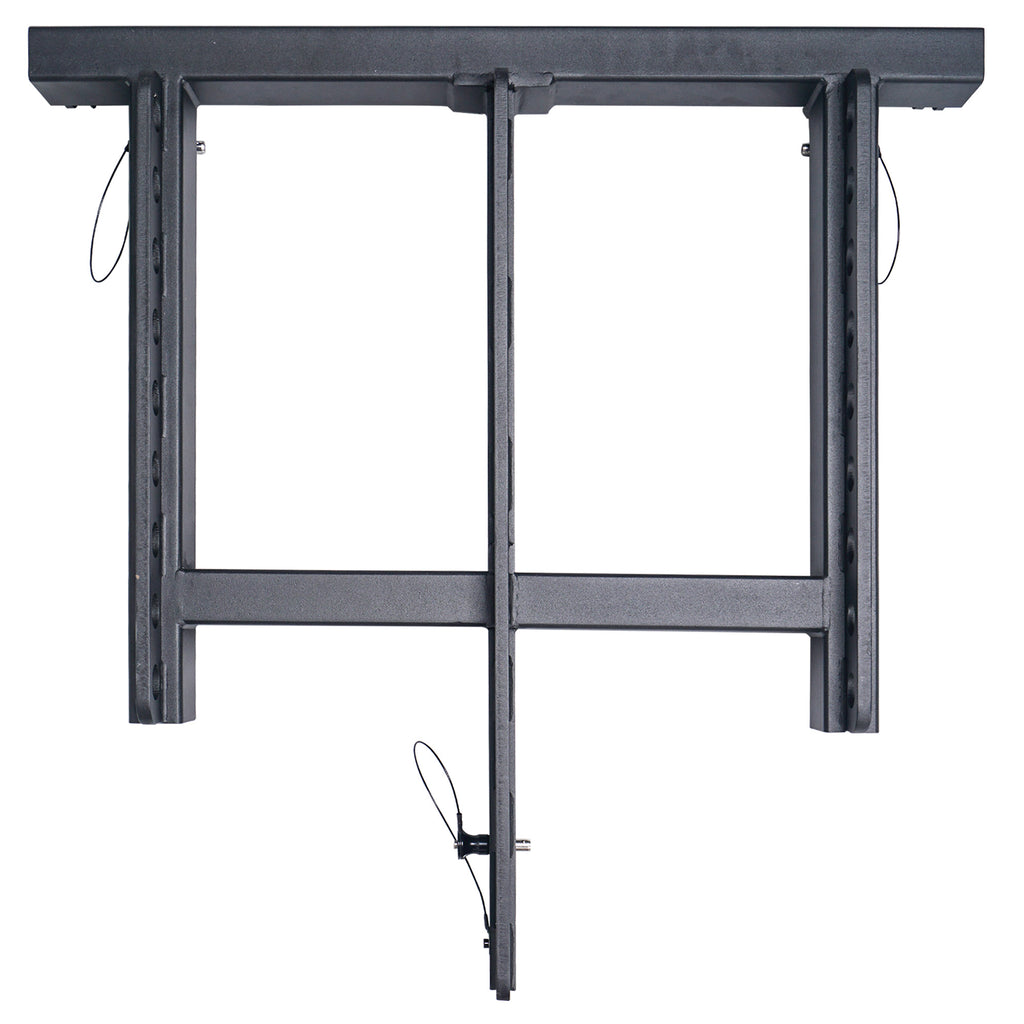

- (1) ZETHUS-115SFF flying frame

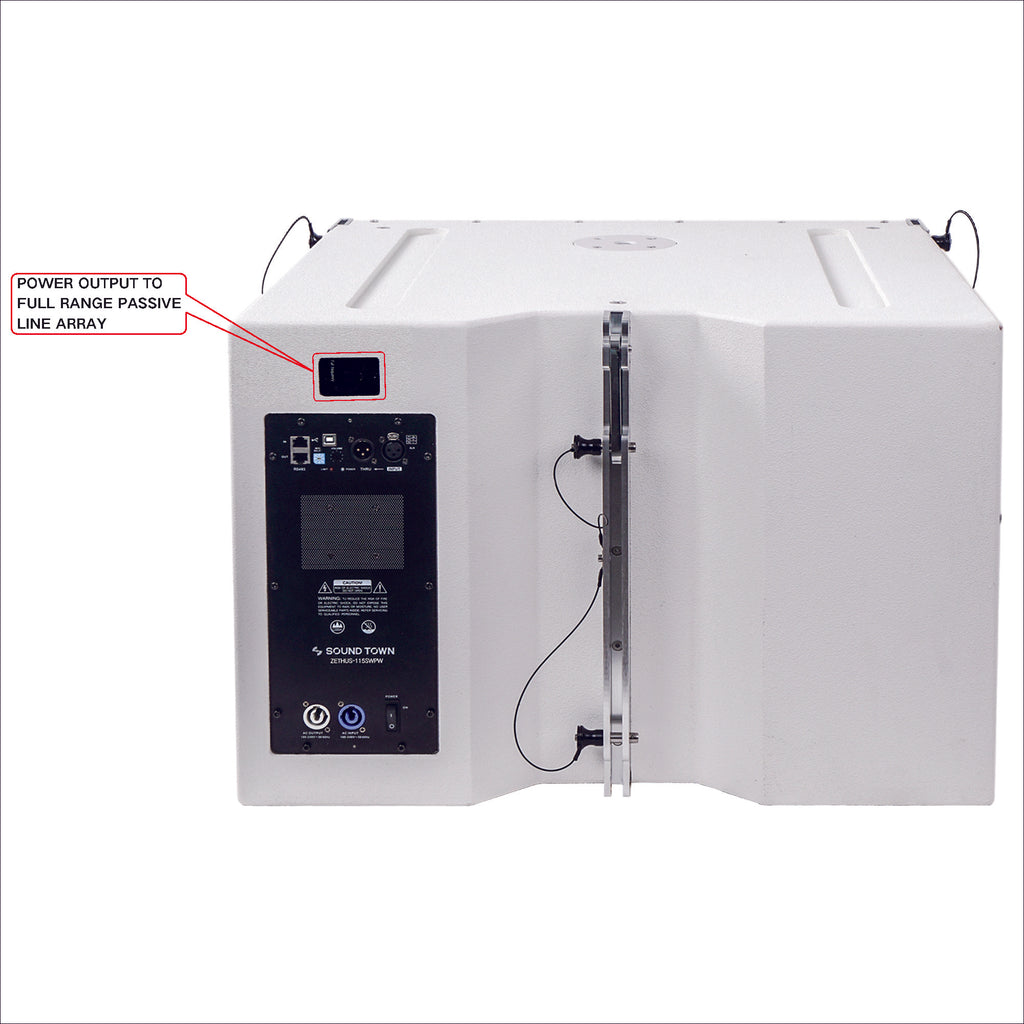

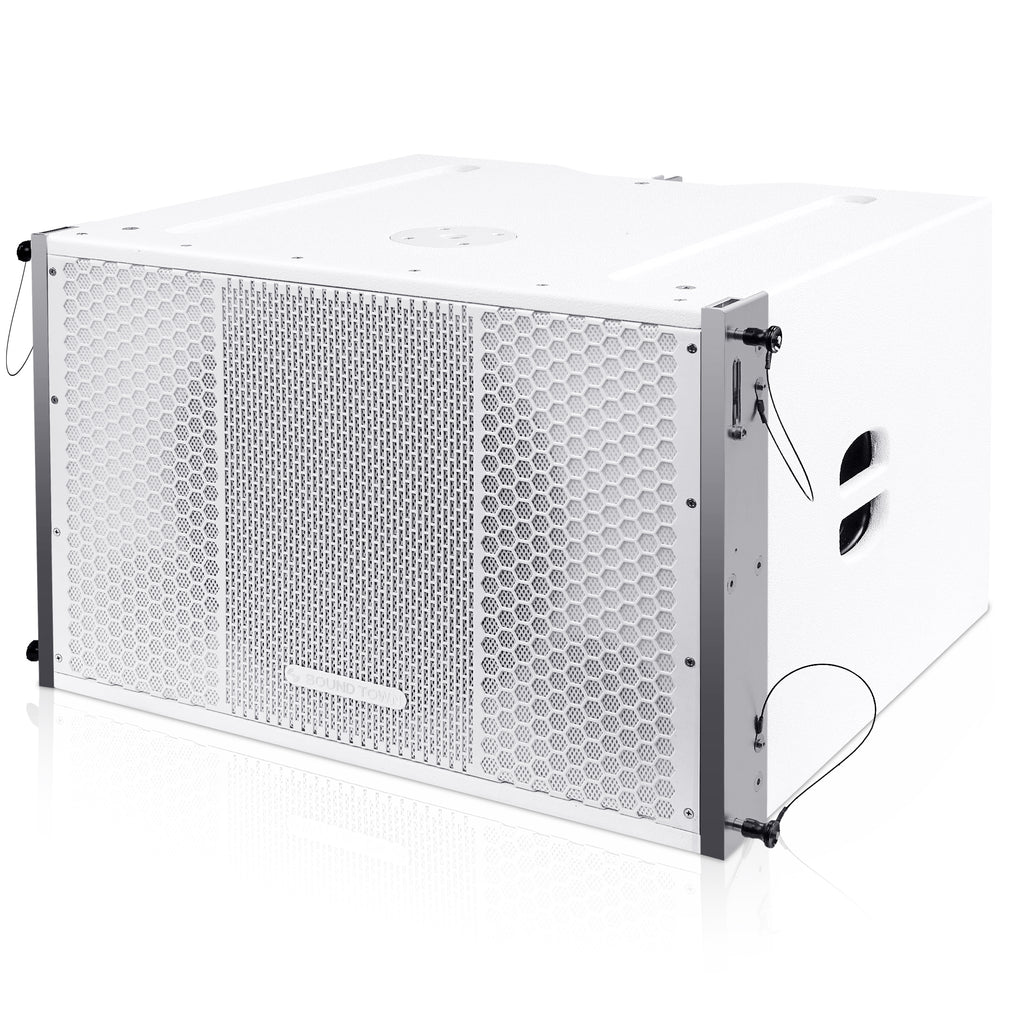

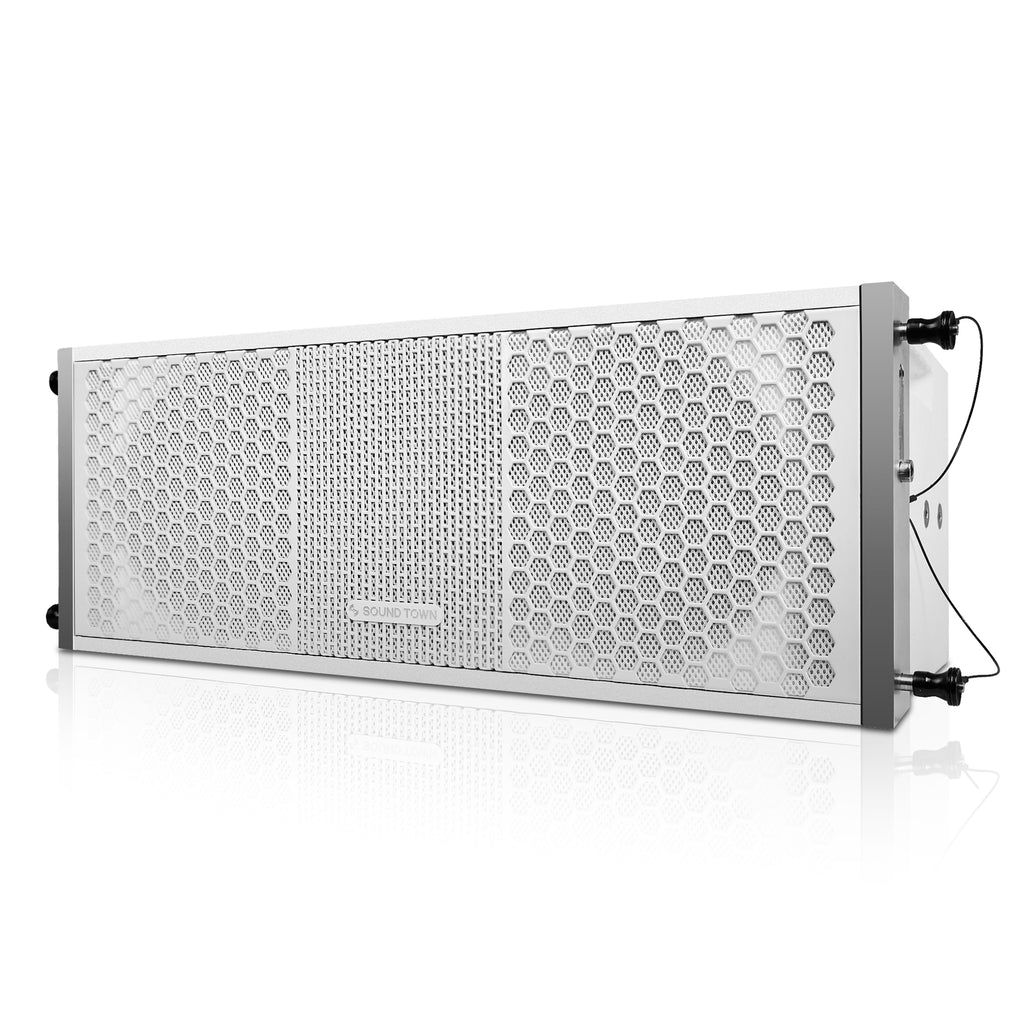

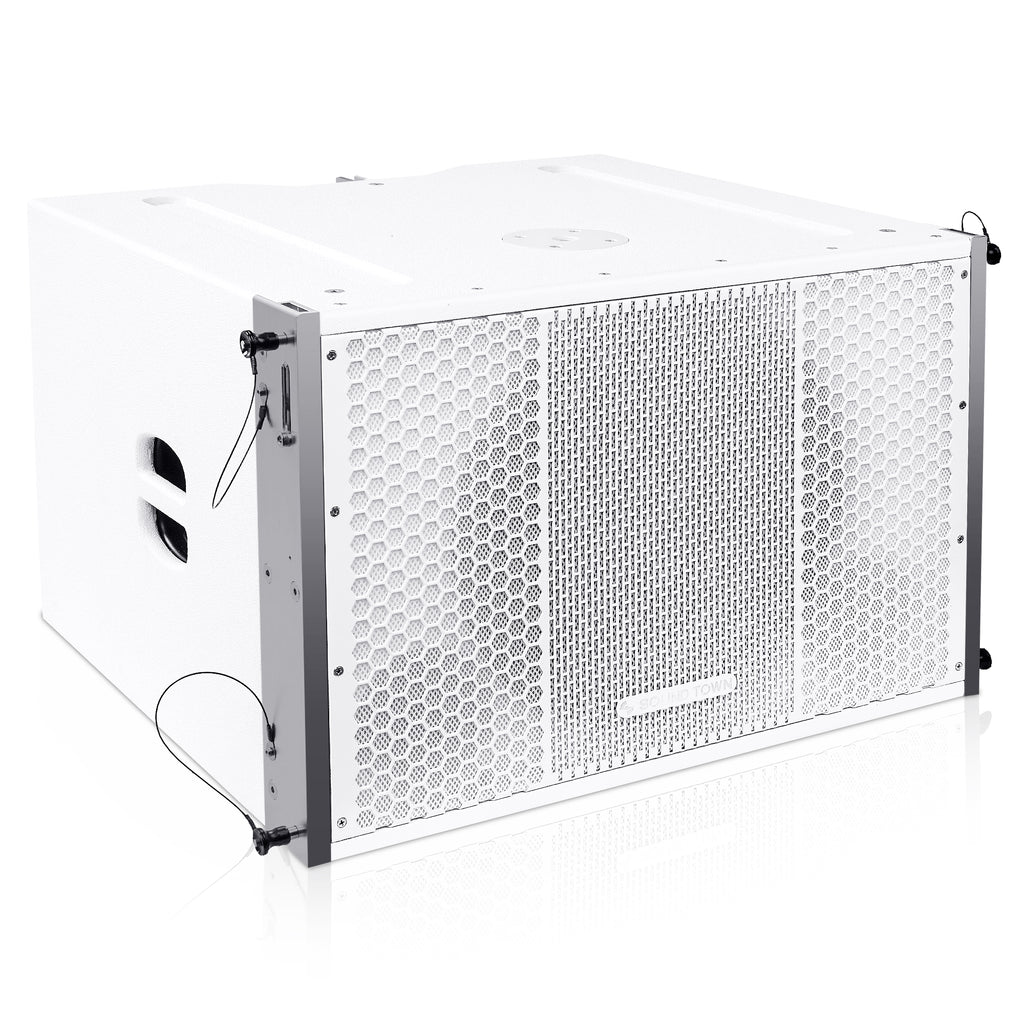

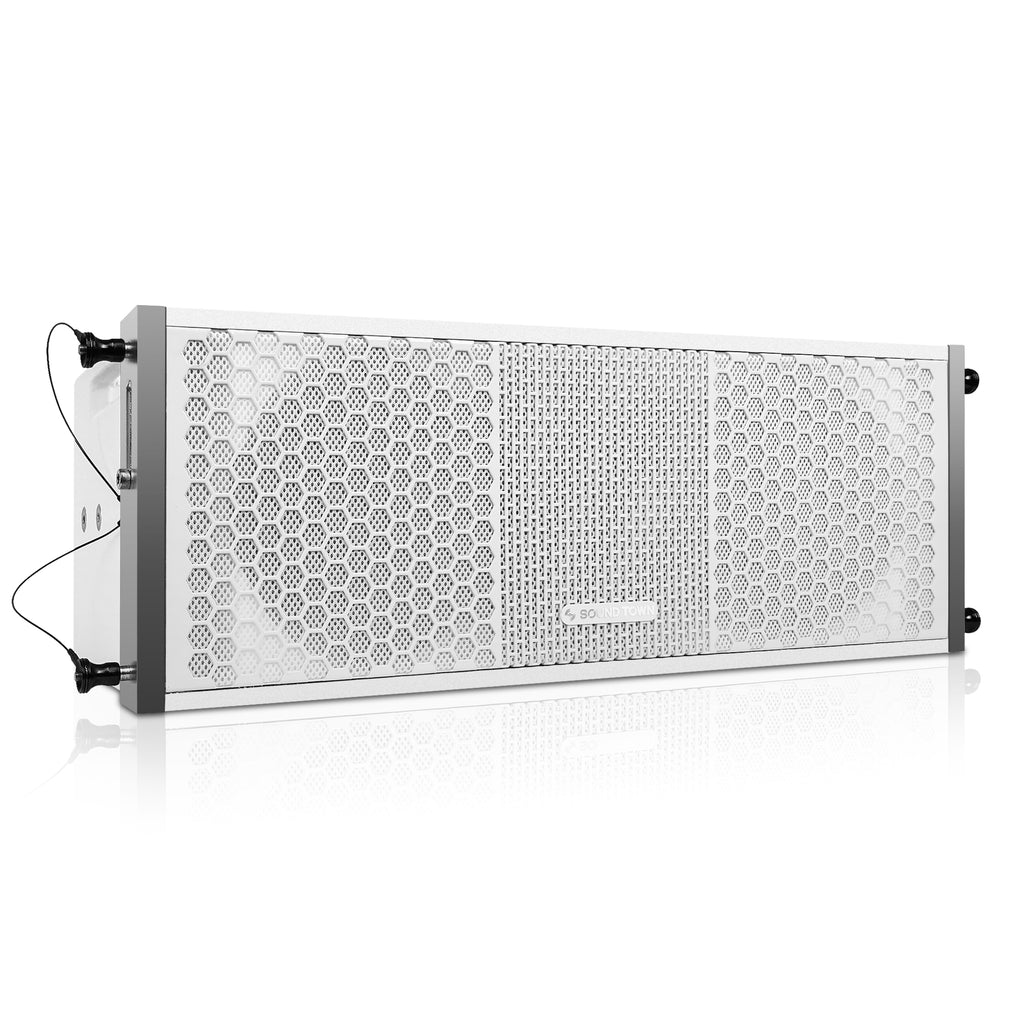

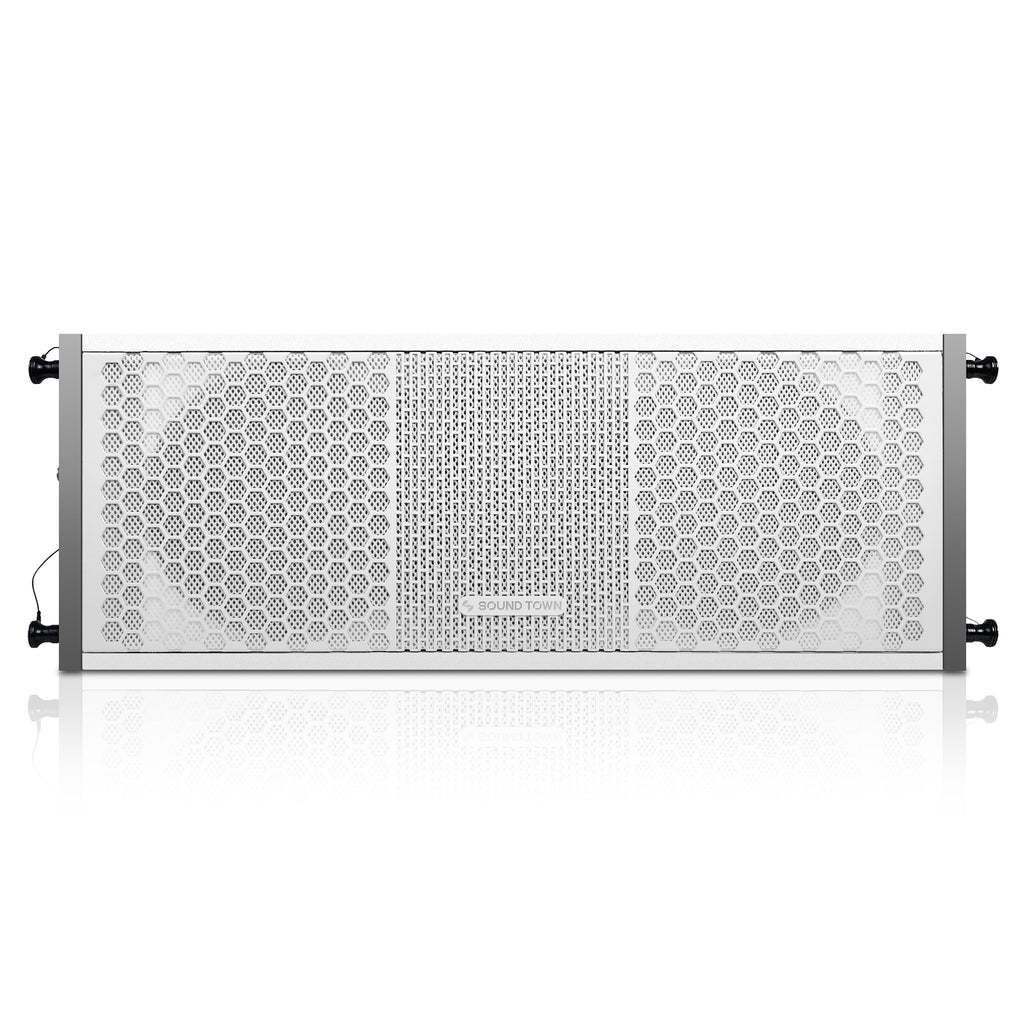

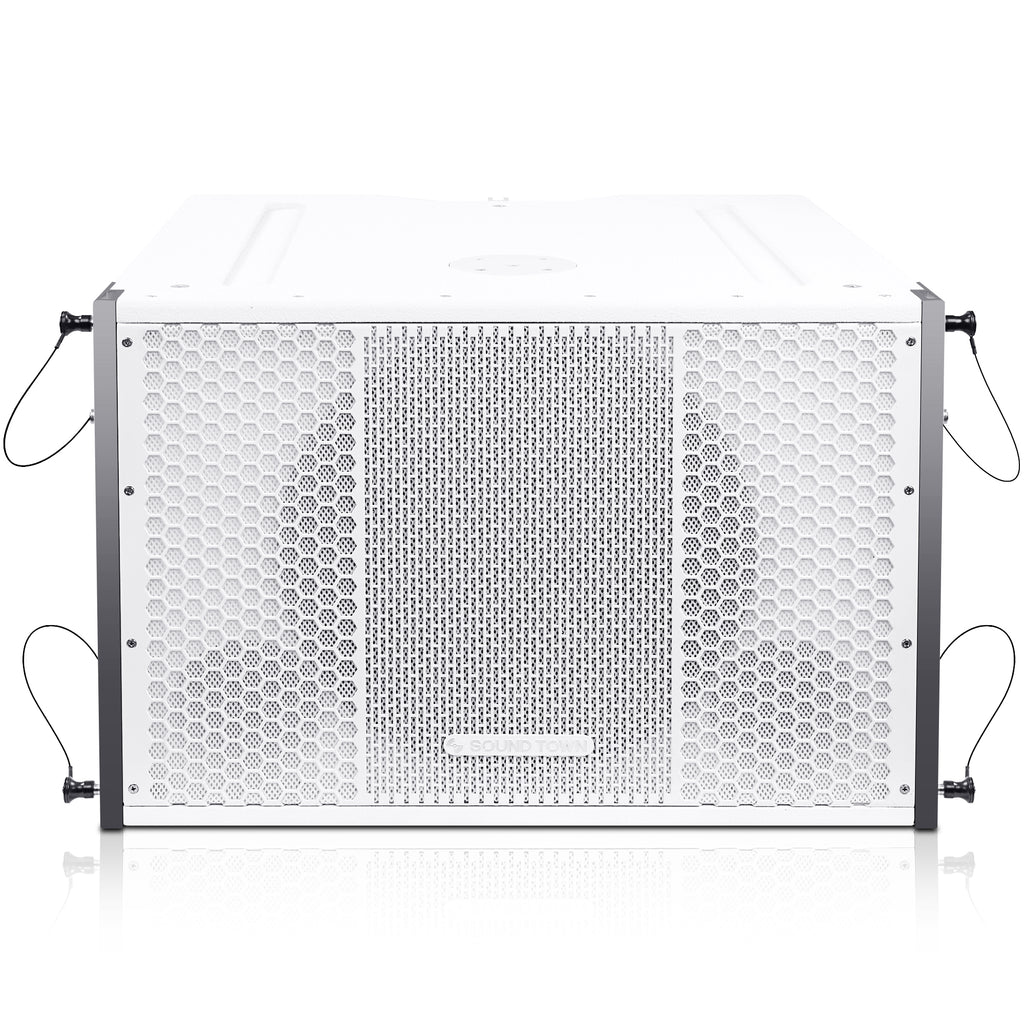

The ZETHUS-115SWPW is a white 15” powered subwoofer with extraordinary 500W RMS, 1000W peak (4-ohm) power handling capability and delivers rich and solid low-frequency reinforcement; besides powering itself, it powers the additional 2 full range line array PA speakers. The ZETHUS-208WV2 is a lightweight and compact passive line array speaker which delivers superior sound quality with two 8” woofers, one 1.75” titanium compression driver and 350W RMS, 700W peak (16-Ohm) power handling capability.

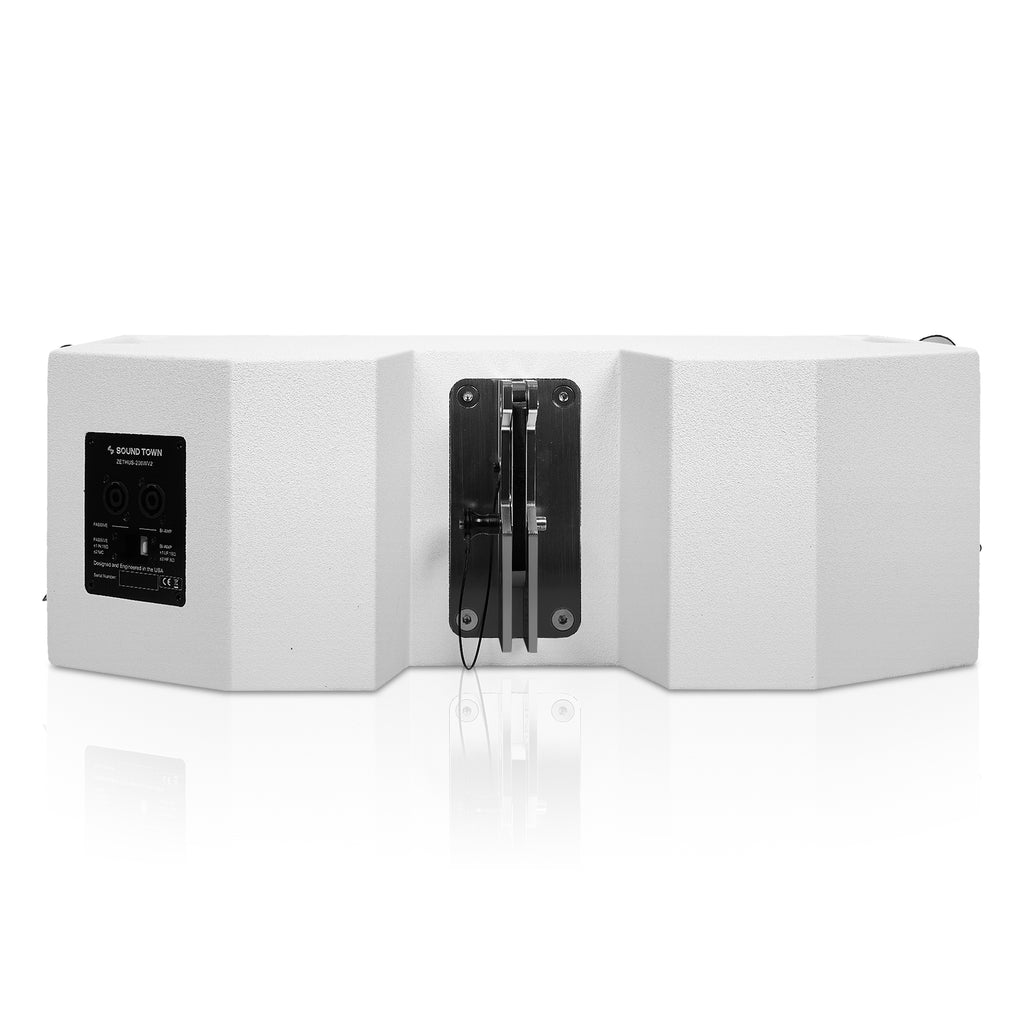

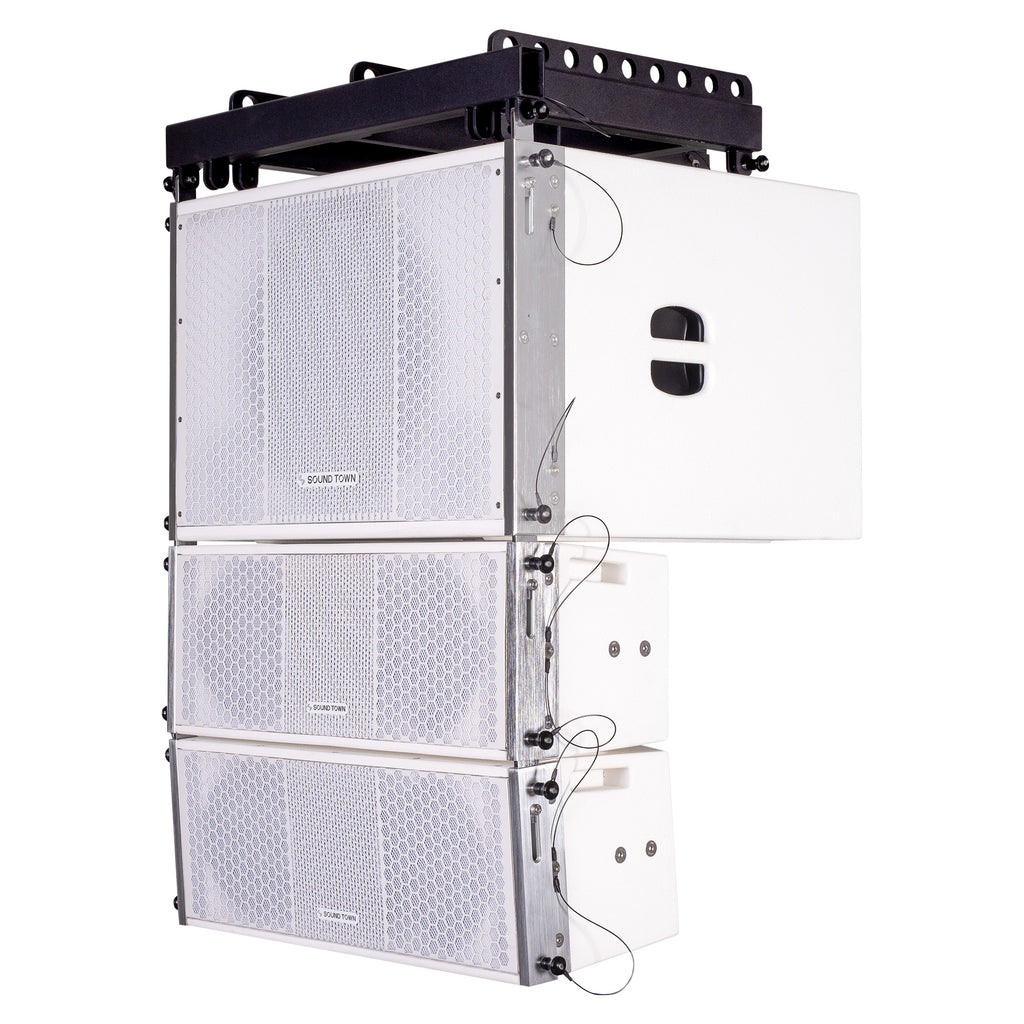

2 ZETHUS-208WV2 line array speakers can be quickly stacked and mounted to the ZETHUS-115SWPW subwoofer and secured with attached mounting points and heavy-duty metal handles on the rear panels. Altogether they deliver accurate and immersive sound performance at earth shaking volume. With the mounting frame, the speaker system can be flown for optimum coverage. The line array speaker system is ideal for a wide range of installation applications ranging from live entertainment, clubs to churches or other venues where a line array speaker system is desired.
- This line speaker system includes 1 x ZETHUS-115SWPW powered line array subwoofer and 2 x ZETHUS-208WV2 passive line array speakers, 1 x ZETHUS-115SFF flying frame
- The ZETHUS-115SWPW is a white 15” powered subwoofer with extraordinary 500W RMS, 1000W peak (4-ohm) power handling capability and delivers rich and solid low-frequency reinforcement; besides powering itself, it powers the additional 2 full range line array PA speakers
- The ZETHUS-208WV2 is a lightweight and compact passive line array speaker which delivers superior sound quality with two 8” woofers, one 1.75” titanium compression driver and 350W RMS, 700W peak (16-Ohm) power handling capability
- 2 ZETHUS-208WV2 line array speakers can be quickly stacked and mounted to the ZETHUS-115SWPW subwoofer and secured with attached mounting points and heavy-duty metal handles on the rear panels. Altogether they deliver accurate and immersive sound performance at earth shaking volume
- With the mounting frame, the speaker system can be flown for optimum coverage. Ideal for a wide range of installation applications ranging from live entertainment, clubs to churches or other venues where a line array speaker system is desired
Specifications
Model | ZETHUS-208BV2 (black), ZETHUS-208WV2 (white) |
Frequency Response | 60 Hz - 20 kHz |
Sensitivity | 101 dB (Passive) |
SPL Max | 128 dB |
Dispersion | 90º x 15º (H x V) |
Configuration | Compact dual 8" passive full-range line array loudspeaker |
Transducer | LF: 2 x 8", HF: 1 x 1.75" diaphragm |
Voice Coil | 2" |
Magnet | 30 oz |
Impedance | 16Ω Nominal |
Power Handling | 350 RMS / 700W Peak |

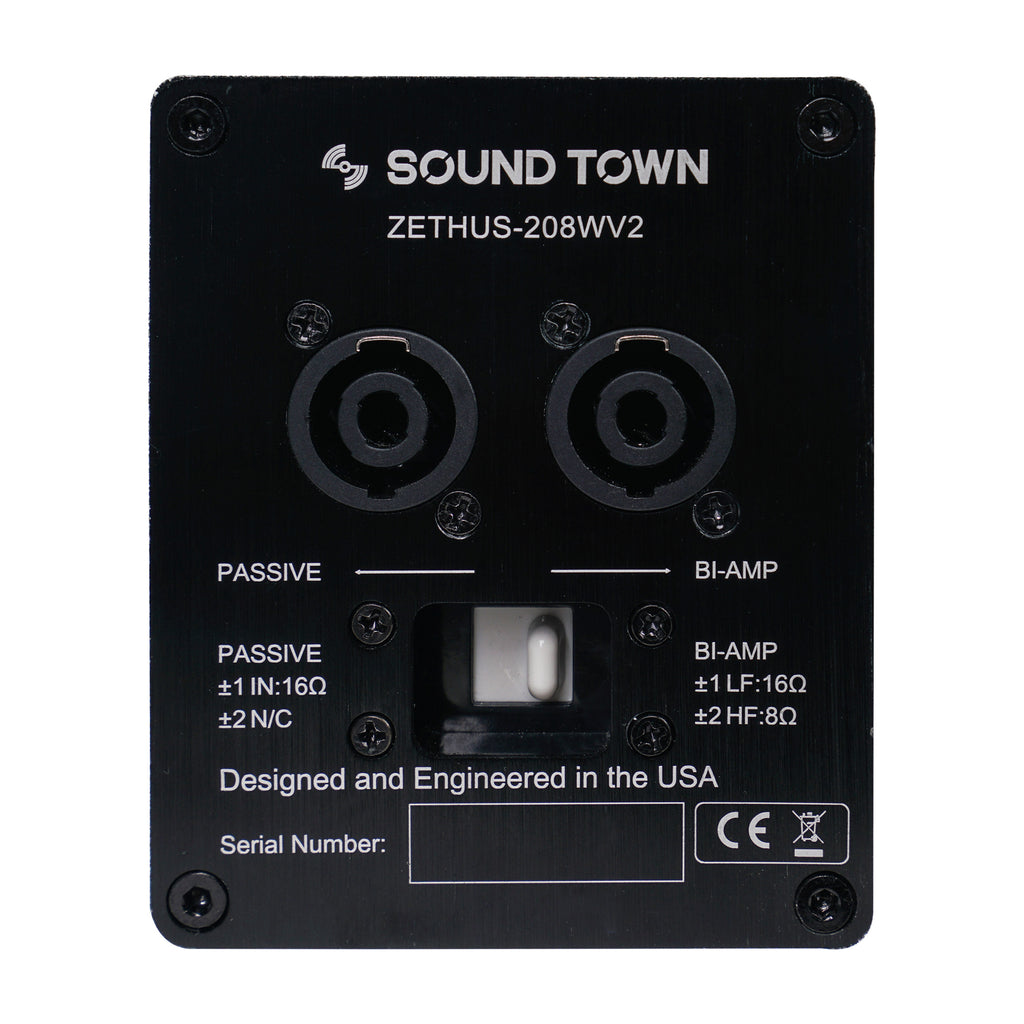

Connectors | 2 x 4 Pin Speakon |
Cabinet Construction | High-grade 100% birch plywood |
Flying/Mounting Bracket Model# | ZETHUS-208FF or ZETHUS-115SFF, compact line array hardware |
Finish | Texture coating |
Grill & Rigging Component | Steel with anti-corrosion coat |
Recommended Frequency Setting | 2k - 2.5k |
High Frequency Driver Parts# | STHF-4403T |
Low Frequency Woofer Parts# | STLF-08Z |
Model | ZETHUS-115SPW, ZETHUS-115SWPW |
Frequency Response | 38 Hz - 180 Hz |
Sensitivity | 100 dB (Passive) |
SPL Max | 128 dB |
Dispersion | -- |
Configuration | 15" active line array subwoofer (1.1 channel) |
Transducer | LF: 1 x 15" |
Voice Coil | 4" |
Magnet | 100 oz |
Impedance | 4Ω Nominal |
Power Handling | 500 / 1000W |
Connectors | -- |
Cabinet Construction | High-grade 100% birch plywood |
Flying/Mounting Bracket Model# | ZETHUS-115SFF, integrated line array hardware |
Finish | Texture coating (RAL colors available) |
Grill & Rigging Component | Steel with anti-corrosion coat |
Amplifier | Class-D amplifier w/ DSP |
Input | XLR line in, RS-485 & USB Type B for DSP |
Output | XLR line out |
Control | Volume, DSP software, MODE selector |
Indicator | Power, limit |
Voltage | Neutrik PowerCON in & out 100V-240V (50-60 Hz) |
Dimension & Weight
Model |
ZETHUS-208WV2 (each) | ZETHUS-115SWPW |
Product Width (in.) | 26.4" | 26.4" |
Product Height (in.) | 9.7" | 17.7" |
Product Depth (in.) | 13.5" | 24.4" |
Product Weight (lb.) | 42.0 lbs | 93.7 lbs |
Package Width (in.) | 29.3" | 29.4" |
Package Height (in.) | 13.1" | 21.1" |
Package Depth (in.) | 16.5" | 27.4" |
Package Weight (lb.) | 45.8 lbs | 99.0 lbs |
