ZETHUS-115SWPW205WV2X4 | ZETHUS Series Line Array Speaker System w/ (1) 15" Powered Subwoofer w/ DSP, LPF, (4) Compact Dual 5" Loudspeakers, White
- DESCRIPTION
- FEATURES
- SPECIFICATIONS
- DOWNLOADS
- REVIEWS
The Sound Town ZETHUS Series ZETHUS-115SWPW205WV2X4 line array speaker system includes:
- (1) ZETHUS-115SWPW powered line array subwoofer w/ DSP, LPF
- (4) ZETHUS-205WV2 passive line array speakers

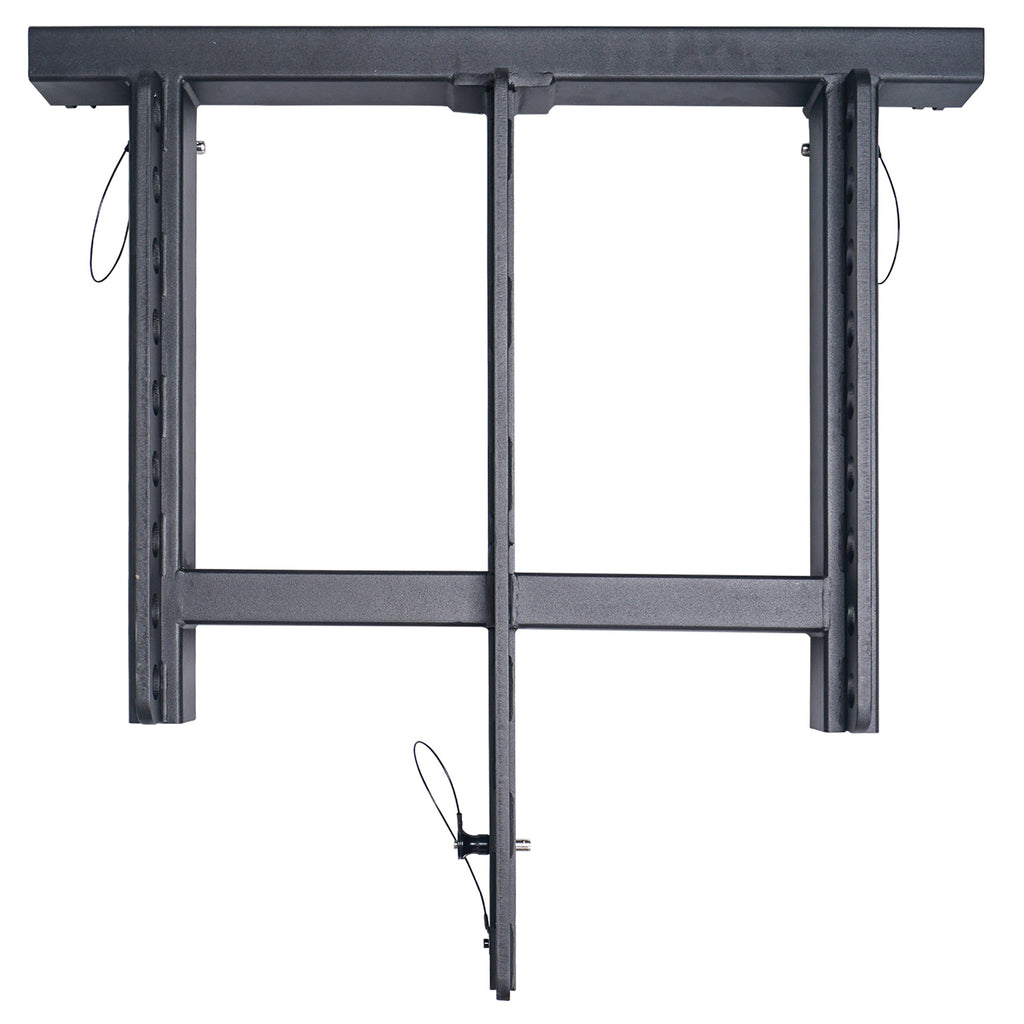

- (1) ZETHUS-115SFF flying frame

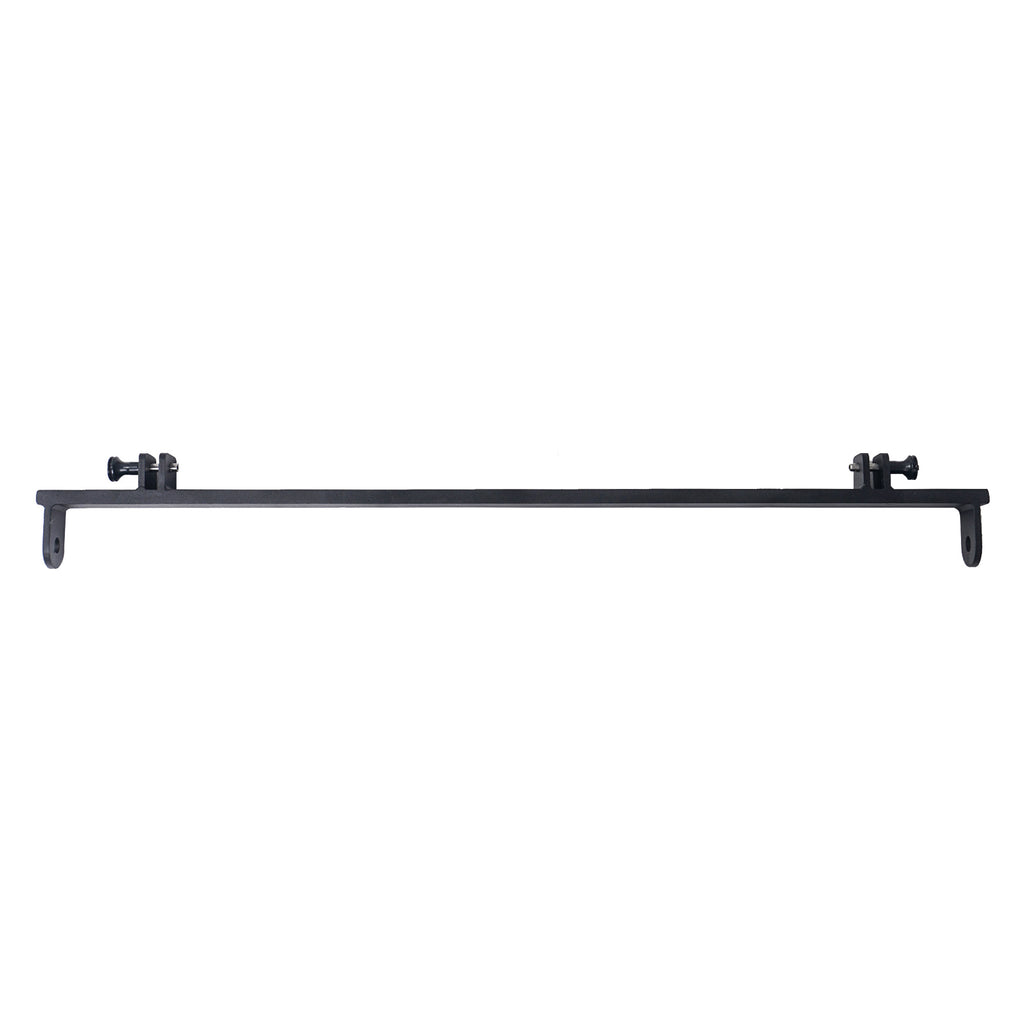

- (1) ZETHUS-205V2AD mounting fly bar

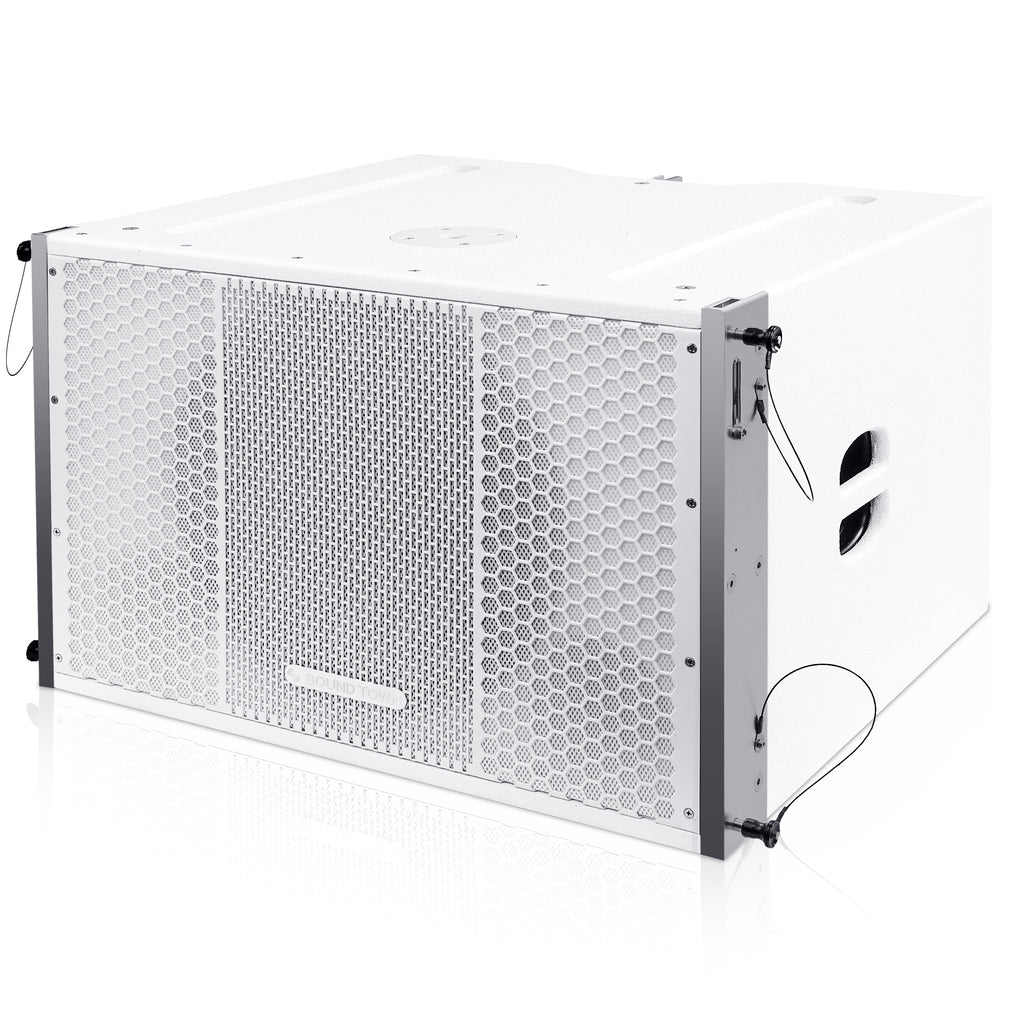

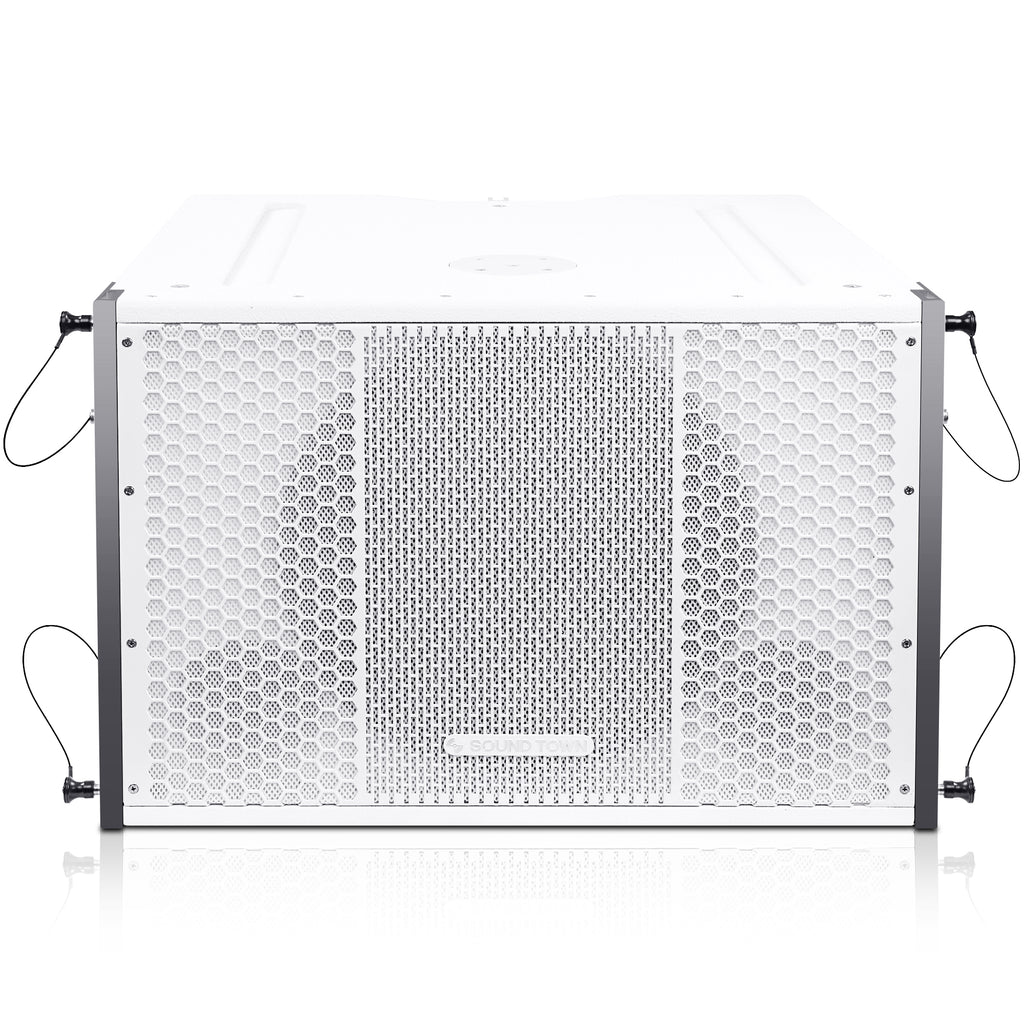

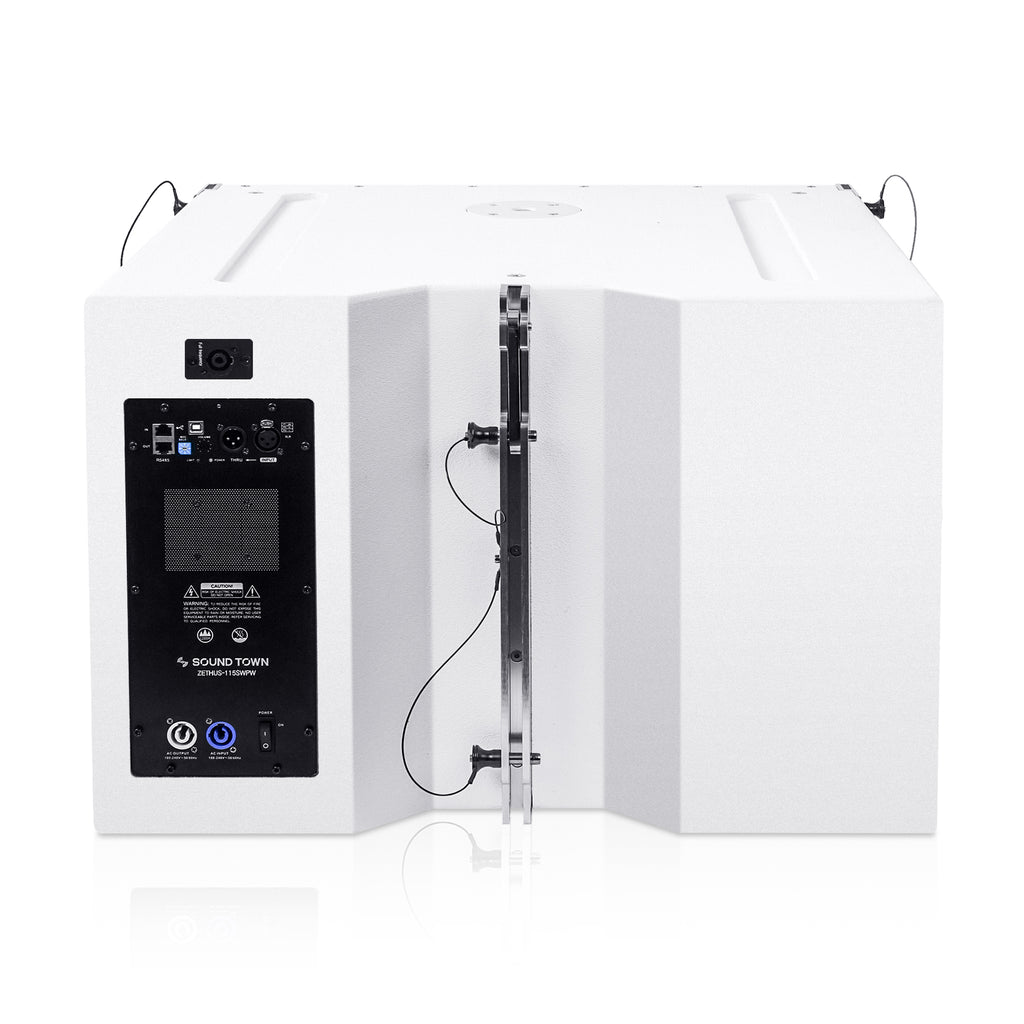

The ZETHUS-115SWPW is a white 15” powered subwoofer with extraordinary 500W continuous, 1000W peak (8-ohm) power handling capability and delivers rich and solid low-frequency reinforcement; besides powering itself, it powers the additional 4 full range line array PA speakers. The ZETHUS-205WV2 is a lightweight and compact passive line array speaker with beautiful white powder finish and delivers superior sound quality with two 5” woofers, one 1.5” titanium compression driver and 200W RMS, 400W peak (16-Ohm) power handling capability.

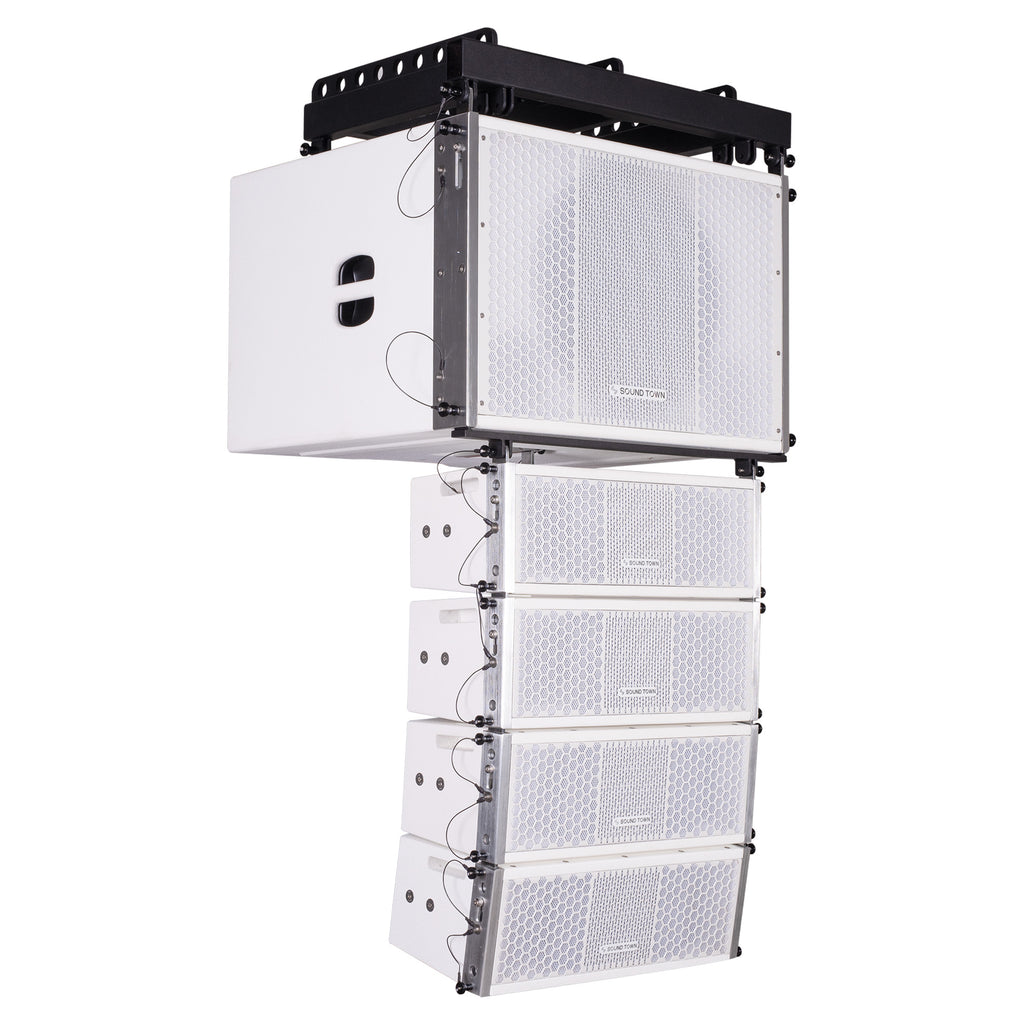

4 x ZETHUS-205WV2 line array speakers can be quickly stacked and mounted to the ZETHUS-115SWPW subwoofer via the ZETHUS-205V2AD fly bar and secured with attached mounting points and heavy-duty metal handles on the rear panels. Altogether they deliver accurate and immersive sound performance at earth shaking volume. With the mounting frame, the speaker system can be flown for optimum coverage. The line array speaker system is ideal for a wide range of installation applications ranging from live entertainment, clubs to churches or other venues where a line array speaker system is desired.
- This line speaker system includes 1 x ZETHUS-115SWPW powered line array subwoofer, 4 x ZETHUS-205WV2 passive line array speakers, 1 x ZETHUS-115SFF flying frame and 1 x ZETHUS-205V2AD mounting fly bar.

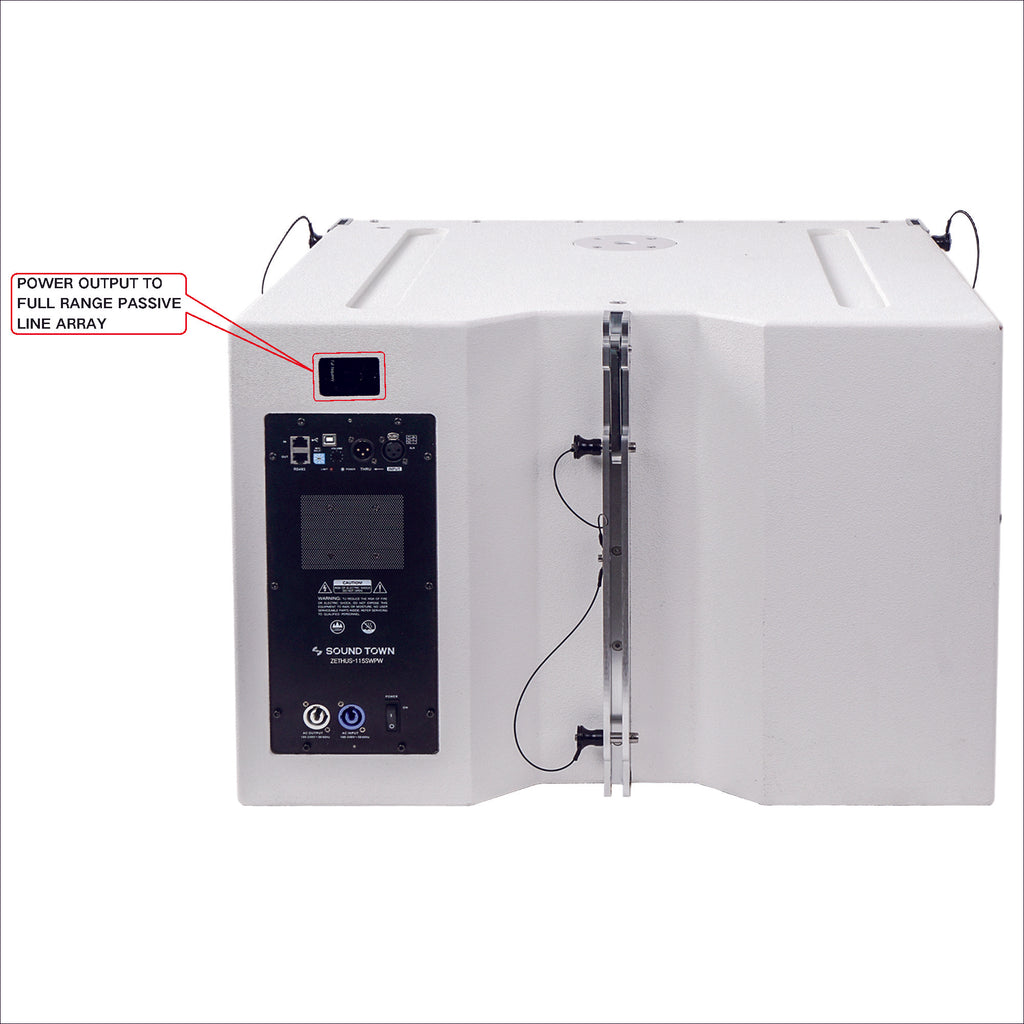

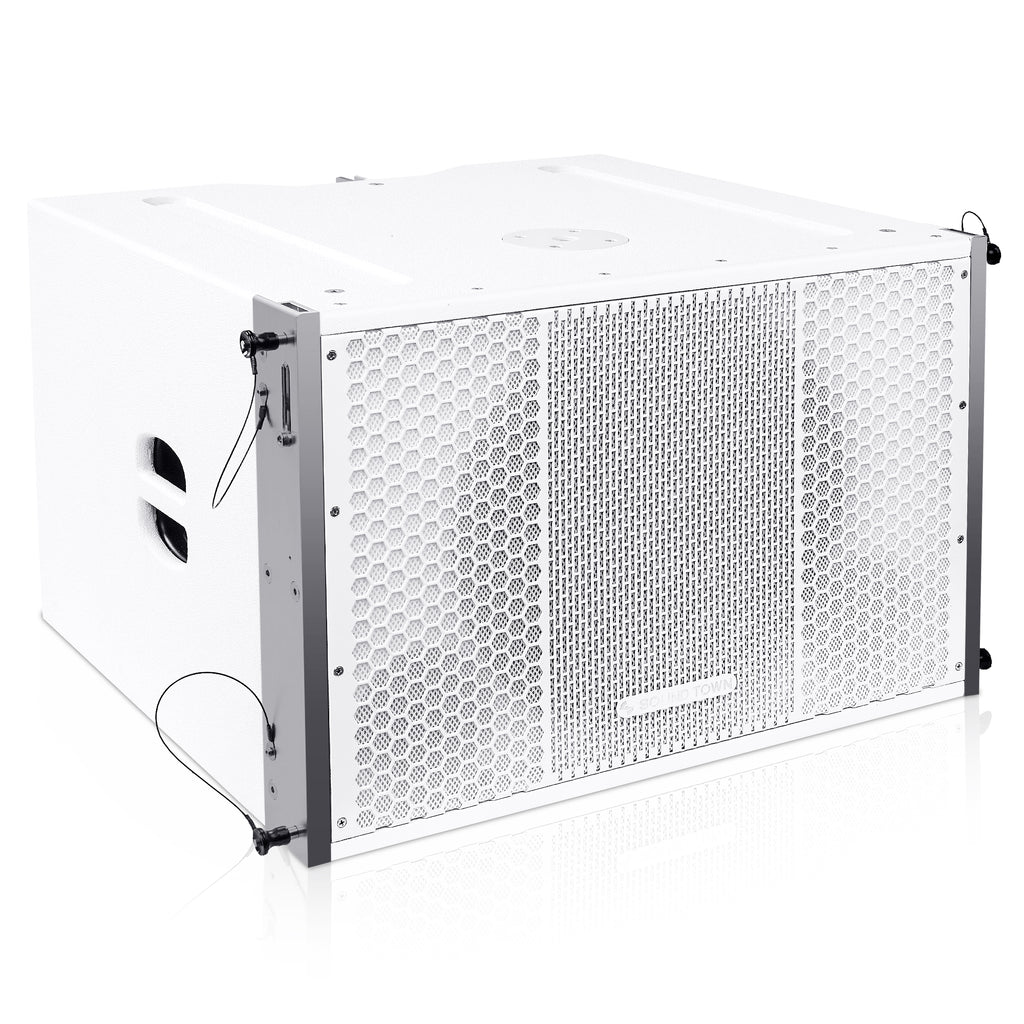

- The ZETHUS-115SWPW is a white 15” powered subwoofer with extraordinary 500W continuous, 1000W peak (8-ohm) power handling capability and delivers rich and solid low-frequency reinforcement; besides powering itself, it powers the additional 4 full range line array PA speakers.

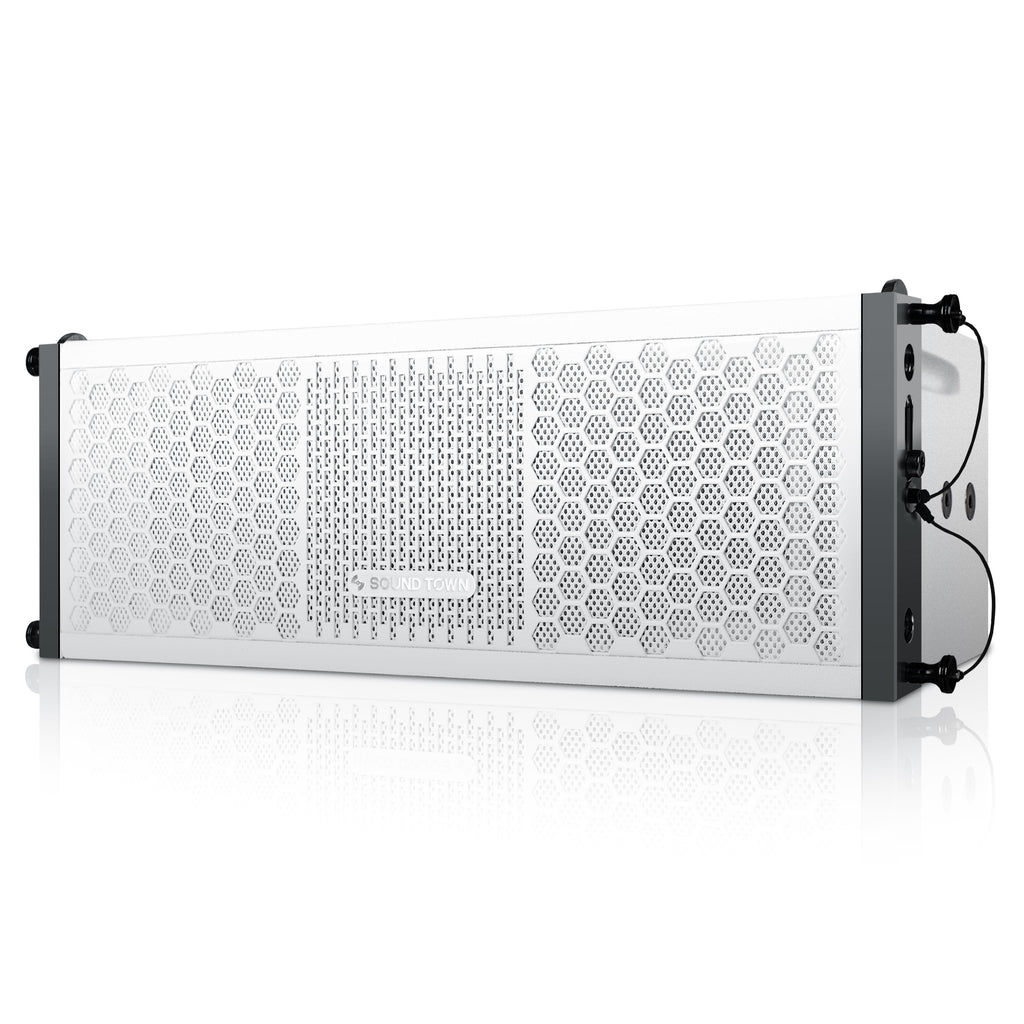

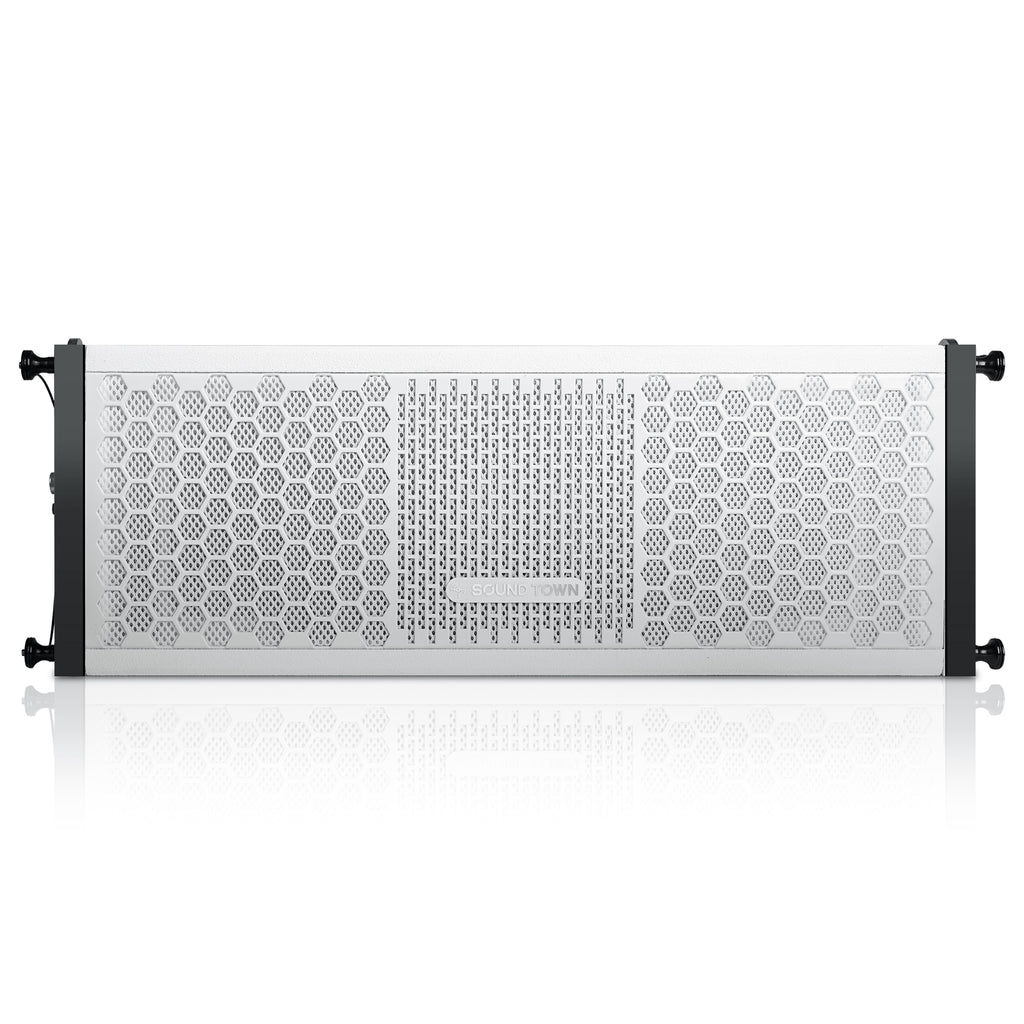

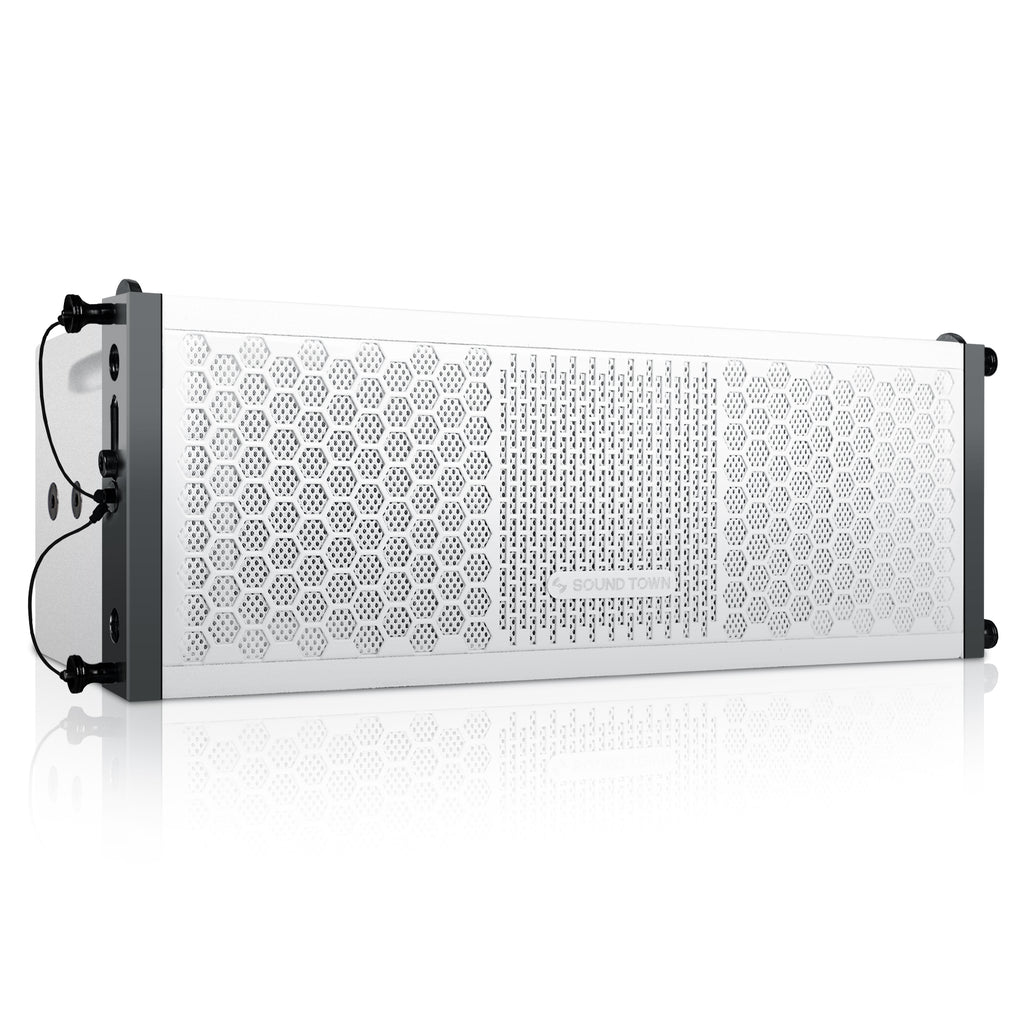

- The ZETHUS-205WV2 is a lightweight and compact passive line array speaker with beautiful white powder finish and delivers superior sound quality with two 5” woofers, one 1.5” titanium compression driver and 200W RMS, 400W peak (16-Ohm) power handling capability.

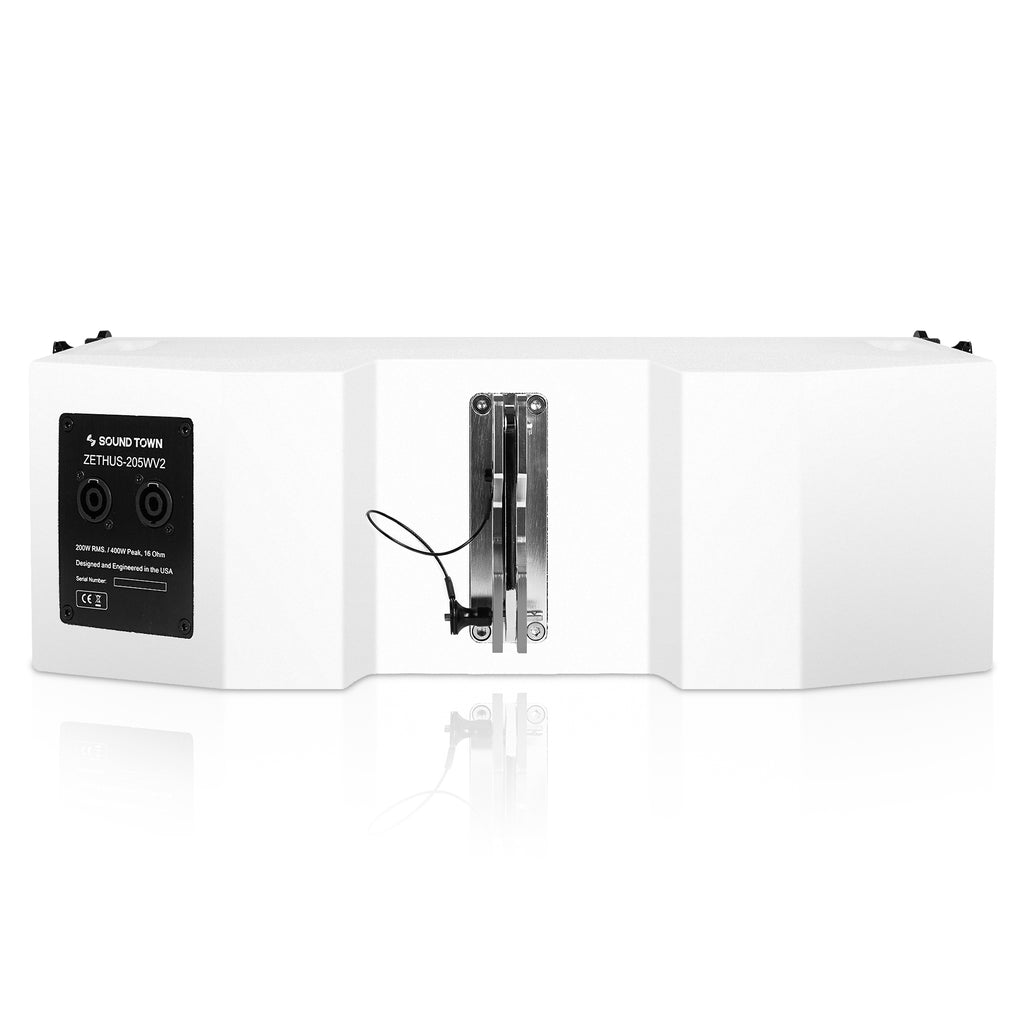

- 4 x ZETHUS-205WV2 line array speakers can be quickly stacked and mounted to the ZETHUS-115SWPW subwoofer via the ZETHUS-205V2AD fly bar and secured with attached mounting points and heavy-duty metal handles on the rear panels. Altogether they deliver accurate and immersive sound performance at earth shaking volume.
- With the mounting frame, the speaker system can be flown for optimum coverage. Ideal for a wide range of installation applications ranging from live entertainment, clubs to churches or other venues where a line array speaker system is desired.
Specifications
Model | ZETHUS-115SWPW | ZETHUS-205WV2 |
Frequency Response | 38 Hz - 180 Hz | 70 Hz - 20 kHz |
Sensitivity | 100 dB (Passive) | 99 dB (Passive) |
SPL Max | 128 dB | 125 dB |
Dispersion | -- | 120º x 15º (H x V) |
Configuration | 15" active line array subwoofer |
Compact dual 5" passive full-range line array loudspeaker |
Transducer | LF: 1 x 15" | LF: 2 x 5", HF: 1 x 1.4" diaphragm |
Voice Coil | 4" | 1.5" |
Magnet | 100 oz | 25 oz |
Impedance | 8Ω Nominal |
16Ω Nominal |
Power Handling | 500W Continuous / 1000W Peak | 200 / 400W |
Connectors | -- | 2 x 4 Pin Speakon |
Cabinet Construction | High-grade 100% birch plywood | High-grade 100% birch plywood |
Flying/Mounting Bracket Model# | ZETHUS-115SFF, integrated line array hardware | ZETHUS-205FF or ZETHUS-115SFF, compact line array hardware |
Finish | Texture coating | Texture coating |
Grill & Rigging Component | Steel with anti-corrosion coat | Steel with anti-corrosion coat |
Amplifier | Class-D amplifier w/ DSP | -- |
Input | 2 x XLR-1/4" combo | 4 Pin SPEAKON |
Output | 2 x XLR line out | 4 Pin SPEAKON |
Control | Master volume, phase, outputs mode (full-range/high-pass), EQ presets | -- |
Indicator | Power, signal, limit | -- |
Voltage | Neutrik PowerCON in & out 100V-240V (50-60 Hz) | -- |
Crossover Parts# | -- | XO-Z205 |
High Frequency Driver Parts# | -- | STHF-3403T |
Low Frequency Woofer Parts# | STLF-1504-4 | STLF-05Z |
Plate Amp Part# | STPAS-G2DSP | -- |
Dimension & Weight
Model |
ZETHUS-115SPW | ZETHUS-205WV2 (each) | ZETHUS-115SFF | ZETHUS-205V2AD |
Product Width (in.) | 26.4" | 20.9" | 27.2" | 26.4" |
Product Height (in.) | 17.7" | 7.4" | 5.4" | 1.3" |
Product Depth (in.) | 24.4" | 11.9" | 25.6" | 3.1" |
Product Weight (lb.) | 93.7 lbs | 27.6 lbs | 49.1 lbs | 3.3 lbs |
Package Width (in.) | 29.4" | 23.8" | 28.5" | 27.8" |
Package Height (in.) | 21.1" | 10.7" | 6.3" | 2.2" |
Package Depth (in.) | 27.4" | 14.9" | 27.0" | 4.5" |
Package Weight (lb.) | 97.0 lbs |
30.0 lbs |
51.3 lbs | 4.9 lbs |
Warranty/Certifications
Manufacturer Warranty | 1 Year |
