1-3/8" Titanium Compression Driver, Replacement Tweeter for ZETHUS-210B, ZETHUS-205V2, ZETHUS-205WV2, ZETHUS-112BPW

STHF-3403T
1-3/8" Titanium Compression Driver, Replacement Tweeter for ZETHUS-210B, ZETHUS-205V2, ZETHUS-205WV2, ZETHUS-112BPW

Sound Town
Sound Town STHF-3403T 1.38" 100W Titanium Compression Driver, Replacement Tweeter for ZETHUS-210B - Back View
Sound Town STHF-3403T 1.38" 100W Titanium Compression Driver, Replacement Tweeter for ZETHUS-210B - Side View
Sound Town STHF-3403T 1.38" 100W Titanium Compression Driver, Replacement Tweeter for ZETHUS-210B - 8 Ohms
Sound Town STHF-3403T 1.38" 100W Titanium Compression Driver, Replacement Tweeter for ZETHUS-210B - size & dimensions
Sound Town STHF-3403T 1.38" 100W Titanium Compression Driver, Replacement Tweeter for ZETHUS-210B - sps vs. frequency graph
Sound Town STHF-3403T 1.38" 100W Titanium Compression Driver, Replacement Tweeter for ZETHUS-210B - Impedance vs. Freq Graph

$49.99

1-3/8" titanium compression driver, replacement tweeter (high frequency driver) for ZETHUS-210B, ZETHUS-205V2, ZETHUS-205WV2, ZETHUS-112BPW.

  • Titanium compression driver, replacement tweeter for ZETHUS-210B, ZETHUS-205V2, ZETHUS-205WV2, ZETHUS-112BPW
  • QTY used in each:
    ZETHUS-210B: 2 pcs
    ZETHUS-205V2, ZETHUS-205WV2: 1 pc
    ZETHUS-112BPW: 2 pcs
  • 1-3/8" diaphragm, 15 oz magnet
  • 50W RMS/ 100W peak power handling capability
  • Impedance: 8 ohms
  • Frequency response: 1.5K Hz ~ 20K Hz

sound town STHF-3403T 1.38" Titanium Compression Driver, Replacement Tweeter for ZETHUS-210B, size dimensions

sound town STHF-3403T 1.38" Titanium Compression Driver, Replacement Tweeter for ZETHUS-210B, spl vs. frequency

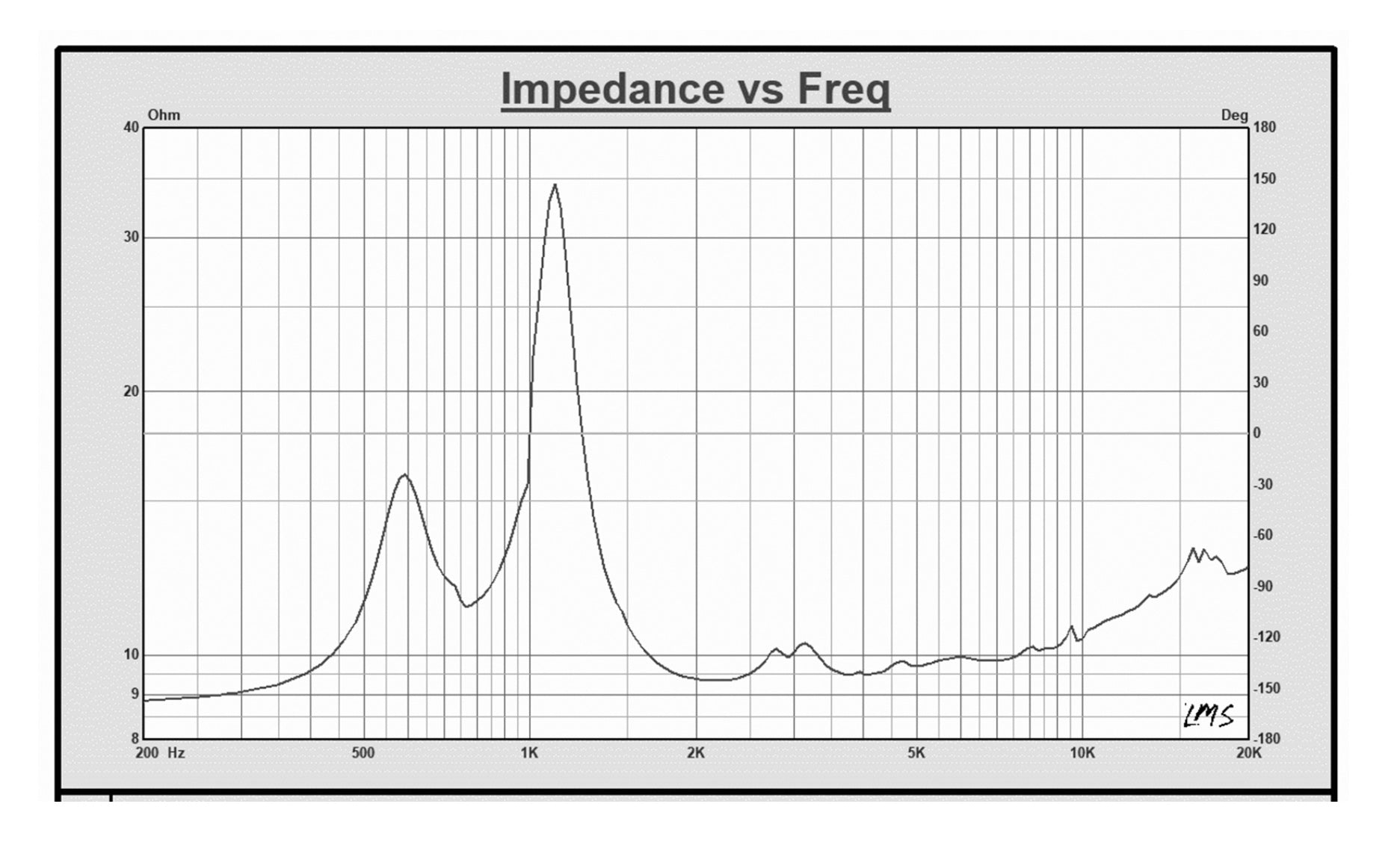

Sound Town STHF-3403T 1.38" 100W Titanium Compression Driver, Replacement Tweeter for ZETHUS-210B - Impedance vs. Freq Graph

Details

Model STHF-3403T Sensitivity* 105 dB
Throat Size
 1", 25.4mm Magnet Material Ferrite
Nominal Impedance* 8Ω Magnet Weight 15 OZ
PEAK Power 100W Voice Coil Diameter 1.75"
Power Rating 50W(AES) Voice Coil Former Kapton
Resonance 1.5K Hz Diaphragm Material Titanium
Frequency Range 1.5K Hz-20K Hz DC Resistance (Re) 6.2 Ω



Mounting Information

Overall Diameter 3.54", 90 mm Mounting Holes Diameter 1 2.99", 76mm
Depth 1.93", 49 mm Mounting Holes Diameter 2 2.83",76mm
Weight 2.05 lbs, 0.93kg Mounting Holes B.C.C 8-M0.197"



Dimension & Weight

Product Width (in.) ∅3.5" Package Width (in.) 4.7"
Product Height (in.) --" Package Height (in.) 4.5"
Product Depth (in.) 1.93" Package Depth (in.) 4.7"
Product Weight (lb.) 2.05 lbs Package Weight (lb.) 2.2 lbs



Warranty/Certifications

Manufacturer Warranty 1 year


STHF-3403T Brochures
