ZETHUS-115SW205W
ZETHUS Series Line Array Speaker System with One 15-inch Line Array Subwoofer, Four Compact Dual 5-inch Line Array Loudspeakers, White
The Sound Town ZETHUS Series ZETHUS-115SW205W line array speaker system includes 1 x ZETHUS-115SW passive line array speaker, 4 x ZETHUS-205WV2 passive line array speakers and 1 x ZETHUS-115SFF flying frame. The ZETHUS-115SW comes with extraordinary 500W RMS, 1000W peak (4-ohm) power handling capability and delivers rich and solid low-frequency reinforcement, the ZETHUS-205WV2 is a lightweight and compact passive line array speaker which delivers superior sound quality with two 8” woofers, one 1.75” titanium compression driver and 200W RMS, 400W peak (16-Ohm) power handling capability.

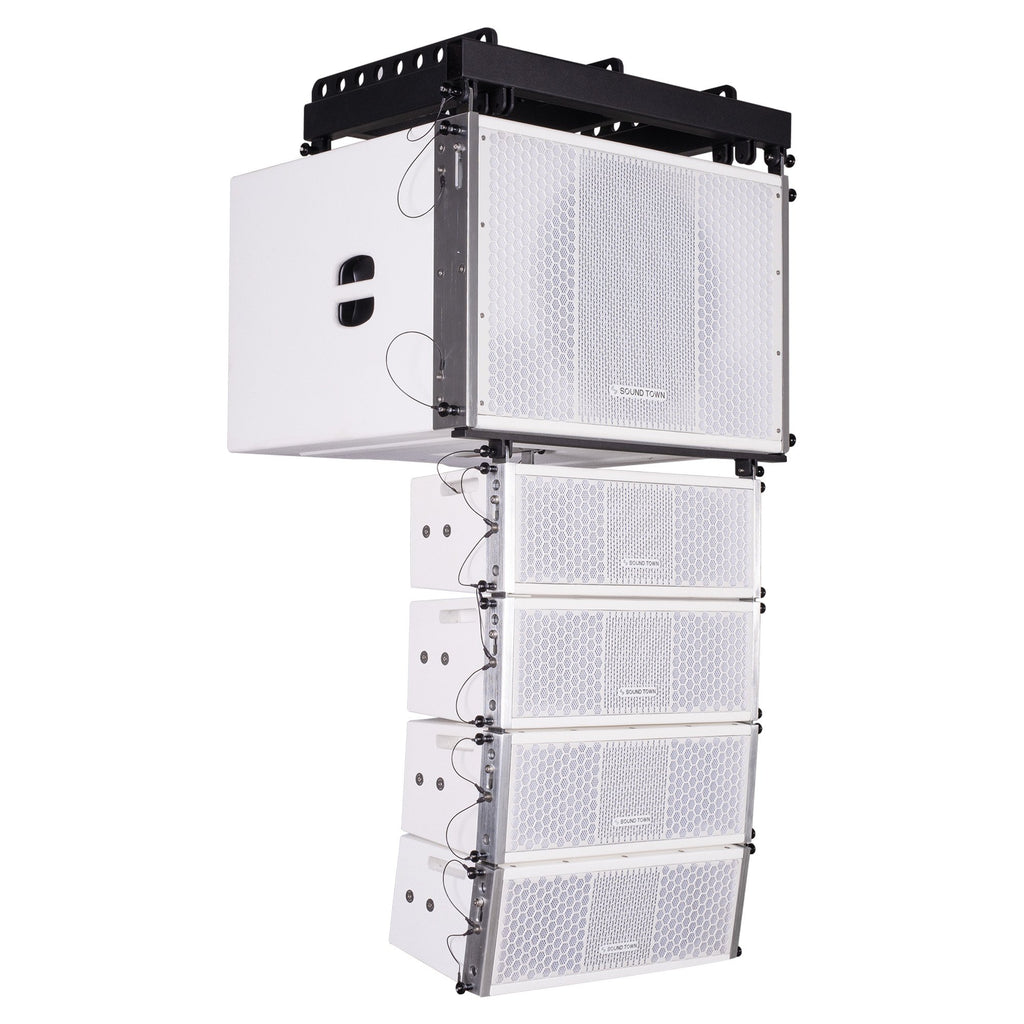

Four ZETHUS-205WV2 line array speakers can be quickly stacked and mounted to the ZETHUS-115SW subwoofer with a fly bar (ZETHUS-205V2AD fly bar included in the package) and secured with attached mounting points and heavy-duty metal handles on the rear panels. Altogether they deliver accurate and immersive sound performance at earth shaking volume. With the mounting frame, the speaker system can be flown for optimum coverage. The line array speaker system is ideal for a wide range of installation applications ranging from live entertainment, clubs to churches or other venues where a line array speaker system is desired.
- The ZETHUS-115SW is a 15” passive subwoofer with extraordinary 500W RMS, 1000W peak (4-ohm) power handling capability and delivers rich and solid low-frequency reinforcement
- The ZETHUS-205WV2 is a lightweight and compact passive line array speaker which delivers superior sound quality with two 5” woofers, one 1.5” titanium compression driver and 200W RMS, 400W peak (16-Ohm) power handling capability
- Four ZETHUS-205WV2 line array speakers can be quickly stacked and mounted to the ZETHUS-115SW subwoofer with a fly bar (included in the package) and secured with attached mounting points and heavy-duty metal handles on the rear panels. Altogether they deliver accurate and immersive sound performance at earth shaking volume
- With the mounting frame, the speaker system can be flown for optimum coverage. Ideal for a wide range of installation applications ranging from live entertainment, clubs to churches or other venues where a line array speaker system is desired
Specifications

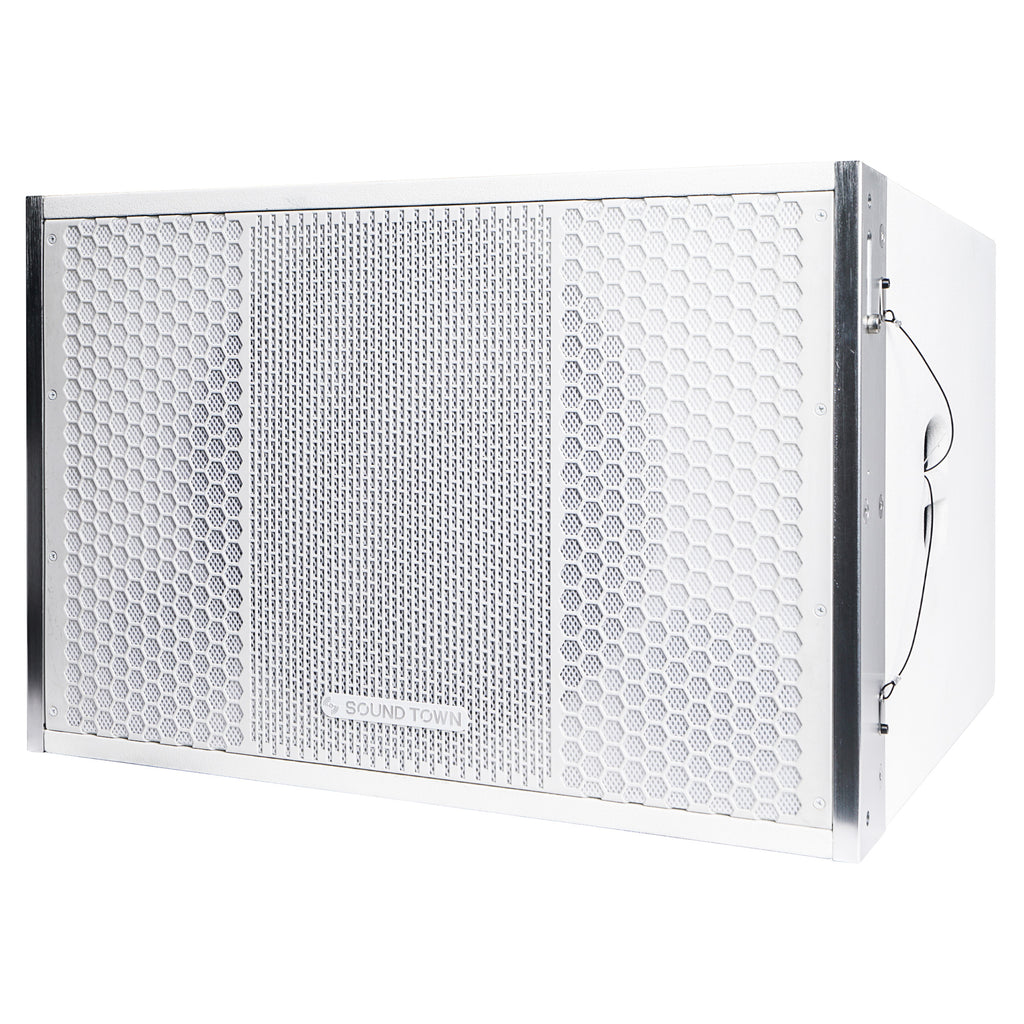

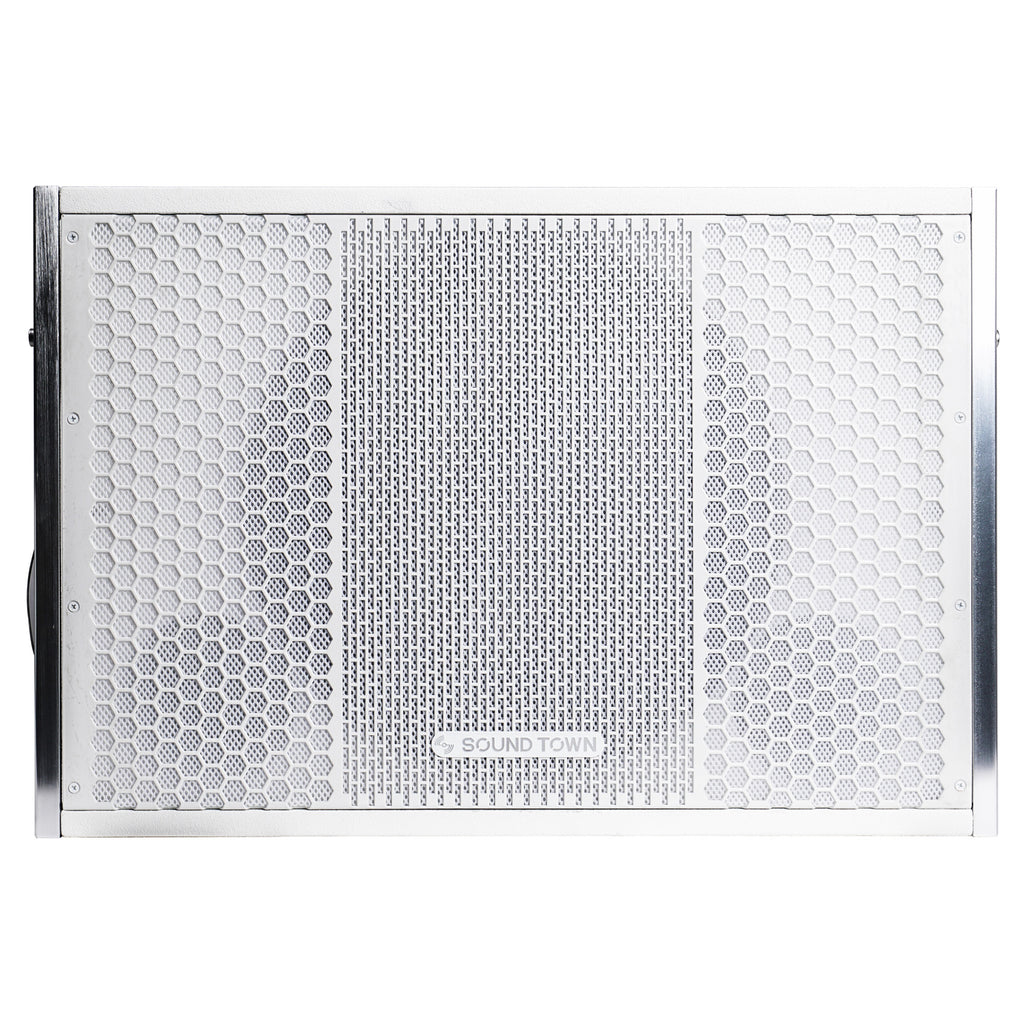

ZETHUS-115SW
| Model | ZETHUS-115SW |
| Frequency Response | 38 Hz - 180 Hz |
| Sensitivity | 100 dB (Passive) |
| SPL Max | 128 dB |
| Dispersion | -- |
| Configuration | 15" passive line array subwoofer |
| Transducer | LF: 1 x 15" |
| Voice Coil | 4" |
| Magnet | 100 oz |
| Impedance | 4Ω Nominal |
| Power Handling | 500 / 1000W |
| Connectors | 2 x 4 Pin Speakon |
| Cabinet Construction | High-grade 100% birch plywood |
| Mounting | Integrated line array hardware |
| Finish | Texture coating (RAL colors available) |
| Grill & Rigging Component | Steel with anti-corrosion coat |
| Amplifier | -- |
| Input | -- |
| Output | -- |
| Control | -- |
| Indicator | -- |
| Voltage | -- |
Dimension & Weight
| Product Width (in.) | 26.4" |
| Product Height (in.) | 17.7" |
| Product Depth (in.) | 24.4" |
| Product Weight (lb.) | 88.2 lbs |

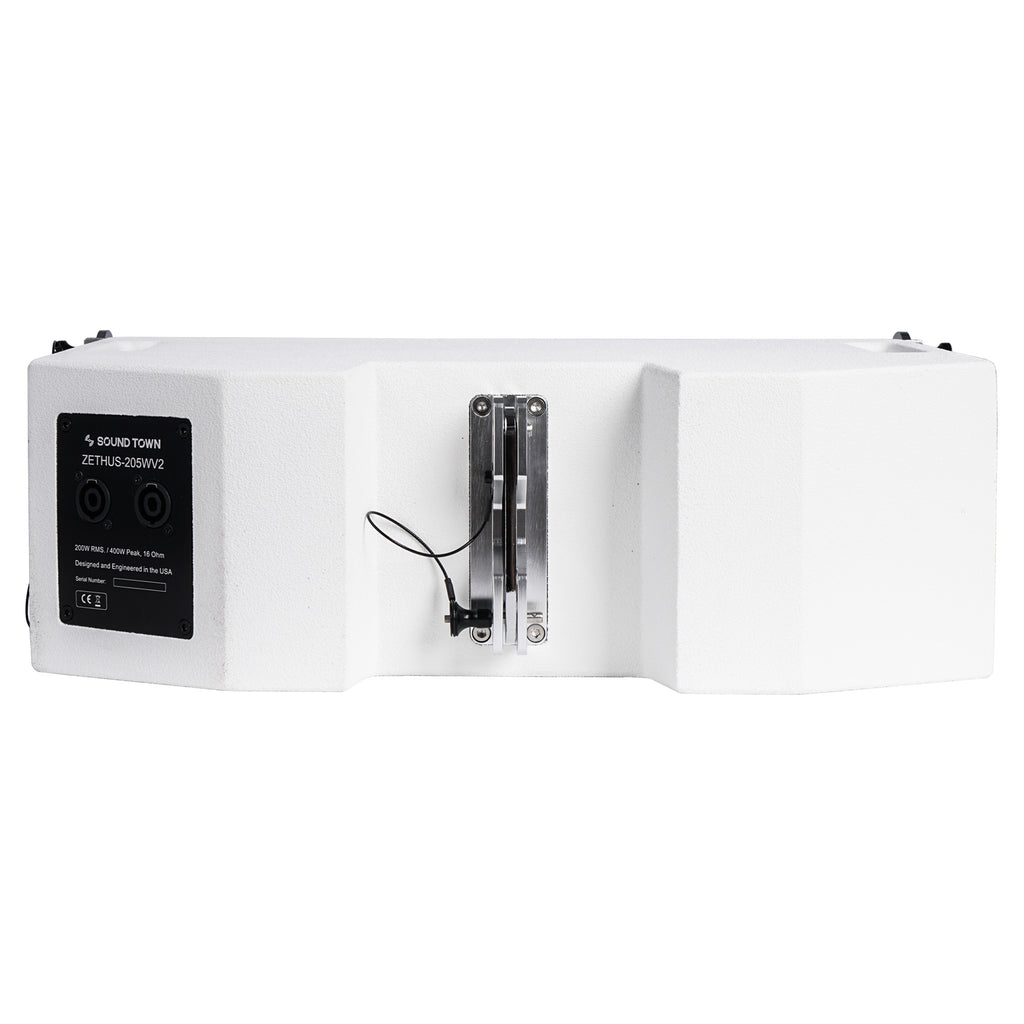

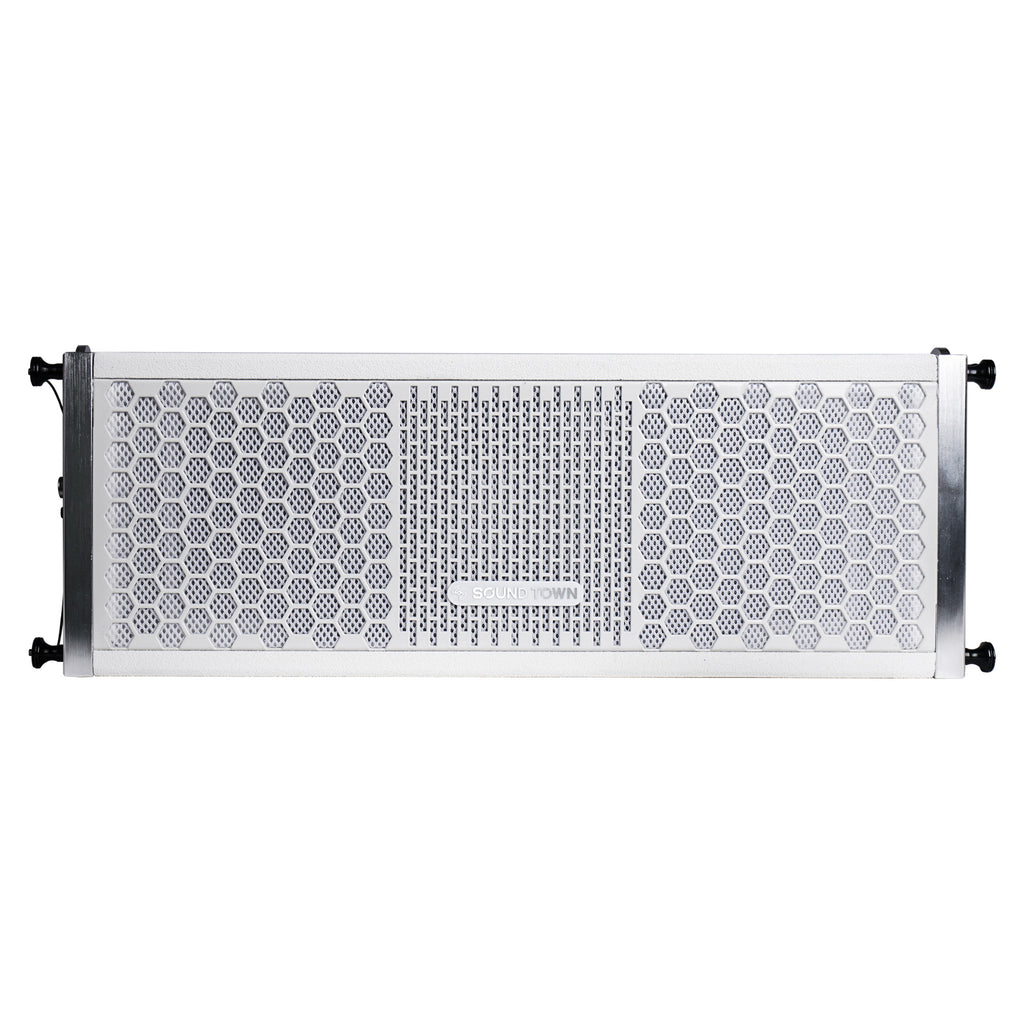

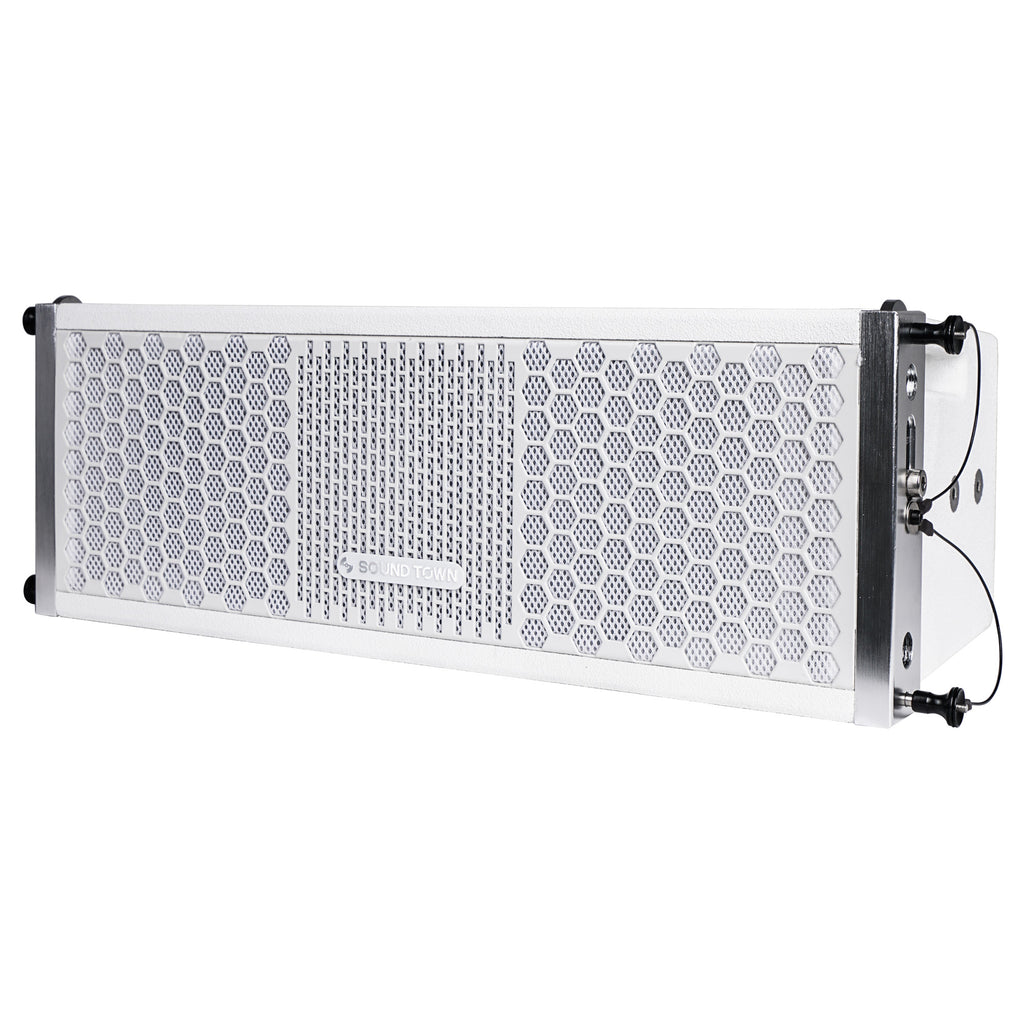

ZETHUS-205WV2
| Model | ZETHUS-205WV2 |
| Frequency Response | 70 Hz - 20 kHz |
| Sensitivity | 99 dB (Passive) |
| SPL Max | 125 dB |
| Dispersion | 90º x 50º (H x V) |
| Configuration | Compact dual 5" passive full-range line array loudspeaker |
| Transducer | LF: 2 x 5", HF: 1 x 1.4" diaphragm |
| Voice Coil | 1.5" |
| Magnet | 25 oz |
| Impedance | 16Ω Nominal |
| Power Handling | 200 / 400W |
| Connectors | 2 x 4 Pin Speakon |
| Cabinet Construction | High-grade 100% birch plywood |
| Mounting | Compact line array hardware / Optional U bracket |
| Finish | Texture coating (RAL colors available) |
| Grill & Rigging Component | Steel with anti-corrosion coat |
Dimension & Weight
| Product Width (in.) | 20.9" |
| Product Height (in.) | 7.4" |
| Product Depth (in.) | 11.9" |
| Product Weight (lb.) | 27.6 lbs |
Warranty/Certifications
| Manufacturer Warranty | 1 Year |
Package Contents
- (1) ZETHUS-115SW Passive Line Array Subwoofer
- (4) ZETHUS-205WV2 Passive Line Array Speakers
- (1) ZETHUS-115SFF Mounting Frame
- (1) ZETHUS-205V2AD Fly Bar
Shipping Dimensions & Weight
| Model | Shipping Width (in.) | Shipping Height (in.) | Shipping Depth (in.) | Shipping Weight (lb.) |
| (1) ZETHUS-115SW | 29.4" | 21.1" | 27.4" | 90.6 lbs |
| (4) ZETHUS-205WV2 | 23.8" | 10.7" | 14.9" | 30.0 lbs |
| (1) ZETHUS-115SFF | 28.5" | 6.3" | 27.0" | 51.3 lbs |
| (1) ZETHUS-205V2AD | 27.8" | 2.2" | 4.5" | 4.9 lbs |
