STCA180X12CS6N | 6-Zone 70V/100V Commercial Bluetooth Amplifier and 12 x Two-Way 6.5“ In-Ceiling Speakers Set, For Restaurants, Bars, Schools, White

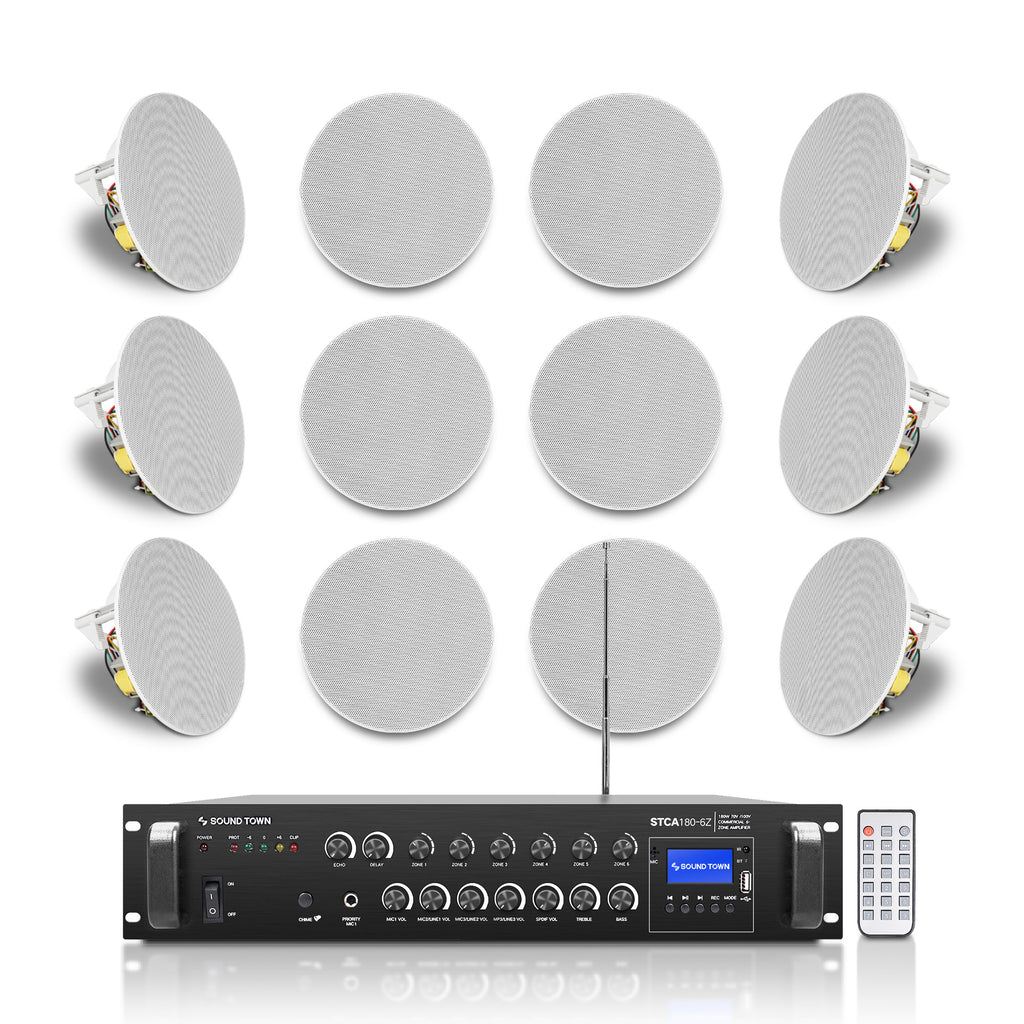

The Sound Town STCA180X12CS6N commercial audio set is an all-in-one solution for superior sound quality in various settings. This bundle includes:

• (1) STCA180-6Z 6-Zone 70V/100V Commercial Power Amplifier w/ Bluetooth
• (6) STCS6N-PAIR 6.5" Two-Way Coaxial In-Ceiling Speaker

*Speaker wire not included. See FAQ for details.

The Sound Town STCA180-6Z amplifier works with 70V/100V systems and 4~16 ohm low impedance speakers. It provides a strong 180W output, perfect for delivering clear, crisp audio. Features six zones with individual volume controls for customized sound distribution. It supports Bluetooth for easy wireless streaming and includes a built-in clipping limiter to prevent overheating.

Each Sound Town STCS6N in-ceiling speaker in this bundle (12 total) is equipped with a 6.5" woofer and a 1" coaxial compression driver, offering 60W RMS and 120W program power at 8Ω. These speakers deliver crisp and clear audio, suitable for a range of audio experiences. Installation is a breeze with the STCS6N speakers' multi-tap transformer, allowing for easy connection in either 70V/100V or 8Ω systems via a baffle-mounted tap switch. This feature ensures seamless integration with the STCA180-6Z amplifier.

Ideal for multi-room applications, the Sound Town STCA180X12CS6N set provides 120° conical sound coverage, ensuring consistent, high-quality sound distribution in various environments. Whether for background music or public announcements, this audio bundle offers a reliable and immersive sound experience.

• SOUND TOWN STCA180X12CS6N COMMERCIAL AUDIO SET: The Sound Town STCA180X12CS6N commercial audio bundle includes (1) Sound Town STCA180-6Z power amplifier and (6) STCS6N-PAIR (12 in total) two-way in-ceiling speakers.
• SOUND TOWN STCA180-6Z POWER AMPLIFIER: The Sound Town STCA180-6Z amplifier works with 70V/100V or 4~16 ohm low impedance speakers, delivering 180W of power output. It supports Bluetooth and offers 6 zones with individual volume controls. Built-in clipping limiter protects your speakers and amp from overheating.
• SOUND TOWN STCS6N IN-CEILING SPEAKERS: Includes (6) STCS6N-PAIR (12 total) coaxial in-ceiling speakers, each equipped with a 6.5" woofer and a 1" coaxial compression driver capable of 60W RMS and 120W program power at 8Ω.
• EASY SET-UP AND INTEGRATION: The STCS6N in-ceiling speakers are equipped with a multi-tap transformer and can be used in either 70V/100V or 8Ω (low impedance) via the baffle mounted tap switch, making it simple to connect with the STCA180-6Z amplifier.
• SUITABLE FOR MANY APPLICATIONS: Whether at home or in a commercial building, the Sound Town STCA180X12CS6N in-ceiling speakers and amplifier bundle has you covered. The 120° conical sound coverage makes it ideal for multi-room applications such as restaurants, lounges, bars, schools, warehouses, and so much more.

Specifications

Dimension & Weight

Warranty/Certifications

Q: What speaker wire should be used for this system?

A: Speaker wire is not included. To ensure optimal performance and minimize signal loss, select the appropriate wire gauge based on the distance between your amplifier and speakers:

Using a thicker (lower gauge) wire for longer runs helps maintain signal strength and overall audio quality.

▶ STCS-N User Manual
▶ PAC360-6 User Manual
