Carme-105B | Compact 2-way 5” Coaxial Loudspeaker w/ 5” Woofer & Speed Mounting Bracket for Installation, Bar, Church




- DESCRIPTION
- FEATURES
- SPECIFICATIONS
- DOWNLOADS
- REVIEWS
DESCRIPTION

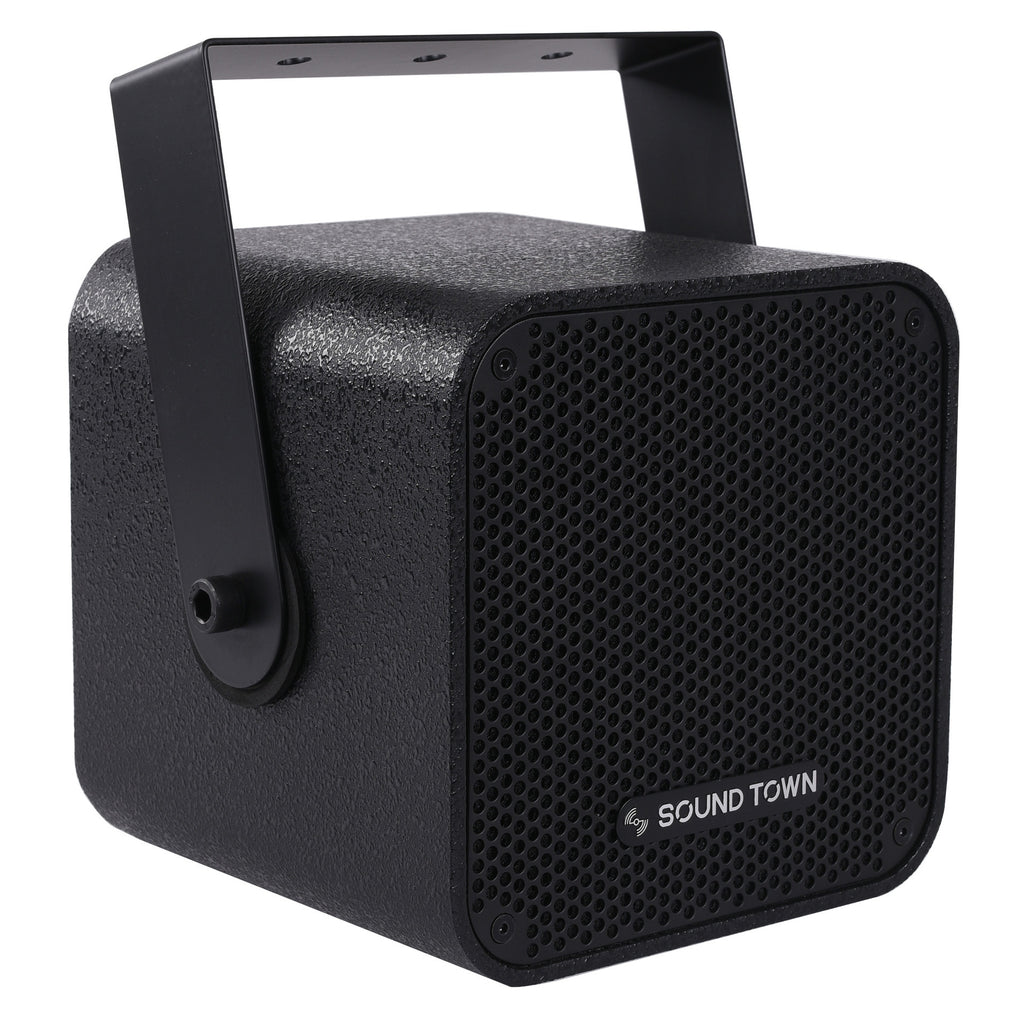

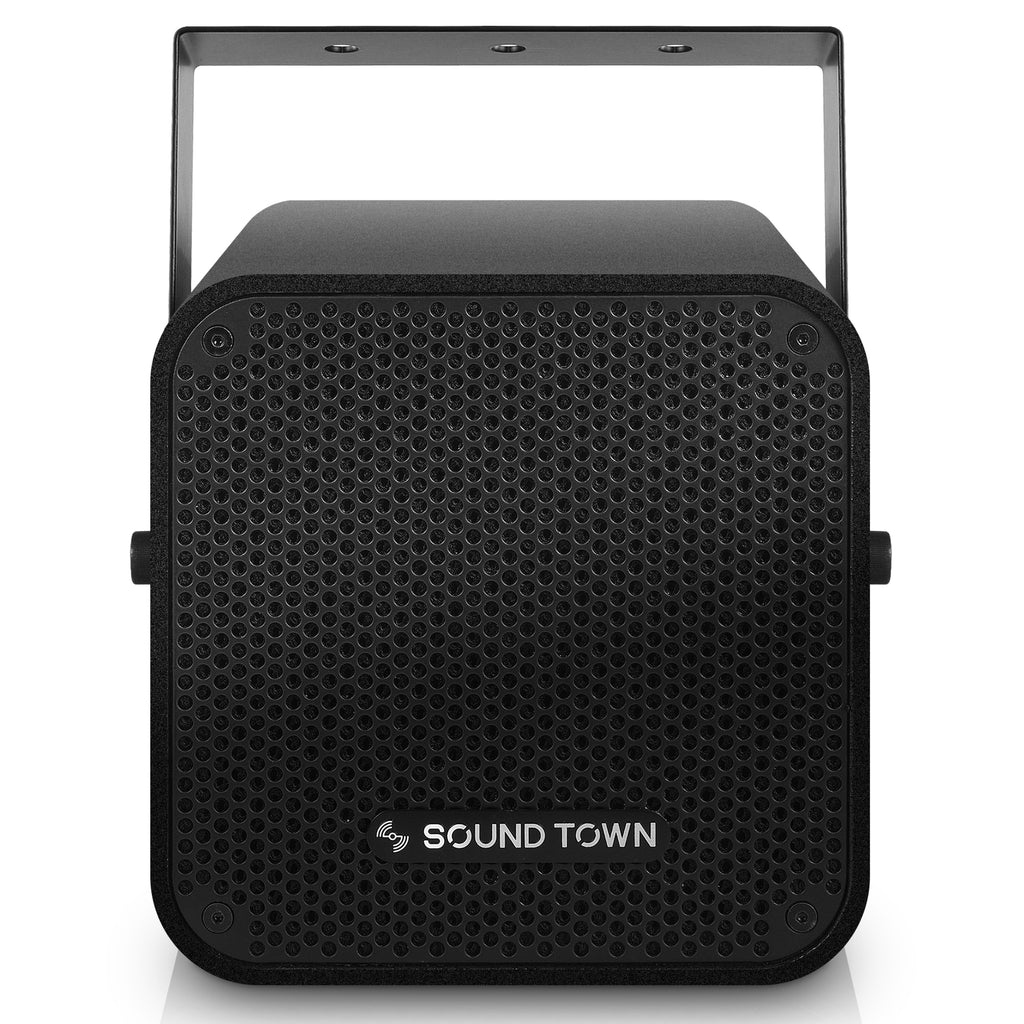

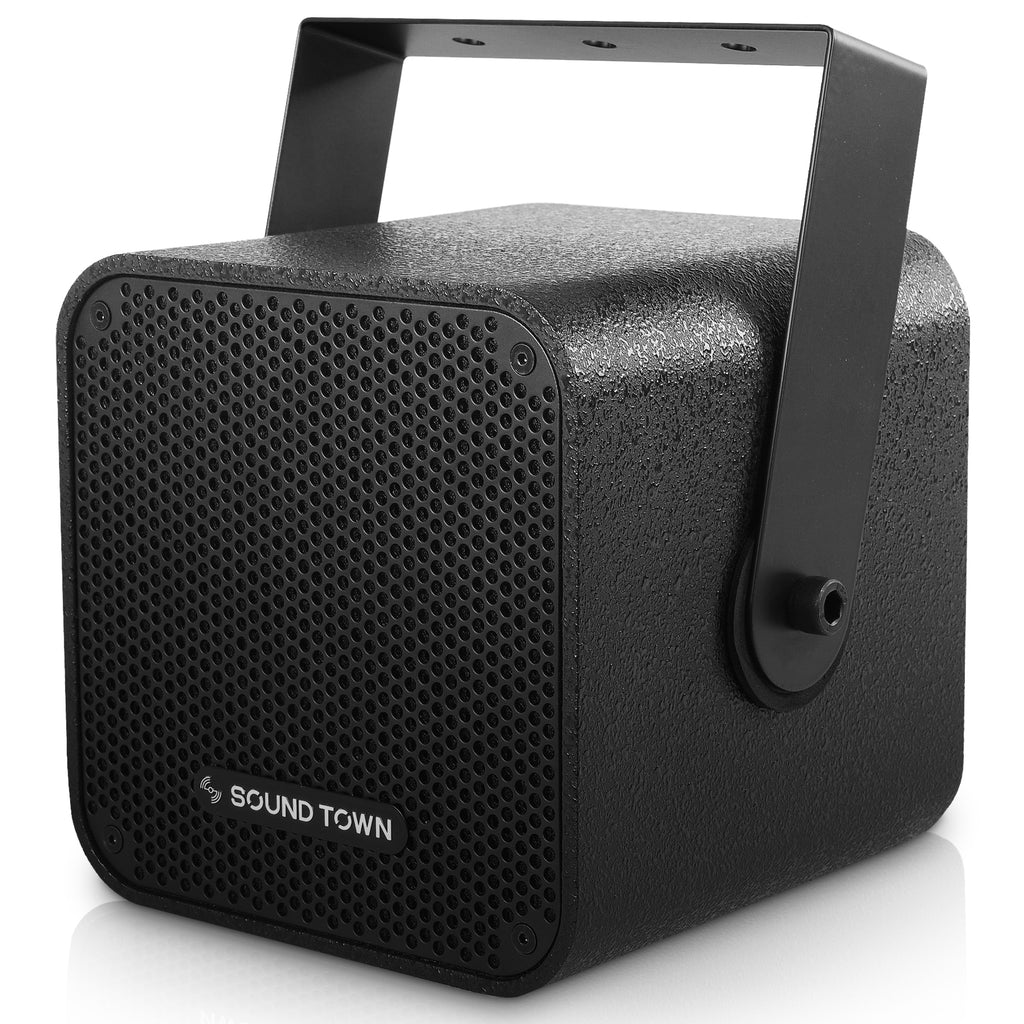

The Sound Town CARME-105B is a compact-size passive loudspeaker without compromising the sound quality. It comes with one 5” woofer and one coaxial 1” tweeter and delivers super sound quality. It has a broad frequency response range of 90 Hz to 30 KHz and handles 250W RMS and 500W peak power. The wooden enclosure damps out unwanted vibration and guarantees reliable and consistent performance.
With U mounting bracket (included in the package), it enables the loudspeaker to be installed against a wall or other flat surface. It is ideal for restaurants, meeting rooms, hotels, clubs, houses of worship, schools, etc.
FEATURES
- Compact size 2-way passive loudspeaker system with classic wooden enclosure.
- Horn loaded tweeters and super-sized woofer magnets allow for exceptional sensitivity, putting out more sound with less power.
- U mounting bracket enables the unit to be secured against a wall or other flat surface.
SPECIFICATIONS
Specifications
Model | CARME-105B, CARME-105W |
Frequency Response | 95 Hz - 18 kHz |
Sensitivity | 98 dB (Passive) |
SPL Max | 125 dB |
Dispersion | 120° conical |
Configuration | 5" ultra compact coaxial cubes |
Transducer | LF: 1 x 5", HF: 1 x 1" diaphragm coaxial |
Impedance | 8O Nominal |
Power Handling | 100 / 200W |
Connectors | 2 x 4 Pin Speakon |
Cabinet Construction | High-grade 100% birch plywood |
Mounting | U bracket |
Finish | Texture coating (RAL colors available) |
Grill & Rigging Component | Steel with anti-corrosion coat |
Amplifier | -- |
Input | -- |
Output | -- |
Control | -- |
Indicator | -- |
Voltage | -- |
Dimension & Weight
Product Width (in.) | 7.5" | Package Width (in.) | 11.6" |
Product Height (in.) | 7.5" | Package Height (in.) | 10.8" |
Product Depth (in.) | 7.5" | Package Depth (in.) | 10.4" |
Product Weight (lb.) | 7.7 lbs | Package Weight (lb.) | 12.8 lbs |
Warranty/Certifications
Manufacturer Warranty | 1 Year |
