CARME-105W | Compact 2-way 5” Coaxial Wall Mount Commercial Loudspeaker with 5” Woofer, Speed Mounting Bracket, White

Sound Town
CARME-105W Sound Town Compact 2-way 5” Coaxial Wall Mount Commercial Loudspeaker, White, with 5” Woofer, Speed Mounting Bracket for Bar, Church - Right Panel

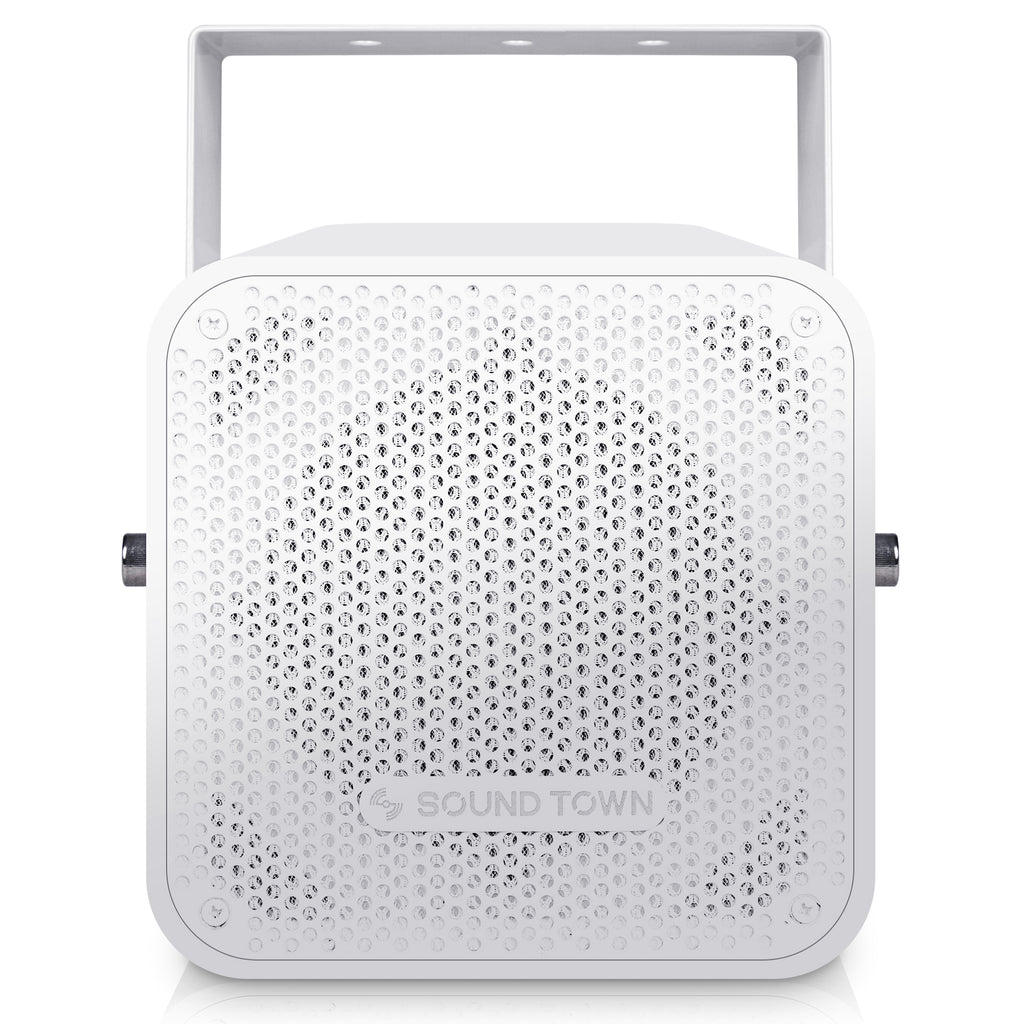

CARME-105W Sound Town Compact 2-way 5” Coaxial Wall Mount Commercial Loudspeaker, White, with 5” Woofer, Speed Mounting Bracket for Bar, Church - Front Panel

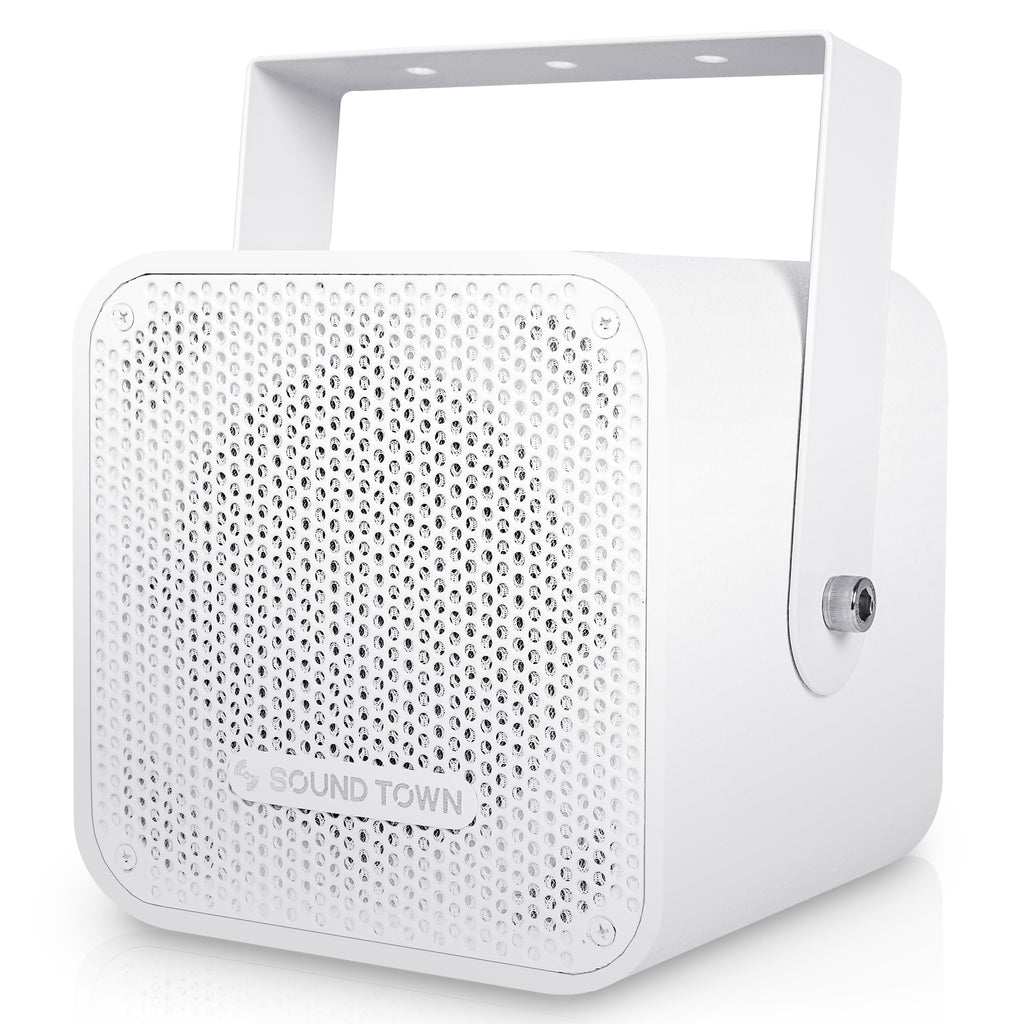

CARME-105W Sound Town Compact 2-way 5” Coaxial Wall Mount Commercial Loudspeaker, White, with 5” Woofer, Speed Mounting Bracket for Bar, Church - Left Panel

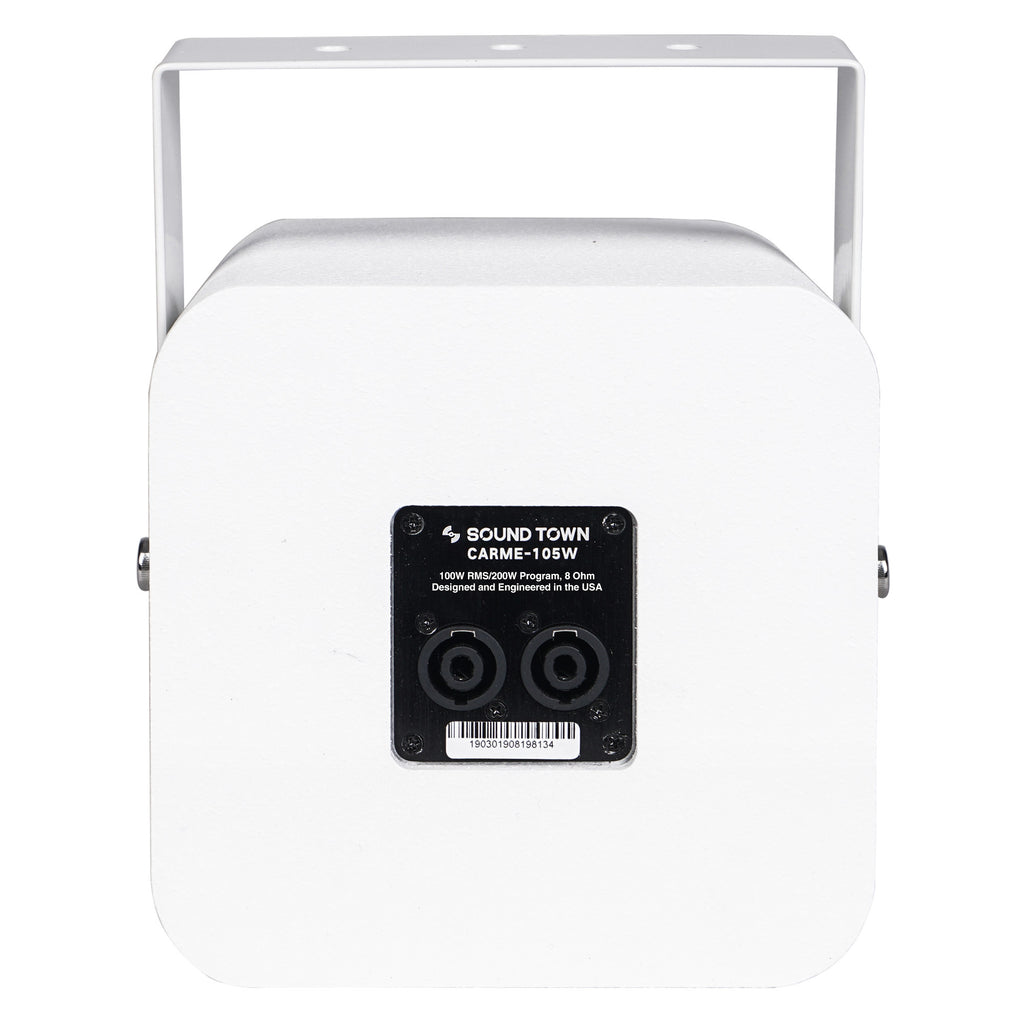

CARME-105W Sound Town Compact 2-way 5” Coaxial Wall Mount Commercial Loudspeaker, White, with 5” Woofer, Speed Mounting Bracket for Bar, Church - Back Panel

$82.99

The Sound Town CARME-105W is a compact passive loudspeaker without compromising the sound quality. It comes with one high power coaxial 5” woofer, one 1.5” voice coil and 1” compression driver and delivers superb sound.  It has a broad frequency response range of 90 Hz to 30KHz and handles 250W RMS and 500W peak power. The wooden enclosure damps out unwanted vibration and guarantees reliable and consistent performance.

With U mounting bracket (included in the package), it enables the loudspeaker to be installed against a wall or other flat surface. It is ideal for lounges, restaurants, meeting rooms, hotels, clubs, houses of worship, schools, etc.

  • Compact 2-way passive loudspeaker system with classic wooden enclosure and white texture finish
  • High power coaxial 5” woofer with 1.5” voice coil and 1” compression driver delivers superb sound quality
  • U mounting bracket enables the unit to be secured against a wall or other flat surface
  • Ideal for churches, schools, lounges, restaurants, meeting rooms, hotels, clubs, etc.

Specifications

Model CARME-105B, CARME-105W
Frequency Response 95 Hz - 18 kHz
Sensitivity 98 dB (Passive)
SPL Max 125 dB
Dispersion 120° conical
Configuration 5" ultra compact coaxial cubes
Transducer LF: 1 x 5", HF: 1 x 1" diaphragm coaxial
Impedance 8Ω Nominal
Power Handling 100 / 200W
Connectors 2 x 4 Pin Speakon
Cabinet Construction High-grade 100% birch plywood
Mounting U bracket
Finish Texture coating (RAL colors available)
Grill & Rigging Component Steel with anti-corrosion coat
Amplifier --
Input --
Output --
Control --
Indicator --
Voltage --


Dimension & Weight

Product Width (in.) 7.5" Package Width (in.) 11.6"
Product Height (in.) 7.5" Package Height (in.) 10.8"
Product Depth (in.) 7.5" Package Depth (in.) 10.4"
Product Weight (lb.) 7.7 lbs Package Weight (lb.) 13.0 lbs


Warranty/Certifications

Manufacturer Warranty 1 Year



▶ CARME Series Brochure
▶ CARME Series Installation Guide
