ZETHUS-118S210X4 | ZETHUS Series Line Array Speaker System w/ 1 x 18" Subwoofer, 4 x Dual 10” Loudspeaker, Black for Live Sound, Clubs, Bars, Churches and Schools
- DESCRIPTION
- FEATURES
- SPECIFICATIONS
- FAQ
- DOWNLOADS
- REVIEWS
The Sound Town ZETHUS Series ZETHUS-118S210X4 combo set includes:

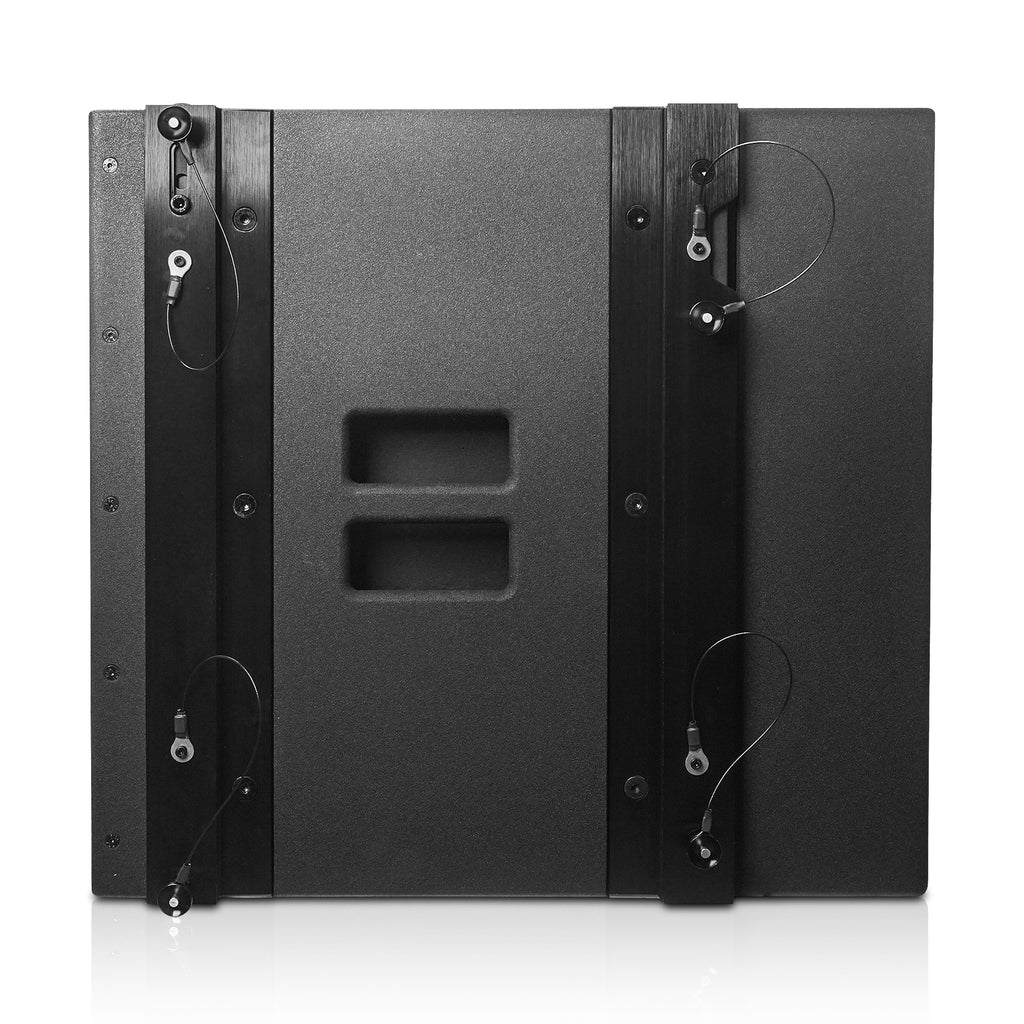

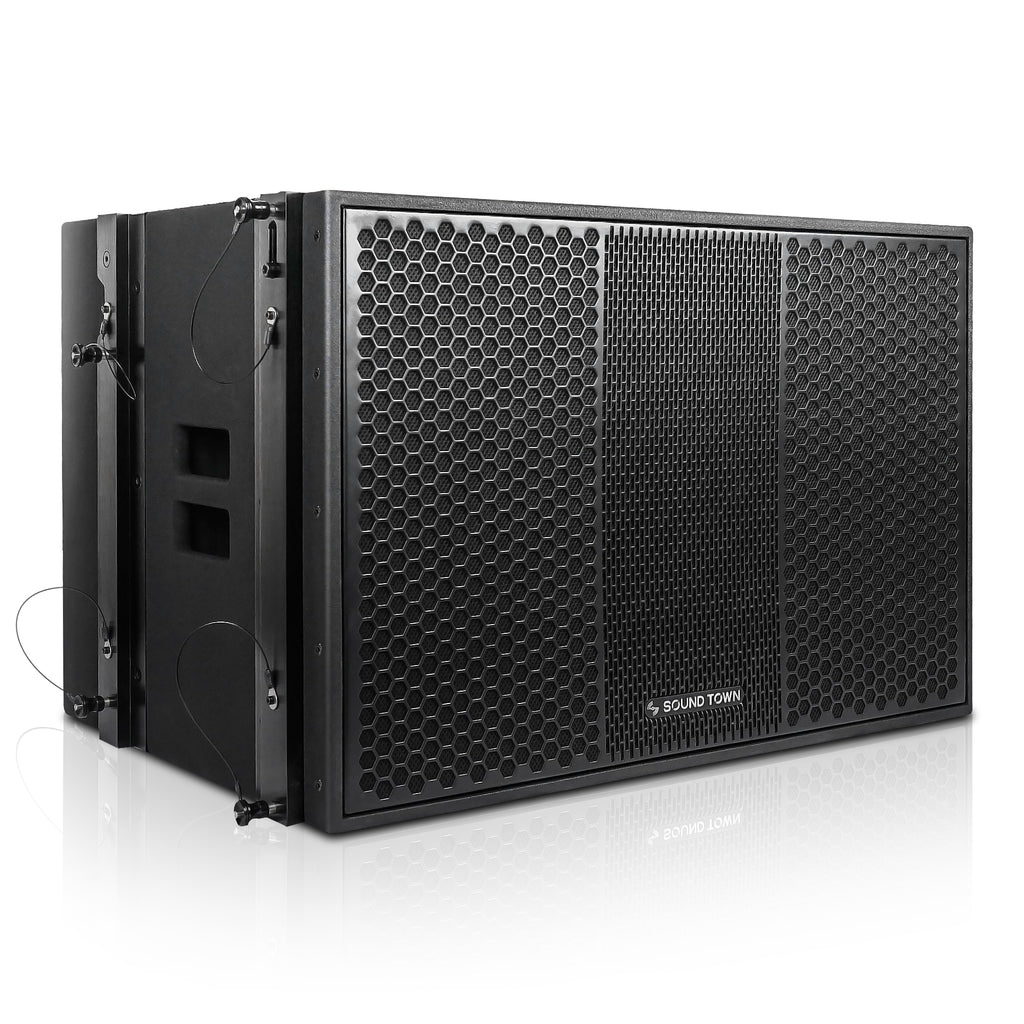

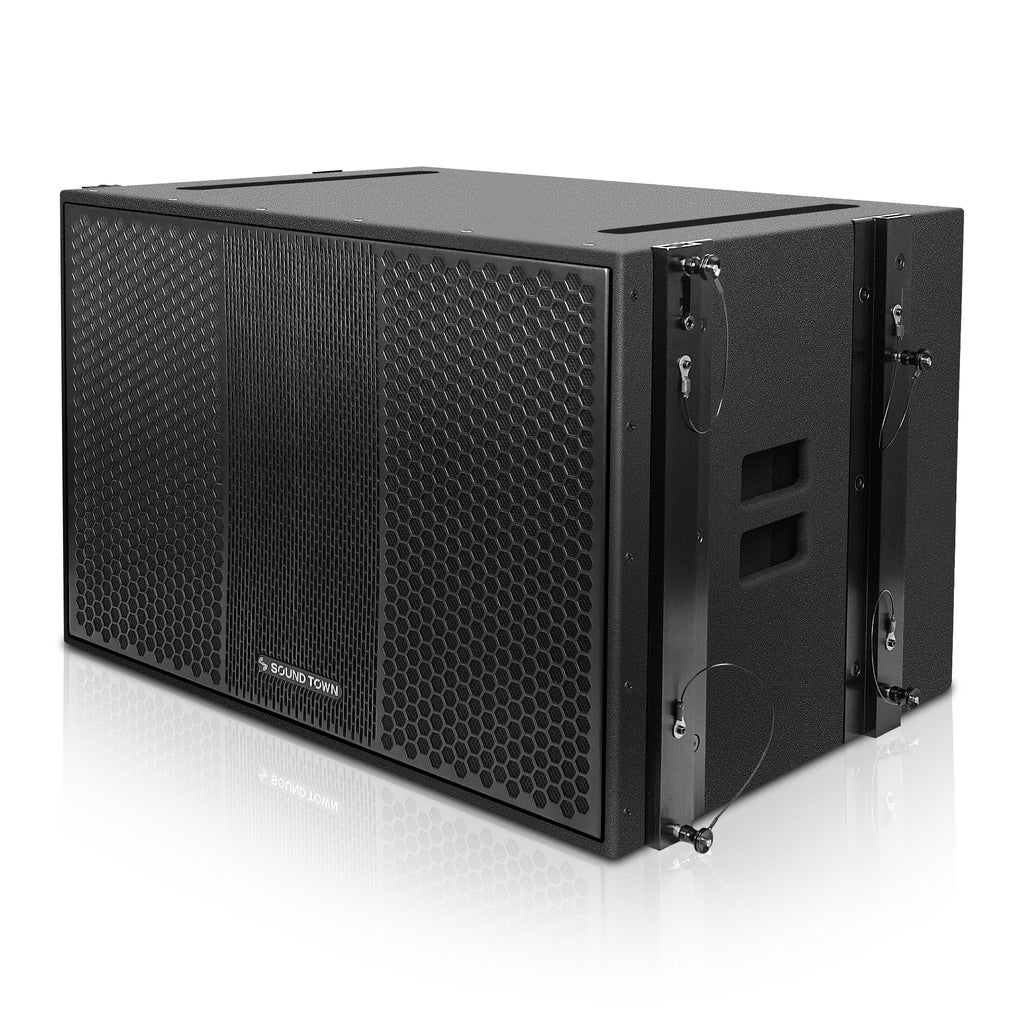

- (1) ZETHUS-118S 18" passive line array subwoofer

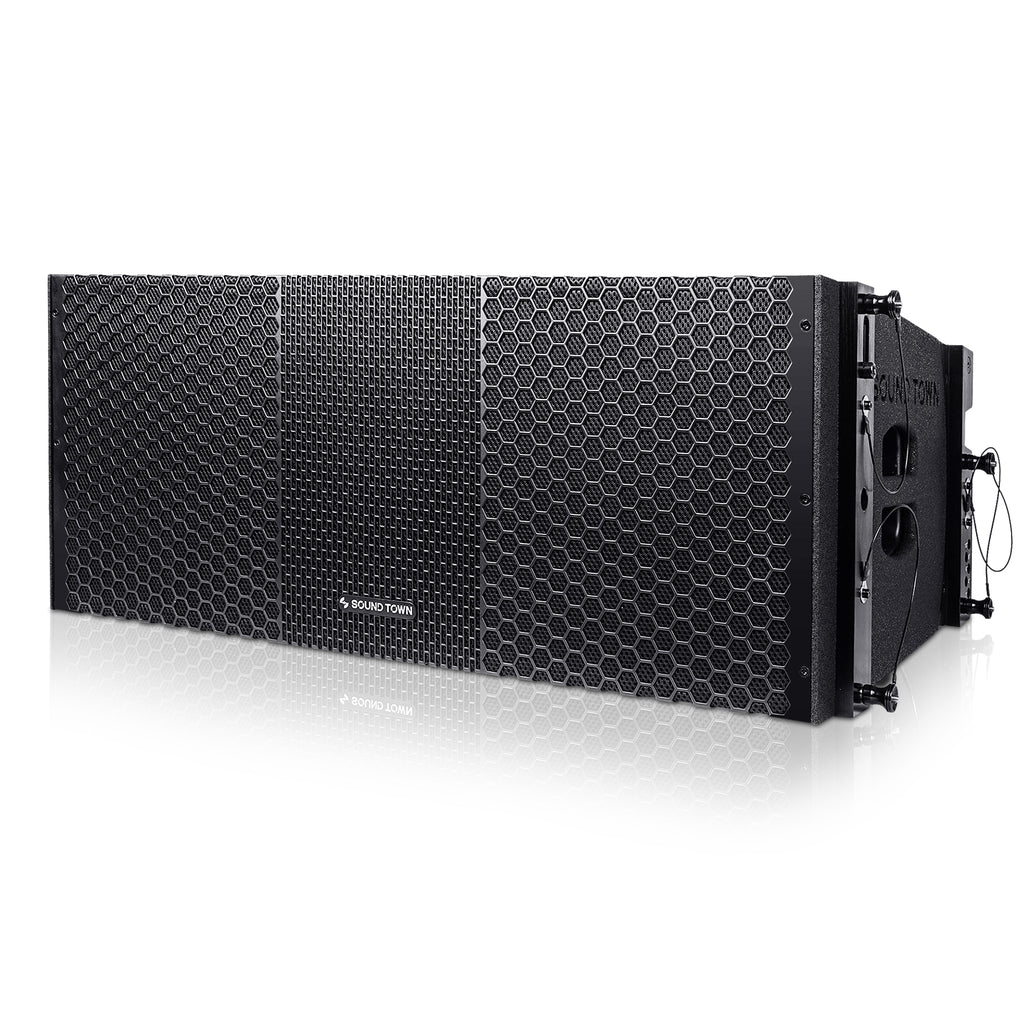

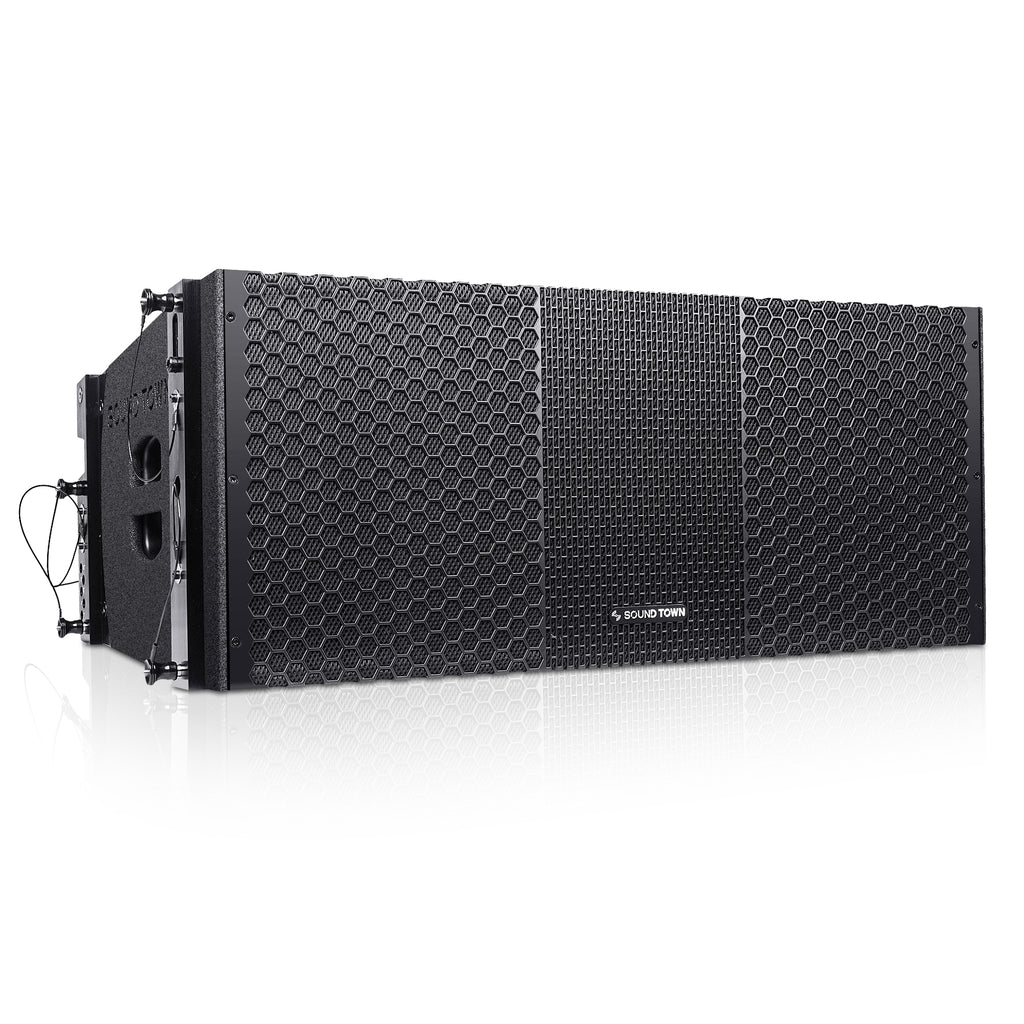

- (4) ZETHUS-210B dual 10" passive line array PA speakers

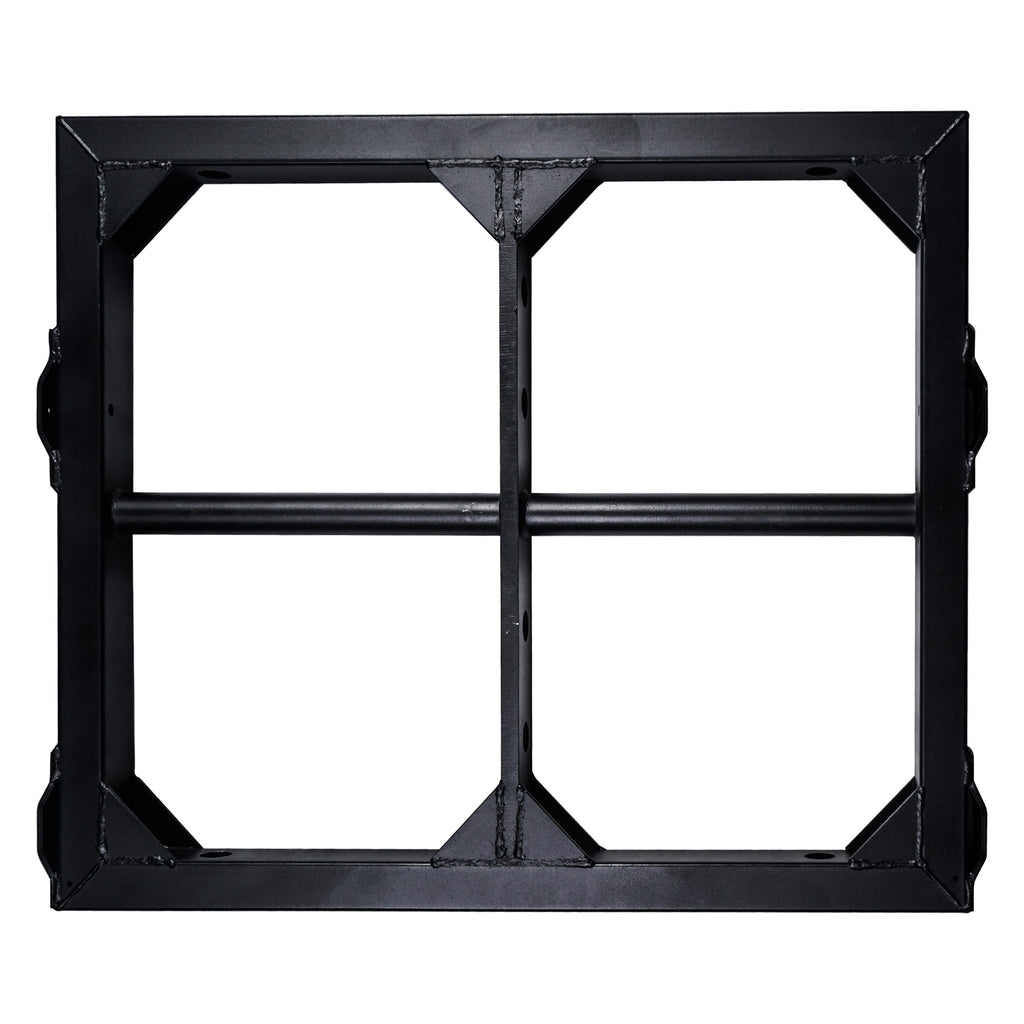

- (1) ZETHUS-210FF flying frame
The ZETHUS-118S is a 18" passive subwoofer with extraordinary 800W RMS, 1600W peak (8-ohm) power handling capability and delivers rich and solid low-frequency reinforcement. The ZETHUS-210B is a lightweight and compact passive line array speaker which delivers superior sound quality with two 10" woofers, two 1.4" titanium compression drivers and 550W RMS, 1100W progragm (16-Ohm) power handling capability.

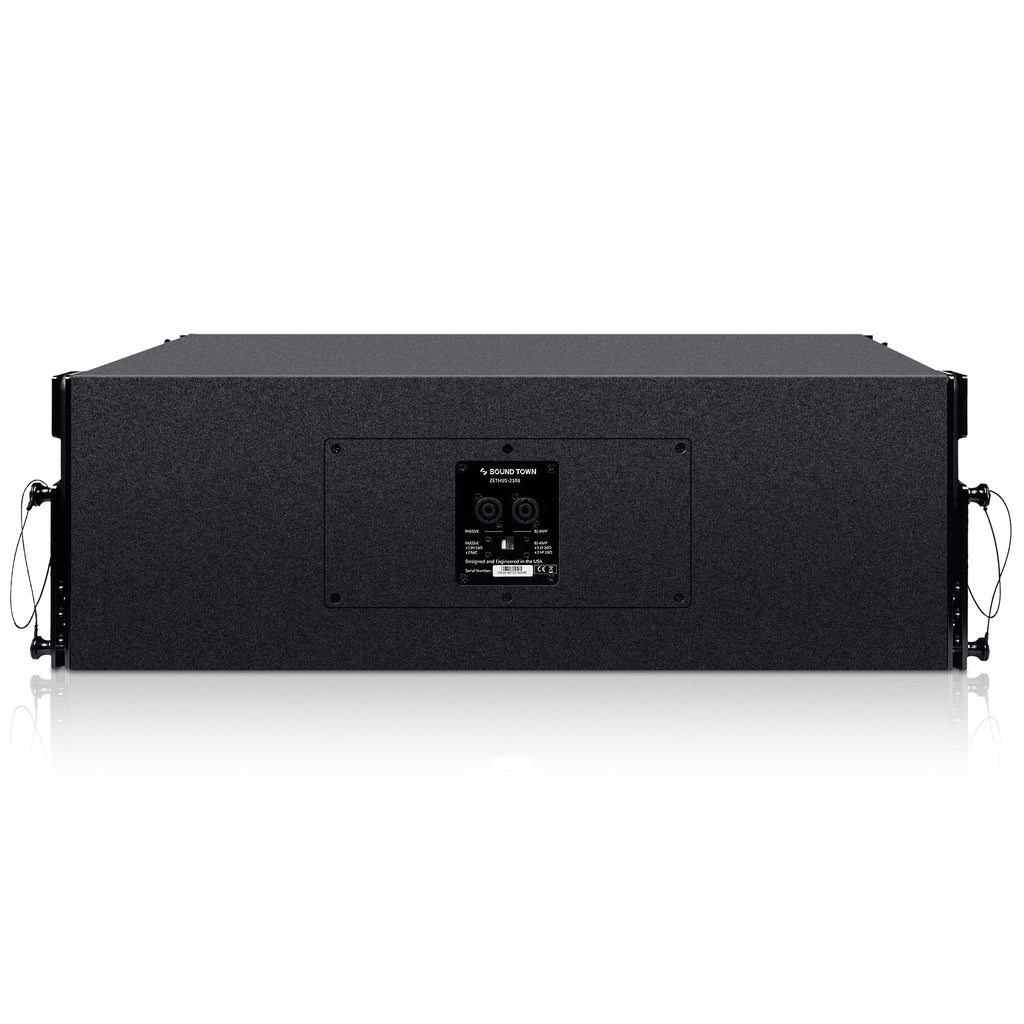

Four ZETHUS-210B line array speakers can be quickly stacked and mounted to the ZETHUS-118S subwoofer and secured with attached mounting points and heavy-duty metal handles on the rear panels. Combined together, they deliver accurate and immersive sound performance at earth shaking volume. With the mounting frame, the speaker system can be flown for optimum coverage. Ideal for a wide range of installation applications ranging from live entertainment, clubs to churches or other venues where a line array speaker system is desired.
- This speaker system includes 1 x ZETHUS-118S passive line array subwoofer and 4 x ZETHUS-210B passive line array speakers and 1 x ZETHUS-210FF flying frame
- The ZETHUS-118S is a 18" passive subwoofer with extraordinary 800W RMS, 1600W peak (8-ohm) power handling capability and delivers rich and solid low-frequency reinforcement
- The ZETHUS-210B is a lightweight and compact passive line array speaker which delivers superior sound quality with two 10" woofers, two 1.4" titanium compression drivers and 550W RMS, 2200W peak (16-Ohm) power handling capability
- Four ZETHUS-210B line array speakers can be quickly stacked and mounted to the ZETHUS-118S subwoofer and secured with attached mounting points and heavy-duty metal handles on the rear panels. Altogether they deliver accurate and immersive sound performance at earth shaking volume

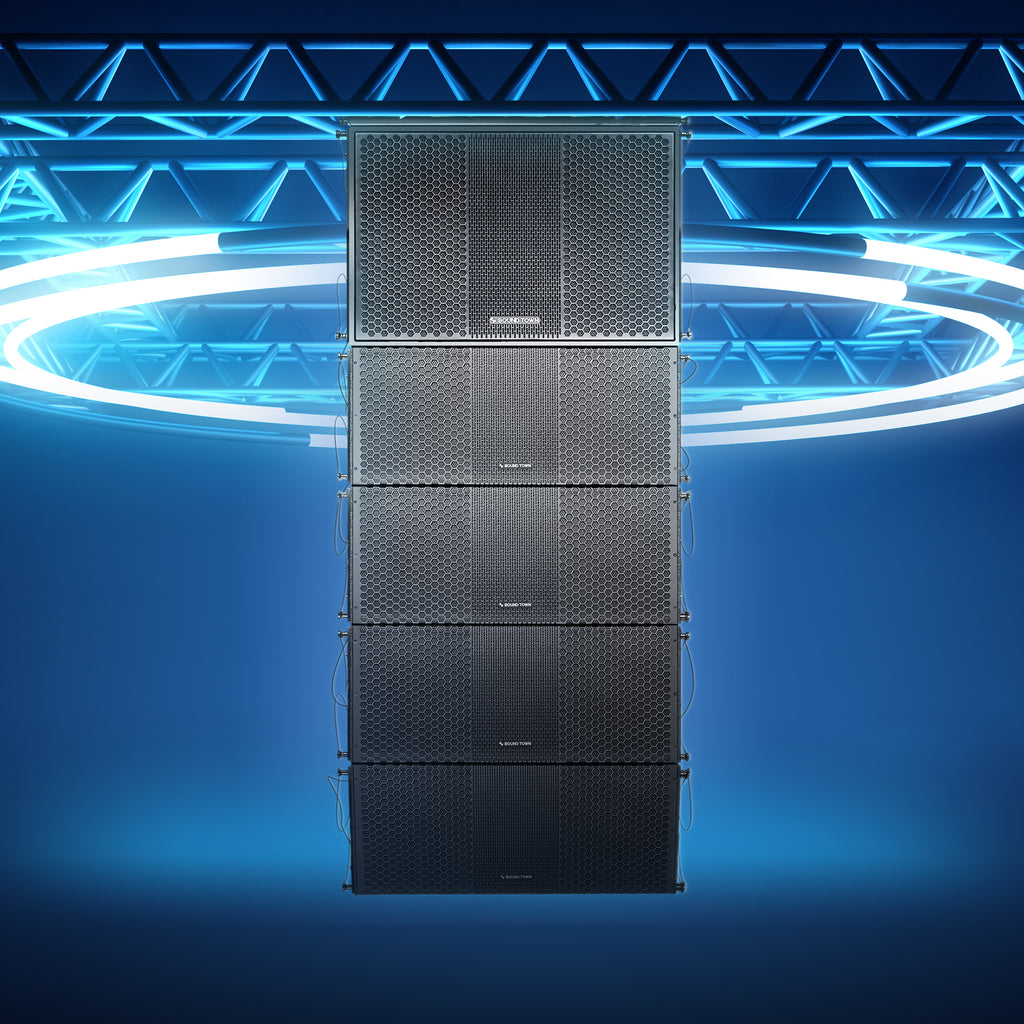

- With the mounting frame, the speaker system can be flown for optimum coverage. Ideal for a wide range of installation applications ranging from live entertainment, clubs to churches or other venues where a line array speaker system is desired

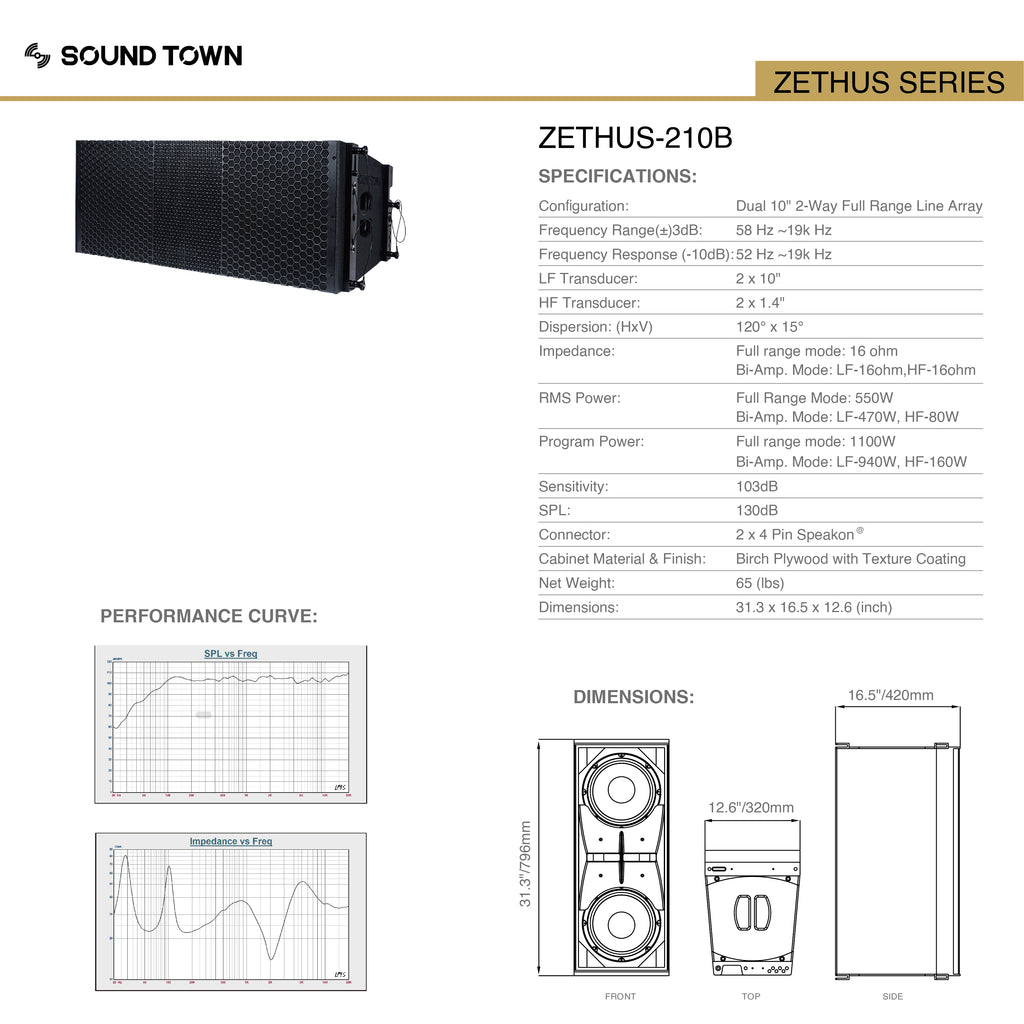

Specifications
Model | ZETHUS-118S | ZETHUS-210B |
Active/Passive | Passive | Passive |
Frequency Range | 32 Hz - 180 Hz | 52 Hz - 19 kHz |
Frequency Response | 35 Hz - 180 Hz | 58 Hz - 19 kHz |
Sensitivity | 102 dB (Passive) | 103 dB (Passive) |
SPL Max | 131 dB | 130 dB |
Dispersion | -- | 120º x 15º (H x V) |
Configuration | 18" passive line array subwoofer | Compact dual 10" passive full-range line array loudspeaker |
Transducer | LF: 1 x 18" woofer | LF: 2 x 10", HF: 2 x 1.4" diaphragm |
Voice Coil | 4.5" | 2.5" |
Magnet | 173 oz | 50 oz |
Impedance | 8Ω Nominal | 16Ω Nominal (Bi-Amp) |
Power Handling | 800W RMS / 1600W Peak | 550W RMS / 2200W Peak |

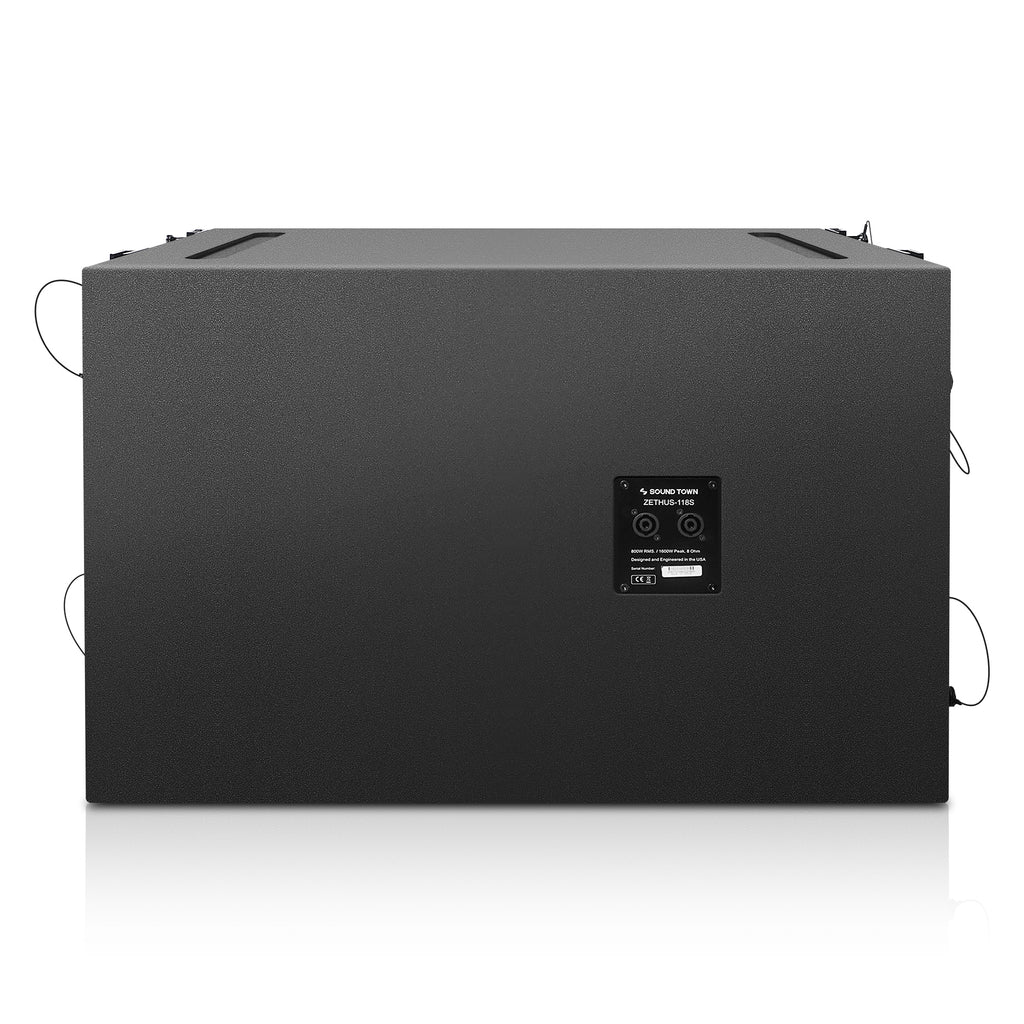

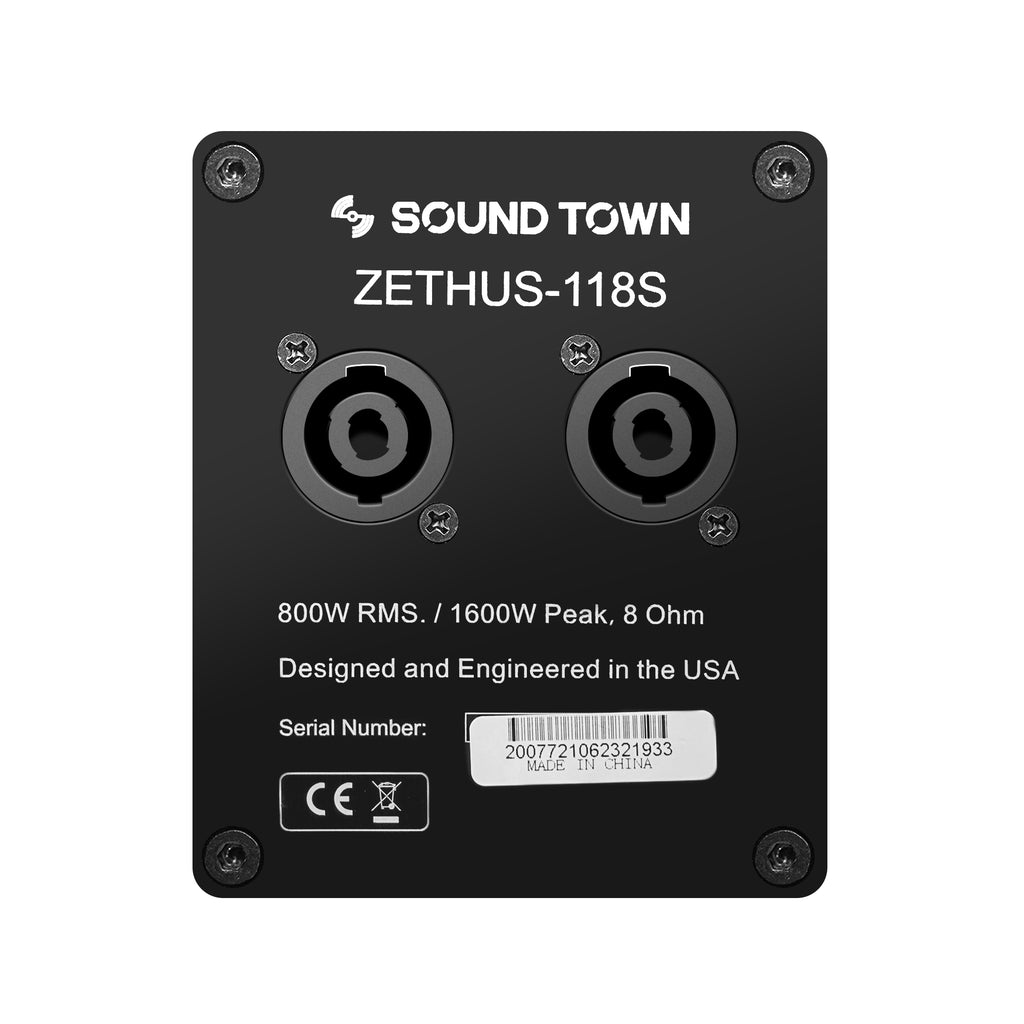

Input / Output |
2 x 4 Pin Speakon | 2 x 4 Pin Speakon |
Cabinet Construction | High-grade 100% birch plywood | High-grade 100% birch plywood |
Flying/Mounting Bracket | ZETHUS-210FF, compact line array aluminum hardware / flying frame | ZETHUS-210FF, compact line array aluminum hardware / flying frame |
Finish | Texture coating | Texture coating |
Grill & Rigging Component | Steel with anti-corrosion coat | Steel with anti-corrosion coat |
Crossover Parts# | -- | XO-Z210 |
High Frequency Driver Parts# | -- | STHF-3403T |
Low Frequency Woofer Parts# | -- | STLF-10Z |
Dimension & Weight
Model |
ZETHUS-118S | ZETHUS-210B | ZETHUS-210FF |
Product Width (in.) | 30.3" | 30.3" | 30.3" |
Product Height (in.) | 21.7" | 12.6" | 3.7" |
Product Depth (in.) | 21.7" | 16.5" | 24.8" |
Product Weight (lb.) | 108.0 lbs | 65.0 lbs | 41.8 lbs |
Package Width (in.) | 33.1" | 37.6" | 31.7" |
Package Height (in.) | 23.2" | 16.3" | 4.3" |
Package Depth (in.) | 24.4" | 19.6" | 26.2" |
Package Weight (lb.) | 114.8 lbs | 69.0 lbs | 44.9 lbs |
Warranty/Certifications
Manufacturer Warranty | 1 Year |
What processor and amp should I use to pair with the ZETHUS-118S210X4?
For ZETHUS-118S210X4, it is recommended to use:
• Processor: DBX DriveRack PA 2
• Amplifier: 2 x NIX-26PRO: 1 x ZETHUS-118S subwoofer per channel, 2 x ZETHUS-210B loudspeaker per channel
