ZETHUS-115SWPW110WX2 | Line Array System w/ One 15" Powered Subwoofer w/ DSP, LPF, Two Full-Range/Bi-Amp Switchable Compact 10" Loudspeakers, White

Sound Town

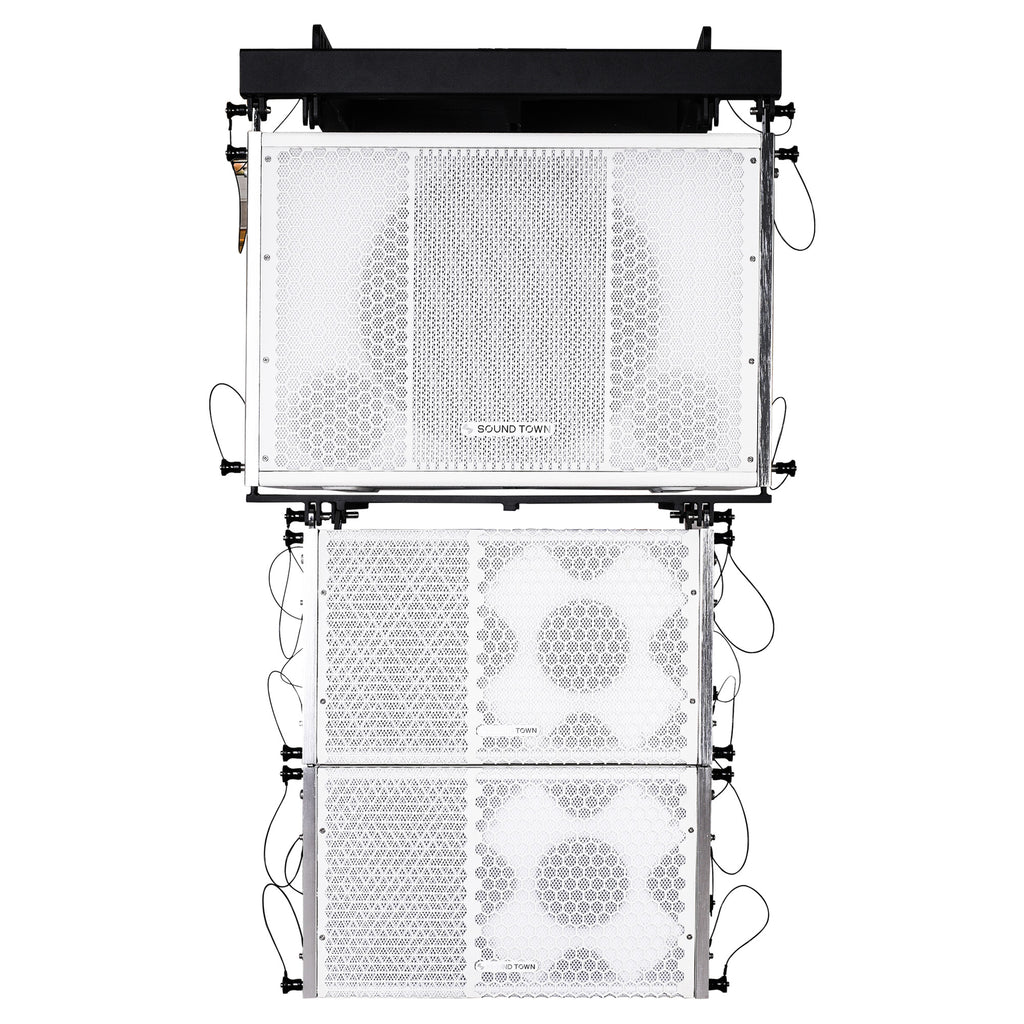

Sound Town ZETHUS-115SWPW110WX2 ZETHUS Series Line Array Speaker System with One 15-inch Powered Line Array Subwoofer with DSP, LPF, Two Compact 1 X 10-inch Line Array Speakers, White - Front Panel

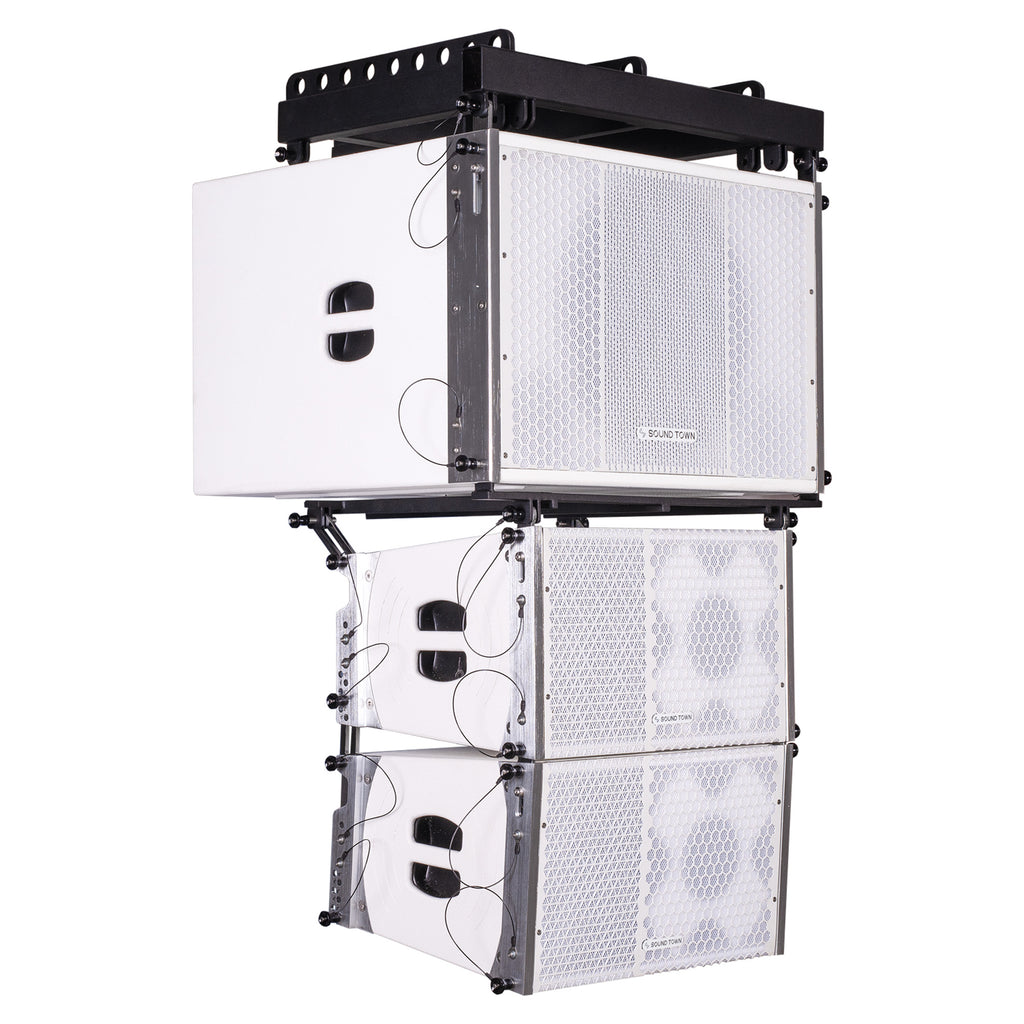

Sound Town ZETHUS-115SWPW110WX2 ZETHUS Series Line Array Speaker System with One 15-inch Powered Line Array Subwoofer w/ DSP, LPF, Two Compact 1 X 10-inch Line Array Speakers, White - Right Panel
Sound Town ZETHUS-115SWPW110WX2 | ZETHUS Series 15" 1000W Powered Line Array Subwoofer with DSP, LPF, White - Right Panel

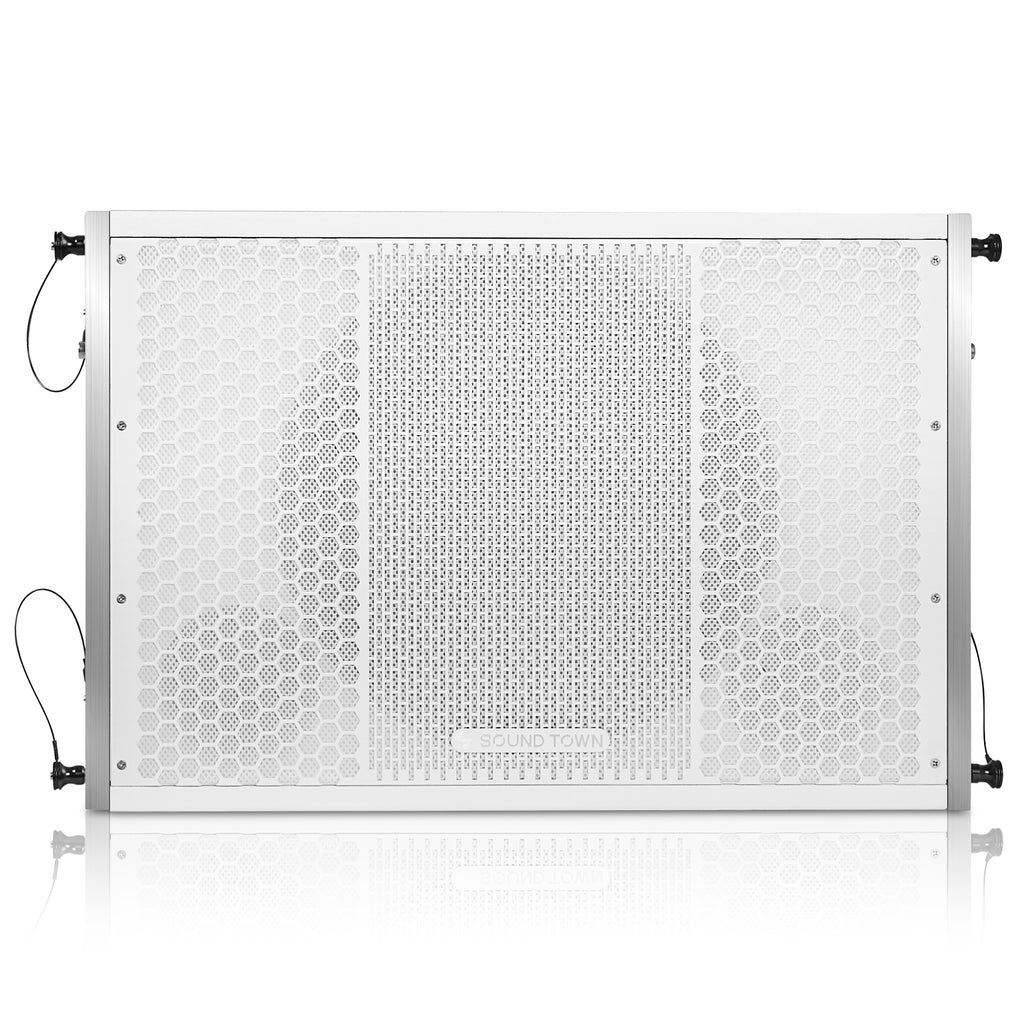

Sound Town ZETHUS-115SWPW110WX2 | ZETHUS Series 15" 1000W Powered Line Array Subwoofer with DSP, LPF, White - Front Panel

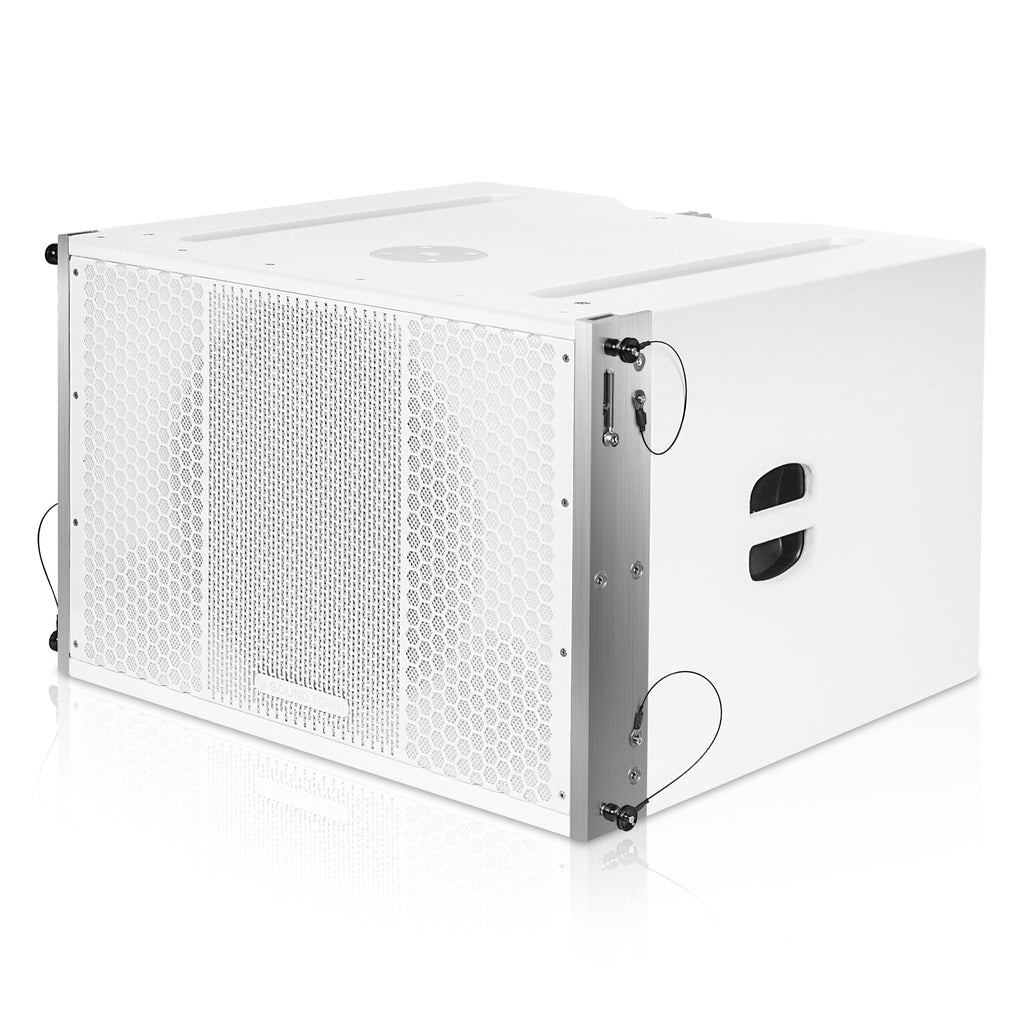

Sound Town ZETHUS-115SWPW110WX2 | ZETHUS Series 15" 1000W Powered Line Array Subwoofer with DSP, LPF, White - Left Panel

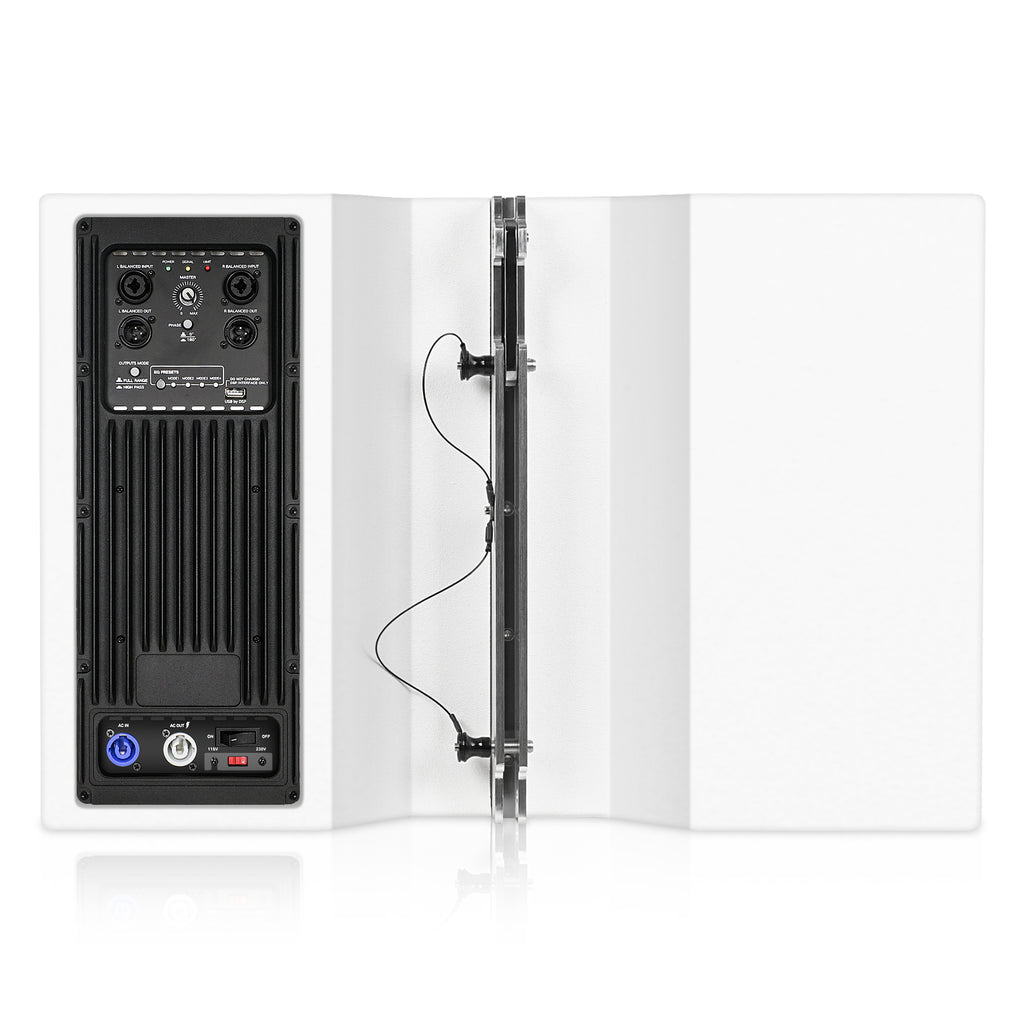

Sound Town ZETHUS-115SWPW110WX2 | ZETHUS Series 15" 1000W Powered Line Array Subwoofer with DSP, LPF, White - Back Panel

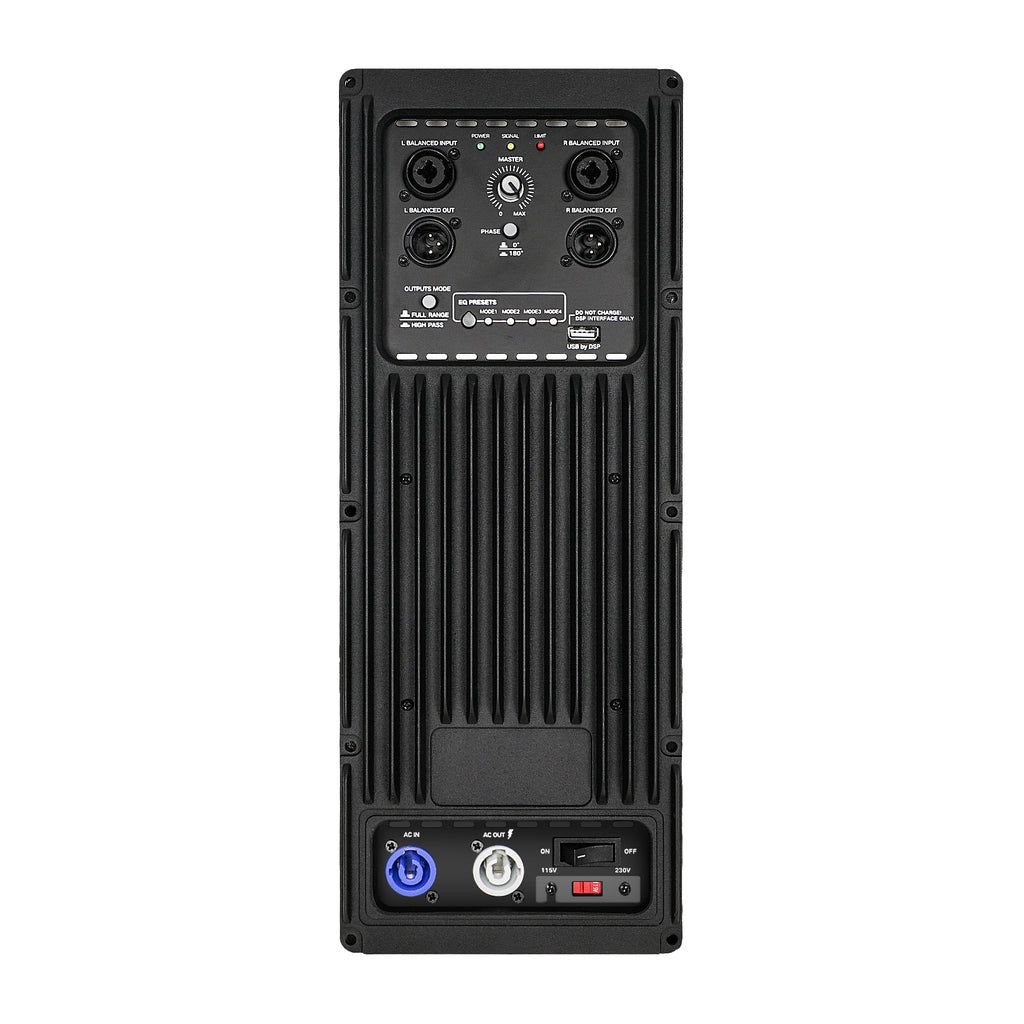

Sound Town ZETHUS-115SWPW110WX2 | ZETHUS Series 15" 1000W Powered Line Array Subwoofer with DSP, LPF, White - Plate Amp Module

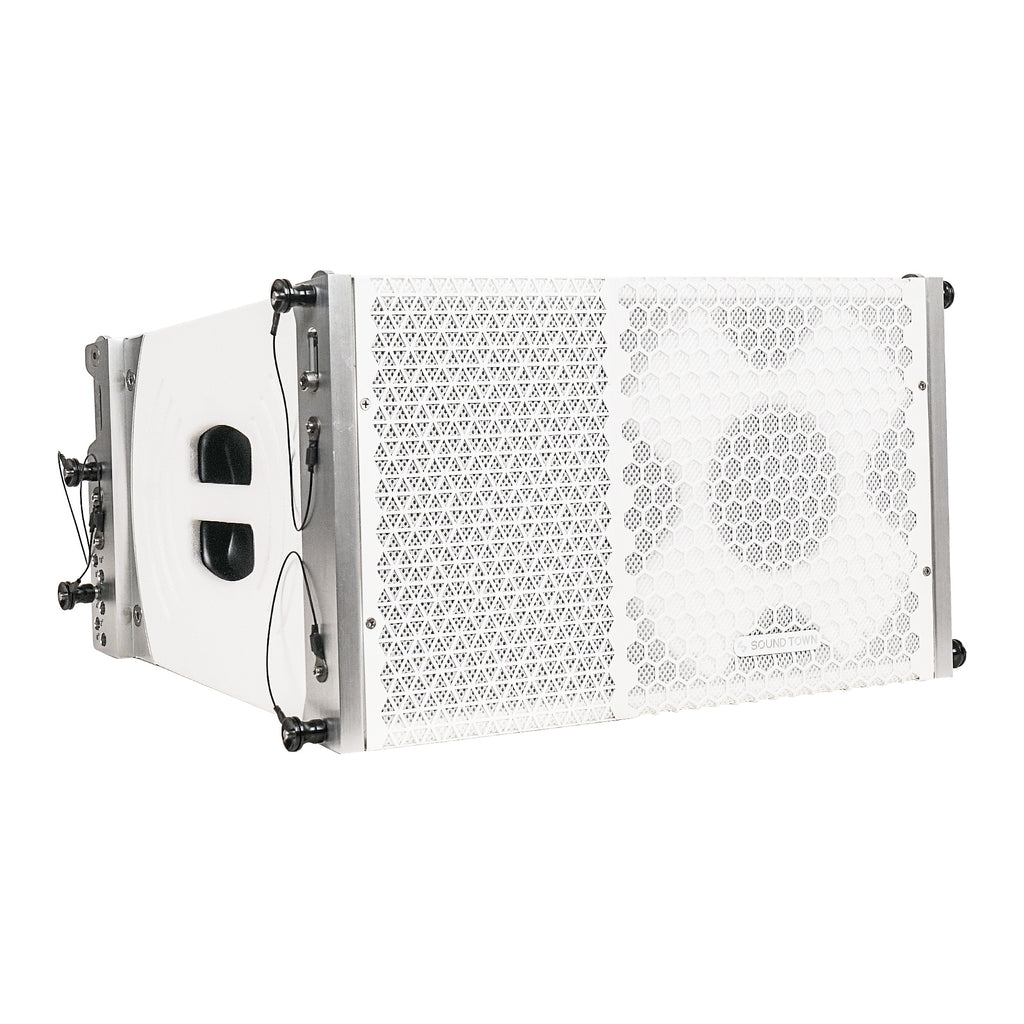

Sound Town ZETHUS-115SWPW110WX2 ZETHUS Series 10" Passive Two-Way Line Array Loudspeaker System with Titanium Compression Driver, Full Range/Bi-amp Switchable, White - Right Panel

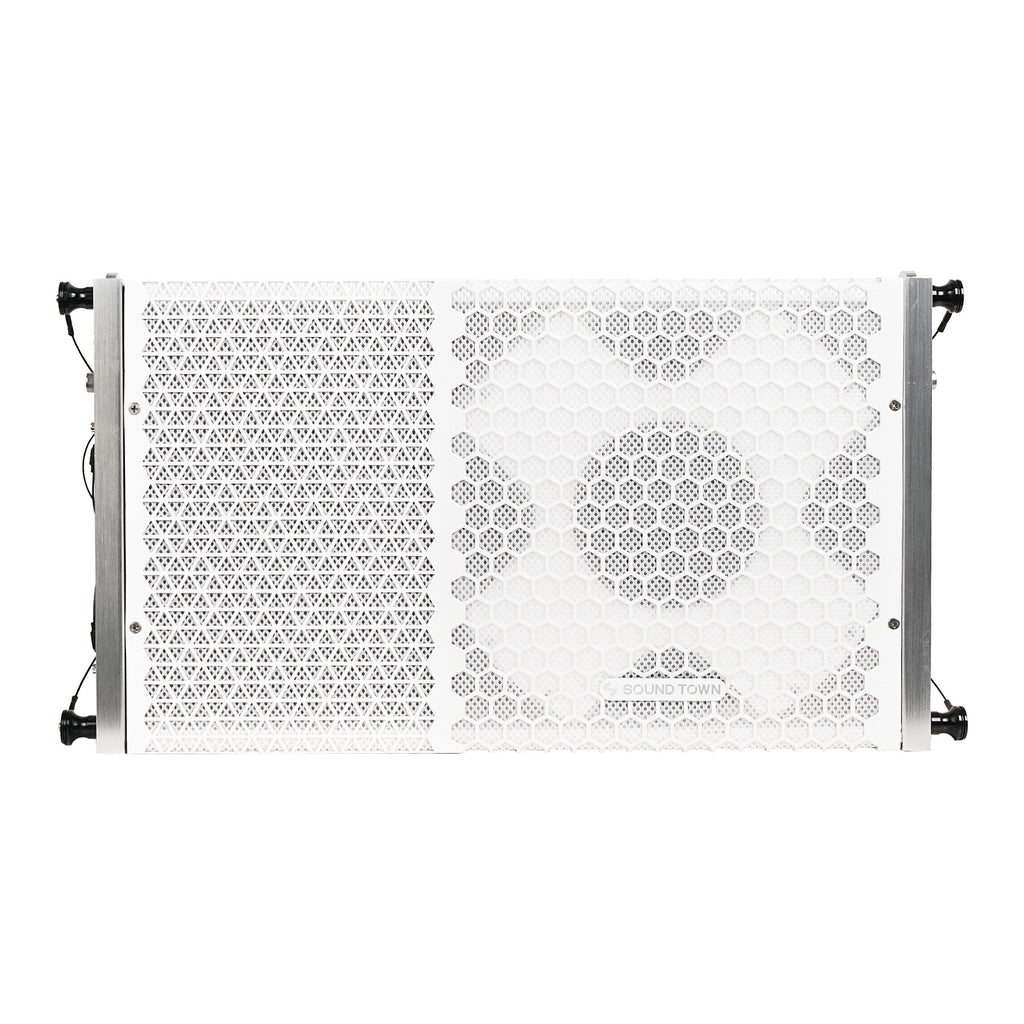

Sound Town ZETHUS-115SWPW110WX2 ZETHUS Series 10" Passive Two-Way Line Array Loudspeaker System with Titanium Compression Driver, Full Range/Bi-amp Switchable, White - Front Panel

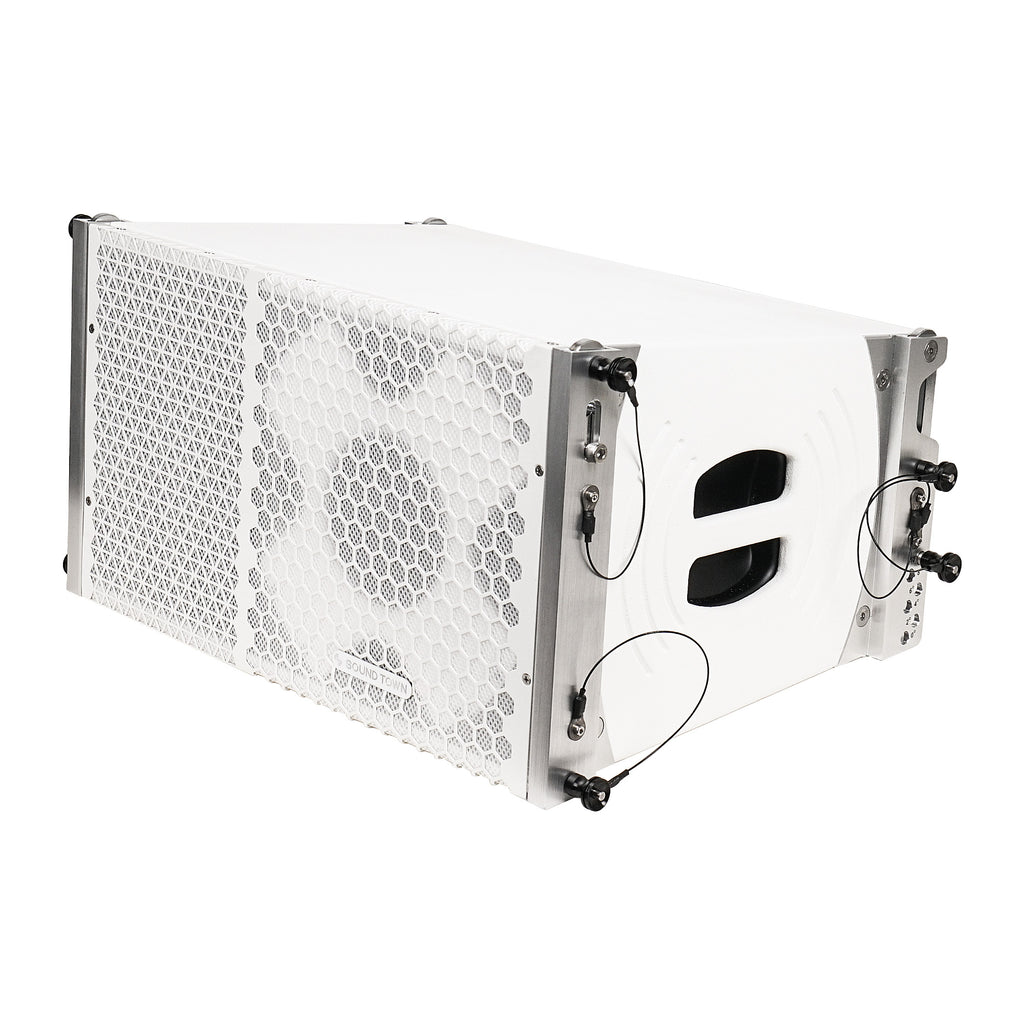

Sound Town ZETHUS-115SWPW110WX2 ZETHUS Series 10" Passive Two-Way Line Array Loudspeaker System with Titanium Compression Driver, Full Range/Bi-amp Switchable, White - Left Panel

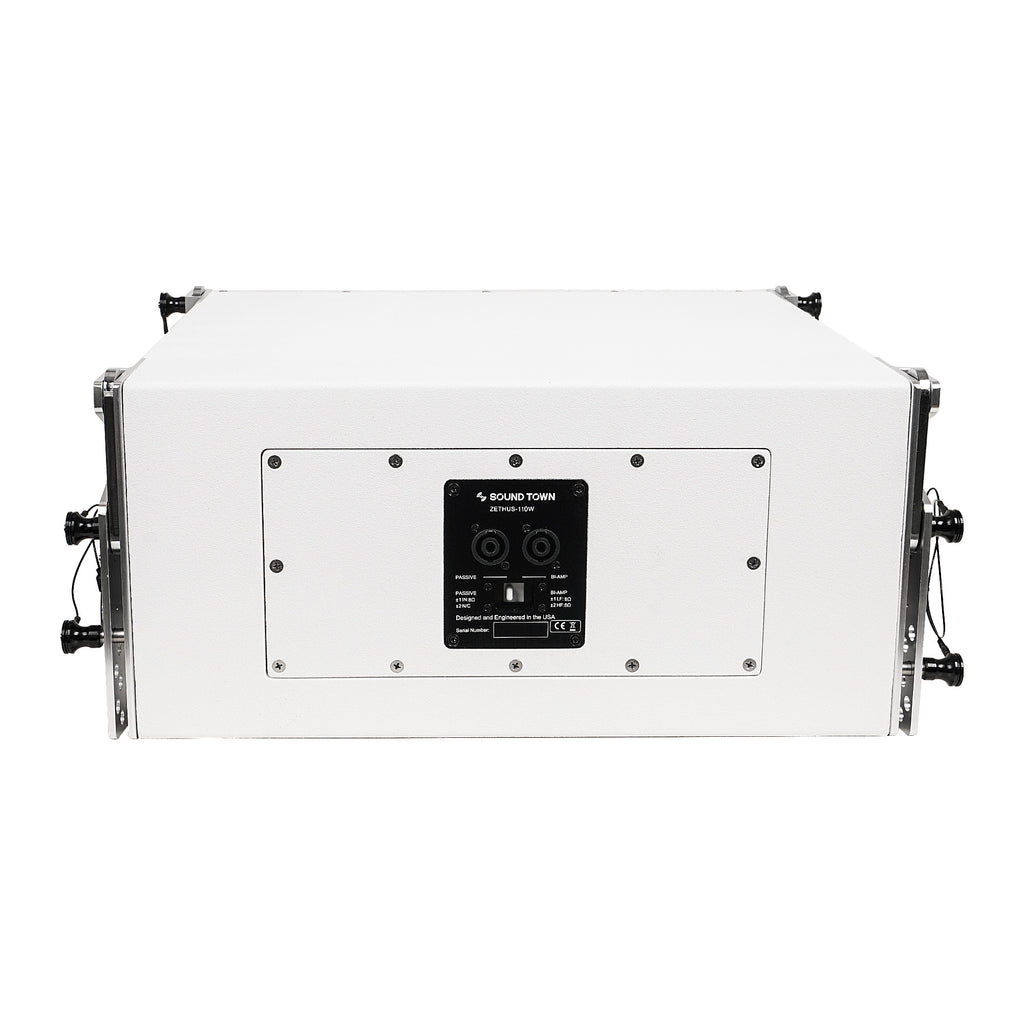

Sound Town ZETHUS-115SWPW110WX2 ZETHUS Series 10" Passive Two-Way Line Array Loudspeaker System with Titanium Compression Driver, Full Range/Bi-amp Switchable, White - Back Panel

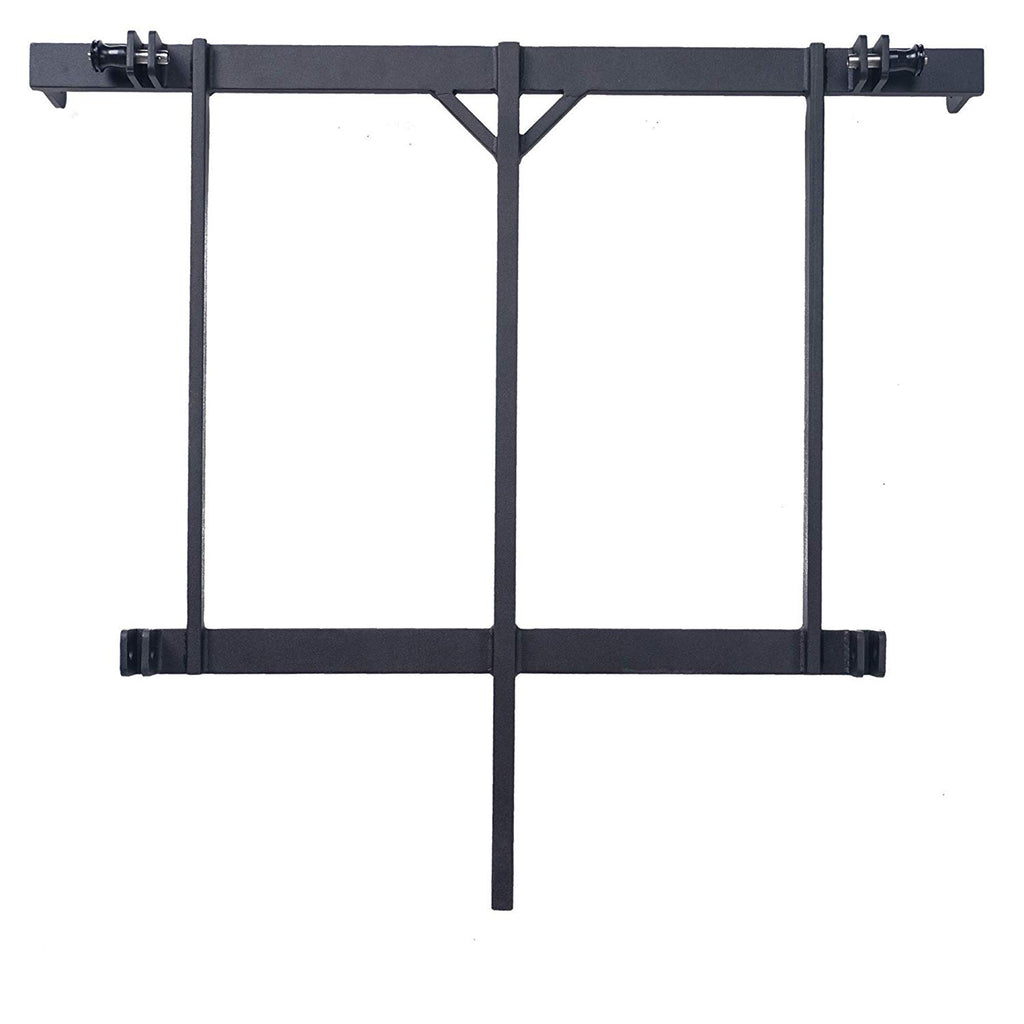

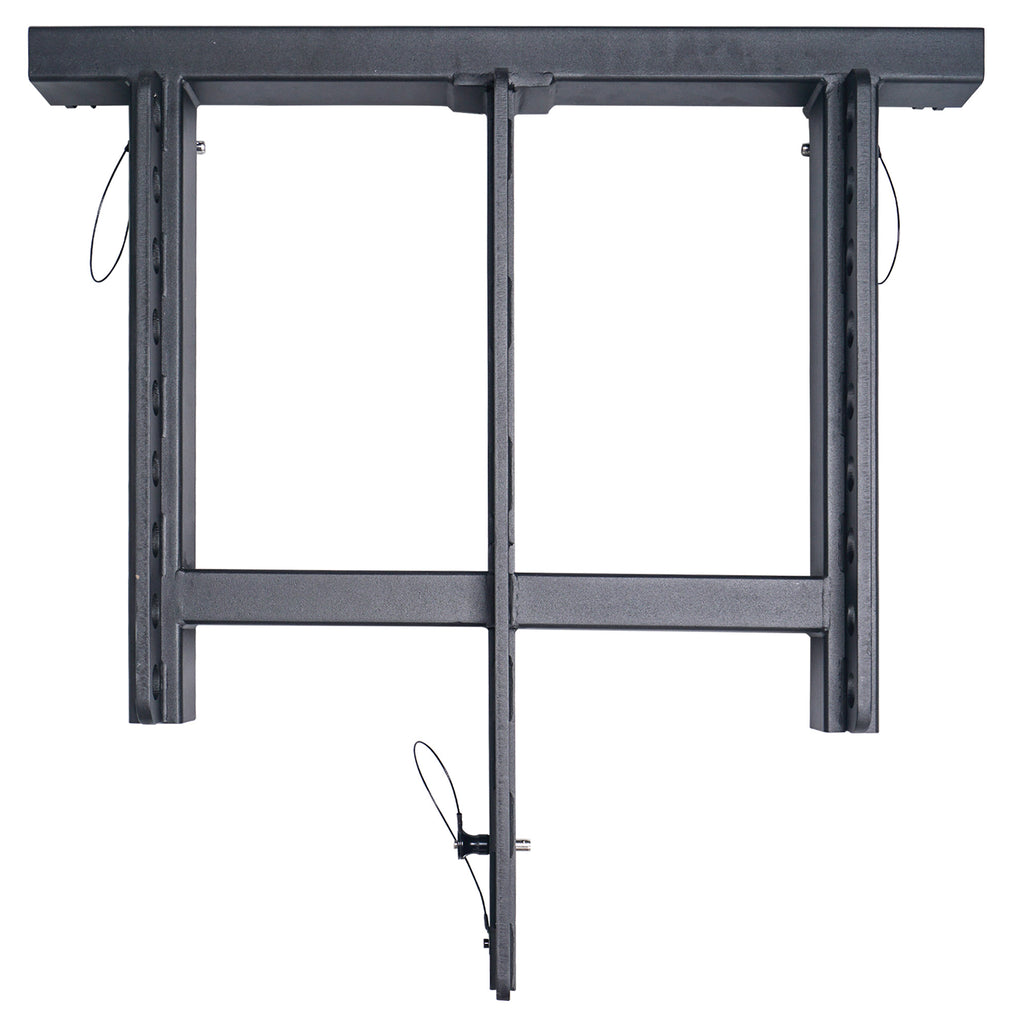

Sound Town ZETHUS-115SWPW110WX2 ZETHUS Series Flying Frame for ZETHUS-115S, ZETHUS-110PW, ZETHUS-110WPW ZETHUS-110W Line Array

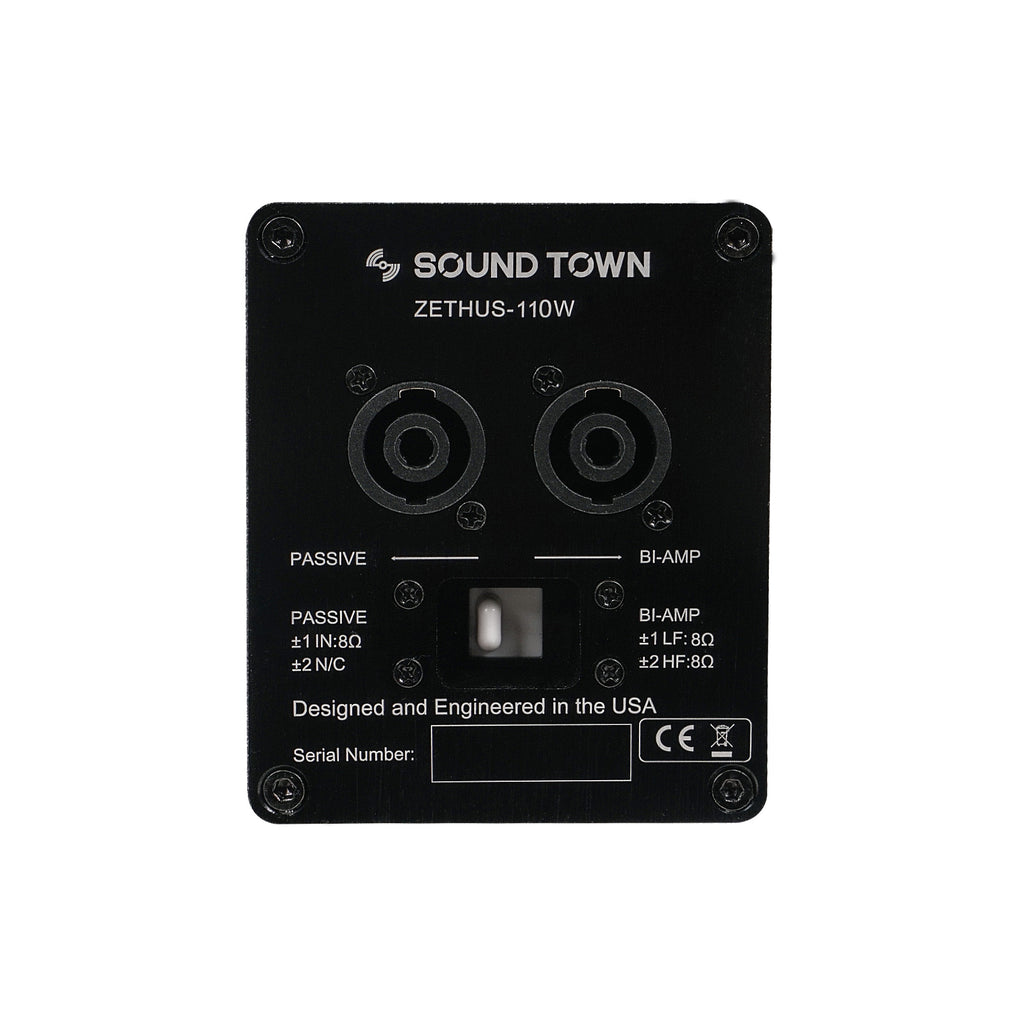

Sound Town ZETHUS-115SWPW110WX2 ZETHUS Series 10" Passive Two-Way Line Array Loudspeaker System with Titanium Compression Driver, Full Range/Bi-amp Switchable, White - Jack Plate

$1,699.99 $2,422.99

This line array speaker system includes:

The ZETHUS-115SWPW is a white 15” powered subwoofer with extraordinary 500W continuous, 1000W peak (8-ohm) power handling capability and delivers rich and solid low-frequency reinforcement; besides powering itself, it powers the additional 2 full range line array PA speakers. The ZETHUS-110W is a lightweight and compact passive line array speaker with beautiful white powder finish. It delivers superior sound quality with one 10” woofer, one 2” titanium compression driver and 300W RMS, 600W peak (8-Ohm) power handling capability, full range / passive bi-amp mode switchable for either quick connection or professional set up.

Two ZETHUS-110W line array speakers can be quickly stacked and mounted to the ZETHUS-115SWPW subwoofer via the ZETHUS-110WAD fly bar and secured with attached mounting points and heavy-duty metal handles on the rear panels. Altogether they deliver accurate and immersive sound performance at earth shaking volume. With the mounting frame, the speaker system can be flown for optimum coverage. The line array speaker system is ideal for a wide range of installation applications ranging from live entertainment, clubs to churches or other venues where a line array speaker system is desired.

  • This line array speaker system includes 1 x ZETHUS-115SWPW powered line array subwoofer, 2 x ZETHUS-110W passive line array speakers, 1 x ZETHUS-115SFF flying frame and 1 x ZETHUS-110WAD mounting frame.
  • The ZETHUS-115SWPW is a white 15” powered subwoofer with extraordinary 500W continuous, 1000W peak (8-ohm) power handling capability and delivers rich and solid low-frequency reinforcement; besides powering itself, it powers the additional 2 full range line array PA speakers.
  • The ZETHUS-110W is a lightweight and compact passive line array speaker with beautiful white powder finish. It delivers superior sound quality with one 10” woofer, one 2” titanium compression driver and 300W RMS, 600W peak (8-Ohm) power handling capability, full range / passive bi-amp mode switchable for either quick connection or professional set up.
  • Two ZETHUS-110W line array speakers can be quickly stacked and mounted to the ZETHUS-115SWPW subwoofer via the ZETHUS-110WAD fly bar and secured with attached mounting points and heavy-duty metal handles on the rear panels. Altogether they deliver accurate and immersive sound performance at earth shaking volume.
  • With the mounting frame, the speaker system can be flown for optimum coverage. Ideal for a wide range of installation applications ranging from live entertainment, clubs to churches or other venues where a line array speaker system is desired.


Specifications

Model ZETHUS-115SWPW ZETHUS-110W
Active / Passive Active  Passive
Frequency Range 33 Hz - 180 Hz 50 Hz - 20k Hz
Frequency Response 38 Hz - 180 Hz 55 Hz - 20k Hz
Sensitivity 100 dB (Passive) 101 dB (Passive)
SPL Max 128 dB 128 dB
Dispersion -- 90º x 20º (H x V)
Configuration 15" active line array subwoofer  10" passive full-range line array loudspeaker
Transducer LF: 1 x 15" LF: 1 x 10", HF: 1 x 2" Titanium compression driver
Voice Coil 4.0" 2.5"
Magnet 100 oz 50 oz
Impedance 8Ω 8Ω
Power Handling 500W Continuous, 1000W PEAK 300W RMS, 600W PROGRAGM, 1200W PEAK
Enclosure Material High-grade 100% birch plywood High-grade 100% birch plywood
Mounting Hardware ZETHUS-115SFF, integrated line array hardware ZETHUS-110WAD mounting frame
Finish Texture coating Texture coating
Grill & Rigging Component Steel with anti-corrosion coat Steel with anti-corrosion coat
Amplifier STPAS-G2DSP Class-D amplifier w/ DSP --
Input 2 x XLR-1/4" combo 4 Pin SPEAKON
Output 2 x XLR line out 4 Pin SPEAKON
Signal Processing -- DSP: PRESETTING, EQ, CROSSOVER, LIMIT ETC.
Control Master volume, phase, outputs mode (full-range/high-pass), EQ presets --
Indicator Power, signal, limit --
Voltage Neutrik PowerCON in & out 100V-240V (50-60 Hz) 100V-240V (50-60 Hz)
Crossover Parts# -- --
High Frequency Driver Parts# -- STHF-5103
Low Frequency Woofer Parts# STLF-1504-4 STLF-10Z



Dimension & Weight

Model
 ZETHUS-115SWPW ZETHUS-110W ZETHUS-115SFF ZETHUS-110WAD
Product Width (in.) 26.4" 20.5" 27.2" 26.4"
Product Height (in.) 17.7" 11.8" 5.4"
 3.5"
Product Depth (in.) 24.3" 15.2" 25.6" 23.9"
Product Weight (lb.) 93.7 lbs 43.0 lbs
 49.1 lbs 15.4 lbs
Package Width (in.) 29.4" 23.0" 28.5" 27.8"
Package Height (in.) 21.1" 15.0" 6.3" 4.5"
Package Depth (in.) 27.4" 18.4" 27.0" 25.3"
Package Weight (lb.) 99.0 lbs 47.4 lbs
 51.3 lbs 17.6 lbs


Warranty/Certifications

Manufacturer Warranty 1 Year


▶ ZETHUS Series Brochure
