ZETHUS-115SPW205V2X4 | ZETHUS Series Line Array System with One 15" Powered Subwoofer w/ DSP, LPF and Four Compact Dual 5" Passive Speakers, Black
- DESCRIPTION
- FEATURES
- SPECIFICATIONS
- DOWNLOADS
- REVIEWS

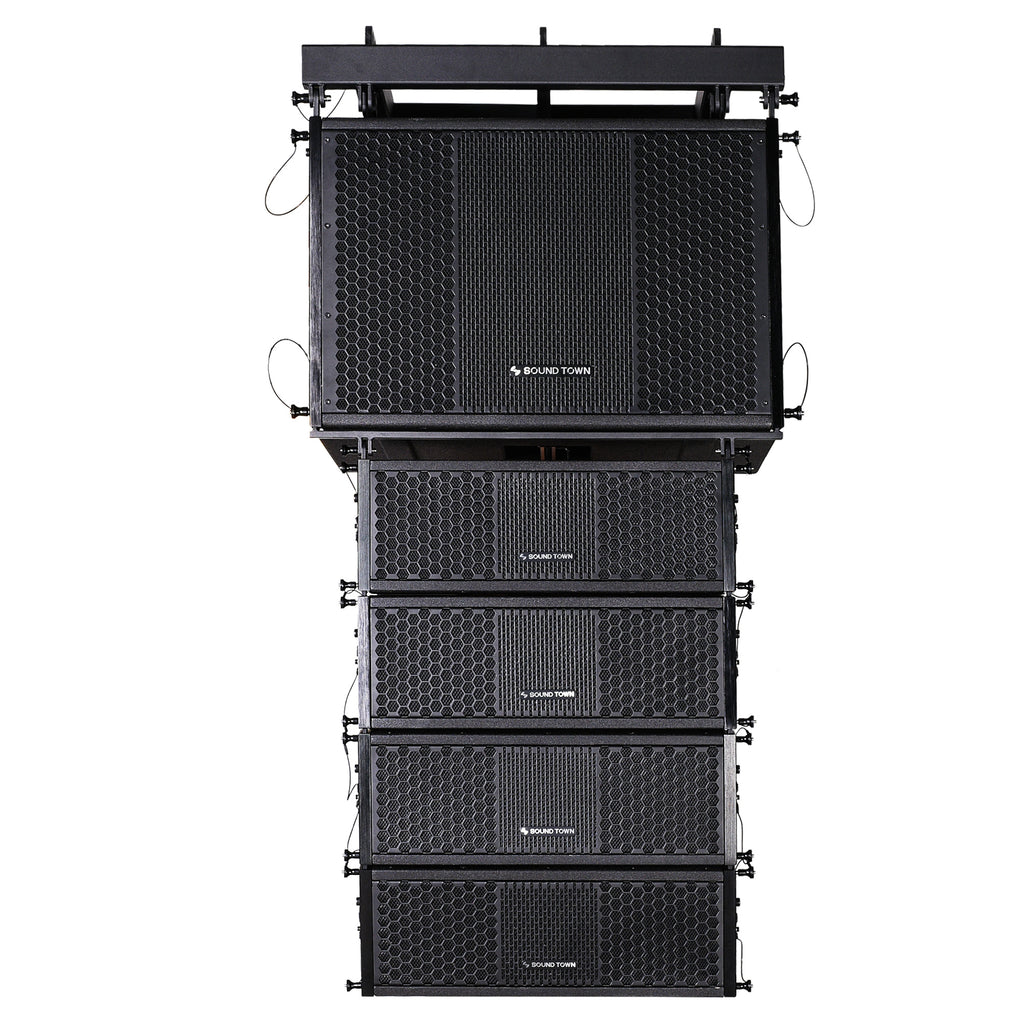

The Sound Town ZETHUS Series ZETHUS-115SPW205V2X4 line array speaker system includes:
- (1) ZETHUS-115SPW powered line array subwoofer with DSP, LPF
- (4) ZETHUS-205V2 passive line array speakers
- (1) ZETHUS-115SFF flying frame

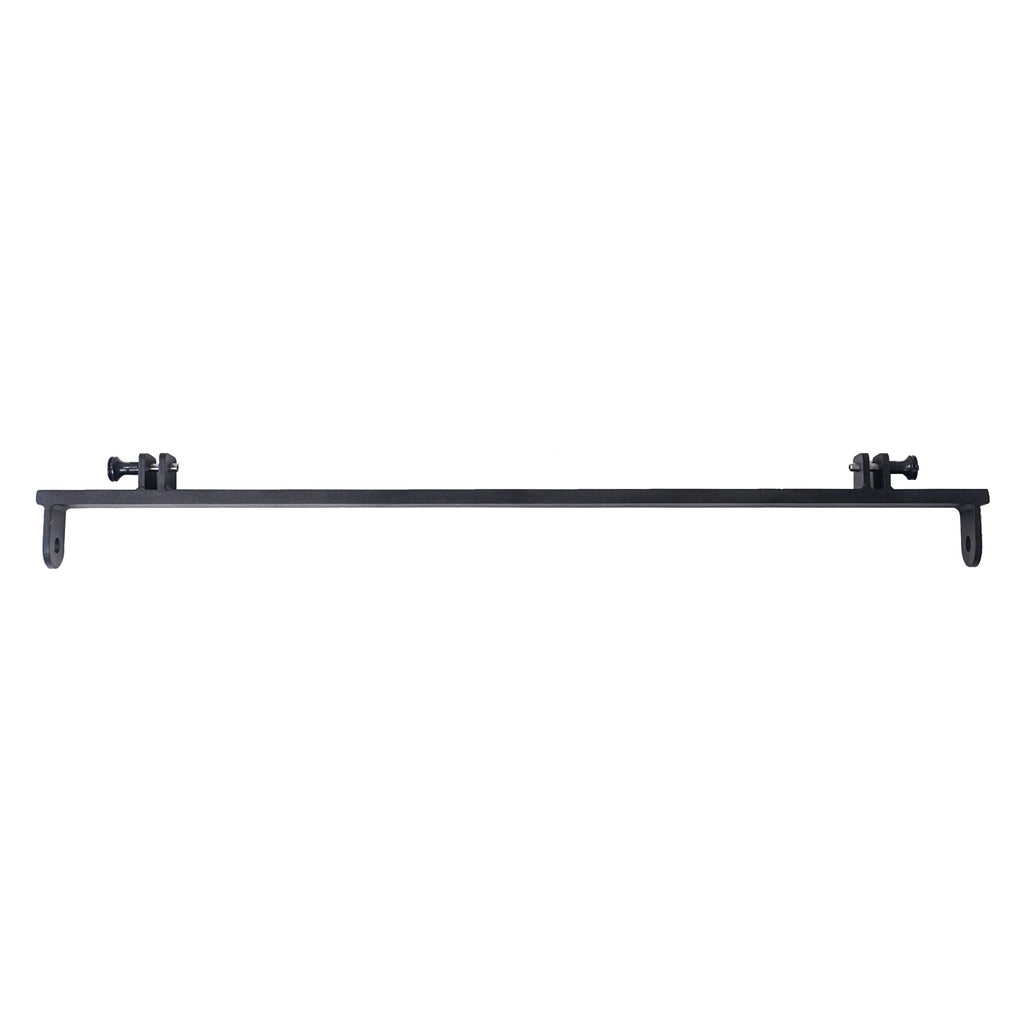

- (1) ZETHUS-205V2AD mounting fly bar
<Prepare to be blown away by our Sound Town ZETHUS-115SPW205V2X4 line array system, a premier speaker package that guarantees an extraordinary audio experience. This system includes 1 x ZETHUS-115SPW powered line array subwoofer and 4 x ZETHUS-205V2 passive line array speakers, accompanied by 1 x ZETHUS-115SFF flying frame and 1 x ZETHUS-205V2AD flying bar. With this setup, you'll immerse yourself in crystal-clear, thunderous sound that will leave your audience captivated.

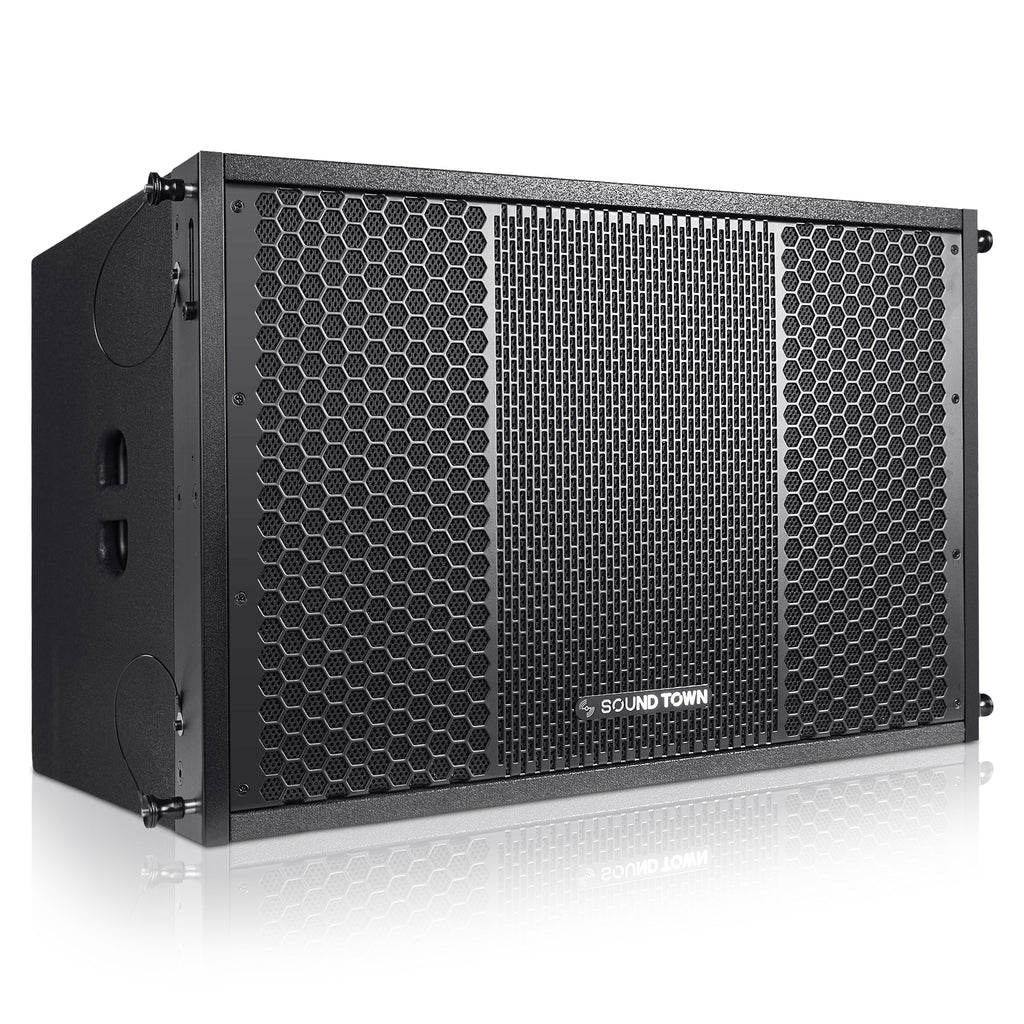

The ZETHUS-115SPW is a 15" powered line array subwoofer with an impressive 600W continuous, 1200W peak (8Ω) power handling capability. It ensures your low-end frequencies hit with authority. The built-in DSP technology featuring dynamic bass enhancement, RMS dynamic processor, and 2nd order IIR filter allows you to tailor your bass to perfection. Choose from 4 digital EQ presets and fine-tune your sound to suit any environment. The ZETHUS-205V2 compact and lightweight passive line array speaker features two 5” woofers and a 1.4” titanium compression driver, delivering an exceptional 200W RMS, 400W program (16Ω) power output. (Note: Additional amplifier required to power the ZETHUS205V2).

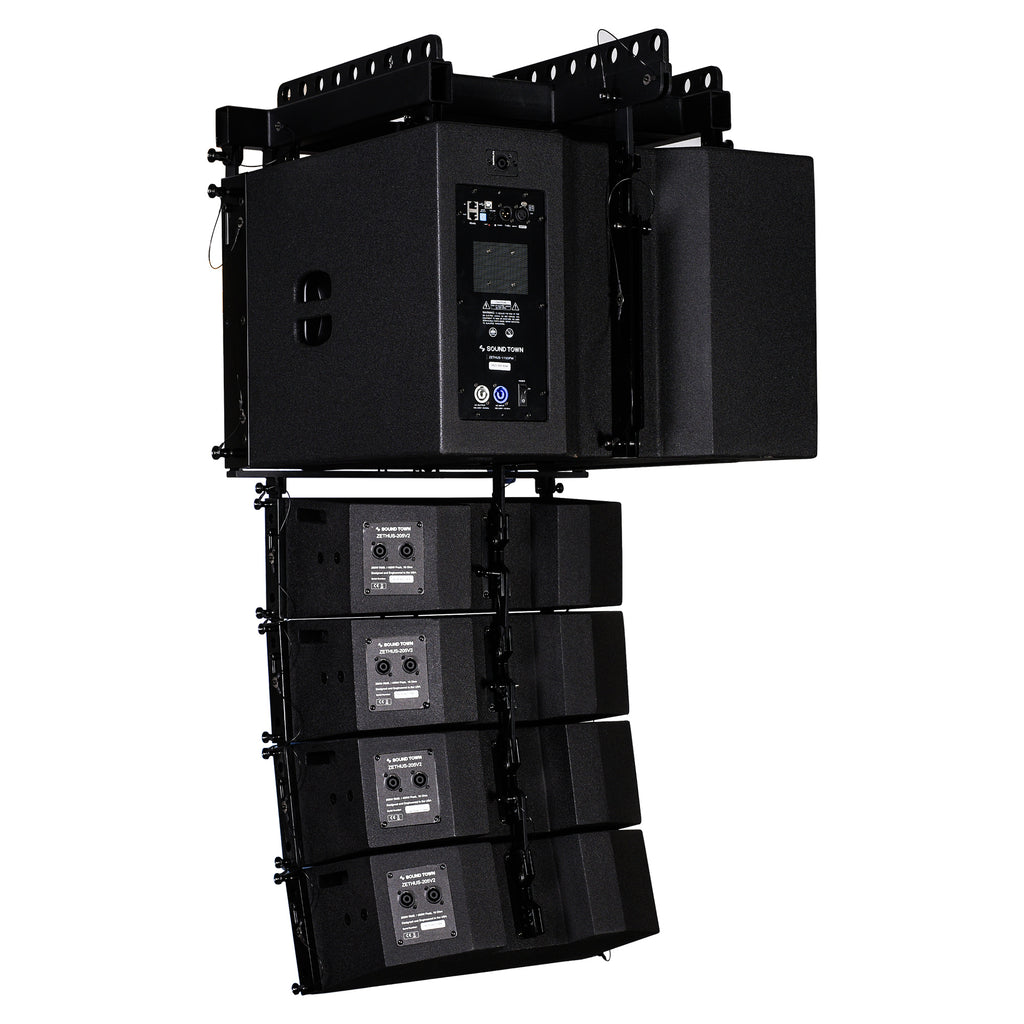

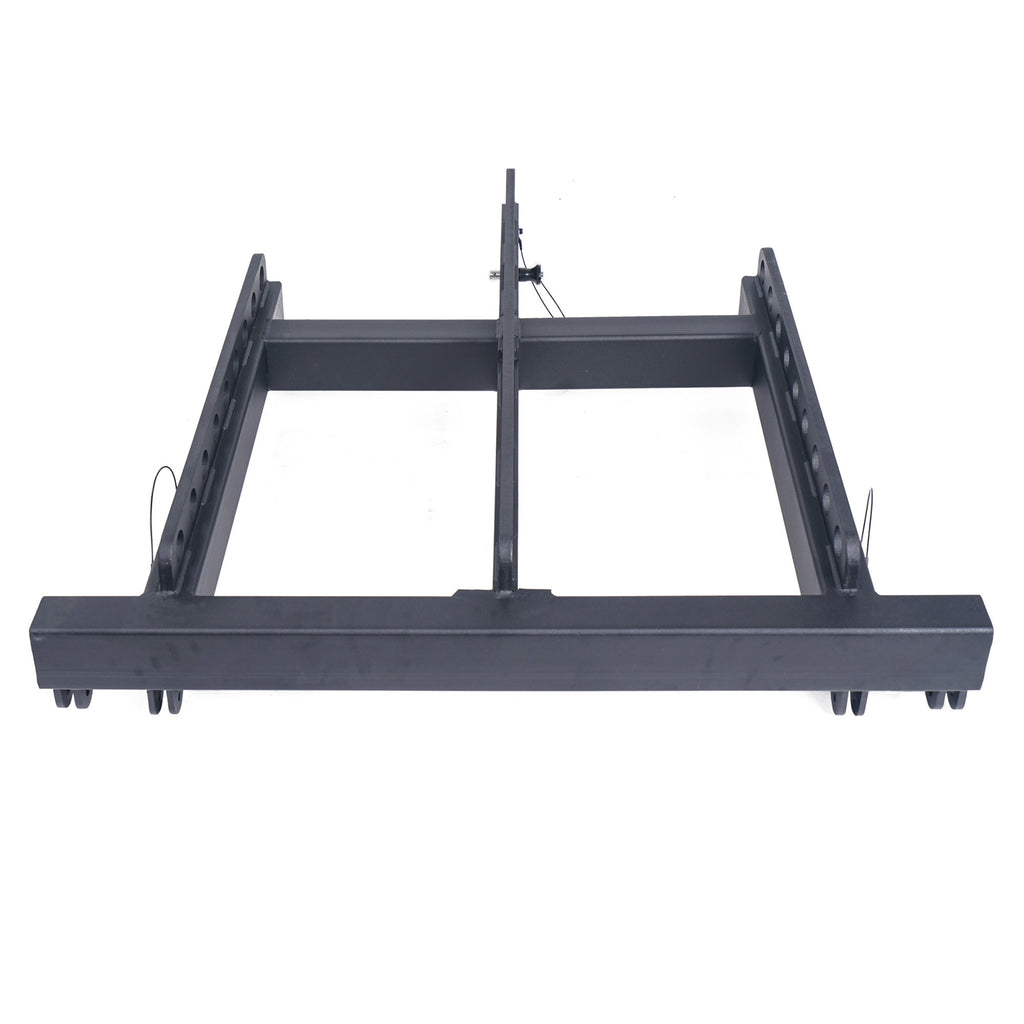

Setting up the Sound Town Line ZETHUS-115SPW205V2X4 line array system is a breeze. Stack and secure the four ZETHUS-205V2 speakers onto the ZETHUS-115SPW subwoofer using the ZETHUS-205V2AD flying bar and heavy-duty rigging hardware. Experience accurate and immersive sound performance that will leave your audience in awe, even at earth-shaking volume. Want to optimize coverage? The included flying frame allows the speaker system to be flown for the best audio experience in any venue.
From live entertainment venues, club events, educational campus or churches, our line array speaker system is the go-to choice for various installation applications. Its modular design ensures adaptability, and scalability means you can expand your setup effortlessly. With superb sound quality and reliability, the Sound Town line array system is all you need to take your events to new heights, leaving a lasting impression on both you and your audience.
- ZETHUS-115SPW205V2X4 LINE ARRAY SPEAKER SYSTEM: Experience exceptional sound with our cutting-edge speaker system, which includes: 1 x ZETHUS-115SPW powered line array subwoofer, 4 x ZETHUS-205V2 passive line array speakers, 1 x ZETHUS-115SFF flying frame, and 1 x ZETHUS-205V2AD flying bar.
- POWERFUL BASS PERFORMANCE: The ZETHUS-115SPW 15" powered subwoofer boasts an impressive 600W continuous, 1200W peak (8Ω) power handling capability, delivering deep and impactful low-frequency reinforcement. Utilizing built-in DSP with dynamic bass enhancement, RMS dynamic processor, 2nd order IIR filter, and 4 digital EQ presets, it guarantees unmatched audio quality.

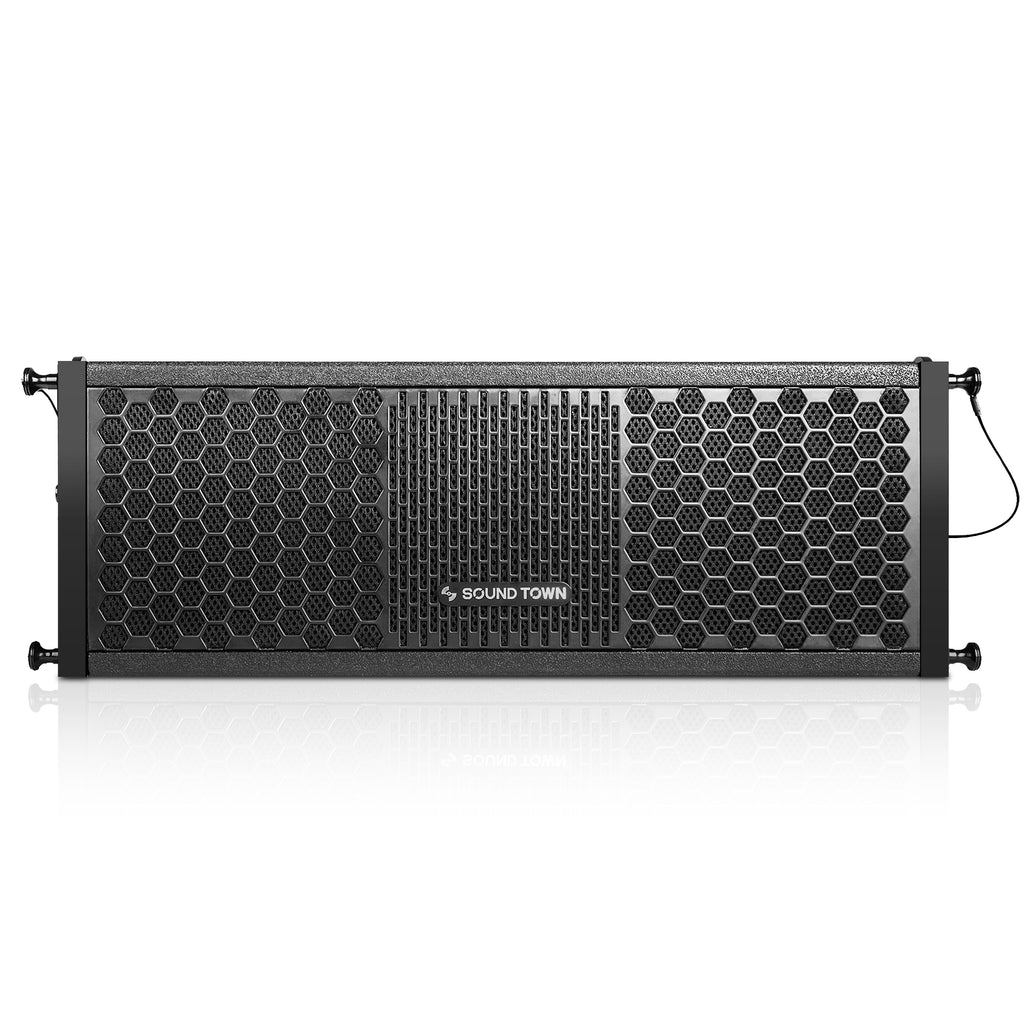

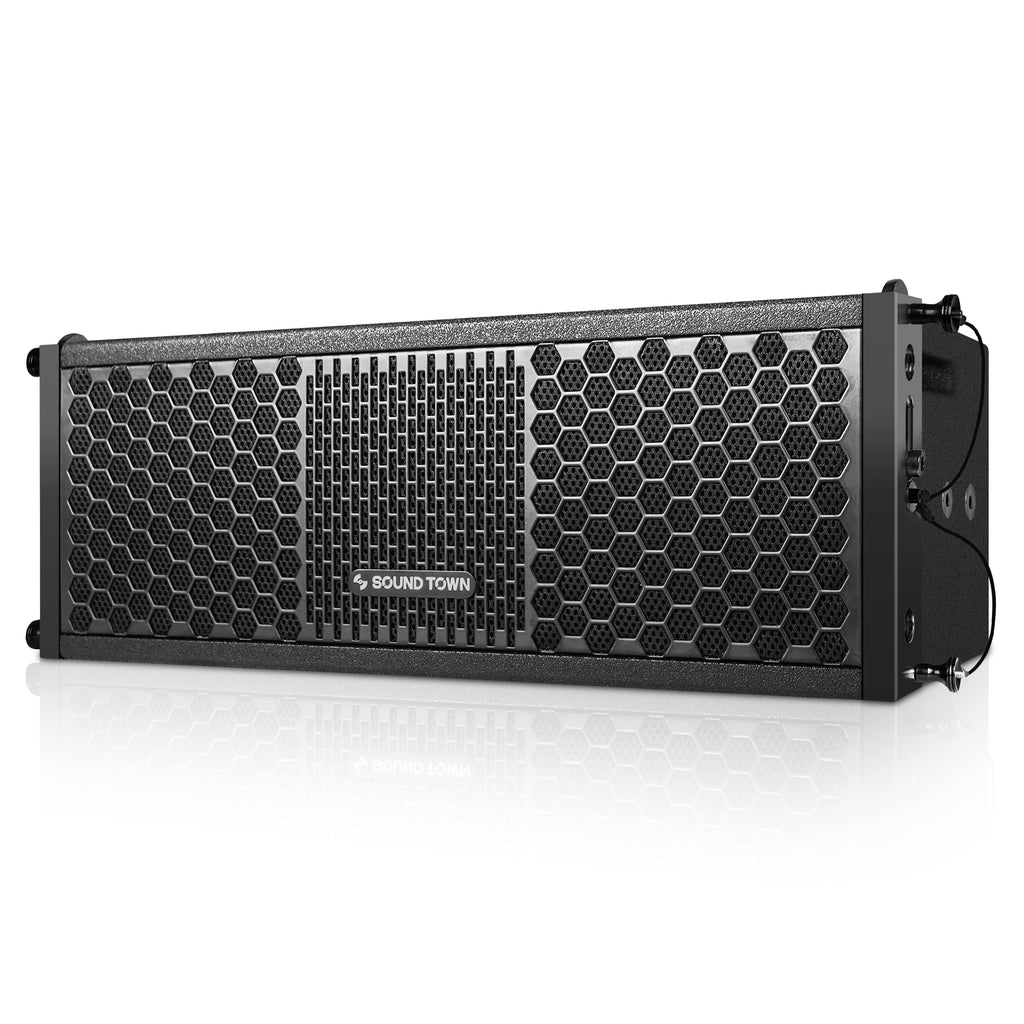

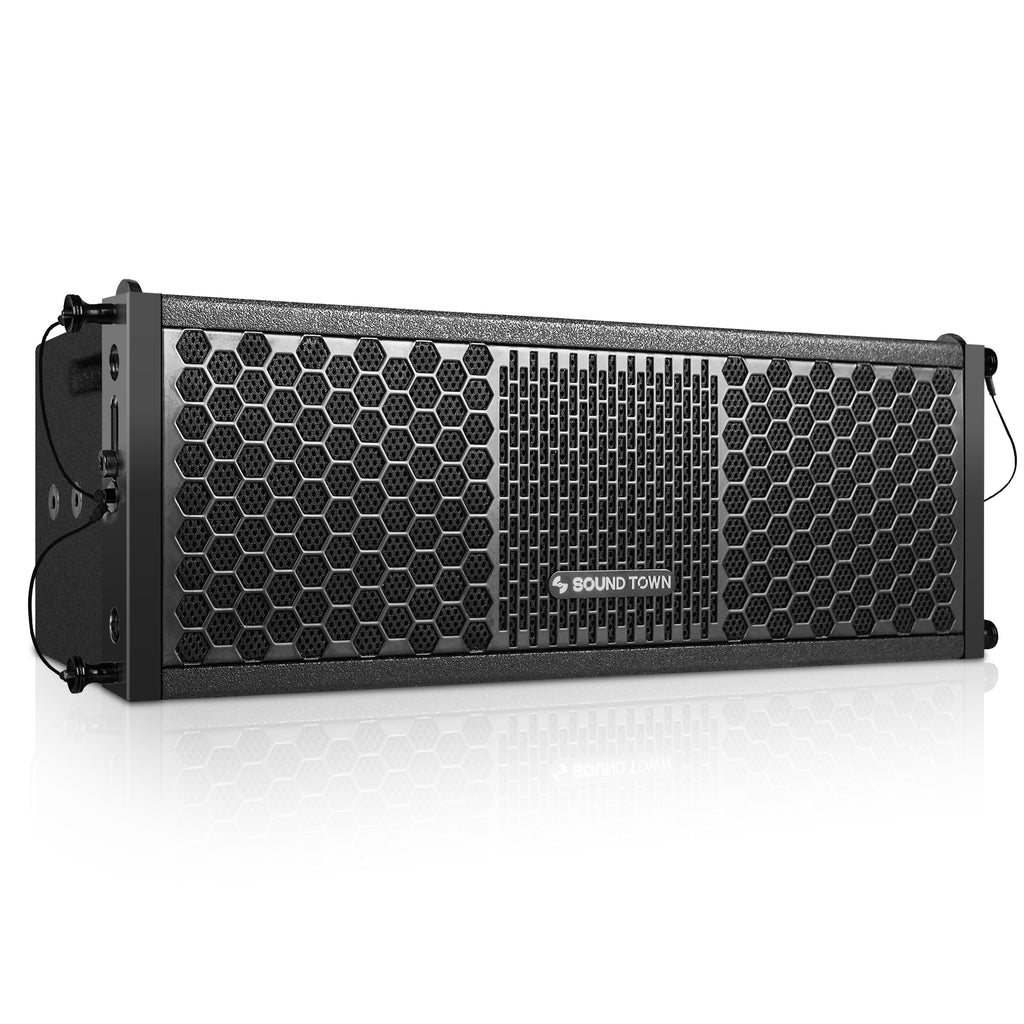

- COMPACT AND LIGHTWEIGHT DESIGN: The ZETHUS-205V2 is a lightweight and compact passive line array speaker featuring two 5” woofers and a 1.4” titanium compression driver, delivering 200W RMS, 400W program (16Ω) power handling capability.
- AMPLIFY YOUR SOUND EXPERIENCE WITH EASE: The ZETHUS-205V2 line array speakers can be effortlessly stacked and mounted onto the ZETHUS-115SPW subwoofer using the ZETHUS-205V2AD flying bar, secured with the attached mounting points and heavy-duty rigging hardware.
- ELEVATE YOUR SOUND INSTALLATIONS: Take your events to new heights with our versatile mounting frame, allowing the ZETHUS-205V2 speaker system to be flown for optimal coverage. From live entertainment and clubs to churches and various venues, the ZETHUS-115SPW205V2X4 is the go-to choice for anyone seeking a powerful and dynamic line array speaker system that guarantees an unforgettable sonic experience.
Specifications
Model | ZETHUS-115SPW | ZETHUS-205V2 |
Active / Passive | Active | Passive |
Frequency Range | 33 Hz - 180 Hz | -- |
Frequency Response | 38 Hz - 180 Hz | 70 Hz - 20 kHz |
Sensitivity | 100 dB (Passive) | 99 dB (Passive) |
SPL Max | 128 dB | 125 dB |
Dispersion | Omnidirectional | 120º x 15º (H x V) |
Configuration | 15" active line array subwoofer |
Compact dual 5" passive full-range line array loudspeaker |
Transducer | LF: 1 x 15" woofer, HF: -- | LF: 2 x 5", HF: 1 x 1.4" diaphragm |
Voice Coil | 4" | 1.5" |
Magnet | 142 oz | 25 oz |
Impedance | 8Ω Nominal |
16Ω Nominal |
Power Handling | 600W Continuous / 1200W Peak | 200W RMS / 400W Program |
Cabinet Construction | High-grade 100% birch plywood | High-grade 100% birch plywood |
Flying/Mounting Bracket Model# | ZETHUS-115SFF, compact line array aluminum hardware | ZETHUS-205FF or ZETHUS-115SFF, compact line array hardware |
Finish | Texture coating | Texture coating |
Grill & Rigging Component | Steel with anti-corrosion coat | Steel with anti-corrosion coat |
Amplifier | Class-D amplifier w/ DSP | -- |

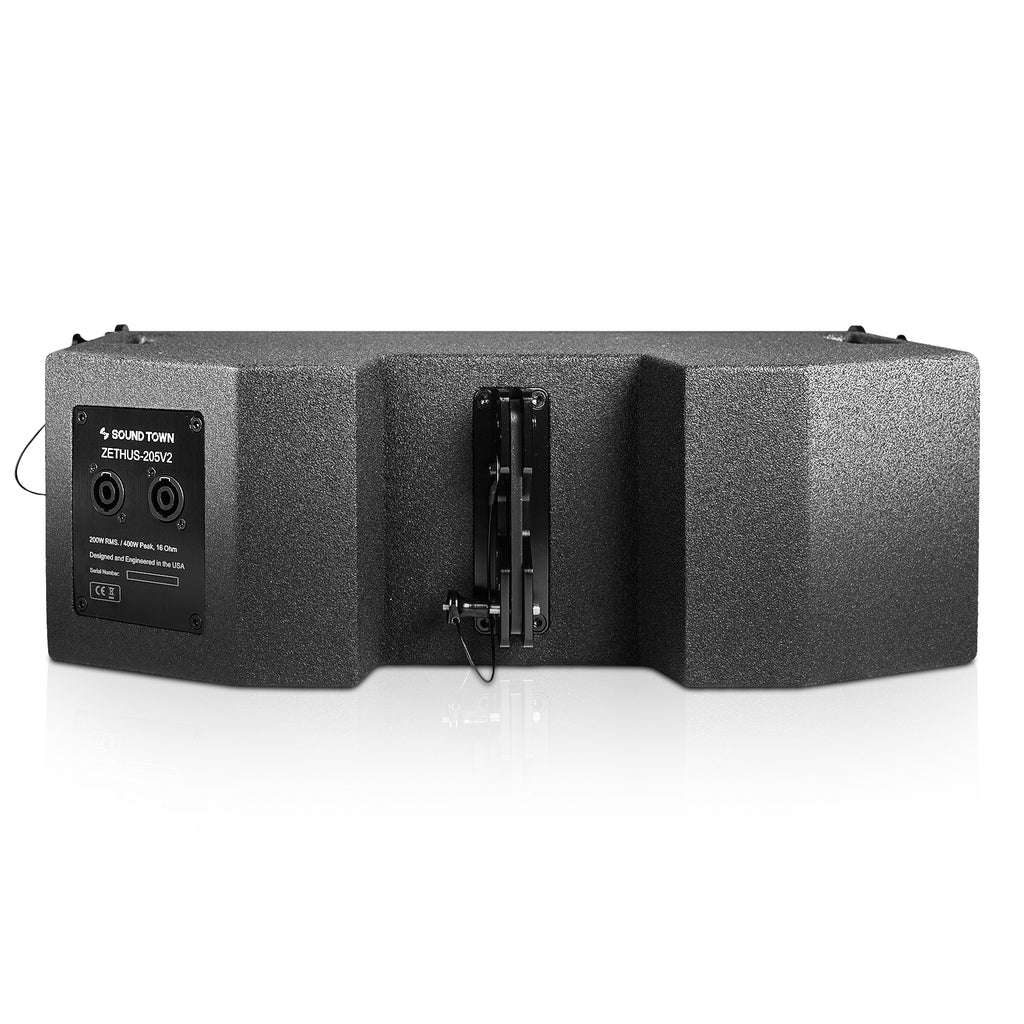

Input | 2 x 1/4" & XLR combo | 4 Pin SPEAKON |
Output | 2 x XLR (full-range/high-pass) |
4 Pin SPEAKON |
Signal Processing | Presetting, EQ (LPF), polarity, switch |
-- |
Control | Volume, DSP | -- |
Indicator | Power, signal, limit |
-- |
Voltage | Neutrik PowerCON in & out 100V-240V (50-60 Hz) | -- |

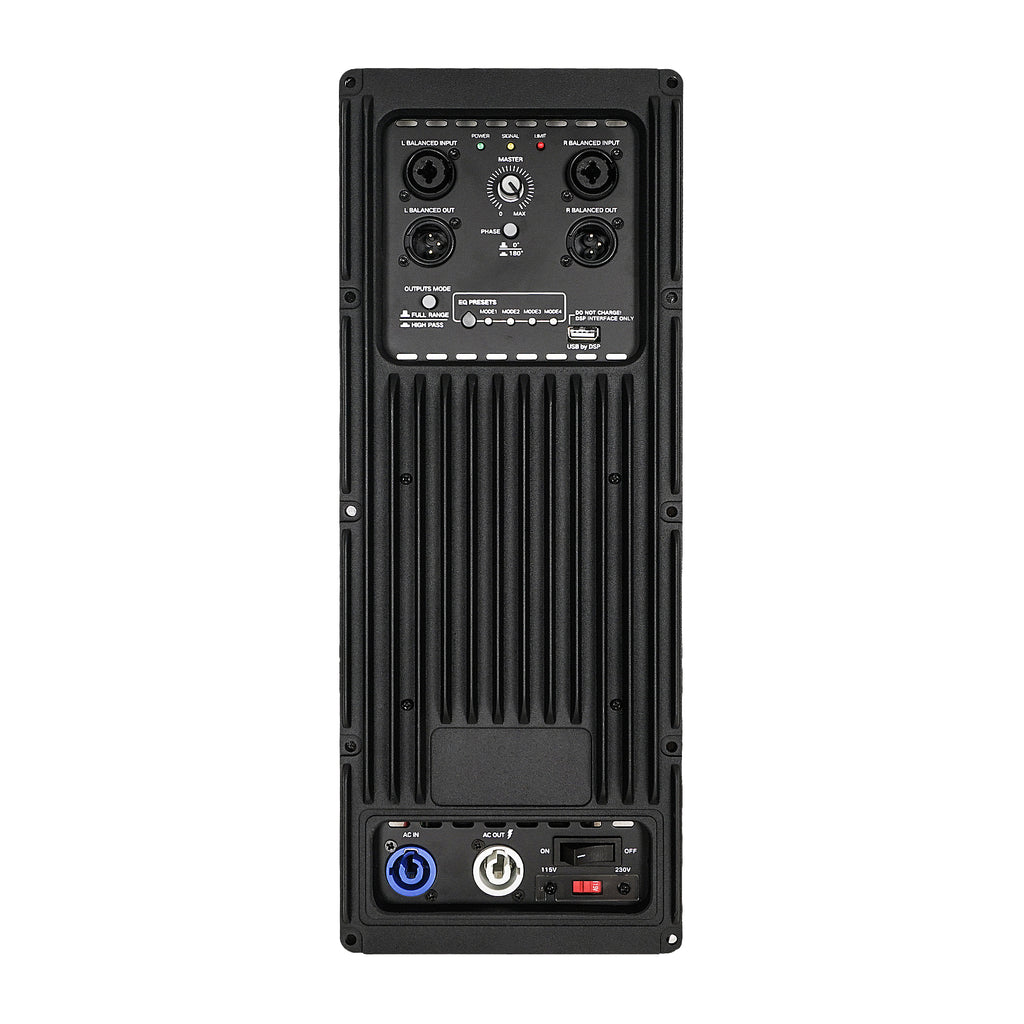

Plate Amp Parts# | STPAS-G2DSP | -- |
Crossover Parts# | -- | XO-Z205 |
High Frequency Driver Parts# | -- |
STHF-3403T |
Low Frequency Woofer Parts# | STLF-1504-4 | STLF-05Z |
Dimension & Weight
Model |
ZETHUS-115SPW | ZETHUS-205V2 (each) | ZETHUS-115SFF | ZETHUS-205V2AD |
Product Width (in.) | 26.4" | 20.9" | 27.2" | 26.4" |
Product Height (in.) | 17.7" | 7.4" | 5.4" | 1.3" |
Product Depth (in.) | 24.4" | 11.9" | 25.6" | 3.1" |
Product Weight (lb.) | 93.7 lbs | 27.6 lbs | 49.1 lbs | 3.3 lbs |
Package Width (in.) | 29.4" | 23.8" | 28.5" | 27.8" |
Package Height (in.) | 21.1" | 10.7" | 6.3" | 2.2" |
Package Depth (in.) | 27.4" | 14.9" | 27.0" | 4.5" |
Package Weight (lb.) | 99.0 lbs |
30.0 lbs |
51.3 lbs | 4.9 lbs |
Warranty/Certifications
Manufacturer Warranty | 1 Year |
