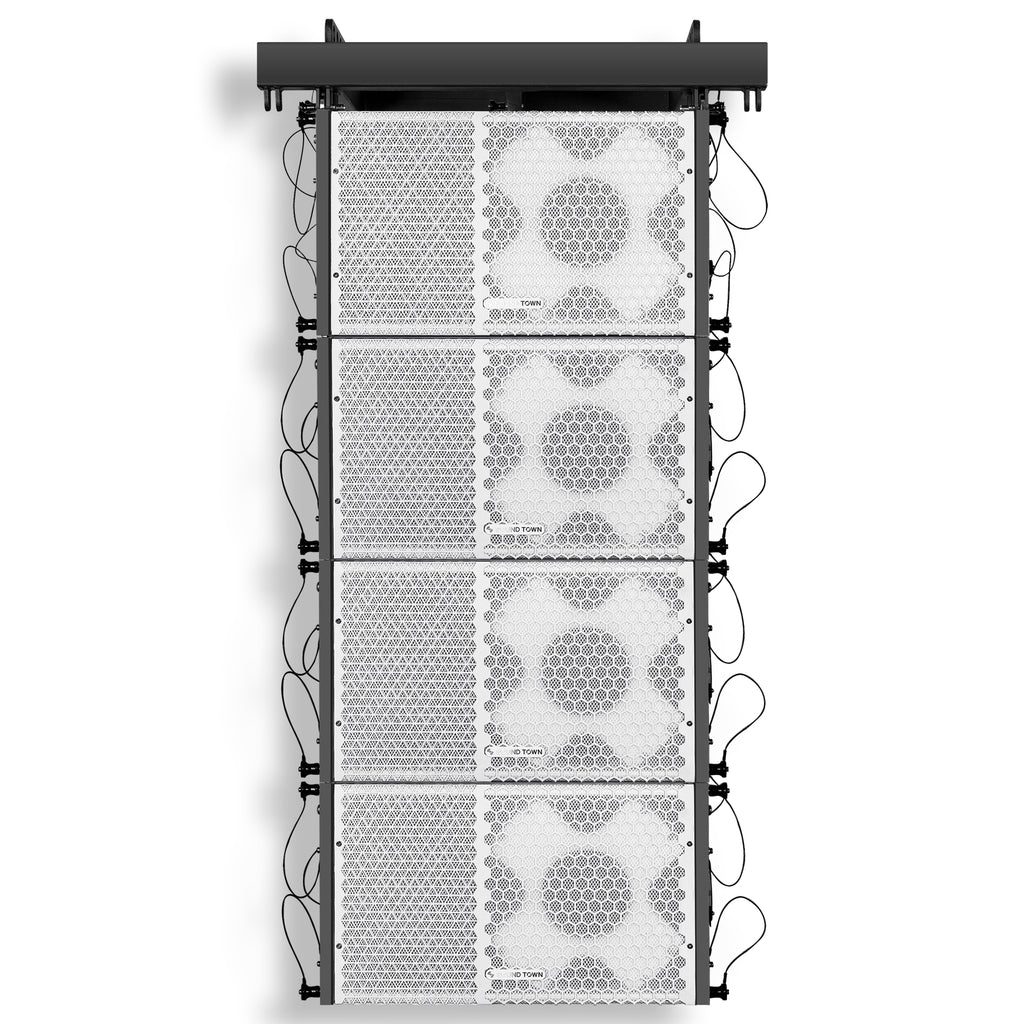

The Sound Town ZETHUS-110WX4 line array speaker system includes:
- (4) ZETHUS-110W 10" Passive Line Array Loudspeakers
- (1) ZETHUS-110FF Mounting Frame
The ZETHUS-110W is a lightweight and compact line array speaker which delivers superior sound quality with one 10” woofers, one 1.75” titanium compression driver and 300W RMS, 600W peak (8-Ohm) extraordinary power handling capability. Its passive full-range and bi-amp capability enables it for either a quick setup or professional bi-amp setting with additional DSP.
The line array speakers can be quickly stacked and secured with attached mounting points and heavy-duty metal handles on the rear panels. With 4 speakers packed together, they deliver accurate and immersive sound performance, ideal for small to medium-sized venues including clubs, bars, restaurants, churches and schools etc.
Note: Most power amplifiers won’t work at 2-ohm. To power four ZETHUS-110W passive speakers, it’s recommended to use a 2-channel power amplifier.
- The ZETHUS-110W is a lightweight and compact line array speaker which delivers superior sound quality with one 10” woofers, one 1.75” titanium compression driver and 300W RMS, 600W peak (8-Ohm) extraordinary power handling capability, full-range / passive bi-amp mode switchable for either a quick connection or professional set up.
- The white texture finish is more than beautiful. With heavy-duty metal grille and rugged construction, it holds up to touring applications.
- Four line array speakers can be quickly stacked and secured with attached mounting points and heavy-duty metal handles on the rear panels. With 4 speakers packed together, they deliver accurate and immersive sound performance.

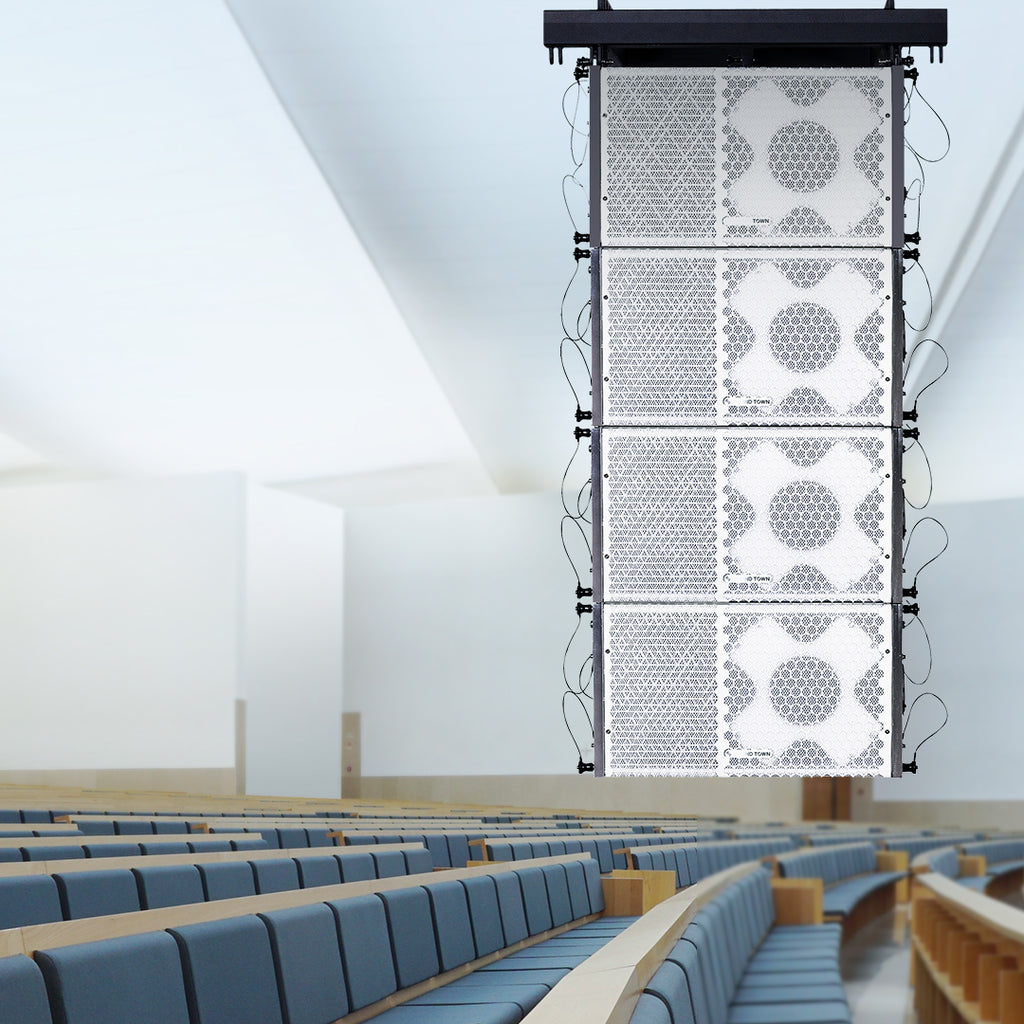

- With the mounting frame, the speaker system can be flown for optimum coverage. Ideal for a wide range of installation applications ranging from live entertainment, clubs to churches or other venues where a line array speaker system is desired.
Specifications
Model | ZETHUS-110W |
Frequency Response | 55 Hz - 20 kHz |
Sensitivity | 101 dB (Passive) |
SPL Max | 128 dB |
Dispersion | 90º x 20º (H x V) |
Configuration | 10" passive full-range line array loudspeaker |
Transducer | LF: 1 x 10", HF: 1 x 2" diaphragm |
Voice Coil | 2.5" |
Magnet | 50 oz |
Impedance | 8Ω Nominal |
Power Handling | 300 / 600W |
Connectors | 2 x 4 Pin Speakon |
Cabinet Construction | High-grade 100% birch plywood |
Mounting | Integrated line array hardware |
Finish | Texture coating (RAL colors available) |
Grill & Rigging Component | Steel with anti-corrosion coat |
Amplifier | -- |
Input | -- |
Output | -- |
Control | -- |
Indicator | -- |
Voltage | -- |
High Frequency Driver Parts# | STHF-5103 |
Low Frequency Woofer Parts# | STLF-10Z |
Dimension & Weight
Model |
ZETHUS-110W (each) | ZETHUS-110FF |
Product Width (in.) | 20.5" | 21.6" |
Product Height (in.) | 11.8" | 2.3" |
Product Depth (in.) | 15.2" | 20.5" |
Product Weight (lb.) | 43.0 lbs | 29.7 lbs |
Package Width (in.) | 23.0" | 22.6" |
Package Height (in.) | 15.0" | 4.1" |
Package Depth (in.) | 18.4" | 22.0" |
Package Weight (lb.) | 47.4 lbs | 36.7 lbs |
Warranty/Certifications
Manufacturer Warranty | 1 Year |
