ZETHUS-110WX2 | Line Array System w/ Two 10-inch Passive Speakers, Full-Range/Bi-Amp Switchable, White for Installation, Live Sound, Bar, Club, Church
- DESCRIPTION
- FEATURES
- SPECIFICATIONS
- DOWNLOADS
- REVIEWS
The Sound Town ZETHUS Series ZETHUS-110WX2 line array speaker system includes:
- (2) ZETHUS-110W 10" Passive Line Array Loudspeakers
- (1) ZETHUS-110FF Mounting Frame
The ZETHUS-110W is a lightweight and compact line array speaker which delivers superior sound quality with one 10" woofers, one 1.75" titanium compression driver and 300W RMS, 600W peak (8-Ohm) extraordinary power handling capability. Its passive full-range and bi-amp capability enables it for either a quick setup or professional bi-amp setting with additional DSP.

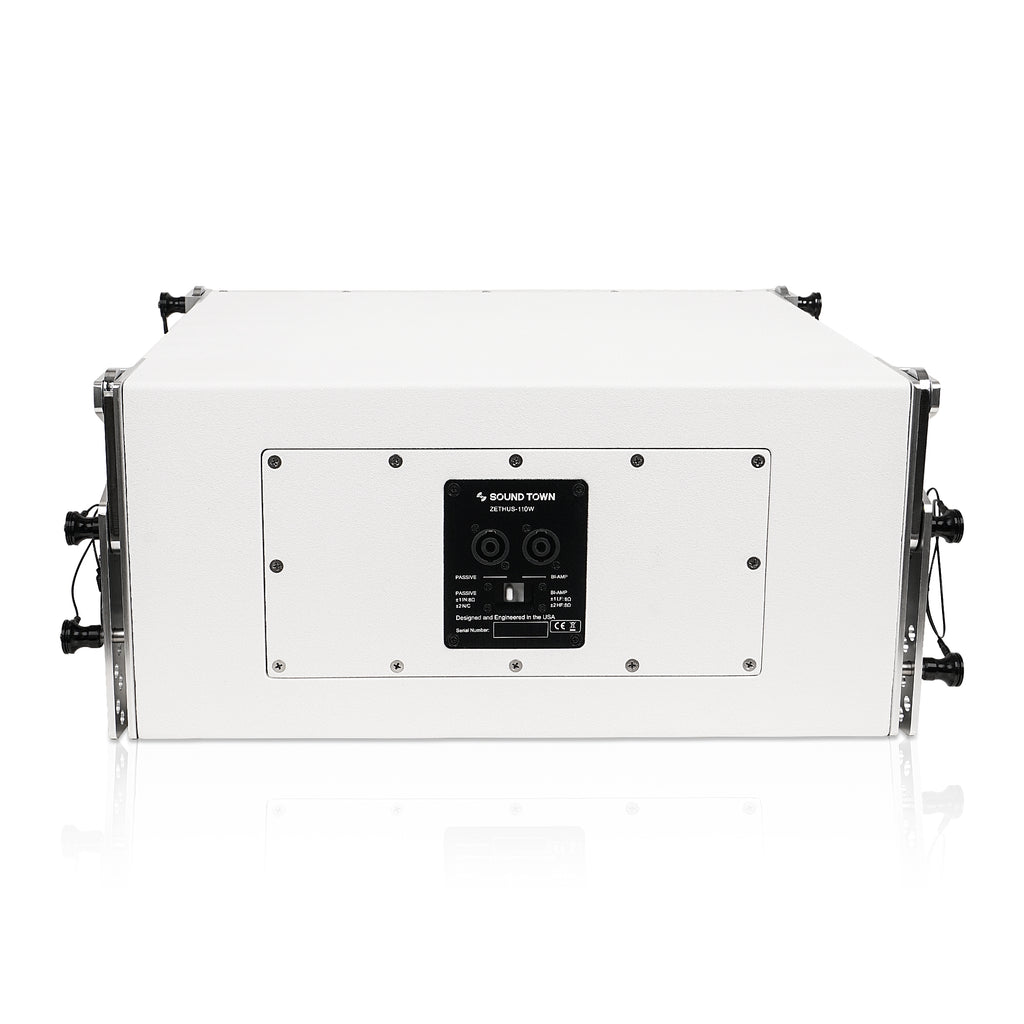

The line array speakers can be quickly stacked and secured with attached mounting points and heavy-duty metal handles on the rear panels. With two speakers packed together, they deliver accurate and immersive sound performance, ideal for small to medium-sized venues including clubs, bars, restaurants, churches and schools etc.
- This speaker system includes 2 x ZETHUS-110W line array speakers (passive) and 1 x ZETHUS-115SFF mounting frame.
- The ZETHUS-110W is a lightweight and compact line array speaker which delivers superior sound quality with one 10” woofers, one 1.75” titanium compression driver and 300W RMS, 600W peak (600W RMS, 1200W for the set) extraordinary power handling capability (8-ohm), full-range / passive bi-amp mode switchable for either a quick connection or professional set up.

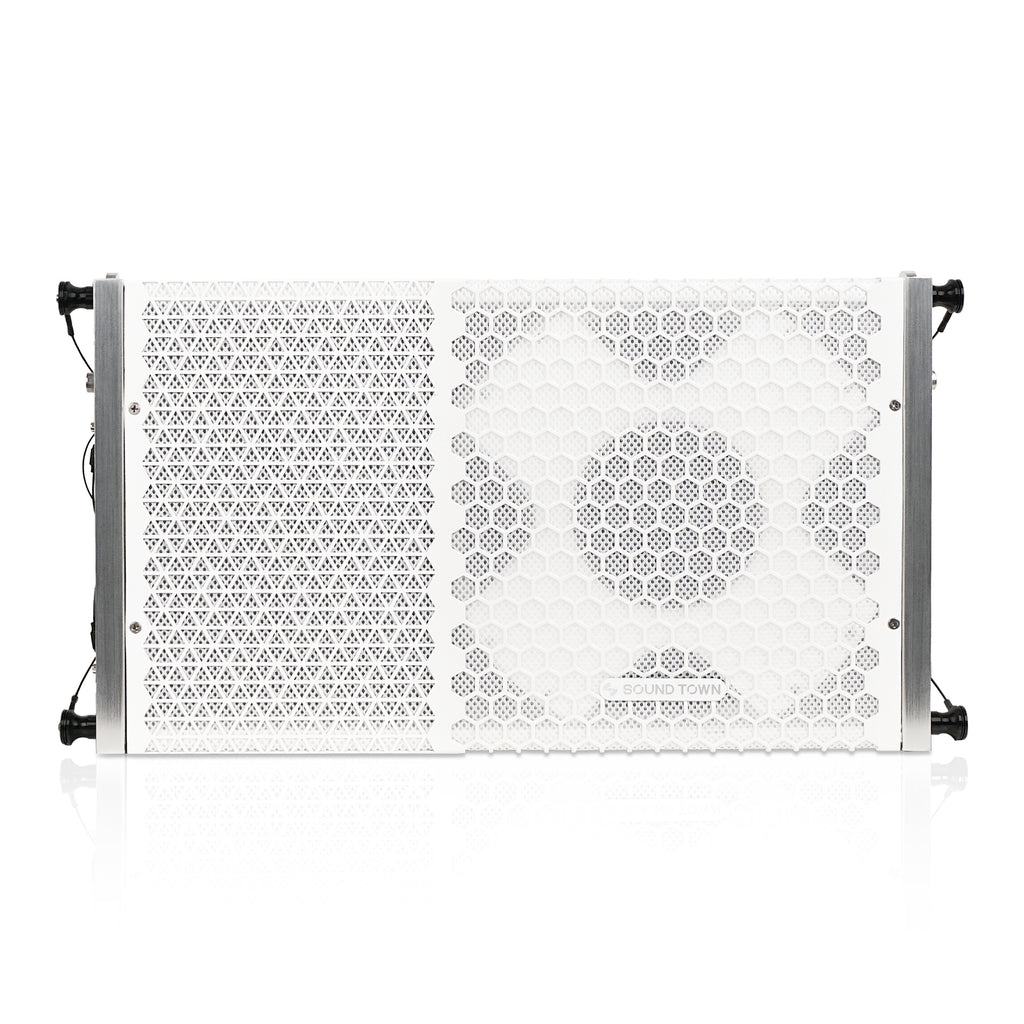

- The high-quality white painted plywood enclosure is more than beautiful, it comes with heavy-duty metal grille, rugged construction and withstands heavy-use.
- Two line array speakers can be quickly stacked and secured with attached mounting points and heavy-duty metal handles on the rear panels. With 2 speakers packed together, they deliver accurate and immersive sound performance.

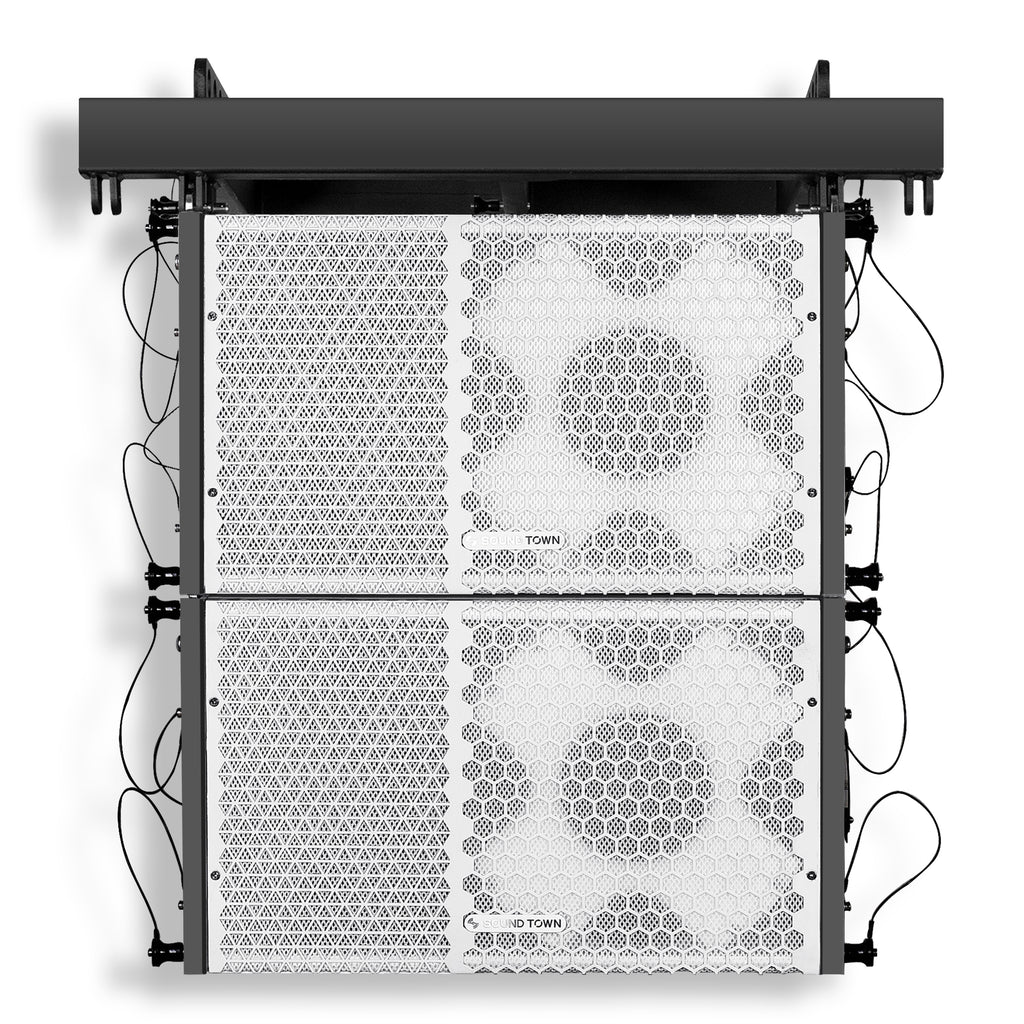

- With the mounting frame, the speaker system can be flown for optimum coverage. Ideal for a wide range of installation applications ranging from live entertainment, clubs to churches or other venues where a line array speaker system is desired.
Specifications
Model | ZETHUS-110W |
Frequency Response | 55 Hz - 20 kHz |
Sensitivity | 101 dB (Passive) |
SPL Max | 128 dB |
Dispersion | 90º x 20º (H x V) |
Configuration | 10" passive full-range line array loudspeaker |
Transducer | LF: 1 x 10", HF: 1 x 2" diaphragm |
Voice Coil | 2.5" |
Magnet | 50 oz |
Impedance | 8Ω Nominal |
Power Handling | 300 RMS / 600W Peak |

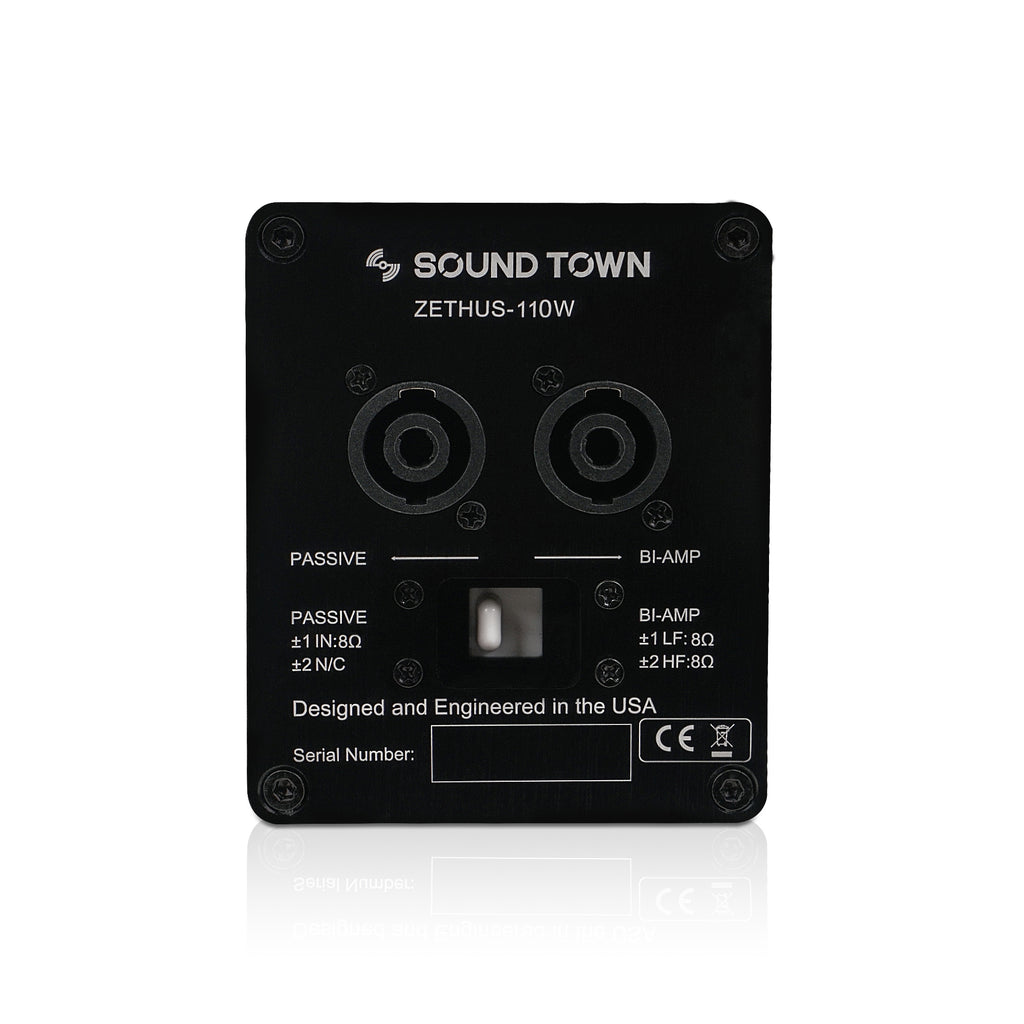

Connectors | 2 x 4 Pin Speakon |
Cabinet Construction | High-grade 100% birch plywood |
Mounting | Integrated line array hardware |
Finish | Texture coating |
Grill & Rigging Component | Steel with anti-corrosion coat |
Amplifier | -- |
Input | -- |
Output | -- |
Control | -- |
Indicator | -- |
Voltage | -- |
High Frequency Driver Parts# | STHF-5103 |
Low Frequency Woofer Parts# | STLF-10Z |
Dimension & Weight
Model |
ZETHUS-110W (each) | ZETHUS-110FF |
Product Width (in.) | 20.5" | 21.6" |
Product Height (in.) | 11.8" | 2.3" |
Product Depth (in.) | 15.2" | 20.5" |
Product Weight (lb.) | 43.0 lbs | 29.7 lbs |
Package Width (in.) | 23.0" | 22.6" |
Package Height (in.) | 15.0" | 4.1" |
Package Depth (in.) | 18.4" | 22.0" |
Package Weight (lb.) | 47.4 lbs | 36.7 lbs |
Warranty/Certifications
Manufacturer Warranty | 1 Year |
