TITAN-8B | 2-Way 70V/100V 8" Coaxial Weather-Resistant Installation Loudspeaker w/ U Bracket, Black









- DESCRIPTION
- FEATURES
- SPECIFICATIONS
- SUPPORT
- DOWNLOADS
- REVIEWS

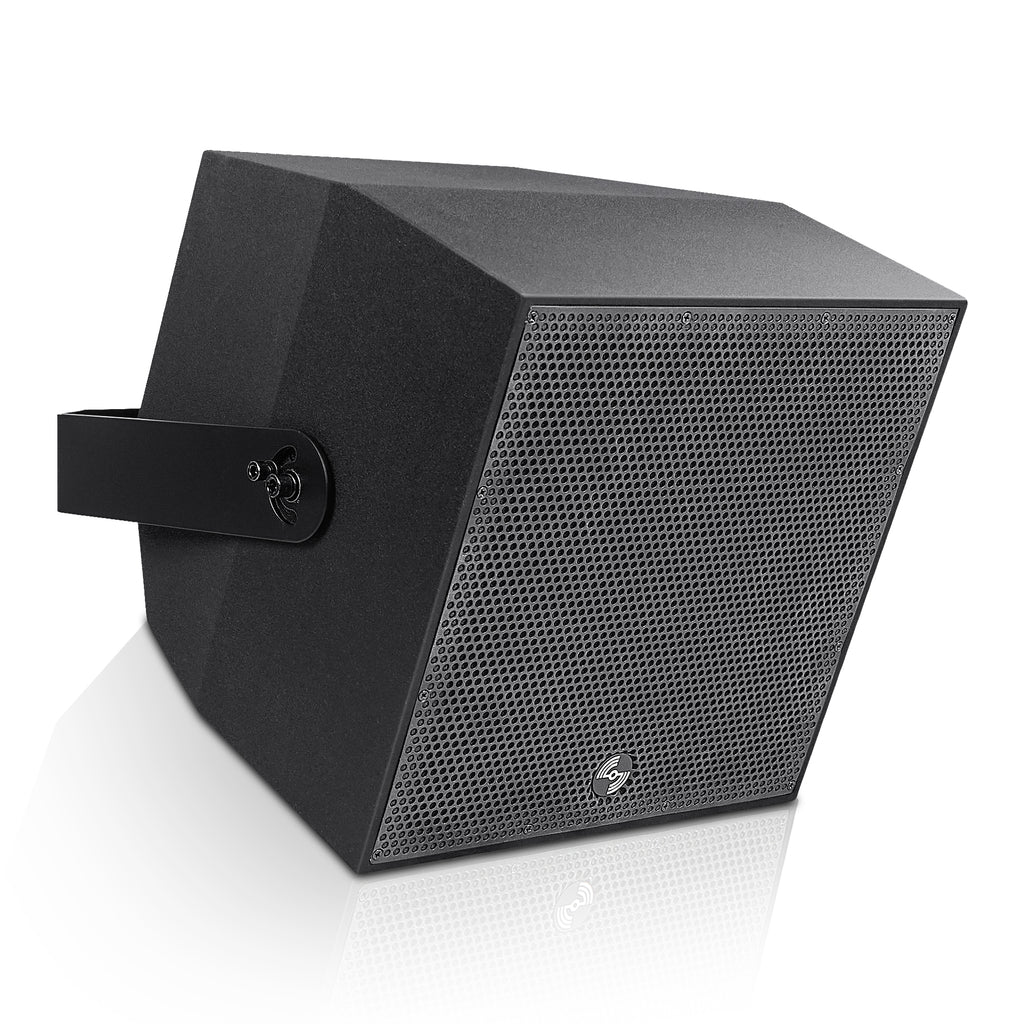

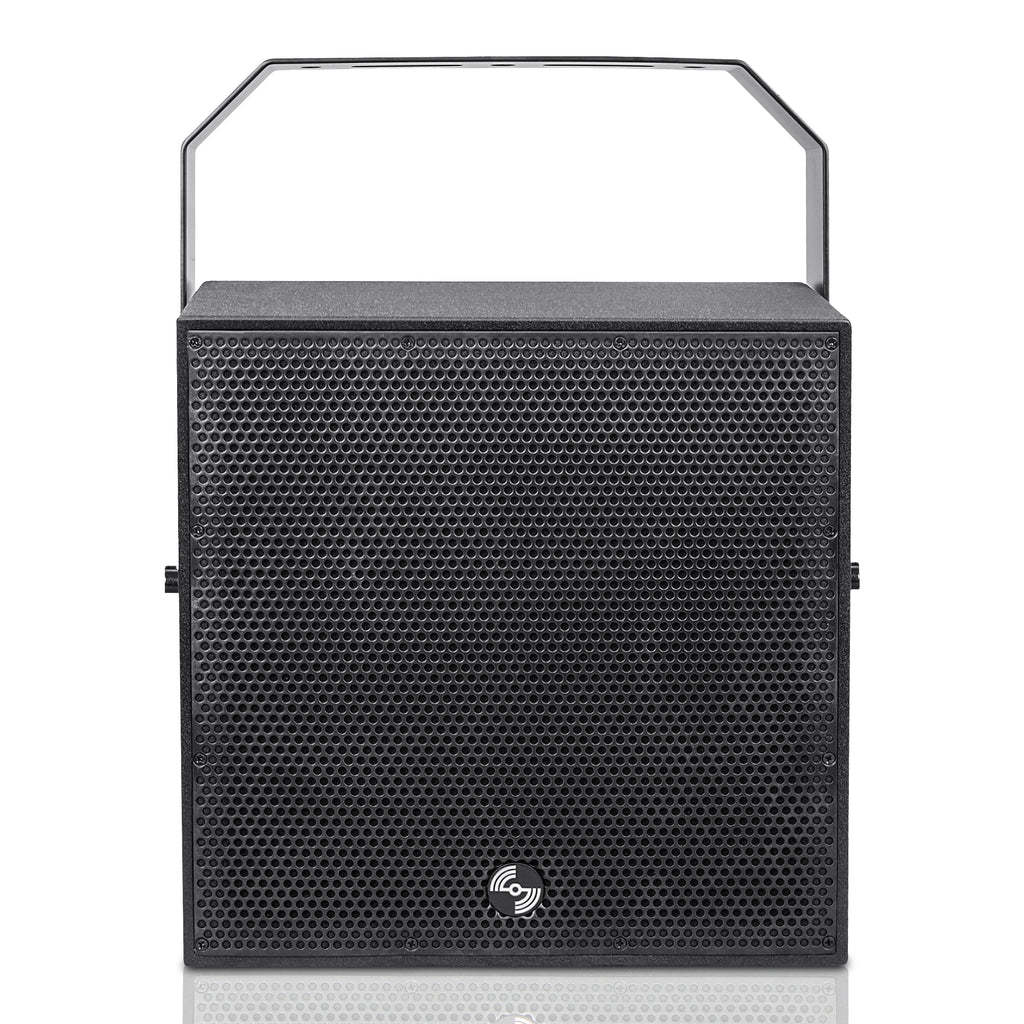

The Sound Town TITAN-8B is a high-performance, two-way, full range 8“ loudspeaker designed for both indoor and outdoor public address applications. With coaxial 8” low-frequency and 1" compression drivers, it exhibits near-perfect phase response and outstanding sound performance with minimal distortion. It is housed in a weather-resistant, compact polyethylene board enclosure with a matte finish. Even better, its hydrophobically treated grille, moisture-sealed crossover, and waterproof connectors make it perfect for outdoor installations and high-humidity environments.
With a 70V/100V transformer, the TITAN-8B offers a selection of 15W (70V only), 30W, 60W, or 120W delivered to the speaker system using either 70V or 100V lines, or 8-ohm bypass for low impedance lines. It also has a corrosion-resistant U-shaped bracket included in the package for quick and reliable installations. The TITAN-8B speaker is ideal for a wide variety of indoor and outdoor applications, such as bars, restaurants, patios, hospitality, theme parks, and more. Optional wall mount aluminum bracket CWB-1A is available separately.
Sound Town TITAN series Coaxial Weather-Resistant Loudspeaker
The Sound Town Titan speakers are available in 6", 8", 10" and 12" with coaxial design. All cabinets are available in black and grey and ideal for indoor and outdoor applications, such as stadiums, fairgrounds, outdoor entertainment centers, athletic fields, swimming pools, houses of worship and more.
- IP54 Rated All-Weather Speaker The TITAN-8B speaker is housed in a waterproof polyvinyl board enclosure with a tough matte textured coating, protecting it from water damage and harsh weather. It comes with a hydrophobically treated grille, moisture-sealed crossover, and waterproof connectors, ideal for both outdoor and indoor applications.
- 2-Way Coaxial Design Coaxial 8" low-frequency and 1" compression drivers exhibit near-perfect phase response and outstanding sound performance with minimal distortion.

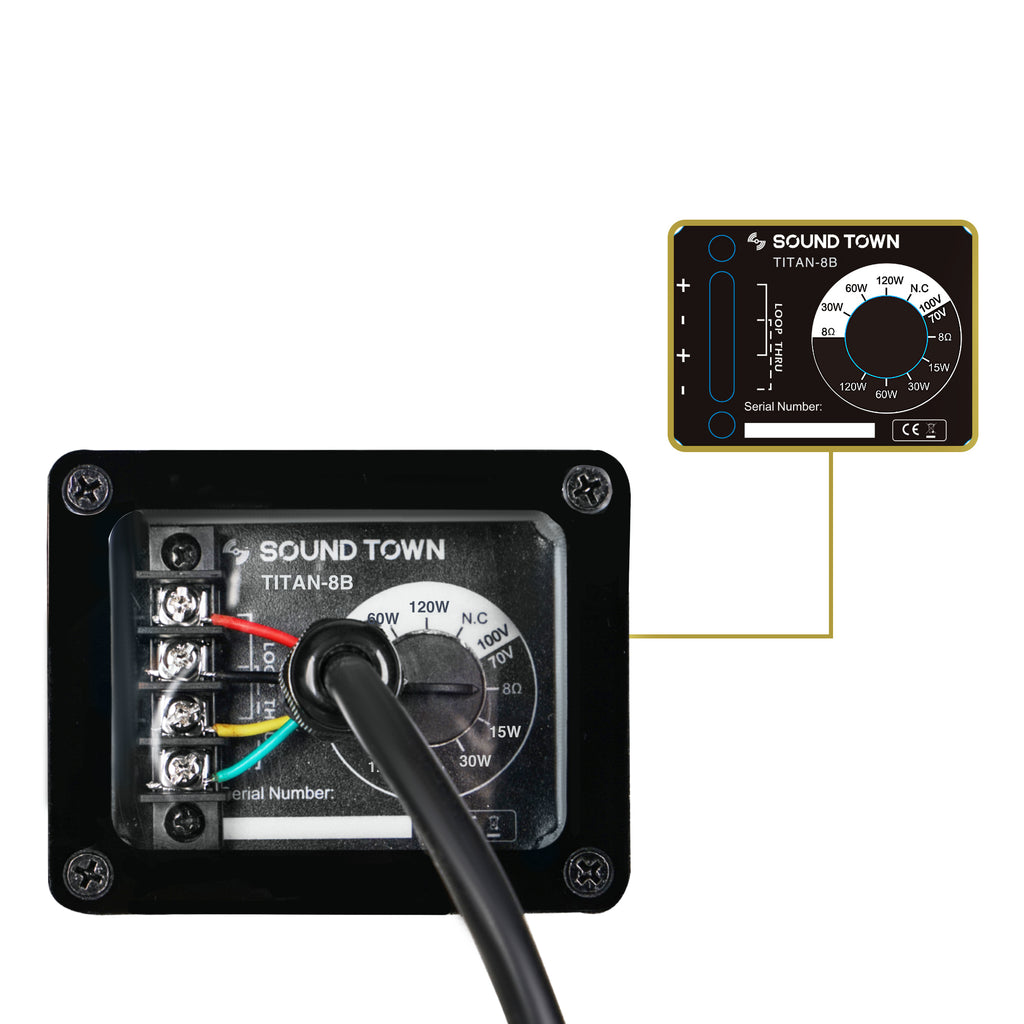

- 70V/100V Transformer With a 70V/100V transformer, the TITAN-8B offers a selection of 15W (70V only), 30W, 60W, or 120W delivered to the speaker system using either 70V or 100V lines, or 8-ohm bypass for low impedance lines.
- Versatile Applications The package includes one corrosion-resistant U-shaped bracket is included in the package for quick and reliable installations. Perfect for a wide variety of indoor and outdoor applications, such as bars, restaurants, patios, hospitality, theme parks and more. Optional wall mount aluminum bracket CWB-1A is available separately
Specifications
Model | TITAN-8B (black), TITAN-8G (grey) |
Frequency Response | 75 Hz - 20K Hz |
Sensitivity | 100 dB |
SPL Max | 128 dB |
Dispersion (H x V) | 110º x 110º |
Configuration | 8" Full range coaxial loudspeaker |
Transducer | LF: 1 x 8", HF: 1" Compression drivers (coaxial) |
Impedance | 8Ω Nominal |
Power Handling (Passive) | 180 RMS / 360W Program |
70V | 120W/60W/30W/15W |
100V | 120W/60W/30W |

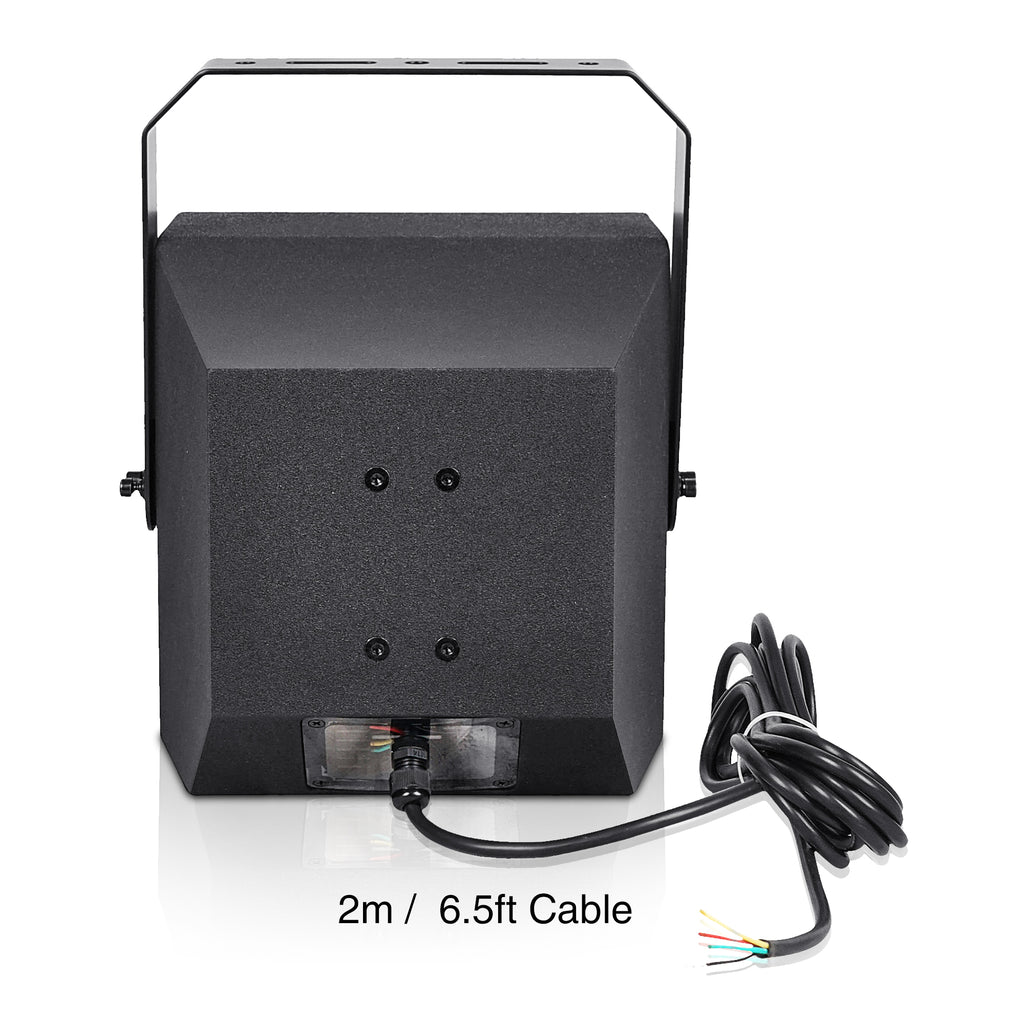

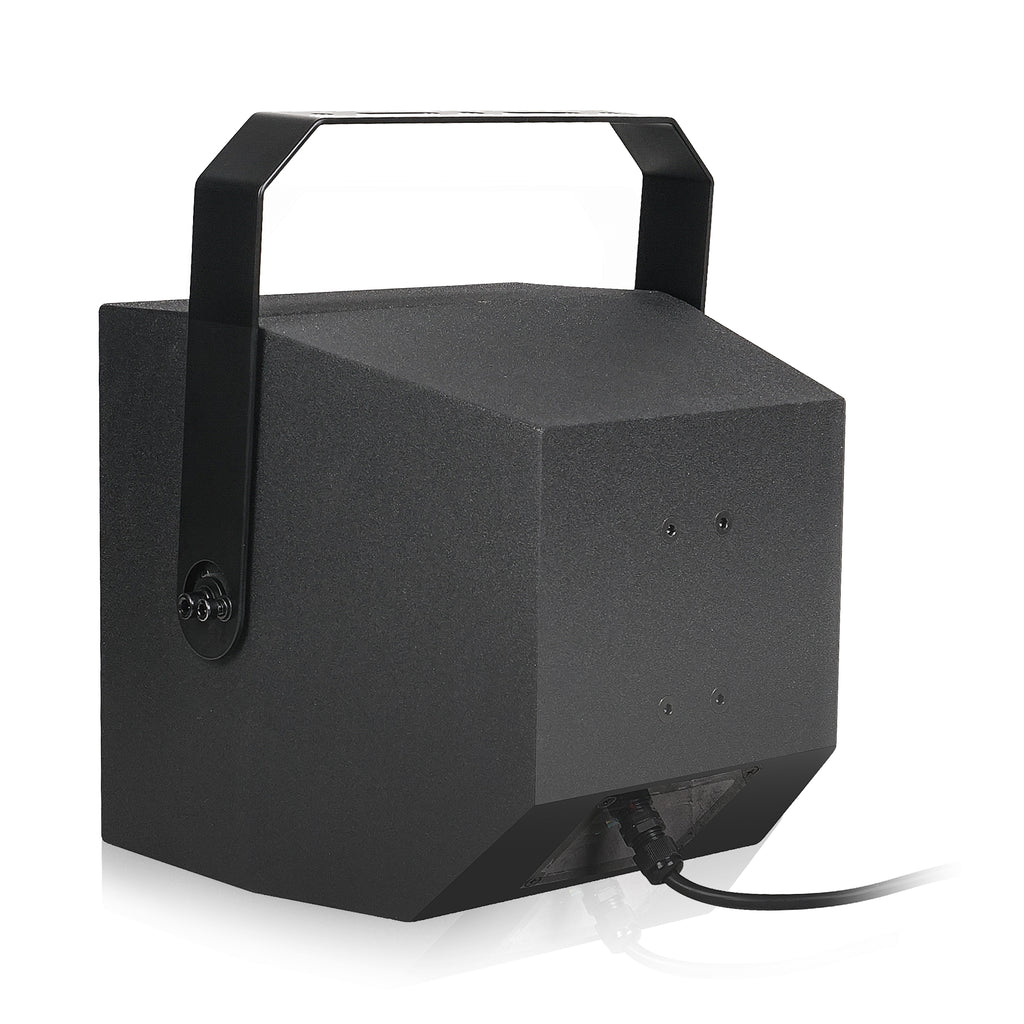

Connectors | Water-proof 4 pin terminal strip connector |
Cabinet Construction | Water-resistant polyvinyl board |

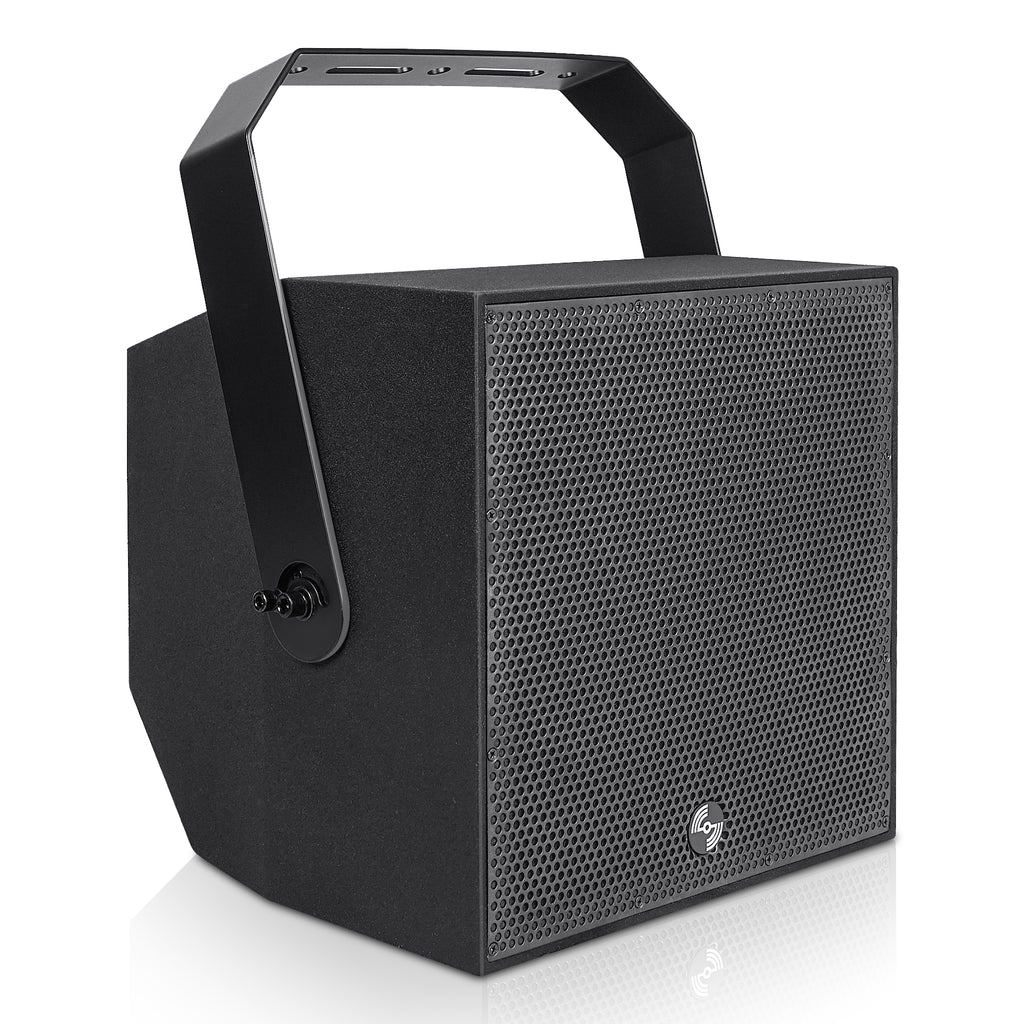

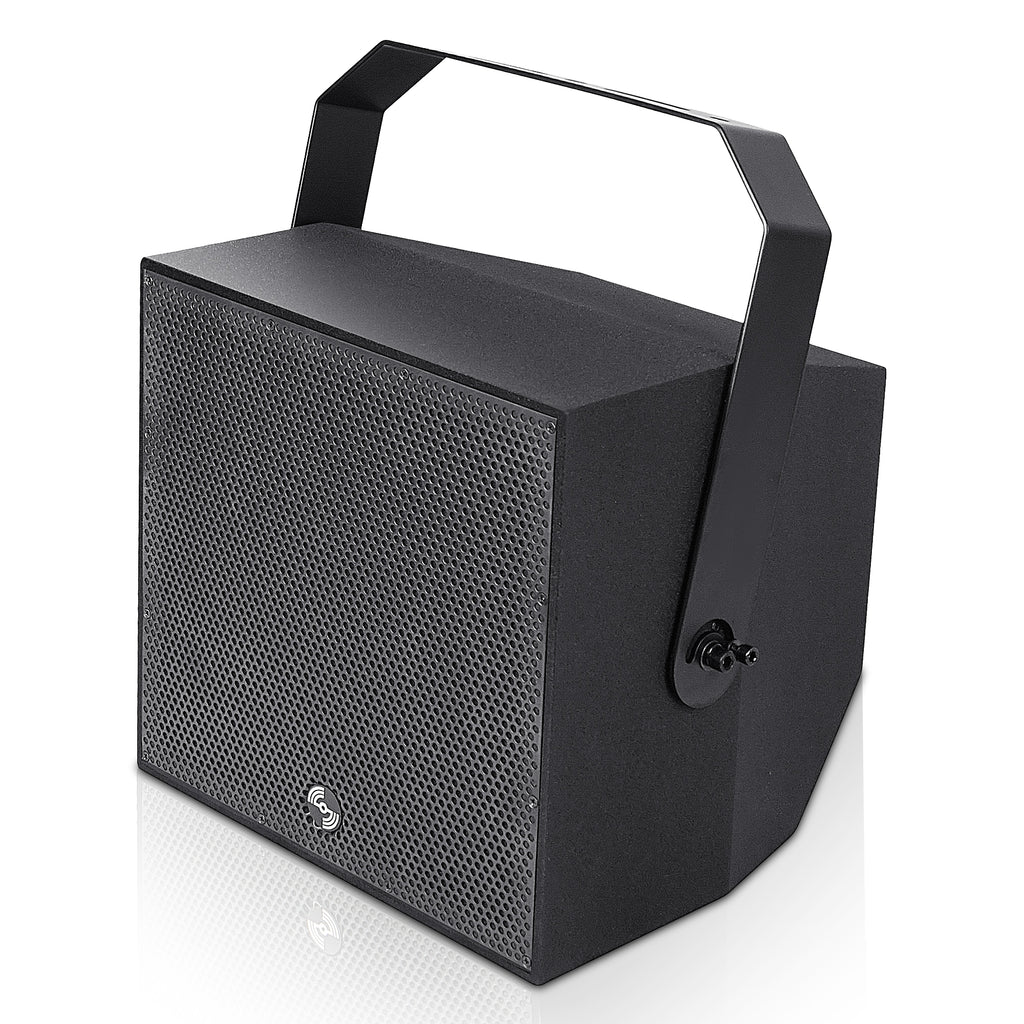

Mounting | U bracket |
Finish | Texture coating |
Grill & Rigging Component | Steel with anti-corrosion coat |
Dimension & Weight
Product Width (in.) | 11.7" | Package Width (in.) | 14.6" |
Product Height (in.) | 11.7" | Package Height (in.) | 15.9" |
Product Depth (in.) | 12.2" | Package Depth (in.) | 14.9" |
Product Weight (lb.) | 25.4 lbs | Package Weight (lb.) | 27.7 lbs |
Warranty/Certifications
Manufacturer Warranty | 1 Year |
