TITAN-8G | 2-Way 8" Weatherproof IP66 Coaxial Loudspeaker with Surface-Mount U-Bracket for Outdoor Installations, 70V/100V/8Ω, Gray
Sound Town
English
简体中文
Русский языкEnglishThe Sound Town TITAN-8G is a two-way 8" weatherproof full-range loudspeaker. Featuring a coaxial 8" low-frequency woofer and 1" high-frequency compression tweeter, this speaker delivers clear sound performance with accurate phase response and minimal distortion. Its compact body with a sleek matte finish ensures a refined appearance while maintaining reliable performance.
Designed for high-humidity environments, the IP66 TITAN-8G is water-resistant and dustproof, with a hydrophobically treated aluminum grille, moisture-sealed crossover, and waterproof connectors. A corrosion-resistant U-shaped bracket is included for easy installation, and an optional wall-mount aluminum bracket (CWB-1A) is available separately, making it suitable for indoor and outdoor public address and music applications.
Equipped with a built-in 70V/100V transformer, the TITAN-8G offers selectable power taps at 15W (70V only), 30W, 60W, and 120W for distributed systems. A low-impedance bypass rated at 180W RMS (8Ω) is also available for standard setups.

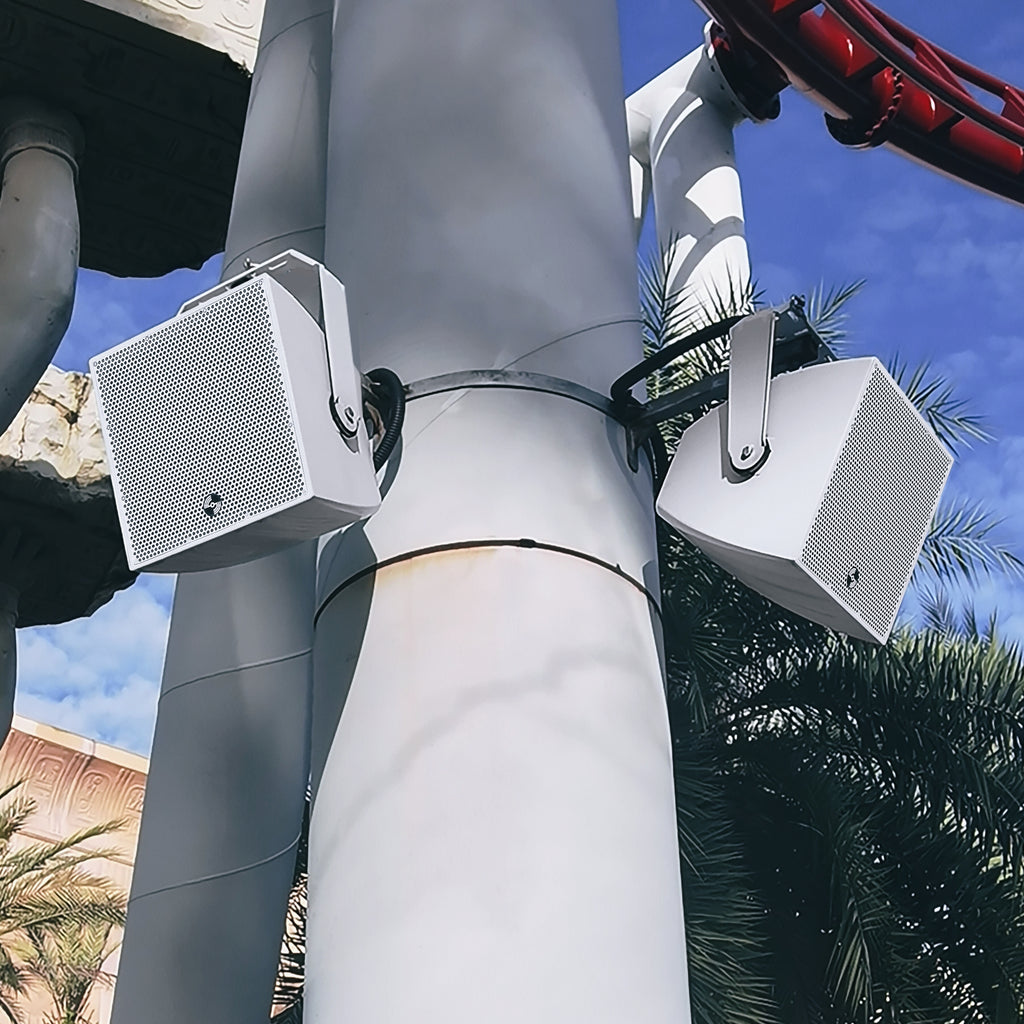

Ideal for bars, restaurants, patios, hospitality venues, theme parks, and more, the TITAN-8G delivers high-quality sound, rugged durability, and versatile installation options, with a weatherized design built to withstand outdoor elements.
Specifications
| Model | TITAN-8G (gray), TITAN-8B (black) |
| Active / Passive | Passive |
| Frequency Range | 75 Hz - 20 kHz |
| Frequency Response | 75 Hz - 20 kHz |
| Sensitivity | 100 dB |
| SPL Max | 128 dB |
| Dispersion | 110º x 110º (H x V) |
| Configuration | 8" full-range coaxial loudspeaker |
| Transducer | LF: 1 x 8", HF: 1" compression drivers (coaxial) |
| Voice Coil | -- |
| Magnet | -- |
| Impedance | 8Ω nominal |
| Power Handling | 180 RMS / 360W Program |
| 70V | 120W / 60W / 30W / 15W |
| 100V | 120W / 60W / 30W |
| Enclosure Material | Water-resistant polyvinyl board |
| Mounting Hardware | U bracket |
| Finish | Texture coating |
| Grill & Rigging Component | Steel with anti-corrosion coat |
| Amplifier | -- |
| Input | Waterproof 4-pin terminal strip connector |
| Output | Waterproof 4-pin terminal strip connector |
| Signal Processing | -- |
| Control | -- |
| Indicator | -- |
| Voltage | 100V-240V (50-60 Hz) |
| Crossover Parts# | -- |
| High Frequency Driver Parts# | -- |
| Low Frequency Woofer Parts# | ST-COX-8 |
Dimension & Weight
| Product Width (in.) | 11.7" | Package Width (in.) | 14.6" |
| Product Height (in.) | 11.7" | Package Height (in.) | 15.9" |
| Product Depth (in.) | 12.2" | Package Depth (in.) | 14.9" |
| Product Weight (lb.) | 25.4 lbs | Package Weight (lb.) | 27.7 lbs |
Warranty/Certifications
| Manufacturer Warranty | 1 Year |
Q: What speaker wire should be used for this system?
A: Speaker wire is not included. To ensure optimal performance and minimize signal loss, select the appropriate wire gauge based on the distance between your amplifier and speakers:
| Distance | Wire Gauge |
| 10–15 ft | 18 AWG |
| 15–25 ft | 16 AWG |
| 25–50 ft | 14 AWG |
| 50–100 ft | 12 AWG |
| Over 100 ft | 10 AWG |
Using a thicker (lower gauge) wire for longer runs helps maintain signal strength and overall audio quality.
