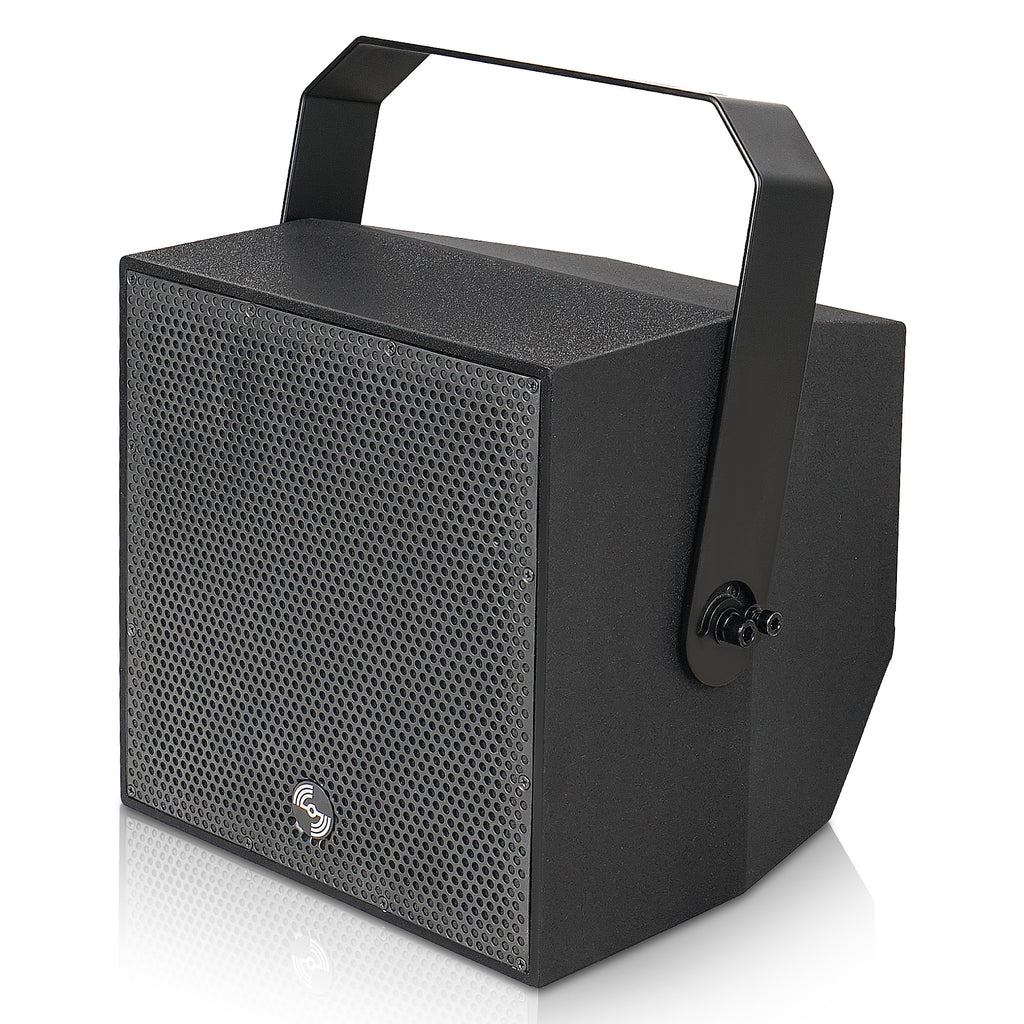

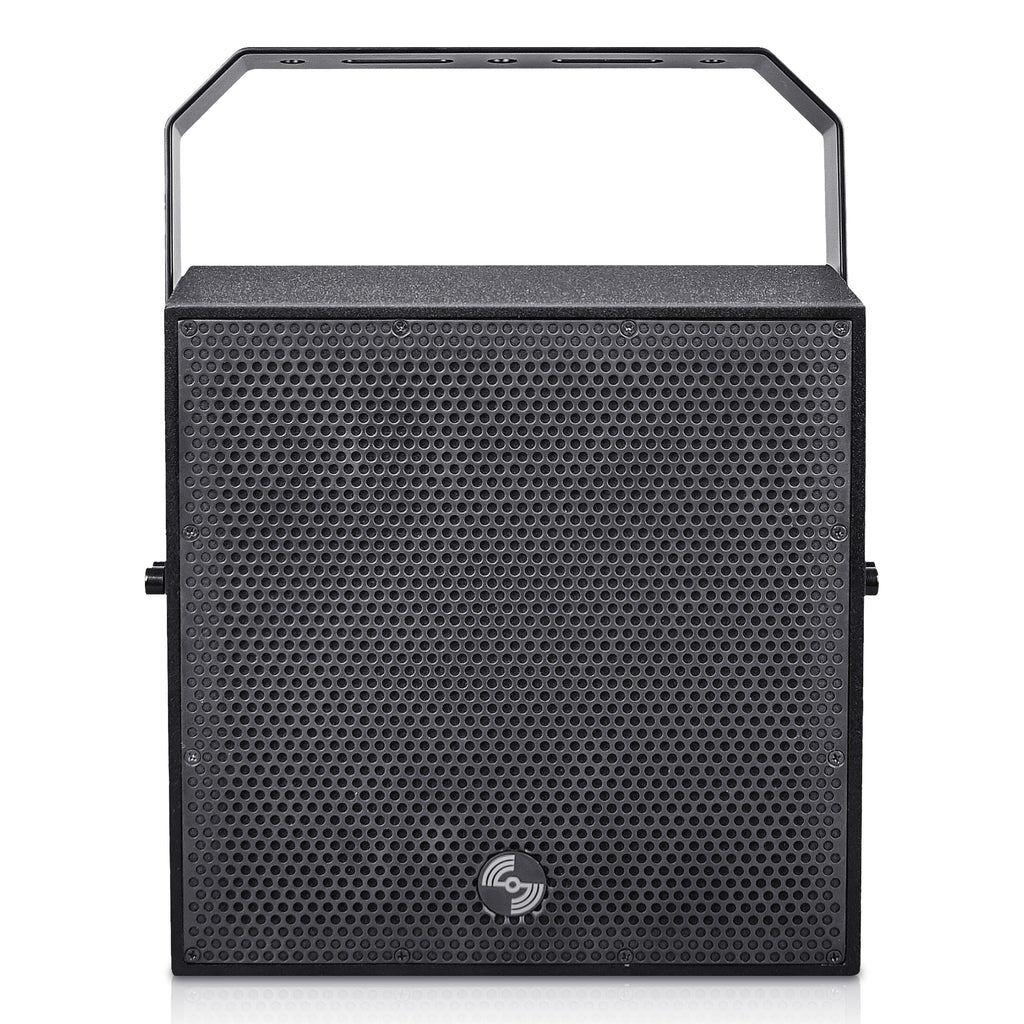

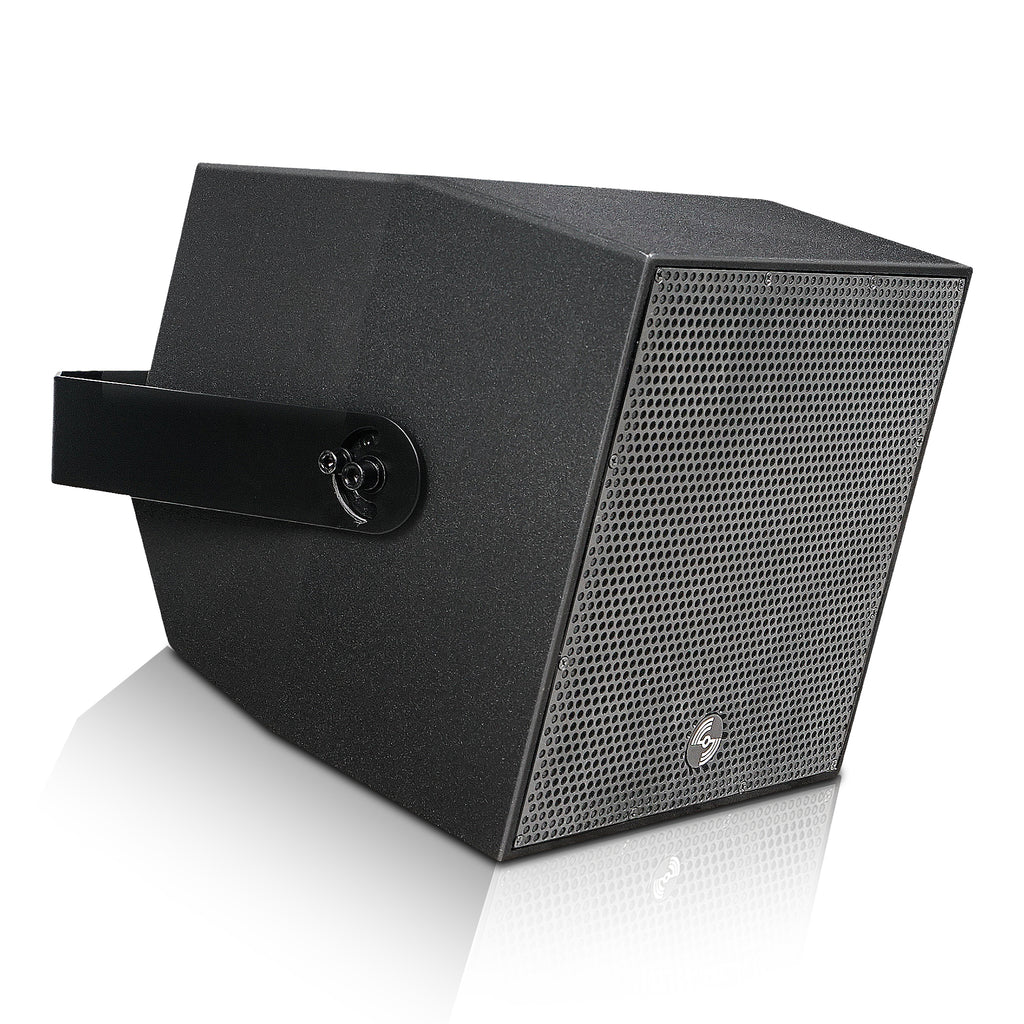

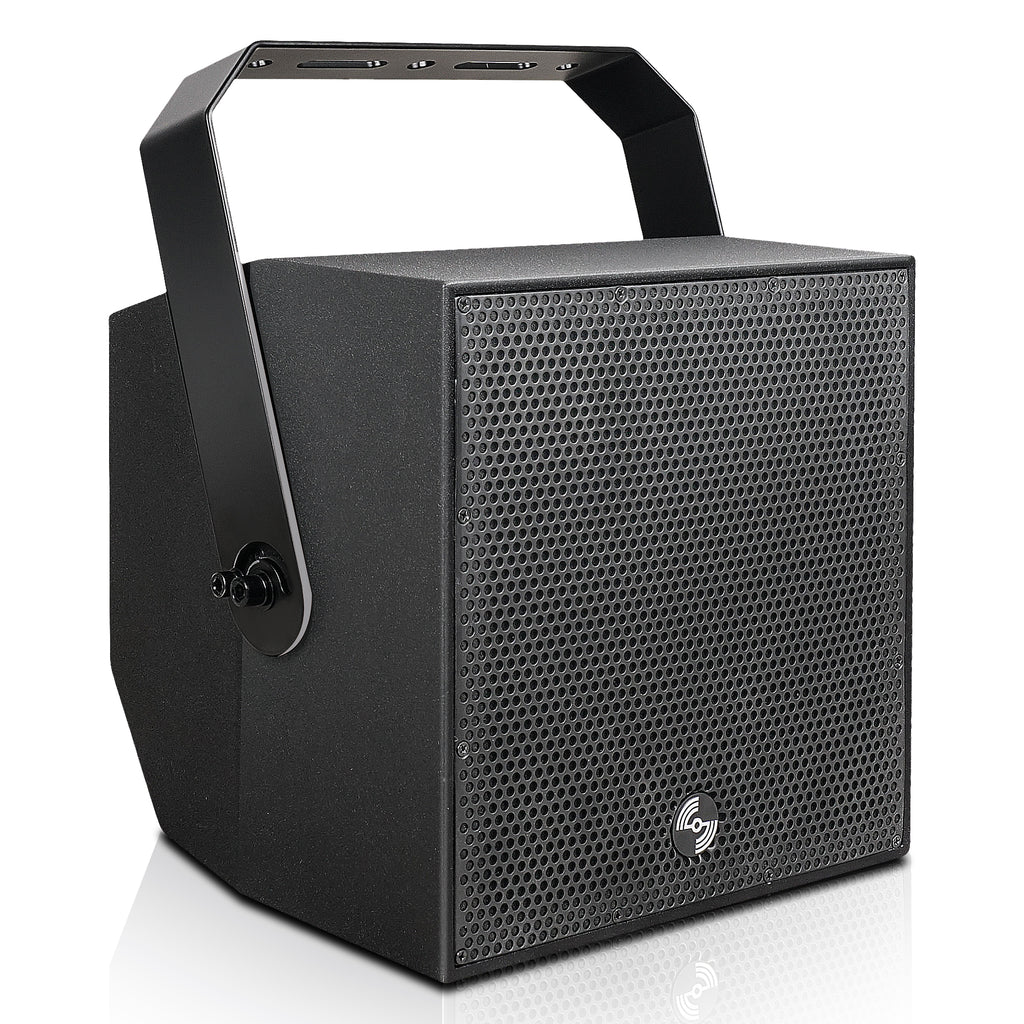

TITAN-6B | 2-Way 6.5" Weatherproof IP66 Coaxial Loudspeaker with Surface-Mount U-Bracket for Outdoor Installations, 70V/100V/8Ω, Black
Sound Town
English
简体中文
Русский языкEnglishThe Sound Town TITAN-6B is a two-way 6.5" weatherproof full-range loudspeaker. Featuring a coaxial 6.5" low-frequency woofer and 1" high-frequency compression tweeter, this speaker delivers clear sound performance with accurate phase response and minimal distortion. Its compact body with a sleek matte finish ensures a refined appearance while maintaining reliable performance.

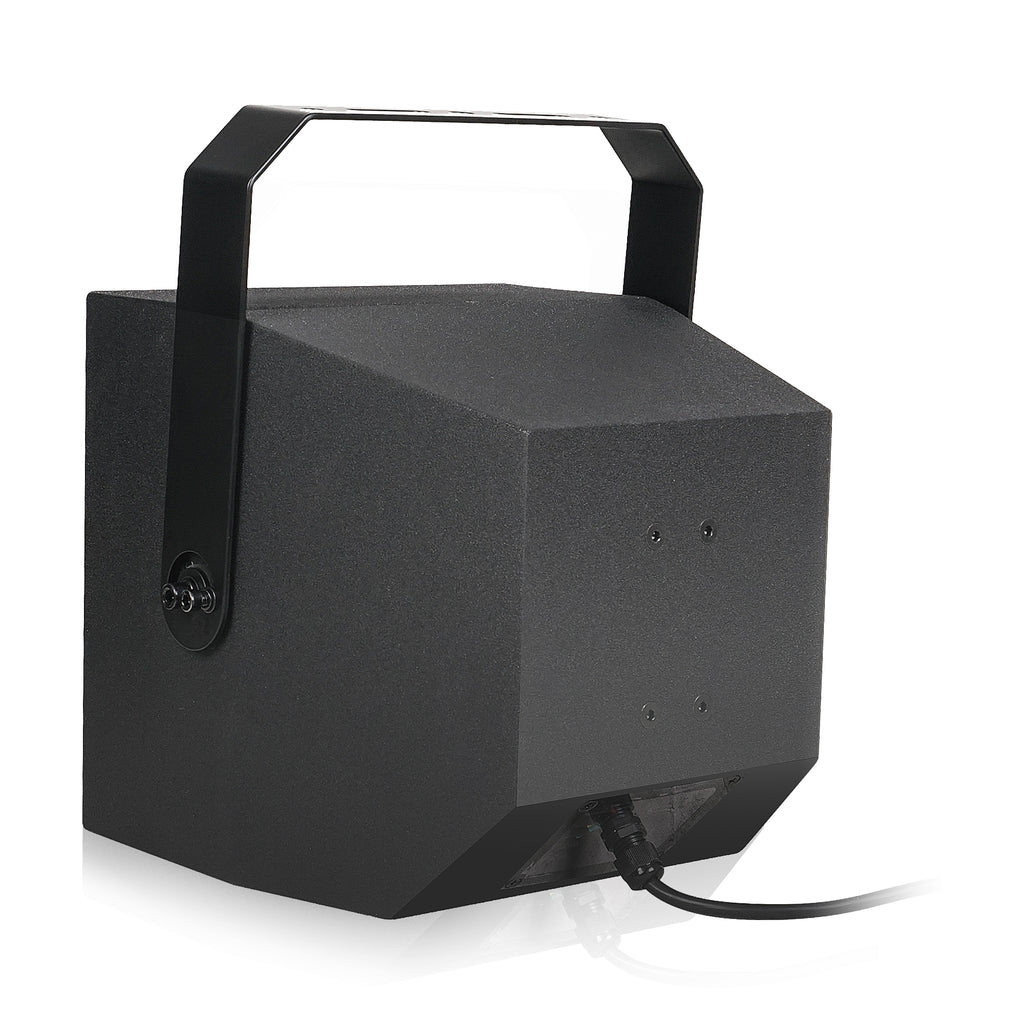

Designed for high-humidity environments, the IP66 TITAN-6B is water-resistant and dustproof, with a hydrophobically treated aluminum grille, moisture-sealed crossover, and waterproof connectors. A corrosion-resistant U-shaped bracket is included for easy installation, and an optional wall-mount aluminum bracket (CWB-1A) is available separately, making it suitable for indoor and outdoor public address and music applications.

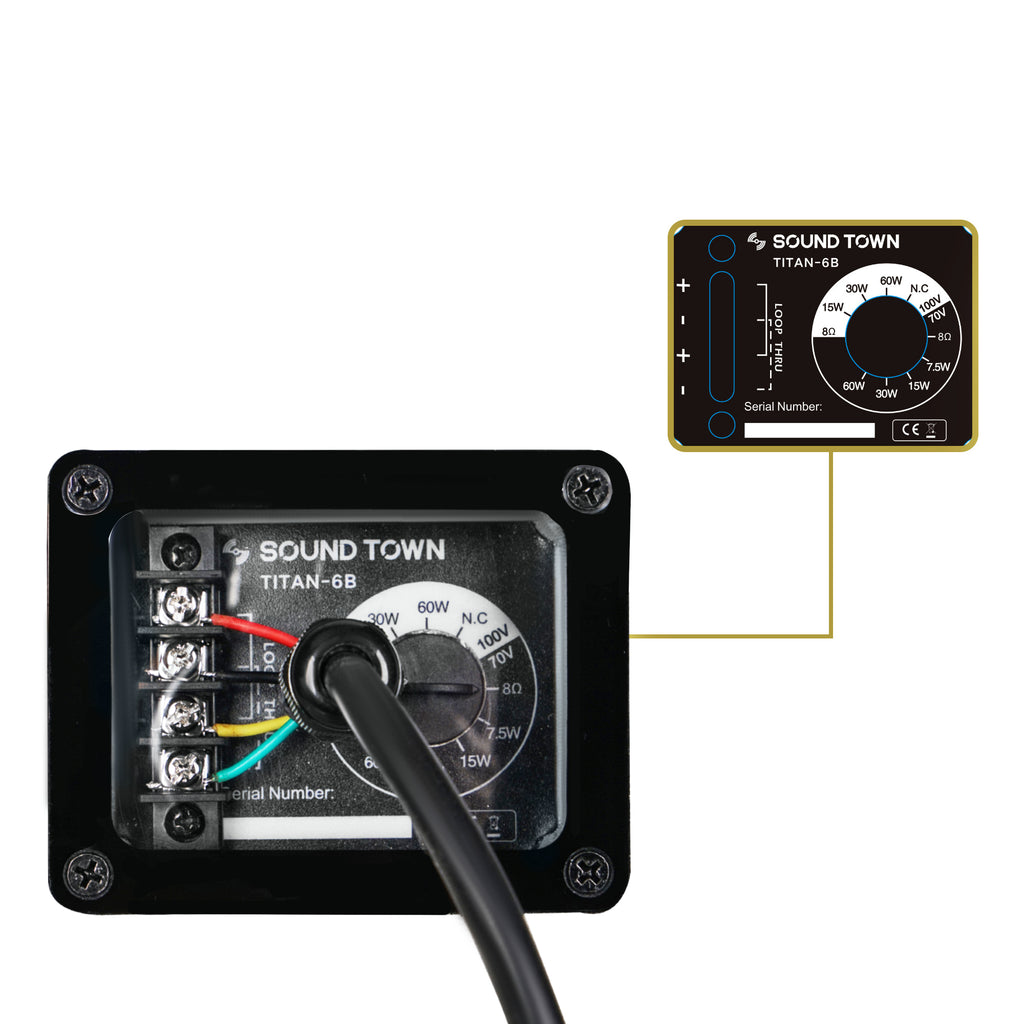

Equipped with a built-in 70V/100V transformer, the TITAN-6B offers selectable power taps at 7.5W (70V only), 15W, 30W, and 60W for distributed systems. A low-impedance bypass rated at 150W RMS (8Ω) is also available for standard setups.

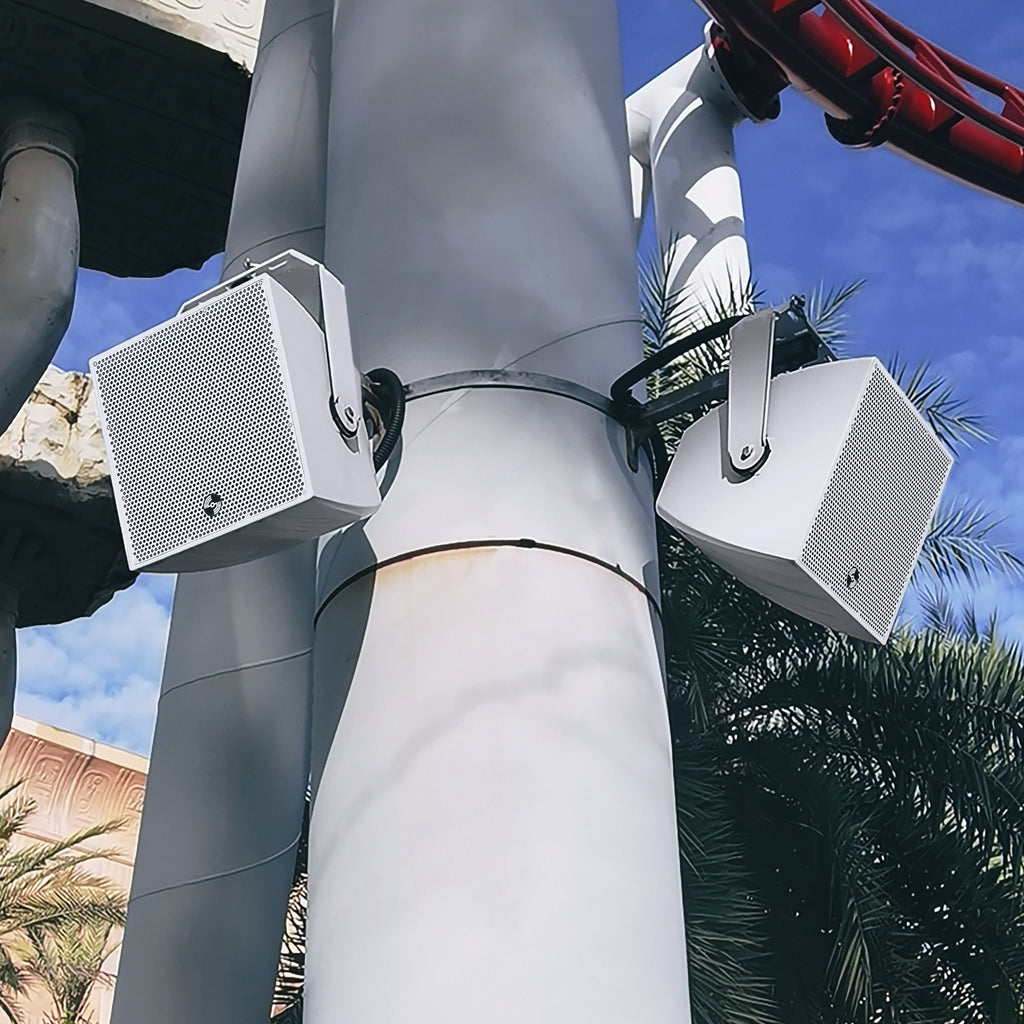

Ideal for bars, restaurants, patios, hospitality venues, theme parks, and more, the TITAN-6B delivers high-quality sound, rugged durability, and versatile installation options, with a weatherized design built to withstand outdoor elements.
Specifications
| Model | TITAN-6B (black), TITAN-6G (gray), |
| Active / Passive | Passive |
| Frequency Range | 80 Hz - 20 kHz |
| Frequency Response | 80 Hz - 20 kHz |
| Sensitivity | 97 dB |
| SPL Max | 125 dB |
| Dispersion | 110º x 110º (H x V) |
| Configuration | 6.5" full-range coaxial loudspeaker |
| Transducer | LF: 1 x 6.5", HF: 1" compression drivers (coaxial) |
| Voice Coil | -- |
| Magnet | -- |
| Impedance | 8Ω nominal |
| Power Handling | 150 RMS / 300W Program |
| 70V | 60W / 30W / 15W / 7.5W |
| 100V | 60W / 30W / 15W |
| Enclosure Material | Water-resistant polyvinyl board |
| Mounting Hardware | U bracket |
| Finish | Texture coating |
| Grill & Rigging Component | Steel with anti-corrosion coat |
| Amplifier | -- |

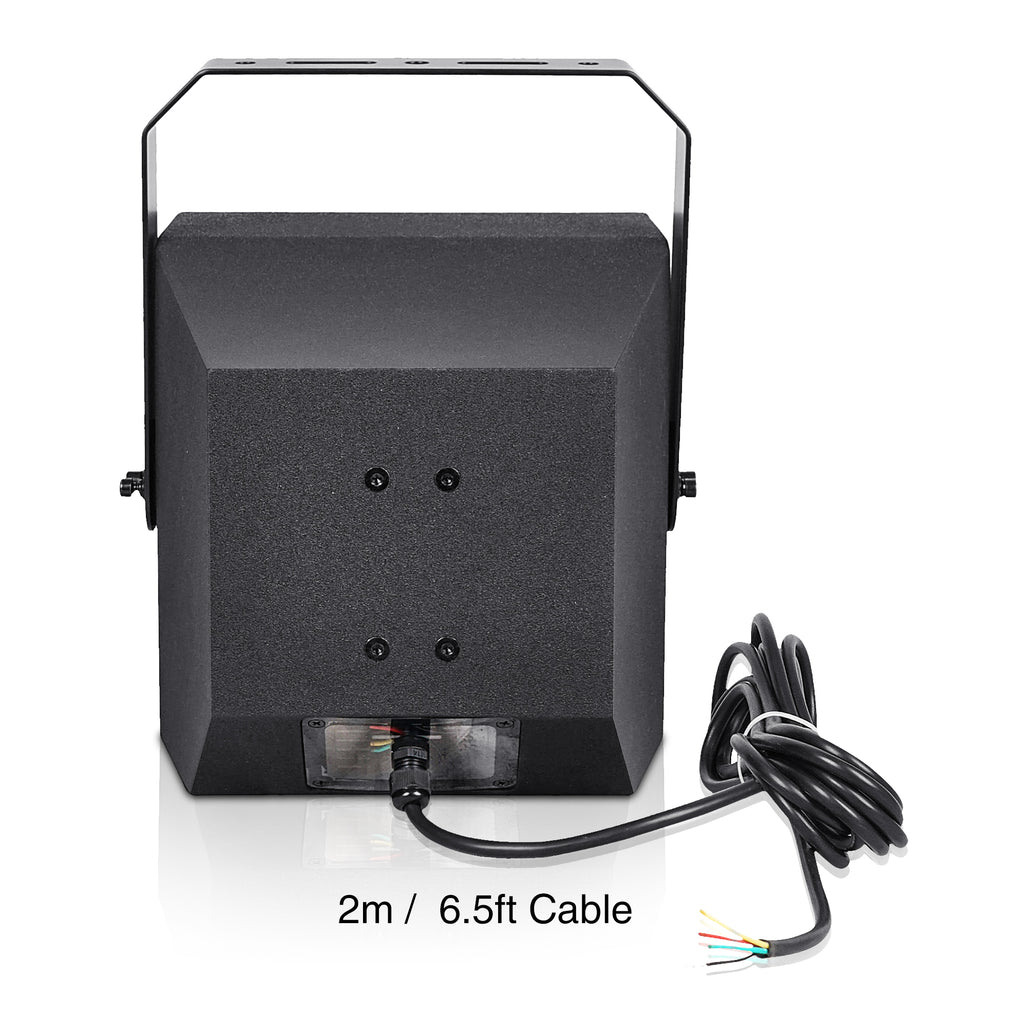

| Input | Waterproof 4-pin terminal strip connector |
| Output | Waterproof 4-pin terminal strip connector |
| Signal Processing | -- |
| Control | -- |
| Indicator | -- |
| Voltage | 100V-240V (50-60 Hz) |
| Crossover Parts# | -- |
| High Frequency Driver Parts# | -- |
| Low Frequency Woofer Parts# | -- |
Dimension & Weight
| Product Width (in.) | 10.0" | Package Width (in.) | 13.2" |
| Product Height (in.) | 10.0" | Package Height (in.) | 13.2" |
| Product Depth (in.) | 10.8" | Package Depth (in.) | 14.6" |
| Product Weight (lb.) | 20.0 lbs | Package Weight (lb.) | 21.6 lbs |
Warranty/Certifications
| Manufacturer Warranty | 1 Year |
Q: What speaker wire should be used for this system?
A: Speaker wire is not included. To ensure optimal performance and minimize signal loss, select the appropriate wire gauge based on the distance between your amplifier and speakers:
| Distance | Wire Gauge |
| 10–15 ft | 18 AWG |
| 15–25 ft | 16 AWG |
| 25–50 ft | 14 AWG |
| 50–100 ft | 12 AWG |
| Over 100 ft | 10 AWG |
Using a thicker (lower gauge) wire for longer runs helps maintain signal strength and overall audio quality.
