TITAN-6G | IP55 Certified 2-Way 70V/100V 6" Coaxial Weather-Resistant Installation Loudspeaker w/ U Bracket, Gray
- DESCRIPTION
- FEATURES
- SPECIFICATIONS
- SUPPORT
- DOWNLOADS
- REVIEWS

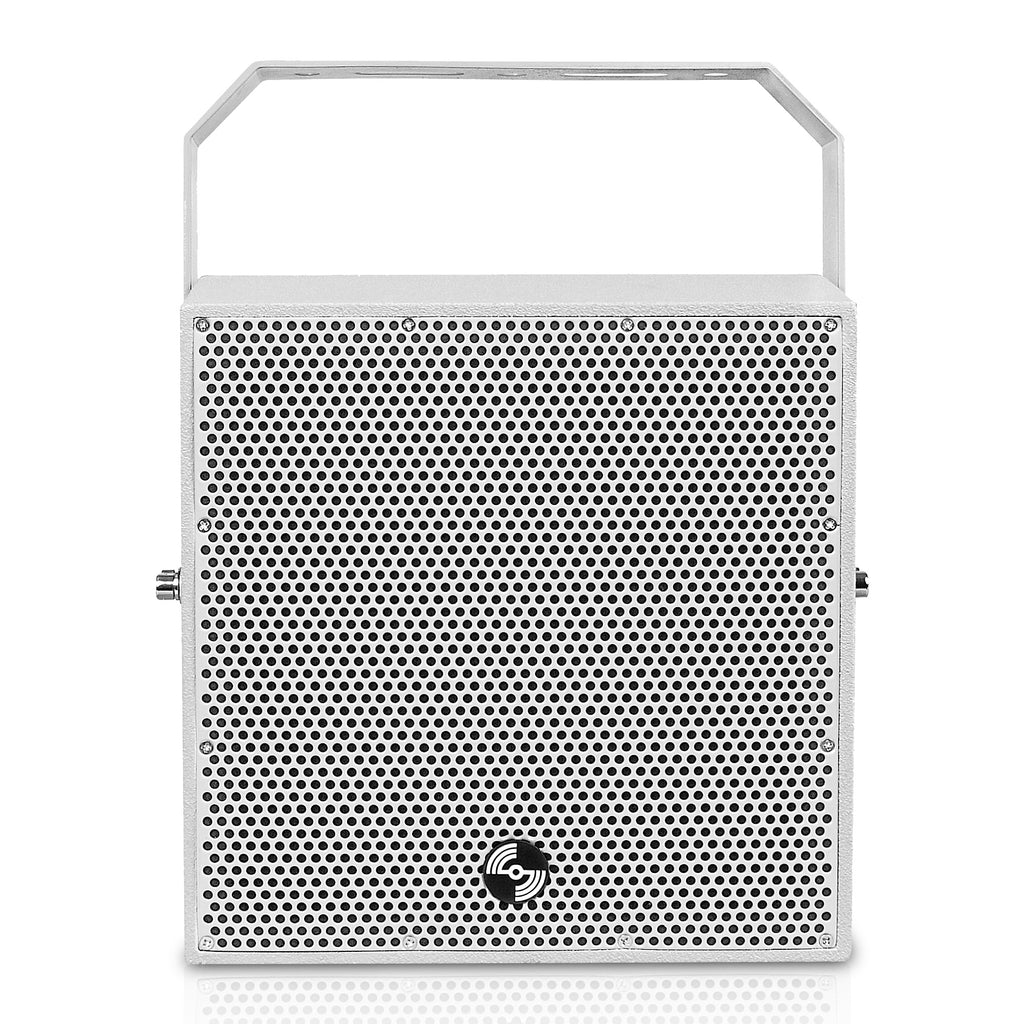

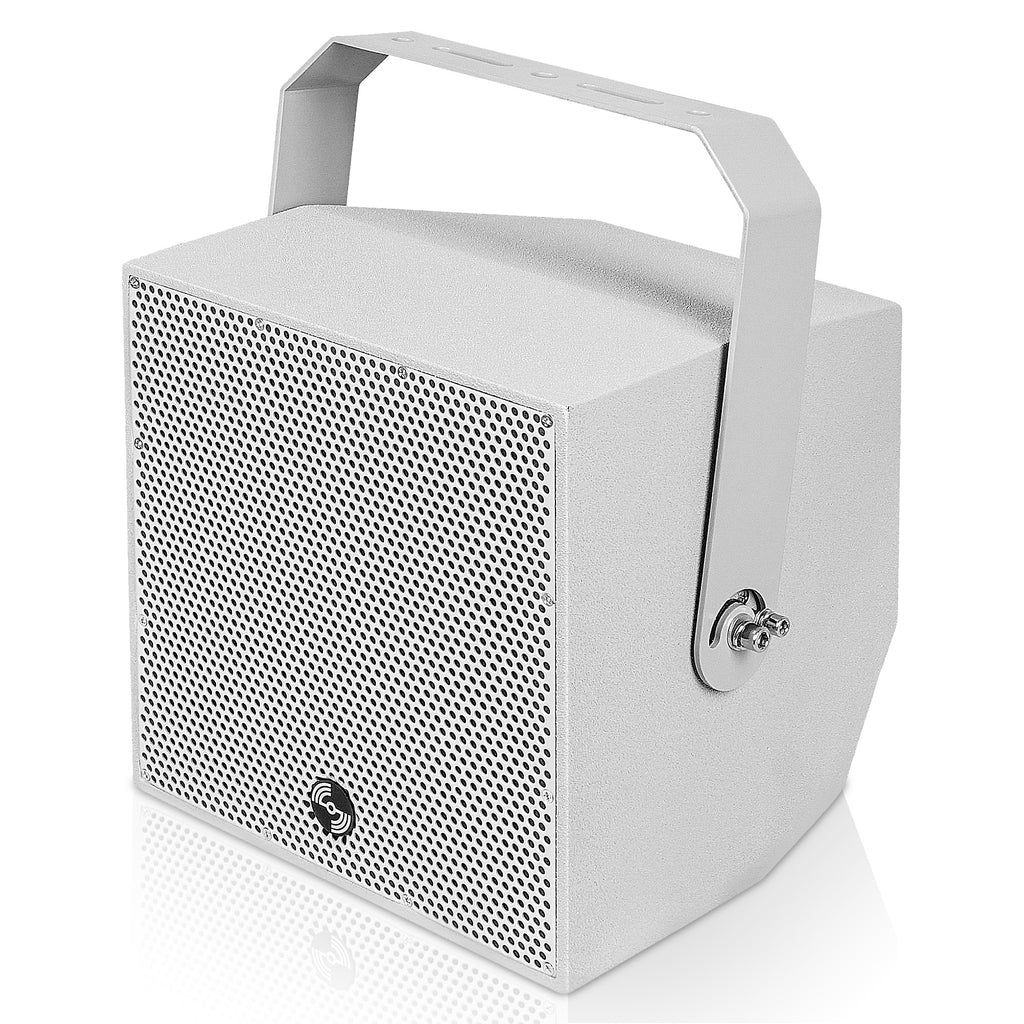

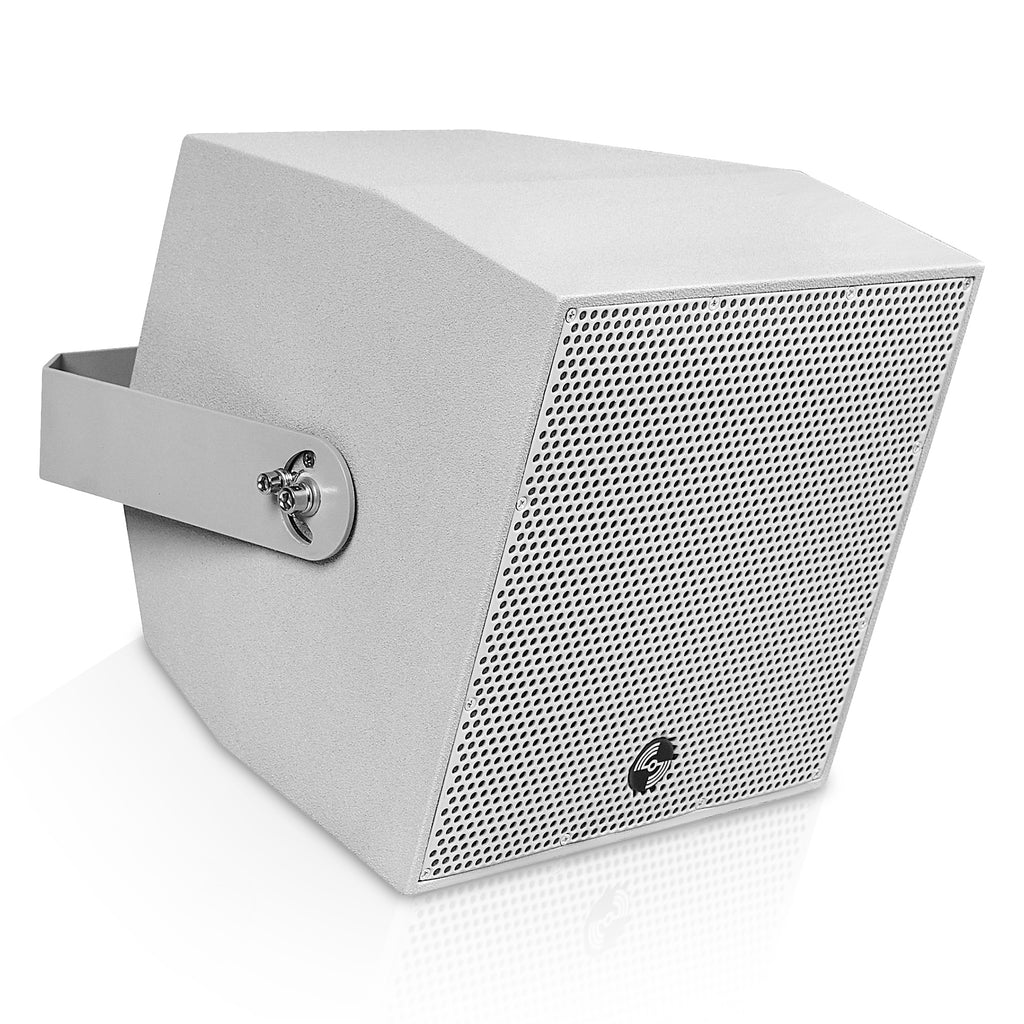

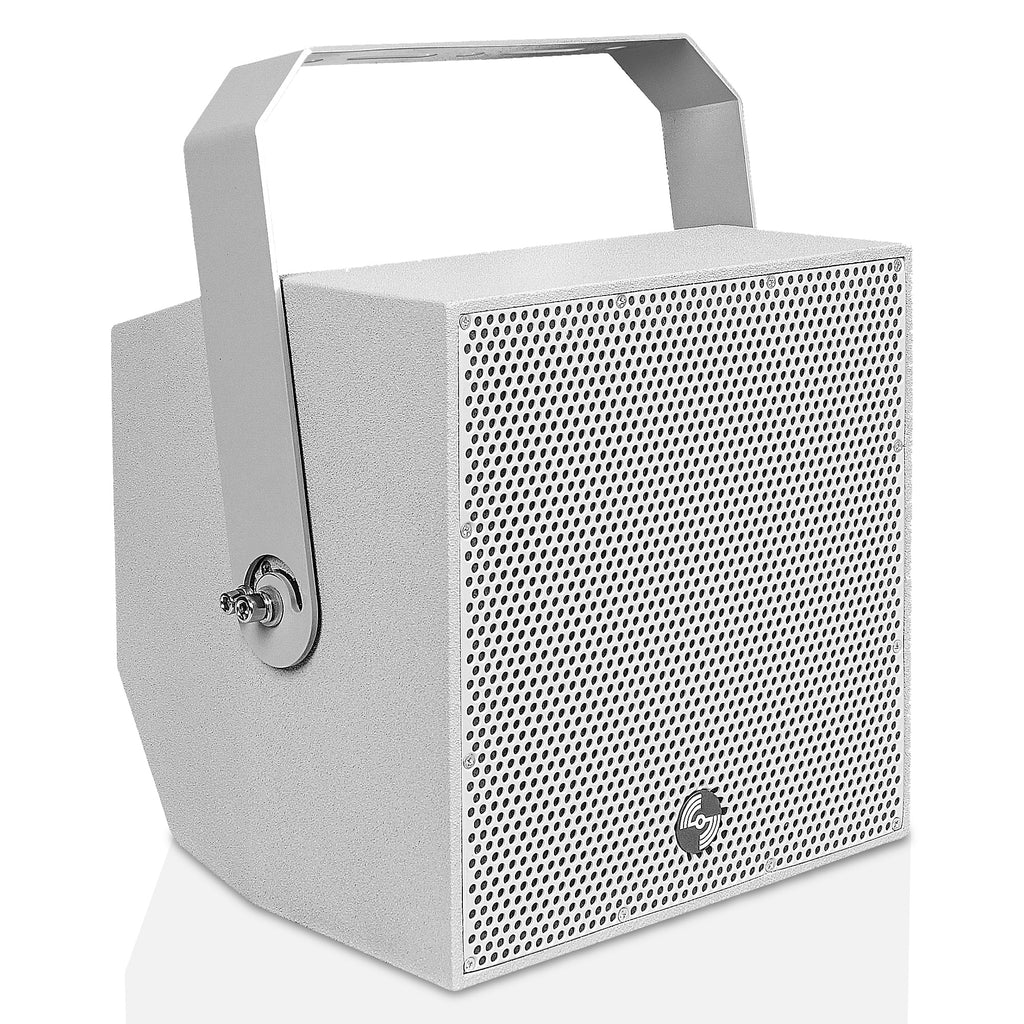

The Sound Town TITAN Series TITAN-6G is a powerful two-way 6" water-resistant full-range loudspeaker designed for both indoor and outdoor public address applications. With its advanced coaxial 6.5" low-frequency and 1" compression drivers, this speaker delivers exceptional sound performance with near-perfect phase response and minimal distortion. Its weather-resistant, compact polyethylene board enclosure with a sleek matte finish ensures durability without compromising on quality. For quick and hassle-free installations, the package includes a corrosion-resistant U-shaped bracket.

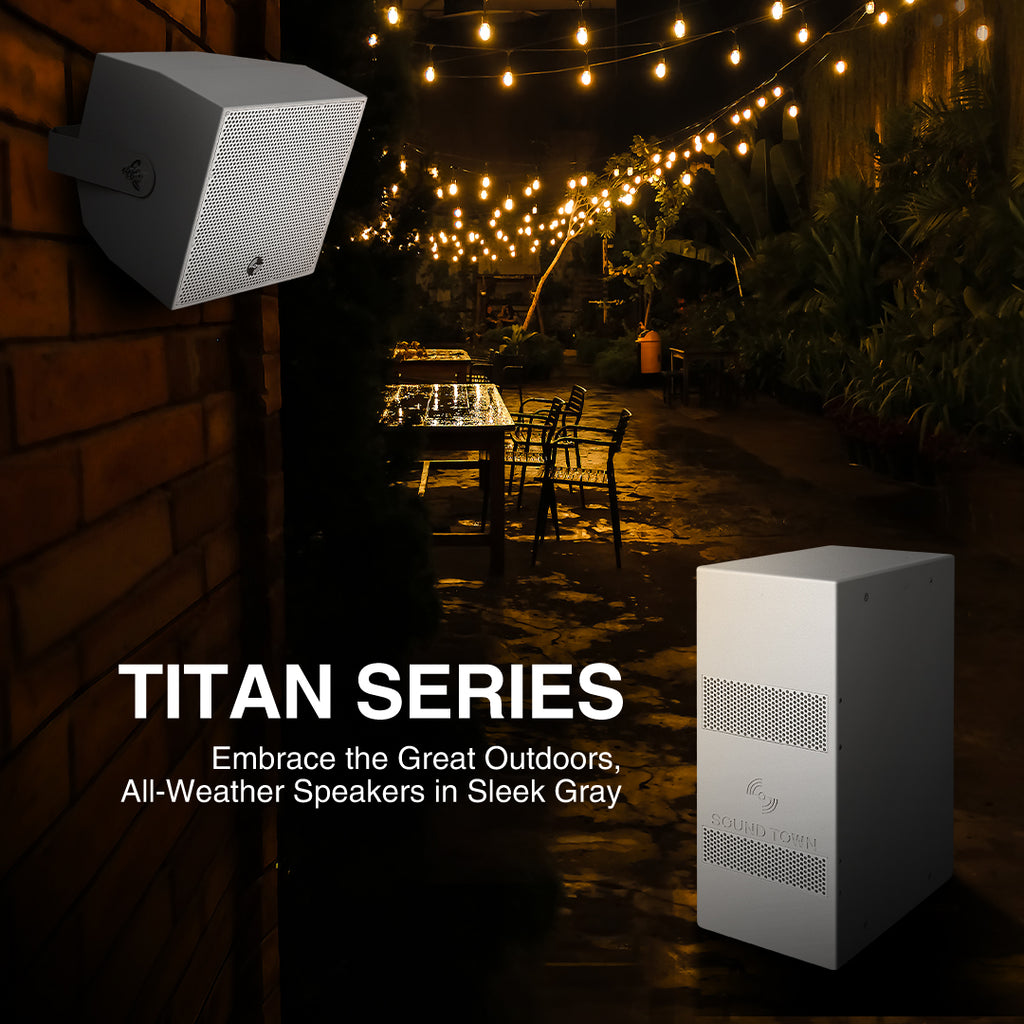

Perfect for outdoor installations and high-humidity environments, the TITAN-6G features a hydrophobically treated aluminum grille with an anti-corrosion design, moisture-sealed crossover, and waterproof connectors. This ensures long-lasting performance and reliability, even in challenging conditions.
With a 70V/100V transformer, the TITAN-6G offers flexibility, allowing you to choose from 7.5W (70V only), 15W, 30W, or 60W using either 70V or 100V lines. It also supports an 8-ohm bypass for low impedance lines.

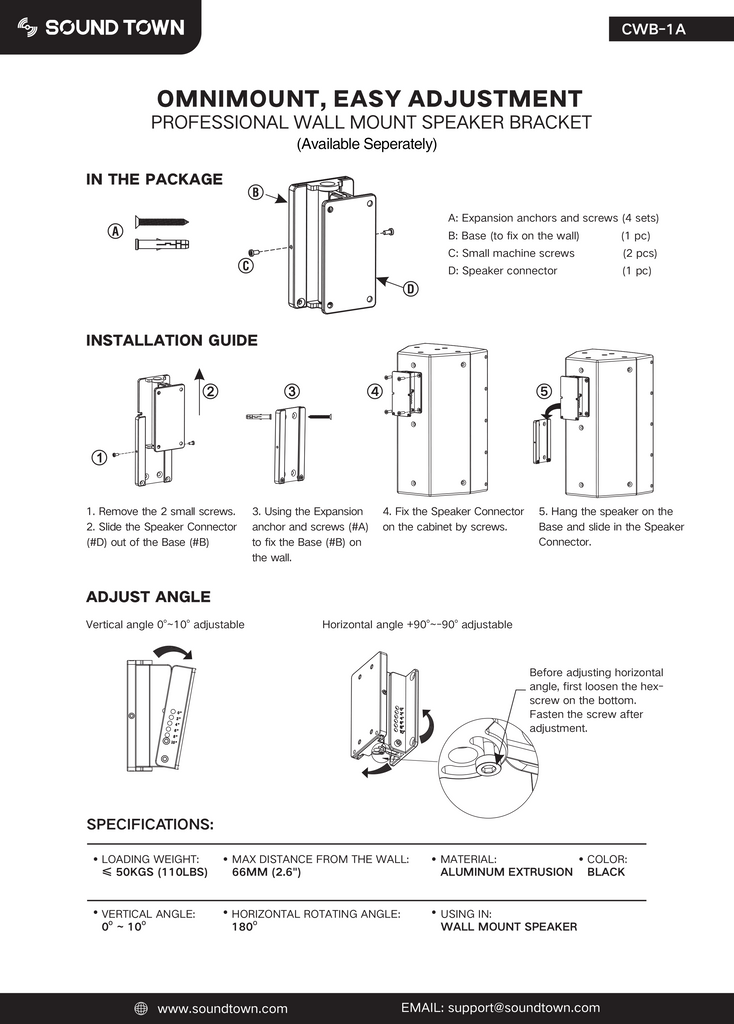

With its wide range of applications, the TITAN-6G is perfect for enhancing the sound experience in bars, restaurants, patios, hospitality venues, theme parks, and more. For added convenience, consider our optional wall mount aluminum bracket (CWB-1A), available separately. Upgrade your audio setup with the Sound Town TITAN-6G loudspeaker and enjoy high-performance sound, durability, and versatility in any environment!
- Experience outstanding sound performance with our coaxial 6.5" low-frequency and 1" compression drivers, delivering precise phase response and minimal distortion.
- Our weather-resistant speaker features a compact, water-resistant polyethylene board enclosure, engineered for both outdoor and indoor applications without compromising performance.
- Enjoy durability in any environment with a hydrophobically treated aluminum grille, anti-corrosion design, moisture-sealed crossover, and waterproof connectors (IP55 rating).

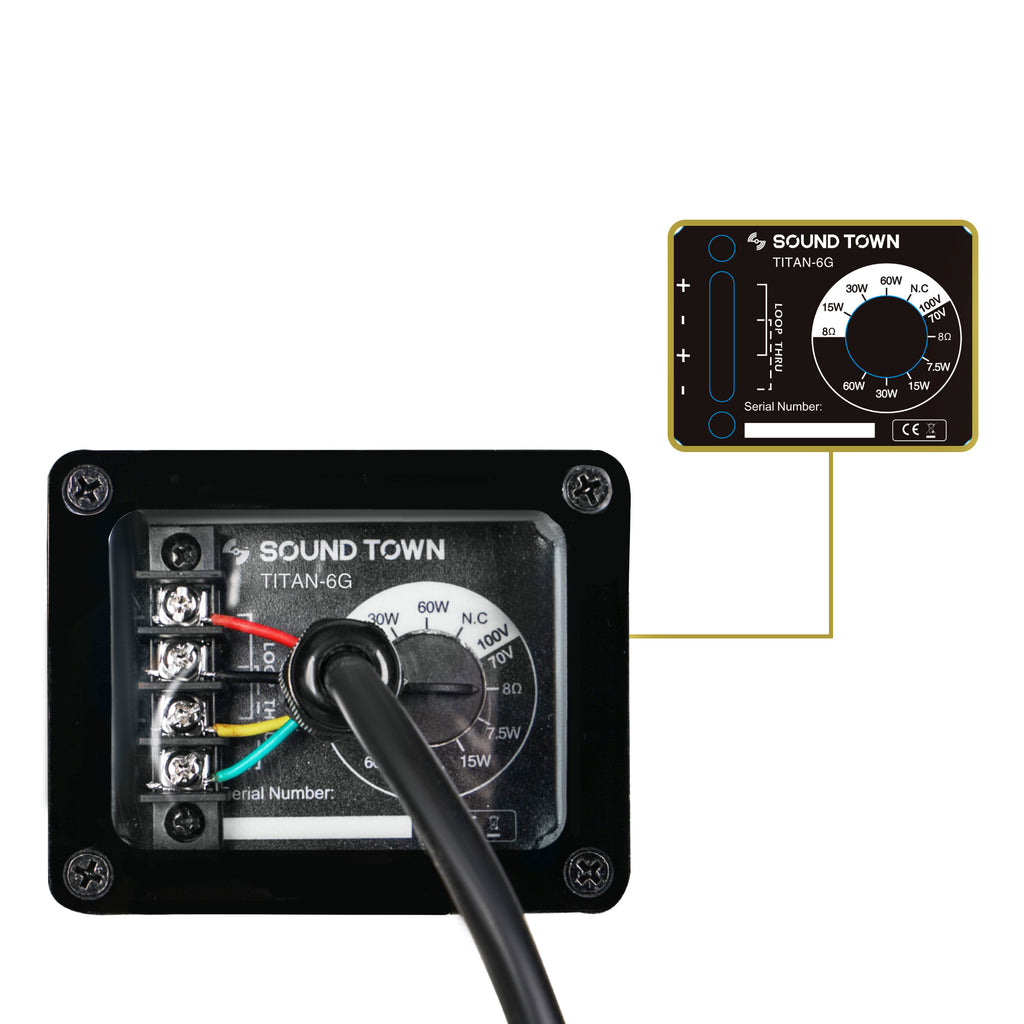

- With a 70V/100V transformer, the TITAN-6G offers a selection of 7.5W(70V only), 15W, 30W, or 60W power options using either 70V or 100V lines. It supports both 70V or 100V lines and also has an 8-ohm bypass option for low impedance lines.

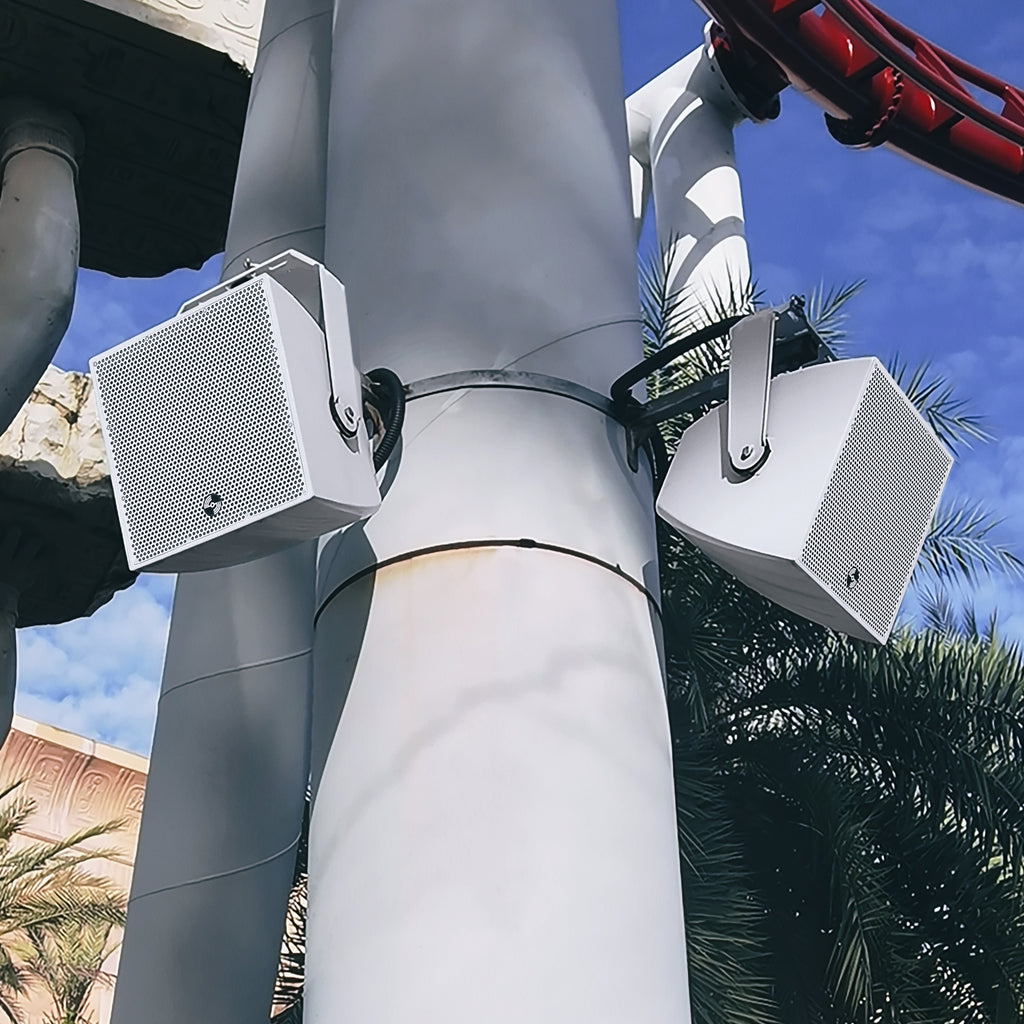

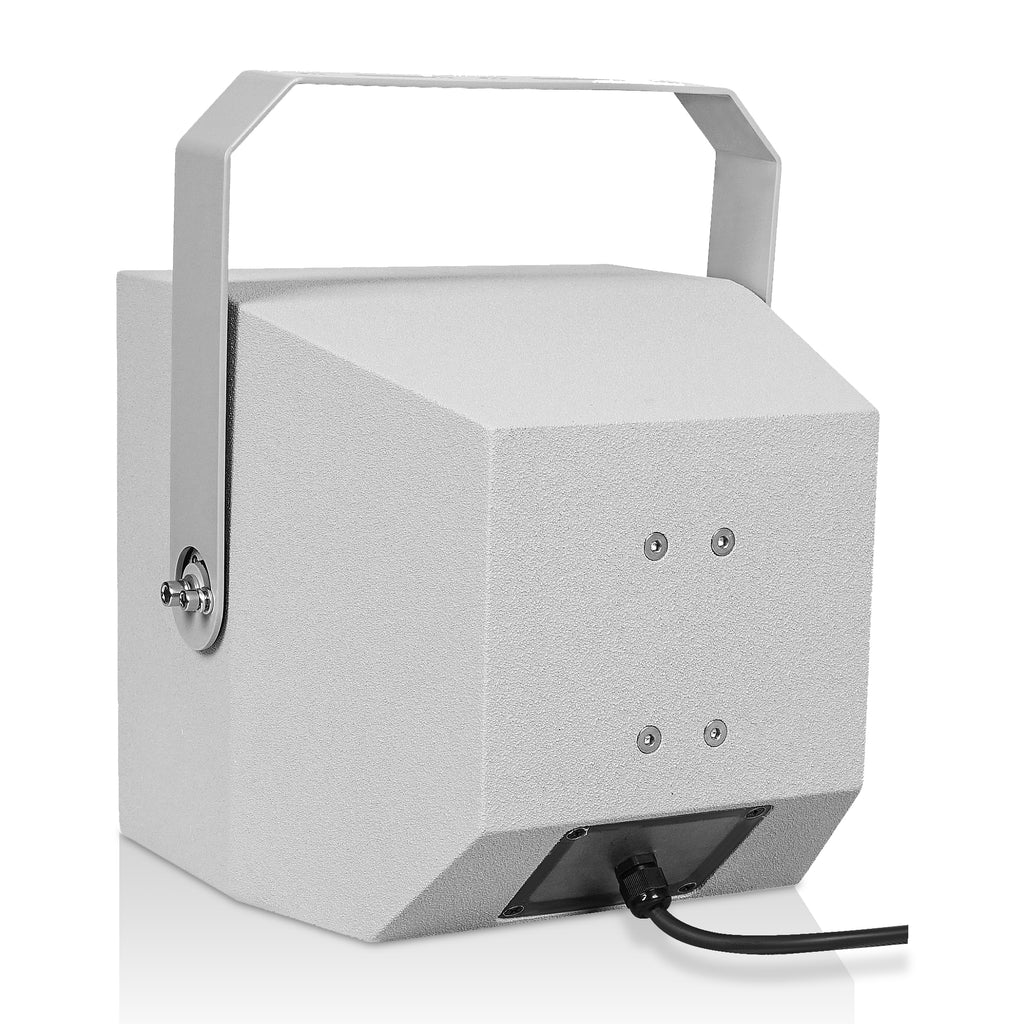

- Quick and reliable installations are made easy with the included corrosion-resistant U-shaped bracket. Perfect for a wide range of indoor and outdoor applications, such as bars, restaurants, patios, and theme parks. Optional wall mount aluminum bracket (CWB-1A) available separately.
Specifications
Model | TITAN-6B (black), TITAN-6G (gray) |
Frequency Response | 80 Hz - 20 kHz |
Sensitivity | 97 dB |
SPL Max | 125 dB |
Dispersion | 110º x 110º |
Configuration | 6.5" full-range coaxial loudspeaker |
Transducer | LF: 1 x 6.5", HF: 1" compression drivers (coaxial) |
Impedance | 8Ω nominal |
Power Handling (Passive) | 150 RMS / 300W Program |
70V | 60W / 30W / 15W / 7.5W |
100V | 60W / 30W / 15W |

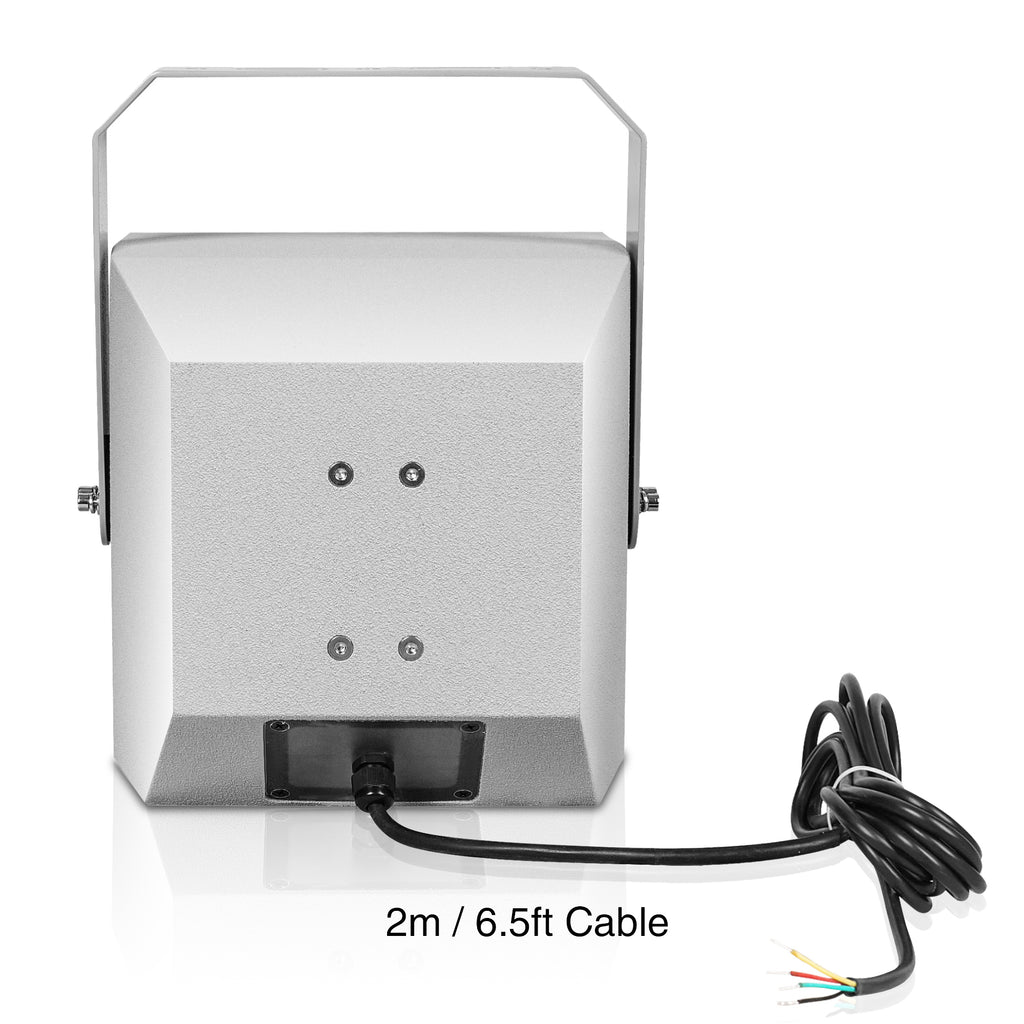

Connectors | Waterproof 4-pin terminal strip connector |
Cabinet Construction | Water-resistant polyvinyl board |
Mounting | U bracket |
Finish | Texture coating |
Grill & Rigging Component | Steel with anti-corrosion coat |
Dimension & Weight
Product Width (in.) | 10.0" | Package Width (in.) | 13.2" |
Product Height (in.) | 10.0" | Package Height (in.) | 13.2" |
Product Depth (in.) | 10.8" | Package Depth (in.) | 14.6" |
Product Weight (lb.) | 20.0 lbs | Package Weight (lb.) | 21.6 lbs |
Warranty/Certifications
Manufacturer Warranty | 1 Year |
