TITAN-12B | 2-Way 12" Coaxial Weather-Resistant Installation Loudspeaker w/ U Bracket, Black








- DESCRIPTION
- FEATURES
- SPECIFICATIONS
- DOWNLOADS
- REVIEWS
The Sound Town TITAN-12B is a high-performance, two-way, full-range 12" loudspeaker designed for both indoor and outdoor public address applications. With coaxial 12" low-frequency and 1-3/4" compression drivers, it exhibits near-perfect phase response and outstanding sound performance with minimal distortion. It is housed in a weather-resistant, compact polyethylene board enclosure with a matte finish. Even better, its hydrophobically treated grille, moisture-sealed crossover, and waterproof connectors make it perfect for outdoor installations and high-humidity environments.
The TITAN-12B comes with an impressive 300W RMS / 600W peak power handling capability. It has a corrosion-resistant U-shaped bracket included in the package for quick and reliable installations. The TITAN-12B speaker is ideal for a wide variety of indoor and outdoor applications, such as bars, restaurants, patios, hospitality, theme parks, and more.
Sound Town TITAN series Coaxial Weather-Resistant Loudspeaker
The Sound Town Titan speakers are available in 6", 8", 10" and 12" with coaxial design. All cabinets are available in black and grey and ideal for indoor and outdoor applications, such as stadiums, fairgrounds, outdoor entertainment centers, athletic fields, swimming pools, houses of worship and more.
- IP54 Rated All-Weather Speaker The TITAN-12B speaker is housed in a waterproof polyvinyl board enclosure with a tough textured coating, protecting it from water damage and harsh weather. It comes with a hydrophobically treated grille, moisture-sealed crossover, and waterproof connectors, ideal for both outdoor and indoor applications.
- 2-Way Coaxial Design Coaxial 12" low-frequency and 1-3/4" compression drivers exhibit near-perfect phase response and outstanding sound performance with minimal distortion.
- Versatile Applications The package includes one corrosion-resistant U-shaped bracket is included in the package for quick and reliable installations. Perfect for a wide variety of indoor and outdoor applications, such as bars, restaurants, patios, hospitality, theme parks and more.
- 300W RMS / 600W peak power handling capability.
Specifications
Model | TITAN-12B (black), TITAN-12GÂ (grey) |
Frequency Response | 65 Hz - 20K Hz |
Sensitivity | 107 dB |
SPL Max | 135 dB |
Dispersion (H x V) | 60Âș x 60Âș |
Configuration | 12" Full range coaxial loudspeaker |
Transducer | LF: 1 x 12", HF: 1-3/4" Compression drivers (coaxial) |
Impedance | 8Ω Nominal |
Power Handling (Passive) | 300 RMS / 600W Program |

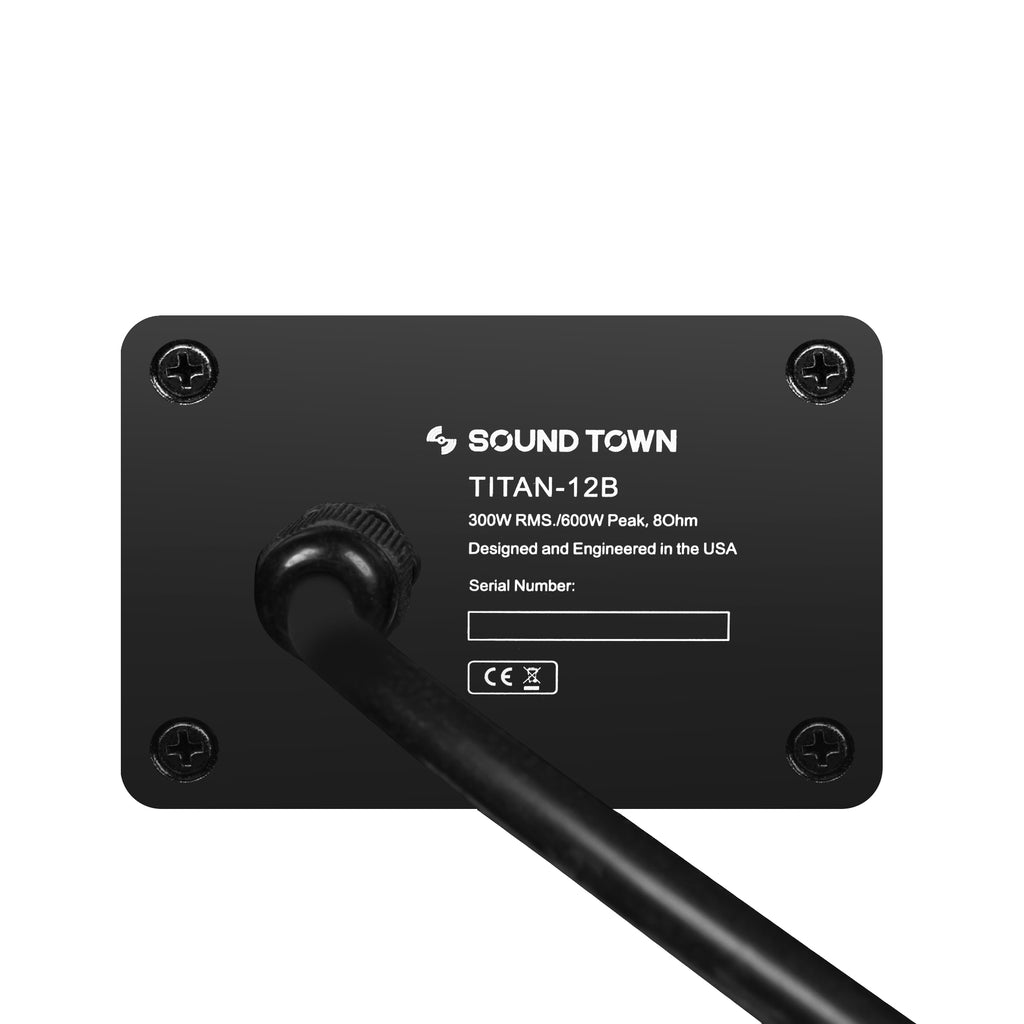

Connectors | Water-proof 4 pin terminal strip connector |
Cabinet Construction | Water-resistant polyvinyl board |
Mounting | U bracket |
Finish | Texture coating |
Grill & Rigging Component | Steel with anti-corrosion coat |
Dimension & Weight
Product Width (in.) | 16.1" | Package Width (in.) | 20.1" |
Product Height (in.) | 16.1" | Package Height (in.) | 20.1" |
Product Depth (in.) | 17.7" | Package Depth (in.) | 22.6" |
Product Weight (lb.) | 43.0Â lbs | Package Weight (lb.) | 55.7 lbs |
Warranty/Certifications
Manufacturer Warranty | 1 Year |
