Refurbished Condition: 100% testing and function is in good condition while outside box worn out and small cosmetic dents. cosmetic damages will vary, including but not limited to, damaged or cracked, bent ears, scratches, dents, etc.

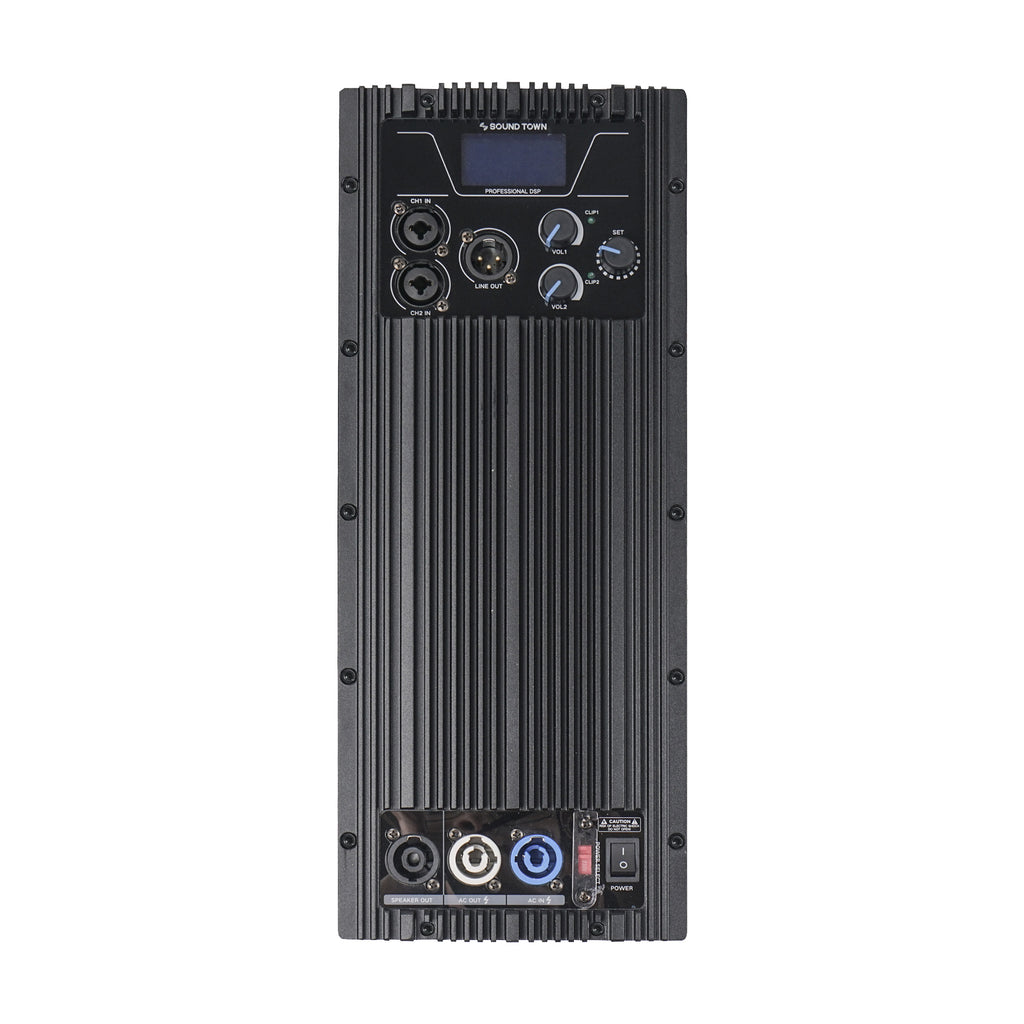

The STPA11-820 2-channel class-D plate amplifier is engineered for powerful performance, delivering 2 x 600W continuous power and 2 x 1200W peak power, making it ideal for combining subwoofer and full-range PA applications. It features two XLR-1/4" combo inputs, 1 XLR output, and 1 Speakon output, ensuring effortless connections and flexible audio routing. The digital signal processor (DSP) empowers you to fine-tune your system with presets, while overload and overcurrent protection make this amplifier resilient in demanding conditions. Its robust construction, including an integrated aluminum heat sink panel, ensures long-lasting reliability.
- POWERFUL PERFORMANCE: The 2-channel class-D plate amplifier delivers 2 x 600W continuous power and 2 x 1200W peak power, perfect for combining subwoofer and full-range PA applications.
- VERSATILE CONNECTIVITY: Connect with ease using two XLR-1/4" combo inputs, 1 XLR output, and 1 Speakon power output. Effortless connections for flexible audio routing.
- PRECISION SOUND CONTROL: Digital signal processor (DSP) optimizes your system with presets and an easy-to read LCD screen, ensuring accurate, distortion-free audio across the sound field.
- SAFETY FIRST: The STPA11-820 amplifier features overload and overcurrent protection, guaranteeing durability even in demanding conditions for long-lasting performance.
-
RELIABILITY: With a robust construction and integrated aluminum heat sink panel, the STPA11-820 amplifier delivers reliability for your audio experience.
Specifications
Model | STPA11-820 |
Description | 2-channel class-D plate amplifier |
Type | Class-D |
Supports Impedance | 4Ω & 8Ω |
Power | 2 x 600W Continuous / 2 x 1200W Peak |
Feature | DSP: 1. MODE Select; 2. EQ; 3. Crossover Setting (Polarity Setting); 4. Limit Setting |
Input | 2 x XLR-1/4" combo (mic/line) |
Output | XLR mixed out |
Control | Volume, onboard DSP (with LCD display) |
Protection | Overload, overcurrent protection |
Technical Specifications | Default setting 90 Hz, DSP adjustable 90~300 Hz |
Voltage | 110V-220V switchable |
Speaker Reference Model# | CARME-18SPW1.1 |

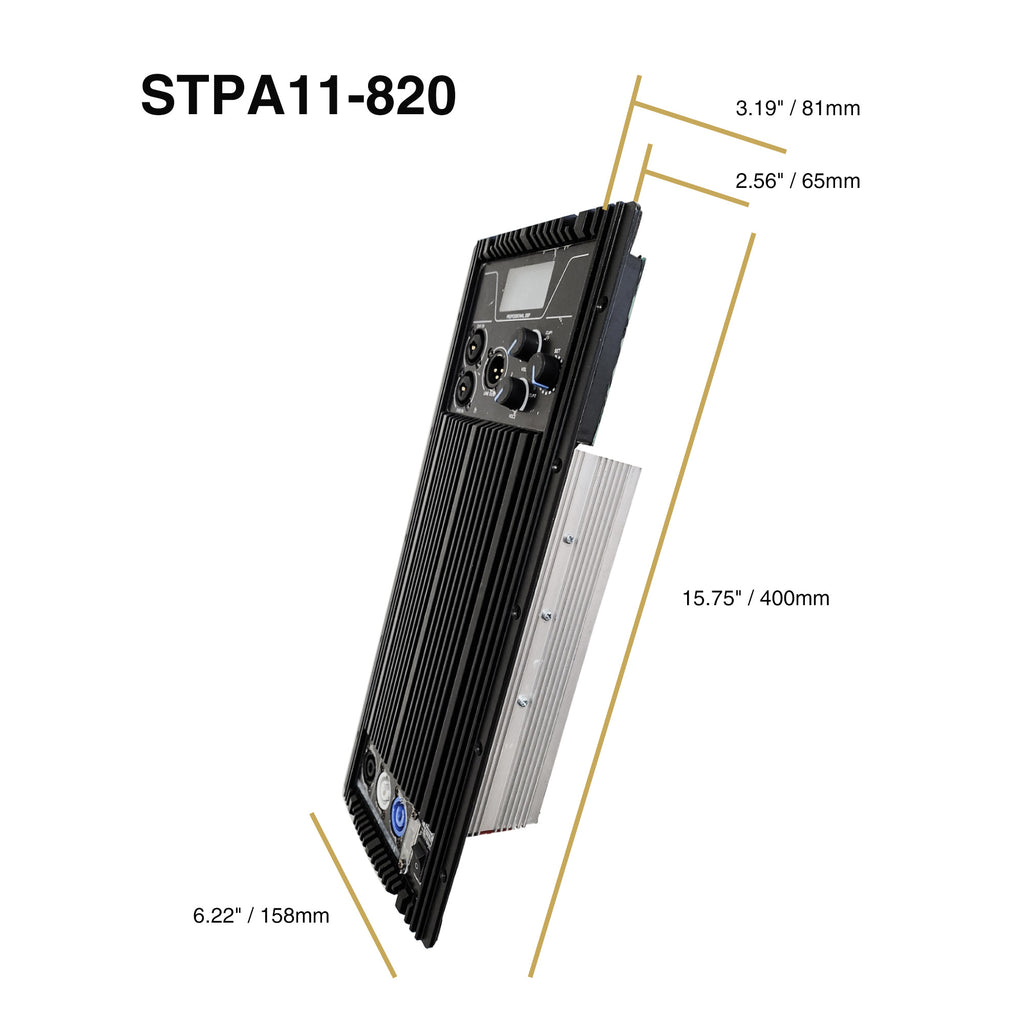

Dimension & Weight
Product Width (in.) | 6.2" | Package Width (in.) | 15.7" |
Product Height (in.) | 15.8" | Package Height (in.) | 3.1" |
Product Depth (in.) | 3.2" | Package Depth (in.) | 6.2" |
Product Weight (lb.) | 4.6 lbs | Package Weight (lb.) | 5.1 lbs |
Warranty/Certifications
Manufacturer Warranty | 180 Days (6 Months) |
