STPA11-820 | 2-Channel Class-D Plate Amplifier 2 x 600W Continuous w/ Speaker Output, DSP, for PA DJ Subwoofer Cabinets
The STPA11-820 2-channel class-D plate amplifier is engineered for powerful performance, delivering 2 x 600W continuous power and 2 x 1200W peak power, making it ideal for combining subwoofer and full-range PA applications. It features two XLR-1/4" combo inputs, 1 XLR output, and 1 Speakon output, ensuring effortless connections and flexible audio routing. The digital signal processor (DSP) empowers you to fine-tune your system with presets, while overload and overcurrent protection make this amplifier resilient in demanding conditions. Its robust construction, including an integrated aluminum heat sink panel, ensures long-lasting reliability.
- POWERFUL PERFORMANCE: The 2-channel class-D plate amplifier delivers 2 x 600W continuous power and 2 x 1200W peak power, perfect for combining subwoofer and full-range PA applications.
- VERSATILE CONNECTIVITY: Connect with ease using two XLR-1/4" combo inputs, 1 XLR output, and 1 Speakon power output. Effortless connections for flexible audio routing.
- PRECISION SOUND CONTROL: Digital signal processor (DSP) optimizes your system with presets and an easy-to read LCD screen, ensuring accurate, distortion-free audio across the sound field.
- SAFETY FIRST: The STPA11-820 amplifier features overload and overcurrent protection, guaranteeing durability even in demanding conditions for long-lasting performance.
RELIABILITY: With a robust construction and integrated aluminum heat sink panel, the STPA11-820 amplifier delivers reliability for your audio experience.
|Description||2-channel class-D plate amplifier|
|Supports Impedance||4Ω & 8Ω|
|Power||2 x 600W Continuous / 2 x 1200W Peak|
|Feature||DSP: 1. MODE Select; 2. EQ; 3. Crossover Setting (Polarity Setting); 4. Limit Setting|
|Input||2 x XLR-1/4" combo (mic/line)|
|Output||XLR mixed out|
|Control||Volume, onboard DSP (with LCD display)|
|Protection||Overload, overcurrent protection|
|Technical Specifications||Default setting 90 Hz, DSP adjustable 90~300 Hz|
|Speaker Reference Model#||CARME-18SPW1.1|

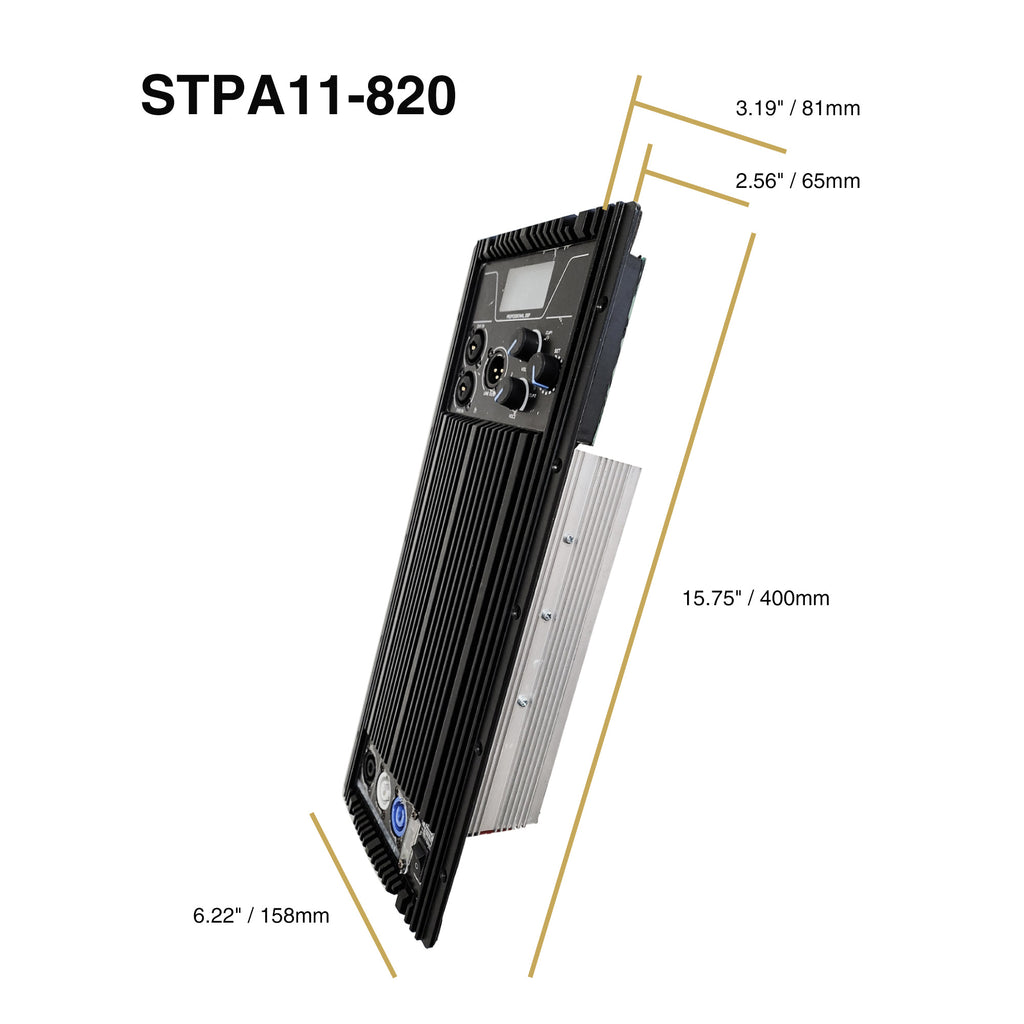

Dimension & Weight
|Product Width (in.)||6.2"||Package Width (in.)||15.7"
|Product Height (in.)||15.8"||Package Height (in.)||3.1"
|Product Depth (in.)||3.2"||Package Depth (in.)||6.2"
|Product Weight (lb.)||4.6 lbs||Package Weight (lb.)||5.1 lbs|
|Manufacturer Warranty||1 Year|
