PAC1000X8TT8B | 8-Zone 70V/100V Commercial Power Amplifier with Bluetooth and 8 x 8” Surface-Mount Coaxial Speakers for Outdoor Installation, Black
Sound Town
English
简体中文

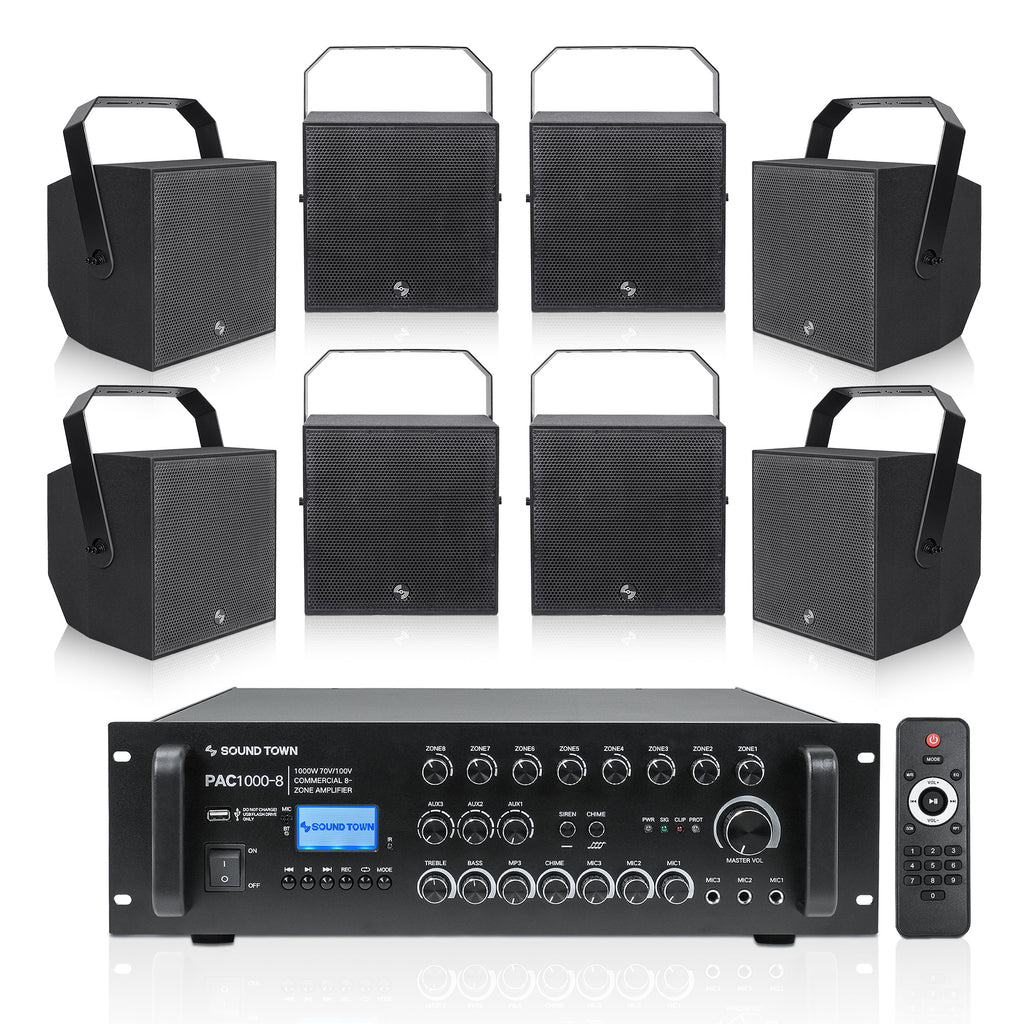

Русский языкEnglishThe Sound Town PAC1000X8TT8B commercial audio set provides clear, high-quality sound for indoor and outdoor installations. This bundle includes:
The PAC1000-8 amplifier supports 70V/100V systems and 4–16Ω low-impedance speakers. It provides 1000W total output across eight independent zones, each with its own volume control for precise multi-zone management. Low-impedance output is available via a dedicated main output and cannot be used simultaneously with multi-zone operation. Audio control and source selection are managed via the integrated LCD display, while Bluetooth streaming, USB playback, a built-in FM tuner with antenna, RCA line inputs, and microphone inputs offer flexible connectivity.
Each TITAN-8B speaker is housed in an IP66-certified, dustproof and water-resistant enclosure with hydrophobically treated aluminum grilles, moisture-sealed crossovers, and a corrosion-resistant U-shaped bracket for reliable surface-mount performance. A multi-tap transformer allows use with 70V (120W / 60W / 30W / 15W) and 100V (120W / 60W / 30W) distributed systems, with a low-impedance bypass for standard 8Ω setups (180W RMS / 360W program), ensuring versatile installation options with the PAC1000-8 amplifier.
Ideal for restaurants, patios, bars, theme parks, and other commercial spaces, the PAC1000X8TT8B set delivers exceptional weather-resistant audio with rugged durability and versatile installation options.
Specifications
| Model | TITAN-8B (black) |
| Active / Passive | Passive |
| Frequency Range | 75 Hz - 20 kHz |
| Frequency Response | 75 Hz - 20 kHz |
| Sensitivity | 100 dB |
| SPL Max | 128 dB |
| Dispersion | 110º x 110º (H x V) |
| Configuration | 8" full-range coaxial loudspeaker |
| Transducer | LF: 1 x 8", HF: 1" compression drivers (coaxial) |
| Voice Coil | -- |
| Magnet | -- |
| Impedance | 8Ω |
| Power Handling | 180 RMS / 360W Program |
| 70V Operation | 120W / 60W / 30W / 15W |
| 100V Operation | 120W / 60W / 30W |
| Enclosure Material | Water-resistant polyvinyl board |
| Mounting Hardware | U-bracket |
| Finish | Texture coating |
| Grill & Rigging Component | Steel with anti-corrosion coat |
| Amplifier | -- |
| Input | Waterproof 4-pin terminal strip connector |
| Output | Waterproof 4-pin terminal strip connector |
| Signal Processing | -- |
| Control | -- |
| Indicator | -- |
| Voltage | 100V-240V (50-60 Hz) |
| Crossover Parts# | -- |
| High Frequency Driver Parts# | -- |
| Low Frequency Woofer Parts# | ST-COX-8 |
| Model | PAC1000-8 |
| Output Power | 1000W RMS |
| Output Type | 70V / 100V / 4–16Ω |
| Microphone Input | 3 mV, 600 Ω |
| Line Input | 200 mV, 10 kΩ |
| Frequency Range | 40 Hz - 20 kHz |
| Distortion | 0.5% (1 kHz) |
| S/N Ratio AUX | 88 dB |
| S/N Ratio MIC | 116 dB |
| Voltage | 110V |
| Replacement Fan | -- |
Dimension & Weight
| Model | TITAN-8B | PAC1000-8 |
| Product Width (in.) | 11.7" (each) | 19.0“ |
| Product Height (in.) | 11.7" (each) | 5.3“ |
| Product Depth (in.) | 12.2" (each) | 19.5“ |
| Product Weight (lb.) | 25.4 lbs (each) | 52.0 lbs |
| Package Width (in.) | 14.6“ | 24.8“ |
| Package Height (in.) | 14.9“ | 11.8“ |
| Package Depth (in.) | 15.9“ | 24.2“ |
| Package Weight (lb.) | 27.7 lbs | 62.0 Ibs |
Warranty/Certifications
| Manufacturer Warranty | 1 Year |
Q: What speaker wire should be used for this system?
A: Speaker wire is not included. To ensure optimal performance and minimize signal loss, select the appropriate wire gauge based on the distance between your amplifier and speakers:
| Distance | Wire Gauge |
| 10–15 ft | 18 AWG |
| 15–25 ft | 16 AWG |
| 25–50 ft | 14 AWG |
| 50–100 ft | 12 AWG |
| Over 100 ft | 10 AWG |
Using a thicker (lower gauge) wire for longer runs helps maintain signal strength and overall audio quality.
