$239.99 $309.99

Refurbished Condition: 100% testing and function is in good condition while outside box worn out and small cosmetic dents. cosmetic damages will vary, including but not limited to, damaged or cracked, bent ears, scratches, dents, etc.

The Sound Town CARPO-12DSWPW is a professional-grade powerful subwoofer. It handles 350W RMS, 1400W peak power output and generates tight bass at room shaking volume. The sub comes with two 1/4" & XLR combo inputs, 2 XLR line outputs and 2 Speakon power outputs and provides great compatibility with a variety of sound and speaker systems.

The CARPO-12DSWPW subwoofer is optimized and works great with the CARPO series column speaker such as CARPO-V5W, CARPO-V4W. Its 3-channel amplifier with 2-channel satellite speaker outputs allows it to power the CARPO 2-pack passive column speakers. Altogether the PA speaker system delivers punchy bass and crisp highs.

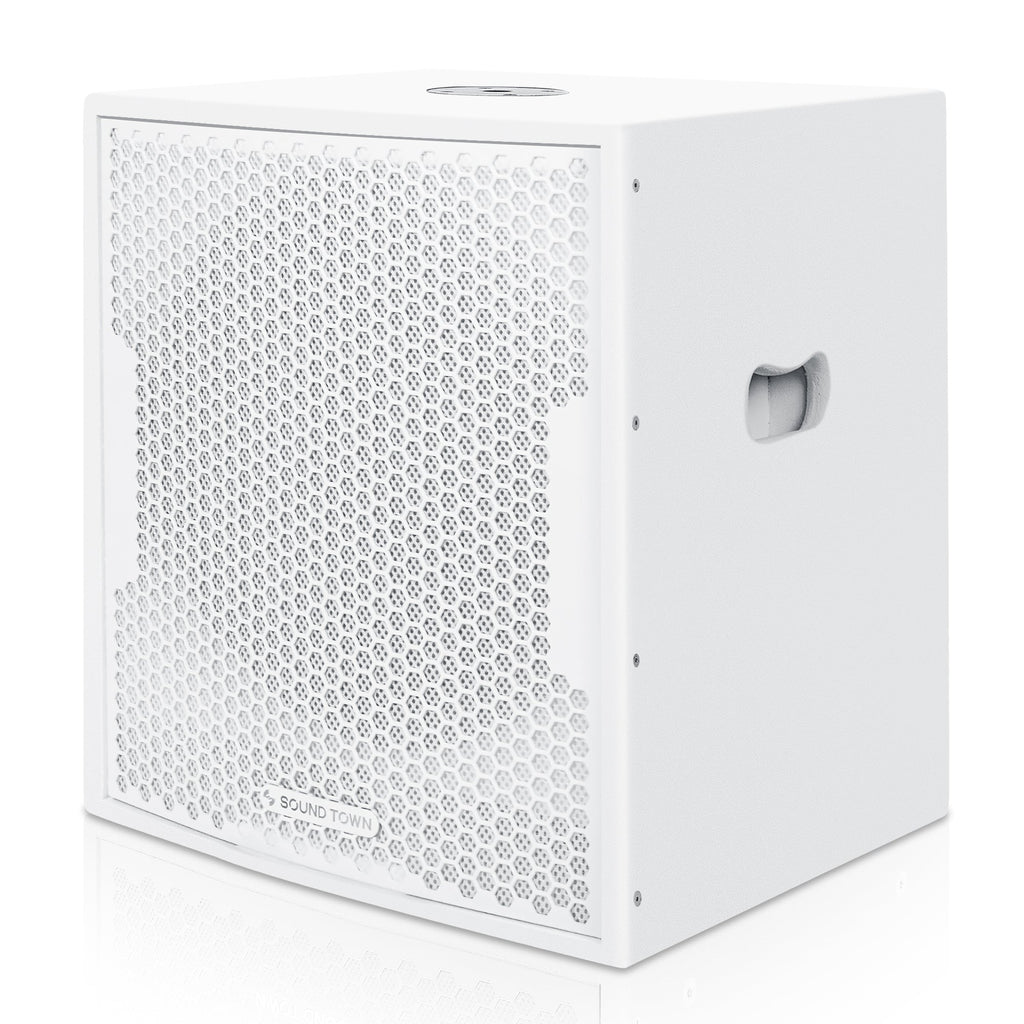

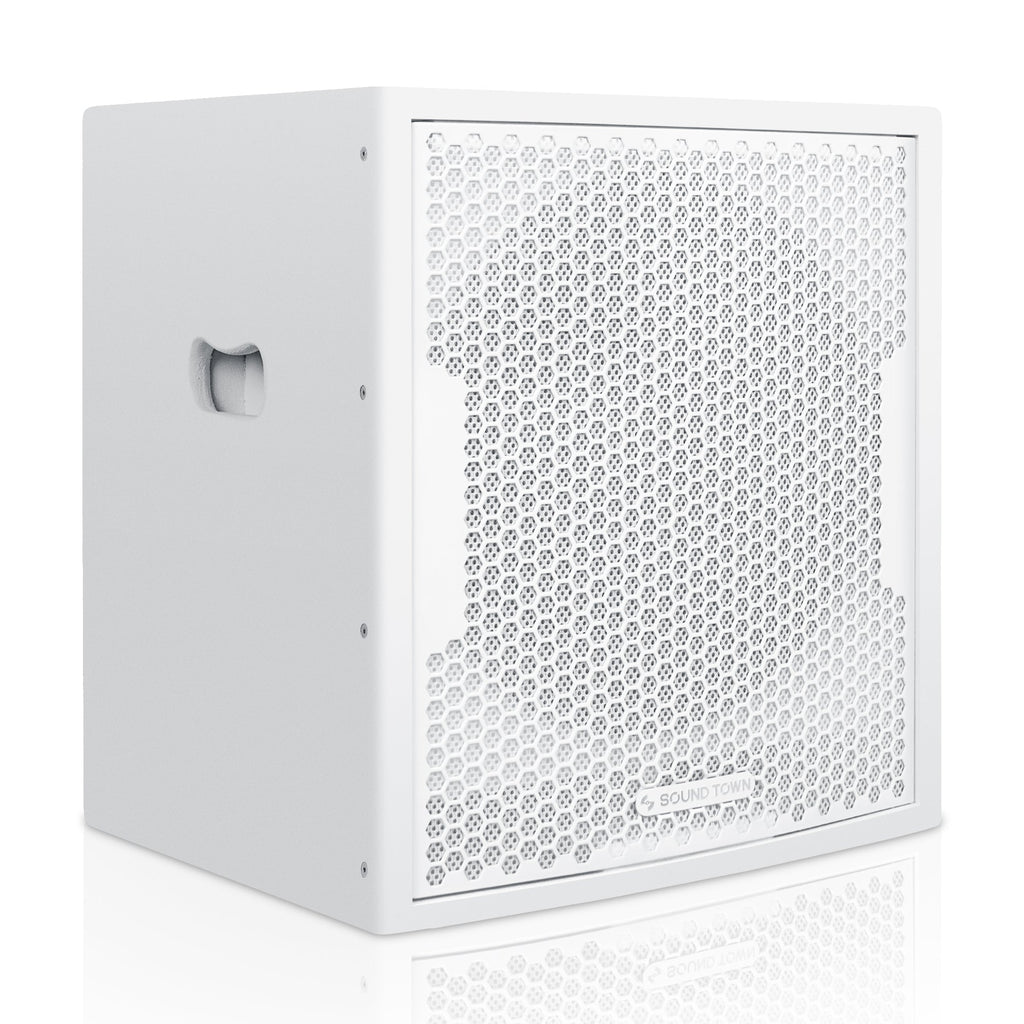

Even better, the subwoofer is built with sturdy construction. Its heavy-duty metal grill and white texture finish hold up to touring applications. The two recessing ergonomic handles make it easy to transport.

Setup Recommendation: The Sound Town CARPO-V4W or CARPO-V5W passive mini line array speakers are optimized to work with CARPO-12DSWPW for outstanding PA performance. They can be easily connected to the CARPO-12DSWPW subwoofer without additional amplifier or mixer. The CARPO-V4W or CARPO-V5W speakers are sold separately.

  • MASSIVE POWER: A high efficiency powerful 12” low frequency driver, 3” voice coil and 350W RMS, 1400W peak power output serves up solid and mighty bass reinforcement
  • FLEXIBLE CONNECTING OPTIONS: Two 1/4" & XLR combo inputs, 2 XLR line outputs and 2 Speakon power outputs provide great compatibility with a variety of sound and speaker systems
  • OPTIMIZED WITH CARPO COLUMN SPEAKERS: A built-in 3-channel amplifier (1 X 350W and 2 X 250W RMS, 1 X 1400W and 2 X 500W peak, 8-ohm) with 2-channel satellite speaker outputs allows you to easily daisy chain additional passive speakers with an output of up to 250W RMS per channel. Together with CARPO series column speakers (CARPO-V5W , CARPO-V4W, available separately), the speaker system delivers punchy bass and crisp highs

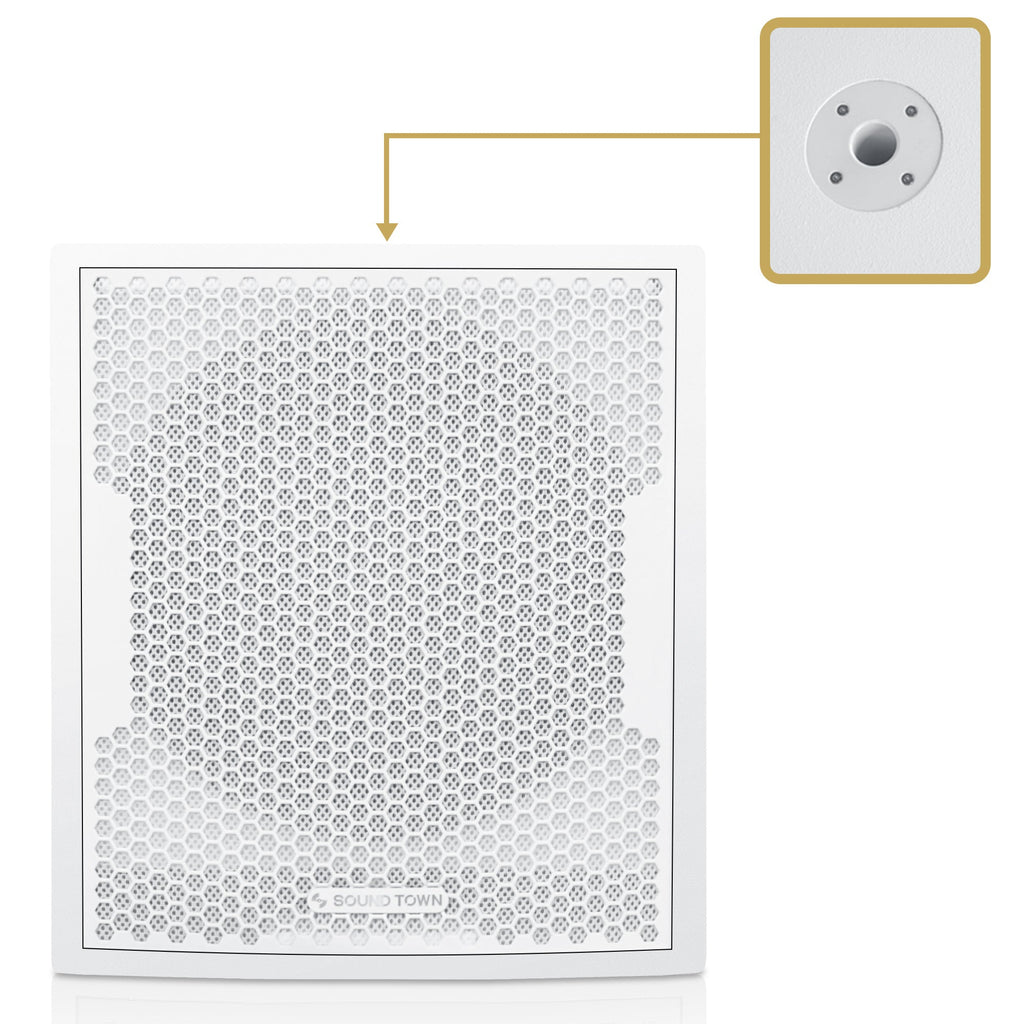

  • EASY MOUNTING: The CARPO subwoofer features a 35mm mounting socket that accommodates a satellite speaker for optimal full-range PA performance
  • EFFICIENT AND STURDY CONSTRUCTION: The white plywood cabinet is more than beautiful, it comes with textured coating finish and metal grille and holds up to touring applications


Model CARPO-12DSPW (black), CARPO-12DSWPW (white)
Active / Passive Active
Frequency Range 40 Hz - 500 Hz
Frequency Response 45 Hz - 500 Hz
Sensitivity 98 dB
SPL Max 123 dB
Dispersion --
Configuration 12" 2.1 channel powered subwoofer
Transducer LF: 1 x 12", HF: --
Impedance 8Ω Nominal
Power Handling 1 x 350W + 2 x 250W RMS / 1 x 1400W + 2 x 500W Peak
Enclosure Material High-grade 100% birch plywood
Mounting Options 35mm stand mount on top
Finish Texture coating
Grill & Rigging Component Steel with anti-corrosion coat
Amplifier Class D amplifier, 2.1 Channel
Input 2 x XLR-1/4" combo inputs
Output 2 x XLR (thru line out), 2 x speakon  (power outputs)

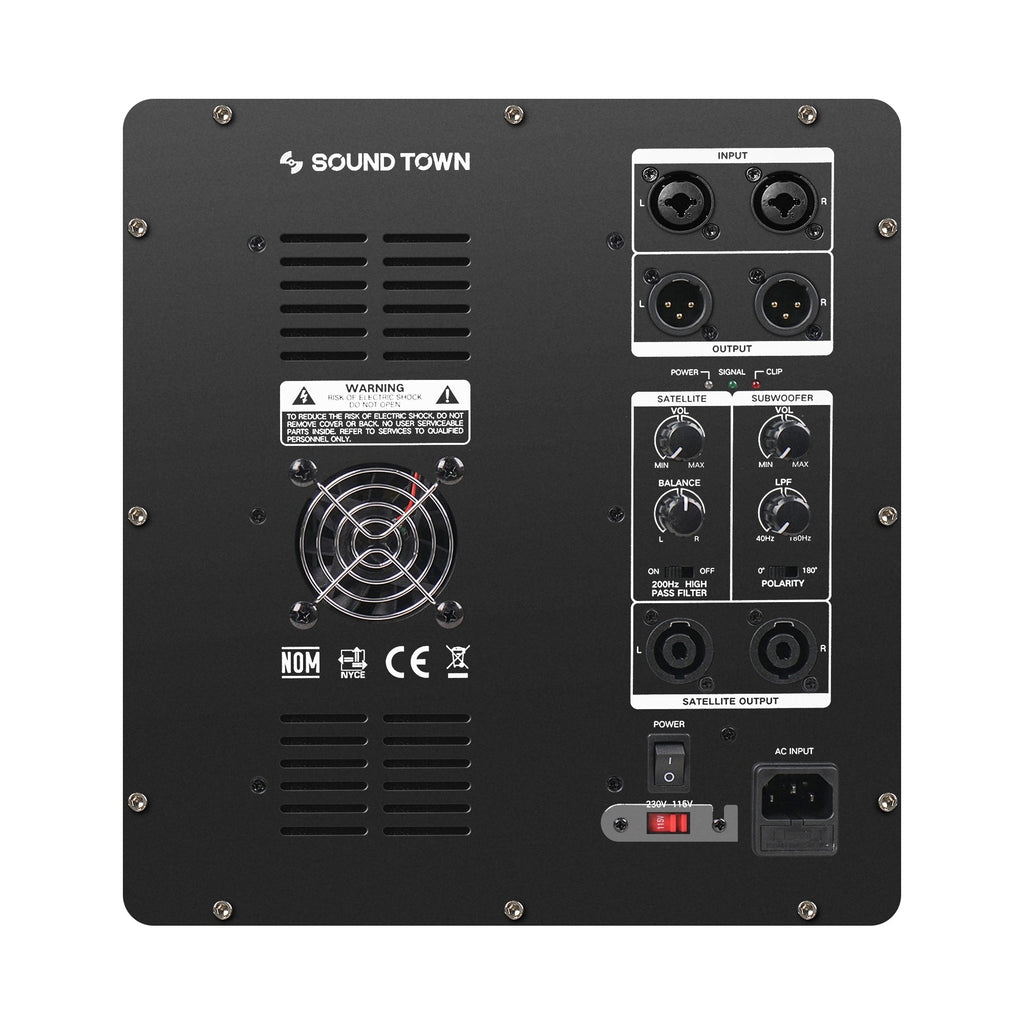

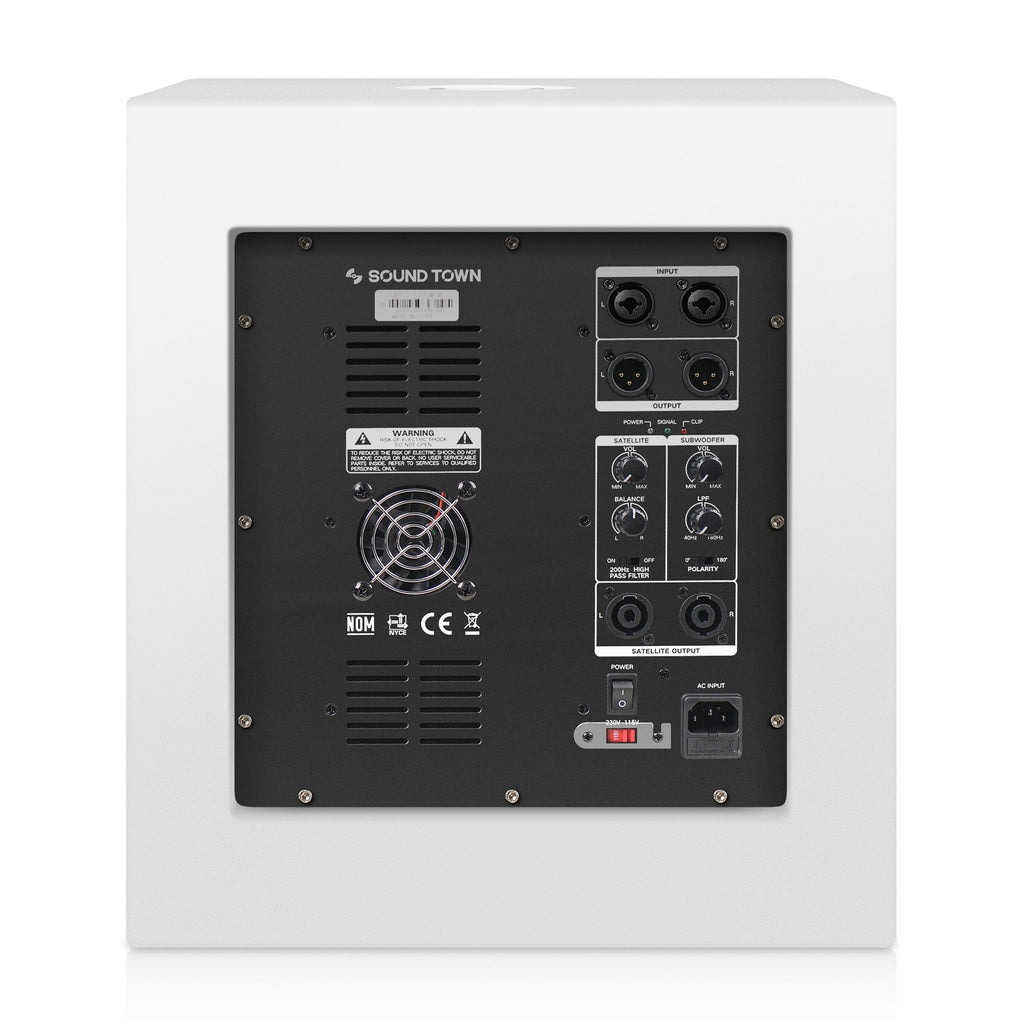

Control Subwoofer: Polarity, volume; Satellite: L/R Balance, volume
Signal Processing 100-500 Hz LPF for the subwoofer, 80/100 Hz bass boost
Voltage 100V-240V (50-60 Hz)
Plate Amp Parts# STPA21-710
Low Frequency Woofer Parts# STLF-1270

Dimension & Weight

Product Width (in.) 14.6" Package Width (in.) 18.9"
Product Height (in.) 16.7" Package Height (in.) 21.1"
Product Depth (in.) 15.2" Package Depth (in.) 18.3"
Product Weight (lb.) 40.7 lbs Package Weight (lb.) 45.3 lbs


Manufacturer Warranty 180 Days (6 Months)
