STLF-1270 | 12" Raw Woofer Speaker, 300 Watts Pro Audio PA DJ Replacement Low Frequency Driver
Sound Town
- DESCRIPTION
- FEATURES
- SPECIFICATIONS
- DOWNLOAD
- REVIEWS
DESCRIPTION
The Sound Town STLF-1270 is a 12” universal replacement driver for PA/DJ woofers. It is compatible with Sound Town PA speakers and compatible with other brand speakers with a 12” woofer. The driver comes with 8-ohm impedance and has a frequency range of 48-3K Hz with a sensitivity of 96dB. It has a built-in pressed steel chassis and has a paper cone with cloth edge. With 300W RMS power handling capability, the STLF-1270 delivers superb sound and makes a great replacement woofer for your PA/DJ cabinet.
Replacement Woofer for:
CARPO-12DSPW
CARPO-12DSWPW
FEATURES
- 12” Pressed Steel Frame
- 3” Voice Coil and 70-oz Magnet Produces Superb Sound
- 300W RMS Power Handling Capability
SPECIFICATIONS
Details
| Model | STLF-1270 | Resonance | 50Hz |
| Nominal Basket Diameter | 12" | Frequency Response |
50Hz-3KHz |
| Nominal Impedance | 8Ω | Sensitivity | 95±3dB |
| Power Rating |
300W RMS | Magnet Weight | 70 OZ |
| Peak Power | 600W Peak | Voice Coil Diameter | 3.0" VC |

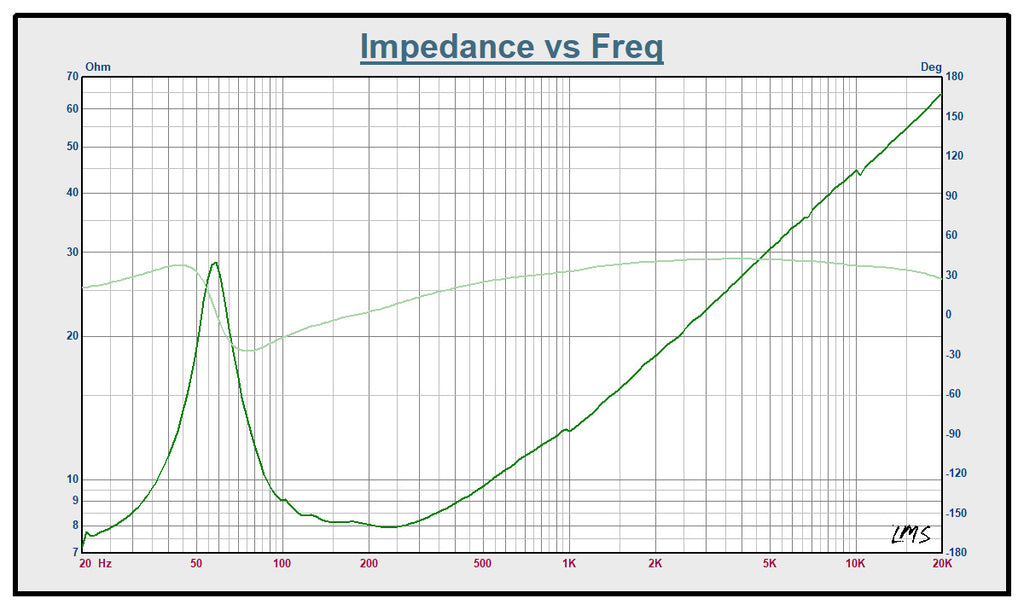

Thiele & Small Parameters
| Resonant Frequency (fs) | 50Hz | Compliance Equivalent Volume (Vas) | 38.55 Ltr |
| DC Resistance (Re) | 6.2Ω | Mechanical Compliance of Suspension (Cms) | 91.98 mm/N |
| Mechanical Q (Qms) | 3.166 | BL Product (BL) | 12.95 Tm |
| Electromagnetic Q (Qes) | 1.087 | Diaphragm Mass Inc. Airload (MMs) | 79.45 g |
| Total Q (Qts) | 0.81 | Surface Area of Cone (Sd) | 543 cm2 |
Mounting Information
| Overall Diameter | 12.2", 310 mm | Mounting Holes Diameter | 8-0.27"x0.39", 8-7x10 mm |
| Depth | 5.16", 131 mm | Net Weight | 10.1 lbs, 4.6 kg |
| Baffle Hole Diameter | 10.75",273 mm | Shipping Weight | 13.4 lbs, 6.1 kg |
| Installation Position Diameter | 11.42", 290mm |
Materials of Construction
| Coil Construction | Round Copper | Cone Composition | Paper Cone |
| Coil Former | Aluminum | Cone Edge Composition | Cloth Edge |
| Magnet Composition | Ferrite | Dust Cap Composition | Paper Cap |
| Basket Materials | Pressed Steel |
Dimension & Weight
| Product Width (in.) | ∅12.2" | Package Width (in.) | 14.4" |
| Product Height (in.) | --" | Package Height (in.) | 7.1" |
| Product Depth (in.) | 5.1" | Package Depth (in.) | 13.3" |
| Product Weight (lb.) | 10.1 lbs | Package Weight (lb.) | 13.4 lbs |
Warranty/Certifications
| Manufacturer Warranty | 1 year |
