TITAN-10B | 2-Way 10" Weatherproof IP66 Coaxial Loudspeaker with Surface-Mount U-Bracket for Outdoor Installations, 70V/100V/8Ω, Black
Sound Town
English
简体中文

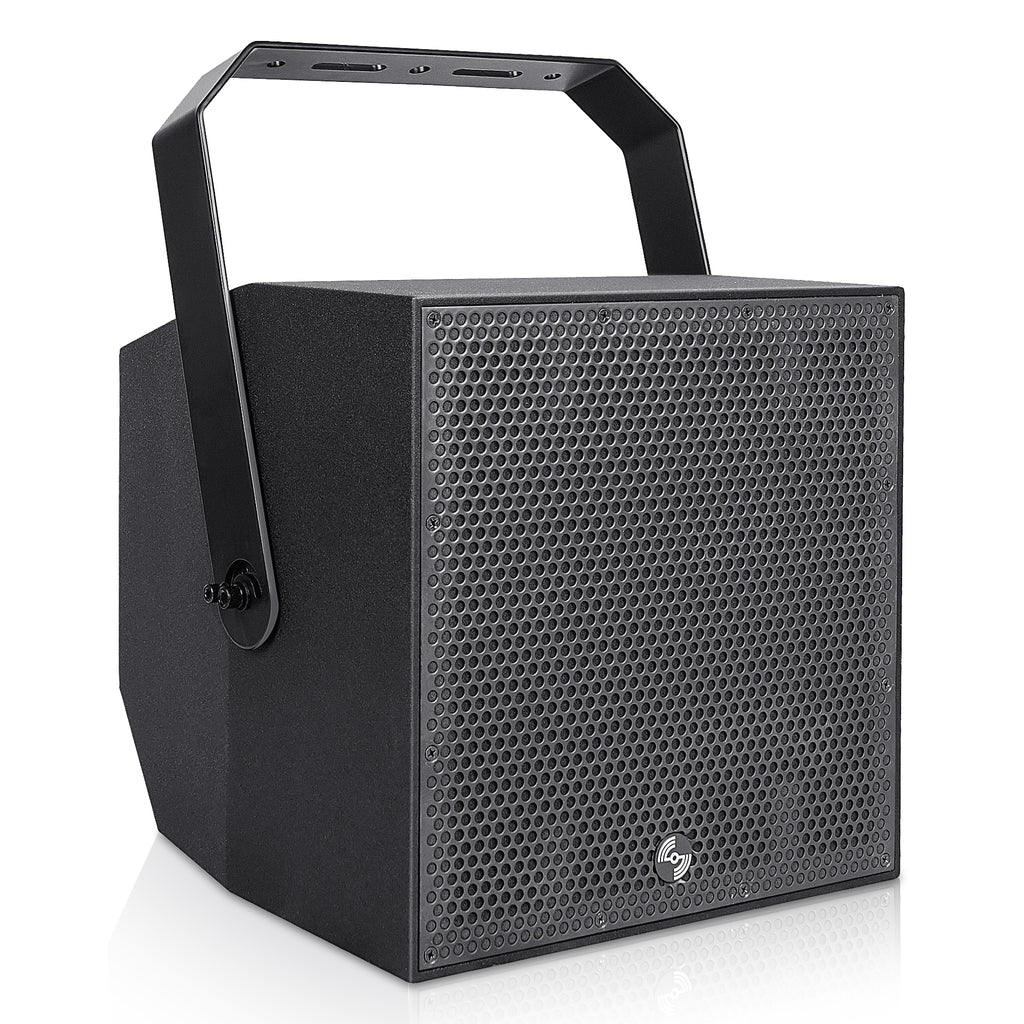

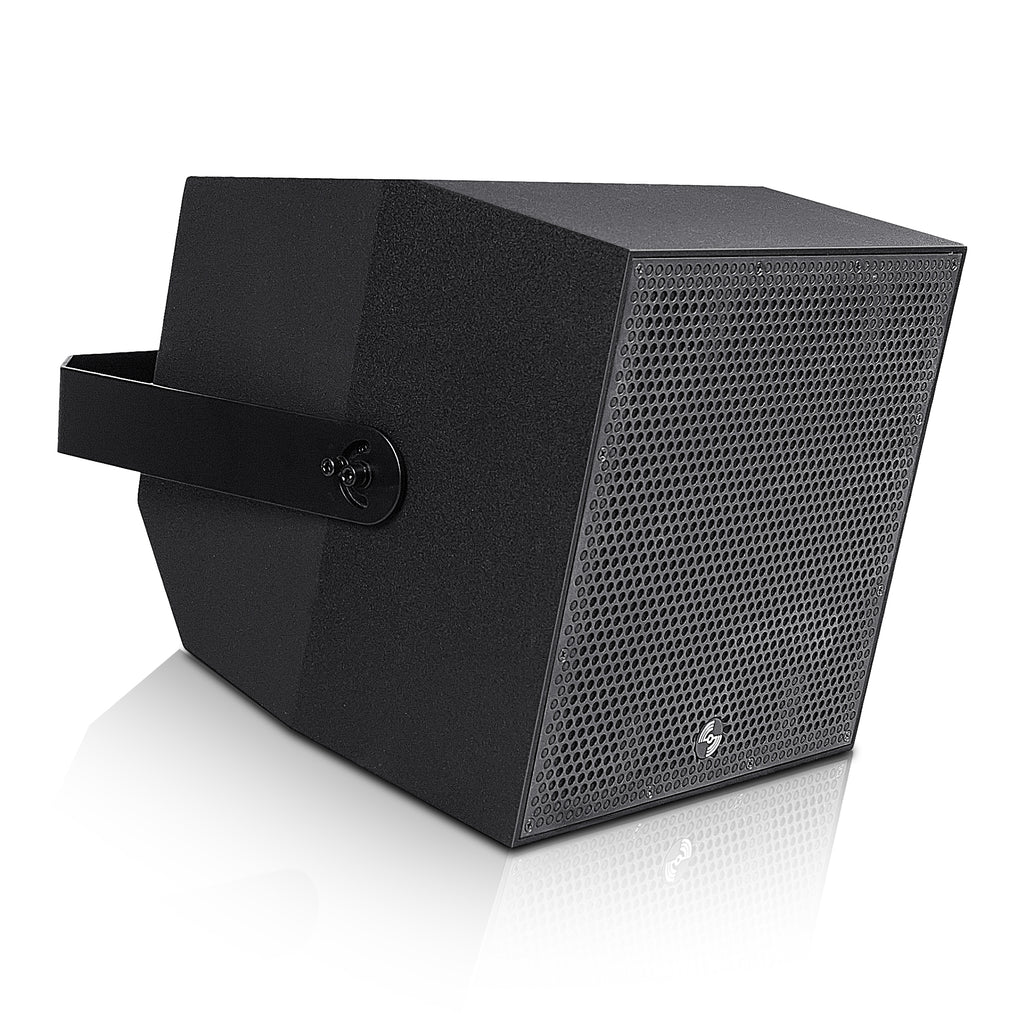

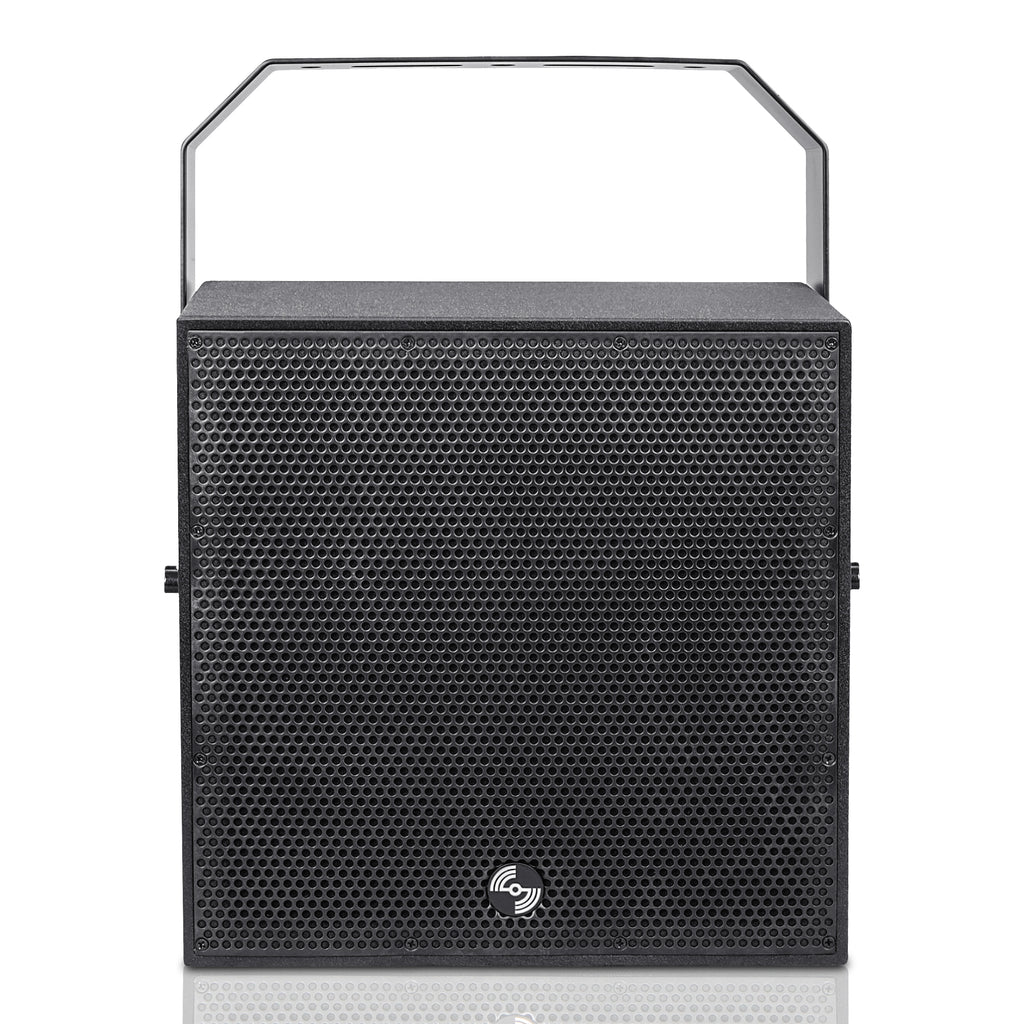

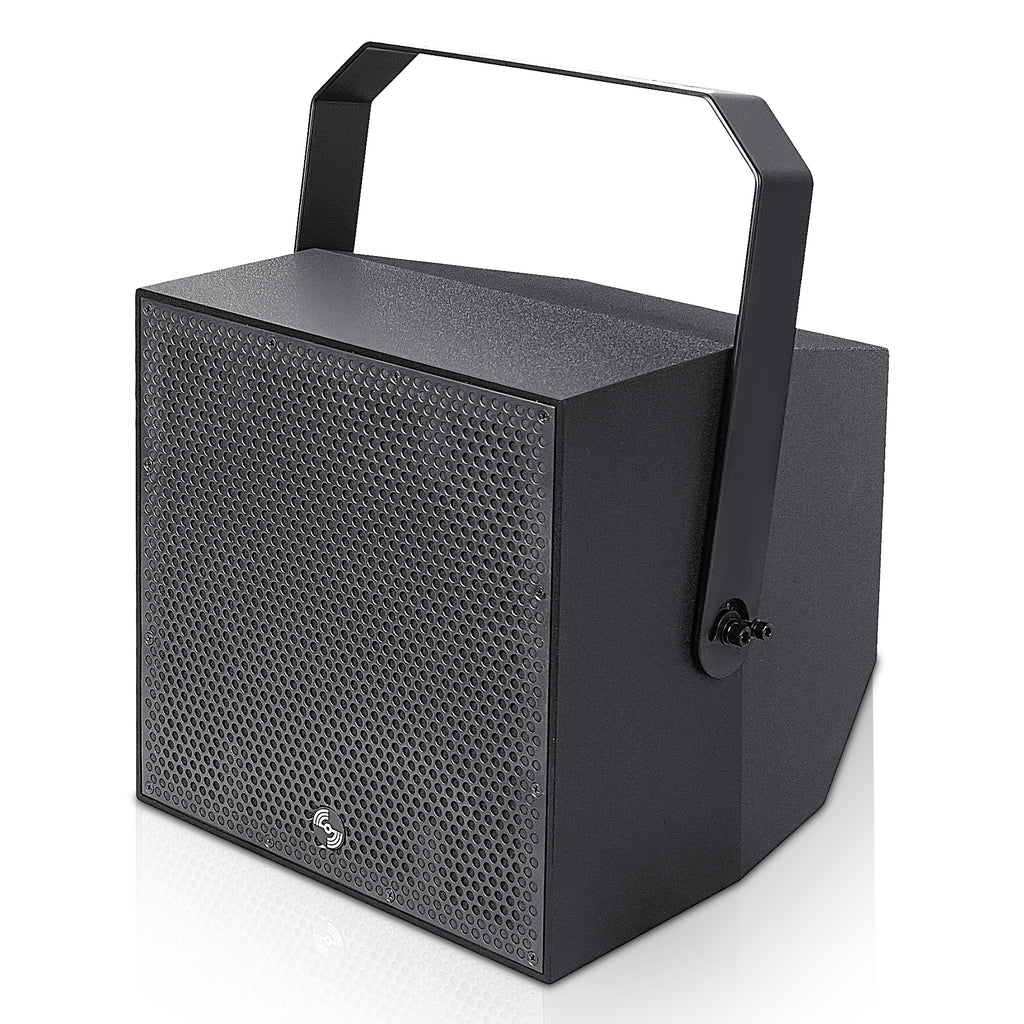

Русский языкEnglishThe Sound Town TITAN-10B is a two-way 10" weatherproof full-range loudspeaker. Featuring a coaxial 10" low-frequency woofer and 1-3/8" high-frequency compression tweeter, this speaker delivers clear sound performance with accurate phase response and minimal distortion. Its compact body with a sleek matte finish ensures a refined appearance while maintaining reliable performance.

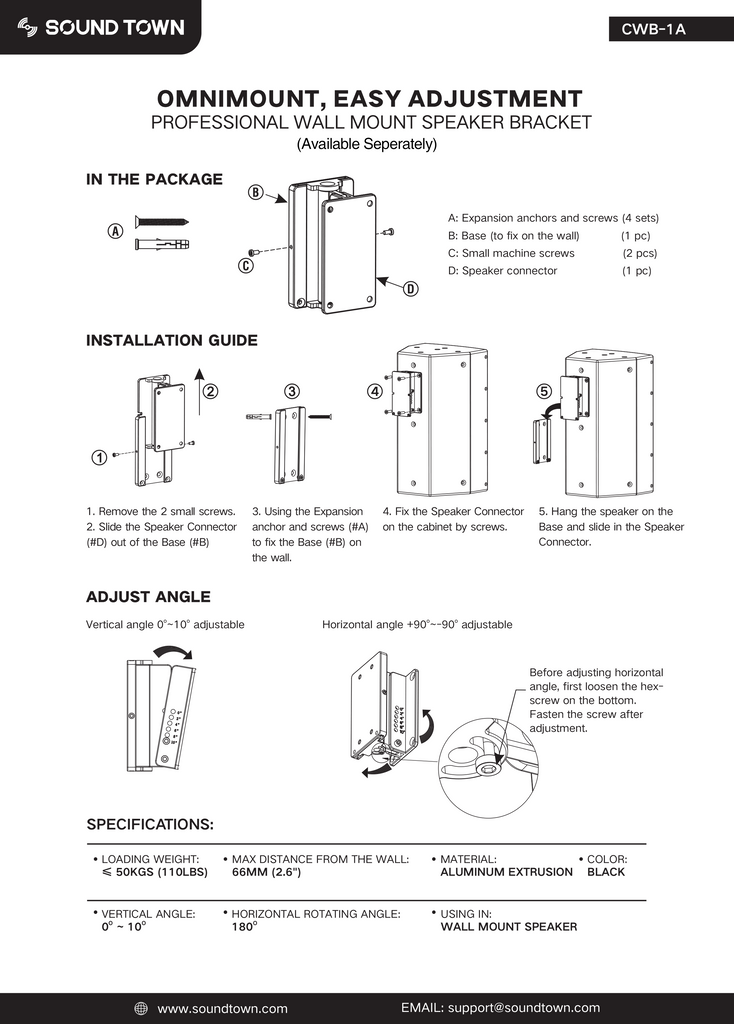

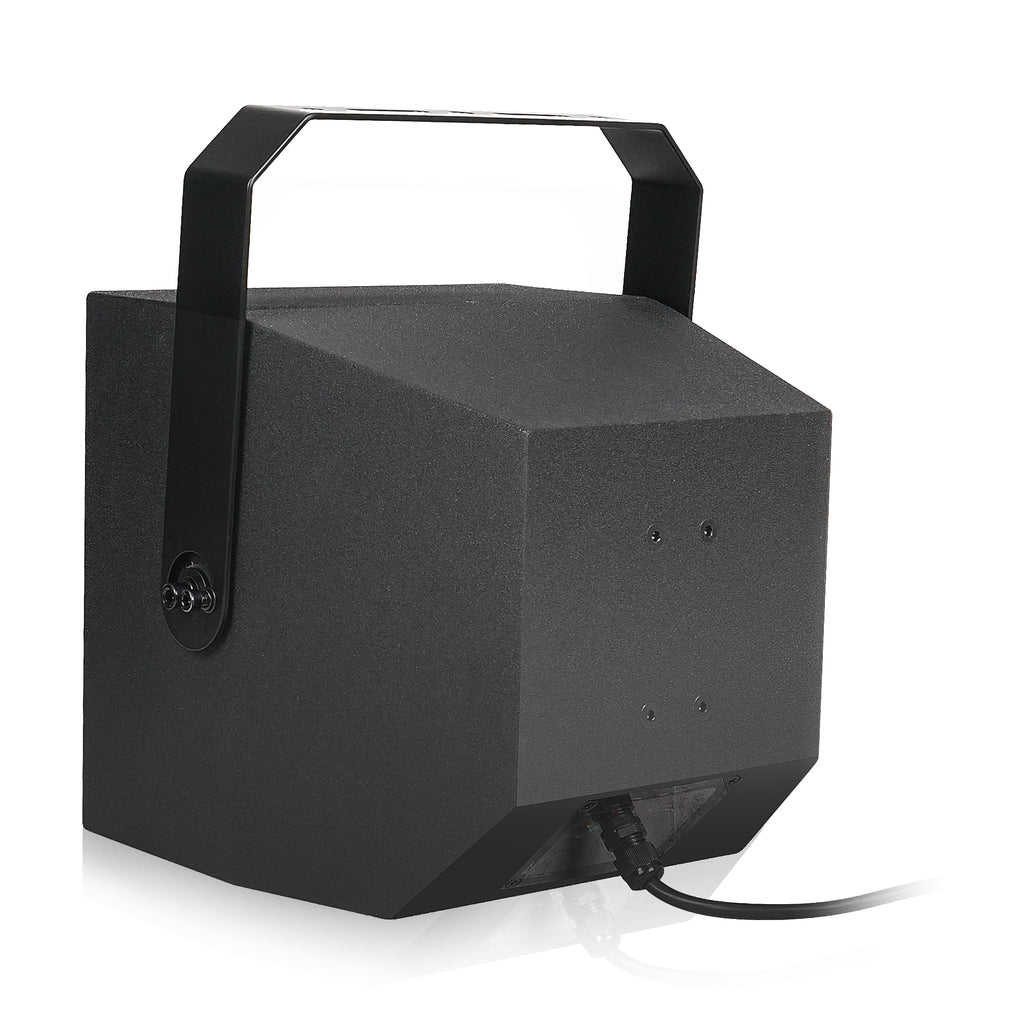

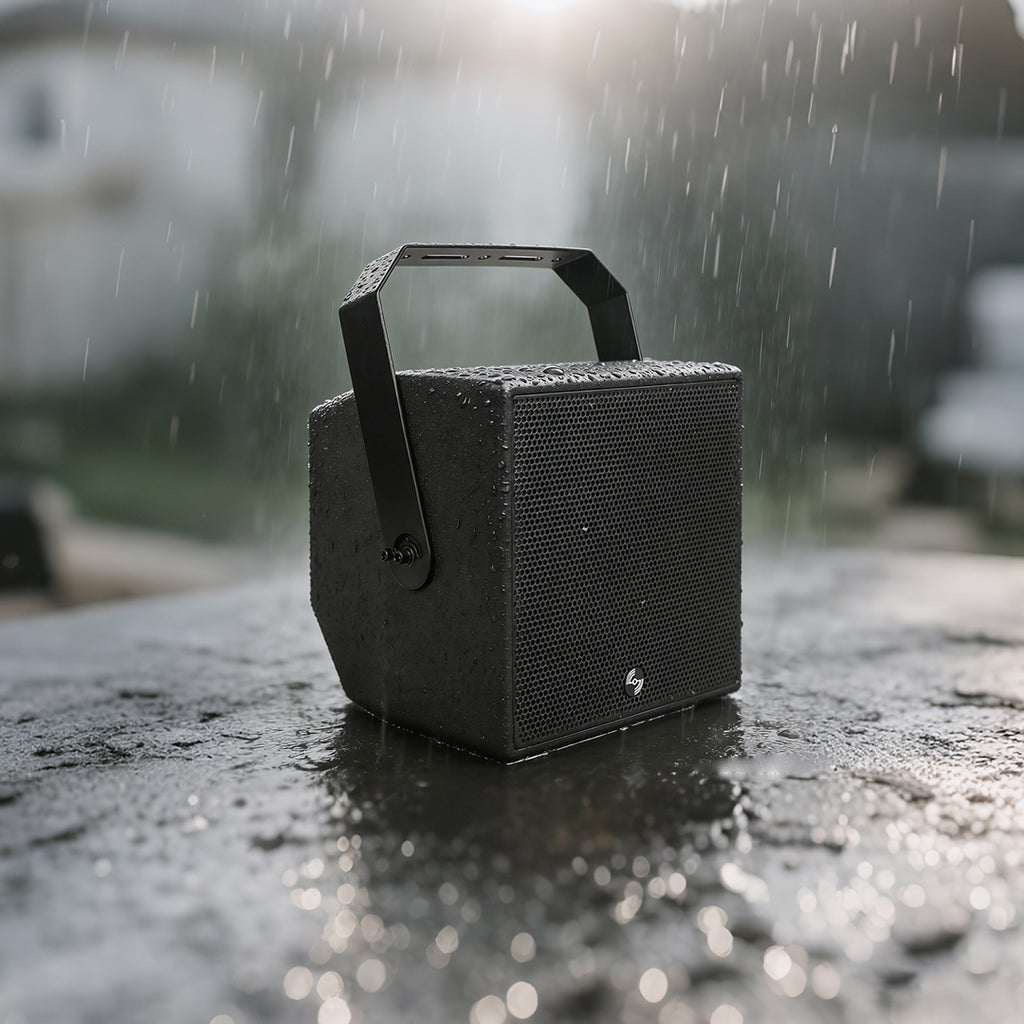

Designed for high-humidity environments, the IP66 TITAN-10B is water-resistant and dustproof, with a hydrophobically treated aluminum grille, moisture-sealed crossover, and waterproof connectors. A corrosion-resistant U-shaped bracket is included for easy installation, and an optional wall-mount aluminum bracket (CWB-1A) is available separately, making it suitable for indoor and outdoor public address and music applications.

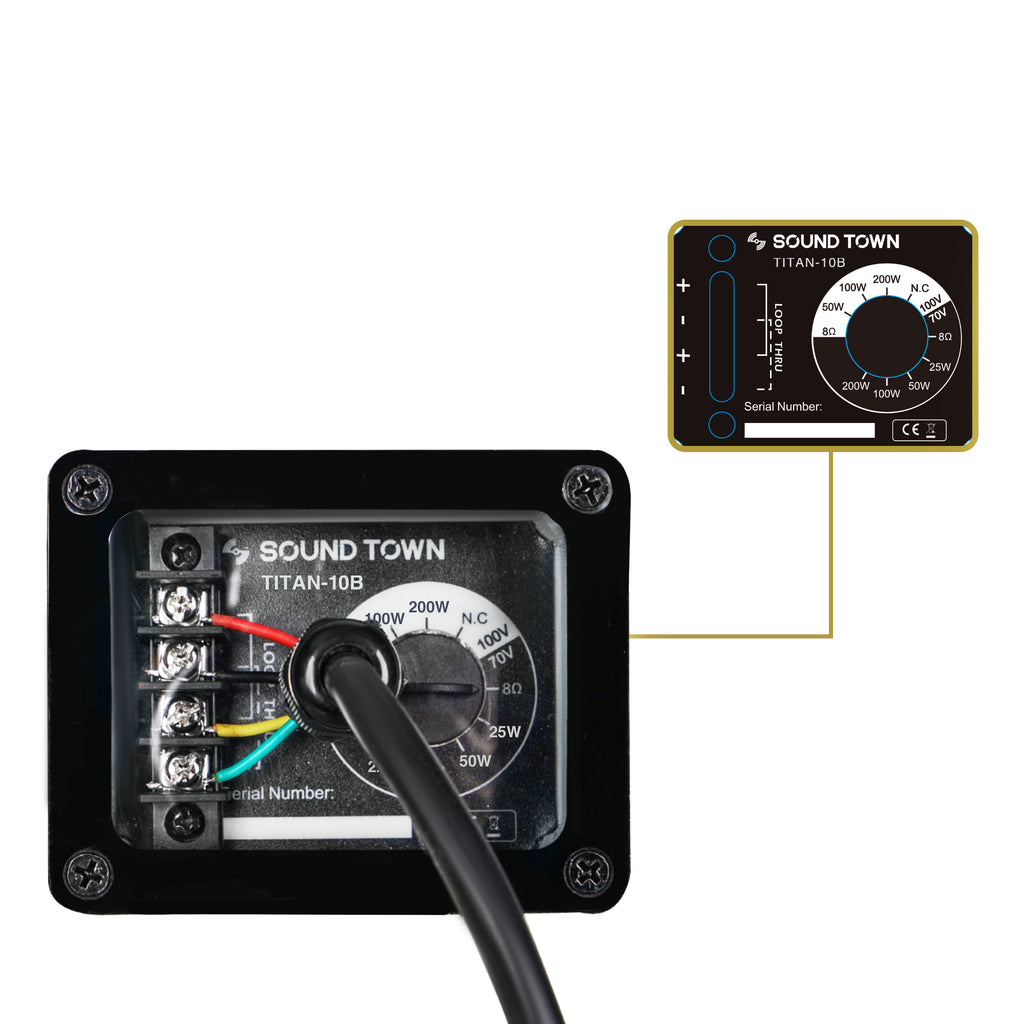

Equipped with a built-in 70V/100V transformer, the TITAN-10B offers selectable power taps at 25W (70V only), 50W, 100W, and 200W for distributed systems. A low-impedance bypass rated at 200W RMS (8Ω) is also available for standard setups.

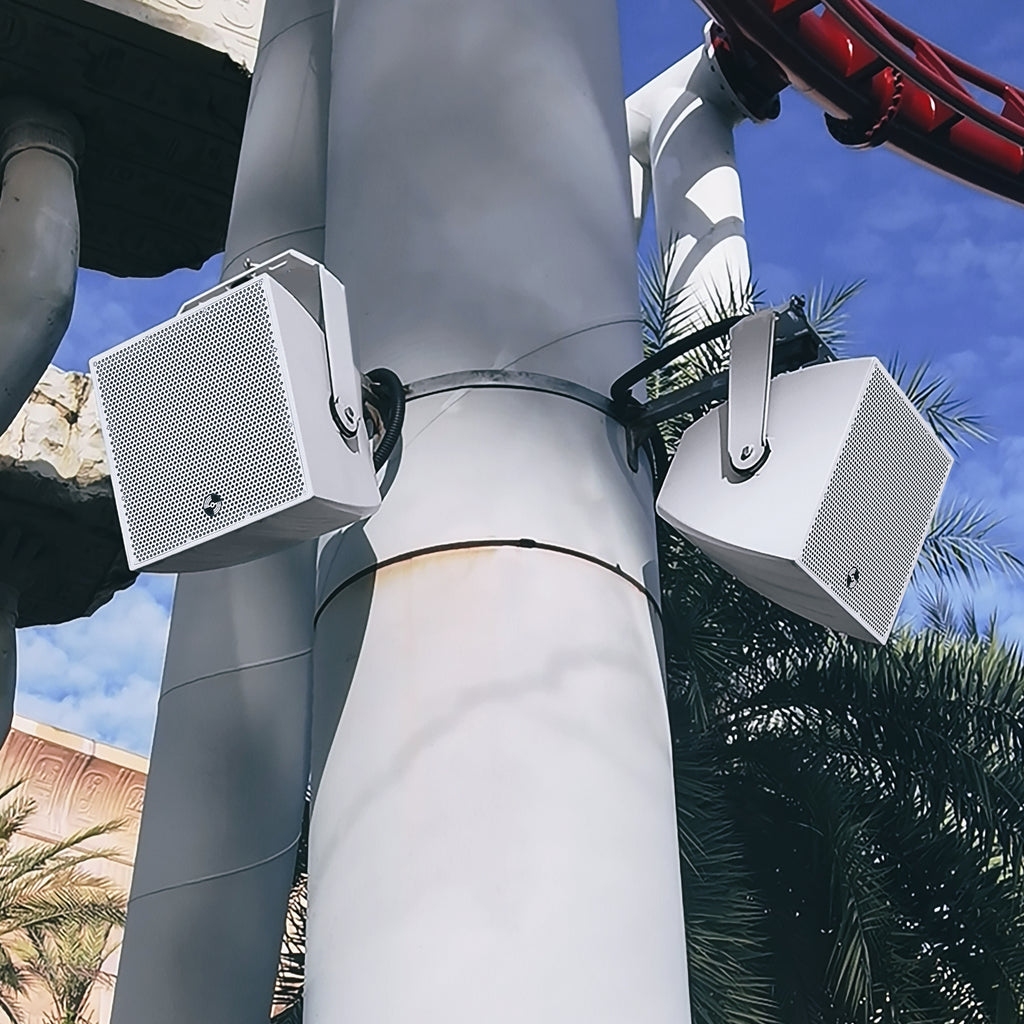

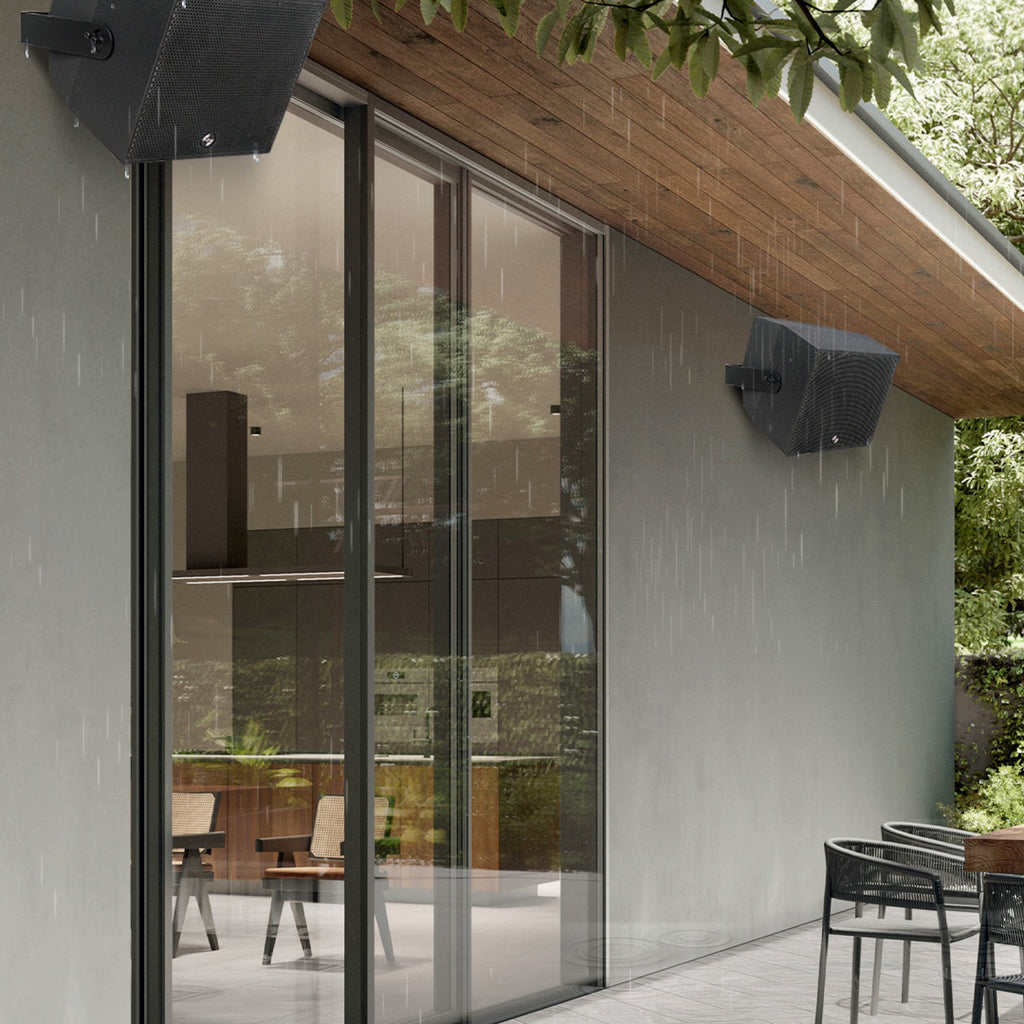

Ideal for bars, restaurants, patios, hospitality venues, theme parks, and more, the TITAN-10B delivers high-quality sound, rugged durability, and versatile installation options, with a weatherized design built to withstand outdoor elements.
Specifications
| Model | TITAN-10B (black), TITAN-10G (grey) |
| Active / Passive | Passive |
| Frequency Range | 70 Hz - 20 kHz |
| Frequency Response | 70 Hz - 20 kHz |
| Sensitivity | 105 dB |
| SPL Max | 133 dB |
| Dispersion | 95º x 95º (H x V) |
| Configuration | 10" full-range coaxial loudspeaker |
| Transducer | LF: 1 x 10", HF: 1-3/8" compression driver (coaxial) |
| Voice Coil | -- |
| Magnet | -- |
| Impedance | 8Ω nominal |
| Power Handling | 200 RMS / 400W Program |
| 70V | 200W / 100W / 50W / 25W |
| 100V | 200W / 100W / 50W |
| Enclosure Material | Water-resistant polyvinyl board |
| Mounting Hardware | U bracket |
| Finish | Texture coating |
| Grill & Rigging Component | Steel with anti-corrosion coat |
| Amplifier | -- |

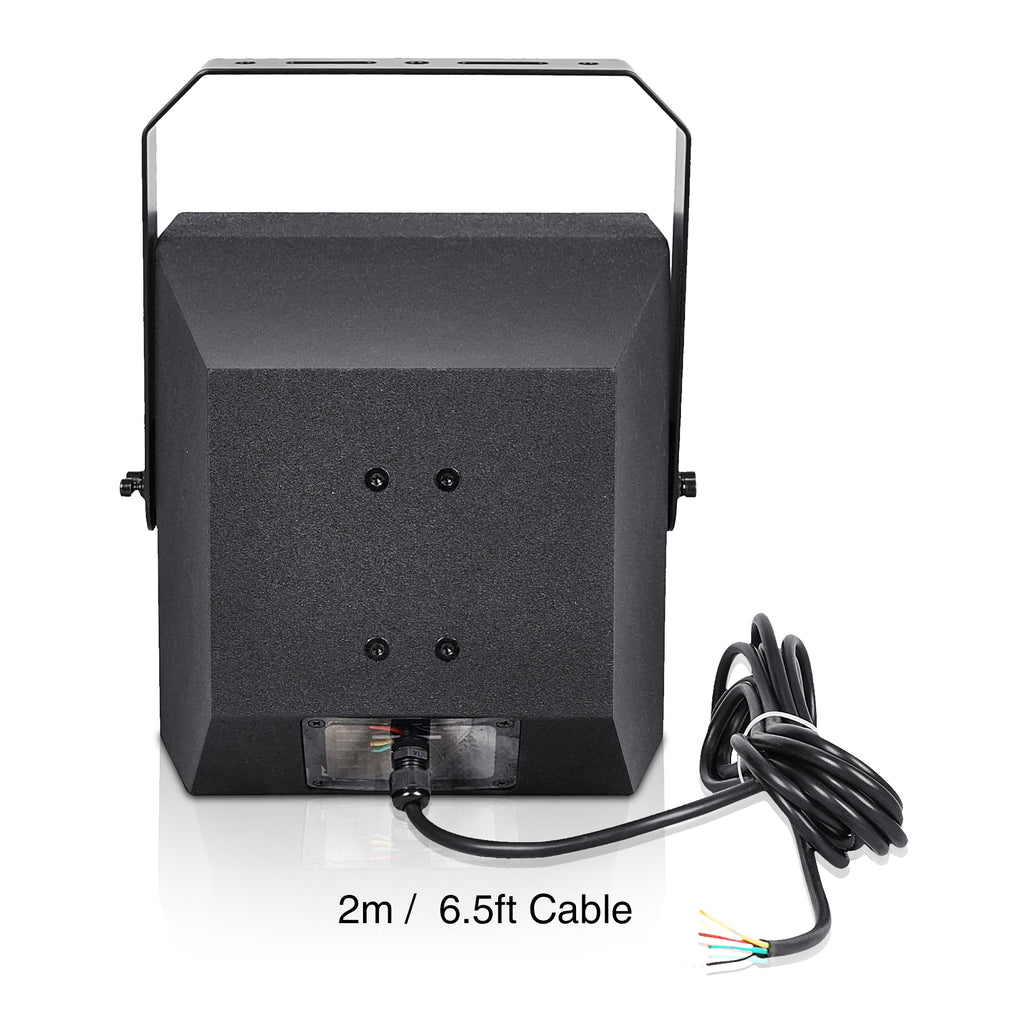

| Input | Waterproof 4-pin terminal strip connector |
| Output | Waterproof 4-pin terminal strip connector |
| Signal Processing | -- |
| Control | -- |
| Indicator | -- |
| Voltage | 100V-240V (50-60 Hz) |
| Crossover Parts# | -- |
| High Frequency Driver Parts# | STHF-3403T |
| Low Frequency Woofer Parts# | TVS-10F |
Dimension & Weight
| Product Width (in.) | 13.0" | Package Width (in.) | 16.9" |
| Product Height (in.) | 13.0" | Package Height (in.) | 16.9" |
| Product Depth (in.) | 14.6" | Package Depth (in.) | 19.5" |
| Product Weight (lb.) | 33.7 lbs | Package Weight (lb.) | 43.1 lbs |
Warranty/Certifications
| Manufacturer Warranty | 1 Year |
Q: What speaker wire should be used for this system?
A: Speaker wire is not included. To ensure optimal performance and minimize signal loss, select the appropriate wire gauge based on the distance between your amplifier and speakers:
| Distance | Wire Gauge |
| 10–15 ft | 18 AWG |
| 15–25 ft | 16 AWG |
| 25–50 ft | 14 AWG |
| 50–100 ft | 12 AWG |
| Over 100 ft | 10 AWG |
Using a thicker (lower gauge) wire for longer runs helps maintain signal strength and overall audio quality.
