The Sound Town CARME-18M64 combo set includes:
- (1) CARPO-M64 Aluminum Extruded Passive Column Array Speaker
- (1) CARME-18SPW1.1 18" Powered Subwoofer with DSP and Speaker Output
- (1) STCL-POLESET Subwoofer Mounting Pole, Extendable
The CARPO-M64 column speaker comes with 6 x 3“ LF + 4 x 1.2” dome tweeter which handles 160W RMS, 320W peak power output. The CARME-18SPW1.1 is a 18“ powered subwoofer with speaker output and built-in DSP. It generates 1100W massive power and serves up solid and mighty bass reinforcement. Even better, with the speaker output, it can power the passive column speaker and delivers additional up to 500W power. The STCL-POLESET is adjustable from 35”~54“ long and it allows you to mount the column speaker on top of the subwoofer.
The combo system is ideal for meeting rooms, courtyards, churches, restaurants, stages, weddings and any other small to medium-sized venues.
- ALL-IN-ONE SYSTEM: The Sound Town Line Array Column System includes 1 x CARPO-M64 column speaker, 1 x STCL-POLESET subwoofer/column extender pole and 1 x CARME-18SPW1.1 powered subwoofer with DSP and Speaker Output.
- VERSATILE APPLICATIONS: The system is ideal for meeting rooms, courtyards, churches, restaurants, stages, weddings and any other small to medium venues. The powered subwoofer has speaker output to the column speaker which makes the setup a breeze.
- OUTSTANDING SOUND QUALITY: The CARPO-M64 column speaker has 6 x 3“ drivers and 4 x 1.2” dome tweeters which provides balanced and clean array audio. The CARME-18SPW1.1 powered subwoofer comes with 18“ high power LF in 4” voice coil serves up solid and punchy bass reinforcement.
- SOPHISTICATED DSP: The powered subwoofer has built-in Digital Signal Processor. The DSP doesn’t only come with factory presets, but also provides various of setting option like EQ, CROSSOVER, LIMITER etc., allows you to optimize the sound for whole system and guarantees accurate audio across the entire sound field.
-
STURDY CONSTRUCTION: The column speaker comes with a aluminum extruded housing and the subwoofer cabinet is made by 5/8“ high quality birch plywood in texture coating finish. Both comes with heavy-duty metal grille holds up to touring applications.
Specifications
Model | CARPO-M64 | CARME-18SPW1.1 |
Active/Passive | Passive | Active |
Frequency Range | -- |
32 Hz - 180 Hz |
Frequency Response | 100 Hz - 20 kHz | 38 Hz - 180 Hz |
Sensitivity | 95 dB, 1W @ 1m | 100 dB |
SPL Max | 123 dB (Peak) | 127 dB |
Dispersion | 140º x 25º (H x V) | -- |
Configuration | Passive column array speaker system | 18" active high power 1.1 channel class-D subwoofer with DSP |
Transducer | LF: 6 x 3", HF: 4 x 1.2" dome | LF: 1 x 18", HF: -- |
Voice Coil | -- |
4" |
Magnet | -- |
100 oz |
Impedance | 8Ω | 8Ω |
Power Handling | 160W RMS / 320W Peak | 600W + 1 x 500W RMS / 1200W + 1 x 1000W Peak |
Enclosure Material | Extrusion aluminum | High-grade 100% birch plywood |

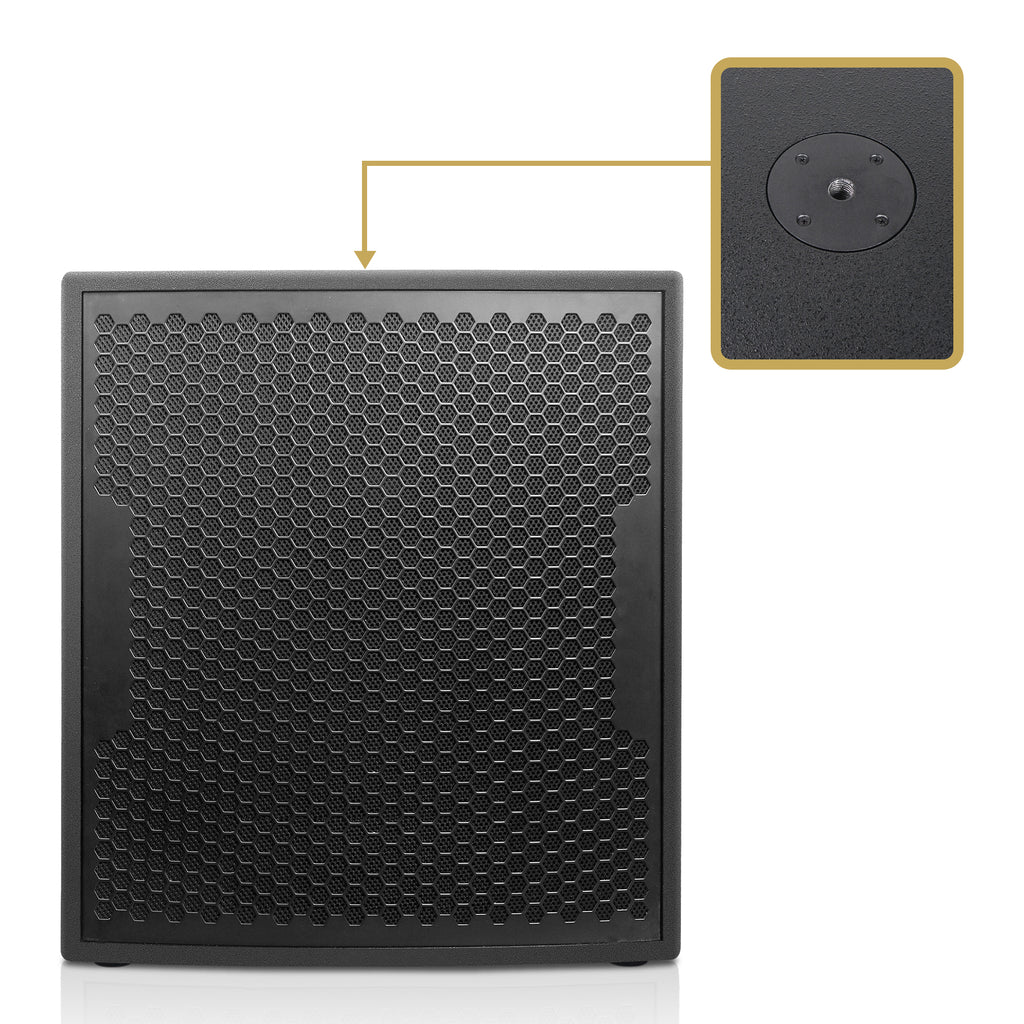

Mounting | Wall-mount bracket or pole-mount adapter | M20 mounting socket on the top |
Finish | Black paint | Texture coating |
Grill & Rigging Component | Powder-coated marine-grade metal | Steel with anti-corrosion coat |

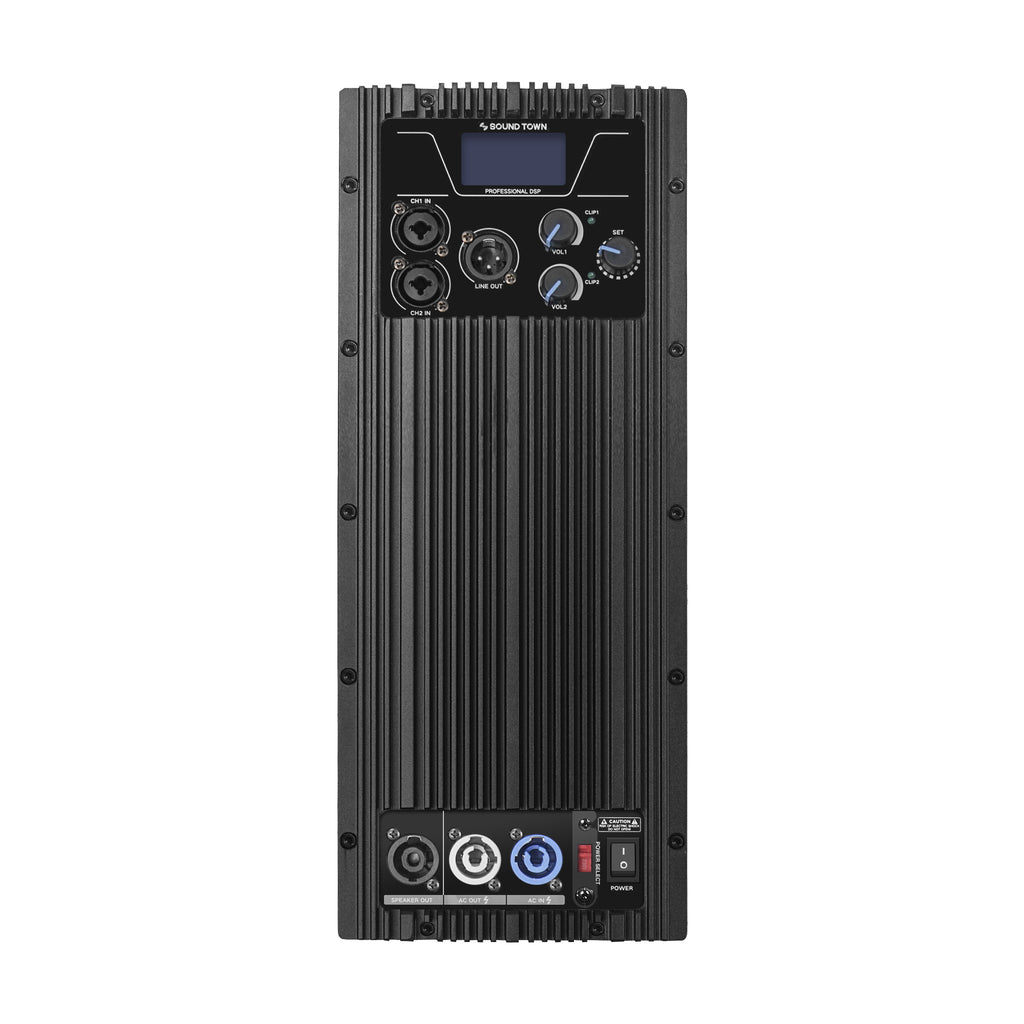

Amplifier | -- | Class-D, 1.1 channel |
Input | Speakon & 2-pole euroblock | 2 x 1/4"-XLR combo |
Output | -- | 1 x XLR (mixed signal out); 1 x speakon (power out) |
Signal Processing | -- | DSP: presetting, EQ, crossover, limit, etc. |
Control | -- | Volume, DSP |
Indicator | -- | Clip 1, Clip 2 |
Voltage | -- | 100V-240V (50-60 Hz) |
Dimension & Weight
Model | CARPO-M64 | CARME-18SPW1.1 |
Product Width (in.) | 4.4" | 21.7" |
Product Height (in.) | 30.4" | 20.9" |
Product Depth (in.) | 3.9" | 23.6" |
Product Weight (lb.) | 15.0 lbs | 86.0 lbs |
Package Width (in.) | 7.4" | 25.5" |
Package Height (in.) | 35.7" | 28.0" |
Package Depth (in.) | 6.8" | 24.2" |
Package Weight (lb.) | 15.6 lbs | 88.4 lbs |
Warranty/Certifications
Manufacturer Warranty | 1 Year |
