STCA180X6PD4B | Commercial Restaurant Power Amplifier Pendant Speaker Set, w/ a 6-Zone 70V/100V Amplifier w/Bluetooth, Six 4“ Pendant Speakers, Black














- DESCRIPTION
- FEATURES
- SPECIFICATIONS
- DOWNLOADS
- REVIEWS

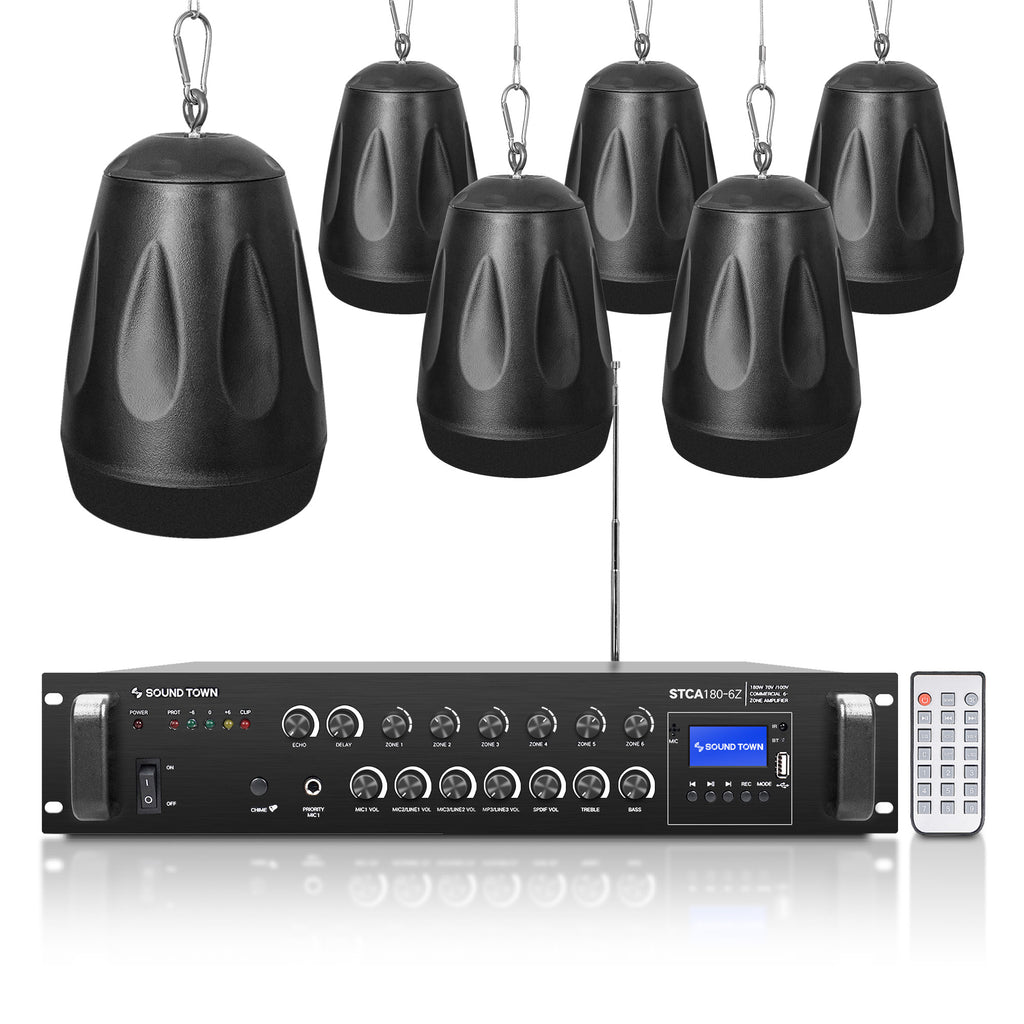

Introducing the Sound Town STCA180X6PD4B commercial audio set, your solution for exceptional audio in both indoor and outdoor commercial settings and more. This set features:
- (1) STCA180-6Z 6-Zone 70V/100V Commercial Power Amplifier w/ Bluetooth
-
(3) STPDS-4B-PAIR Pair of All-Weather 4" Pendant Speakers, Black
The Sound Town STCA180-6Z amplifier works with 70V/100V systems and 4~16 ohm low impedance speakers. It provides a strong 180W output, perfect for delivering clear, crisp audio. Features six zones with individual volume controls for customized sound distribution. It supports Bluetooth for easy wireless streaming and includes a built-in clipping limiter to prevent overheating.
The STPDS-4B-PAIR pendant speakers, six total included, are IP66 weather-resistant, ideal for any environment. Each speaker is equipped with a 4" woofer and a 1" neodymium compression driver, offering balanced and dynamic sound. The installation versatility is a key feature – these speakers can be set up as pendant speakers, wall-mounted, or as landscape ground-mounts, with all necessary components included for your preferred setup.
This Sound Town STCA180X6PD4B audio set is not just limited to commercial spaces; it's equally suitable for home use. It excels in multi-room applications, making it an ideal choice for restaurants, lounges, bars, schools, warehouses, and more. Whether you're looking to enhance the audio experience in a cozy café or a sprawling commercial complex, this audio bundle is equipped to deliver exceptional performance and reliability.
- SOUND TOWN STCA180X6PD4B COMMERCIAL AUDIO SET: The Sound Town STCA180X6PD4B commercial audio bundle includes (1) Sound Town STCA180-6Z power amplifier and (3) STPDS-4B-PAIR (6 in total) all-weather pendant speakers.
- STCA180-6Z POWER AMPLIFIER: The Sound Town STCA180-6Z amplifier works with 70V/100V or 4~16 ohm low impedance speakers, delivering 180W of power output. It supports Bluetooth and offers 6 zones with individual volume controls. Built-in clipping limiter protects your speakers and amp from overheating.

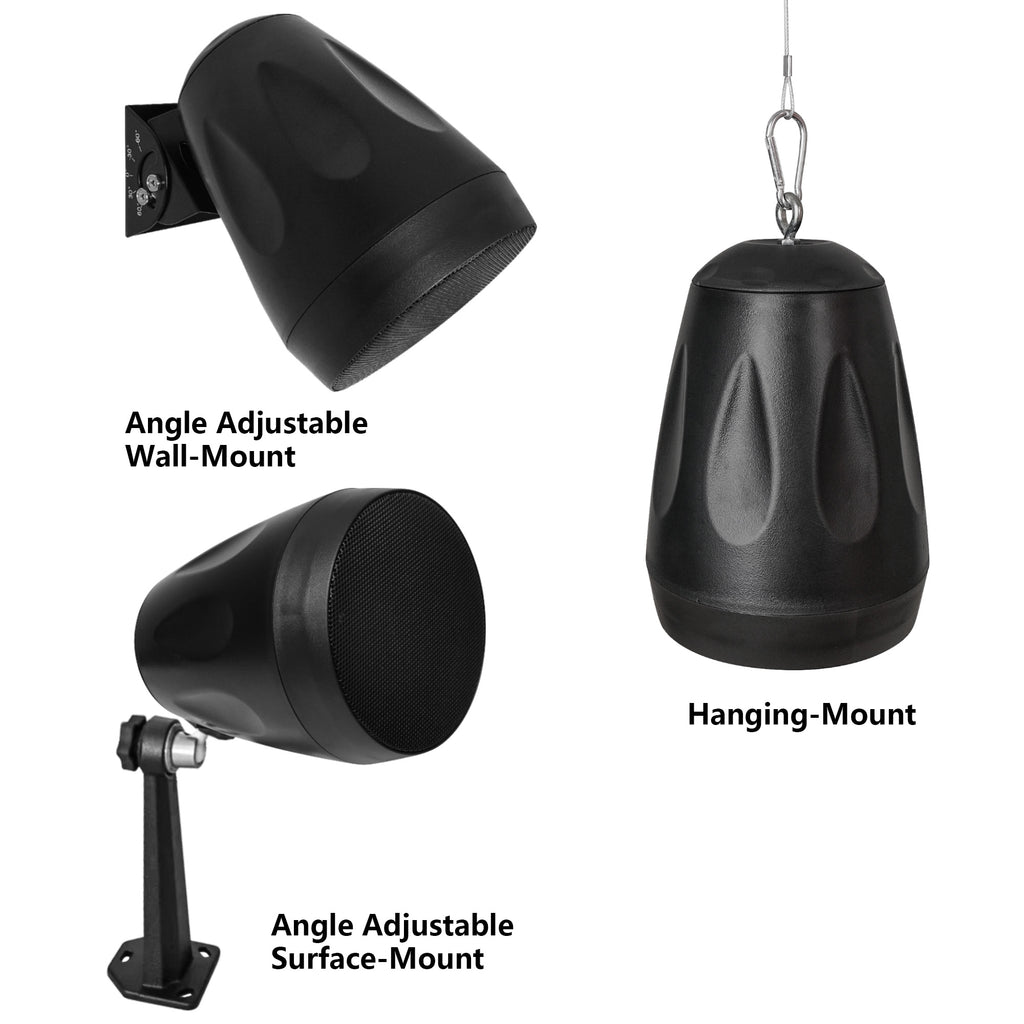

- STPDS-4B IP66 WEATHER-RESISTANT SPEAKERS: Includes (3) STPDS-4B-PAIR (6 in total) IP66 weather-resistant pendant speakers, each equipped with 4“ woofer and a coaxial 1” neodymium compression driver. Install the speakers as pendant speakers, wall-mounted, or landscape ground-mount setups that suit your setup (3 types of installation components included in the package).
- EASY SET UP AND INTEGRATION: Easily add the STPDS-4B pendant speakers with the built-in step-down transformer and taps, making them a breeze to integrate into 70V or 100V commercial speaker setups using the included STCA180-6Z amplifier.
- SUITABLE FOR MANY APPLICATIONS: Whether for indoor or outdoor use, at home or a commercial building, the Sound Town STCA180X6PD4B pendant speaker and amplifier bundle has you covered. It is ideal for multi-room applications such as restaurants, lounges, bars, schools, warehouses, and so much more.
Specifications
Model | STPDS-4B-PAIR |
Active / Passive | Passive |
Frequency Range | 85 Hz - 18k Hz |
Frequency Response | 90 Hz - 18k Hz |
Sensitivity | 90 dB |
SPL Max | 105 dB |
Dispersion | 120° Conical |
Configuration | 4" Passive Pendant Speaker |
Transducer | Coaxial 1" Neodymium |
Voice Coil | -- |
Magnet | --oz |
Impedance | 8Ω |
Power Handling | 30 RMS / 60W Program |
Enclosure Material | Plastic |
Mounting Hardware | Pendant/ Wall-Mount/ Landscape Ground Mount |
Finish | Powder-Coated Rust-Resistant Grille |
Grill & Rigging Component | Rust Resistant Aluminum Grill |
Amplifier | -- |
Input | 2 Pin Euroblock Terminal |
Output | 2 Pin Euroblock Terminal |
Signal Processing | -- |
Control | -- |
Indicator | -- |
Voltage | -- |
Crossover Parts# | -- |
High Frequency Driver Parts# | -- |
Low Frequency Woofer Parts# | -- |
MODEL |
STCA180-6Z |
OUTPUT POWER |
180W RMS |
OUTPUT TYPE | 70V/100V/4~16Ω |
MIC INPUT | 3mV, 600 Ω |
LINE INPUT |
200mV, 10k Ω |
FREQ. RANGE | 50 Hz~20k Hz |
DISTORTION | 0.5% (1k Hz) |
S/N RATIO AUX | 88 dB |
S/N RATIO MIC | 116 dB |
VOLTAGE |
AC110V~230V |
Dimension & Weight
Model | STPDS-4B-PAIR | STCA180-6Z |
Product Width (in.) | 5.6" (each) | 19.0" |
Product Height (in.) | 7.1" (each) | 3.5" |
Product Depth (in.) | 7.7" (each) | 15.3" |
Product Weight (lb.) | 3.0 lbs (each) | 22.0 lbs |
Package Width (in.) | 12.4" | 20.9" |
Package Height (in.) | 9.0" | 6.9" |
Package Depth (in.) | 9.3" | 18.7" |
Package Weight (lb.) | 7.8 lbs | 24.0 lbs |
Warranty/Certifications
Manufacturer Warranty | 1 Year |
▶ STPDS-4 User Manual
▶ STCA180-6Z User Manual (V2) (English), purchased after 08.28.22
▶ STCA180-6Z User Manual (V1) (English), discontinued
