ZETHUS-V26T | Dual 6.5" Lightweight Passive Line Array Speaker Module, 70V/100V/16Ω, HF Attenuation, for Live Sound & Commercial Installation, Black

The Sound Town ZETHUS-V26T is a passive dual 6.5" line array loudspeaker engineered for live sound and commercial installations. It features dual 6.5-inch woofers and a 1 3/8-inch titanium compression driver, delivering 300W RMS / 600W program power at 16Ω, or 120W RMS when operating in 70V/100V mode. Its symmetrical design provides 100° horizontal × 10° vertical acoustic dispersion for consistent sound coverage.

Equipped with a built-in transformer, the ZETHUS-V26T supports both 16Ω low-impedance (low-Z) and 70V/100V high-impedance (high-Z) operation for live sound and permanent commercial installations. A 5-position HF attenuation switch (0dB to -6dB) allows tonal adjustment to suit different room acoustics. The rear aluminum rigging hardware provides adjustable vertical splay angles from 0° to 10° between adjacent speaker cabinets when configuring a line array.

Housed in a durable 31-lb ABS enclosure with convenient carrying handles, the ZETHUS-V26T supports suspended line array configurations of up to 12 cabinets using the optional ZETHUS-A26FF frame. For ground-stacked configurations, the frame provides 0°, 4°, and 8° overall array angle settings when used with compatible STSD-MM1449B speaker stands (sold separately).

• ZETHUS-V26T DUAL 6.5" PASSIVE LINE ARRAY SPEAKER: Features dual 6.5-inch woofers and a 1 3/8-inch titanium compression driver, delivering 300W RMS / 600W program power at 16Ω, or 120W RMS when operating in 70V/100V mode. Its symmetrical design provides 100° horizontal × 10° vertical acoustic dispersion for consistent sound coverage across different venues.

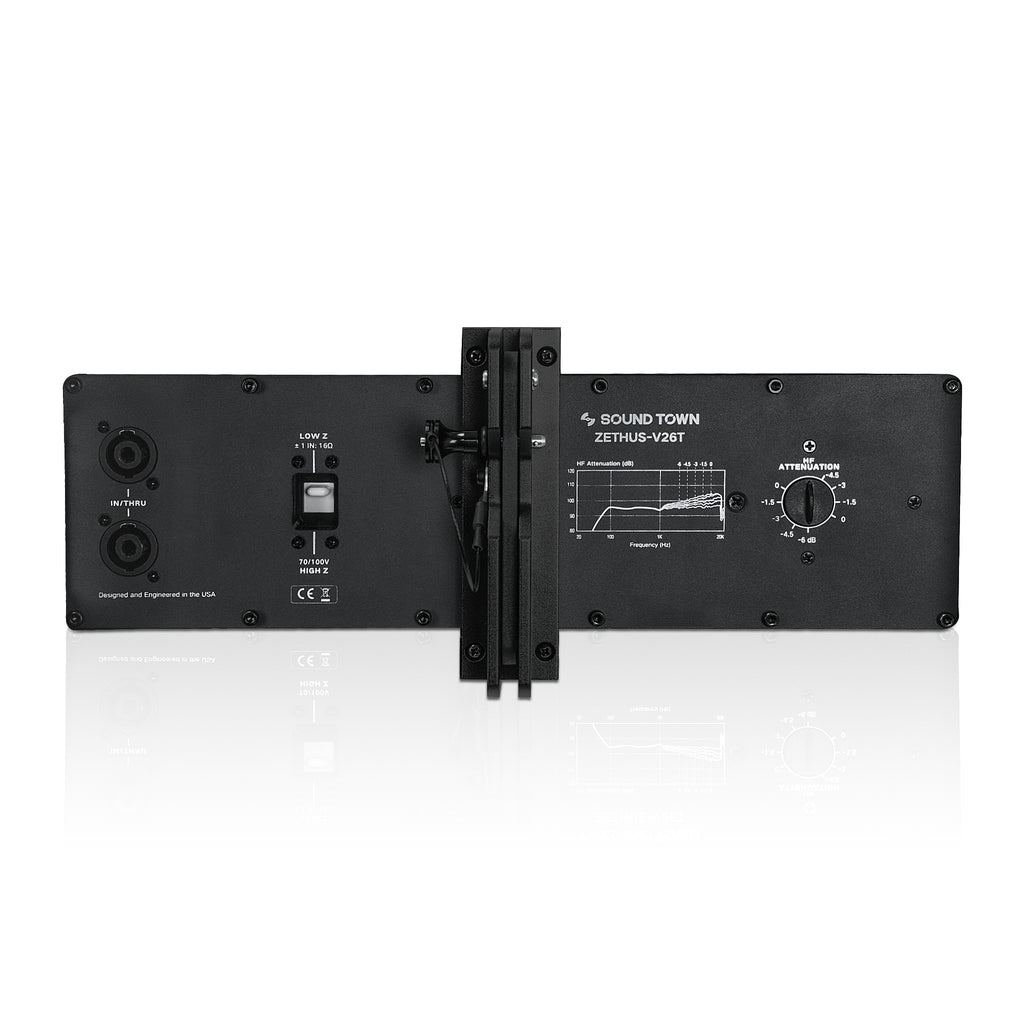

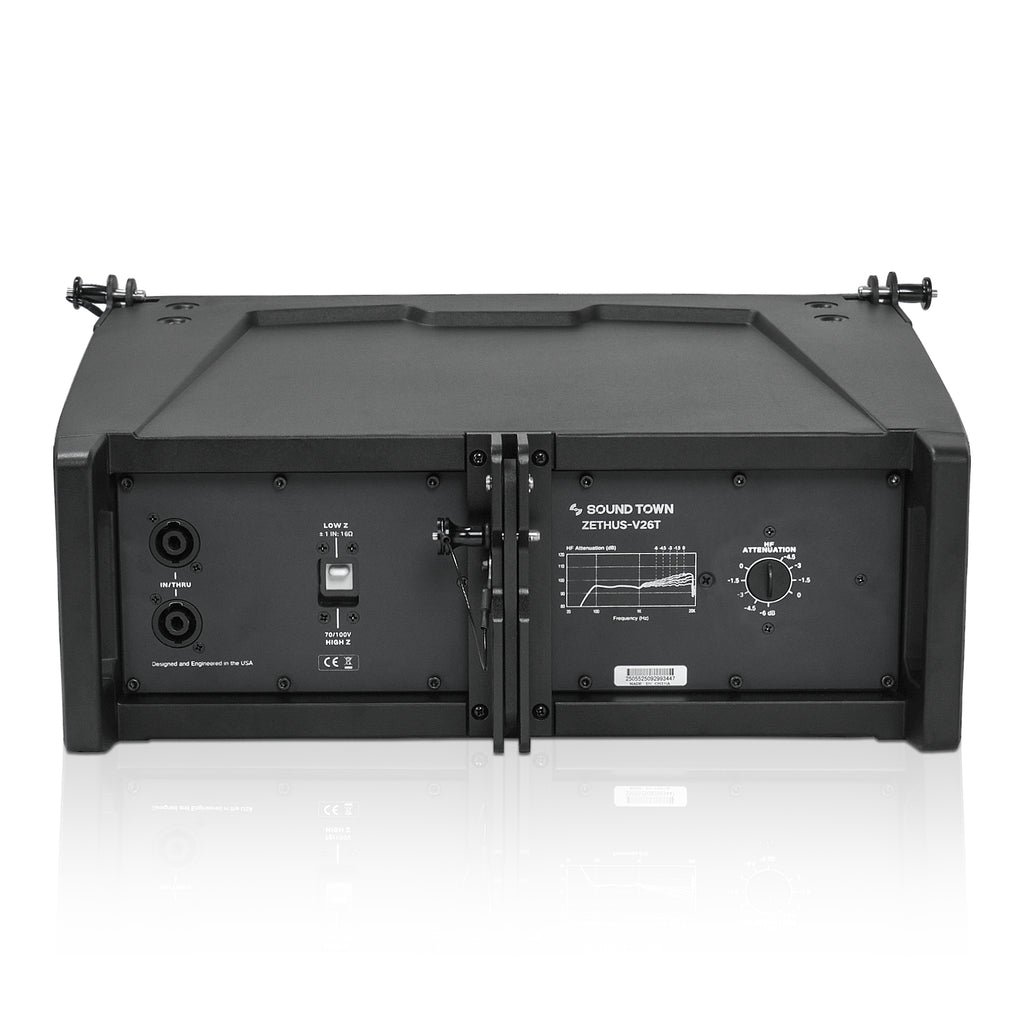

• BUILT-IN TRANSFORMER 70V/100V/16Ω: Features a built-in transformer and a low-Z/high-Z mode switch, allowing operation in both 16Ω low-impedance mode for professional live sound setups and 70V/100V high-impedance mode for commercial audio systems. Comes equipped with two 4-pin Speakon connectors.

• CUSTOMIZE SOUND COVERAGE WITH EASE: The onboard 5-position HF attenuation switch (0dB to -6dB) allows tonal adjustment to suit different room acoustics. The rear aluminum rigging hardware allows adjustable vertical splay angles from 0° to 10° between adjacent speaker cabinets for line array configurations.

• EXPANDABLE CONFIGURATIONS: Suspend up to 12 ZETHUS-V26T speakers using the optional ZETHUS-A26FF flying frame. For ground-stacked configurations, the frame provides 0°, 4°, and 8° overall array angle settings when used with compatible STSD-MM1449B speaker stands (sold separately).

• LIGHTWEIGHT AND PORTABLE DESIGN: Weighing just 31 lbs and featuring a rugged ABS polymer enclosure, the ZETHUS-V26T is easy to transport and set up. Integrated handles and a compact form factor simplify setup and breakdown between venues.

Specifications

Dimension & Weight

Warranty/Certifications

Q: What speaker wire should be used for this system?

A: Speaker wire is not included. To ensure optimal performance and minimize signal loss, select the appropriate wire gauge based on the distance between your amplifier and speakers:

Using a thicker (lower gauge) wire for longer runs helps maintain signal strength and overall audio quality.

ZETHUS-V26T User Manual
