ZETHUS-M3 | ZETHUS Series Compact Passive Line Array PA Speaker, Black, for Live Sound, Stage Performances, Clubs, Churches and Schools
- DESCRIPTION
- FEATURES
- SPECIFICATIONS
- DOWNLOADS
- SUPPORT
- REVIEWS
The Sound Town ZETHUS-M3 packs amazing sound and ample power handling into an ultra-compact line array cabinet. Weighing less than 20 lbs each, the speakers provide absolutely stunning sound in a remarkably small footprint. Each comes with 6 x 3“ mid-low frequency drivers and 6 x 1” dome tweeters, delivering powerful, natural sound. These drivers are customized to generate impressive, high-efficiency sound reproduction. It handles 300W RMS, 600W program power at 8-ohm.
The Sound Town ZETHUS-M3 has multiple flying points and provides flexible mounting or suspension options. When combined with ZETHUS-M115S subwoofer (available separately), the system provides the superior sound that seasoned engineers and musicians demand at touring grade. Sound Town selects top-quality birch plywood for ZETHUS series speakers to ensure you can expect stellar sound quality across every detail and reliable protection for your PA rigs. Its rugged construction with heavy-duty perforated metal grille holds up to the toughest touring applications. It is an ideal solution for either mobile or fixed-venue setups.
For a compact full-range line array PA speaker with great sound and sturdy quality, check out the Sound Town ZETHUS-M3.
- ULTRA-COMPACT DESIGN: The Sound Town ZETHUS-M3 packs amazing sound and ample power handling into an ultra-compact line array cabinet. Weighing less than 20 lbs each, the speakers provide absolutely stunning sound in a remarkably small footprint.
- STELLAR SOUND: With 6 x 3“ mid-low frequency drivers and 6 x 1” dome tweeters in an innovative horn-free design cabinet, the line array speaker delivers outstanding sound in a wide dispersion angle without sacrificing sound pressure. When integrated with the ZETHUS-M115S subwoofer (available separately), this line array system turbocharges any live performance or event.
- EASY MOUNTING: The line array speaker has multiple flying points and provides flexible mounting or flying options; angle adjustable from 0°~8° between adjacent cabinets to optimize coverage to the audience area.
- STURDY CONSTRUCTION: With heavy-duty metal grille and aluminum extrusion rigging hardware, the speaker is easy to install both indoors and outdoors; high-quality birch plywood construction damps out unwanted vibrations; it also provides great protection, holding up very well to mobile applications.
- VERSATILE APPLICATIONS: Its ideal for small to medium-sized applications including clubs, bars, restaurants, churches, schools and more.

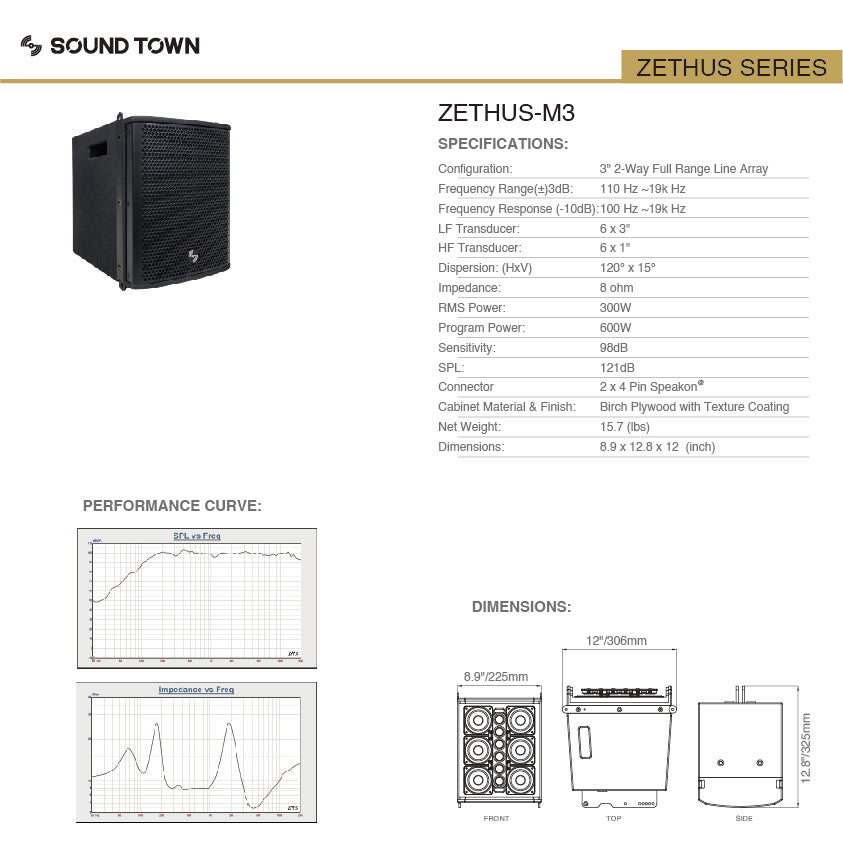

Specifications
Model | ZETHUS-M3 |
Active / Passive | Passive |
Frequency Range | 110 Hz - 19 kHz |
Frequency Response | 100 Hz - 19 kHz |
Sensitivity | 98 dB |
SPL Max | 121 dB |
Dispersion | 120º x 15º (H x V) |
Configuration | 3" 2-way full-range line array |
Transducer | MF: 6 x 3" driver, HF: 6 x 1" dome tweeter |
Impedance | 8Ω |
Power Handling | 300W RMS / 600W Peak |
Enclosure Material | High-grade 100% birch plywood |
Mounting Hardware |
ZETHUS-M3FF (flying frame) or ZETHUS-M3AD (pole & adapter), compact line array hardware |
Finish | Texture coating |
Grill & Rigging Component | Steel with anti-corrosion coat |
Amplifier | -- |
Input | 4-Pin Speakon |
Output | 4-Pin Speakon |
Signal Processing | -- |
Control | -- |
Indicator | -- |
Voltage | -- |
Dimension & Weight (each)
Product Width (in.) | 8.9" | Package Width (in.) | 14.6" |
Product Height (in.) | 12.0" | Package Height (in.) | 11.8" |
Product Depth (in.) | 12.8" | Package Depth (in.) | 14.4" |
Product Weight (lb.) | 15.7 lbs | Package Weight (lb.) | 18.8 lbs |
Warranty/Certifications
Manufacturer Warranty | 1 Year |
