The Sound Town ZETHUS-IP208X4 all-weather line array system includes:
- (4) ZETHUS-IP208 Dual 8” 900W Water-Resistant Passive Line Array Loudspeaker
- (1) ZETHUS-IP115SFF Mounting Frame

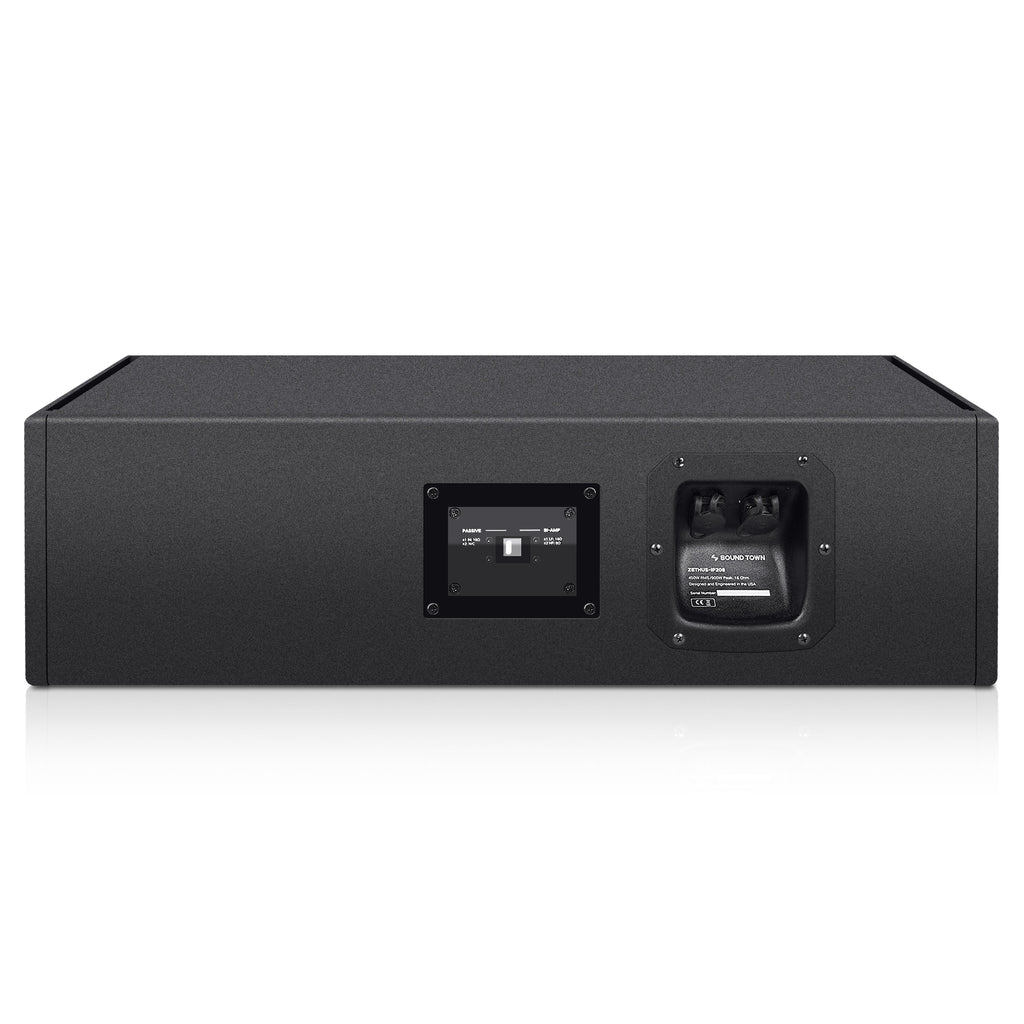

Experience the power and versatility of the Sound Town ZETHUS-IP208X4, an IP-55 rated passive line array speaker set engineered for indoor or outdoor installations. This speaker set includes (4) ZETHUS-IP208 IP-55 passive line array speakers and (1) ZETHUS-IP115SFF flying frame. The ZETHUS-IP208 excels in outdoor conditions as its encased in a water-resistant polyvinyl board with a rugged textured black finish, equipped with a weather-resistant cone, heavy-duty water-resistant grille featuring open-cell fibers and water-repellent woven fabric backing. Its acoustically transparent fabric adds an extra layer of defense against water intrusion. Watertight connectors on the rear panel ensure resilience against impacts, splashes, and more.
Elevate your music with the ZETHUS-IP208X4 weather-resistant passive line array speaker set. Each ZETHUS-IP208 speaker features dual 8” neodymium woofers and a 3” titanium diaphragm neodymium compression driver. Delivering 450W RMS and 900W (16Ω) program power handling, this compact line array delivers high power performance that is highly sought after. The passive full-range and bi-amp switch allows for quick setups or more advanced bi-amp configurations. The ZETHUS-IP208X4 offers numerous flying points and adaptable mounting options and includes a ZETHUS-IP115SFF flying frame. Embrace optimal customization with three splay brackets (0°, 10°, 15°) for perfect audience coverage. Elevate the energy in stages, lounges, theaters, bars, and clubs with the Sound Town ZETHUS-IP208X4 IP-55 rated passive line array speaker set.
- ZETHUS-IP208X4 LINE ARRAY SET: This speaker system consists of (4) ZETHUS-IP208 IP-55 rated water-resistant passive line array speakers and (1) ZETHUS-IP115SFF flying frame
- ALL-WEATHER PERFORMANCE: The ZETHUS-IP208 is a IP-55 rated water-resistant line array speaker housed in a rugged polyvinyl, water-resistant enclosure. Features black textured finish, weather-resistant cone, and heavy-duty grille with open-cell fibers, and water repellent fabric

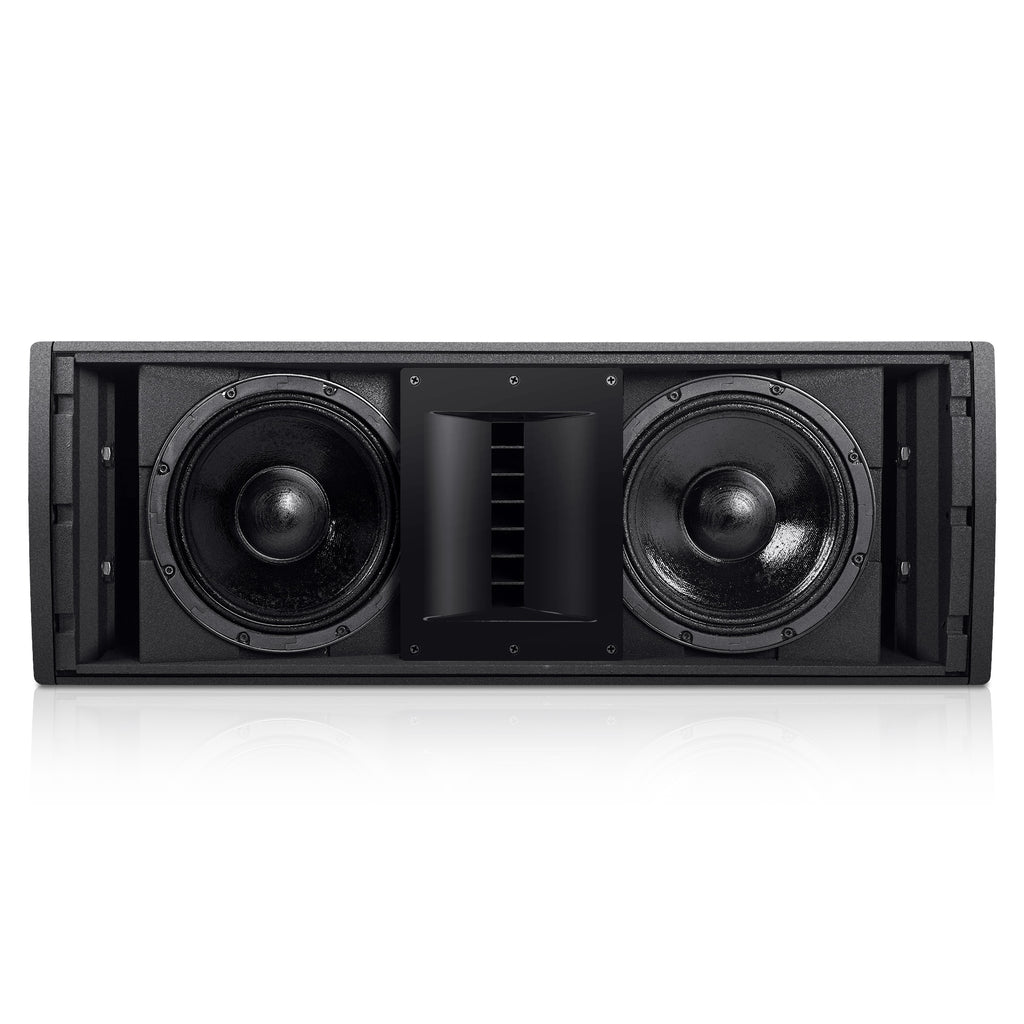

- POWERFUL AUDIO, COMPACT DESIGN: Each ZETHUS-IP208 features dual 8” neodymium woofers and a 3” titanium diaphragm neodymium compression driver. Impressive performance from a compact line array speaker, delivering 450W RMS and 900W (16Ω) program power handling

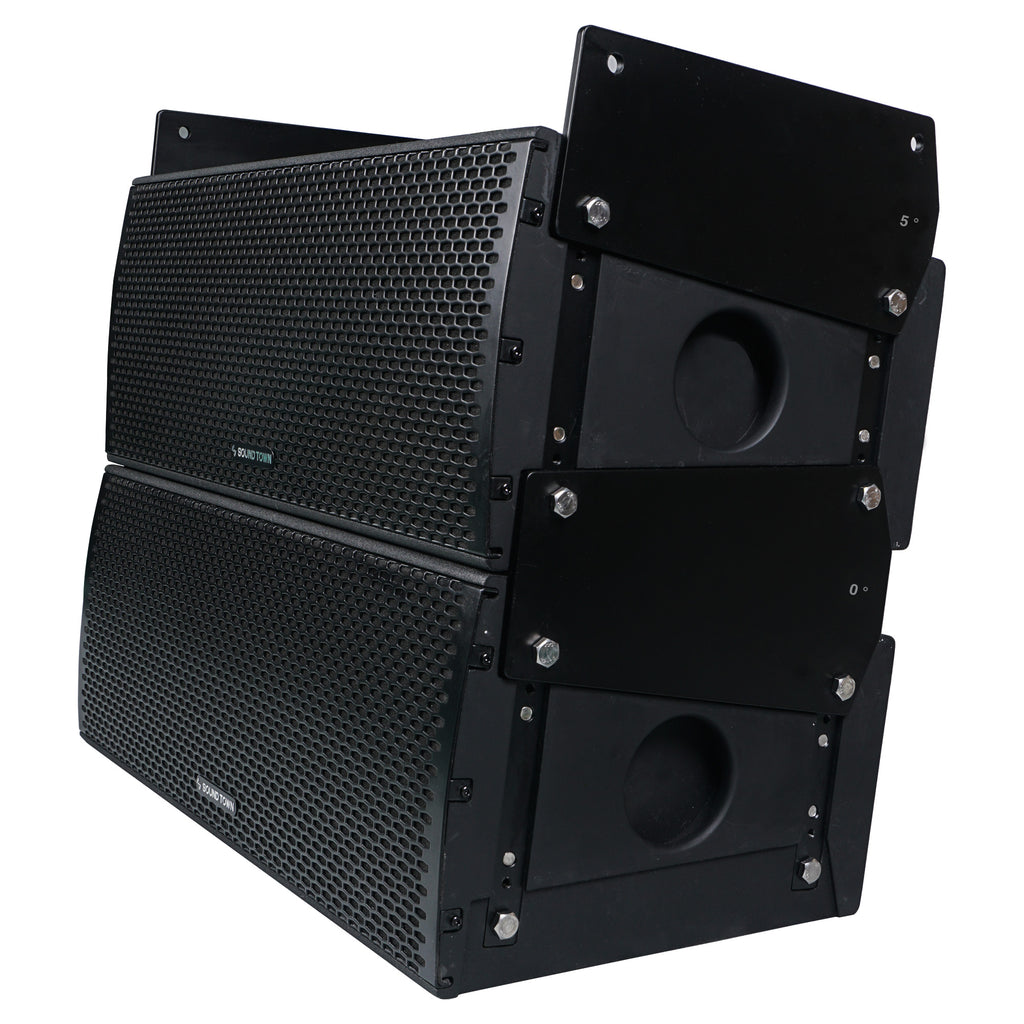

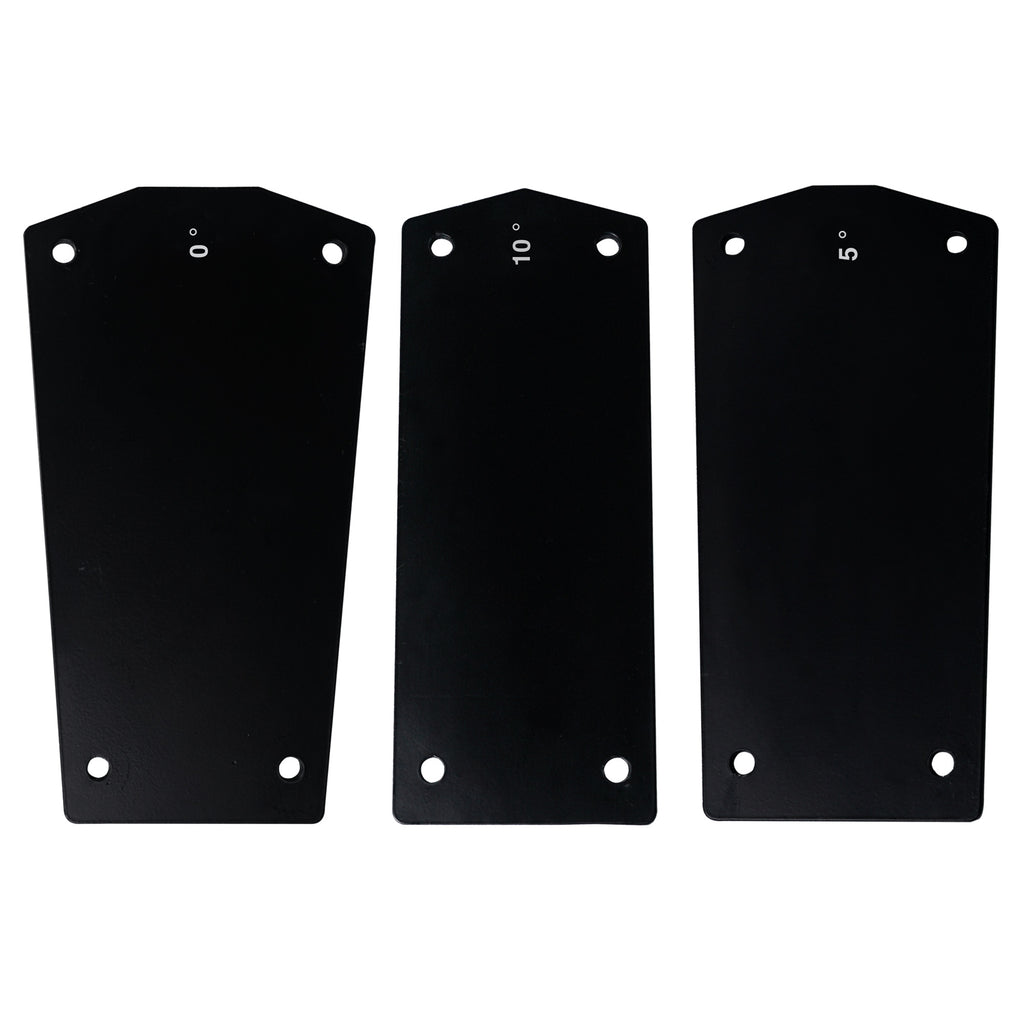

- FLEXIBLE INSTALLATION: Effortlessly mount the Sound Town ZETHUS-IP208 speakers using multiple flying points and adjustable splay brackets (0°, 10°, 15°) between adjacent cabinets. Achieve optimal audience coverage in any setup and fly the ZETHUS-IP208X4 with the included ZETHUS-IP115SFF flying frame
- VERSATILE APPLICATIONS: From outdoor reinforcement to fixed indoor installations, the Sound Town ZETHUS-IP208X4 excels in stages, theaters, clubs, churches, and more. Its passive full-range and bi-amp capability cater to various setups, ensuring exceptional sound quality in any venue
Specifications
Model | ZETHUS-IP208 |
Active / Passive | Passive |
Frequency Range | 55 Hz - 20 kHz |
Frequency Response | 60 Hz - 20 kHz |
Sensitivity | 105 dB |
SPL Max | 132 dB |
Dispersion | 120º x 15º (H x V) |
Configuration | Dual 8" passive waterproof full-range line array |
Transducer | LF: 2 x 8" Neydymium Woofer, HF: 1 x 3" Diaphragm Neodymium Compression Driver |
Voice Coil | 2.5" |
Magnet | Neo magnet |
Impedance | Passive: 16 Ω Nominal; Bi-amp: LF: 16 Ω, HF: 8 Ω |
Power Handling | 450W RMS / 900W Peak |
Enclosure Material | 3/4" waterproof complex fiber board |
Mounting | Compact line array aluminum hardware |
Finish | Waterproof texture coating |
Grill & Rigging Component | Steel with anti-corrosion coat |
IP Grade | IP54 |
Amplifier | -- |
Input | 4 pin speakon with waterproof cover |
Output | 4 pin speakon with waterproof cover |
Control | -- |
Indicator | -- |
Voltage | 100V-240V (50-60 Hz) |
Dimension & Weight (each)
Model |
ZETHUS-IP208 | ZETHUS-IP115SFF |
Product Width (in.) | 26.8" | 26.4" |
Product Height (in.) | 10.2" | 4.7" |
Product Depth (in.) | 13.7" | 20.9" |
Product Weight (lb.) | 60.8 lbs | 48.0 lbs |
Package Width (in.) | 29.9" | 27.8" |
Package Height (in.) | 13.8" | 5.5" |
Package Depth (in.) | 17.0" | 22.2" |
Package Weight (lb.) | 84.9 lbs | 56.8 lbs |
Warranty/Certifications
Manufacturer Warranty | 1 Year |
