The ZETHUS Series ZETHUS-IP118S210X4 water-resistant line array system includes:

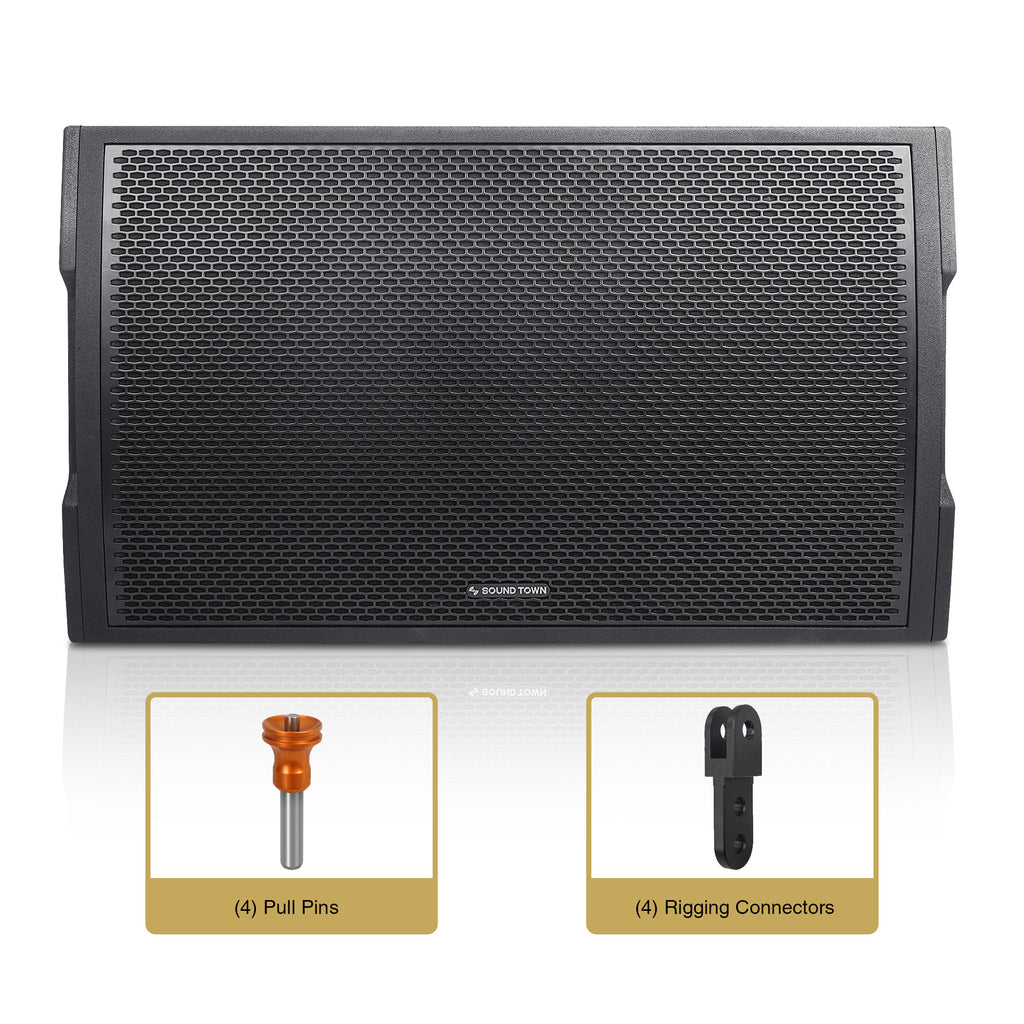

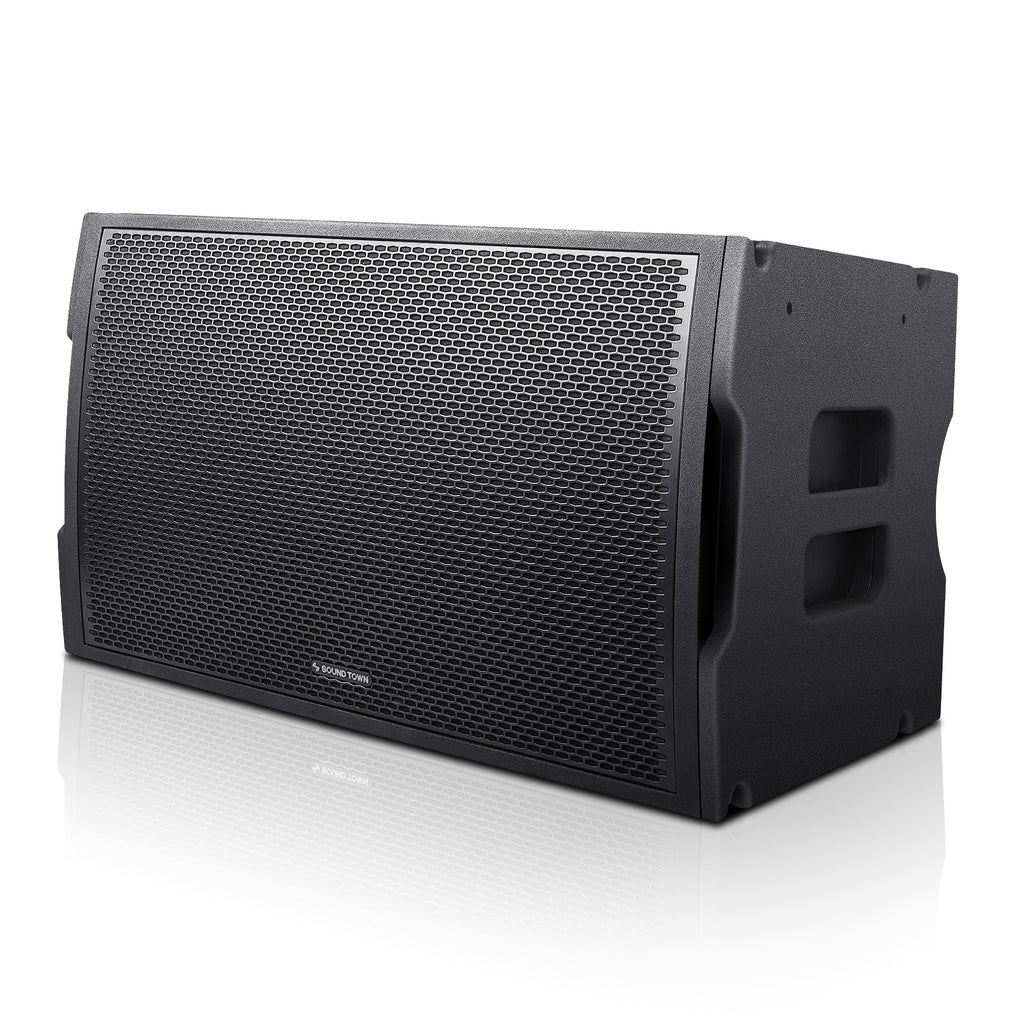

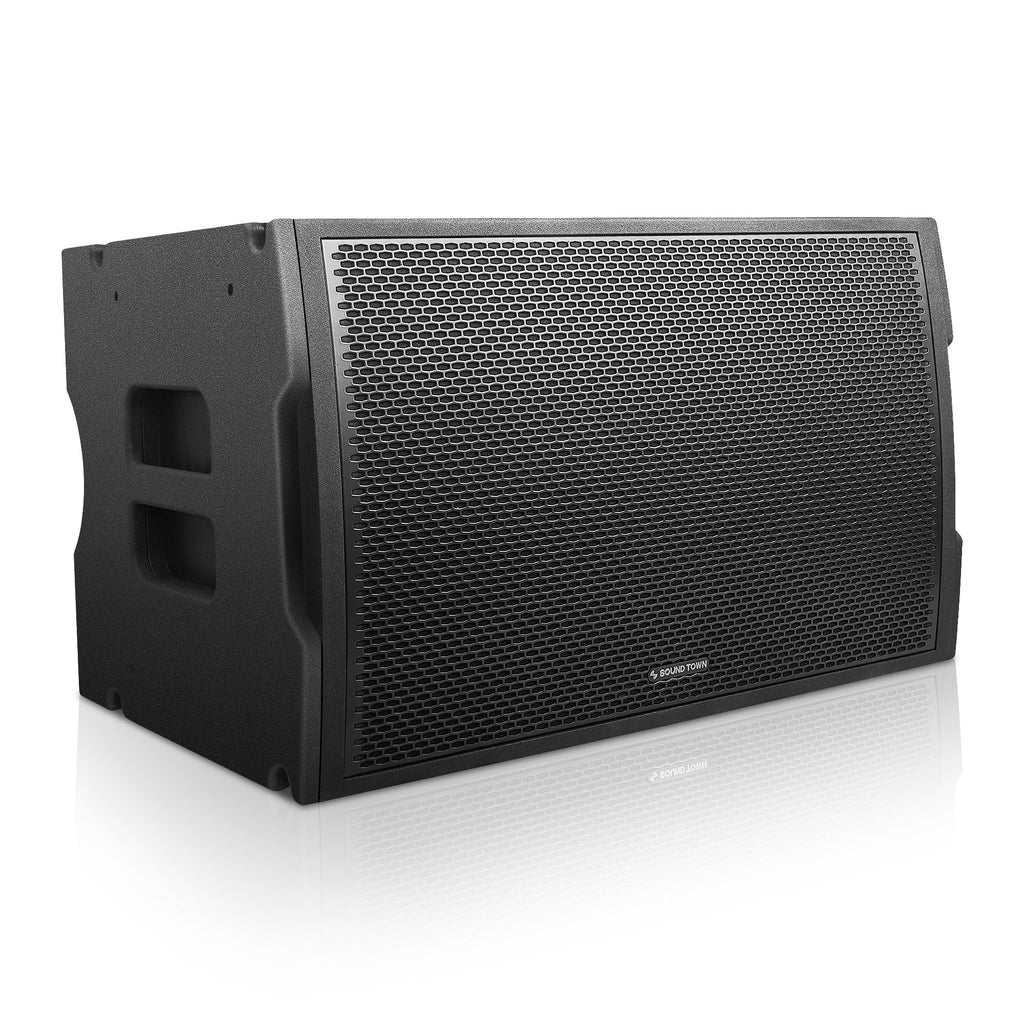

- (1) ZETHUS-IP118S 18" 1800W Water-Resistant Passive Line Array Subwoofer

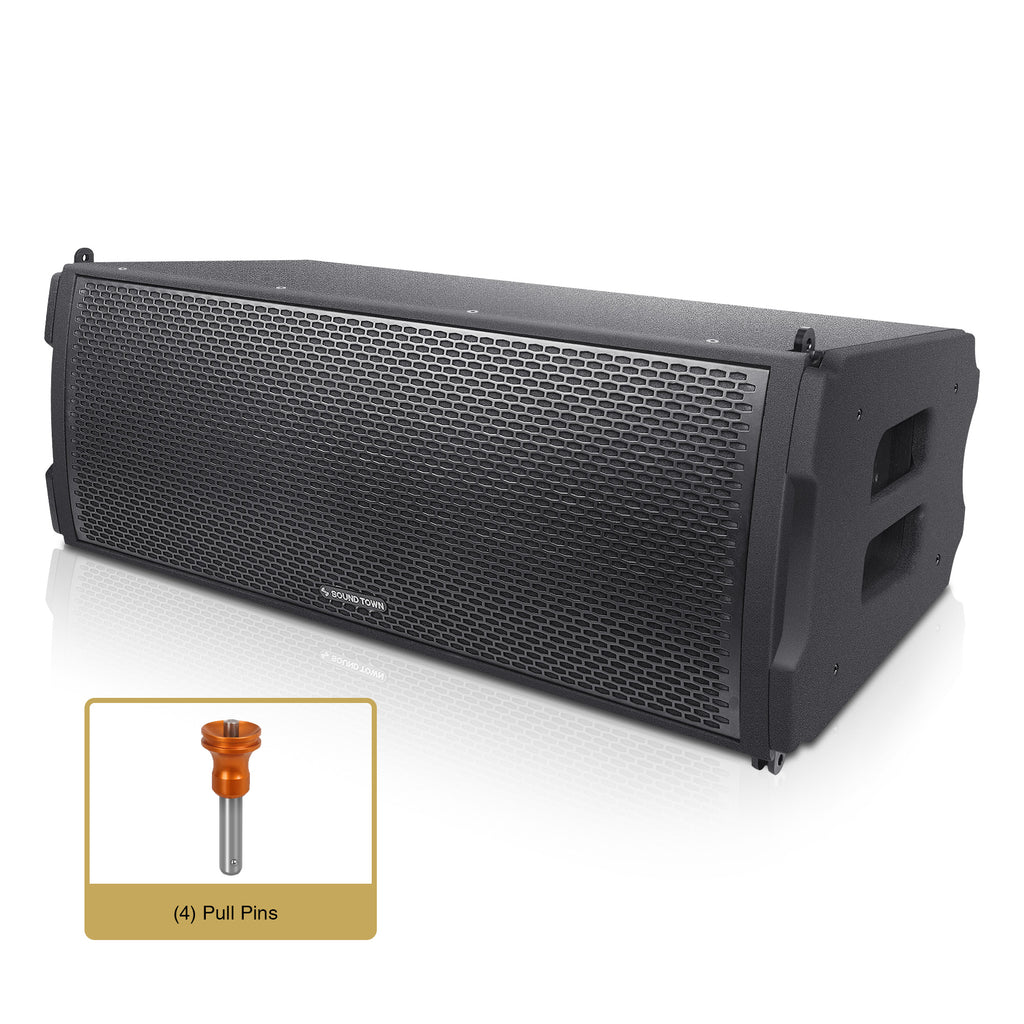

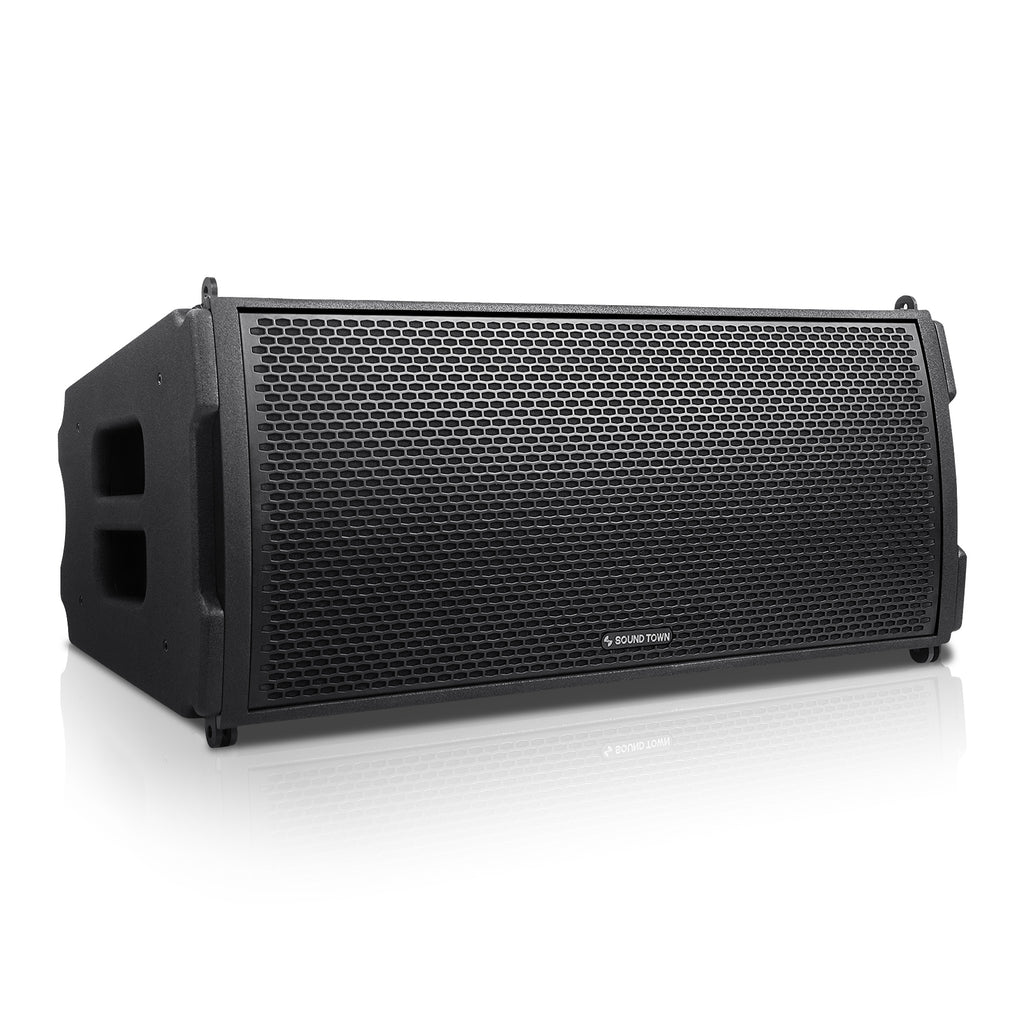

- (4) ZETHUS-IP210 Dual 10" Water-Resistant Passive Line Array Loudspeaker, Full-Range/Bi-Amp Switchable
- (1) ZETHUS-IP210FF Flying Frame
Encased in an IP-55 rated water-resistant polyvinyl board enclosure, the ZETHUS-IP210 and ZETHUS-IP118S has a sleek textured black exterior while offering protection during wet weather conditions. The speaker and subwoofer’s heavy-duty grille is water-resistant and equipped with open-cell fibers and water repellent woven fabric backing, providing reliable protection against bumps, drops, sprays, and splashes.

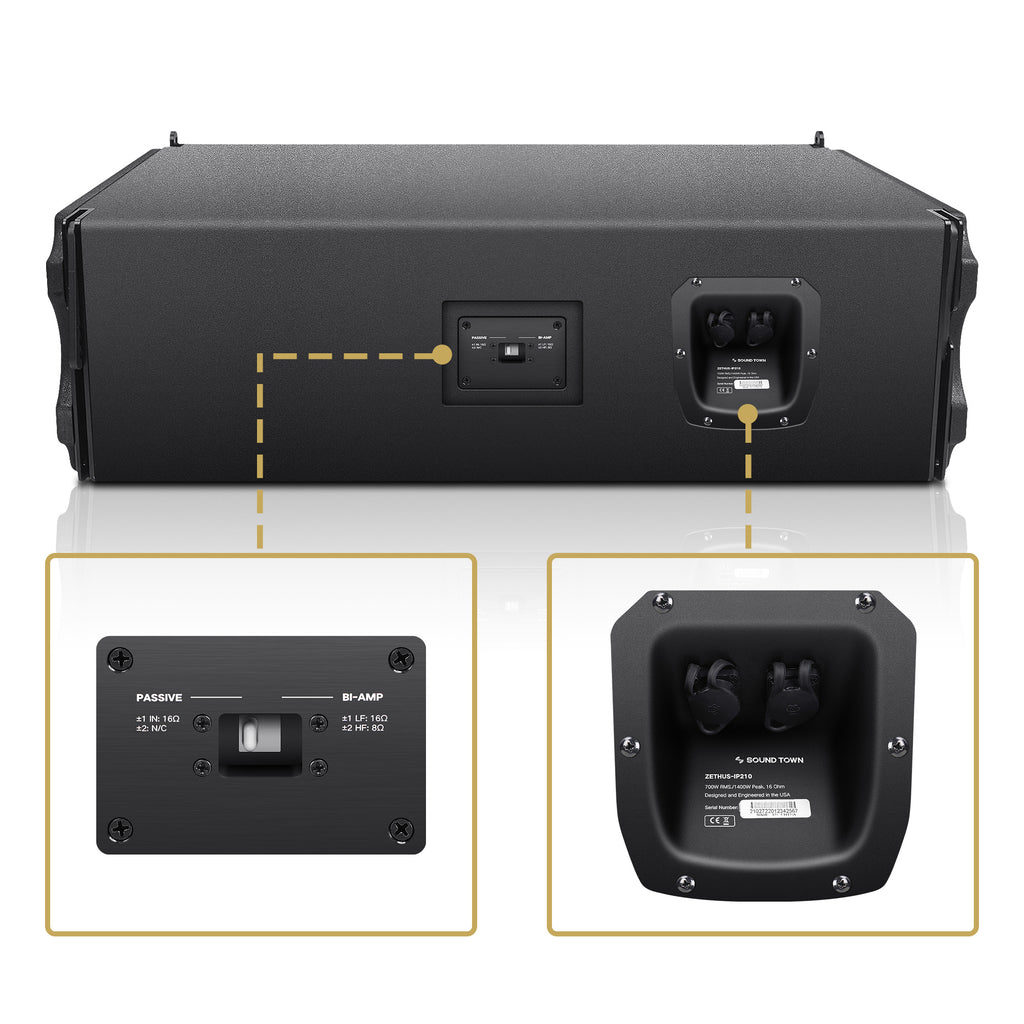

The ZETHUS-IP210 speaker features Italian dual 10” woofers and a 3” titanium diaphragm neodymium compression driver, delivering an impressive 700W RMS and 1400W program power (16Ω). The ZETHUS-IP118S subwoofer features an 18" aluminum frame woofer with a 4.5" voice coil and a carbon fiber cone, delivering 1200W RMS and 2400W program (8Ω). The built-in passive full-range and bi-amp switch allows for quick setup in full-range mode with an internal crossover, or a professional bi-amp setting using an external processor.
The ZETHUS-IP118S210X4 offers numerous flying points and adaptable mounting options for simple and efficient installations. Easily fly up to 12 ZETHUS-IP210 speakers using the included ZETHUS-IP210FF flying frame. Each speaker’s angle can be adjusted from 0° to 10° between adjacent cabinets to optimize coverage. Elevate the energy in stages, lounges, theaters, bars, and clubs with the Sound Town ZETHUS-IP118S210X4 IP-55 rated passive line array speaker set.
- ZETHUS-IP118S210X4 LINE ARRAY SET: Consists of (4) ZETHUS-IP210 IP-55 rated water-resistant passive line array speakers, (1) ZETHUS-IP118S IP-55 rated passive line array subwoofer, and (1) ZETHUS-IP210FF flying frame.
- ALL-WEATHER DESIGN: The ZETHUS-IP210 and ZETHUS-118S is an IP-55 rated water-resistant line array speaker and subwoofer housed in a rugged polyvinyl, water-resistant enclosure. Features black textured finish, weather-resistant cone, and heavy-duty grille with open-cell fibers, and water repellent fabric.
- TOURING-GRADE PERFORMANCE: Each ZETHUS-IP210 features Italian dual 10" neodymium woofers and a 3” titanium diaphragm neodymium compression driver, delivering 700W RMS/1400W (16Ω) program power handling. The ZETHUS-IP118S subwoofer features an 18" aluminum frame woofer with a 4.5" voice coil and a carbon fiber cone, delivering 1200W RMS/2400W program (8Ω).
- FLEXIBLE INSTALLATION: Effortlessly mount or fly the ZETHUS-IP118S210X4 line array set with the included ZETHUS-IP210FF flying frame. Each speaker can be adjusted from 0° to 10° between adjacent cabinets for better coverage.
- VERSATILE APPLICATIONS: From indoor to outdoor installations, the Sound Town ZETHUS-IP118S210X4 excels in stages, theaters, clubs, churches, and more. Its passive full-range and bi-amp capability cater to various setups, ensuring exceptional sound quality in any venue.
Specifications
Model | ZETHUS-IP210 | ZETHUS-IP118S |
Active/Passive | Passive | Passive |
Frequency Range | 50 Hz - 20 kHz | 32 Hz - 180 Hz |
Frequency Response | 55 Hz - 20 kHz | 35 Hz - 180 Hz |
Sensitivity | 106 dB | 104 dB |
SPL Max | 134 dB | 135 dB |
Dispersion | 120º x 15º (H x V) | Omnidirectional (360° x 360°) |
Configuration | Water-resistant dual 10" 2-way full-range line array loudspeaker | 18" water-resistant line array subwoofer |
Transducer | LF: 2 x 10" woofer HF: 1 x 3" diaphragm neodymium compression driver |
LF: 1 x 18" woofer HF: -- |
Voice Coil | -- |
4.5" |
Magnet | -- |
160 oz |
Impedance |
Full-range mode: 16Ω Bi-Amp. Mode: LF-16Ω, HF-8Ω |
8Ω |
RMS Power | Full-range mode: 700W Bi-Amp. Mode: LF-600W, HF-100W |
1200W RMS |
Program Power |
Full-range mode: 1400W Bi-Amp. Mode: LF-1200W, HF-200W |
2400W Peak |
Input |

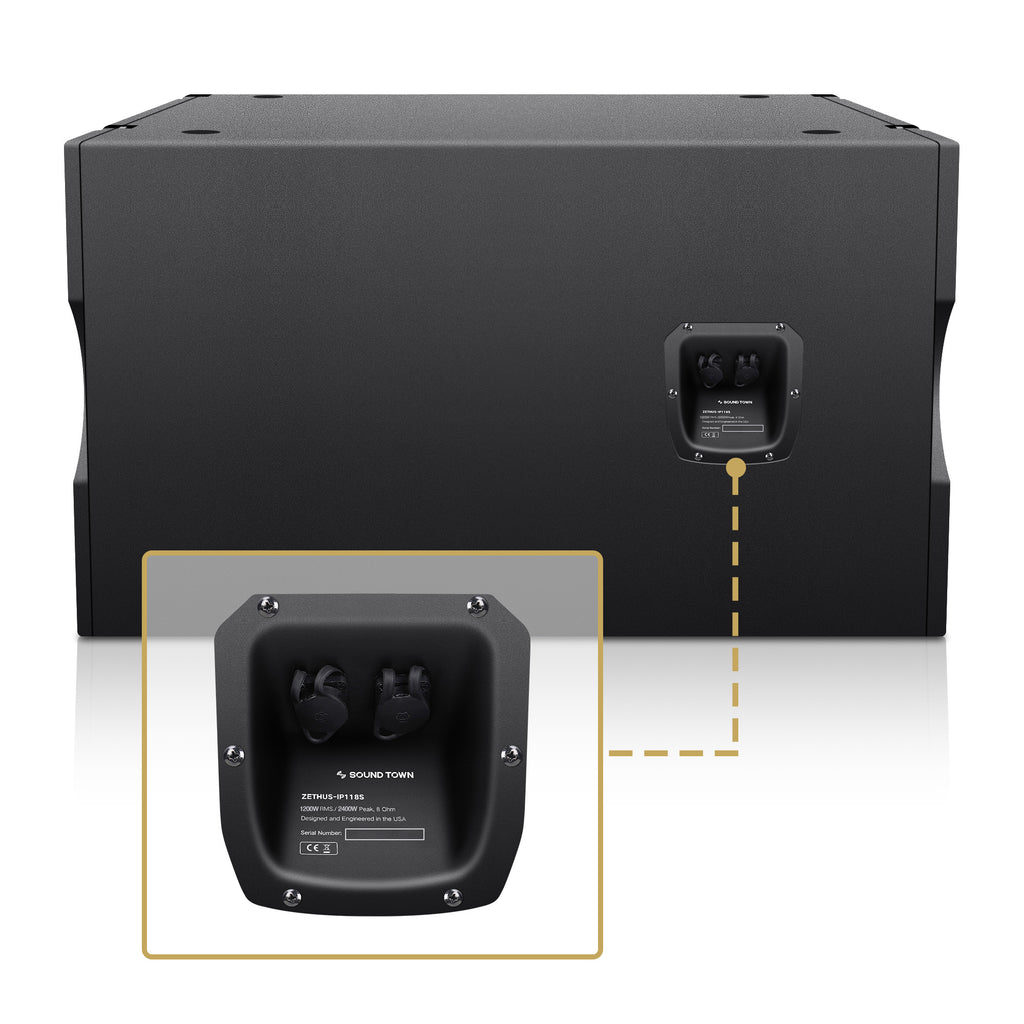

4-pin speakon with water-resistant cover | 4-pin speakon with water-resistant cover |
Output | 4-pin speakon with water-resistant cover | 4-pin speakon with water-resistant cover |
Cabinet Construction | 3/4" water-resistant complex polyvinyl board | 3/4" water-resistant complex polyvinyl board |
Flying/Mounting Bracket | ZETHUS-IP210FF flying frame, compact line array hardware | ZETHUS-IP210FF flying frame, compact line array hardware |
Cabinet Material & Finish: | Polyvinyl board with water-resistant texture coating | Polyvinyl board with water-resistant texture coating |
IP Grade | IP55 | IP55 |
Grill & Rigging Component | Steel with anti-corrosion coat | Steel with anti-corrosion coat |
Dimension & Weight (each)
Model | ZETHUS-IP210 | ZETHUS-IP118S |
Product Width (in.) | 33.5" | 33.5" |
Product Height (in.) | 13.9" | 20.1" |
Product Depth (in.) | 16.9" | 21.6" |
Product Weight (lb.) | 85.0 lbs | 155.0 lbs |
Package Width (in.) | 20.7" | 36.5" |
Package Height (in.) | 38.1" | 23.4" |
Package Depth (in.) | 16.5" | 24.6" |
Package Weight (lb.) | 95.7 lbs |
169.0 lbs |
Warranty/Certifications
Manufacturer Warranty | 1 Year |
