ZETHUS-112B | ZETHUS Series 12" Two-Way Line Array Loudspeaker System, Full-Range/Bi-amp Switchable, Black
- DESCRIPTION
- FEATURES
- SPECIFICATIONS
- DOWNLOADS
- REVIEWS
Experience robust sound quality with the lightweight and compact design of the ZETHUS Series ZETHUS-112B line array speaker. The ZETHUS-112B line array speaker features a 12" woofer and two 1.4" titanium compression drivers, delivering an impressive 400W RMS and 800W program (8Ω) power handling capability. With a frequency range of 45 Hz to 20K, it provides a wide range of audio coverage. The ZETHUS-112B line array speaker offers full-range or passive bi-amp mode, allowing for quick connections for simple to more professional setups, including the option to utilize an external DSP for professional bi-amp configurations. The ZETHUS-112B also includes a 3-position HF level selector for optimized array configurations.
The Sound Town ZETHUS-112B array speaker has multiple flying points providing a wide range of mounting or suspension options with a separately available flying frame (ZETHUS-112FF) to add up to 12 speaker combinations. The ZETHUS-112B line array is recommended for small to medium-sized venues including stages, lounges, clubs, bars, restaurants, churches, schools and etc.

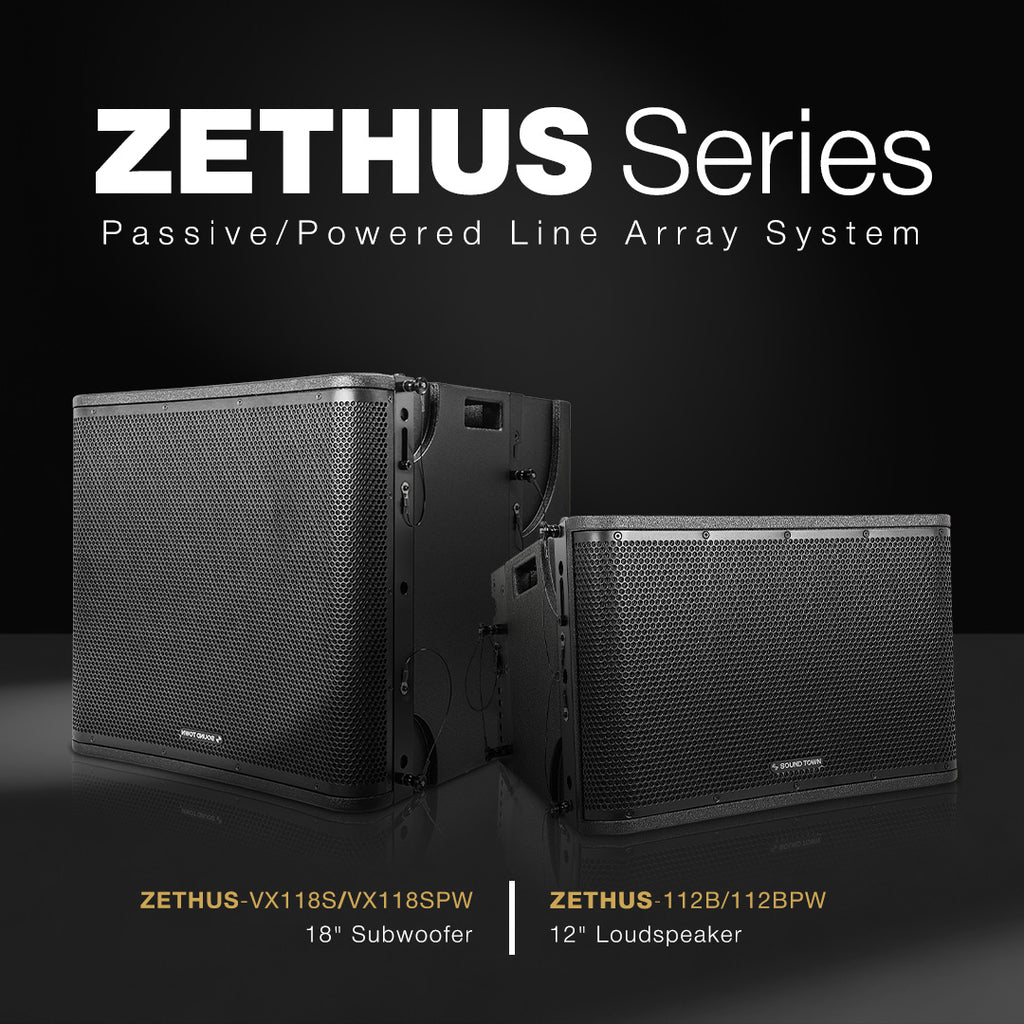

Adding the ZETHUS-VX118S line array subwoofer and a mounting bracket (both available separately) with the ZETHUS-112B array speaker, allows for 3 separate mounting options: standing, stacking, and suspension and compliments the ZETHUS-112B line array speakers with a powerful bass, providing a more immersive sound performance.
- STELLAR SOUND AND MASSIVE POWER: Experience powerful and high-quality sound from a lightweight and compact line array speaker (ZETHUS-112B) featuring a 12" woofer and two 1.4" titanium compression drivers, delivering an impressive 400W RMS and 800W program (8Ω) power handling capability. The speaker offers the flexibility of full-range or passive bi-amp mode, allowing for quick connections or for simple to more professional setups.
- EASY INTEGRATION: Enjoy seamless integration with multiple flying points and the option to add the ZETHUS-112FF flying frame (sold separately) to fly up to 12 speakers, providing a wide range of suspension options to suit your needs.
- STURDY CONSTRUCTION: Built to last, this line array speaker is housed in a sturdy plywood enclosure and features a heavy-duty metal grille, ensuring durability and protection.
- VERSATILE APPLICATIONS: With its constant curvature array design and 120 x 15 degree (H x V) coverage angle, along with an array configuration HF level selector, this speaker is ideal for various small to medium-sized venues such as stages, lounges, clubs, bars, restaurants, churches, and schools.
-
FLEXIBLE MOUNTING OPTIONS: Combining the ZETHUS-112B line array speakers with a ZETHUS-VX118S subwoofer and mounting bracket (subwoofer and brackets sold separately), allows for three mounting options: standing, stacking, and suspension. The ZETHUS-112B line array speaker combined with the ZETHUS-VX118S line array subwoofer delivers an immersive sound performance and delivers a powerful earth-shaking bass, even at high volumes.
Specifications
Model | ZETHUS-112B |
Active / Passive | Passive |
Frequency Range | 40 Hz - 20 kHz |
Frequency Response | 45 Hz - 20 kHz |
Sensitivity | 102 dB |
SPL Max | 130 dB |
Dispersion | 120º x 15º (H x V) |
Configuration | 12" passive full-range line array |
Transducer | LF: 1 x 12" woofer, HF: 2 x 1.4" titanium compression driver |
Voice Coil | 3" |
Magnet | 70 oz |
Impedance | Full-range: 8Ω Bi-amp: LF: 8Ω, HF: 16Ω |
Power Handling | 400W RMS / 800W Program / 1600W Peak |
Connectors | 2 x 4-pin Speakon |
Cabinet Construction | High-grade 100% birch plywood |
Flying/Mounting Frame Model# | ZETHUS-112FF, integrated line array hardware |
Finish | Texture coating |
Grill & Rigging Component | Steel with anti-corrosion coat |
Amplifier | -- |
Input | 4 Pin SPEAKON |
Output | 4 Pin SPEAKON |
Control | -- |
Indicator | -- |
Voltage | -- |
High Frequency Driver Parts# | -- |
Low Frequency Woofer Parts# | TVSPRO-12 |
Dimension & Weight
Product Width (in.) | 22.4" | Package Width (in.) | 27.4" |
Product Height (in.) | 14.2" | Package Height (in.) | 19.5" |
Product Depth (in.) | 16.5" | Package Depth (in.) | 21.1" |
Product Weight (lb.) | 52.9 lbs | Package Weight (lb.) | 62.0 lbs |
Warranty/Certifications
Manufacturer Warranty | 1 Year |
