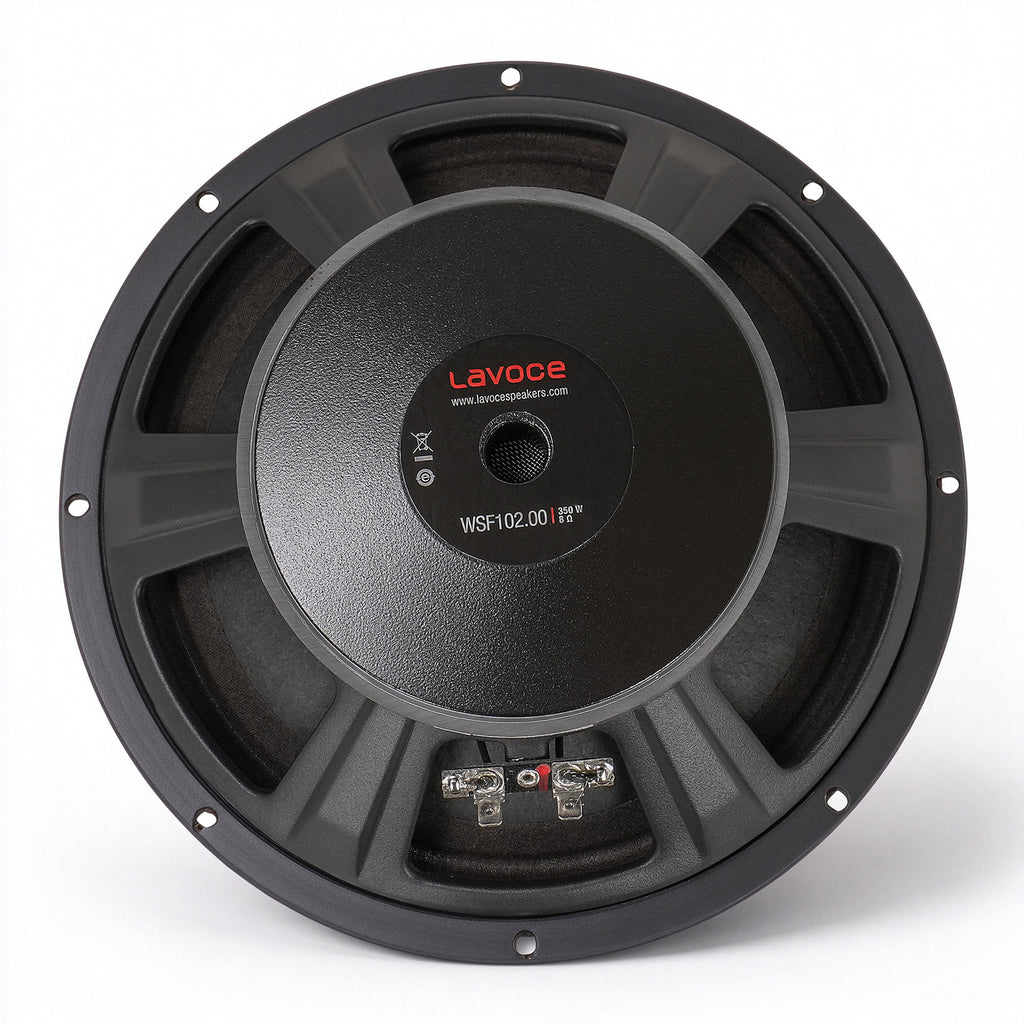

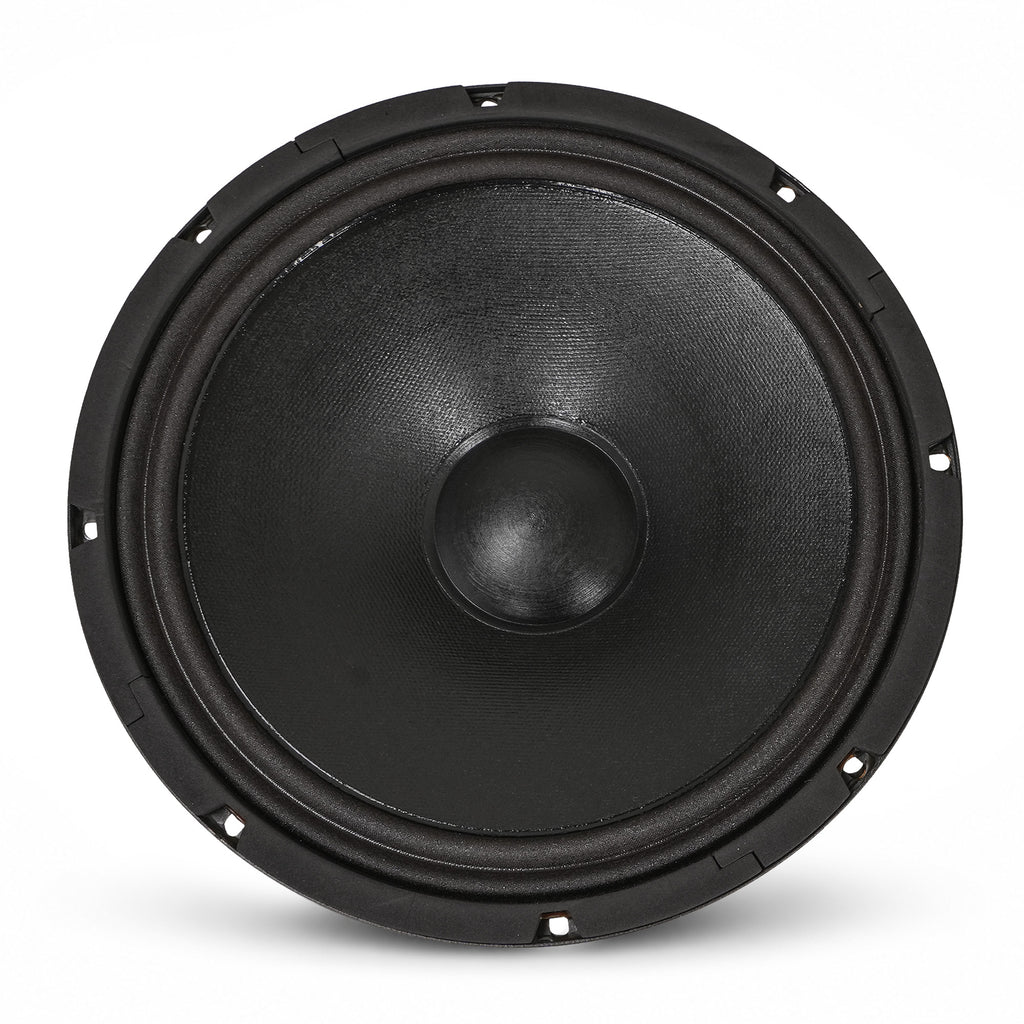

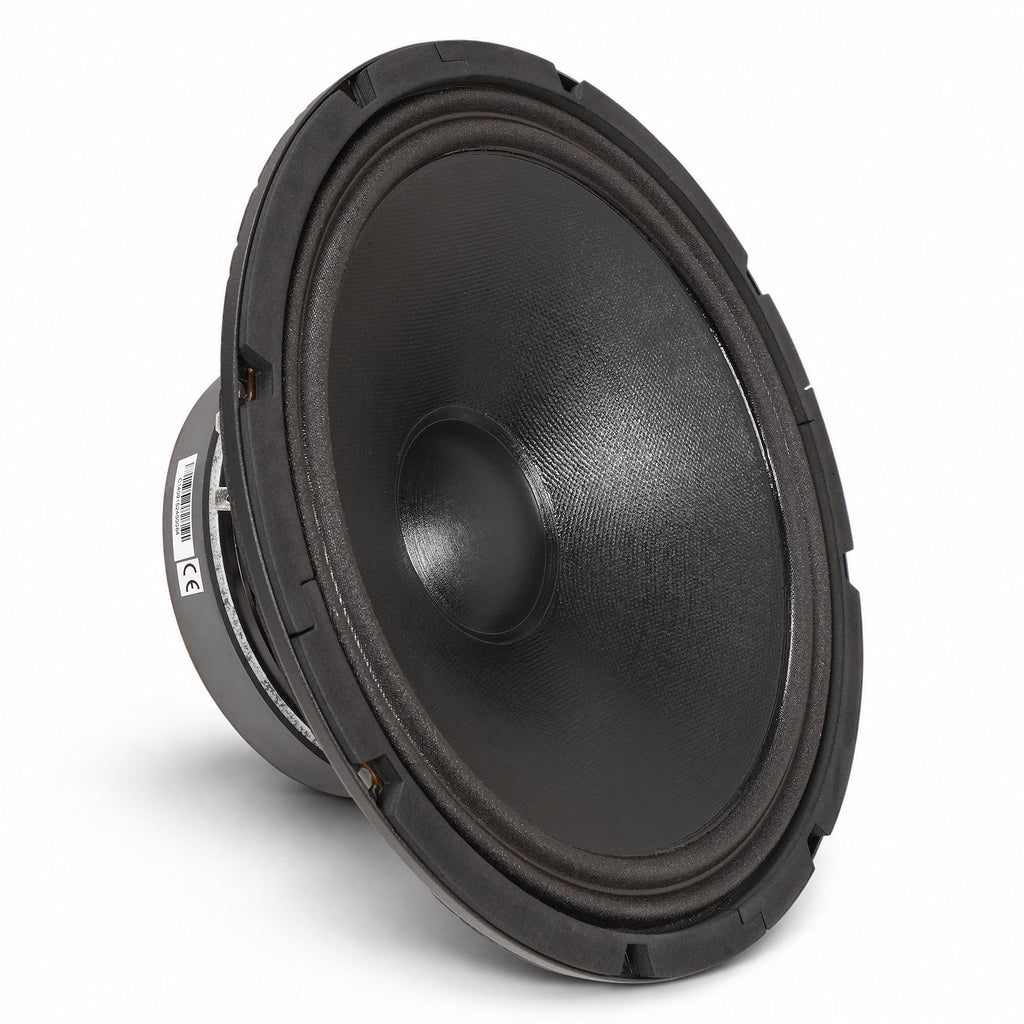

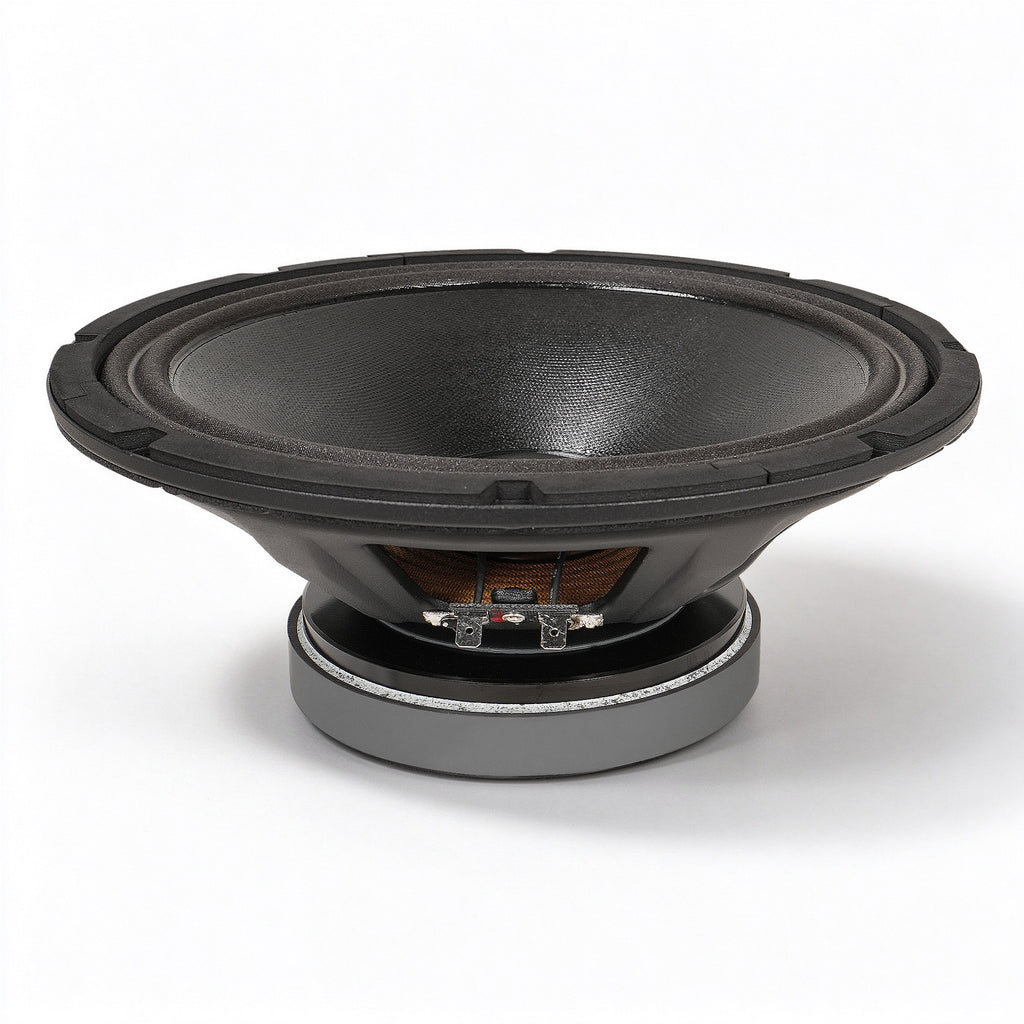

WSF102.00 | Original Lavoce 10" Woofer with Ferrite Magnet, Waterproof Cone and Steel Frame, 175W at 8Ω for PA/DJ Speakers
Sound Town
English
简体中文
Русский языкEnglishThe LAVOCE WSF102.00 is a 10" mid-bass woofer designed for high-performance professional systems. Boasting Italian acoustic design, it handles 175W AES / 350W program power at 8Ω, delivering consistent output in high-SPL applications. It features a ferrite magnet and a 2" high-temperature CCAW voice coil for efficient performance and stable operation under load.
With a frequency response of 60 Hz - 4 kHz, the WSF102.00 produces punchy and controlled mid-bass output suited for professional sound reinforcement systems. It features a waterproof cone design for improved resistance in exposed environments, paired with a heavy-duty, resonance-free steel basket for structural stability. This premium woofer is built for professional PA applications where output, durability, and consistency are essential.
Specifications
| Model | WSF102.00 |
| Nominal Impedance | 8Ω |
| Minimum Impedance | 5.9Ω |
| Program Power | 350W |
| AES Power Rating | 175W |
| Sensitivity | 97 dB |
| Frequency Range | 60-4000 Hz |
| Voice Coil Diameter | 51 mm (2 in) |
| Chassis Material | Steel |
| Magnet Material | Ferrite |
| Magnet Dimensions OD x ID x H |
140 x 60 x 17 mm (5.51 x 2.36 x 0.67 in) |
| Coil Material | CCAW |
| Former Material | Glass Fiber |
| Cone Material | Water Proof Treated Paper + Water Proof Front Side Treatment |
| Surround Material | POLYCOTTON |
| Xmax | 5.2 mm (0.2 in) |
| Xmech | 9.4 mm (0.37 in) |
| Gap Height | 8.2 mm (0.32 in) |
| Voice Coil Winding Height | 14.6 mm (0.57 in) |
| Driver Displacement Volume | 1.2 l (0.042 ft³) |
| Recommended Enclosure | 25.7 l (0.908 ft³) |
| Recommended Tuning | 70 Hz |
Dimension & Weight
| Product Width (in.) | Ø 10.14” | Package Width (in.) | 12” |
| Product Height (in.) | 10.14” | Package Height (in.) | 12“ |
| Product Depth (in.) | 4.3” | Package Depth (in.) | 5.9” |
| Product Weight (lb.) | 7.5 lbs | Package Weight (lb.) | 9.2 lbs |
Warranty/Certifications
| Manufacturer Warranty | 1 Year |
