TITAN-5B | IP55 Certified 2-Way 70V/100V 5" Coaxial Weather-Resistant Surface-Mount Installation Loudspeaker w/ U Bracket, Black




- DESCRIPTION
- FEATURES
- SPECIFICATIONS
- REVIEWS
The Sound Town TITAN-5B is a two-way 5" water-resistant full-range loudspeaker designed for both indoor and outdoor public address applications. With its advanced coaxial 5" low-frequency and 1" compression drivers, this speaker delivers exceptional sound performance with near-perfect phase response and minimal distortion. Its weather-resistant, compact polyethylene board enclosure with a sleek matte finish ensures durability without compromising on quality. For quick and hassle-free installations, the package includes a corrosion-resistant U-shaped bracket.
Perfect for outdoor installations and high-humidity environments, the TITAN-5B features a hydrophobically treated aluminum grille with an anti-corrosion design, moisture-sealed crossover, and waterproof connectors. This ensures long-lasting performance and reliability, even in challenging conditions.

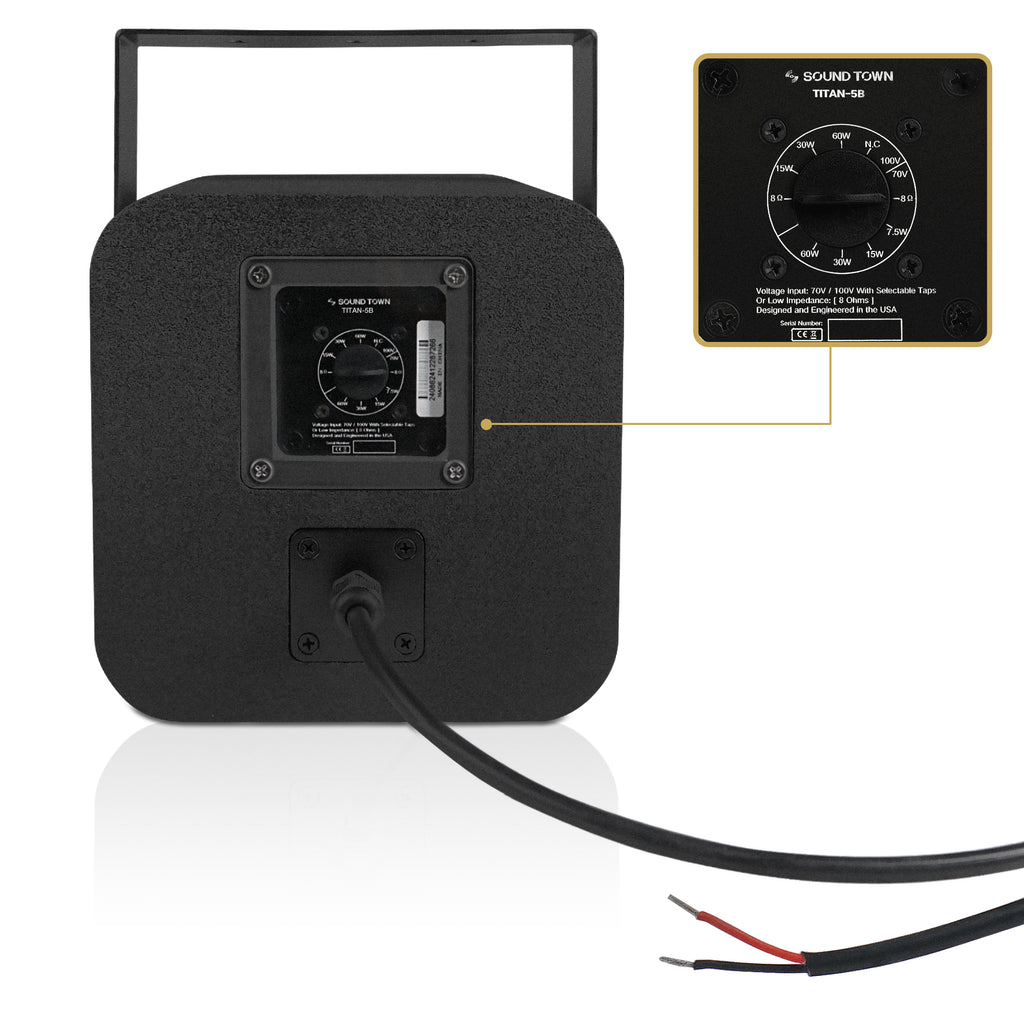

With a 70V/100V transformer, the TITAN-5B offers flexibility, allowing you to choose from 7.5W (70V only), 15W, 30W, or 60W using either 70V or 100V lines. It also supports an 8-ohm bypass for low impedance lines.
With its wide range of applications, the TITAN-5B is perfect for enhancing the sound experience in bars, restaurants, patios, hospitality venues, theme parks, and more. Upgrade your audio setup with the Sound Town TITAN-5B loudspeaker and enjoy high-performance sound, durability, and versatility in any environment!
- Experience outstanding sound performance with our coaxial 5" low-frequency and 1" compression drivers, delivering precise phase response and minimal distortion.
- TITAN-5B weather-resistant speaker features a compact, water-resistant polyethylene board enclosure, engineered for both outdoor and indoor applications without compromising performance.
- Enjoy durability in any environment with a hydrophobically treated aluminum grille, anti-corrosion design, moisture-sealed crossover, and waterproof connectors (IP55 rating).
- With a 70V/100V transformer, the TITAN-5B offers a selection of 7.5W (70V only), 15W, 30W, or 60W power options using either 70V or 100V lines. It supports both 70V or 100V lines and also has an 8-ohm bypass option for low impedance lines.
- Quick and reliable installations are made easy with the included corrosion-resistant U-shaped bracket. Perfect for a wide range of indoor and outdoor applications, such as bars, restaurants, patios, and theme parks.
Specifications
Model | TITAN-5B (black), TITAN-5G (grey) |
Active / Passive | Passive |
Frequency Range | 95 Hz - 18 kHz |
Frequency Response | 95 Hz - 18 kHz |
Sensitivity | 95 dB |
SPL Max | 123 dB |
Dispersion | 120° conical |
Configuration | 5" full-range coaxial loudspeaker |
Transducer | LF: 1 x 5", HF: 1" compression driver (coaxial) |
Voice Coil | -- |
Magnet | -- |
Impedance | 8Ω nominal |
Power Handling | 100W RMS / 200W Program |
70V | 60W / 30W / 15W / 7.5W |
100V | 60W / 30W / 15W |
Enclosure Material | Water-resistant polyvinyl board |
Mounting Hardware | U bracket |
Finish | Texture coating |
Grill & Rigging Component | Steel with anti-corrosion coat |
Amplifier | -- |
Input | Waterproof 4-pin terminal strip connector |
Output | Waterproof 4-pin terminal strip connector |
Signal Processing | -- |
Control | -- |
Indicator | -- |
Voltage | 100V-240V (50-60 Hz) |
Crossover Parts# | -- |
High Frequency Driver Parts# | -- |
Low Frequency Woofer Parts# | -- |
Dimension & Weight
Product Width (in.) | 7.4" | Package Width (in.) | 11.0" |
Product Height (in.) | 7.4" | Package Height (in.) | 10.8" |
Product Depth (in.) | 8.0" | Package Depth (in.) | 10.4" |
Product Weight (lb.) | 12.5 lbs | Package Weight (lb.) | 14.5 lbs |
Warranty/Certifications
Manufacturer Warranty | 1 Year |
