STLF-630-R | REFURBISHED: 6" Raw Woofer Speaker, 80 Watts Pro Audio PA DJ Replacement Low Frequency Driver
Sound Town
- DESCRIPTION
- FEATURES
- SPECIFICATIONS
- DOWNLOAD
- REVIEWS
Refurbished Condition: 100% testing and function is in good condition while outside box worn out and small cosmetic dents. cosmetic damages will vary, including but not limited to, damaged or cracked, bent ears, scratches, dents, etc.

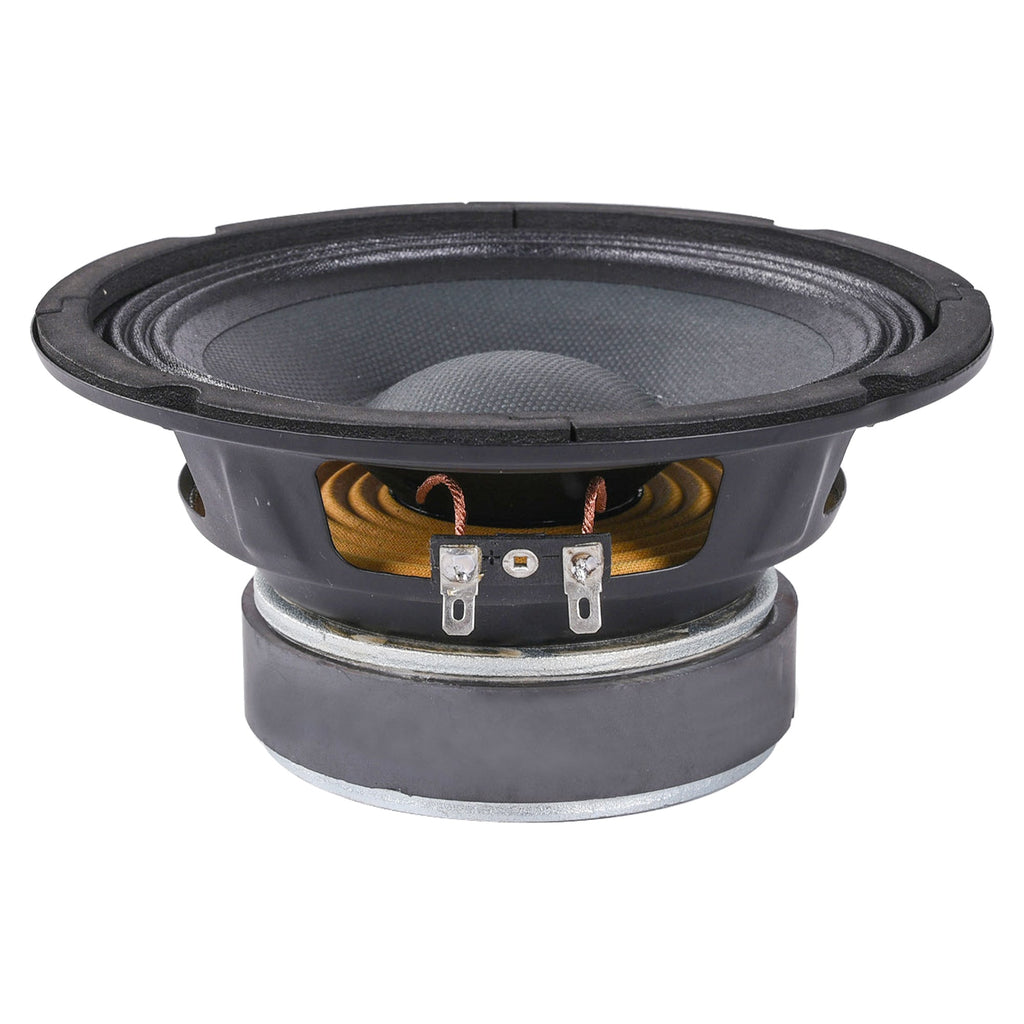

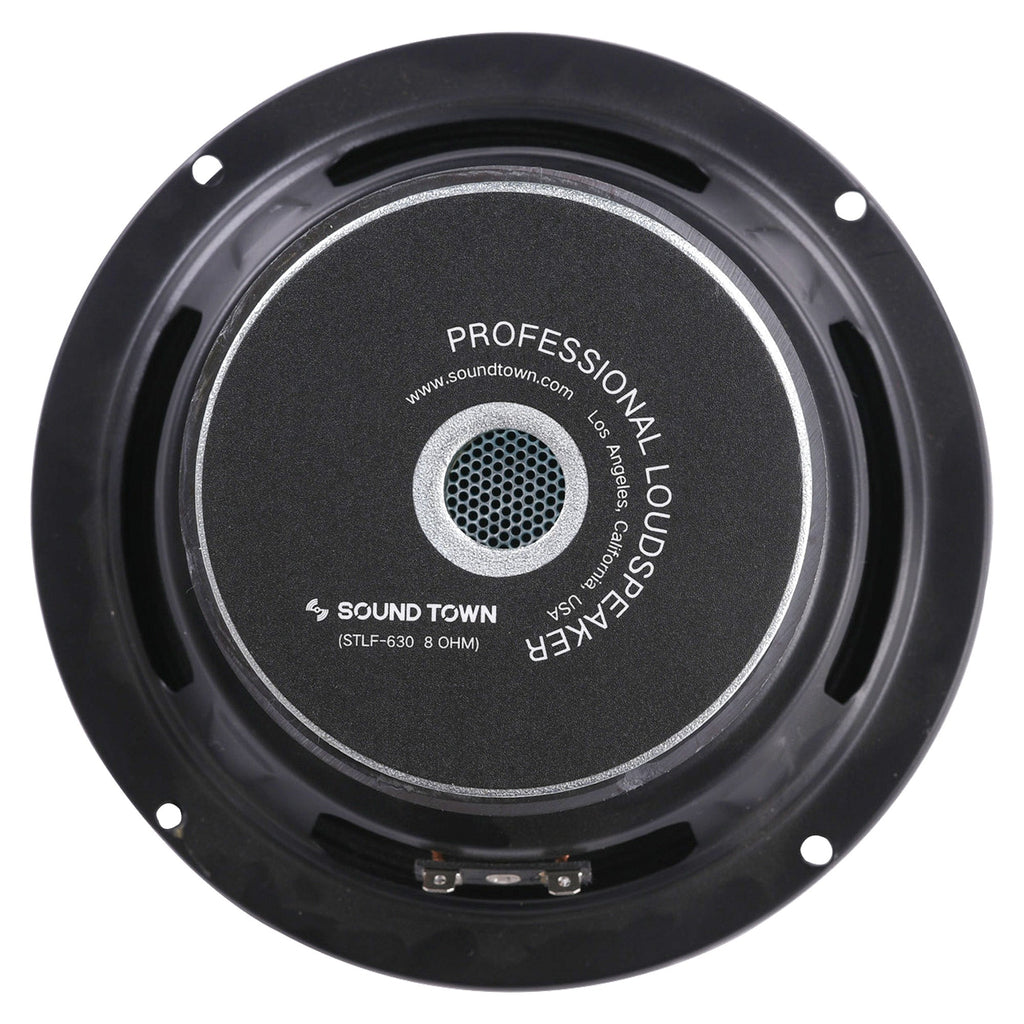

The Sound Town STLF-630 is a 6.5” universal replacement driver for PA/DJ woofers. It is compatible with Sound Town PA speakers and compatible with other brand speakers with a 6.5" woofer. The driver comes with 8-ohm impedance and has a frequency range of 70-5K Hz with a sensitivity of 90dB. It has a built-in pressed steel chassis and has a paper cone with cloth edge. With 80W RMS power handling capability, the STLF-630 delivers superb sound and makes a great replacement woofer for your PA/DJ cabinet.
- 6.5” Pressed Steel Frame
- 1.5” Voice Coil and 30-oz Magnet Produces Superb Sound
- 80W RMS Power Handling Capability
Details
| Model | STLF-630 | Resonance | 100 Hz |
| Nominal Basket Diameter | 6" | Usable Frequency Range | 100 Hz-4 KHz |

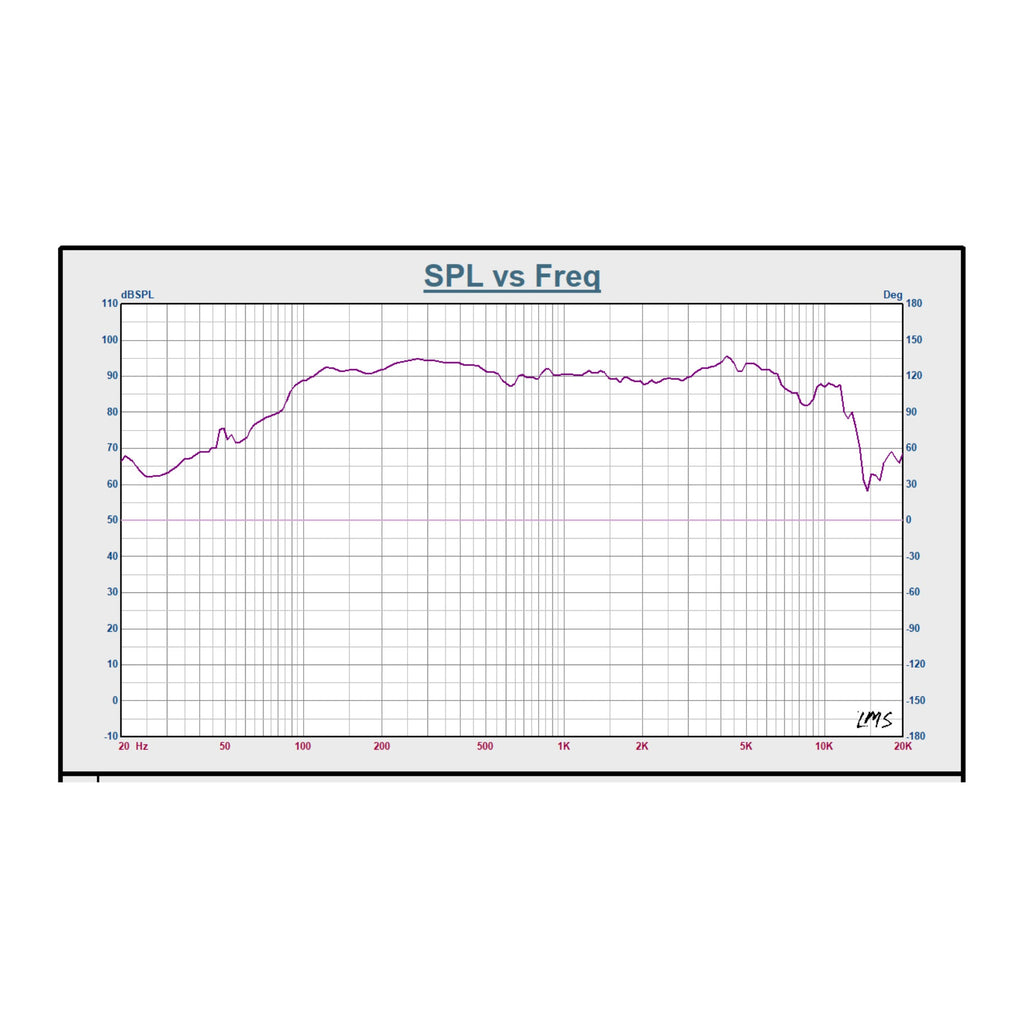

| Nominal Impedance* | 8Ω | Sensitivity* | 89±3 dB |
|
RMS Power |
80W | Magnet Weight | 30 OZ |
| Peak Power | 160W | Voice Coil Diameter | 1.5" |

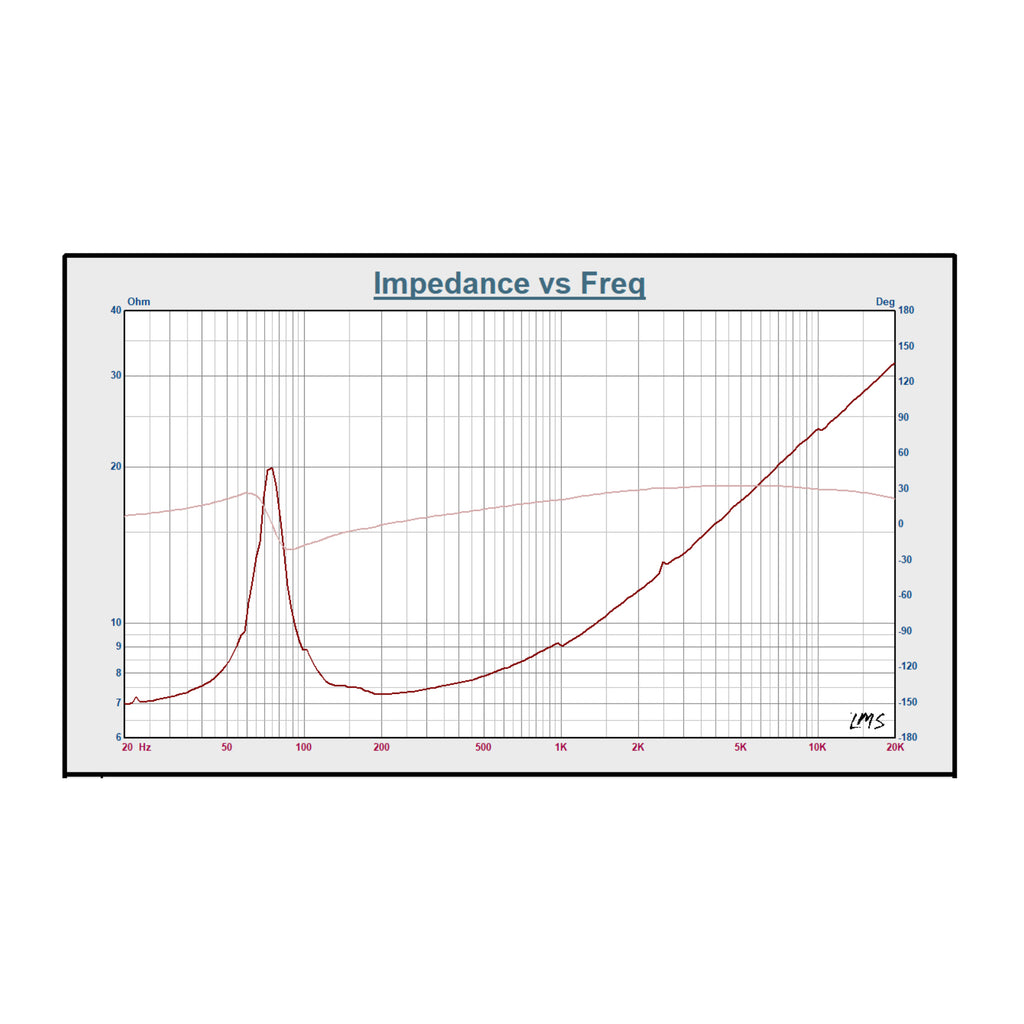

Thiele & Small Parameters
| Resonant Frequency (fs) | 100 Hz | Compliance Equivalent Volume (Vas) | 4.56Ltr |
| DC Resistance (Re) | 6.4Ω | Mechanical Compliance of Suspension (Cms) | 161.4 mm/N |
| Mechanical Q (Qms) | 3.36 | BL Product (BL) | 6.11 T-M |
| Electromagnetic Q (Qes) | 1.5 | Diaphragm Mass Inc. Airload (MMs) | 13.0 g |
| Total Q (Qts) | 1.055 | Surface Area of Cone (Sd) | 141 cm2 |

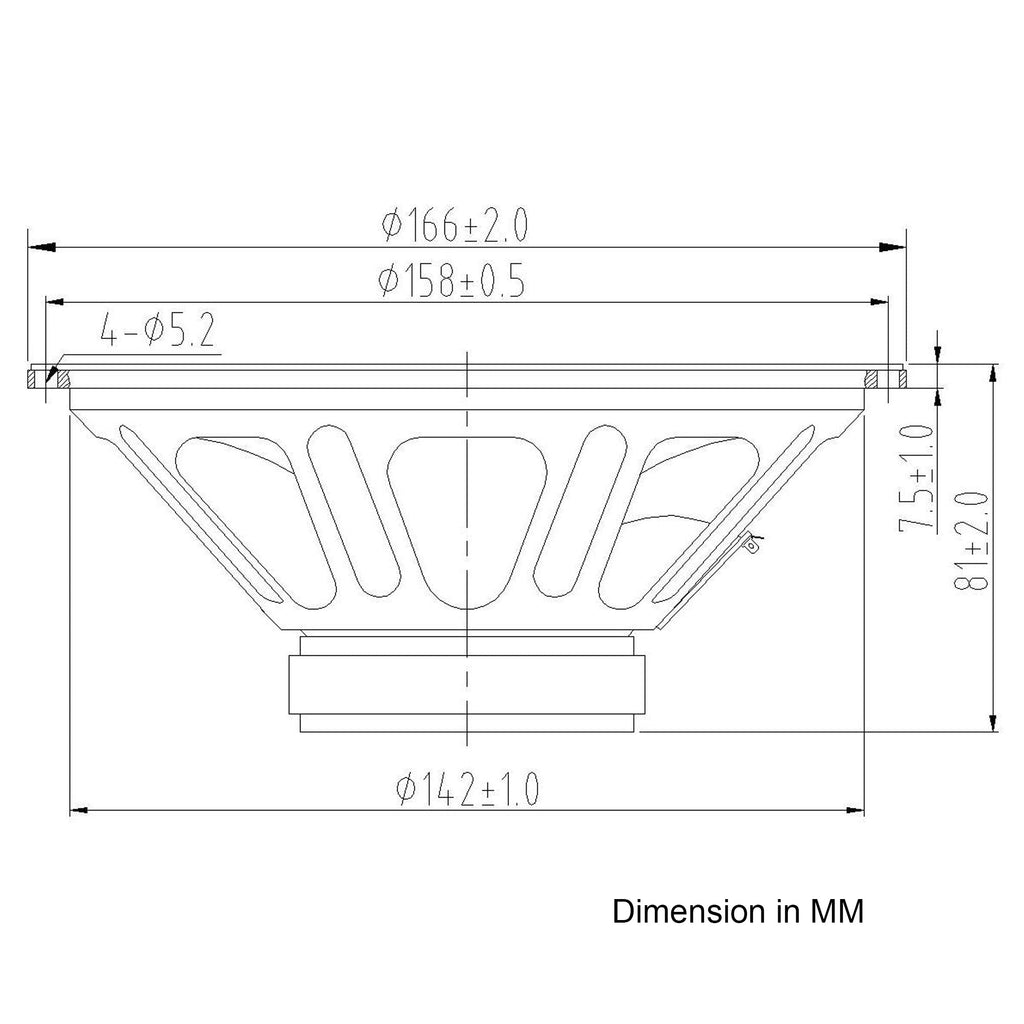

Mounting Information
| Overall Diameter | 6.6", 166 mm | Mounting Holes Diameter | 4-0.2", 4-5.2 mm |
| Depth | 3.2", 81 mm | Net Weight | 3.2 lbs, 1.45 kg |
| Baffle Hole Diameter | 5.6",142 mm | Shipping Weight | 31 lbs, 14.1 kg (8Pcs) |
| Installation Position Diameter | 6.2", 158 mm |
Materials of Construction
| Coil Construction | Round copper | Cone Composition | Paper cone |
| Coil Former | Aluminum | Cone Edge Composition | Cloth edge |
| Magnet Composition | Ferrite | Dust Cap Composition | Paper cap |
| Basket Materials | Pressed steel |
Dimension & Weight
| Product Width (in.) | ∅6.6" | Package Width (in.) | 8.2" |
| Product Height (in.) | --" | Package Height (in.) | 5.9" |
| Product Depth (in.) | 2.9" | Package Depth (in.) | 8.2" |
| Product Weight (lb.) | 3.2 lbs | Package Weight (lb.) | 3.3 lbs |
Warranty/Certifications
| Manufacturer Warranty | 180 Days (6 Months) |
