$194.99 $279.99

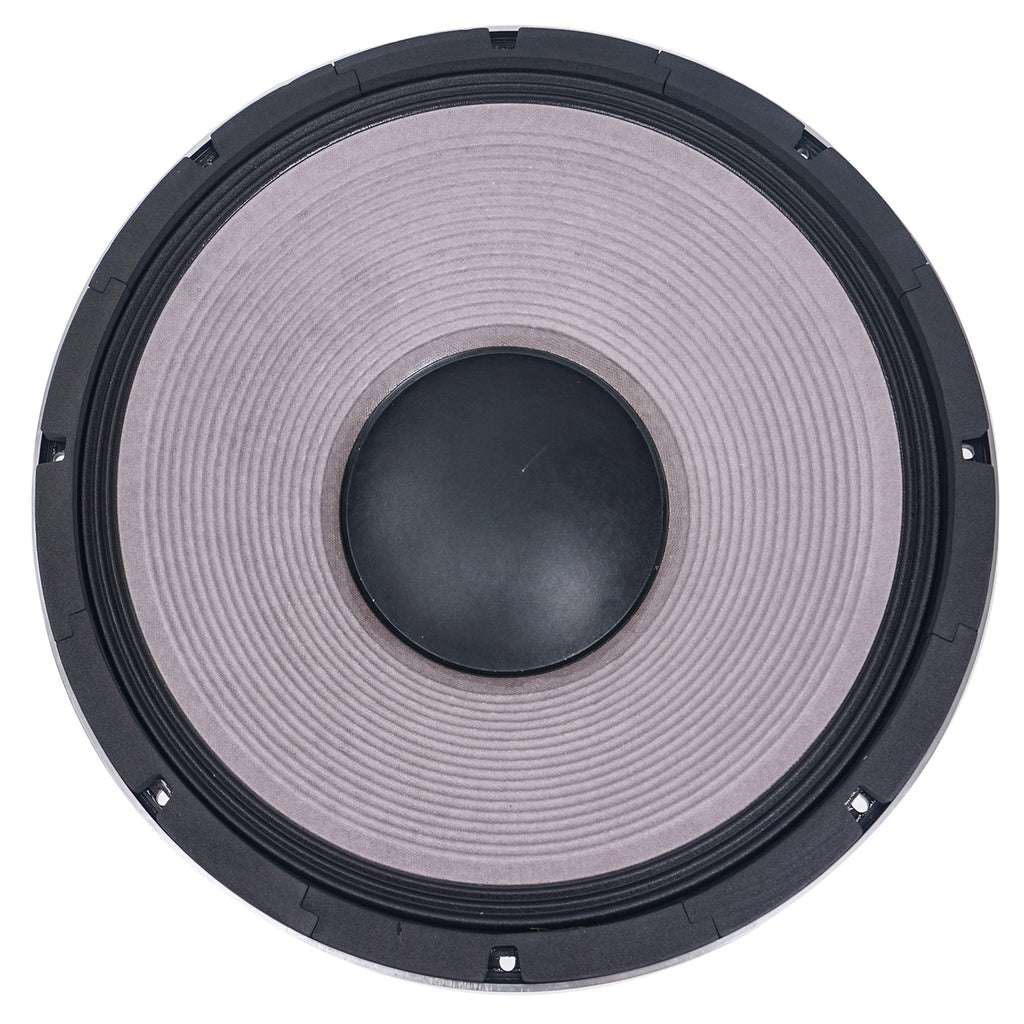

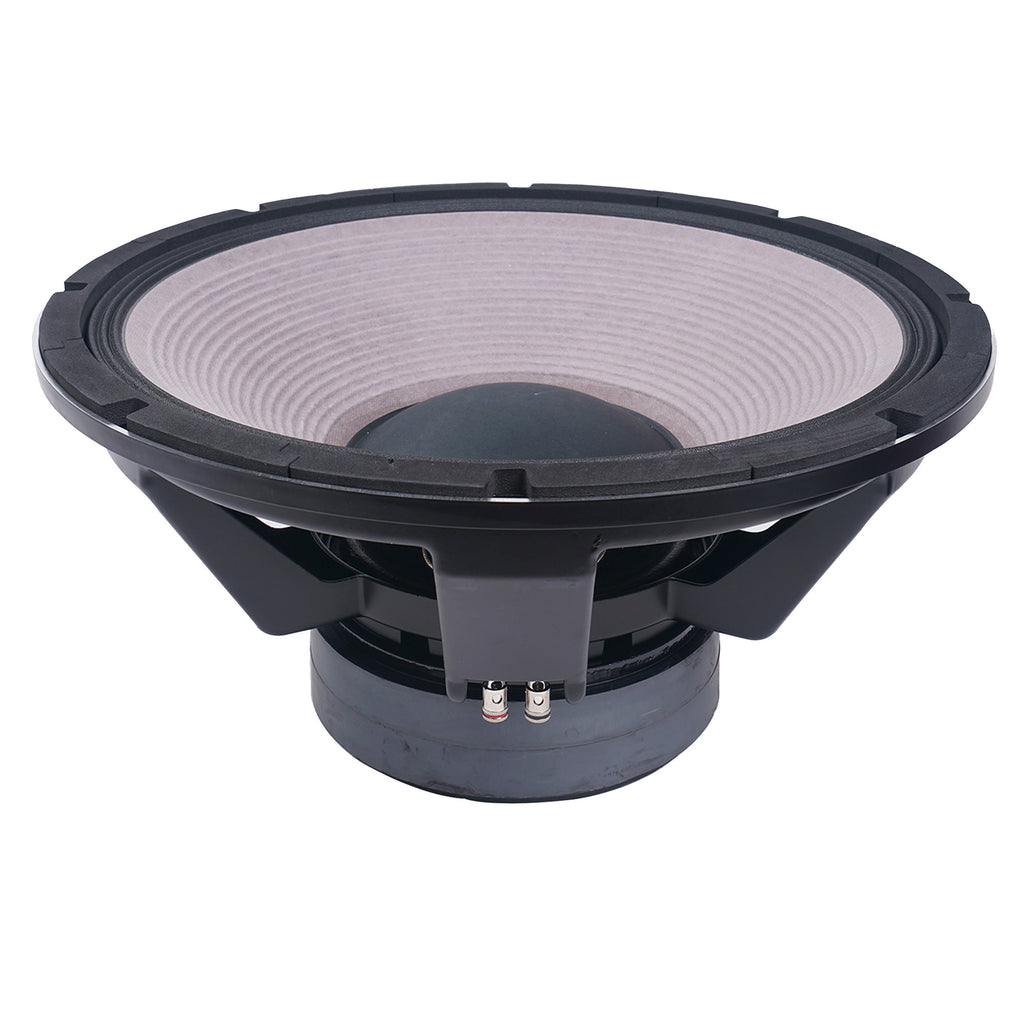

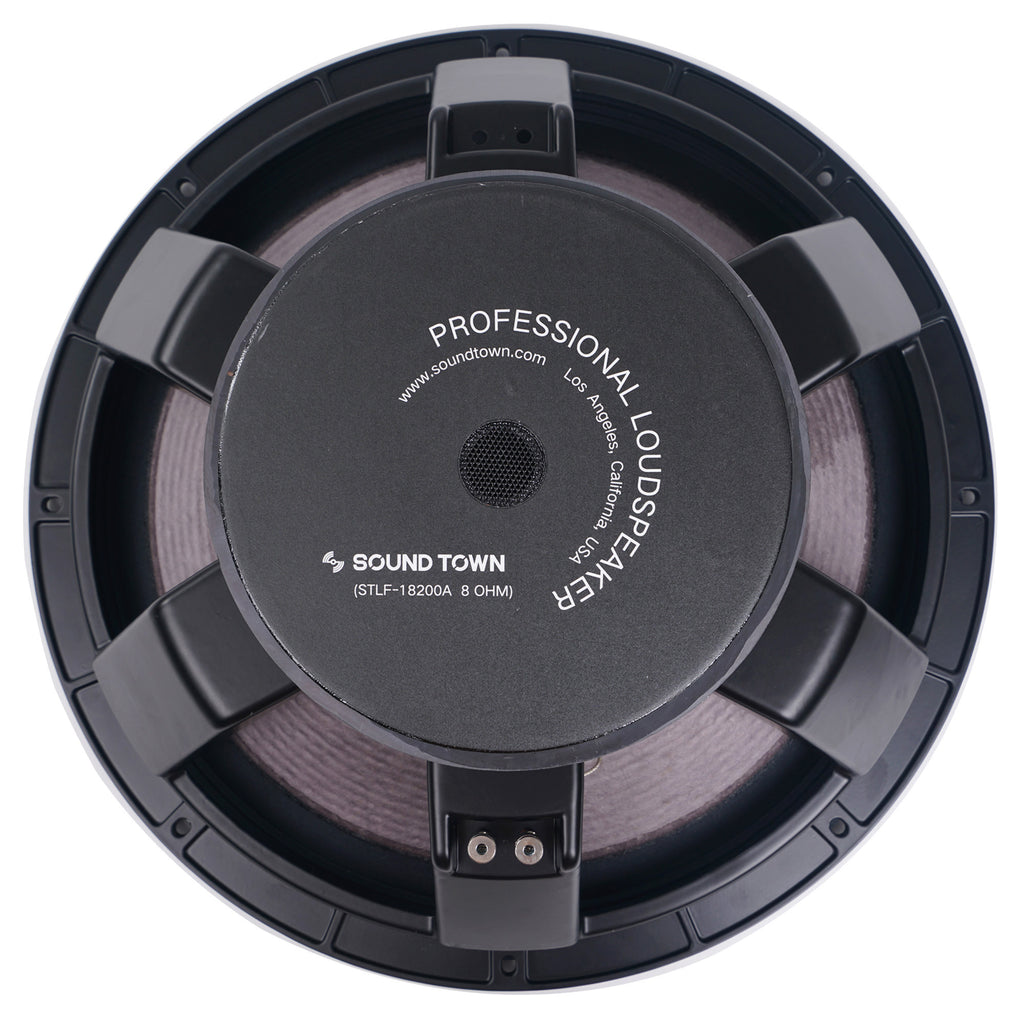

The Sound Town STLF-18200A is an 18” universal replacement driver for PA/DJ woofers. It is compatible with Sound Town PA speakers (subwoofer) and compatible with other brand speakers with an 18” subwoofer. The subwoofer comes with an 8-ohm impedance and has a frequency range of 35-2K Hz with a sensitivity of 102dB. It has a built-in cast aluminum chassis and has a paper cone with cloth edge. With 800W RMS power handling capability, the STLF-18200A delivers a massive and deep bass and makes a great replacement woofer for your 18-inch PA speakers or subwoofer cabinets.

  • 18” cast aluminum frame
  • 4” voice coil and 2X100-oz dual magnet produce superb sound
  • 800W RMS power handling capability

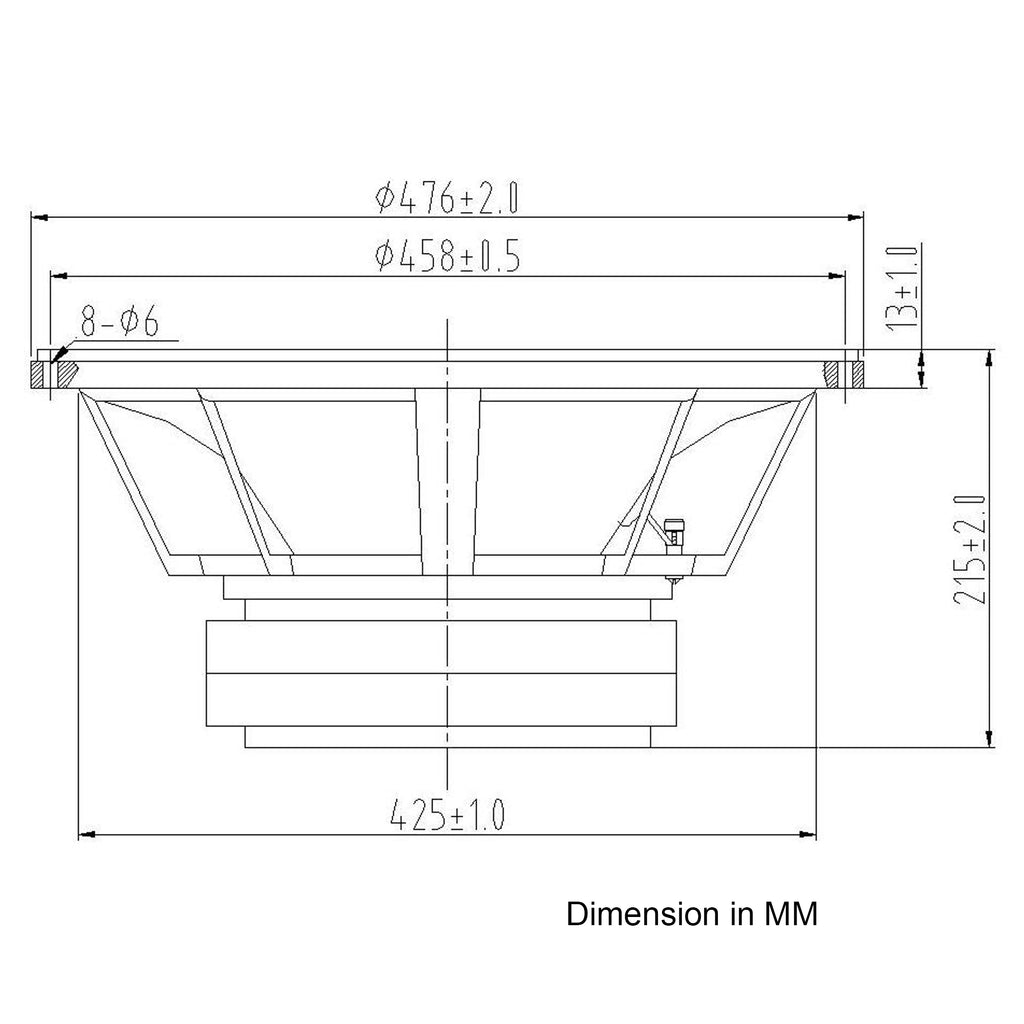

Sound Town STLF-18200A 18" Cast Aluminum Frame High-Power Raw Woofer Speaker, 800 Watts Pro Audio PA DJ Replacement Subwoofer Low Frequency Driver - Size Dimensions

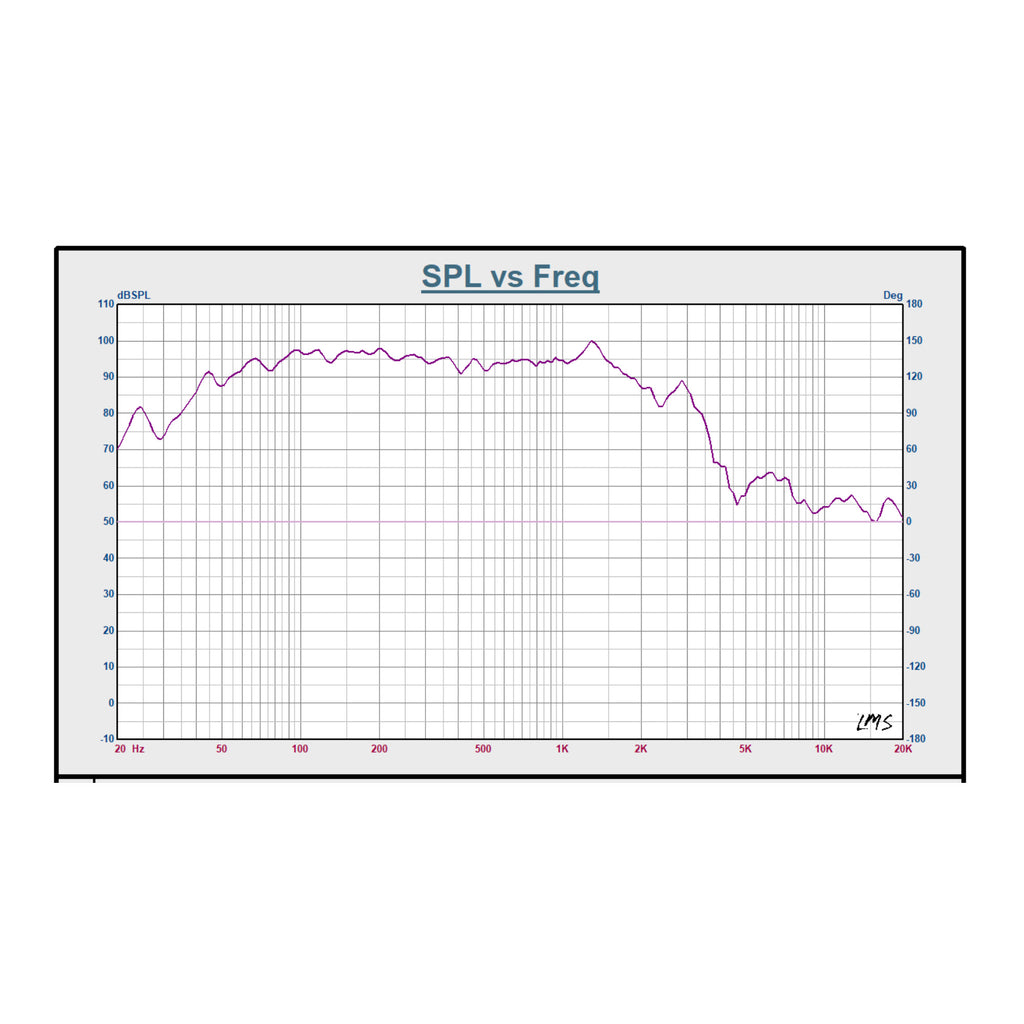

Sound Town STLF-18200A 18" Cast Aluminum Frame High-Power Raw Woofer Speaker, 800 Watts Pro Audio PA DJ Replacement Subwoofer Low Frequency Driver - SPL vs. Frequency Graph

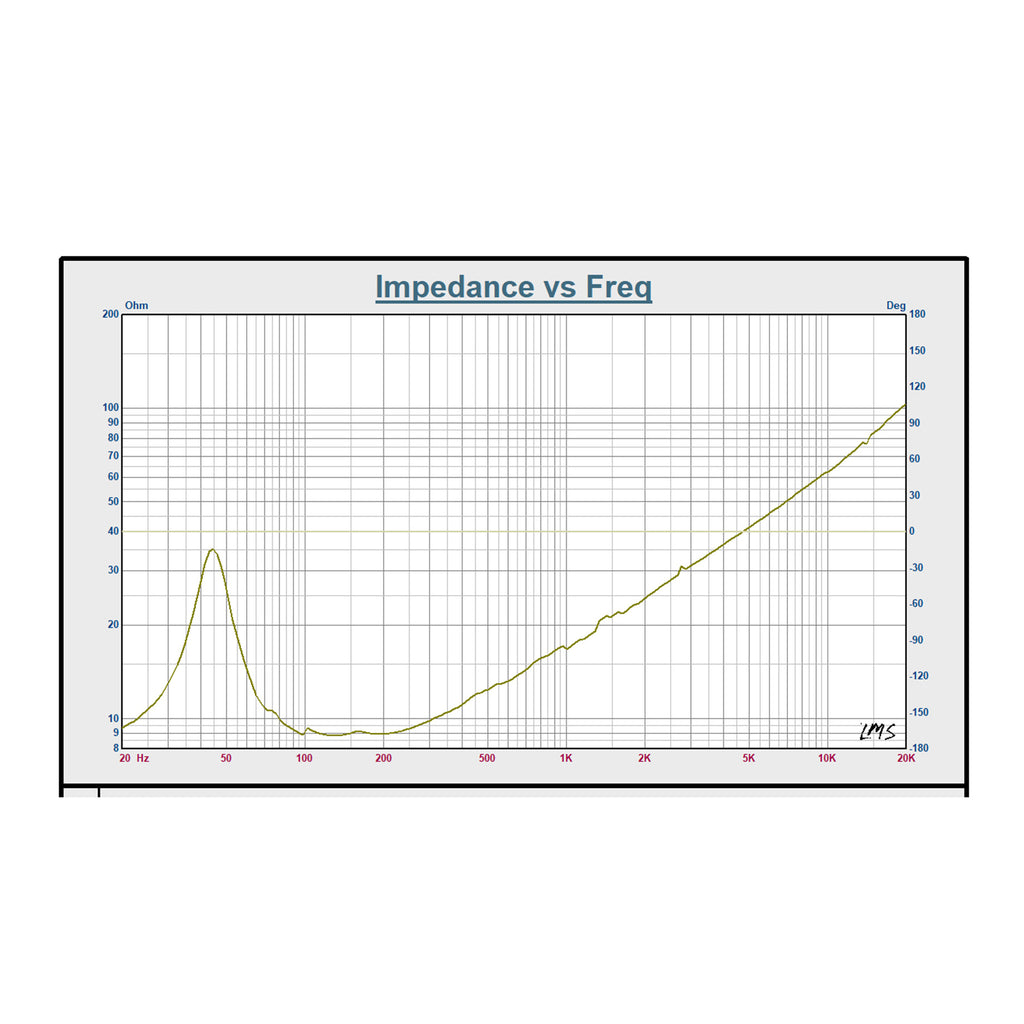

Sound Town STLF-18200A 18" Cast Aluminum Frame High-Power Raw Woofer Speaker, 800 Watts Pro Audio PA DJ Replacement Subwoofer Low Frequency Driver - Impedance vs. Freq Graph

Details

Model STLF-18200A Resonance 35Hz
Nominal Basket Diameter 18" Frequency Response
35Hz-2KHz
Nominal Impedance Sensitivity 98±3dB
Power Rating
800W RMS Magnet Weight 200 OZ
Peak Power 1600W Peak Voice Coil Diameter 4.0" VC


Thiele & Small Parameters

Resonant Frequency (fs) 35Hz Compliance Equivalent Volume (Vas) 157.66 Ltr
DC Resistance (Re) 7.7Ω Mechanical Compliance of Suspension (Cms) 63.0 mm/N
Mechanical Q (Qms) 2.293 BL Product (BL) 21.2 Tm
Electromagnetic Q (Qes) 1.108 Diaphragm Mass Inc. Airload (MMs) 173.5 g
Total Q (Qts) 0.747 Surface Area of Cone (Sd) 1327 cm2


Mounting Information

Overall Diameter 18.7", 476 mm Mounting Holes Diameter 8-0.24", 8-6 mm
Depth 8.46", 215 mm Net Weight 35.4 lbs, 16.1 kg
Baffle Hole Diameter 13.6", 345.5 mm Shipping Weight 38.7 lbs, 17.6 kg
Installation Position Diameter 18.0", 458 mm


Materials of Construction

Coil Construction Round Copper Cone Composition Paper Cone
Coil Former Aluminum Cone Edge Composition Cloth Edge
Magnet Composition Ferrite Dust Cap Composition Paper Cap
Basket Materials Die Cast Aluminum


Dimension & Weight

Product Width (in.) ∅18.7" Package Width (in.) 20.9"
Product Height (in.) --" Package Height (in.) 11.0"
Product Depth (in.) 8.6" Package Depth (in.) 20.9"
Product Weight (lb.) 35.4 lbs Package Weight (lb.) 38.7 lbs


Warranty/Certifications

Manufacturer Warranty 1 year
