$59.99 $69.99

Refurbished Condition: 100% testing and function is in good condition while outside box worn out and small cosmetic dents. cosmetic damages will vary, including but not limited to, damaged or cracked, bent ears, scratches, dents, etc.

The Sound Town STLF-12GA is a 12” universal replacement woofer for PA/DJ speakers and bass guitar cabinets; it is compatible with the Sound Town PA speakers and speakers of other brands which need a 12” low-frequency driver. The woofer comes with 8-ohm impedance and has a frequency range of 55 Hz - 4 kHz. It is built in a cast aluminum chassis and has a paper cone with cloth edge. With 300W RMS, 600W peak power handling capability, the STLF-12GA delivers massive and deep bass and makes a great replacement woofer for your 12-inch PA speakers or bass guitar cabinets

    • 12“ cast aluminum frame
    • 300W RMS, 600W peak power handling at 8-ohm
    • 55 Hz - 4 kHz frequency response
    • 3“ voice coil and one 50 oz magnet produce super sound
    • Available in single (STLF-12GA) or pair (STLF-12GA-PAIR)

    Sound Town STLF-12GA 12" 300W Cast Aluminum Frame Woofer w/ 3" Voice Coil, Replacement for PA/DJ Speaker, Bass Guitar Cabinets - Size, Dimensions, Mounting Information, Recommended Enclosure Volume

    Sound Town STLF-12GA 12" 300W Cast Aluminum Frame Woofer w/ 3" Voice Coil, Replacement for PA/DJ Speaker, Bass Guitar Cabinets - SPL vs. Frequency Graph

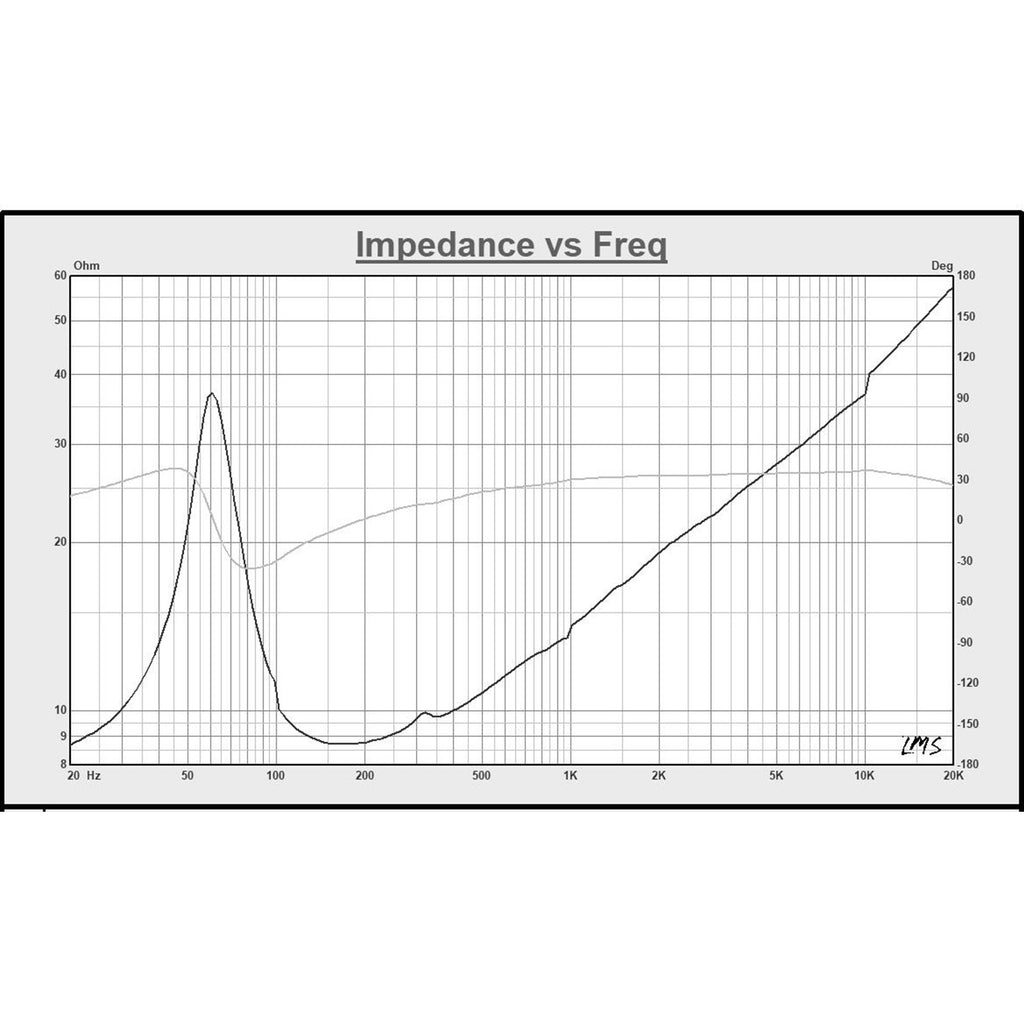

    Sound Town STLF-12GA 12" 300W Cast Aluminum Frame Woofer w/ 3" Voice Coil, Replacement for PA/DJ Speaker, Bass Guitar Cabinets - Impedance vs. Freq Graph

    Details

    Model STLF-12GA
    Resonance 55Hz
    Nominal Basket Diameter 12" Frequency Response
    55Hz - 4kHz
    Nominal Impedance Sensitivity 93±3dB
    Power Rating
    300W RMS Magnet Weight 50oz
    Peak Power 600W Peak Voice Coil Diameter 3" VC


    Thiele & Small Parameters

    Resonant Frequency (fs) 55Hz Compliance Equivalent Volume (Vas) 52.16 liters
    DC Resistance (Re) 6.3Ω Mechanical Compliance of Suspension (Cms) 0.124 mm/N
    Mechanical Q (Qms) 3.167 BL Product (BL) 13.45 Tm
    Electromagnetic Q (Qes) 0.701 Diaphragm Mass Inc. Airload (MMs) 55.65 g
    Total Q (Qts) 0.574 Surface Area of Cone (Sd) 543.2 cm2


    Mounting Information

    Efficiency Bandwidth 86 Baffle Hole Diameter 11.10", 282mm
    Sealed 96.6 liters / 3.41 cu.ft. Installation Position Diameter 11.59", 294mm
    Vented 168.2 liters / 5.94 cu.ft. Mounting Holes Diameter 8-0.276", 7mm
    Overall Diameter 12.28", 312mm Net Weight 9.46lbs, 4.3kg
    Depth 5.04", 128mm


    Materials of
    Construction

    Coil Construction Round copper Cone Composition Paper cone
    Coil Former Aluminum Cone Edge Composition Cloth edge
    Magnet Composition Ferrite Dust Cap Composition Paper cap
    Basket Materials Die Cast Aluminum


    Dimension & Weight

    Product Width (in.) ∅12.3" Package Width (in.) 14.8"
    Product Height (in.) 5.0" Package Height (in.) 6.9"
    Product Depth (in.) --" Package Depth (in.) 13.4"
    Product Weight (lb.) 9.5 lbs Package Weight (lb.) 11.8 lbs


    Warranty/Certifications

    Manufacturer Warranty 180 Days (6 Months)
