STLF-1270-R | REFURBISHED: 12" Raw Woofer Speaker, 350 Watts Pro Audio PA DJ Replacement Low Frequency Driver
Sound Town
English
简体中文
Русский языкEnglishRefurbished Condition: 100% testing and function is in good condition while outside box worn out and small cosmetic dents. cosmetic damages will vary, including but not limited to, damaged or cracked, bent ears, scratches, dents, etc.
The Sound Town STLF-1270 is a 12” universal replacement driver for PA/DJ woofers. It is compatible with Sound Town PA speakers and compatible with other brand speakers with a 12” woofer. The driver comes with 8-ohm impedance and has a frequency range of 48-3K Hz with a sensitivity of 96dB. It has a built-in pressed steel chassis and has a paper cone with cloth edge. With 350W RMS power handling capability, the STLF-1270 delivers superb sound and makes a great replacement woofer for your PA/DJ cabinet.
Replacement Woofer for:
CARPO-12DSPW
CARPO-12DSWPW
Details
| Model | STLF-1270 | Resonance | 50Hz |

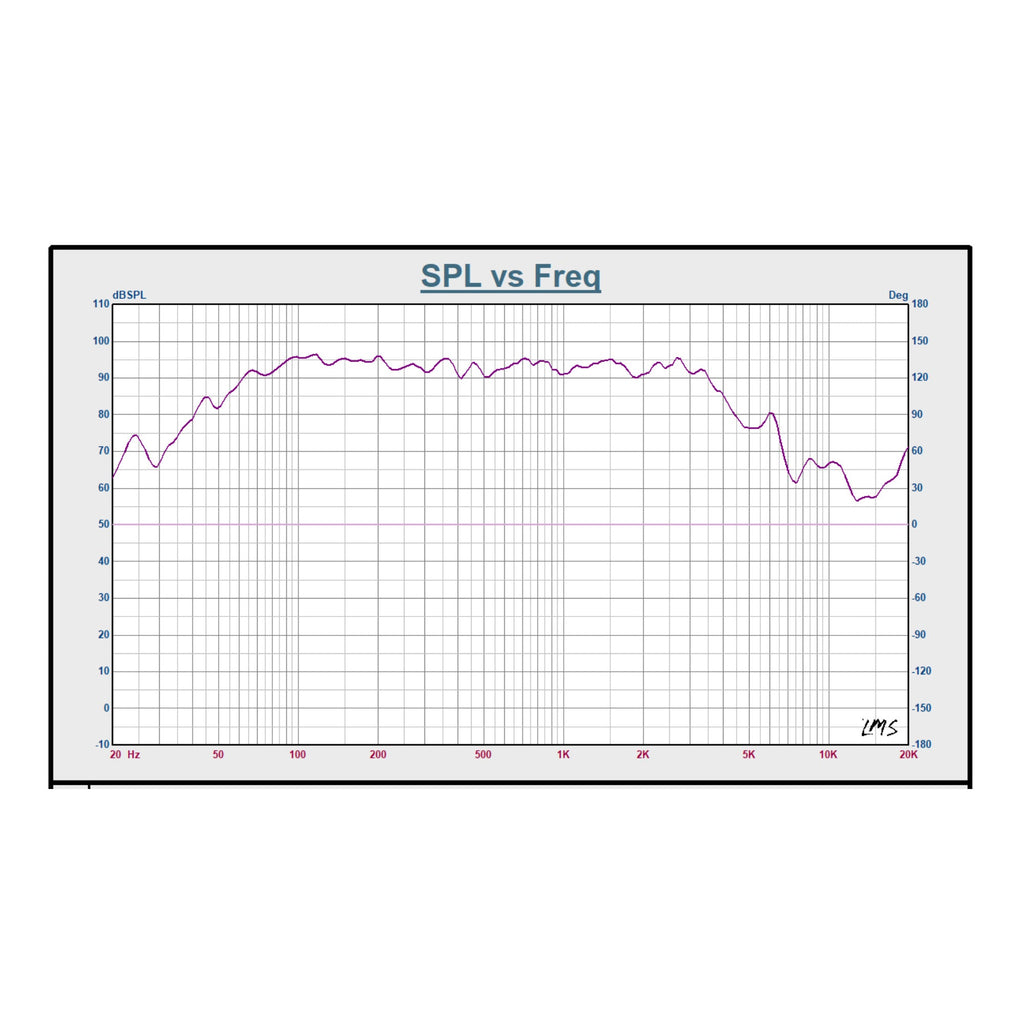

| Nominal Basket Diameter | 12" | Frequency Response |
50Hz-3KHz |

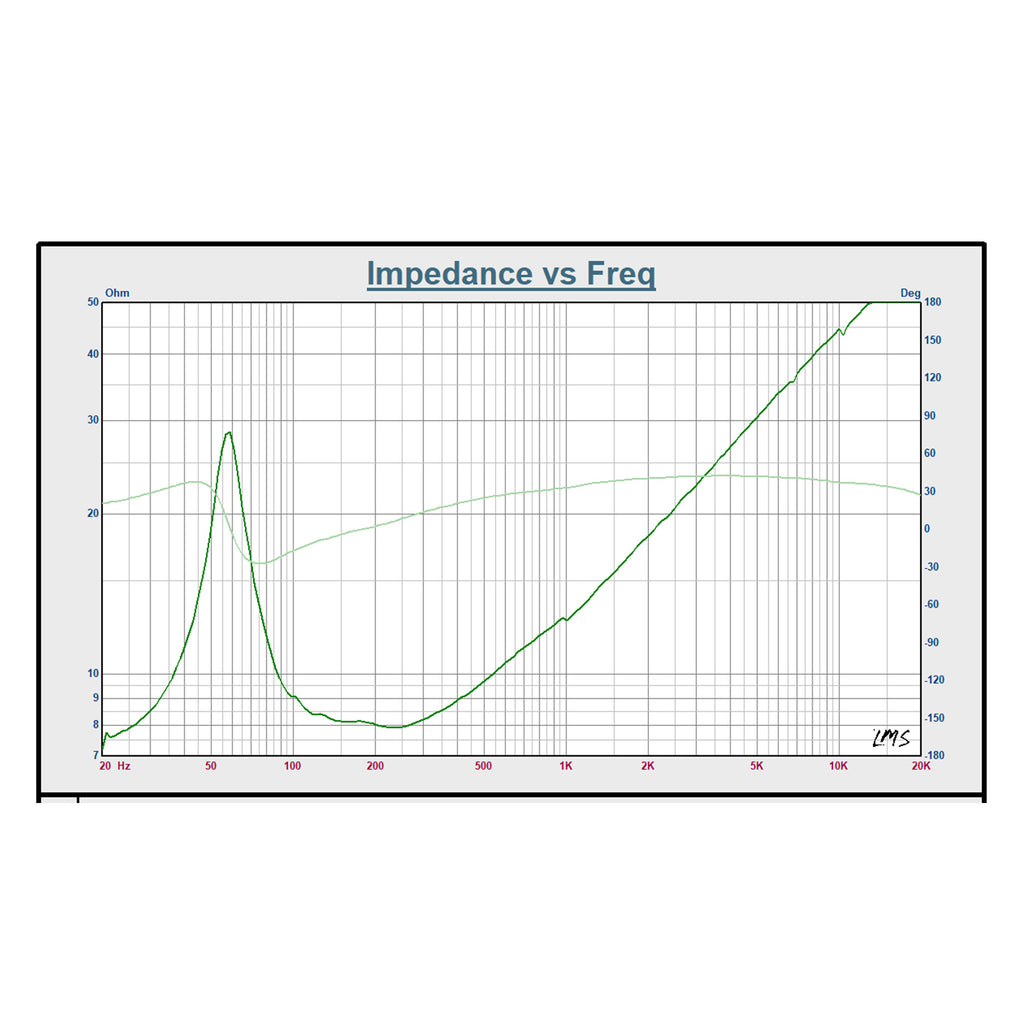

| Nominal Impedance | 8Ω | Sensitivity | 95±3dB |
| Power Rating |
350W RMS | Magnet Weight | 70 OZ |
| Program Power | 700W Program | Voice Coil Diameter | 3.0" VC |
Thiele & Small Parameters
| Resonant Frequency (fs) | 50Hz | Compliance Equivalent Volume (Vas) | 38.55 Ltr |
| DC Resistance (Re) | 6.2Ω | Mechanical Compliance of Suspension (Cms) | 0.092 mm/N |
| Mechanical Q (Qms) | 3.166 | BL Product (BL) | 12.95 Tm |
| Electromagnetic Q (Qes) | 1.087 | Diaphragm Mass Inc. Airload (MMs) | 79.45 g |
| Total Q (Qts) | 0.81 | Surface Area of Cone (Sd) | 543 cm2 |

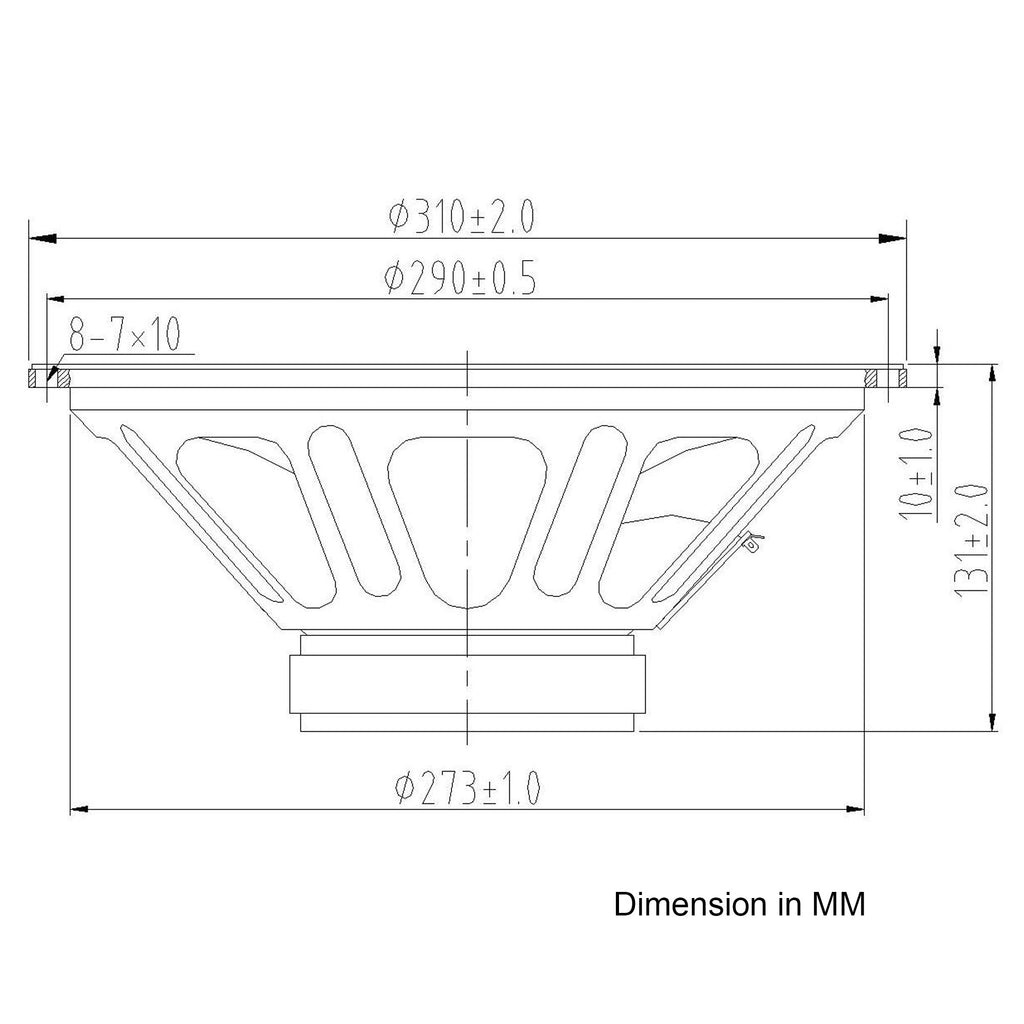

Mounting Information
| Overall Diameter | 12.2", 310 mm | Mounting Holes Diameter | 8-0.27"x0.39", 8-7x10 mm |
| Depth | 5.16", 131 mm | Net Weight | 10.1 lbs, 4.6 kg |
| Baffle Hole Diameter | 10.75",273 mm | Shipping Weight | 13.4 lbs, 6.1 kg |
| Installation Position Diameter | 11.42", 290mm |
Materials of Construction
| Coil Construction | Round Copper | Cone Composition | Paper Cone |
| Coil Former | Aluminum | Cone Edge Composition | Cloth Edge |
| Magnet Composition | Ferrite | Dust Cap Composition | Paper Cap |
| Basket Materials | Pressed Steel |
Dimension & Weight
| Product Width (in.) | ∅12.2" | Package Width (in.) | 14.4" |
| Product Height (in.) | --" | Package Height (in.) | 7.1" |
| Product Depth (in.) | 5.1" | Package Depth (in.) | 13.3" |
| Product Weight (lb.) | 10.1 lbs | Package Weight (lb.) | 13.4 lbs |
Warranty/Certifications
| Manufacturer Warranty | 180 Days (6 Months) |
