STLF-10VS-R | REFURBISHED: 10" 200W Steel Frame Raw Woofer (Low Frequency Driver) w/ 2" Voice Coil, Replacement for PA/DJ Speaker, Subwoofer Cabinets
Sound Town
- DESCRIPTION
- FEATURES
- SPECIFICATIONS
- REVIEWS
Refurbished Condition: 100% testing and function is in good condition while outside box worn out and small cosmetic dents. cosmetic damages will vary, including but not limited to, damaged or cracked, bent ears, scratches, dents, etc.
The Sound Town STLF-10VS is a 10” universal replacement driver for PA/DJ speakers and subwoofers; it is compatible with the Sound Town PA speakers & subwoofers and speakers of other brands which need a 10” low-frequency driver. The woofer comes with 8-ohm impedance and has a frequency range of 40 Hz - 2 kHz. It is built in a steel chassis and has a paper cone with cloth edge. With 200W RMS, 400W peak power handling capability, the STLF-10VS delivers massive and deep bass and makes a great replacement woofer for your 10-inch PA speakers or subwoofer cabinet.
- 10“ steel frame, replacement woofer for PA speaker and subwoofer cabinets
- 200W RMS, 400W peak power handling at 8-ohm
- 40 Hz - 2 kHz frequency response
- 2“ (4-layer) voice coil and one 50 oz. magnet produces super bass
Details
| Model | STLF-10VS |
Resonance | 40Hz |
| Nominal Basket Diameter | 10" | Frequency Response |
40Hz - 2kHz |
| Nominal Impedance | 8Ω | Sensitivity | 92±3dB |
| Power Rating |
200W RMS | Magnet Weight | 50oz |
| Peak Power | 400W Peak | Voice Coil Diameter | 2" VC (4 layers) |

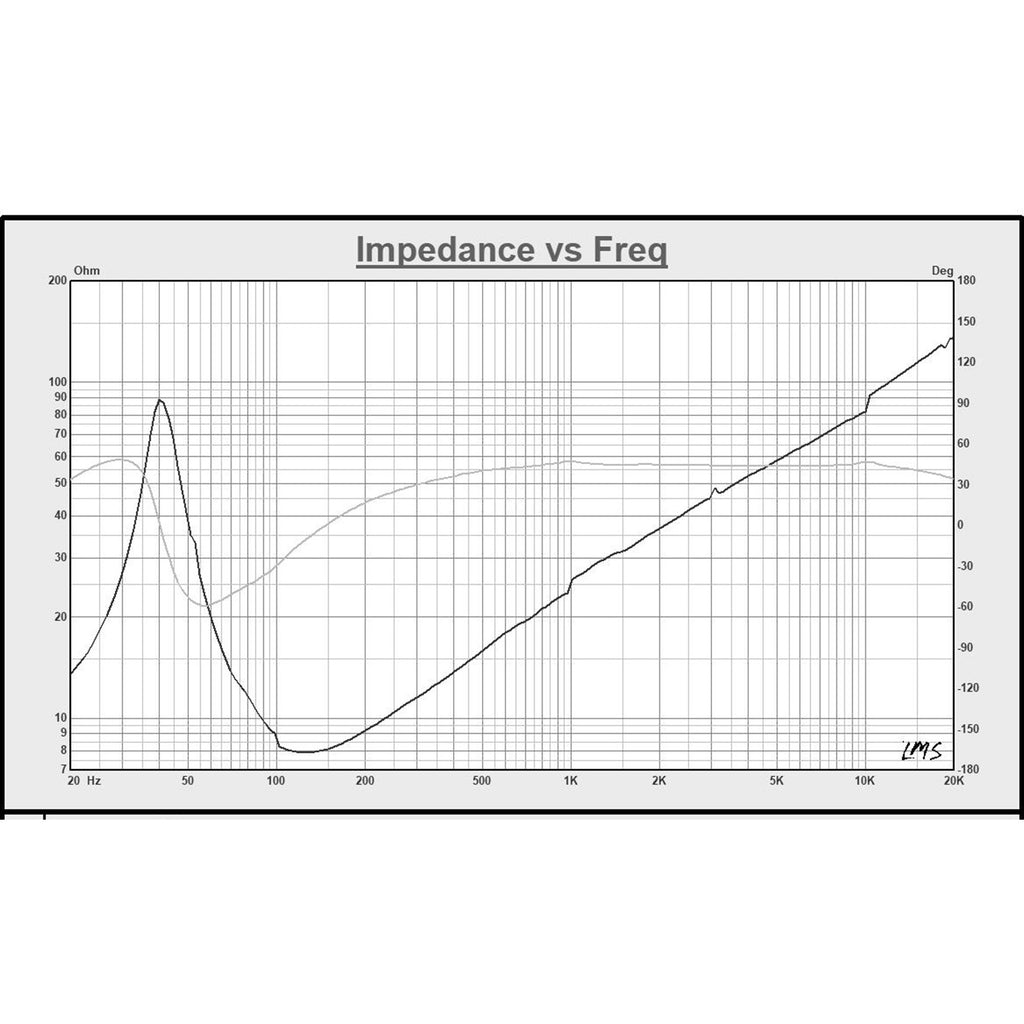

Thiele & Small Parameters
| Resonant Frequency (fs) | 40Hz | Compliance Equivalent Volume (Vas) | 51.9 liters |
| DC Resistance (Re) | 4.8Ω | Mechanical Compliance of Suspension (Cms) | 0.277mm/N |
| Mechanical Q (Qms) | 3.991 | BL Product (BL) | 16.02Tm |
| Electromagnetic Q (Qes) | 0.272 | Diaphragm Mass Inc. Airload (MMs) | 58.5g |
| Total Q (Qts) | 0.255 | Surface Area of Cone (Sd) | 363cm2 |
Mounting Information
| Efficiency Bandwidth | 147 | Baffle Hole Diameter | 9.25", 235mm |
| Sealed | 8.11 liters / 0.286 cu.ft. | Installation Position Diameter | 9.68", 246mm |
| Vented | 11.7 liters / 0.413 cu.ft. | Mounting Holes Diameter | 8-0.2"x0.315", 5x8mm |
| Overall Diameter | 10.15", 258mm | Net Weight | 8.6 lbs, 3.9 kg |
| Depth | 4.86", 123.4mm |
Materials of Construction
| Coil Construction | Round copper | Cone Composition | Paper cone |
| Coil Former | Aluminum | Cone Edge Composition | Cloth edge |
| Magnet Composition | Ferrite | Dust Cap Composition | Paper cap |
| Basket Materials | Steel |
Dimension & Weight
| Product Width (in.) | ∅10.2" | Package Width (in.) | 12.0" |
| Product Height (in.) | 4.9" | Package Height (in.) | 6.9" |
| Product Depth (in.) | -- | Package Depth (in.) | 11.2" |
| Product Weight (lb.) | 8.6 lbs | Package Weight (lb.) | 9.9 lbs |
Warranty/Certifications
| Manufacturer Warranty | 180 Days (6 Months) |
