$84.99

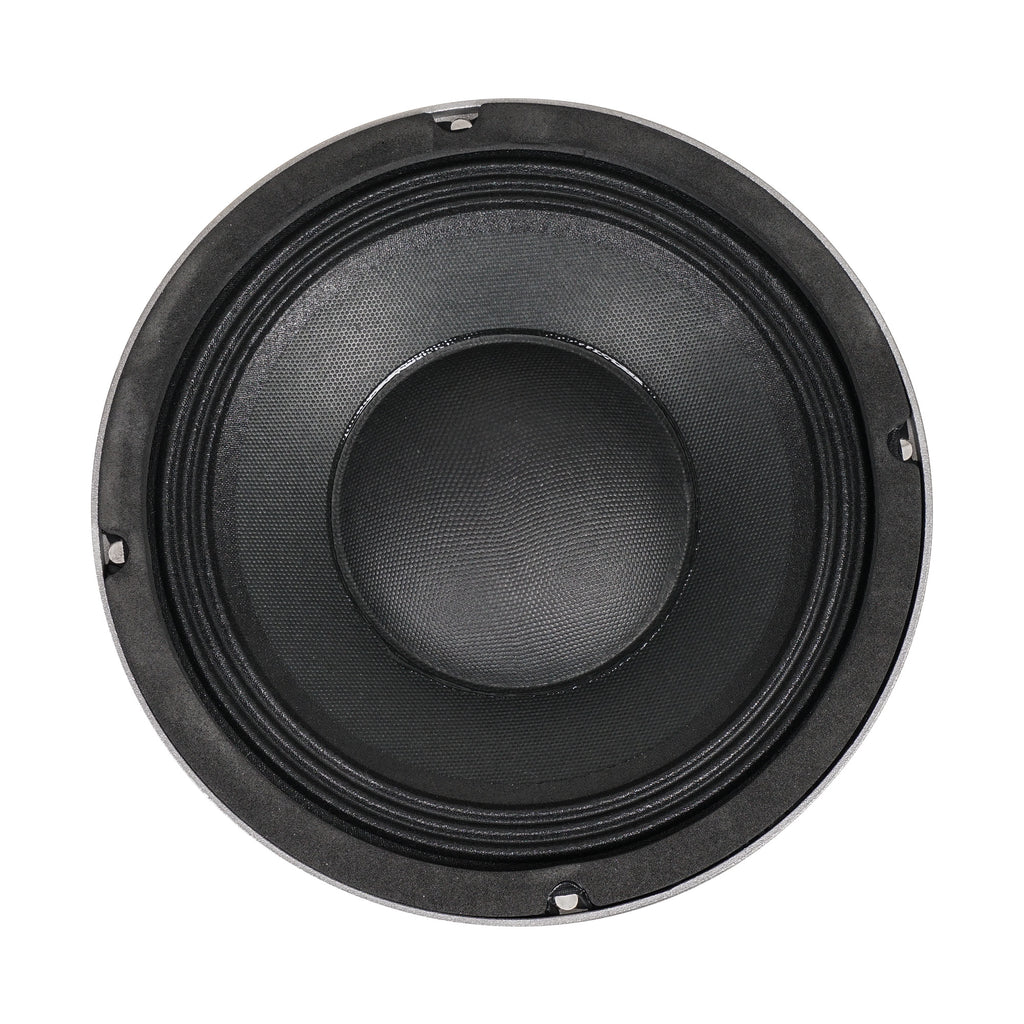

The Sound Town STLF-08GA-PAIR includes two STLF-08GA woofers. The STLF-08GA is an 8" universal replacement driver for PA/DJ speakers and bass guitar cabinets. It is compatible with the Sound Town PA speakers and speakers of the other brands which need 8" low-frequency drivers. The woofer has an 8-ohm impedance and a frequency range of 70 Hz - 5 kHz. It comes with a cast aluminum chassis and a paper cone with cloth edge. With 150W RMS, 300W peak power handling capability, the STLF-08GA delivers massive, punchy bass and makes a great replacement woofer for your 8-inch PA speakers and bass guitar cabinets.

  • Two 8" cast aluminum frame woofers
  • 150W RMS, 300W peak power handling capacity at 8-ohm
  • 2" voice coil, 30 oz magnet
  • 70 Hz - 5 kHz frequency response
  • Sensitivity: 92 dB

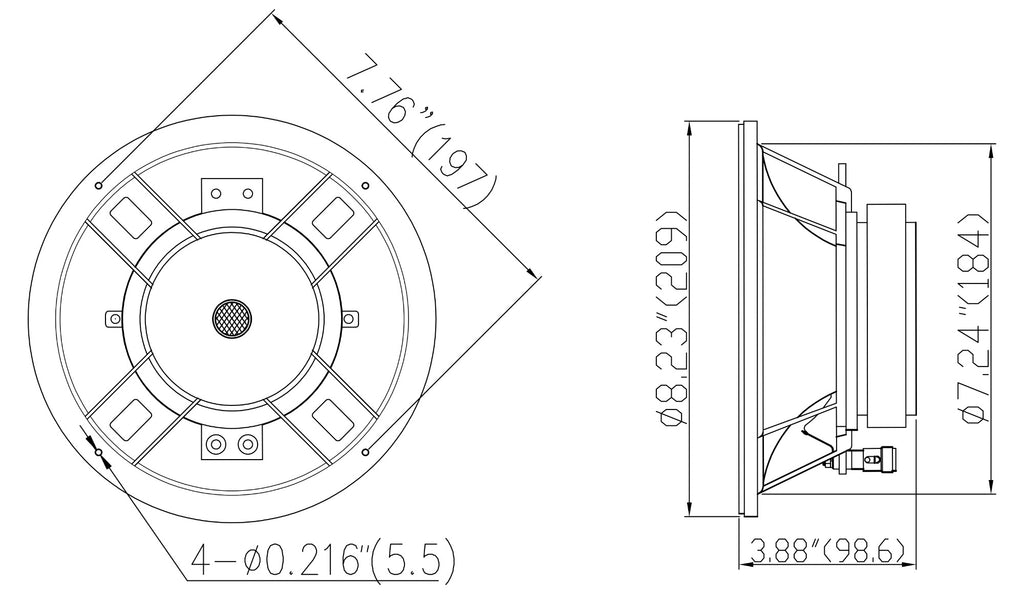

Sound Town STLF-08GA-PAIR Pair of 8-inch 150W Cast Aluminum Frame Woofer, Replacement Woofer for PA/DJ Speakers, Bass Guitar Cabinets - Size & Dimensions

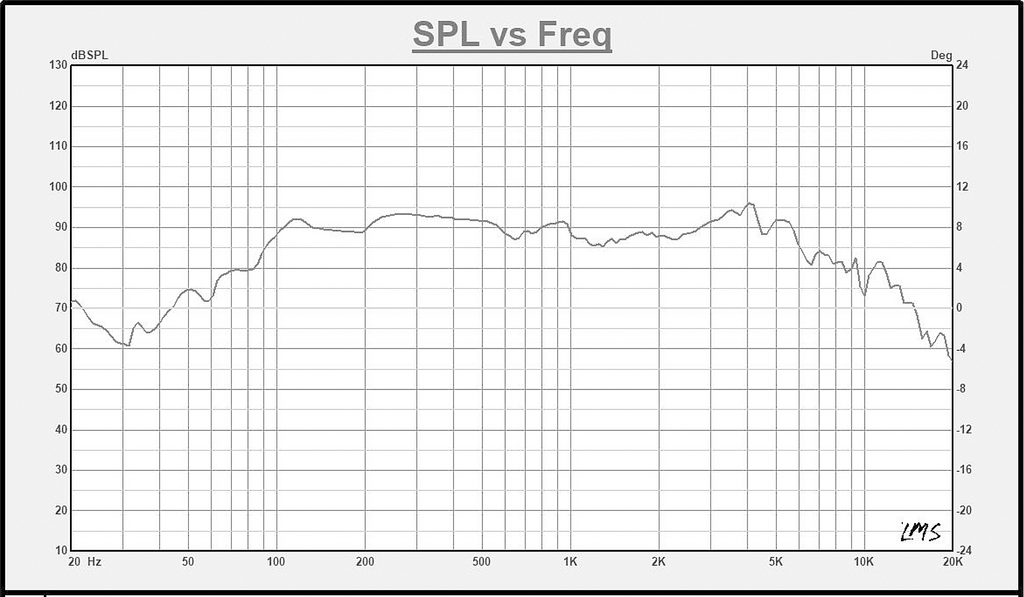

Sound Town STLF-08GA-PAIR Pair of 8-inch 150W Cast Aluminum Frame Woofer, Replacement Woofer for PA/DJ Speakers, Bass Guitar Cabinets - SPL vs. Frequency graph.

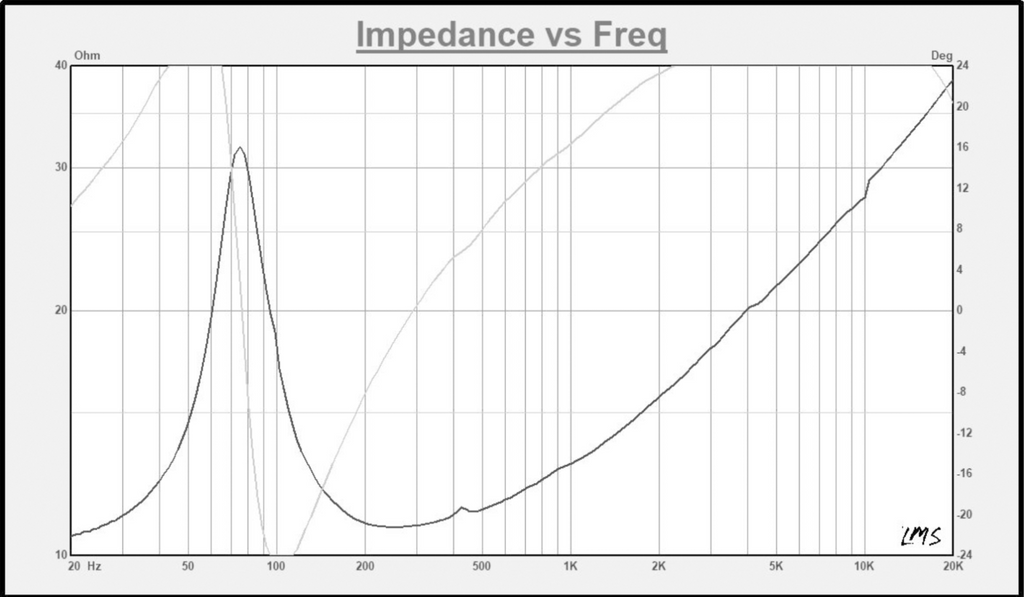

Sound Town STLF-08GA-PAIR Pair of 8-inch 150W Cast Aluminum Frame Woofer, Replacement Woofer for PA/DJ Speakers, Bass Guitar Cabinets - Impedance vs. Frequency graph.



Details

Model STLF-08GA Resonance 70 Hz
Nominal Basket Diameter 8" Usable Frequency Range 70 Hz-5K Hz
Nominal Impedance* Sensitivity* 92±3 dB

RMS Power

150W Magnet Weight 30 OZ
Peak Power 300W Voice Coil Diameter 2.0"


Thiele & Small Parameters

Resonant Frequency (fs) 82 Hz Compliance Equivalent Volume (Vas) 10.01Ltr
DC Resistance (Re) 6.3Ω Mechanical Compliance of Suspension (Cms) 0.150 mm/N
Mechanical Q (Qms) 2.903
BL Product (BL) 9.74 T-M
Electromagnetic Q (Qes) 0.841
Diaphragm Mass Inc. Airload (MMs) 26.685 g
Total Q (Qts) 0.652
Surface Area of Cone (Sd) 216 cm2


Mounting Information

Efficiency bandwidth product 98 Baffle Hole Diameter 7.24",184 mm
Sealed 25.6 liters / 0.9 cu.ft. Installation Position Diameter 7.76", 197 mm
Vented 32.3 liters / 11.4 cu.ft Mounting Holes Diameter 4-0.216", 5.5 mm
Overall Diameter 8.23", 209 mm Net Weight 5.3 lbs, 2.3 kg
Depth 3.88", 98.6 mm Shipping Weight


Materials of Construction

Coil Construction Round copper Cone Composition Paper Cone
Coil Former Aluminum Cone Edge Composition Cloth Edge
Magnet Composition Ferrite Dust Cap Composition Paper Cap
Basket Materials Die Cast Aluminum


Dimension & Weight

Product Width (in.) ∅8.2" (each) Package Width (in.) 10.7"
Product Height (in.) --" Package Height (in.) 12.8"
Product Depth (in.) 3.9" (each) Package Depth (in.) 9.9"
Product Weight (lb.) 5.3 lbs (each) Package Weight (lb.) 12.8 lbs


Warranty/Certifications

Manufacturer Warranty 1 Year
