REFURBISHED: 2" Titanium Compression Driver (1.4" Throat), 120W, Pro Audio Speaker Horn Replacement Tweeter

STHF-5103-R
REFURBISHED: 2" Titanium Compression Driver (1.4" Throat), 120W, Pro Audio Speaker Horn Replacement Tweeter

Sound Town
Sound Town STHF-5103-R 1.4" Titanium Compression Driver, 120W, Pro Audio Speaker Horn Replacement Tweeter, Refurbished - Back View
Sound Town STHF-5103-R 1.4" Titanium Compression Driver, 120W, Pro Audio Speaker Horn Replacement Tweeter, Refurbished - Side View

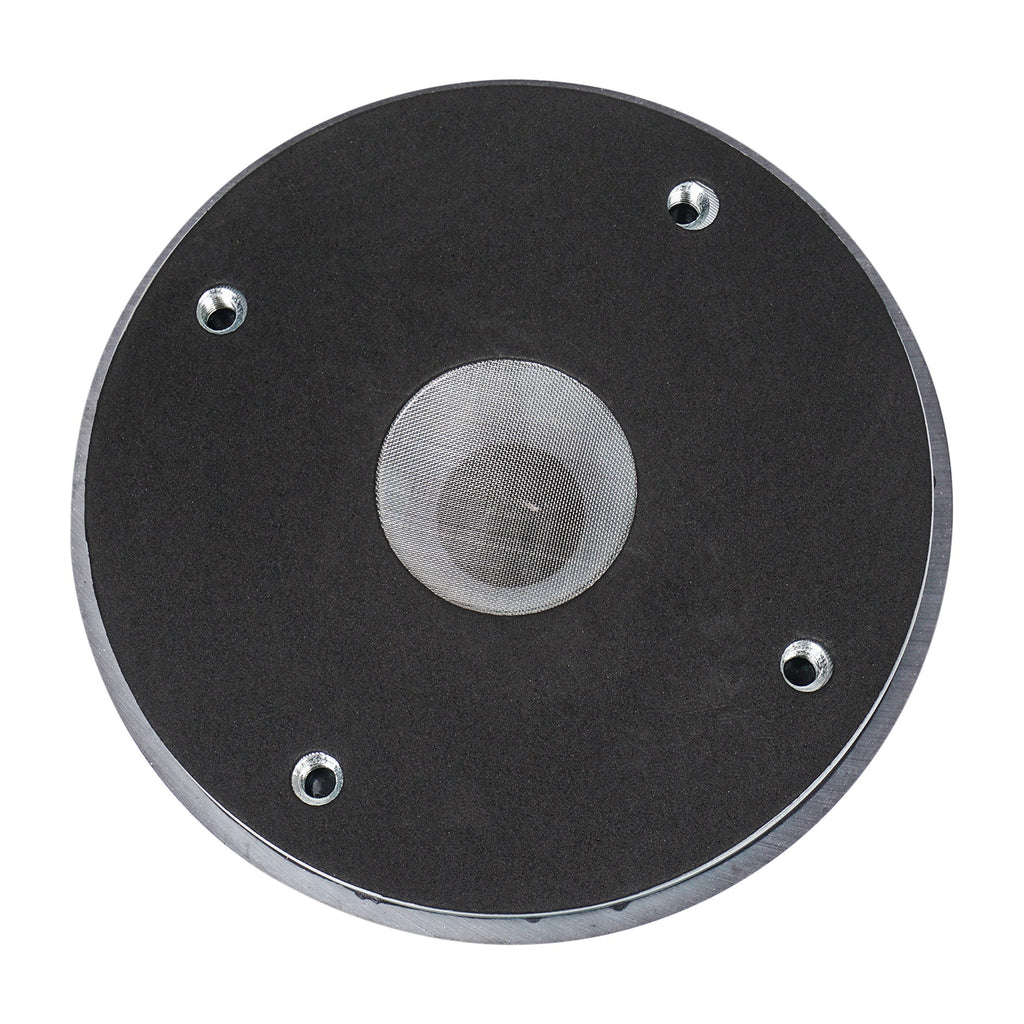

Sound Town STHF-5103-R 1.4" Titanium Compression Driver, 120W, Pro Audio Speaker Horn Replacement Tweeter, Refurbished - 8 Ohms

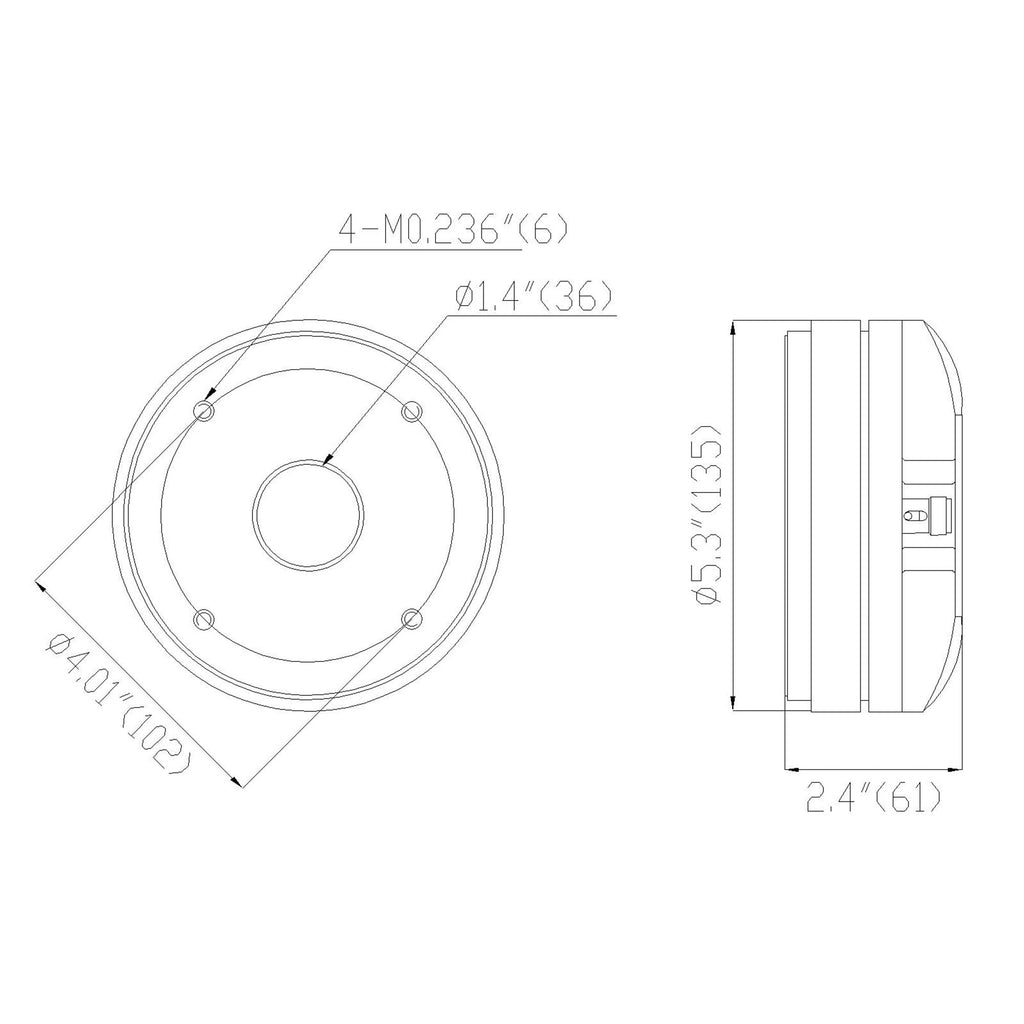

Sound Town STHF-5103-R 1.4" Titanium Compression Driver, 120W, Pro Audio Speaker Horn Replacement Tweeter, Refurbished - Size, Dimensions, Mounting Information, Recommended Enclosure Volume

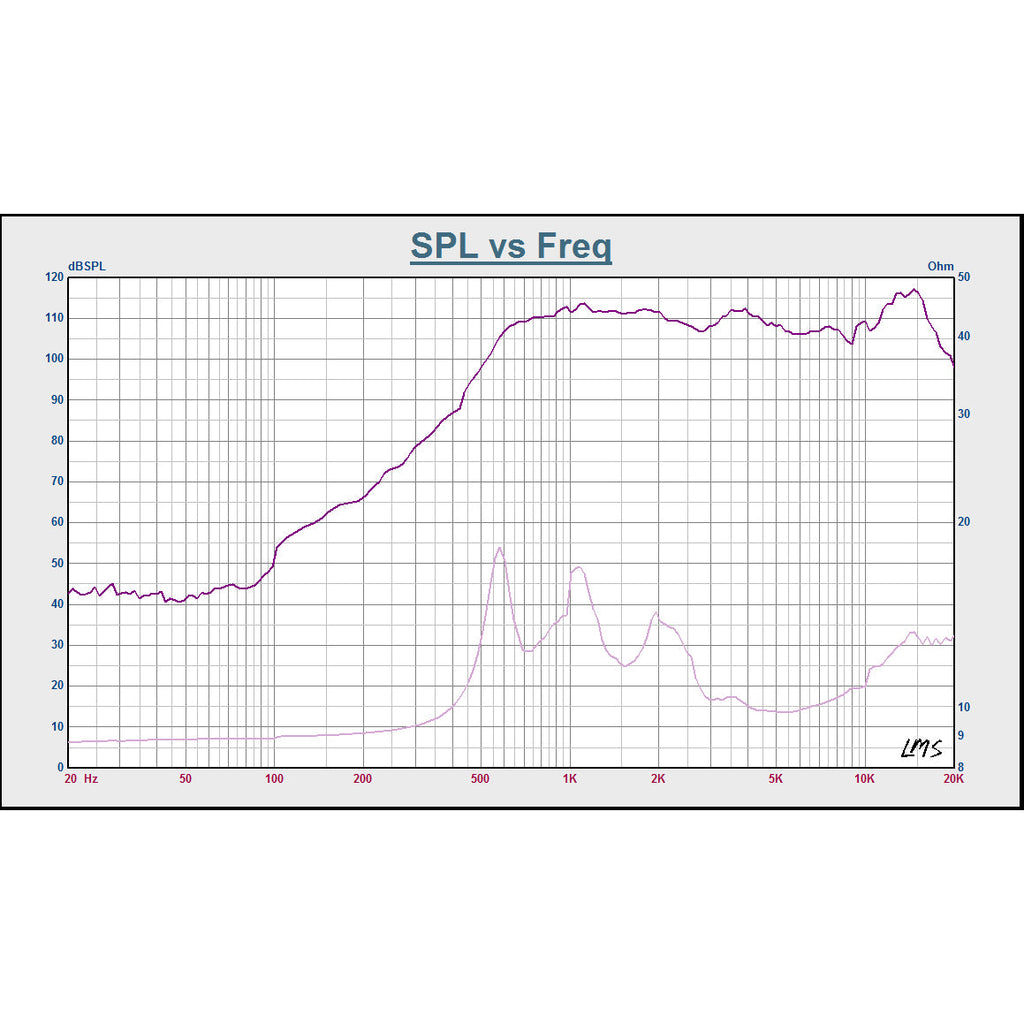

Sound Town STHF-5103-R 1.4" Titanium Compression Driver, 120W, Pro Audio Speaker Horn Replacement Tweeter, Refurbished - SPL vs. Frequency Graph

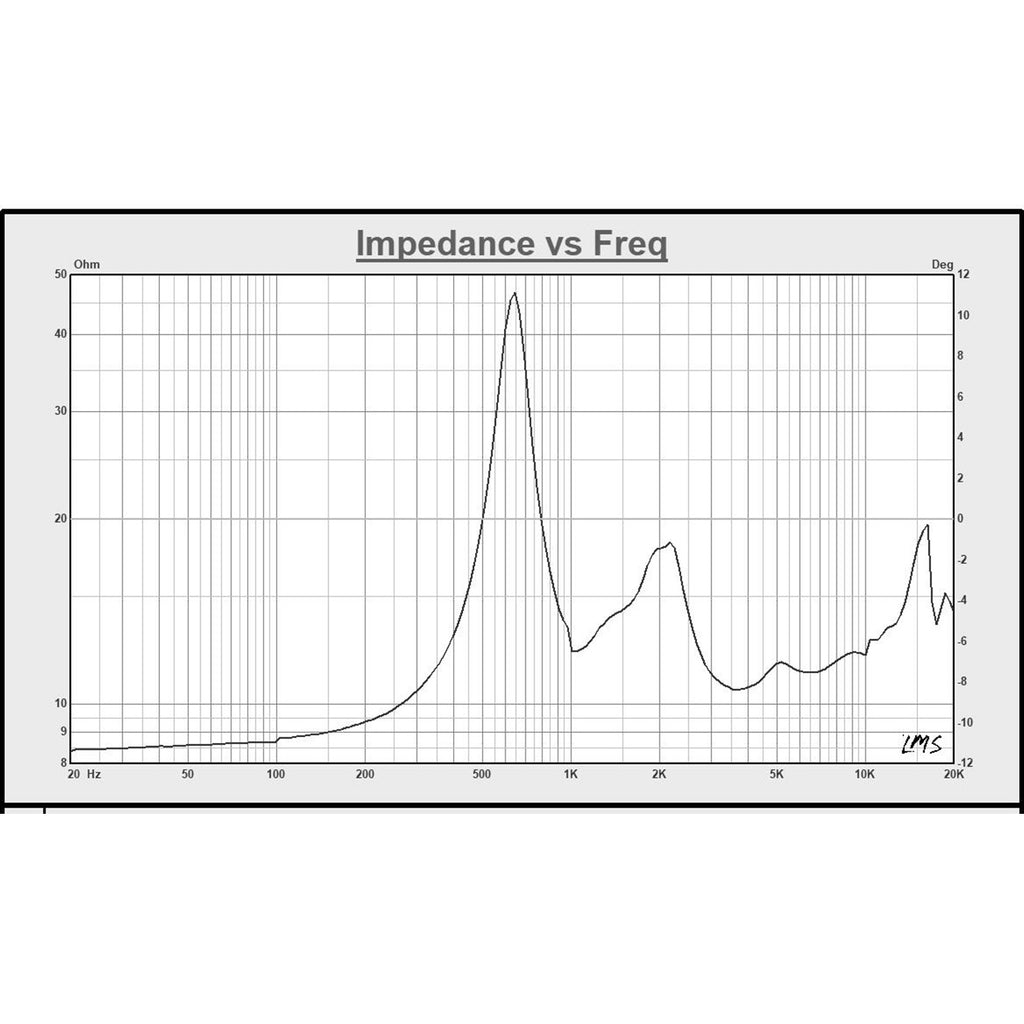

Sound Town STHF-5103-R 1.4" Titanium Compression Driver, 120W, Pro Audio Speaker Horn Replacement Tweeter, Refurbished - Impedance vs. Freq Graph

$38.24 $44.99

Refurbished Condition: 100% testing and function is in good condition while outside box worn out and small cosmetic dents. cosmetic damages will vary, including but not limited to, damaged or cracked, bent ears, scratches, dents, etc.

The Sound Town STHF-5103 is a 2" high-quality titanium compression driver (1.4" throat), compatible with Sound Town PA speakers and compatible with other brand speakers that require a high-quality tweeter. The compression driver comes with a 35-oz magnet and has a power handling capability of 120W with a sensitivity of 105dB. It delivers crisp and clear highs and makes a great replacement for the tweeter of your PA/DJ speakers.
  • 35-oz magnet produces superb clear HF sound
  • 120W program power handling capability
  • Impedance: 8 OHM
  • Frequency response: 800 Hz - 20K Hz

Sound Town STHF-5103 1.4" Titanium Compression Driver, 120W, Pro Audio Speaker Horn Replacement Tweeter - Size, Dimensions Drawing, Mounting Information, Suggested Enclosure Volume

Sound Town STHF-5103 1.4" Titanium Compression Driver, 120W, Pro Audio Speaker Horn Replacement Tweeter - SPL vs. Frequency Graph

Sound Town STHF-5103 1.4" Titanium Compression Driver, 120W, Pro Audio Speaker Horn Replacement Tweeter - Impedance vs. Freq Graph
Details

Model STHF-5103
 Recommended Crossover 2.5kHz / 12dB / oct
Throat Size 1.4", 36mm Sensitivity 108dB
Nominal Impedance 8Ω Magnet Material Ferrite
Minimum Impedance 7.4Ω @ 6.1kHz Magnet Weight
 35oz, 0.992kg
Power Rating
 120W RMS Voice Coil Diameter 2", 51mm
Peak Power 240W Peak Voice Coil Former
 Kapton
Resonance Frequency 1.2kHz Diaphragm Material
 Titanium
Frequency Range 1.2kHz - 20kHz DC Resistance (Re) 6.5Ω


Mounting Information

Overall Diameter
 5.3", 135mm Weight
 5.98lbs, 2.72kg
Driver Volume Displaced
 0.018cu.ft., 0.5L
 Mounting Holes Diameter 4.01", 102mm
Depth
 2.36", 61mm
 Mounting Holes B.C.D 4-0.236", 6mm


Dimension & Weight

Product Width (in.) 5.3" Package Width (in.) 5.8"
Product Height (in.) --" Package Height (in.) 3.5"
Product Depth (in.) 2.4" Package Depth (in.) 5.8"
Product Weight (lb.) 4.4 lbs Package Weight (lb.) 5.5 lbs


Warranty/Certifications

Manufacturer Warranty 180 Days (6 Months)
