Home / Collections / REFURBISHED / STHF-4403T-R | REFURBISHED: 1.75" Titanium Compression Driver, Replacement Tweeter for ZETHUS-208BV2

STHF-4403T-R | REFURBISHED: 1.75" Titanium Compression Driver, Replacement Tweeter for ZETHUS-208BV2

Sound Town

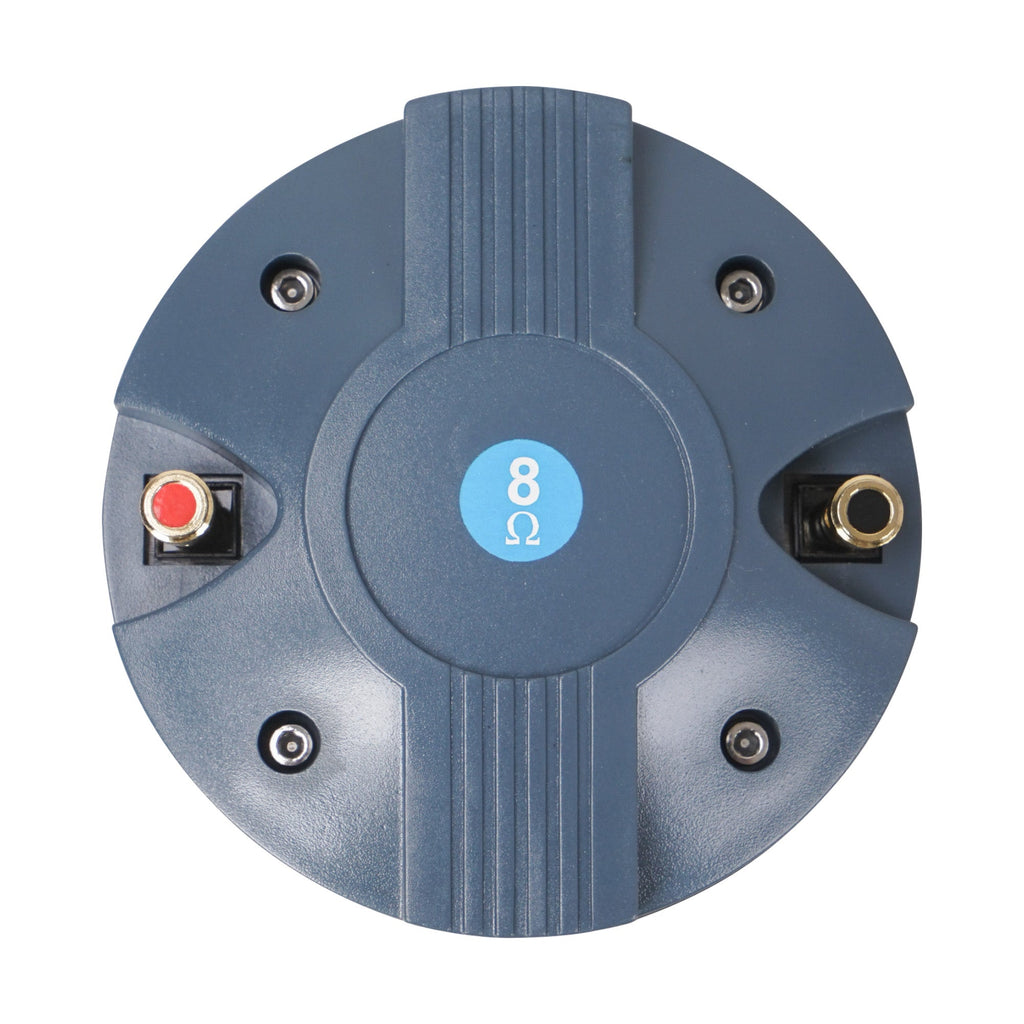

Sound Town STHF-4403T-R | REFURBISHED: 1.75" Titanium Compression Driver, Replacement Tweeter for ZETHUS-208BV2 - Back View

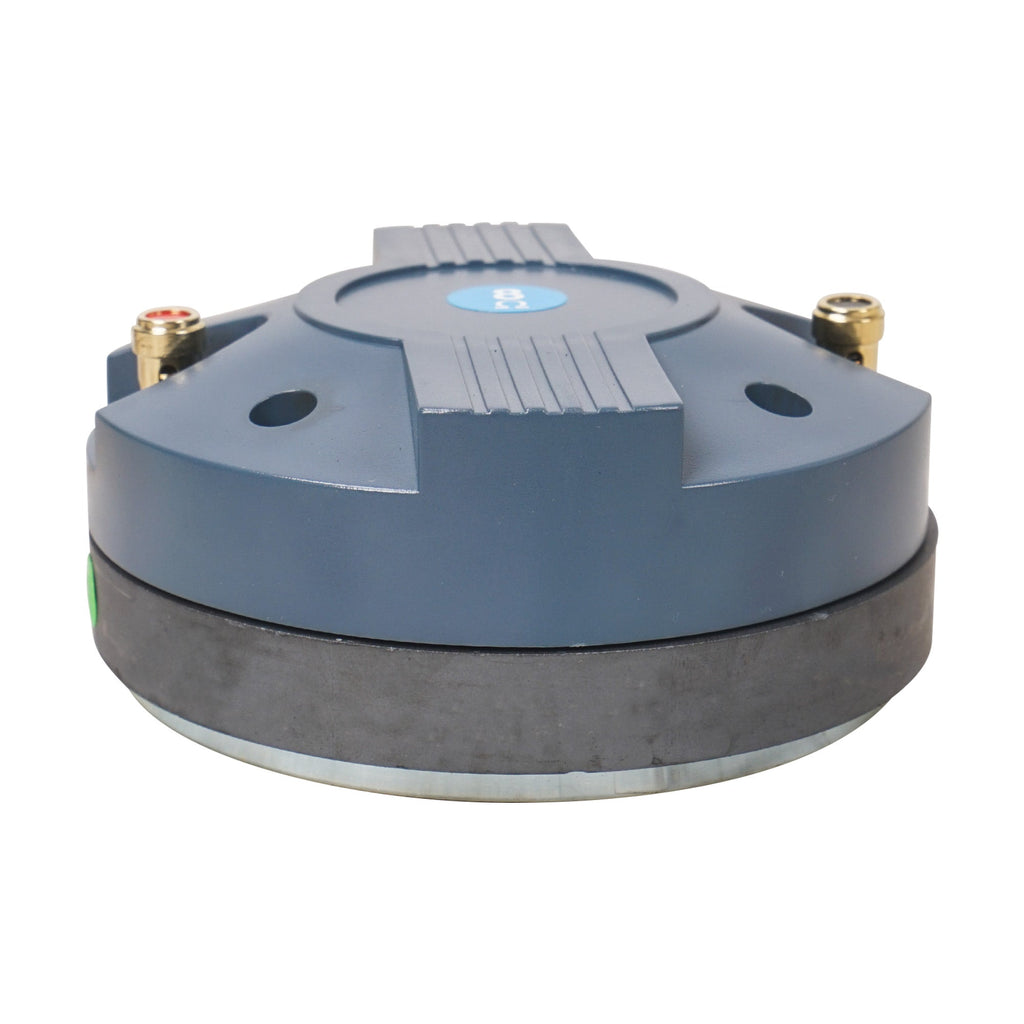

Sound Town STHF-4403T-R | REFURBISHED: 1.75" Titanium Compression Driver, Replacement Tweeter for ZETHUS-208BV2 - Side View

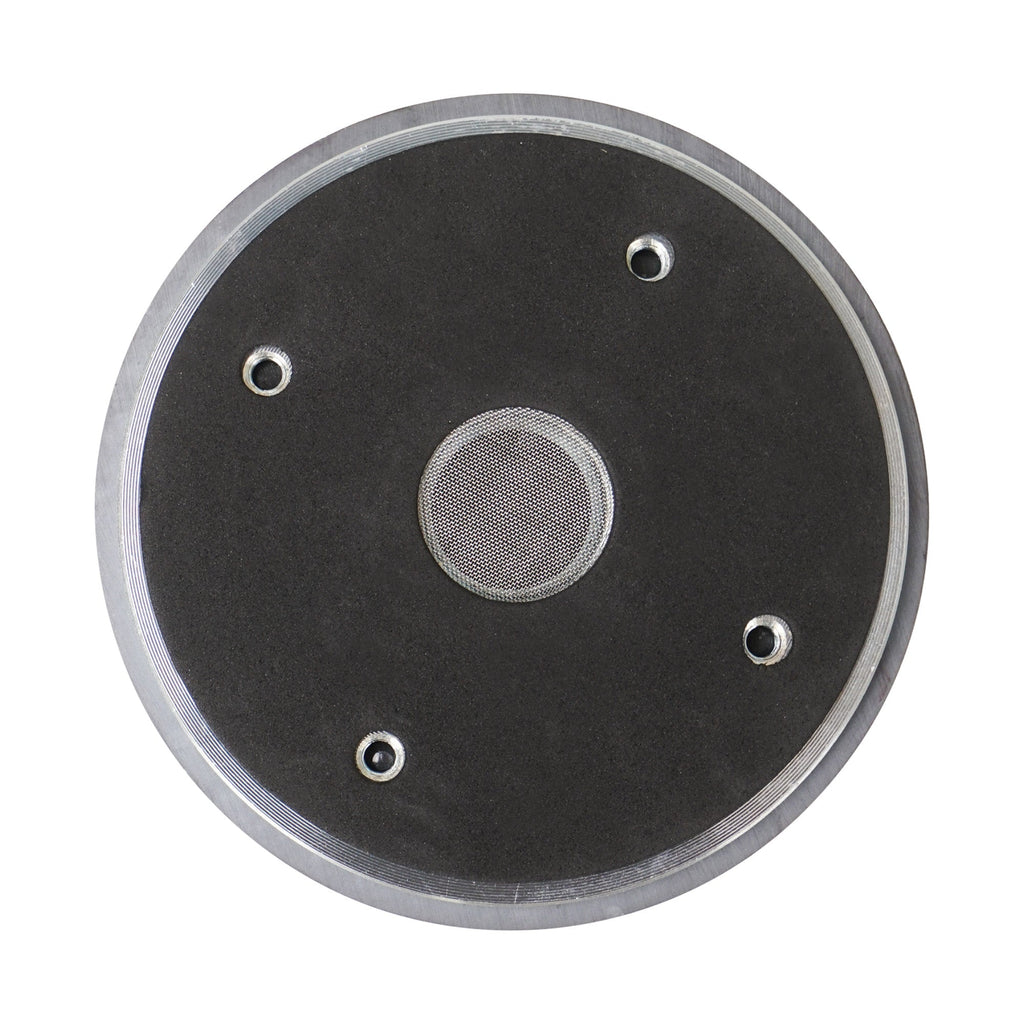

Sound Town STHF-4403T-R | REFURBISHED: 1.75" Titanium Compression Driver, Replacement Tweeter for ZETHUS-208BV2 - 8 Ohm

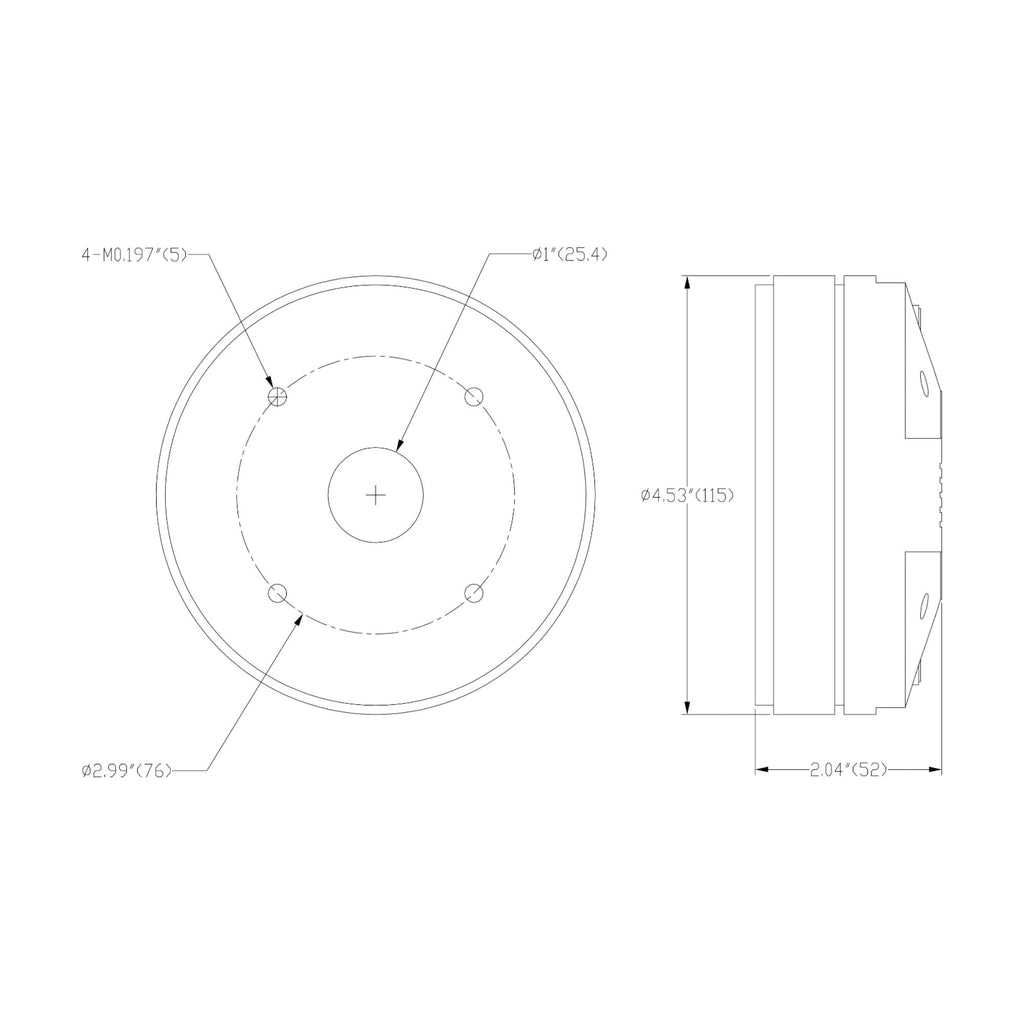

Sound Town STHF-4403T-R | REFURBISHED: 1.75" Titanium Compression Driver, Replacement Tweeter for ZETHUS-208BV2 - dimensions & size

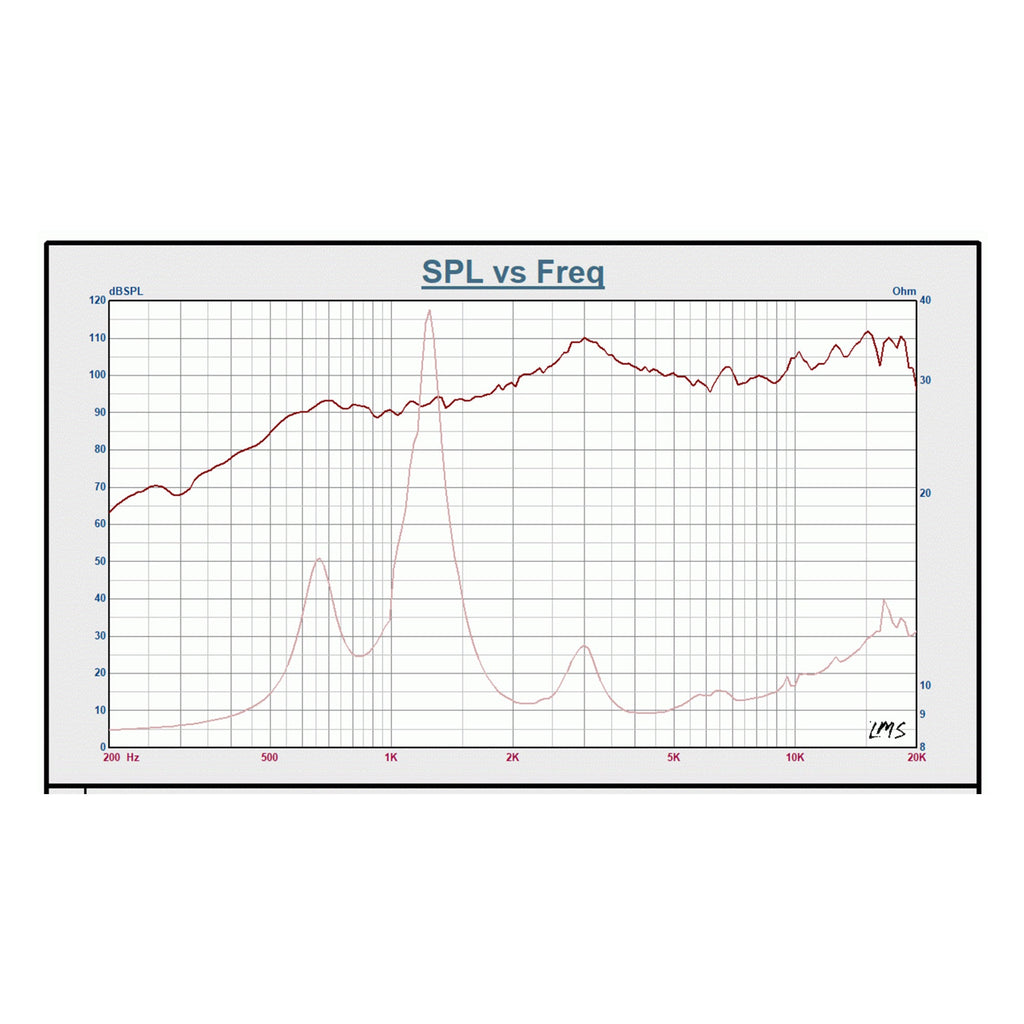

Sound Town STHF-4403T-R | REFURBISHED: 1.75" Titanium Compression Driver, Replacement Tweeter for ZETHUS-208BV2 - spl vs.frequency graph

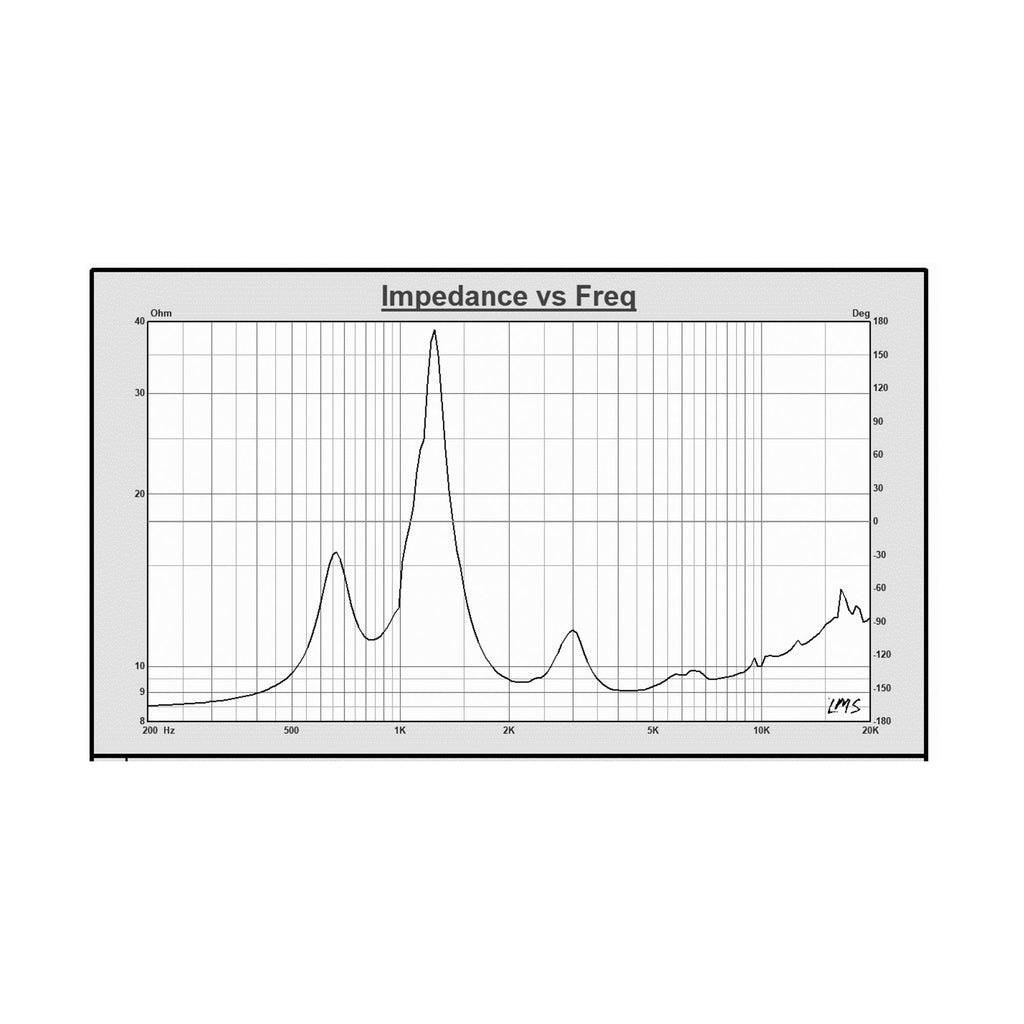

Sound Town STHF-4403T-R | REFURBISHED: 1.75" Titanium Compression Driver, Replacement Tweeter for ZETHUS-208BV2 - Impedance vs. Frequency Graph

$44.99 $59.99

Refurbished Condition: 100% testing and function is in good condition while outside box worn out and small cosmetic dents. cosmetic damages will vary, including but not limited to, damaged or cracked, bent ears, scratches, dents, etc.

1.75" titanium compression driver, replacement tweeter (high frequency driver) for ZETHUS-208BV2

  • Titanium compression driver, replacement tweeter for ZETHUS-208BV2
  • QTY used in each ZETHUS-208BV2: 1 pc
  • 1.75" diaphragm, 25 oz magnet
  • 75W RMS/150W peak power handling capability
  • Impedance: 8 ohms
  • Frequency response: 1.2K Hz ~ 19K Hz
sound town STHF-4403T-R | REFURBISHED: 1.75" Titanium Compression Driver, Replacement Tweeter for ZETHUS-208BV2 - dimensions



Sound Town STHF-4403T-R | REFURBISHED: 1.75" Titanium Compression Driver, Replacement Tweeter for ZETHUS-208BV2 - SPL vs. Frequency.



Sound Town STHF-4403T-R | REFURBISHED: 1.75" Titanium Compression Driver, Replacement Tweeter for ZETHUS-208BV2 - Impedance vs. Freq Graph

Details

Throat Size 1", 25.4mm Sensitivity 106dB
Nominal Impedance 8Ω Magnet Material Ferrite
Resonance 1.2K Hz Magnet Weight
 25oz
Power Rating
 75W(AES) Voice Coil Diameter 1.75", 44.4mm
Peak Power 150W Voice Coil Former
 Kapton
Frequency Range 1.2kHz - 20kHz Diaphragm Material
 Titanium
Recommended Crossover 2.2kHz / 12dB / oct DC Resistance (Re) 6Ω



Mounting Information

Overall Diameter 4.53", 115mm Mounting Holes Diameter 1 2.99", 76mm
Depth 0.98", 52mm Mounting Holes B.C.D 4-M0.197"
Weight 3.28 lbs, 1.491kg



Dimension & Weight

Product Width (in.) ∅4.5" Package Width (in.) 5.7"
Product Height (in.) --" Package Height (in.) 4.3"
Product Depth (in.) 2.0" Package Depth (in.) 5.7"
Product Weight (lb.) 3.3 lbs Package Weight (lb.) 3.5 lbs



Warranty/Certifications

Manufacturer Warranty 180 Days (6 Months)


STHF-4403T Brochures
