Home / Collections / REFURBISHED / STHF-162T-R | REFURBISHED: 3" Titanium Compression Horn Driver with 2" Throat, 180 Watts Pro Audio PA DJ Replacement Tweeter High Frequency Driver

STHF-162T-R | REFURBISHED: 3" Titanium Compression Horn Driver with 2" Throat, 180 Watts Pro Audio PA DJ Replacement Tweeter High Frequency Driver

Sound Town

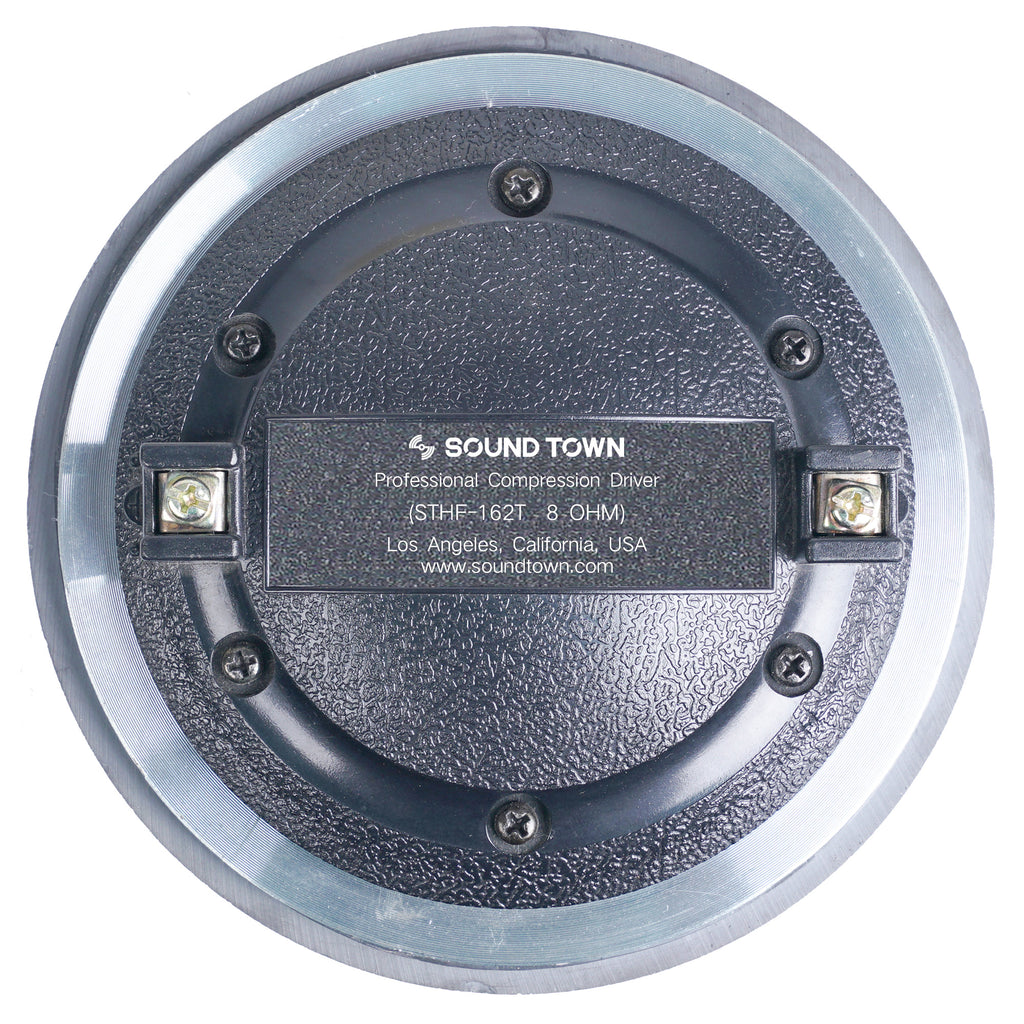

Sound Town STHF-162T-R | REFURBISHED: 3" Titanium Compression Horn Driver with 2" Throat, 180 Watts Pro Audio PA DJ Replacement Tweeter High Frequency Driver - Back View

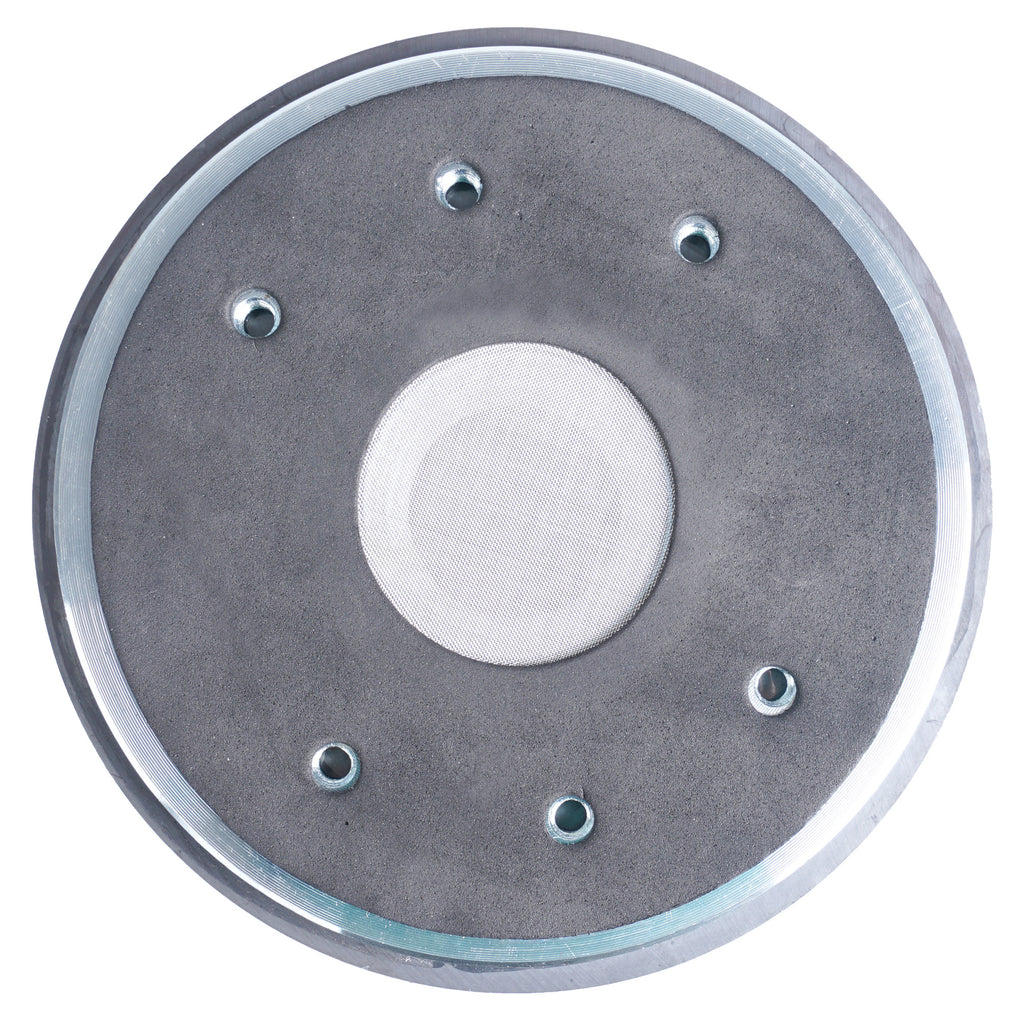

Sound Town STHF-162T-R | REFURBISHED: 3" Titanium Compression Horn Driver with 2" Throat, 180 Watts Pro Audio PA DJ Replacement Tweeter High Frequency Driver - 8 Ohms
Sound Town STHF-162T-R | REFURBISHED: 3" Titanium Compression Horn Driver with 2" Throat, 180 Watts Pro Audio PA DJ Replacement Tweeter High Frequency Driver - Side View

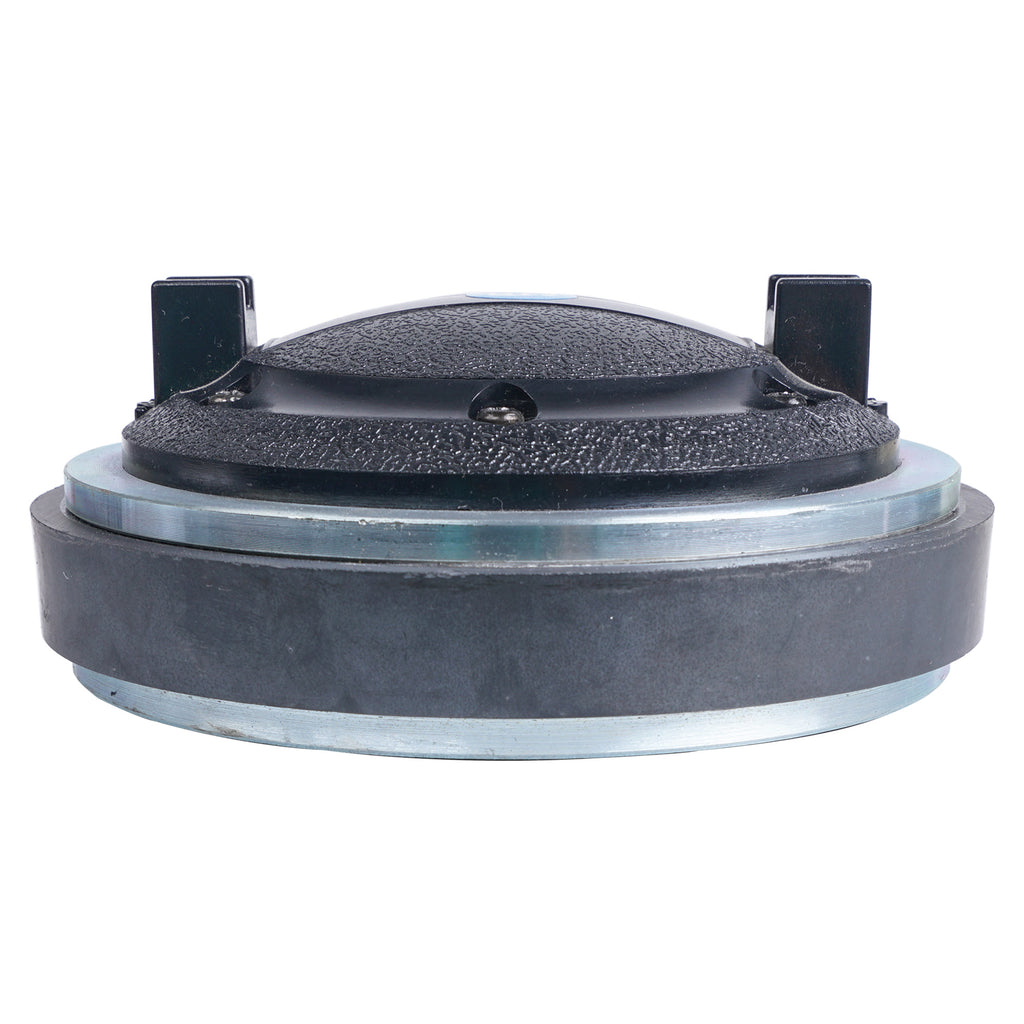

Sound Town STHF-162T-R | REFURBISHED: 3" Titanium Compression Horn Driver with 2" Throat, 180 Watts Pro Audio PA DJ Replacement Tweeter High Frequency Driver - 50 OZ
Sound Town STHF-162T-R | REFURBISHED: 3" Titanium Compression Horn Driver with 2" Throat, 180 Watts Pro Audio PA DJ Replacement Tweeter High Frequency Driver - Dimensions
Sound Town STHF-162T-R | REFURBISHED: 3" Titanium Compression Horn Driver with 2" Throat, 180 Watts Pro Audio PA DJ Replacement Tweeter High Frequency Driver - SPL vs Frequency graph
Sound Town STHF-162T-R | REFURBISHED: 3" Titanium Compression Horn Driver with 2" Throat, 180 Watts Pro Audio PA DJ Replacement Tweeter High Frequency Driver - Impedance vs. Freq Graph

$54.99 $82.99

Refurbished Condition: 100% testing and function is in good condition while outside box worn out and small cosmetic dents. cosmetic damages will vary, including but not limited to, damaged or cracked, bent ears, scratches, dents, etc.

The Sound Town STHF-162T is a high-quality titanium compression driver, compatible with the Sound Town PA speakers and compatible with other brand speakers which require a high-power 2” throat tweeter. The compression driver comes with a 75-oz magnet, has a power handling capability of 180W RMS, and a sensitivity of 110dB. It delivers crisp and clear highs and makes a great replacement for the tweeter on your PA/DJ speakers.

  • 3” titanium diaphragm
  • 75-oz magnet produce superb clear and high power HF sound
  • 180W RMS power handling capability
  • Impedance: 8 OHM
  • Frequency response: 1K-20K Hz
  • Fits with 2” throat horn

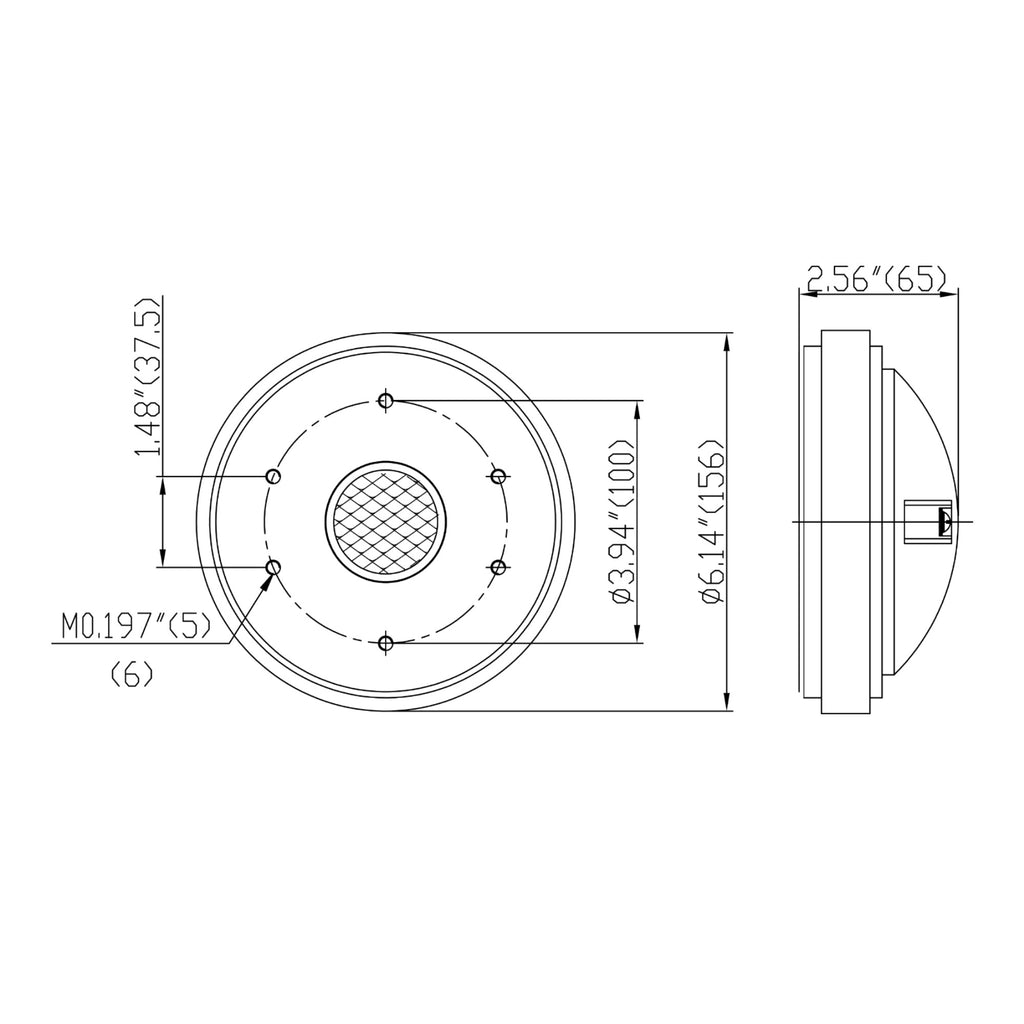

Sound Town STHF-162T 3" Titanium Compression Horn Driver with 2" Throat, 180 Watts Pro Audio PA DJ Replacement Tweeter High Frequency Driver, Dimensions

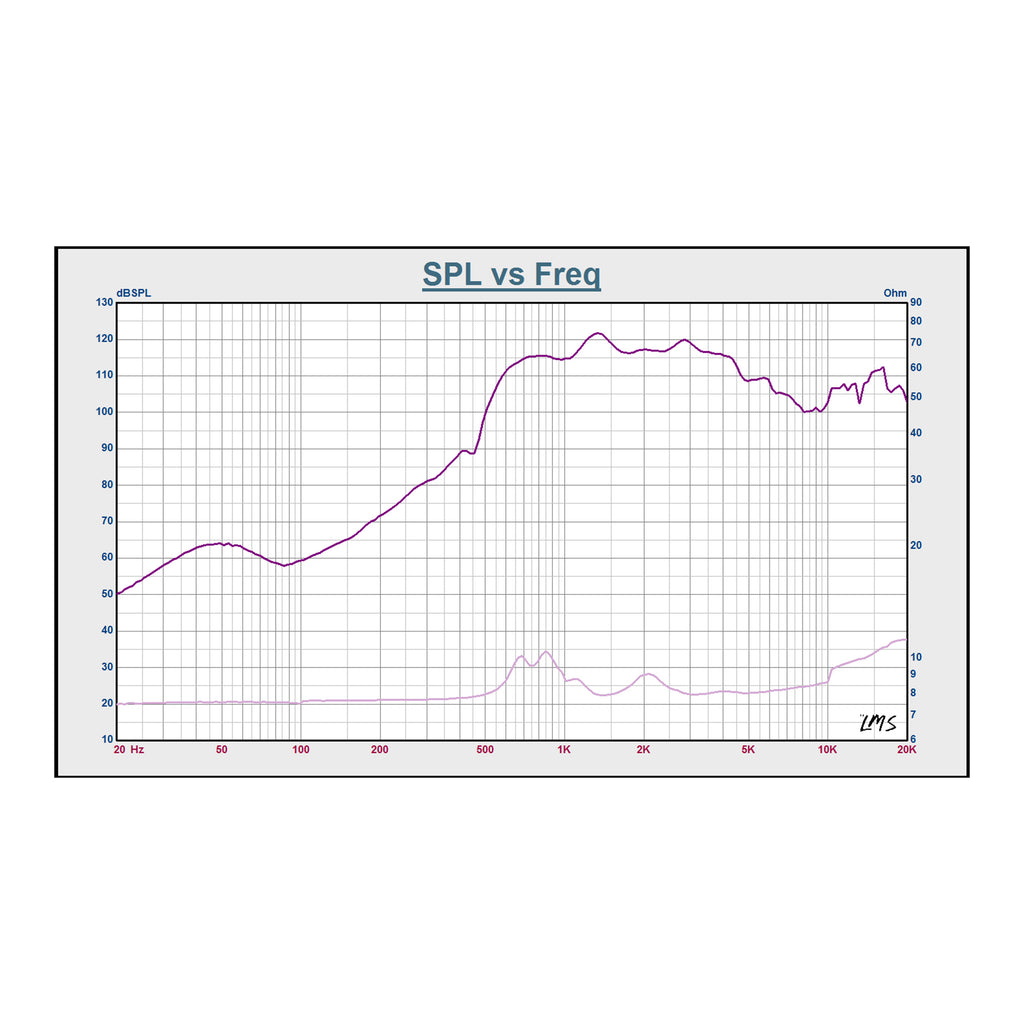

Sound Town STHF-162T 3" Titanium Compression Horn Driver with 2" Throat, 180 Watts Pro Audio PA DJ Replacement Tweeter High Frequency Driver, SPL vs. Frequency Graph.

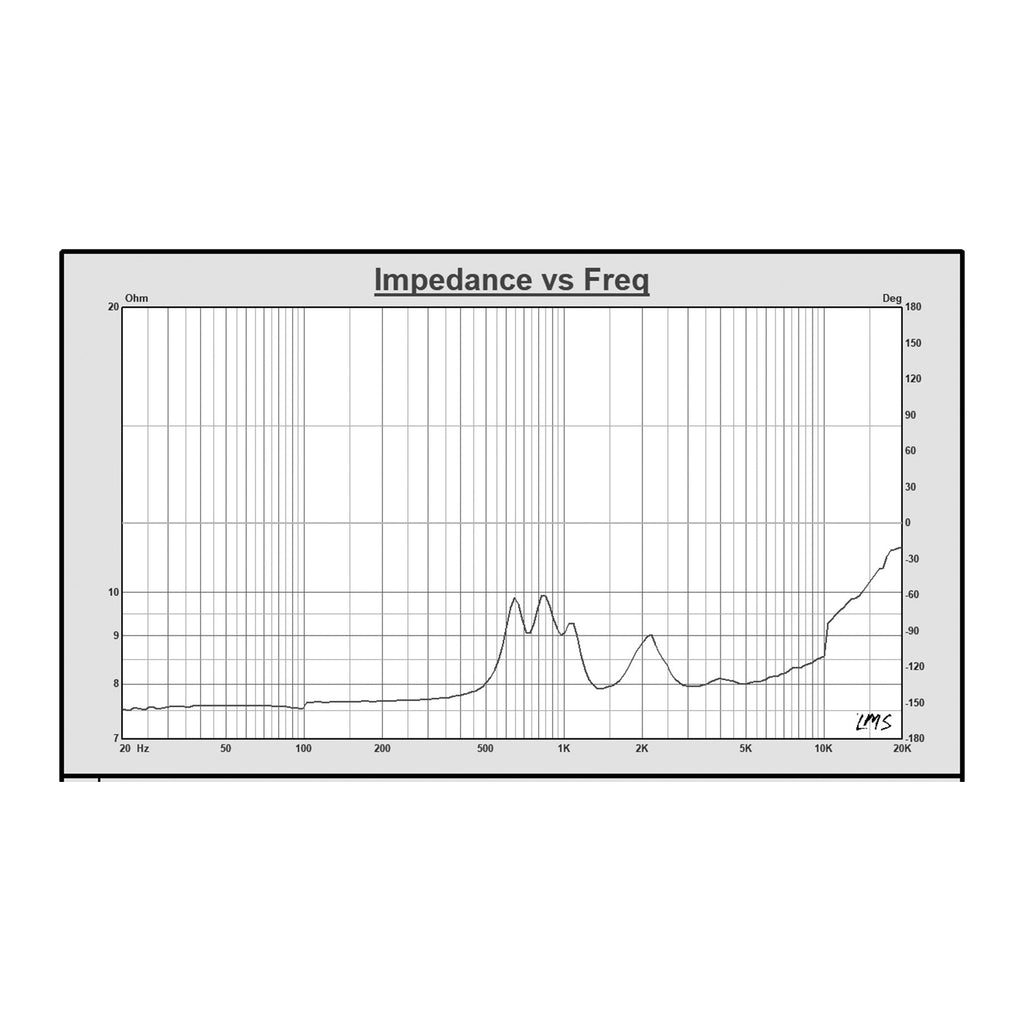

Sound Town STHF-162T 3" Titanium Compression Horn Driver with 2" Throat, 180 Watts Pro Audio PA DJ Replacement Tweeter High Frequency Driver - Impedance vs. Freq Graph

Details

Model STHF-162T Sensitivity 110 ± 2 dB (@ 1M / 1W)
Throat Size 2", 51.0 mm Magnet Material Ferrite
Nominal Impedance 8 Ω Magnet Weight 50 oz
Minimum Impedance 7.5 Ω @ 1.8 kHz Voice Coil Diameter 3", 76.0 mm
Power Rating 150 W Voice Coil Former Kapton
Resonance 0.74 kHz Diaphragm Material Titanium
Usable Frequency Range 1.0 kHz - 20 kHz DC Resistance (Re) 6.2 Ω
Recommended Crossover 2.0 kHz / 12 dB oct.


Mounting Information

Overall Diameter 6.14", 156.0 mm Driver Volume Displaced 0.16 cu. ft., 0.8 liters
Depth 2.56", 65.0 mm Mounting Hole Diameter 3.94", 100mm
Net Weight 7.25 lbs, 3.29 kg Mounting Hole B.C.D. 4-M0.197" or 2-M0.197"


Dimension & Weight

Product Width (in.) ∅6.1" Package Width (in.) 6.5"
Product Height (in.) 2.4" Package Height (in.) 3.1"
Product Depth (in.) --" Package Depth (in.) 6.5"
Product Weight (lb.) 7.3 lbs Package Weight (lb.) 7.5 lbs


Warranty/Certifications

Manufacturer Warranty 180 Days (6 Months)
