$22.94 $26.99

Refurbished Condition: 100% testing and function is in good condition while outside box worn out and small cosmetic dents. cosmetic damages will vary, including but not limited to, damaged or cracked, bent ears, scratches, dents, etc.

The Sound Town STHF-007T is a high-quality titanium compression driver, compatible with Sound Town PA speakers and compatible with other brand speakers that require a high-quality tweeter. The compression driver comes with a 30-oz magnet and has a power handling capability of 125W RMS with a sensitivity of 105dB. It delivers crisp and clear highs and makes a great replacement for the tweeter of your PA/DJ speakers.

  • 1.75” titanium diaphragm
  • 30-oz  magnet produces superb clear HF sound
  • 125W RMS power handling capability
  • Impedance: 8 OHM
  • Frequency response: 1K-20K Hz
  • Fits horn with 1-3/8”x18TPI Threads

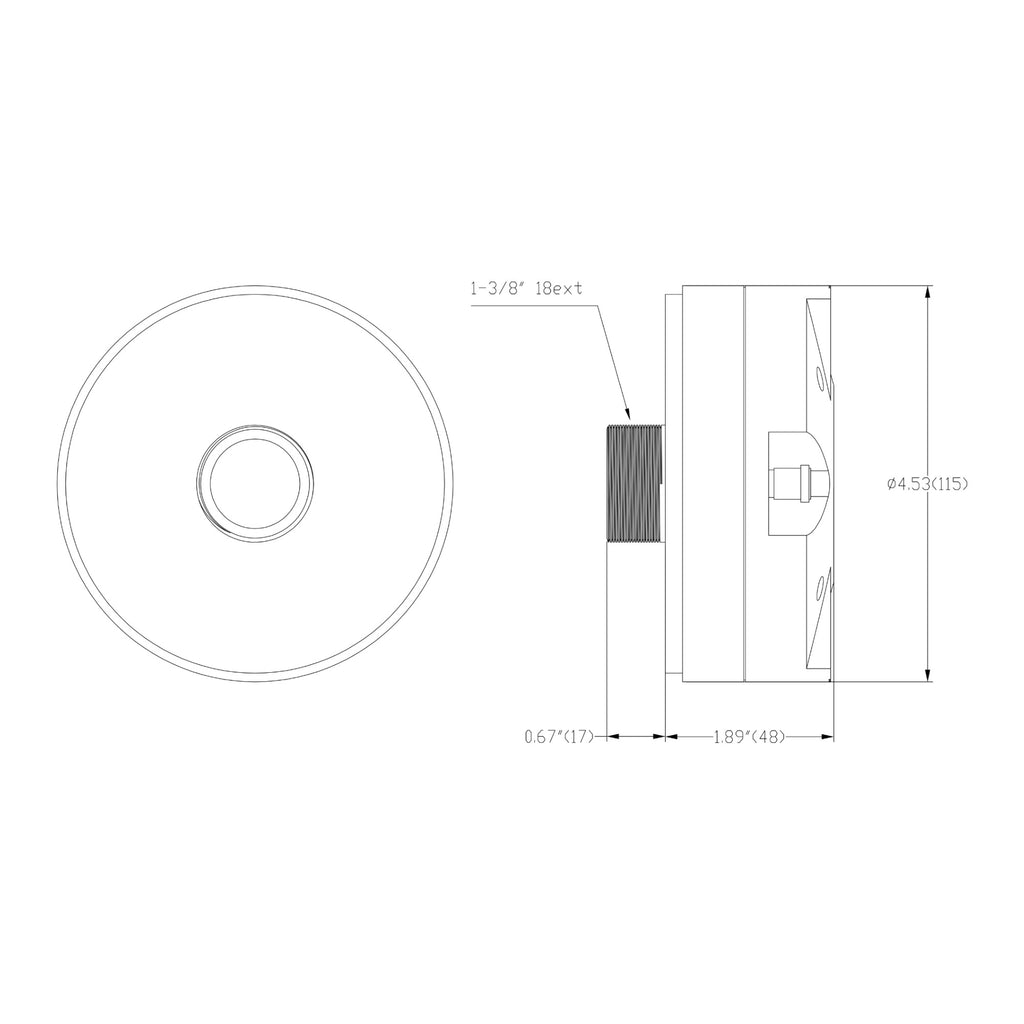

Sound Town STHF-007T-R 1.75" Titanium Compression Horn Driver, 125 Watts, Pro Audio PA DJ Replacement Tweeter High Frequency Driver, Refurbished - Size Dimensions

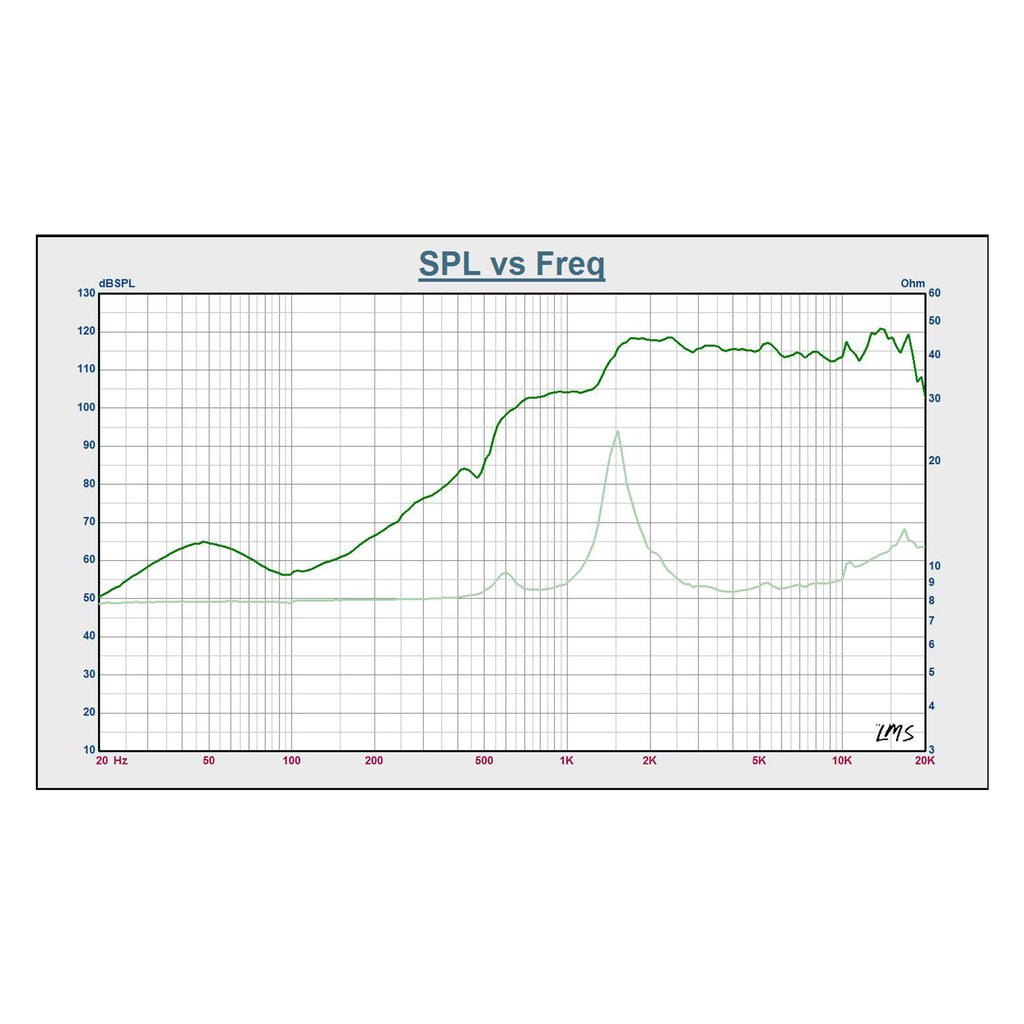

Sound Town STHF-007T-R 1.75" Titanium Compression Horn Driver, 125 Watts, Pro Audio PA DJ Replacement Tweeter High Frequency Driver, Refurbished - SPL vs. Frequency

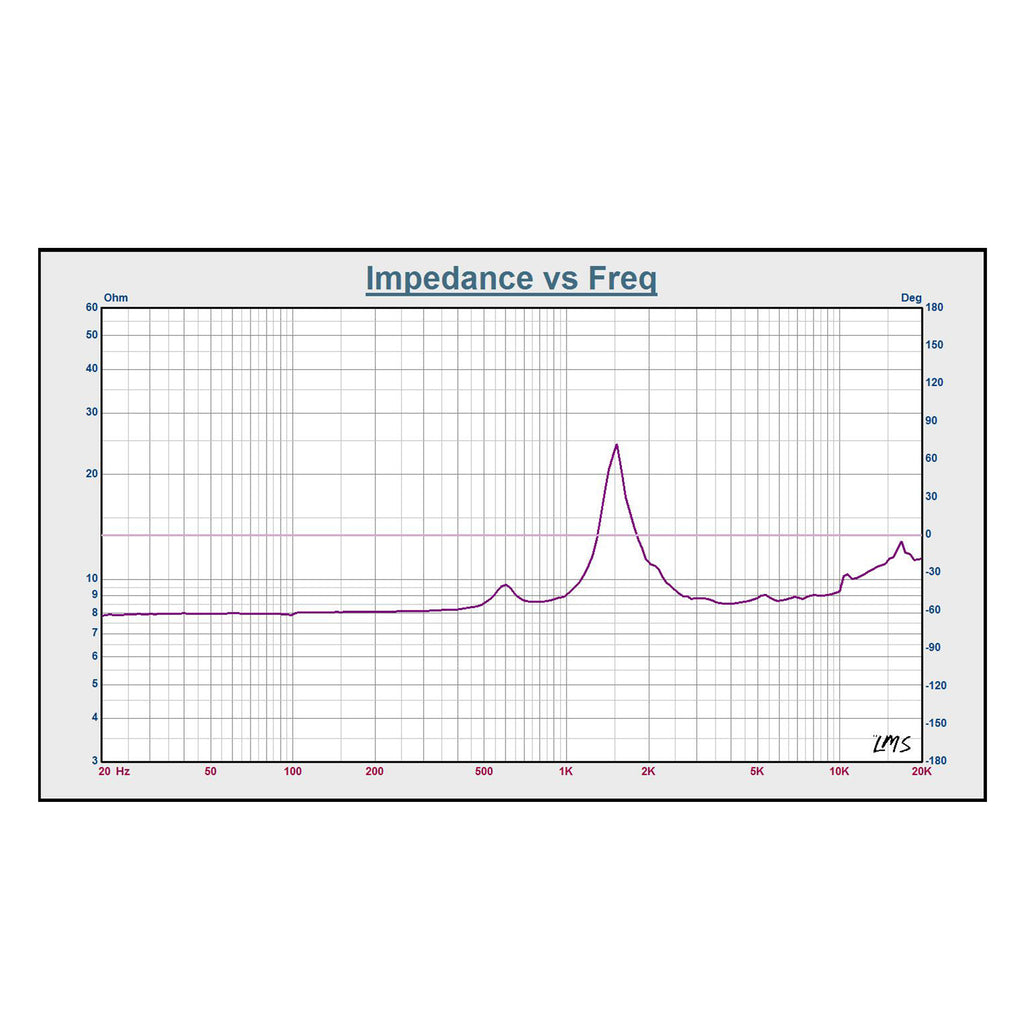

Sound Town STHF-007T 1.75" Titanium Compression Horn Driver, 125 Watts, Pro Audio PA DJ Replacement Tweeter High Frequency Driver - Impedance vs. Freq Graph

Details

Model STHF-007T Sensitivity 105 ± 2 dB (@ 1M / 1W)
Throat Size 1", 25.4 mm Magnet Material Ferrite
Nominal Impedance 8 Ω Magnet Weight 30 oz
Minimum Impedance 8.4 Ω @ 4.0 kHz Voice Coil Diameter 1.75", 44.0 mm
Power Rating 75 W Voice Coil Former Kapton
Resonance 0.6 kHz Diaphragm Material Titanium
Usable Frequency Range 1.5 kHz - 20 kHz DC Resistance (Re) 6.3 Ω
Recommended Crossover 3.0 kHz / 12 dB oct.


Mounting Information

Overall Diameter 4.53", 115.0 mm Mounting Thread 1.38", 35.0 mm, 18 ext
Depth 2.69", 68.2 mm Mounting Hole Diameter --
Net Weight 3.39 lbs, 1.54 kg Mounting Hole B.C.D. --


Dimension & Weight

Product Width (in.) ∅4.5" Package Width (in.) 5.7"
Product Height (in.) --" Package Height (in.) 4.3"
Product Depth (in.) 2.7" Package Depth (in.) 5.7"
Product Weight (lb.) 3.4 lbs Package Weight (lb.) 3.5 lbs


Warranty/Certifications

Manufacturer Warranty 180 Days (6 Months)
