SDCA500X8VL6W | 4-Zone 70V/100V Commercial Amplifier w/ Bluetooth, 8 x 6.5" Weatherproof Surface-Mount Speakers for Indoor/Outdoor Installation, White

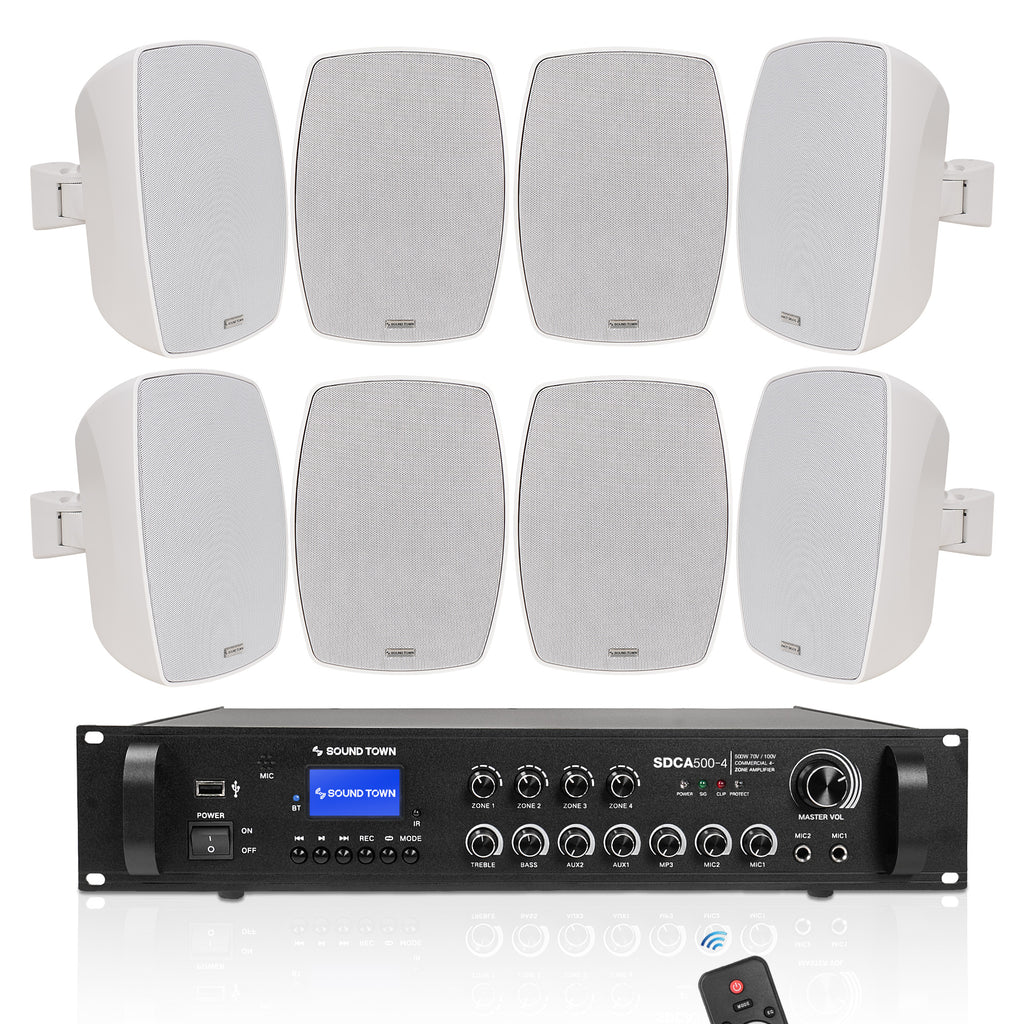

The Sound Town SDCA500X8VL6W commercial audio set includes:

• (4) VELA-6W-PAIR IP55 weatherproof surface-mount speakers (eight speakers total)
• (1) SDCA500-4 4-Zone 70V/100V Amplifier

*Speaker wire not included. See FAQ for details.

Designed for commercial and residential environments, this system provides even sound coverage with multi-zone control and connectivity for indoor and outdoor applications.

The SDCA500-4 is a high-efficiency Class-D digital commercial amplifier delivering 500W RMS output with support for 70V, 100V, and 4–16Ω low-impedance speakers. A dedicated 70V zone output section provides four independent zone outputs with dedicated volume controls for flexible audio management across multiple rooms or areas. The amplifier also features Bluetooth streaming, USB/MP3 playback, two RCA inputs, one REC input, two microphone inputs, an FM tuner, and a front-panel LCD display for convenient source control. An integrated clipping limiter and cooling system are designed to safeguard the amplifier and connected speakers while ensuring dependable long-term performance.

The included VELA-6W-PAIR speakers provide clear, balanced sound with a 6.5" woofer and 1" dome tweeter, delivering 65W RMS / 130W program power at 8Ω for each speaker. The speakers feature an IP55 enclosure that helps protect against dust and moisture for stable operation in exposed environments. A built-in multi-tap transformer allows integration with 70V/100V distributed systems or 8Ω low-impedance operation. Adjustable wall-mount brackets provide 40° vertical and 60° horizontal positioning, while the 120° conical dispersion pattern delivers consistent coverage throughout the listening area. An elegant white finish blends seamlessly into installed systems for a clean, modern look.

With eight all-weather surface-mount speakers and a versatile 4-zone amplifier, the SDCA500X8VL6W set is well suited for restaurants, lounges, bars, schools, warehouses, homes, decks, patios, and other commercial or residential audio environments requiring reliable distributed sound.

• SDCA500X8VL6W COMMERCIAL AUDIO SET: Includes (1) SDCA500-4 4-zone amplifier and (4) pairs of VELA-6W-PAIR weatherproof surface-mount speakers (eight speakers total) for distributed audio installations.
• SDCA500-4 4-ZONE CLASS-D AMPLIFIER: Delivers 500W RMS output with support for 70V, 100V, and 4–16Ω low-impedance speakers. A dedicated 70V zone output section provides four independent zone outputs with individual volume controls for flexible audio management across multiple rooms or areas.
• VELA-6W-PAIR IP55 WEATHER-RESISTANT SPEAKERS: Includes four pairs of 6.5" surface-mount speakers, each equipped with a 6.5" woofer and 1" dome tweeter delivering 65W RMS / 130W program power at 8Ω, with an integrated multi-tap 70V/100V transformer. Weatherized construction helps protect against dust and moisture.
• FLEXIBLE INSTALLATION & CONNECTIVITY: Speakers include adjustable wall-mount brackets with 40° vertical and 60° horizontal adjustment, while 120° conical coverage provides consistent sound distribution. The amplifier features Bluetooth streaming, USB/MP3 playback, RCA inputs, microphone inputs, FM radio, and dedicated zone volume controls.
• VERSATILE APPLICATIONS: Designed for indoor and outdoor installations, the SDCA500X8VL6W set is suitable for restaurants, lounges, bars, schools, warehouses, homes, decks, patios, and other multi-zone commercial or residential audio applications.

Specifications

Specifications

Dimension & Weight

Warranty/Certifications

Q: What speaker wire should be used for this system?

A: Speaker wire is not included. To ensure optimal performance and minimize signal loss, select the appropriate wire gauge based on the distance between your amplifier and speakers:

Using a thicker (lower gauge) wire for longer runs helps maintain signal strength and overall audio quality.

▶ VELA Series User Manual
▶ SDCA Series User Manual
