Home / Collections / REFURBISHED / MLF-12-R | REFURBISHED: 12" Raw Woofer Speaker, 250 Watts Pro Audio PA DJ Replacement Low Frequency Driver

MLF-12-R | REFURBISHED: 12" Raw Woofer Speaker, 250 Watts Pro Audio PA DJ Replacement Low Frequency Driver

Sound Town

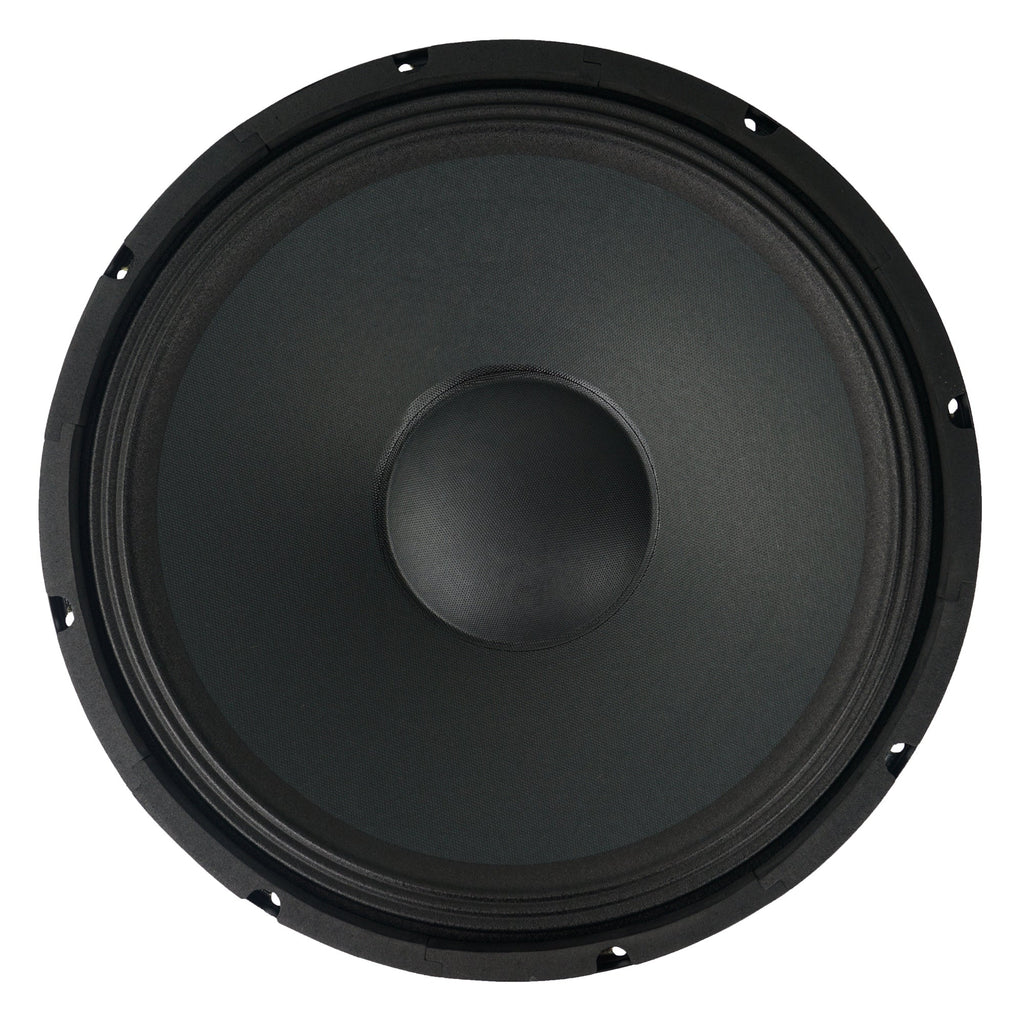

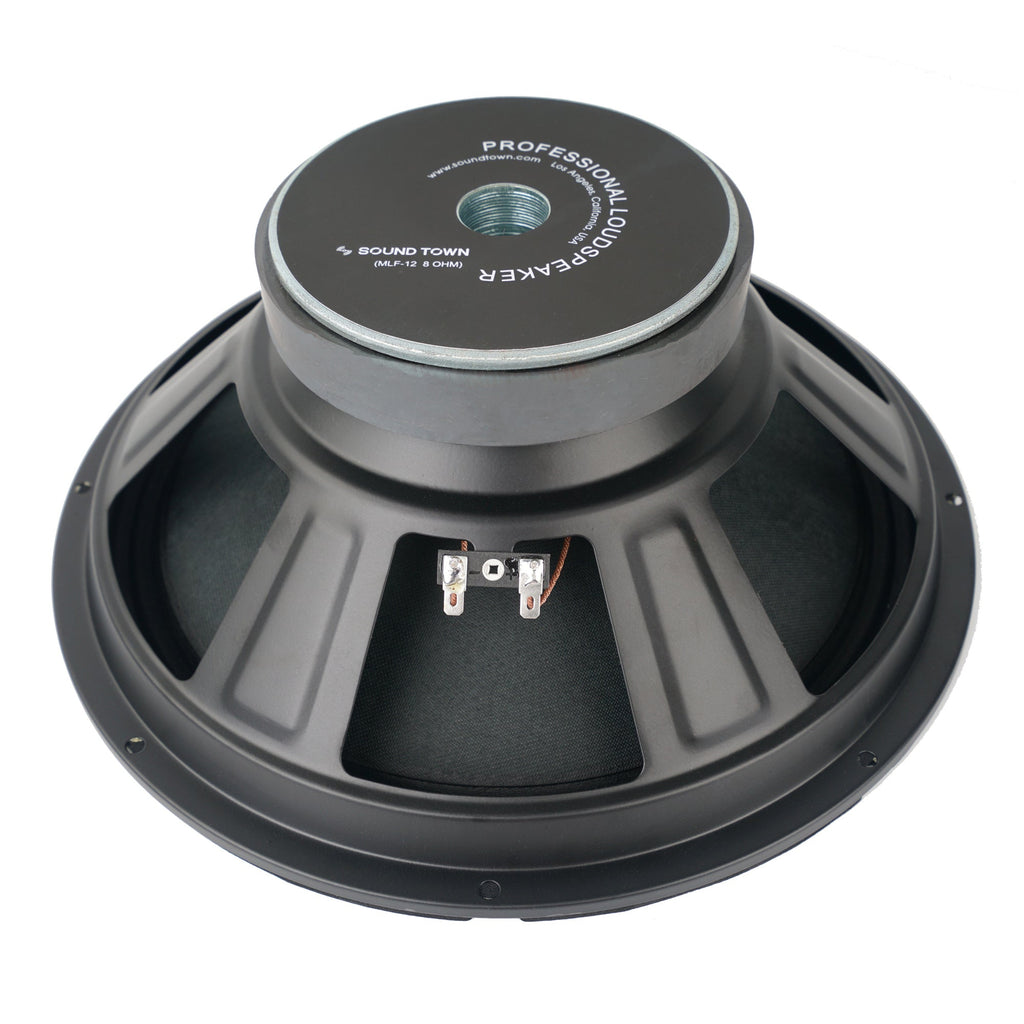

Sound Town MLF-12-R | REFURBISHED: 12" Raw Woofer Speaker, 250 Watts Pro Audio PA DJ Replacement Low Frequency Driver - 8 ohms

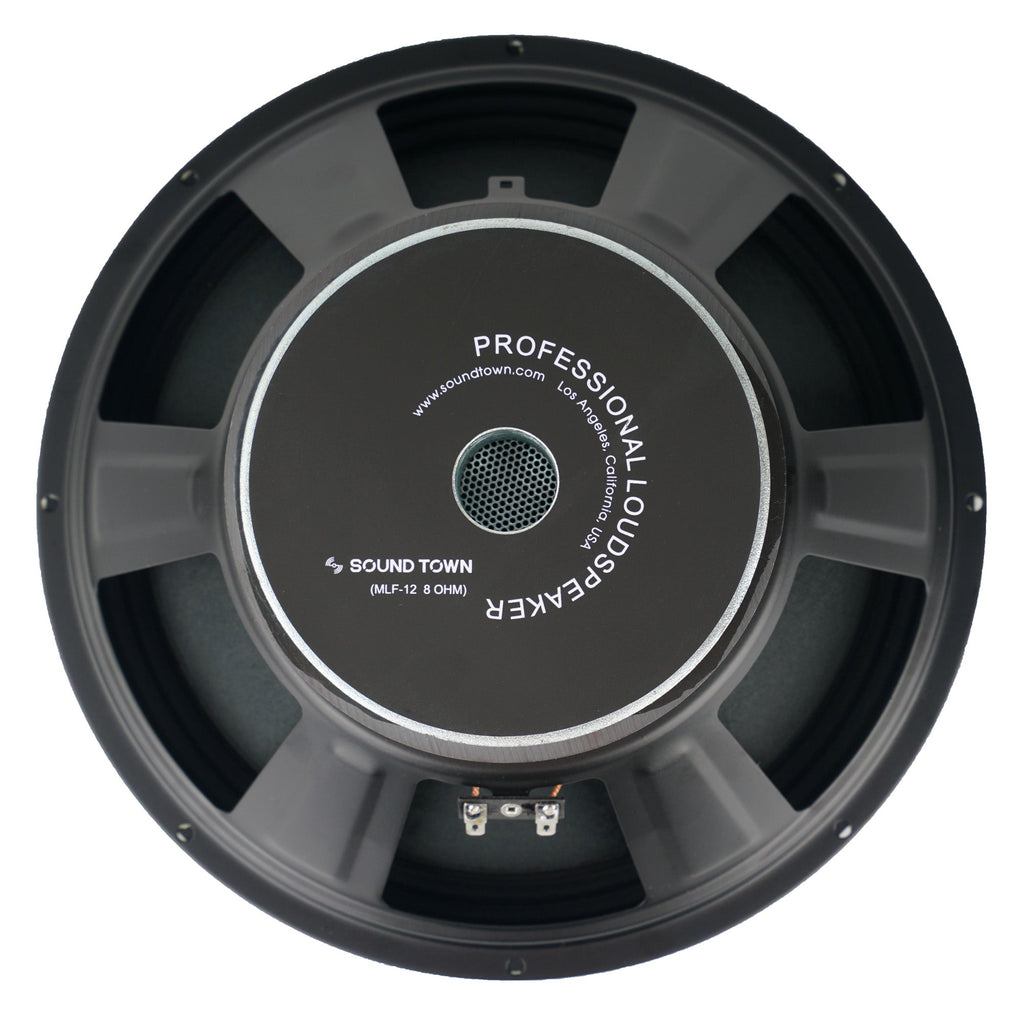

Sound Town MLF-12-R | REFURBISHED: 12" Raw Woofer Speaker, 250 Watts Pro Audio PA DJ Replacement Low Frequency Driver - Back View

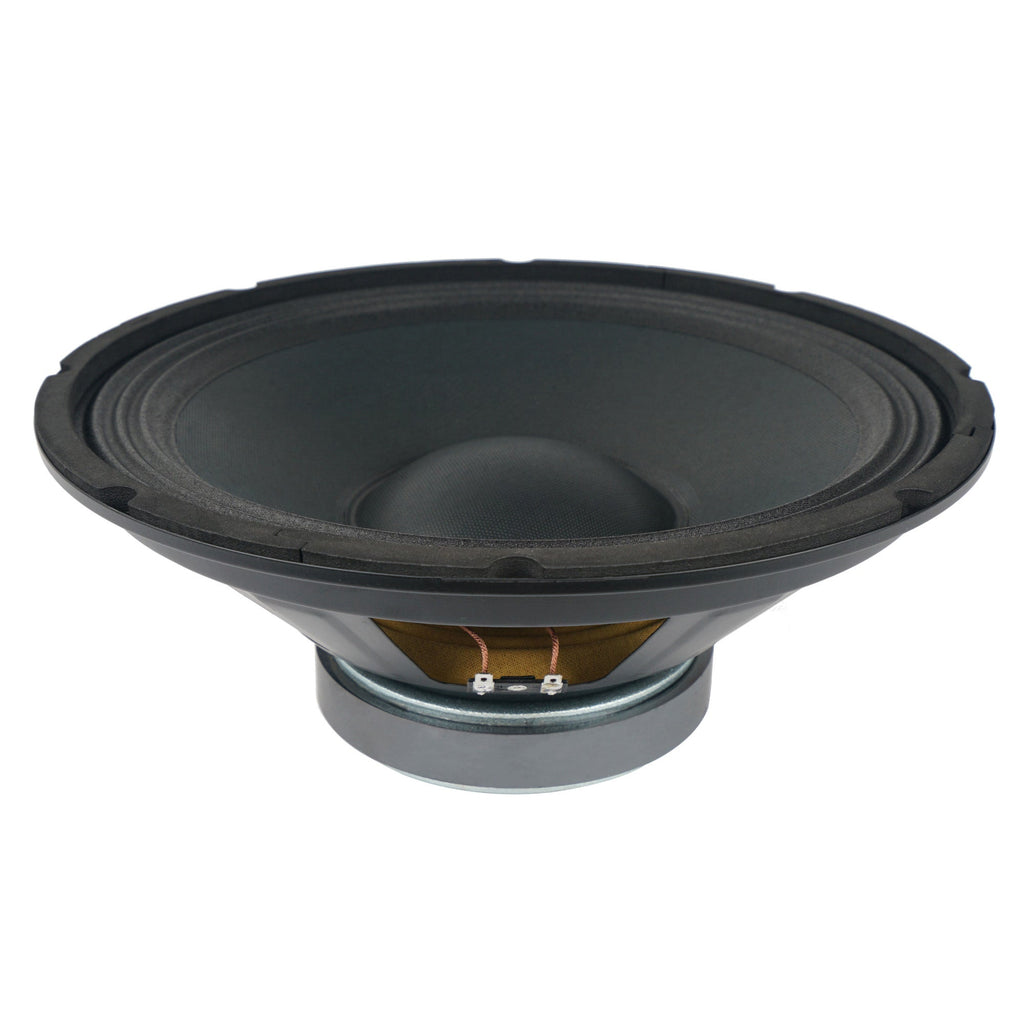

Sound Town MLF-12-R | REFURBISHED: 12" Raw Woofer Speaker, 250 Watts Pro Audio PA DJ Replacement Low Frequency Driver - Side View
Sound Town MLF-12-R | REFURBISHED: 12" Raw Woofer Speaker, 250 Watts Pro Audio PA DJ Replacement Low Frequency Driver - 50 OZ

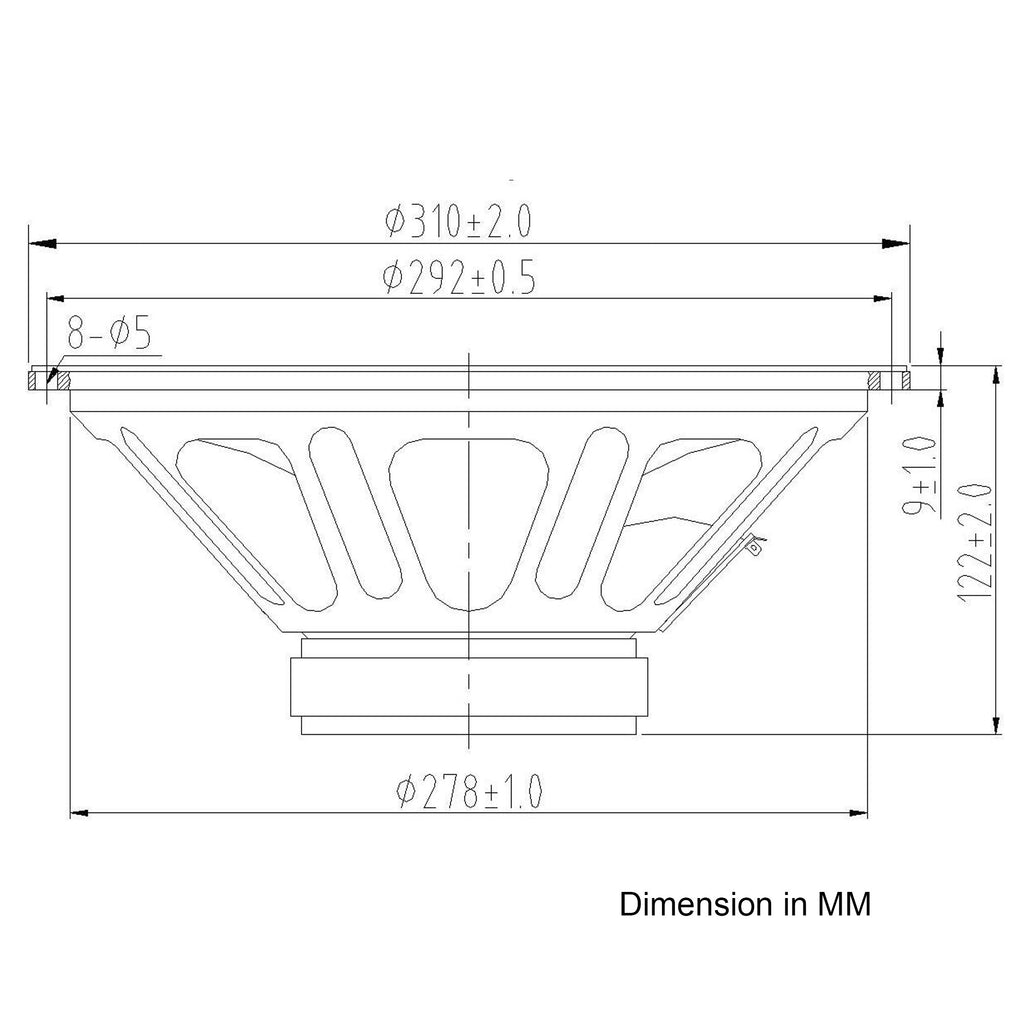

Sound Town MLF-12-R | REFURBISHED: 12" Raw Woofer Speaker, 250 Watts Pro Audio PA DJ Replacement Low Frequency Driver - Size Dimensions
Sound Town MLF-12-R | REFURBISHED: 12" Raw Woofer Speaker, 250 Watts Pro Audio PA DJ Replacement Low Frequency Driver - SPL vs. Frequency Graph

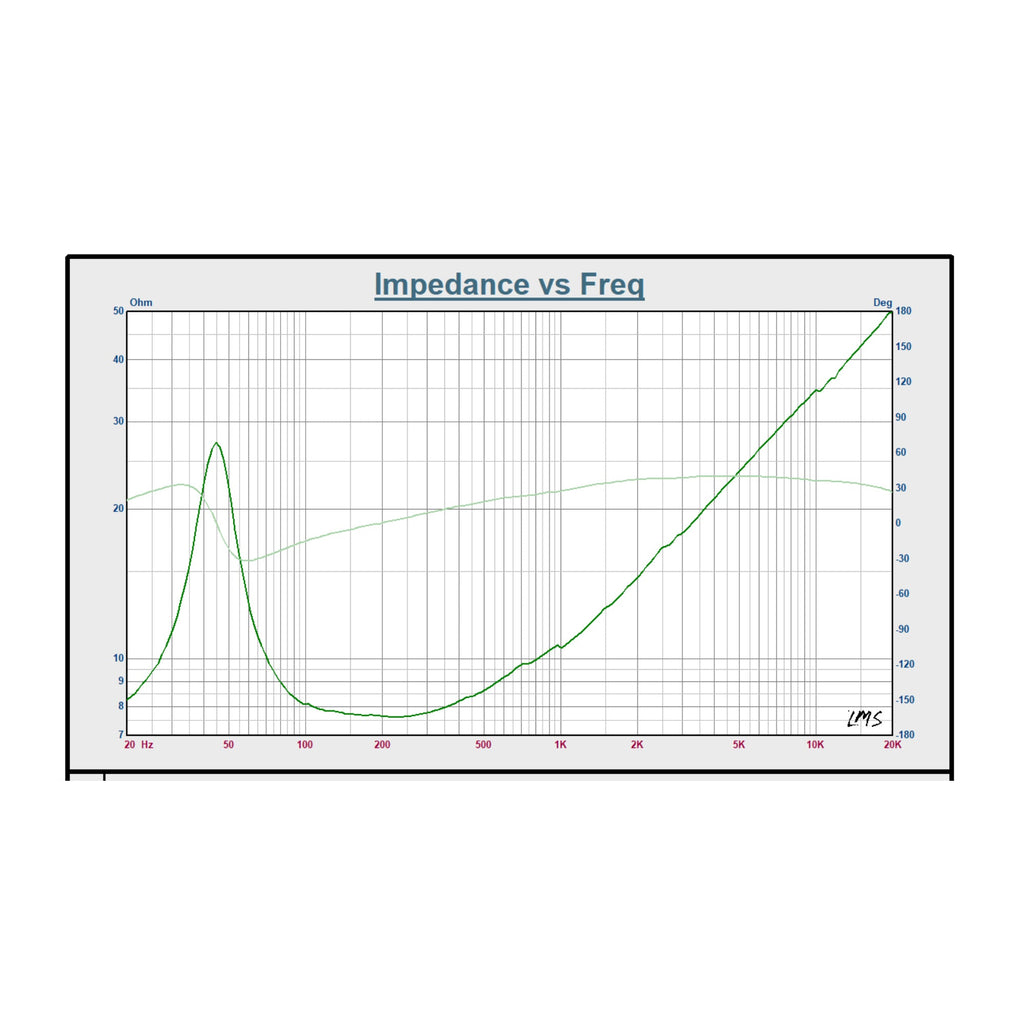

Sound Town MLF-12-R | REFURBISHED: 12" Raw Woofer Speaker, 250 Watts Pro Audio PA DJ Replacement Low Frequency Driver - Impedance vs. Freq Graph

$33.99 $45.99

Refurbished Condition: 100% testing and function is in good condition while outside box worn out and small cosmetic dents. cosmetic damages will vary, including but not limited to, damaged or cracked, bent ears, scratches, dents, etc.

Sound Town 12” 200W Steel Frame Woofer (Low frequency Driver), Replacement for PA/DJ Subwoofers (MLF-12)

  • 12” pressed steel frame
  • 2.5” voice coil and 50-oz magnet produce superb sound and earth shaking volume
  • 200W RMS power handling capability

Sound Town MLF-12 12" Raw Woofer Speaker, 250 Watts Pro Audio PA DJ Replacement Low Frequency Driver - Size Dimensions



Sound Town MLF-12 12" Raw Woofer Speaker, 250 Watts Pro Audio PA DJ Replacement Low Frequency Driver - SPL vs. Frequency Graph

Sound Town MLF-12 12" Raw Woofer Speaker, 250 Watts Pro Audio PA DJ Replacement Low Frequency Driver - Impedance vs. Freq Graph

Details

Model MLF-12 Resonance 55Hz
Nominal Basket Diameter 12" Frequency Response
 55Hz-3KHz
Nominal Impedance 8Ω Sensitivity 93±3dB
Power Rating
 250W RMS Magnet Weight 50 OZ
Peak Power 500W Peak Voice Coil Diameter 2.5" VC


Thiele & Small Parameters

Resonant Frequency (fs) 55Hz Compliance Equivalent Volume (Vas) 89.75 Ltr
DC Resistance (Re) 6.4Ω Mechanical Compliance of Suspension (Cms) 217 mm/N
Mechanical Q (Qms) 2.823 BL Product (BL) 10.14 Tm
Electromagnetic Q (Qes) 1.017 Diaphragm Mass Inc. Airload (MMs) 58.1 g
Total Q (Qts) 0.748 Surface Area of Cone (Sd) 539 cm2


Mounting Information

Overall Diameter 12.2", 310 mm Mounting Holes Diameter 8-0.2", 8-5 mm
Depth 4.8", 122 mm Net Weight 7.4 lbs, 3.4 kg
Baffle Hole Diameter 10.94",278 mm Shipping Weight 10.8 lbs, 4.9 kg
Installation Position Diameter 11.5", 292mm


Materials of Construction

Coil Construction Round Copper Cone Composition Paper Cone
Coil Former Aluminum Cone Edge Composition Cloth Edge
Magnet Composition Ferrite Dust Cap Composition Paper Cap
Basket Materials Pressed Steel


Dimension & Weight

Product Width (in.) ∅12.0" Package Width (in.) 14.4"
Product Height (in.) 4.8" Package Height (in.) 6.8"
Product Depth (in.) --" Package Depth (in.) 13.3"
Product Weight (lb.) 7.4 lbs Package Weight (lb.) 10.8 lbs


Warranty/Certifications

Manufacturer Warranty 180 Days (6 Months)


MLF-12 Brochures
