$16.99 $19.99

Refurbished Condition: 100% testing and function is in good condition while outside box worn out and small cosmetic dents. cosmetic damages will vary, including but not limited to, damaged or cracked, bent ears, scratches, dents, etc.

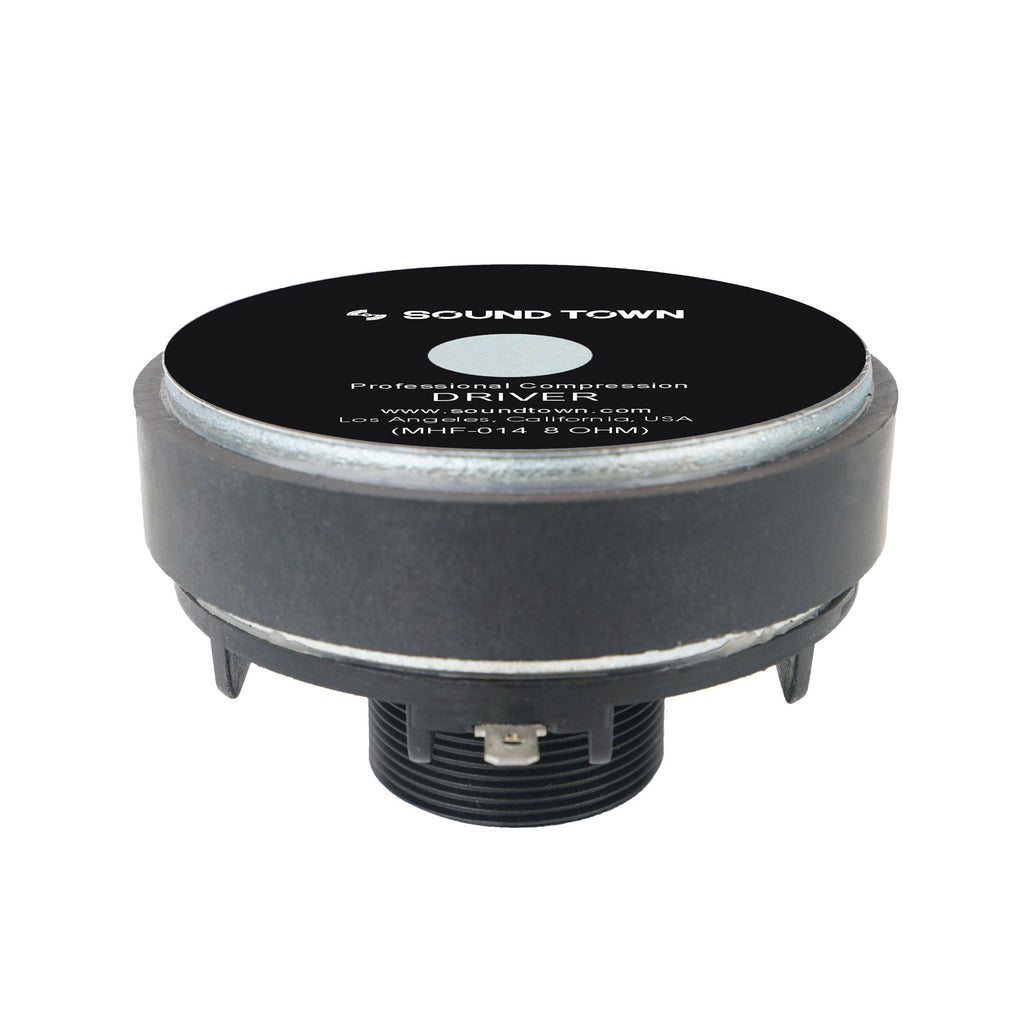

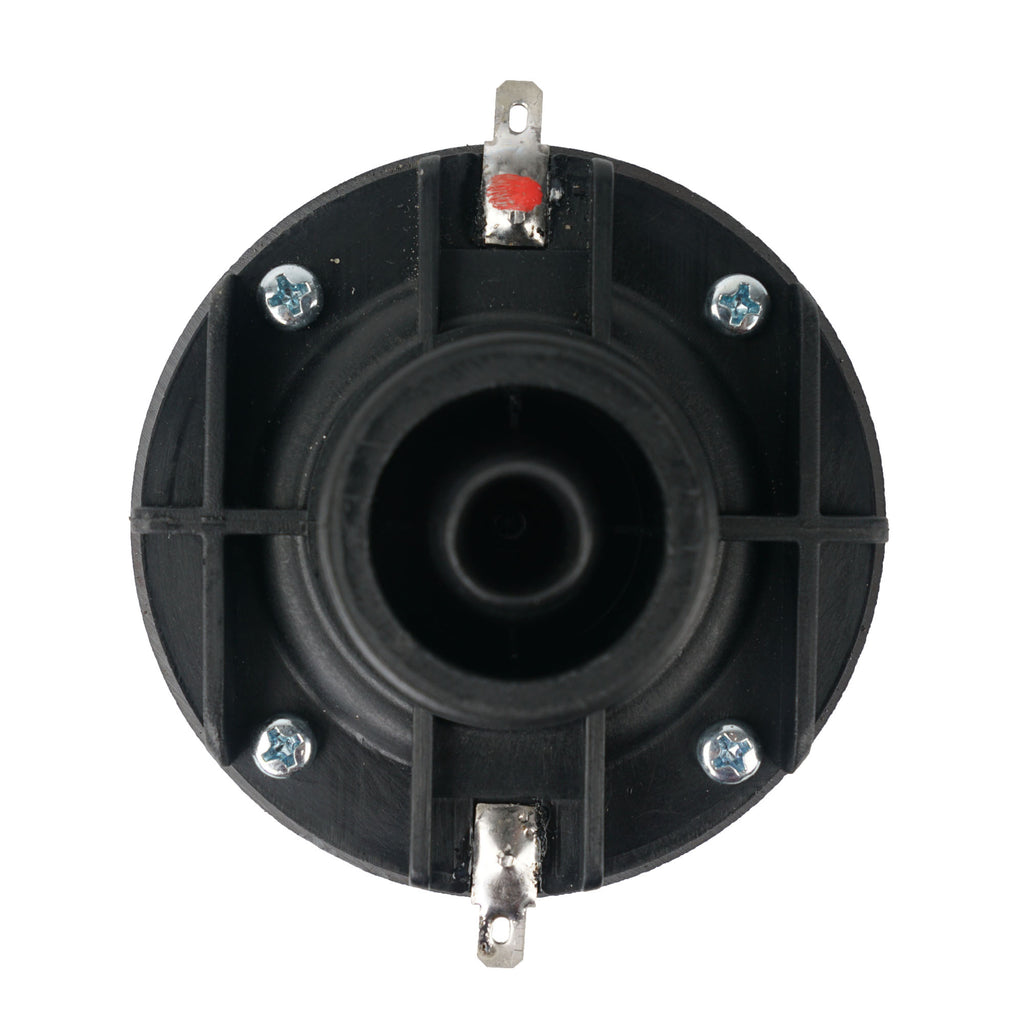

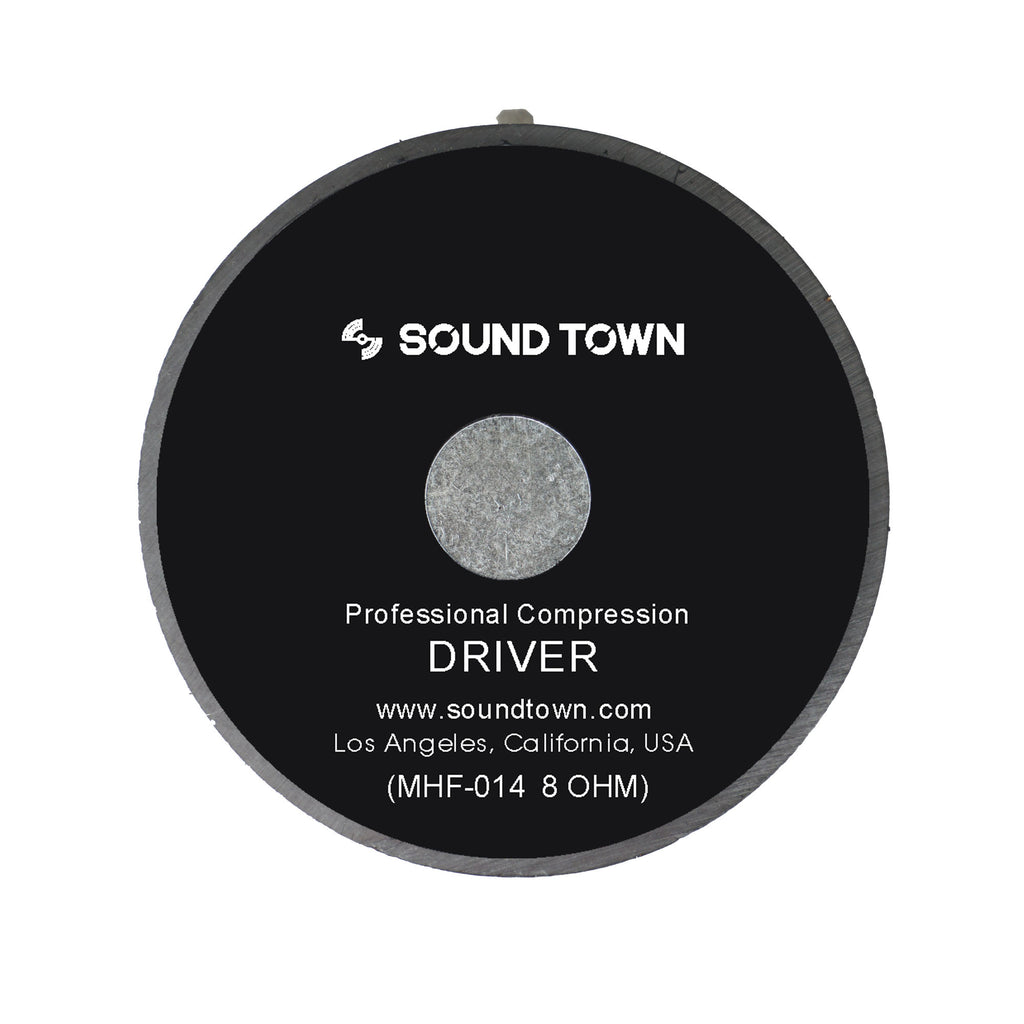

The Sound Town MHF-014 is a high-quality compression driver, compatible with the Sound Town METIS series speakers and speaker cabinets of any other brands which require 1” tweeter. The compression driver comes with 12-oz magnet and has a power handling capability of 50W RMS. It delivers crisp highs and makes a great replacement for the tweeter of your PA/DJ speakers.

  • 1” poly diaphragm and 12-oz magnet
  • Frequency response: 1.8K~18K Hz
  • 50W RMS power handling capability

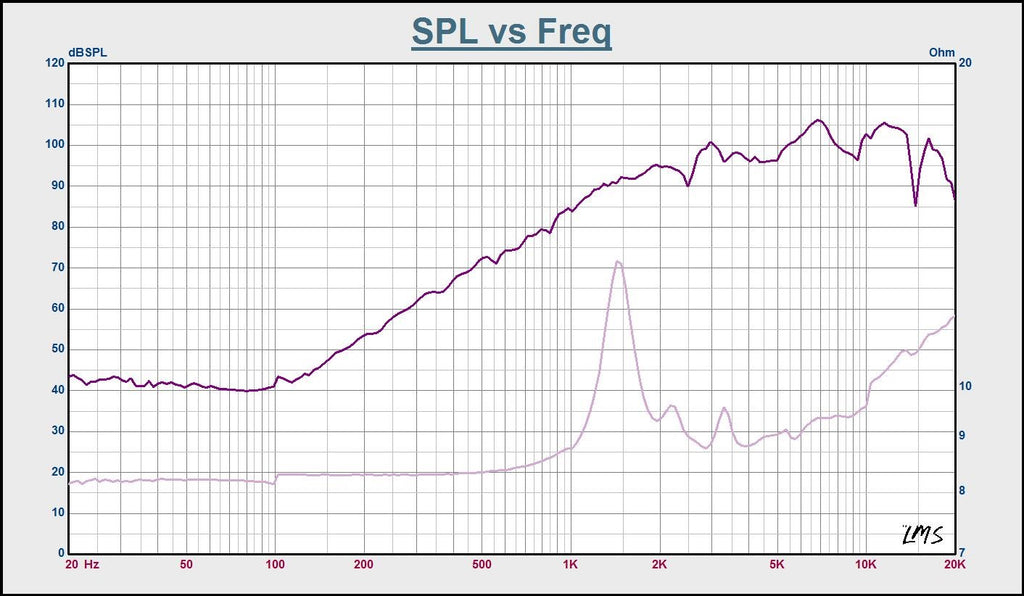

Sound Town MHF-014 1 inch 50W Compression Horn Replacement Tweeter High Frequency Driver SPL vs. Frequency Graph

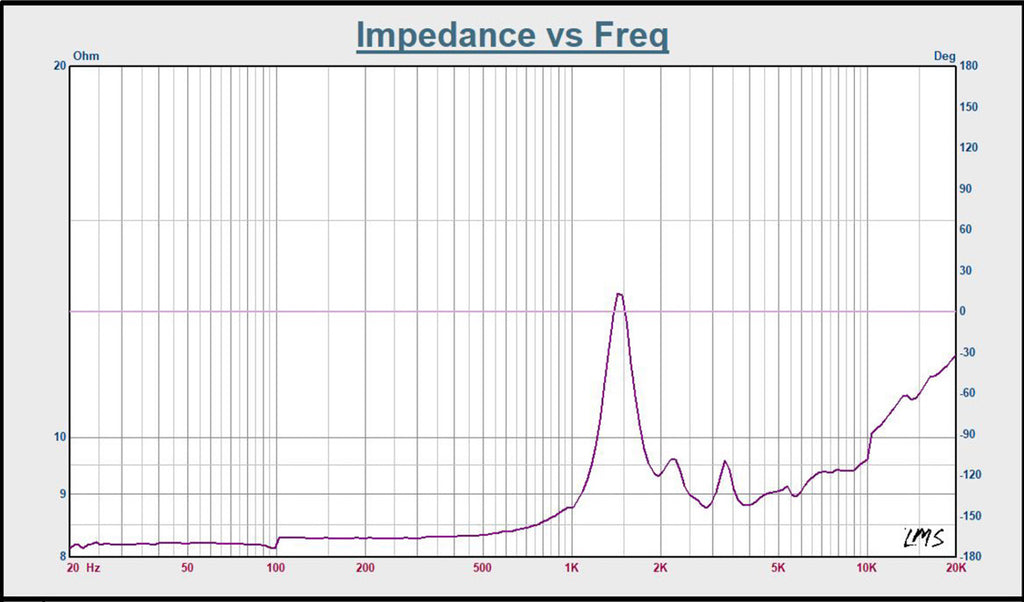

Sound Town MHF-014-R 1" Compression Horn Driver, 50 Watts Pro Audio PA DJ Replacement Tweeter High Frequency Driver, Refurbished - Impedance vs. Freq Graph



Details

Model MHF-014 Sensitivity 110 ± 2 dB (@ 1M / 1W)
Throat Size 1", 25.4 mm Magnet Material Ferrite
Nominal Impedance 8 Ω Magnet Weight 12 oz
Minimum Impedance 8.6 Ω @ 2.9 kHz Voice Coil Diameter 1", 25.4 mm
Power Rating 50 W Voice Coil Former Kapton
Resonance 1.8 kHz Diaphragm Material PET
Usable Frequency Range 2.0 kHz - 18 kHz DC Resistance (Re) 5.2 Ω
Recommended Crossover 3.0 kHz / 12 dB oct.


Mounting Information

Overall Diameter 3.15", 80.0 mm Mounting Thread 1.38", 35.0 mm, 18 ext
Depth 2.16", 55.0 mm Mounting Hole Diameter --
Net Weight 1.36 lbs, 0.62 kg Mounting Hole B.C.D. --


Dimension & Weight

Product Width (in.) 3.15" Package Width (in.) 4.33"
Product Height (in.) 2.16" Package Height (in.) 3.94"
Product Depth (in.) --" Package Depth (in.) 4.33"
Product Weight (lb.) 1.36 lbs Package Weight (lb.) 1.60 lbs


Warranty/Certifications

Manufacturer Warranty 180 Days (6 Months)
