LYRA-5W | LYRA Series 5.25" Weatherproof Hanging Pendant Speaker, 70V/

DESCRIPTION

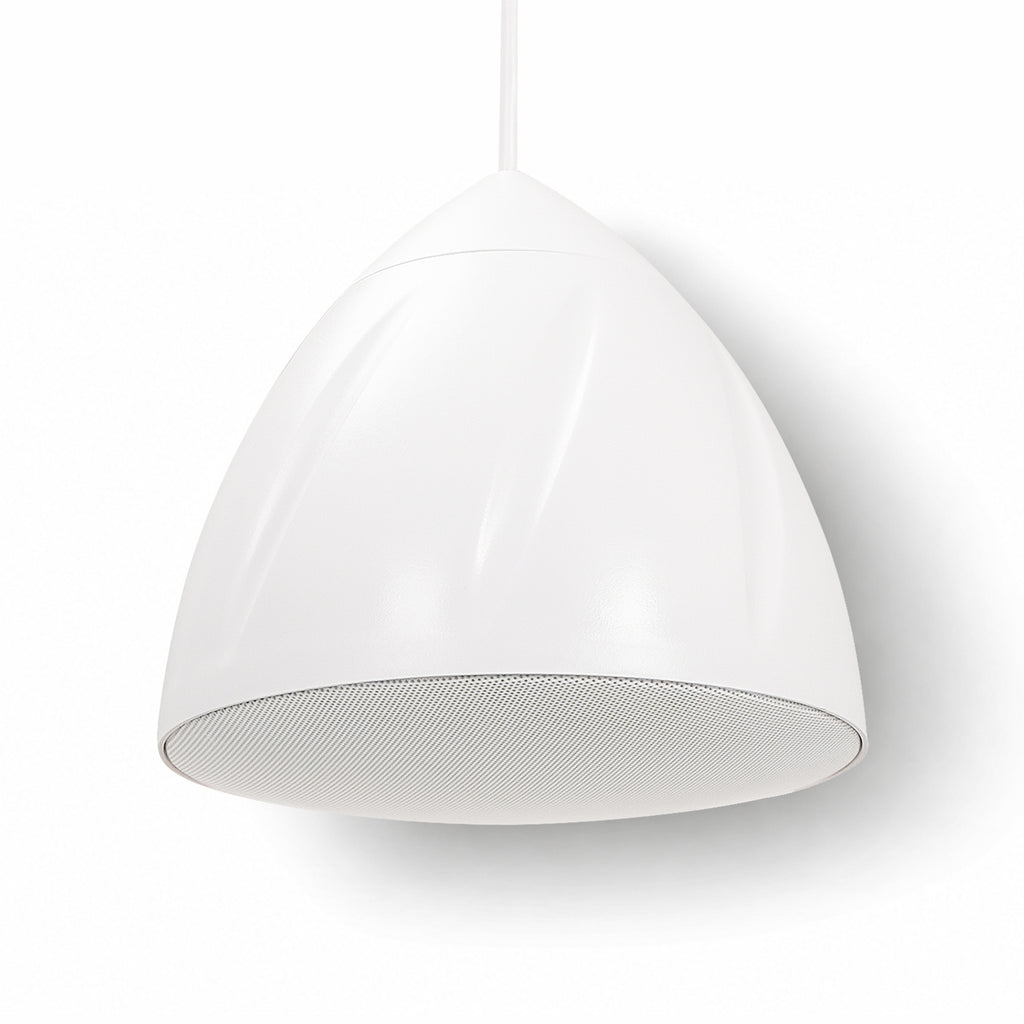

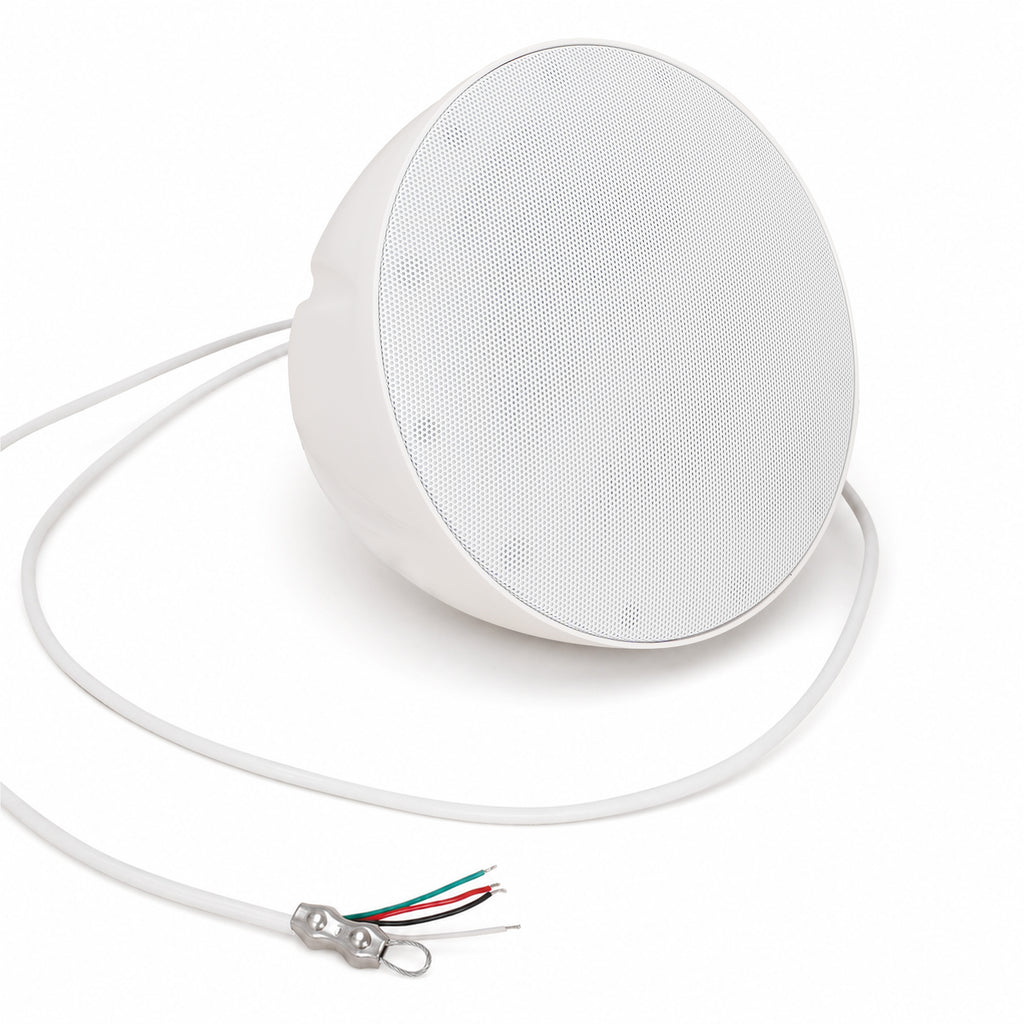

The LYRA Series LYRA-5W is a 5.25" weatherproof pendant speaker designed for commercial indoor and outdoor audio installations. It features a 5.25" graphite cone woofer and 1" silk dome tweeter, delivering 50W RMS / 100W program power at 8Ω for clear, balanced sound performance.

An IP55 enclosure provides weather-resistant protection against moisture, humidity, and dust, ensuring stable operation in exposed environments. A built-in transformer with selectable power taps supports both 70V/100V distributed audio systems (70V: 1.9W, 3.8W, 7.5W, 15W, 30W; 100V: 3.8W, 7.5W, 15W, 30W) as well as 8Ω low-impedance operation for flexible system design.

The LYRA-5W features an elegant white finish designed to blend with open-ceiling environments, and includes main and safety hanging cables for secure ceiling suspension and stable overhead placement. With a 120° conical dispersion pattern, the system delivers even sound coverage for restaurants, cafes, bars, decks, patios, and other commercial and residential spaces.

FEATURES

LYRA-5W 5.25" PENDANT SPEAKER: Includes a 5.25" graphite cone woofer and 1" silk dome tweeter delivering 50W RMS / 100W program power at 8Ω for clear, balanced sound.
IP55 WEATHER-RESISTANT DESIGN: Weatherized enclosure provides protection against moisture, humidity, and dust for reliable indoor and outdoor installations.

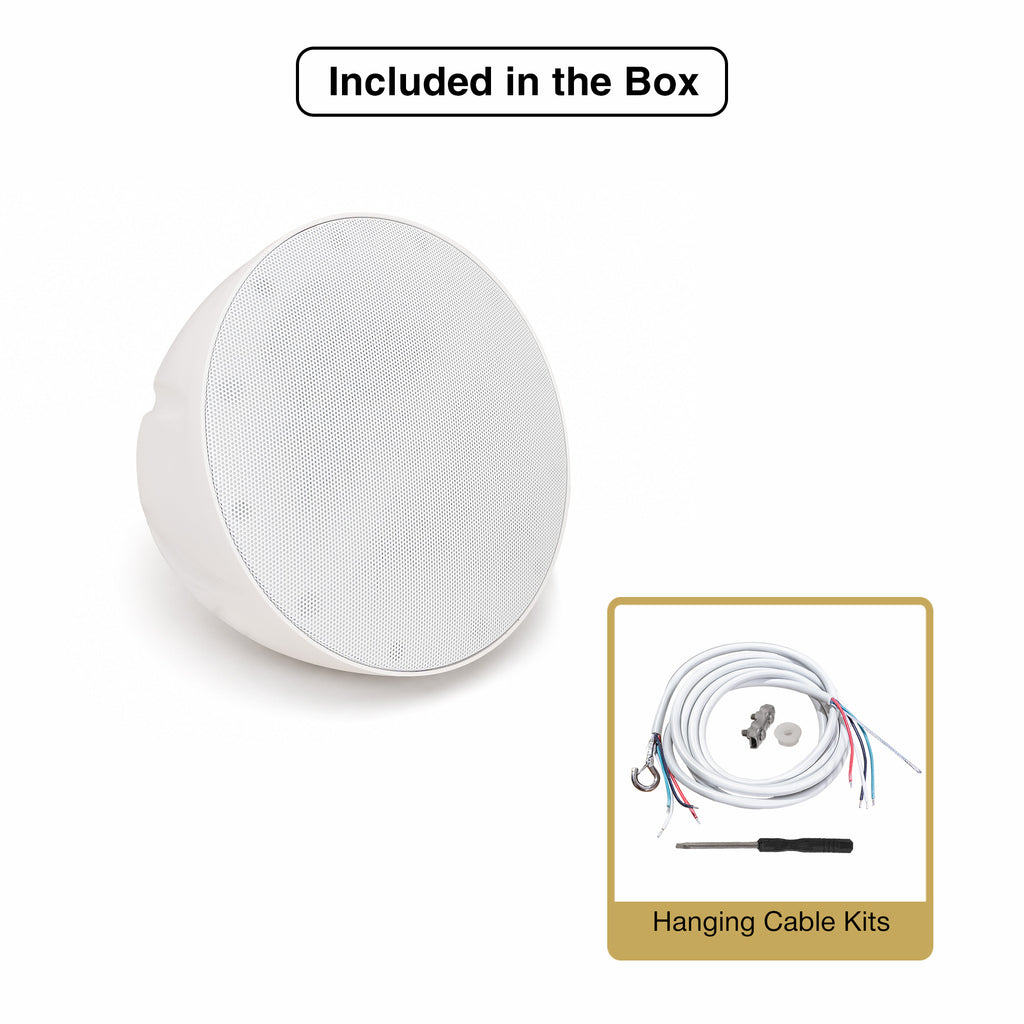

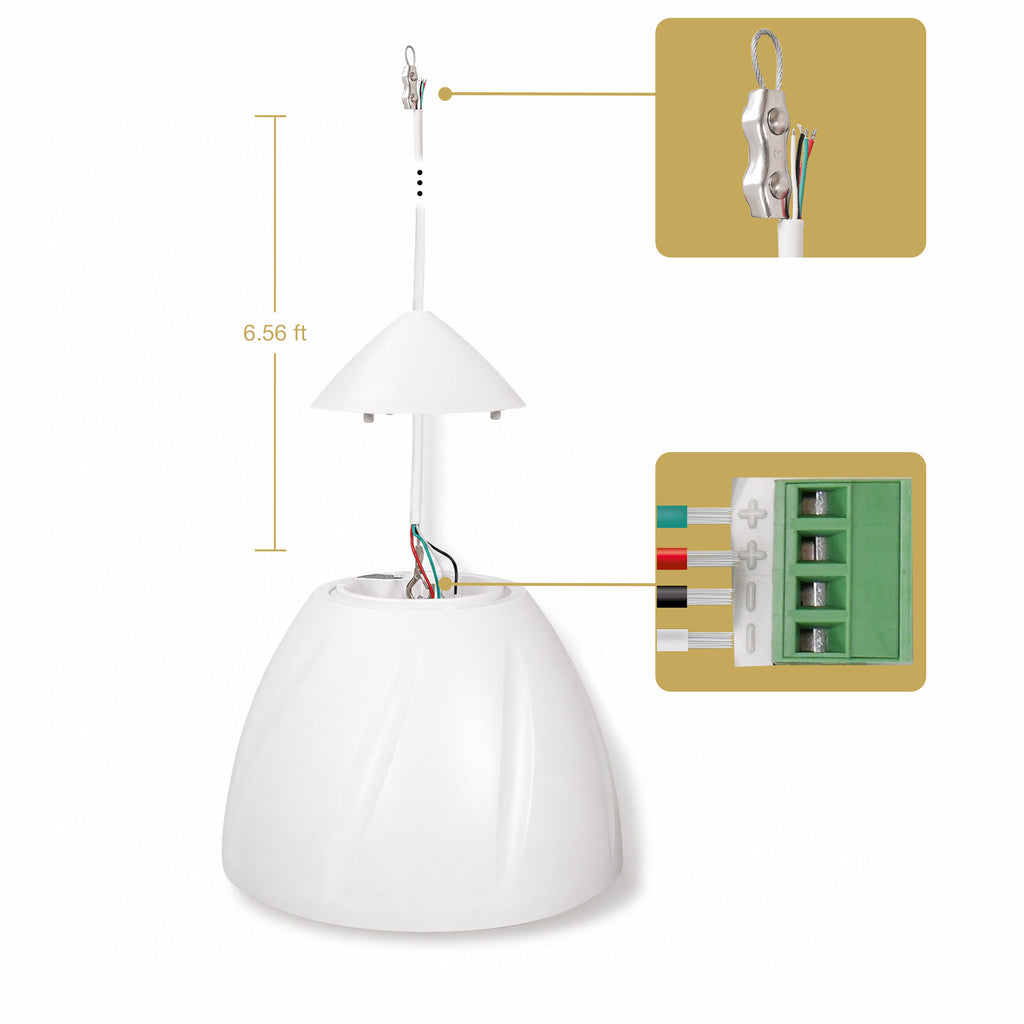

CEILING SUSPENSION INSTALLATION: Includes main and safety hanging cables for secure ceiling mounting and stable overhead positioning.
70V/100V & 8Ω COMPATIBILITY: Built-in multi-tap transformer supports both 70V/100V and low-impedance (8Ω) systems, ensuring flexible integration with commercial and professional audio setups.
WIDE SOUND DISPERSION: 120° conical coverage delivers consistent audio distribution, ideal for restaurants, cafes, bars, decks, patios, and other commercial and residential spaces.

SPECIFICATIONS

Specifications

Model	LYRA-5W
Active / Passive	Passive
Frequency Range	90 Hz - 20k Hz
Frequency Response	90 Hz - 20k Hz
Sensitivity	88 dB
SPL Max	103 dB
Dispersion	120° Conical
Configuration	5.25" Weatherproof pendant speaker
Transducer	LF: 1 x 5.25" woofer, HF: 1 x 1"
Voice Coil	--
Magnet	--
Impedance	8Ω
Power Handling	50 RMS / 100W Program
70V	1.9W / 3.8W / 7.5W / 15W / 30W
100V	3.8W / 7.5W / 15W / 30W
Enclosure Material	Plastic
Mounting Hardware	Pendant
Finish	Powder-Coated Rust-Resistant Grille
Grill & Rigging Component	Rust Resistant Aluminum Grill
Amplifier	--
Input	4 Pin Euroblock Terminal
Output	4 Pin Euroblock Terminal
Signal Processing	--

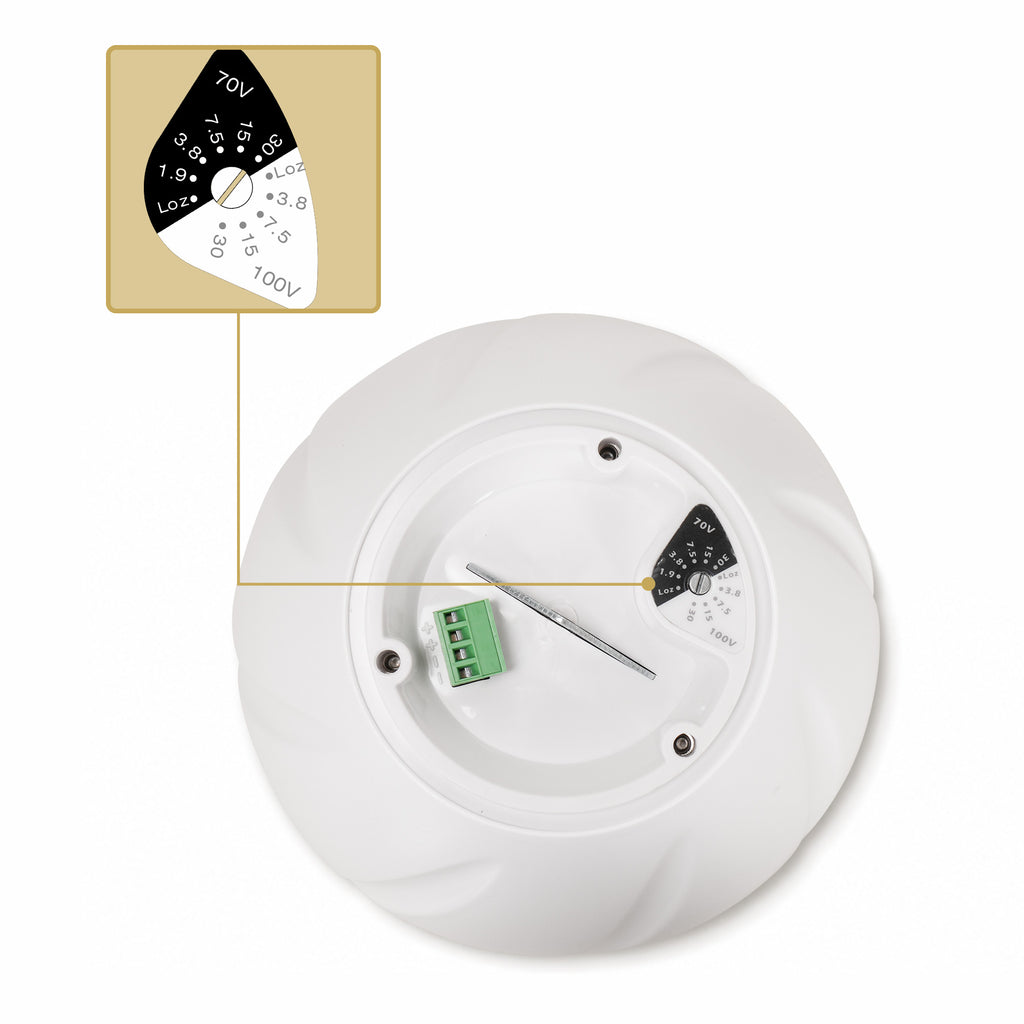

Control	70V / 100V / 8-ohm tap switch
Indicator	--
Voltage	100V-240V (50-60 Hz)
Crossover Parts#	--
High Frequency Driver Parts#	--
Low Frequency Woofer Parts#	--

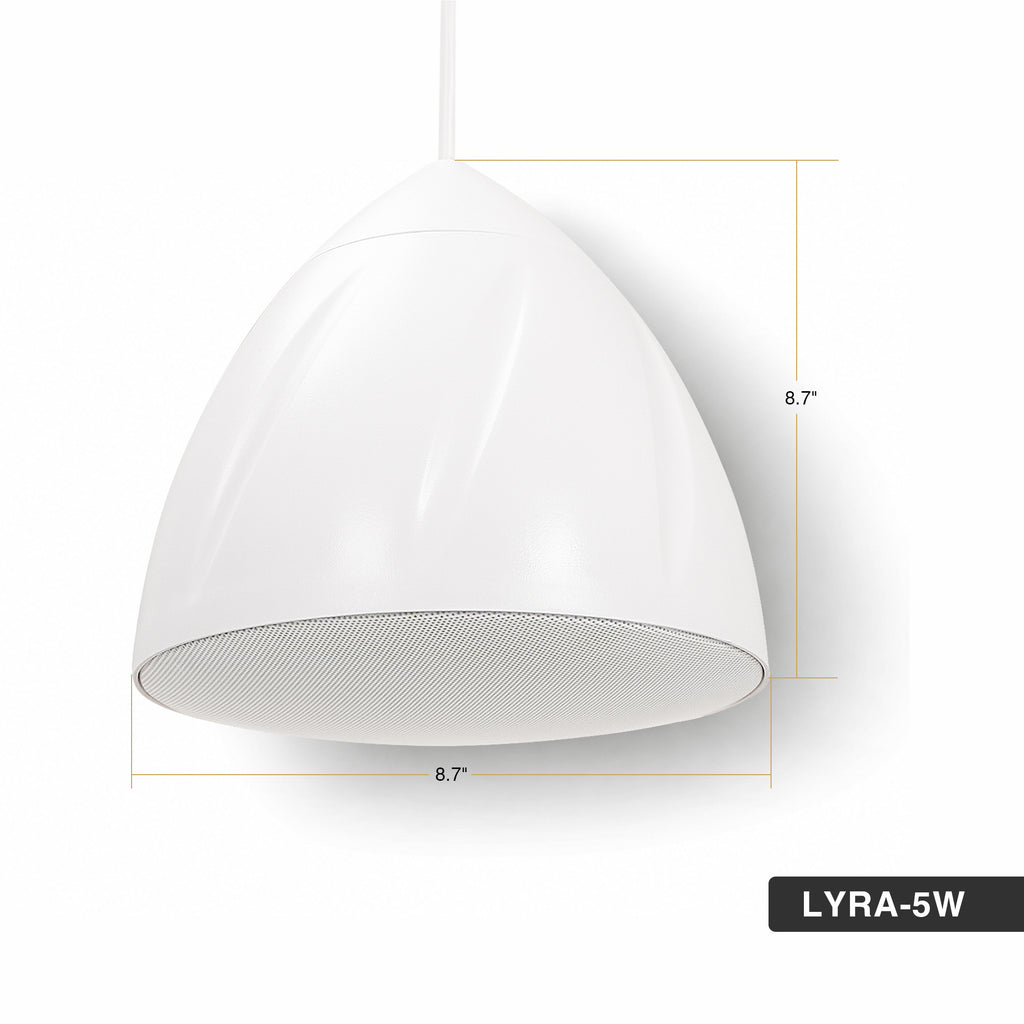

Dimension & Weight

Product Width (in.)	Ø8.7"	Package Width (in.)	13.2"
Product Height (in.)	8.7"	Package Height (in.)	12.2"
Product Depth (in.)	--	Package Depth (in.)	13.2
Product Weight (lb.)	4.4 lbs	Package Weight (lb.)	9.9 lbs

Warranty/Certifications

Manufacturer Warranty

1 Year

FAQ

Q: What speaker wire should be used for this system?

A: Speaker wire is not included. To ensure optimal performance and minimize signal loss, select the appropriate wire gauge based on the distance between your amplifier and speakers:

Distance	Wire Gauge
10–15 ft	18 AWG
15–25 ft	16 AWG
25–50 ft	14 AWG
50–100 ft	12 AWG
Over 100 ft	10 AWG

Using a thicker (lower gauge) wire for longer runs helps maintain signal strength and overall audio quality.

DOWNLOADS

▶ LYRA Series User Manual
