GSD-1216 | 12-Inch 65 Watt Replacement Guitar Speaker, 16-Ohm

Sound Town
Sound Town GSD-1216 full-range 12-Inch 65 Watt Replacement Guitar Speaker, 16-Ohm - Side View
Sound Town GSD-1216 full-range 12-Inch 65 Watt Replacement Guitar Speaker - 16-Ohm

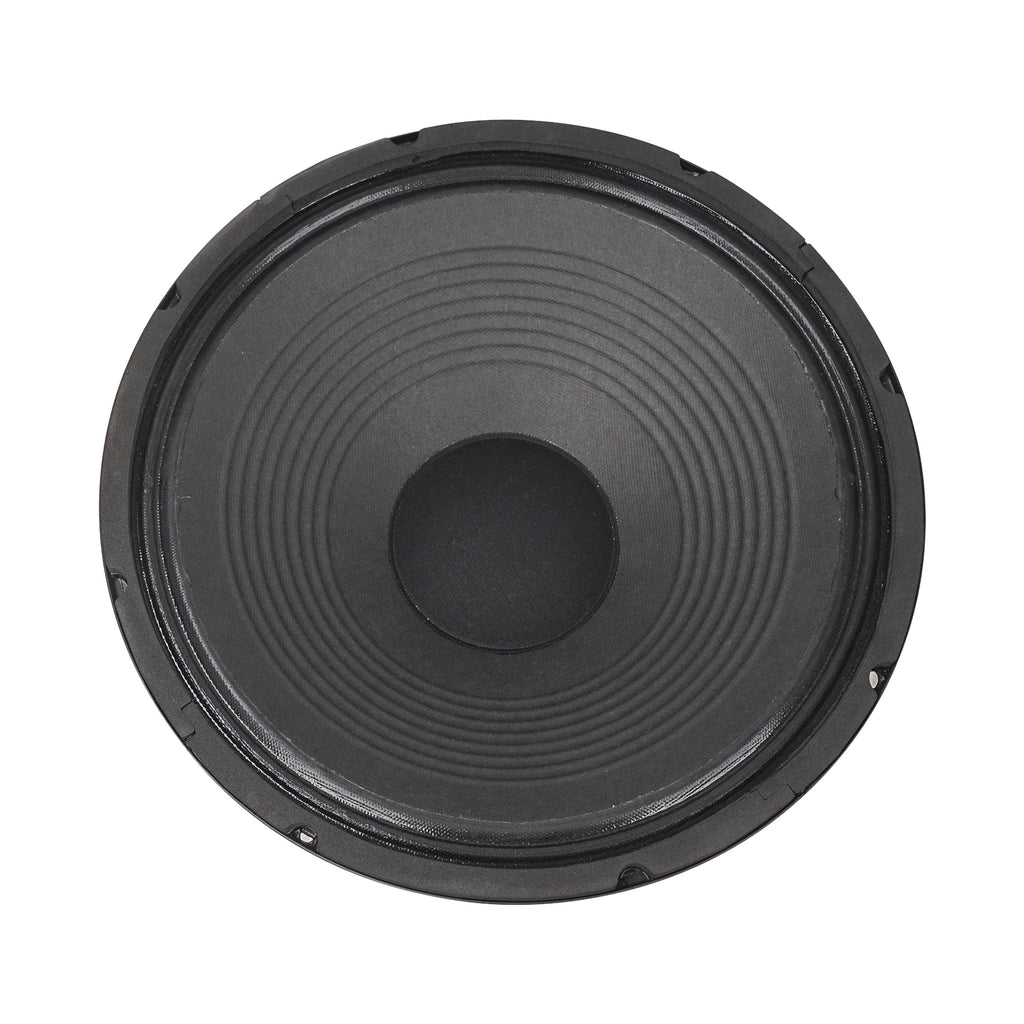

Sound Town GSD-1216 full-range 12-Inch 65 Watt Replacement Guitar Speaker, 16-Ohm - 35 OZ
Sound Town GSD-1216 full-range 12-Inch 65 Watt Replacement Guitar Speaker, 16-Ohm - Back View
Sound Town GSD-1216 full-range 12-Inch 65 Watt Replacement Guitar Speaker, 16-Ohm - Size Dimensions

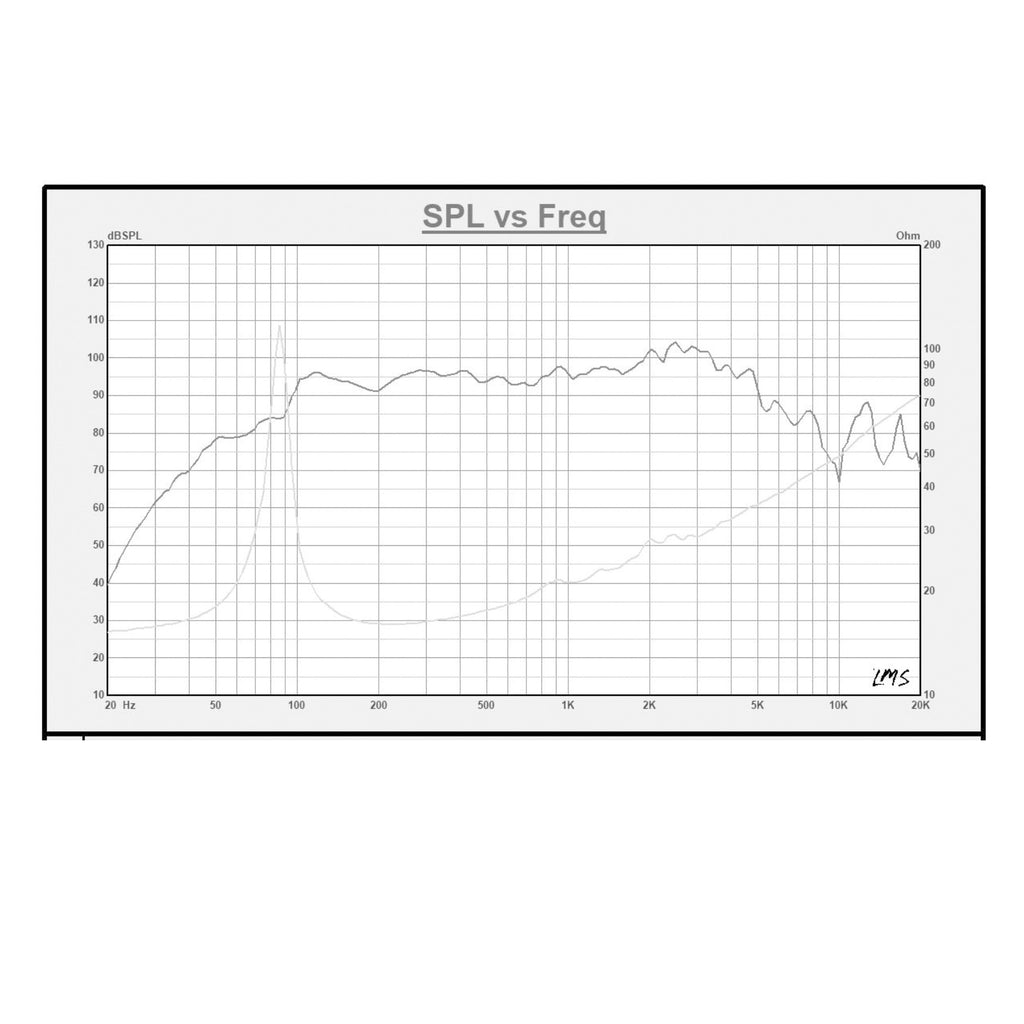

Sound Town GSD-1216 full-range 12-Inch 65 Watt Replacement Guitar Speaker, 16-Ohm - SPL vs. Frequency Graph

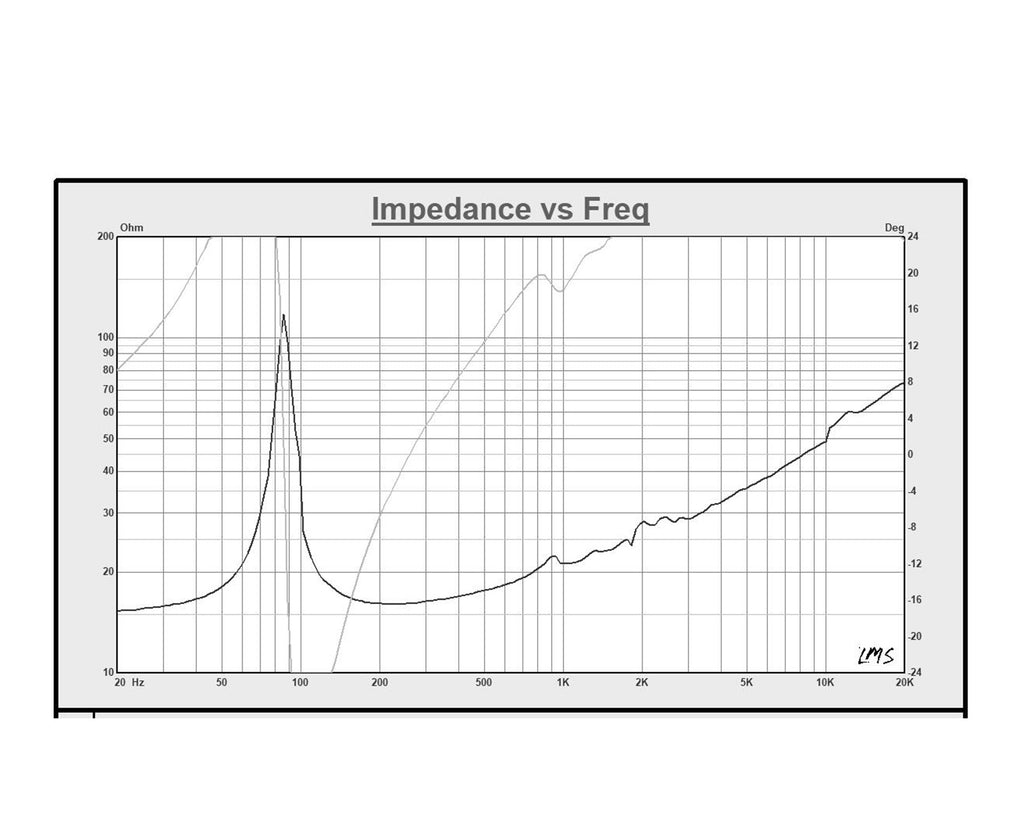

Sound Town GSD-1216 full-range 12-Inch 65 Watt Replacement Guitar Speaker, 16-Ohm - Impedance vs. Freq Graph

$59.99

The Sound Town GSD-1216 is a 12“ replacement guitar speaker. It exhibits a neutral sound without unwanted colorations and achieves the feel and response of a conventional guitar speaker. It delivers 75Hz-5KHz frequency response, offering cleaner vintage British voiced tone with a round, punchy low-end, warm, rich mids and open, clear highs. It’s an ideal replacement for Eminence/Celestion speakers.

    • 12“ replacement guitar speaker, 16-ohm
    • Delivers round, punchy low-end, warm, rich mids and open, clear highs
    • 75Hz-5KHz frequency response
    • Exhibits a neutral sound without unwanted colorations to overpower your signal
    • Replacement speaker for Eminence/Celestion speakers
    Sound Town GSD-1216 full-range 12-Inch 65 Watt Replacement Guitar Speaker, 16-Ohm - Size Dimensions

    Sound Town GSD-1216 full-range 12-Inch 65 Watt Replacement Guitar Speaker, 16-Ohm - SPL vs. Frequency Graph

    Sound Town GSD-1216 full-range 12-Inch 65 Watt Replacement Guitar Speaker, 16-Ohm - Impedance vs. Freq Graph

    Details

    Model GSD-1216 Resonance 75Hz
    Nominal Basket Diameter 12" Frequency Response
    		 75Hz - 5KHz
    Nominal Impedance 16Ω Sensitivity 96 ±3dB
    Power Rating
    		 60W RMS Magnet Weight 35 OZ
    Peak Power 120W Peak Voice Coil Diameter 1.75" VC


    Thiele & Small Parameters

    Resonant Frequency (fs) 75Hz Compliance Equivalent Volume (Vas) 63.6 Ltr
    DC Resistance (Re) 13Ω Mechanical Compliance of Suspension (Cms) 0.150 mm/N
    Mechanical Q (Qms) 8.492
    		 BL Product (BL) 10.522 Tm
    Electromagnetic Q (Qes) 1.451 Diaphragm Mass Inc. Airload (MMs) 22.833 g
    Total Q (Qts) 1.239 Surface Area of Cone (Sd) 547.4 cm2


    Mounting Information

    Efficiency Bandwidth 59
    		 Baffle Hole Diameter 11.2", 284mm
    Sealed --
    		 Installation Position Diameter 11.6", 294mm
    Vented --
    		 Mounting Holes Diameter 4-0.3", 7.6mm
    Overall Diameter 12.1", 308mm Net Weight 6.24lbs, 2.83kg
    Depth 5.04", 128mm


    Materials of     Construction

    Coil Construction Copper Clad Aluminum Cone Composition Paper Cone
    Coil Former Kapton Cone Edge Composition Paper Edge
    Magnet Composition Ferrite Dust Cap Composition Cloth Cap
    Basket Materials Steel



    Dimension & Weight

    Product Width (in.) ∅12.1" Package Width (in.) 13.6"
    Product Height (in.) --" Package Height (in.) 13.6"
    Product Depth (in.) 5.1" Package Depth (in.) 6.6"
    Product Weight (lb.) 6.24 lbs Package Weight (lb.) 8.7 lbs


    Warranty/Certifications

    Manufacturer Warranty 1 year


    GSD-1216 Brochure
