CARPO-L2SWM01 | Portable PA/DJ System w/ 12" Powered Subwoofer, 8 x 3" Column Speaker and Two UHF Wireless Microphones
- DESCRIPTION
- FEATURES
- SPECIFICATIONS
- DOWNLOADS
- REVIEWS
The Sound Town CARPO-L2SWM01 combo set includes:
- (1) CARPO-L2 PA System w/ 12" Powered Sub, 2 x Column Array Speakers, 1 x Spacer, TWS Bluetooth, 2-Channel Mixer, DSP
- (1) SWM01-U2HH Rechargeable & Portable Wireless Microphone System w/ Built-in Effects
The CARPO-L2SWM01 is a portable all-in-one PA speaker system that you can carry around from gig to gig. With a customized 12“ powered subwoofer and two column speakers each with four 3” full-range drivers, it delivers high quality sound and optimized dispersion. There is also a height spacer included that allows you to adjust the height of the array speaker. The two rechargeable UHF handheld wireless microphones with built-in effects, allows you to adjust echo, treble or bass with the buttons on the mics. It is a professional-quality portable PA system for a great-sounding show.
The system has a built-in 2-channel mixer and comes with two 1/4“ & XLR inputs (one of which MIC/Line switchable), and one XLR mix-out, enabling you to connect your guitar and portable media player directly; Built-in MP3 module support USB/SD inputs. The speaker is equipped with Bluetooth 5.0 and so you can stream music from your Bluetooth enabled devices.
The True Wireless Stereo (TWS) function allows you to pair two CARPO-L2 speakers at the same time for even more powerful real stereo sound. There are 3 presetting DSP modes on choice, enabling you to switch from MUSIC, SPEECH or LIVE venues. It is ideal for live sound reinforcement, events audio, speeches, mobile DJing, and venues such as restaurants, coffee houses, auditoriums, churches and more.

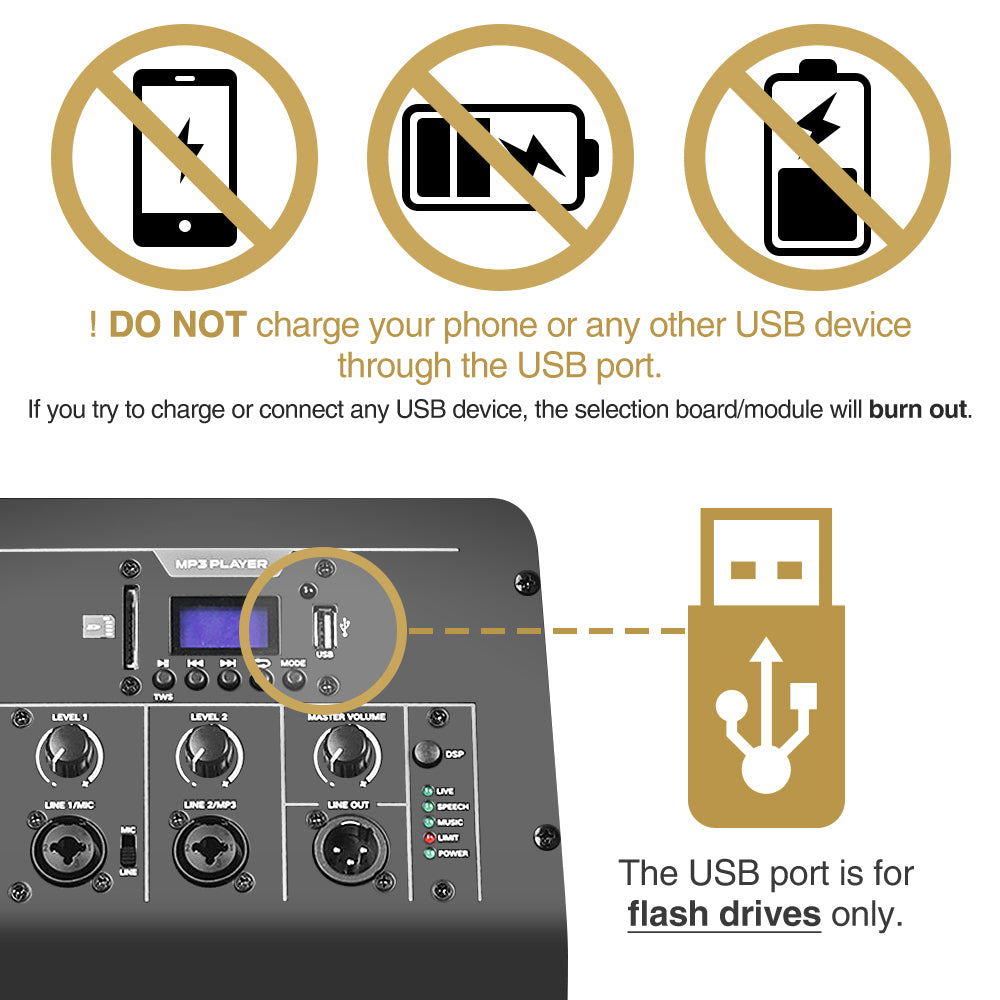

Important! The USB port on this product is designed ONLY for connecting a flash drive to play music. DO NOT attempt to use it to charge any device, as it may cause damage to the amplifier.
- ALL-IN-ONE SYSTEM: This bundle contains 1 x Sound Town CARPO-L2 line array column PA/DJ system and 1 x SWM01-U2 UHF rechargeable wireless microphone system. The CARPO-L2 includes one 12“ powered subwoofer and 8 x 3” full-range drivers inside two vertical column speakers, which deliver high quality sound and optimized dispersion. The SWM01-U2 includes one mini portable mic receiver (with 1/4“ plug in output) and 2 x handheld UHF microphones with built-in effect.
- LIGHTWEIGHT AND EASY TO SET UP: The system is compact and light enough to carry around and can be set up in seconds. Better yet, with a carry bag for the spacers and column speaker, the whole system can be easily transported from gig to gig.
-
GREAT FLEXIBILITY AND CONTROL: The system has a built-in 2-channel mixer and comes with two 1/4“ & XLR combo inputs (one of which MIC/Line switchable) and one XLR mix-out; Built-in MP3 module support USB/SD inputs as well, enabling you to connect your guitar and portable media player. When plug in the SWM01-U2 mic receiver, you can start your play in a breeze just with this one system.
Important! The USB port on this product is designed ONLY for connecting a flash drive to play music. DO NOT attempt to use it to charge any device, as it may cause damage to the amplifier.
- TWS BLUETOOTH & DSP EQUIPPED: The speaker is equipped with Bluetooth 5.0 and so you can stream music from your Bluetooth enabled devices. The True Wireless Stereo (TWS) function allows you to pair two CARPO-L2 speakers at the same time for even more powerful real stereo sound. Better yet, the presetting DSP button enables you to switch easily from different application venues.
- VERSATILE APPLICATIONS: With an all-in-one mixer, versatile input and output connectors, top-quality woofer and full-ranger drivers positioned at optimized angles, the Sound Town CARPO-L2SWM01 array speaker PA system is ideal for live sound reinforcement, events audio, speeches, mobile DJing, and venues such as restaurants, coffee houses, auditoriums, churches and more.
Specifications
Model | CARPO-L2 |
Active / Passive | Active |
Frequency Range | 38 Hz - 20 kHz |
Frequency Response | 42 Hz - 20 kHz |
Sensitivity | 89 dB |
SPL Max | 117 dB |
Dispersion | 120º x 60º (H x V) |
Configuration | Portable line array column speaker with 12" powered subwoofer PA system, DSP |
Transducer | LF: 1 x 12" woofer, HF: 8 x 3" full-range |
Voice Coil | 2.5" VC (4 layers) |
Magnet | 60 oz |
Impedance | Subwoofer: 4Ω, Column Array Speaker: 8Ω |
Power Handling | 400W RMS / 800W peak |
Cabinet Construction | ABS |
Mounting | 1 spacer (included) |
Finish | Textured plastic |
Grill & Rigging Component | Steel with anti-corrosion coat |
Amplifier | Class-D |
Input | 2 Channel XLR / 1/4" Combo, (1 with line/mic switch), MP3, USB/SD, TWS Bluetooth |
Output | XLR (mix line out) |
Control | DSP (preset select), Master Volume |
Indicator | Power, limit, live, speech, music |
Voltage | 100V-240V (50-60 Hz) |
Dimension & Weight
Product Width (in.) | 14.8" | Package Width (in.) | 21.3" |
Product Height (in.) | 70.8" (w/ spacer) | Package Height (in.) | 22.0" |
Product Depth (in.) | 20.0" | Package Depth (in.) | 21.3" |
Product Weight (lb.) | 46.0 lbs | Package Weight (lb.) | 56.8 lbs |
Warranty/Certifications
Manufacturer Warranty | 1 Year |
