CARPO-L1SWM01 | Portable PA/DJ System w/ 8" Powered Subwoofer, One 4 x 2.5" Column Speaker and Two UHF Wireless Microphones
- DESCRIPTION
- FEATURES
- SPECIFICATIONS
- REVIEWS
The Sound Town CARPO-L1SWM01 combo set includes:
- (1) CARPO-L1 Portable Line Array Column PA/DJ System
- (1) SWM01-U2HH Portable & Rechargeable Wireless Microphones w/ Built in Effects
The CARPO-L1SWM01 is a portable all-in-one PA speaker system that you can carry around from gig to gig. With a customized 8“ powered subwoofer and a column speaker with four 2.5” full-range drivers, it delivers rich bass and crisp highs. All drivers are positioned at precise angles and the the speaker provides great sound coverage. There are also two height spacers included that allows you to adjust the height of the array speaker. The two rechargeable UHF handheld wireless microphones with built-in effects, allows you to adjust echo, treble or bass with the buttons on the mics. It is a professional-quality portable PA system for a great-sounding show.
The system has a built-in 3-channel mixer and comes with two 1/4“ and XLR inputs (MIC/Line switchable), one 3.5mm Aux in and Mix-out, enabling you to connect your guitar and portable media player directly; Built-in MP3 module support USB/SD inputs. The speaker is equipped with Bluetooth 5.0 and so you can stream music from your Bluetooth enabled devices.
The True Wireless Stereo (TWS) function allows you to pair two CARPO-L1 speakers at the same time for even more powerful real stereo sound. It is ideal for live performance, speech, movie night and venues such as home, coffee house, auditorium and etc.

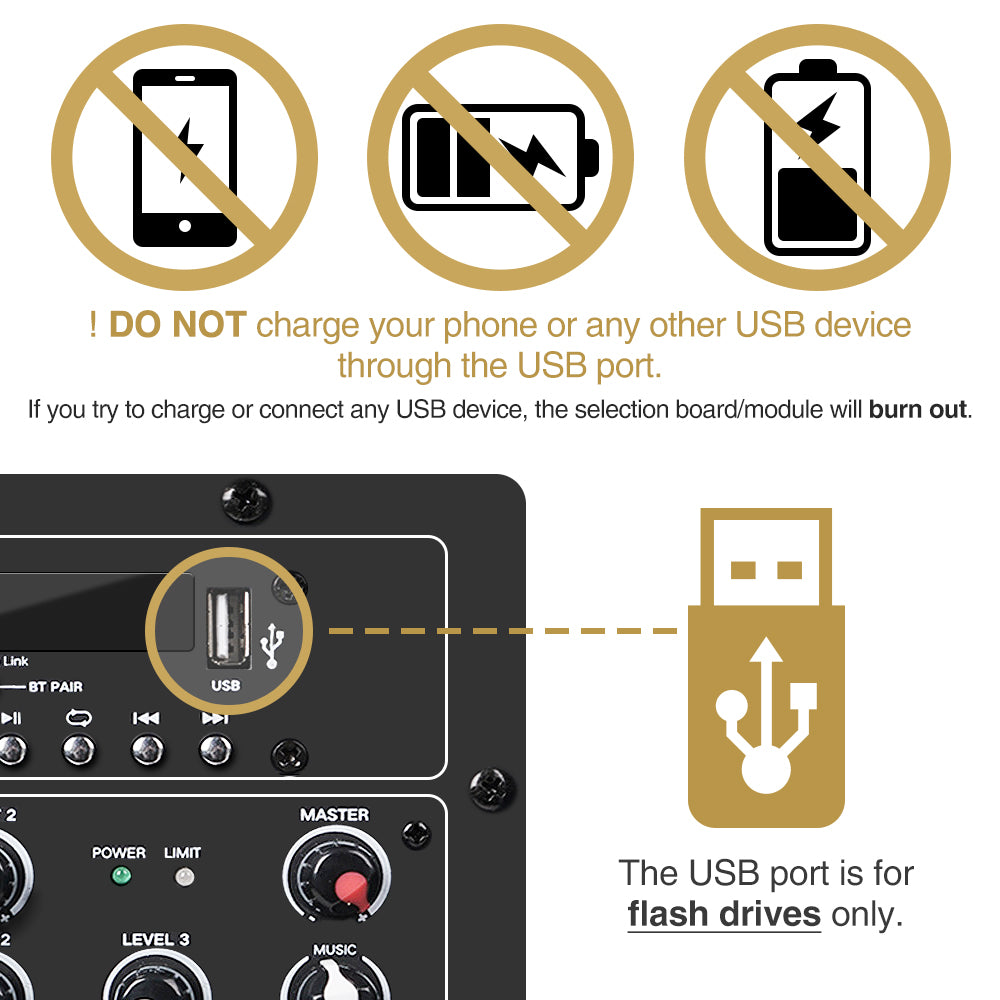

Important! The USB port on this product is designed ONLY for connecting a flash drive to play music. DO NOT attempt to use it to charge any device, as it may cause damage to the amplifier.
- ALL-IN-ONE SYSTEM: This bundle contains 1 x Sound Town CARPO-L1 line array column PA/DJ system and 1 x SWM01-U2 UHF rechargeable wireless microphone system. The CARPO-L1 includes one 8“ powered subwoofer and one 4 x 2.5” full-range column speaker which deliver rich bass and crisp highs; All drivers are positioned at precise angles and provides great sound coverage. The SWM01-U2 includes one mini portable mic receiver and 2 x handheld UHF microphones with built-in effect.
- LIGHTWEIGHT AND EASY TO SET UP: The system is compact and light enough to carry around and can be set up in seconds. Better yet, with a carry bag for the spacers and column speaker, the whole system can be easily transported from gig to gig.
-
GREAT FLEXIBILITY AND CONTROL: The system has a built-in 3-channel mixer and comes with two 1/4“ and XLR inputs (MIC/Line switchable), one 3.5mm Aux in and Mix-out respectively; Built-in MP3 module support USB/SD inputs as well, enabling you to connect your guitar and portable media player. When plug in the SWM01-U2 mic receiver, you can start your play in a breeze just with this one system.
Important! The USB port on this product is designed ONLY for connecting a flash drive to play music. DO NOT attempt to use it to charge any device, as it may cause damage to the amplifier.
- TWS BLUETOOTH EQUIPPED: The speaker is equipped with Bluetooth 5.0 and so you can stream music from your Bluetooth enabled devices. The True Wireless Stereo (TWS) function allows you to pair two CARPO-L1 speakers at the same time for even more powerful real stereo sound.
- VERSATILE APPLICATIONS: With an all-in-one mixer, versatile input and output connectors, top-quality woofer and full-ranger drivers positioned at optimized angles, the Sound Town CARPO-L1SWM01 array speaker PA system is ideal for live performance, speech, movie night and venues such as home, coffee house, auditorium and etc.
Specifications
Model | CARPO-L1 |
Active / Passive | Active |
Frequency Range | 40 Hz - 20 kHz |
Frequency Response | 45 Hz - 20 kHz |
Sensitivity | 120 dB |
SPL Max | 143 dB |
Dispersion | 120º x 60º (H x V) |
Configuration | Portable line array column speaker with powered subwoofer PA system |
Transducer | LF: 1 x 8" woofer, HF: 4 x 2.5" full-range |
Voice Coil | 2" VC |
Magnet | 30 oz |
Impedance | Subwoofer: 2Ω, Column Array Speaker: 4Ω |
Power Handling | 200W RMS / 400W peak |
Cabinet Construction | ABS |
Mounting | 2 spacers (included) |
Finish | Textured plastic |
Grill & Rigging Component | Steel with anti-corrosion coat |
Amplifier | Class-D |
Input | 2 x XLR, 2 x 1/4" (line/mic input), 1/8" AUX, MP3, TWS Bluetooth |
Output | XLR (mix line out) |
Control | Effect, bass boost, level, master volume |
Indicator | Power, limit |
Voltage | 100V-240V (50-60 Hz) |
Dimension & Weight
Product Width (in.) | 13.0" | Package Width (in.) | 19.7" |
Product Height (in.) | 73.6" (w/ spacers) | Package Height (in.) | 23.6" |
Product Depth (in.) | 13.8" | Package Depth (in.) | 18.1" |
Product Weight (lb.) | 32.0 lbs | Package Weight (lb.) | 37.6 lbs |
Warranty/Certifications
Manufacturer Warranty | 1 Year |
